INDESIT DIC 3B+16 AC S Daily Reference Guide

DAILY REFERENCE

GUIDE

THANK YOU FOR BUYING A INDESIT PRODUCT.

In order to receive a more complete assistance, please register your appliance on: www.indesit.com/register

Before using the appliance carefully read Safety Instructions.

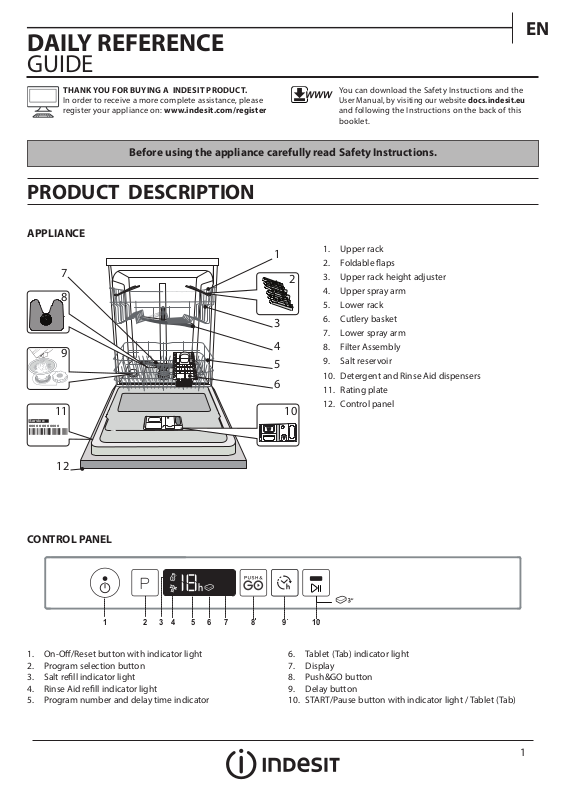

PRODUCT DESCRIPTION

APPLIANCE

Service:

0000 000 00000

You can download the Safety Instructions and the User Manual, by visiting our website docs.indesit.eu and following the Instructions on the back of this booklet.

1. Upper rack

2. Foldable aps

3. Upper rack height adjuster

4. Upper spray arm

5. Lower rack

6. Cutlery basket

7. Lower spray arm

8. Filter Assembly

9. Salt reservoir

10. Detergent and Rinse Aid dispensers

11. Rating plate

12. Control panel

CONTROL PANEL

1 2 3

1. On-O/Reset button with indicator light

2. Program selection button

3. Salt rell indicator light

4. Rinse Aid rell indicator light

5. Program number and delay time indicator

6 7 8 109

6. Tablet (Tab) indicator light

7. Display

8. Push&GO button

9. Delay button

10. START/Pause button with indicator light / Tablet (Tab)

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine’s functional components.

• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.

• It is important to set the water hardness. The salt reservoir is located in the lower part of the dishwasher

(see PRODUCT DESCRIPTION) and must be lled when the SALT REFILL indicator light in the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).

2. Only the rst time you do this: ll the salt reservoir with water.

3. Position the funnel (see gure) and ll the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier. The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.

• Switch o the appliance by pressing the ON/OFF button.

• Hold down button P for 5 seconds, until you hear a beep.

• Switch on the appliance by pressing the ON/OFF button.

• The current selection level number and the salt indicator light both ash.

• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table

Level

1 Soft 0 - 6 0 - 10 0 - 7

2 Medium 7 - 11 11 - 20 8 - 14

3 Average 12 - 16 21 - 29 15 - 20

4 Hard 17 - 34 30 - 60 21 - 42

5 Very hard 35 - 50 61 - 90 43 - 62

• Switch o the appliance by pressing the ON/OFF button.

Setting is complete! As soon as this procedure is complete, run a program without loading.

Only use salt that has been specically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches o.

If the salt container is not lled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

°dH

German degrees

°fH

French degrees

°Clark

English degrees

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be lled when the RINSE AID REFILL indicator light in the control panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.

2. Pour in the rinse aid (max.110 ml), making sure it does not overow from the dispenser. If this happens, clean the spill immediately with a dry cloth.

3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satised with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.

• Switch it o using the ON/OFF button.

• Press button P three times - a beep will be heard.

• Switch it on using the ON/OFF button.

• The current selection level number and rinse aid indicator light ash.

• Press button P to select the level of rinse aid quantity to be supplied.

• Switch it o using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specic to the model, please follow instruction above to check this for your machine.

• If you see bluish streaks on the dishes, set a low number (1-2).

• If there are drops of water or limescale marks on the dishes, set a

mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.

2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.

3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program. If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program

1. Eco 50°

2. Intensive 65°

3. Mixed 55°

4. Fast&Clean 28’ 45°

5. Pre-Wash

6. Half Load 50°

7. Push&GO 50°

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2019. Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: assistenza_en_lvs@indesitcompany.com Pre-treatment of the dishes is not needed before any of the programs. *) Not all options can be used simultaneously. **) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature

and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

- -

Drying

phase

Available options

Duration of

wash program

**)

(h:min)

3:20 12.0 1.04

2:30 15.0 1.50

2:00 15.0 1.35

0:28 9.0 0.50

0:10 4.5 0.01

1:20 12.0 1.10

1:25 11.5 1.10

Water

consumption

(litres/cycle)

Energy

consumption

(kWh/cycle)

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most ecient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

3 MIXED

Mixed soil. For normally soiled dishes with dried food residues

4 FAST&CLEAN 28’

Program to be used for half load of lightly-soiled dishes with no dried food residues Does not have drying phase

5 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

6 HALF LOAD

Ideal for washing a half load of lightly or normally soiled crockery.

7 PUSH&GO

Everyday wash and dry cycle that ensures great cleaning performance in a short time without the need to pre-treat dishes.

Notes:

Please note that cycle Fast&Clean is dedicated for lightly soiled dishes.
