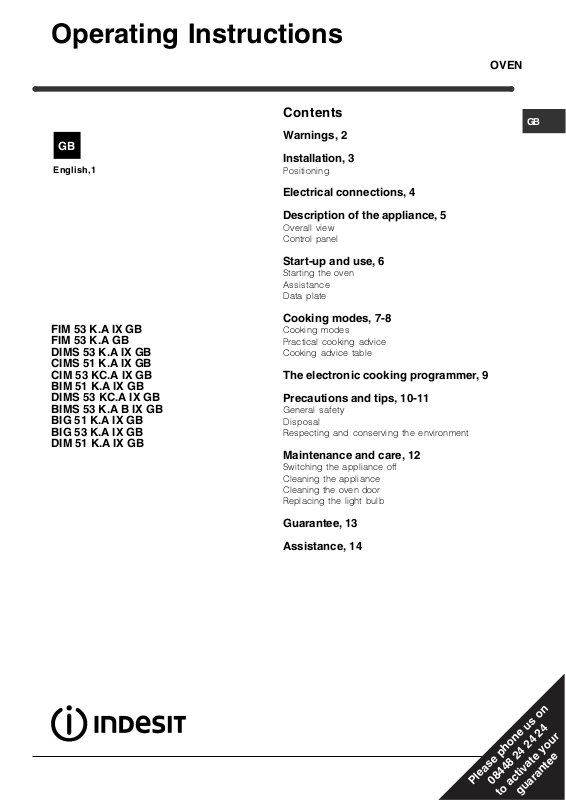

Operating Instructions

OVEN

English,1

FIM 53 K.A IX GB FIM 53 K.A GB DIMS 53 K.A IX GB CIMS 51 K.A IX GB CIM 53 KC.A IX GB BIM 51 K.A IX GB DIMS 53 KC.A IX GB BIMS 53 K.A B IX GB BIG 51 K.A IX GB BIG 53 K.A IX GB DIM 51 K.A IX GB

Contents

Warnings, 2

Installation, 3

Positioning

Electrical connections, 4

Description of the appliance, 5

Overall view Control panel

Start-up and use, 6

Starting the oven Assistance Data plate

Cooking modes, 7-8

Cooking modes Practical cooking advice Cooking advice table

The electronic cooking programmer, 9

Precautions and tips, 10-11

General safety Disposal Respecting and conserving the environment

Maintenance and care, 12

Switching the appliance off Cleaning the appliance Cleaning the oven door Replacing the light bulb

Guarantee, 13

Assistance, 14

08448 24 24 24

Please phone us on

guarantee

to activate your

Warnings

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Never use steam cleaners or pressure cleaners on the appliance.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Installation

560 mm.

45 mm.

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard. (see Precautions and tips).

! The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the appliance functions properly.

• The panels adjacent to the oven must be made of heat-resistant material.

Ventilation

To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Centring and fastening

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame.

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

• to install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions:

547 mm. min.

23 mm.

595 mm.

5 mm.

595 mm.

545 mm.

24 mm.

45 mm.

560 mm.

575-585 mm.

567 mm.

! The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation.

! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

GREEN & YELLOW

BROWN

BLUE

13 amp fuse

CROSS-BAR CORD GRIP

Electrical connection

! Ovens with a three-pole power supply cable are designed to operate with alternated current at the supply frequency and voltage indicated on the data plate (at the bottom of the oven dashboard). The earthing conductor of the cable is the yellow-green conductor.

Two types of connection are provided:Two types of connection are provided:

Two types of connection are provided:

Two types of connection are provided:Two types of connection are provided:

Connect Brown wire to terminal marked “L” or coloured Red. Connect Blue wire to terminal marked “N” or coloured Black. If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse. A 15 amp plug must be protected by a 15 amp fuse, either in the plug or adaptor or at the distribution board.If you are in any doubt about the electrical supply to your machine, consult a qualified electrician before use.

Connection n° 1

Connecting the power supply cable to the mains.

Fit a normalized plug to the cable, which corresponds to the load indicated on the data plate; if the cooker is connected directly to the mains, an omnipolar circuit-breaker with a minimum opening of 3 mm between the contacts, suitable for the load indicated and complying with current directives, must be installed between the appliance and the mains (the earthing wire must not be interrupted by the circuit-breaker). The power supply cable must be positioned so that it does not exceed room temperature by 50°C at any point of its length. Before making the connection check that:

• the circuit breakers or fuses of the home system

can support appliance load (see data plate);

• the power supply system has an efficient earthing

connection which complies with the provisions of current regulations and the law;

• there is easy access to the socket or the

omnipolar circuit-breaker once the cooker has

been installed. ! do not use reducers, adapters or shunts as these could cause heating or burning.

How to connect an alternative plug

The wires in this mains lead are coloured in accordance with the following code:

BLUE“NEUTRAL” (N) BROWN “LIVE” (L) GREEN AND YELLOW “EARTH” (E)

Disposing of the appliance

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

The plug and socket must be easily accessible.The plug and socket must be easily accessible.

The plug and socket must be easily accessible.

The plug and socket must be easily accessible.The plug and socket must be easily accessible.

Connection n° 2

Disposing of the plug.

THIS APPLIANCE MUST BE EARTHED.THIS APPLIANCE MUST BE EARTHED.

THIS APPLIANCE MUST BE EARTHED.

THIS APPLIANCE MUST BE EARTHED.THIS APPLIANCE MUST BE EARTHED.

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket. Instructions for connecting cable to an alternative plug: ! the wires in the mains lead are coloured in accordance with the following code: Green & Yellow -Earth Blue -Neutral Brown -Live If the colours of the wires in the mains lead do not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. Connect Green & Yellow wire to terminal marked “E” or 6 or coloured Green or Green & Yellow.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

Description of the appliance

Overall view

Control panel

SELECTOR

Control panel

GRILL

DRIPPING PAN

knob

THERMOSTAT

knob

GUIDES for the sliding racks

position 5

position 4 position 3 position 2 position 1

THERMOSTAT

indicator light

SELECTOR

knob

* Only on a few models

ELECTRONIC programmer*

TIMER

knob*

THERMOSTAT

knob

THERMOSTAT

indicator light

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
