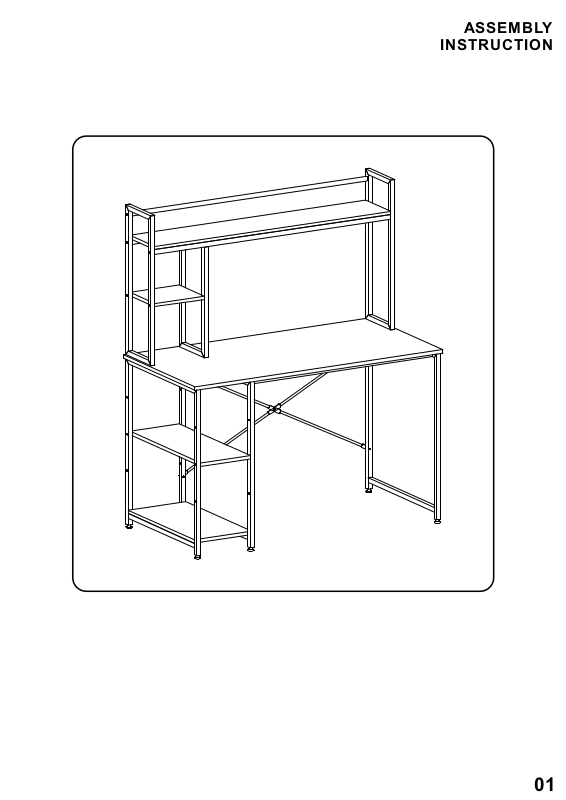

ASSEMBLY
INSTRUCTION
01
HELPFUL HINTS
ASSEMBLY TIP
BEFORE YOU START
Read through each step carefully and follow the proper order
by reading this installation instructions.
Separate and count all your parts on a clean surface to
check if the tags and numbers are correct.
Give yourself enough room for the assembly process.
CAUTION
If using a power drill or power screwdriver for screwing
please be aware to slow down and stop when screw is tight
Failure to do so may result in stripping the screw.
PEOPLE NEEDED FOR ASSEMBLY:1-2
ESTIMATED ASSEMBLY TIME:1HOUR
Open your item in the area you plan to keep it to avoid
excessive heavy lifting.
Identify, sort and count the parts before attempting assembly.
Check the product packaging ,whether the appearance is good.
According to the product drawing, determine the product
installation position and install according to the correct steps.
Do NOT use harsh chemicals or abrasive cleaners on this item.
Carefully push, pull, or drag your furniture.
INSTALLATION POINTS
UNIT:INCH
02
PARTS LIST
×1
×1 ×1
×1
×1 ×1
×1
×1 ×1
×1 ×1
×2 ×2×1
×2
03
ACCESSORIES LIST
STEP 1
You can install the shelf board in different
※
height to meet your need. Do not tighten
the screws before step 11 finished.
STEP 2
04
STEP 3
Attention: Please make sure correct screws
is used in different parts.
※ Do not tighten the screws before step 11
Do not tighten the screws in
finished.
Attention: Please make sure correct screws
is used in different parts.
※ Do not tighten the screws before step 11
Do not tighten the screws in
finished.
this step
this step
STEP 4
STEP 5
05
Attention: Please make sure correct screws
is used in different parts.
※ Do not tighten the screws before step 11
Do not tighten the screws in
finished.
※Tighten the screws in this step.
this step
STEP 6
STEP 7
Attention: Please make sure correct screws
is used in different parts.
※ Do not tighten the screws before step 11
Do not tighten the screws in
finished.
this step
STEP 8
06
Attention: Please make sure correct screws
is used in different parts.
※ Do not tighten the screws before step 11
Do not tighten the screws in
finished.
this step
STEP 9
STEP 10
※ This step requires 2 people, one to
hold the board and one to screw on.
※Tighten the screws in this step.
Tighten all screws for in this
※
step when there is not gap.
STEP 11
07
