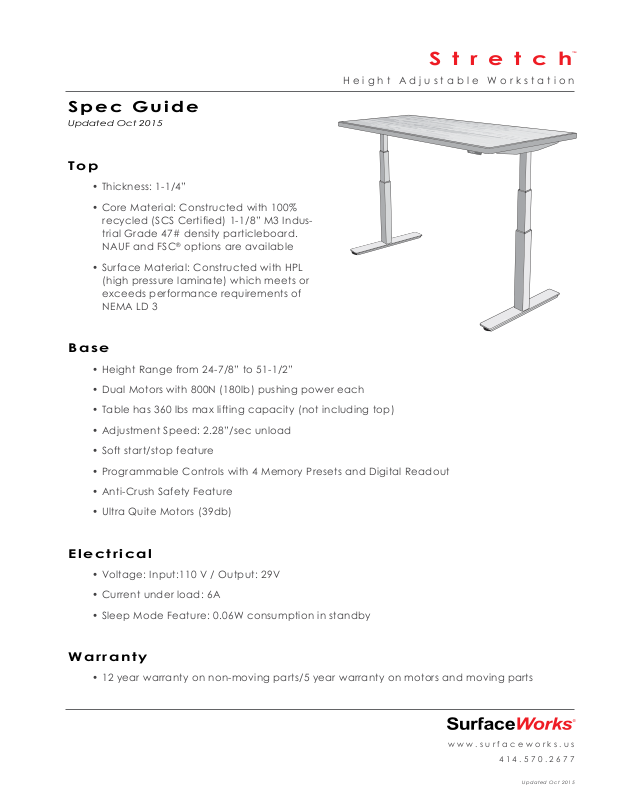

Spec Guide
Updated Oct 2015
Top
• Thickness: 1-1/4”
• Core Material: Constructed with 100%
recycled (SCS Certified) 1-1/8” M3 Industrial Grade 47# density particleboard.
NAUF and FSC® options are available
• Surface Material: Constructed with HPL
(high pressure laminate) which meets or
exceeds performance requirements of
NEMA LD 3
™
Stretch
Height Adjustable Workstation
Base
• Height Range from 24-7/8” to 51-1/2”
• Dual Motors with 800N (180lb) pushing power each
• Table has 360 lbs max lifting capacity (not including top)
• Adjustment Speed: 2.28”/sec unload
• Soft start/stop feature
• Programmable Controls with 4 Memory Presets and Digital Readout
• Anti-Crush Safety Feature
• Ultra Quite Motors (39db)
Electrical
• Voltage: Input:110 V / Output: 29V
• Current under load: 6A
• Sleep Mode Feature: 0.06W consumption in standby
Warranty
• 12 year warranty on non-moving parts/5 year warranty on motors and moving parts
www.surfaceworks.us
414.570.2677
Updated Oct 2015
