Inalto IWCD46, IBC178 User Manual

USER MANUAL INALTO.COM.AU

Wine Chiller &

Beverage Centre

—

MODEL CODE/S

IWCD46, IBC178

A HIGHER LEVEL OF COOKING

Wine Chiller &

Beverage Centre

—

MODEL CODE/S

IWCD46, IBC178

--CONTENTS--

01 IMPORTANT SAFETY INFORMATION
03 SCRAPPING OLD APPLIANCES

04 Conformity
04 Energy Saving
04 Service

05 DESCRIPTION OF APPLIANCE AND INSTALLATION

05 145L Control In Cabinet-Height:81.3cm

06 ACCESSORY INSTALLATION BEFORE OPERATING

06 UNPACKING AND CLEANING THE WINE COOLER
06
07 Installing The Handle
07 LOCK & UNLOCK THE DOOR (FOR OPTION)

07 OPERATING THE WINE COOLER

07 WORKING CLIMATE
08 WINE STORAGE
09 CONTROL PANEL (Control In Cabinet)
09 POWER ON/OFF CONTROL
10 UNLOCKING THE CONTROL PANEL
10 INTERIOR LIGHTING ON/OFF CONTROL
10 TEMPERATURE DISPLAY WINDOW
10 TEMPERATURE RANGE SETTING
11 TEMPERATURE SETTING
12 SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY

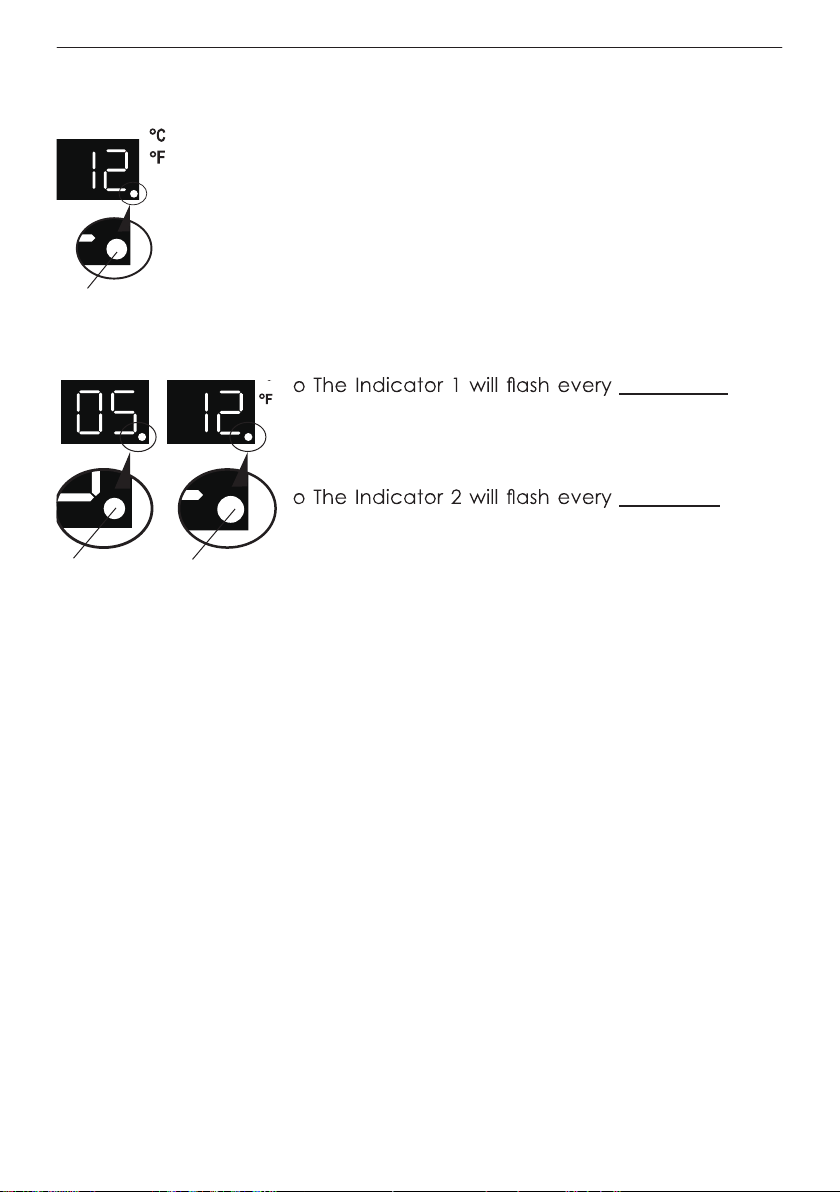

13 FUNCTION INDICATING LIGHT

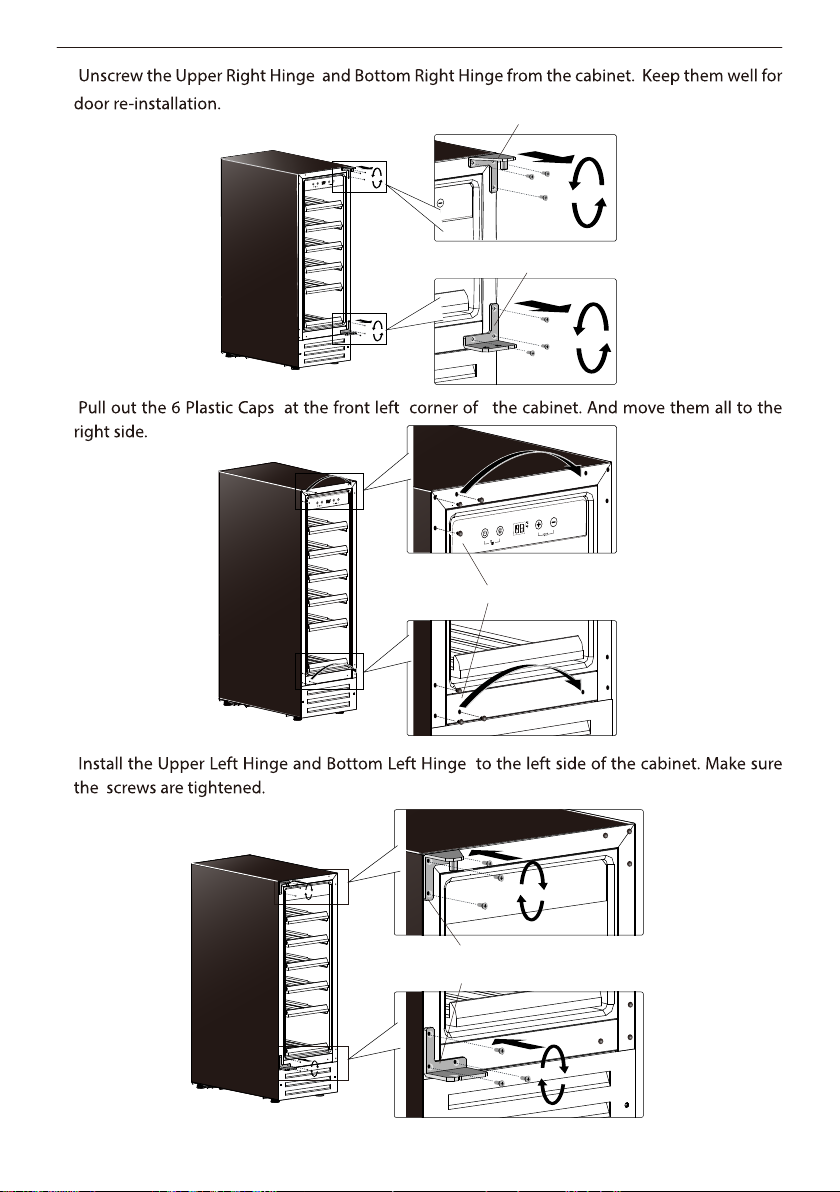

14 REVERSE THE DOOR SWING

14 For IWCD46/IBC178 Control in Cabinet

17 CARE AND MAINTENANCE

17 CLEANING THE WINE COOLER

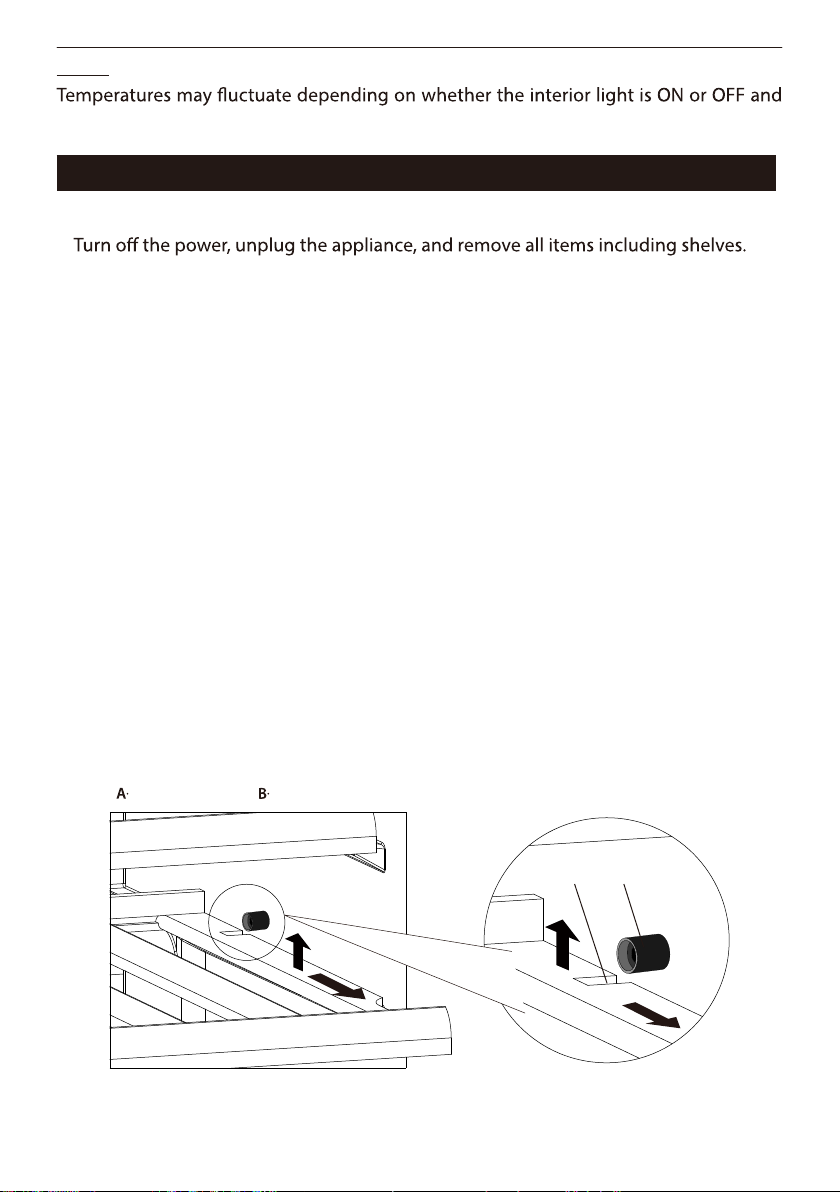

17 REMOVING THE SHELVES
18 Carbon Filter Change (Option)
18 Defrosting
19 Moving Your Wine Cooler
19 Power Failure
19 Vacation Time
19 Disconnecting From Power

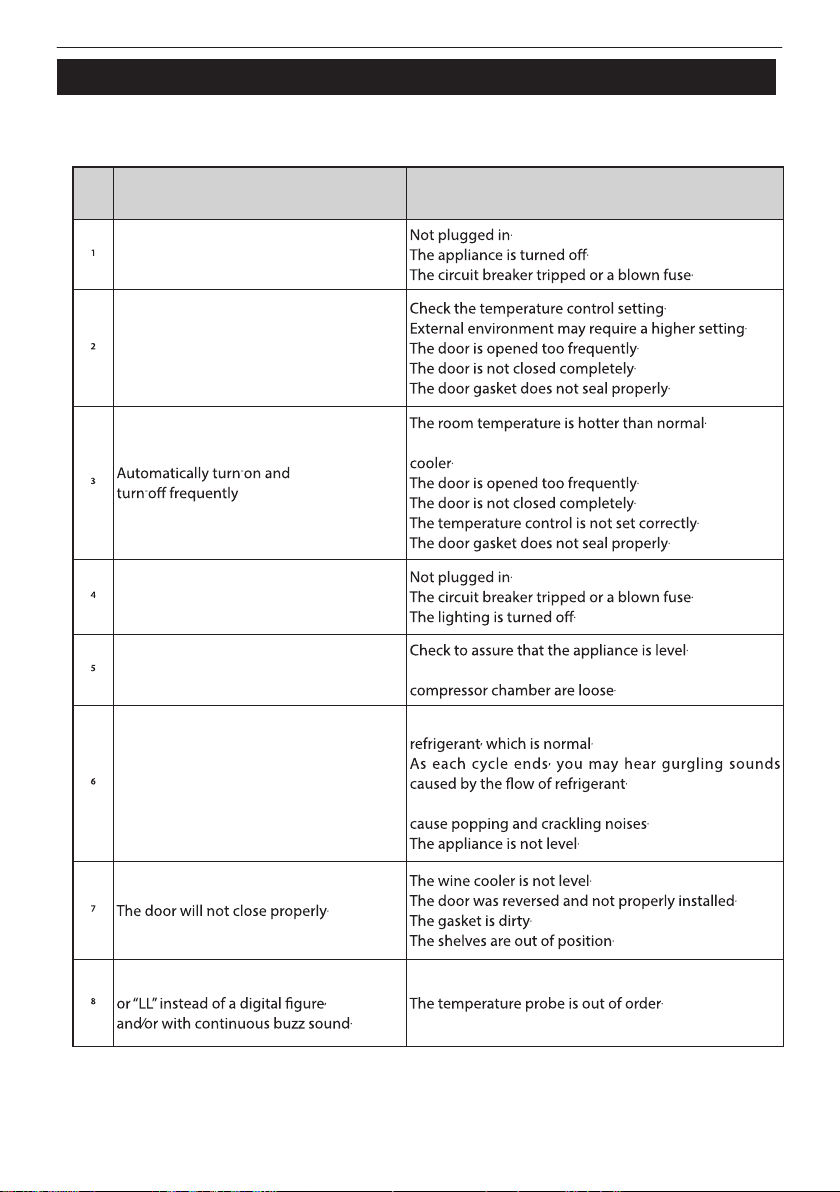

20 TROUBLESHOOTING

INSTRUCTION MANUAL

Please removed all packaging, stickers and films from the products surface and clean the

•

product’s surfaces with a damp cloth and mild deturgent before using for the first time.

Let the appliance stand upright for approximately 24 hours before connecting it to the

•

power source, which helps to reduce the possibility of a cooling-system malfunction from
handling during transportation.

Before using your Wine Coolers, please carefully read this instruction manual
in order to maximize its performance. Store all documentation for subsequent
use or for other owners.This product is intended solely for household use or similar
applications such as:

--the kitchen area for personnel in shops, oces and other working environments

--on farms, by clientele of hotels, motels and other environments of a residential type

--at bed and breakfasts (B & B)

--for catering services and similar applications not for retail sale.
This appliance is intended to be used exclusively for the storage of wine or beverage,
any other use is considered dangerous and the manufacturer will not be responsible for
any omissions. Also, it is recommended that you take note of the warranty conditions.

IMPORTANT SAFETY INFORMATION

The Wine Coolers contains a refrigerant gas (R600a: isobutane)
and insulating gas (cyclopentane), with high compatibility with the
environment, that are, however, inammable.
We recommend that you follow the following regulations so as to avoid
situations dangerous to you:

Before performing any operation, unplug the power cord from the power
socket.

● The refrigeration system positioned behind and inside the Wine Coolers

contains refrigerant. Therefore, avoid damaging the tubes.

● If in the refrigeration system a leak is noted, do not touch the wall outlet

and do not use open ames. Open the window and let air into the room.

Then call a service centre to ask for repair.

● Do not scrape with a knife or sharp object to remove frost or ice that

occurs. With these, the refrigerant circuit can be damaged, the spill

from which can cause a re or damage your eyes.

● Do not install the appliance in humid, oily or dusty places, nor expose it

to direct sunlight and to water.

● Do not install the appliance near heaters or inammable materials.

● Do not use extension cords or adapters.

.01.

INSTRUCTION MANUAL

● Do not excessively pull or fold the power cord or touch the plug with wet

hands.

● Do not damage the plug and/or the power cord; this could cause electrical
shocks or res.

● It is recommended to keep the plug clean, any excessive dust residues on
the plug can be the cause re.

● Do not use mechanical devices or other equipment to hasten the defrosting

process.

● Absolutely avoid the use of open ame or electrical equipment, such as

heaters, steam cleaners, candles, oil lamps and the like in order to speed
up the defrosting phase.

● Do not use or store inflammable sprays, such as spray paint, near the
Wine Coolers. It could cause an explosion or  re.

● Do not use electrical appliances inside the food storage compartments,

unless they are of the type recommended by the manufacturer.

● Do not place or store inflammable and highly volatile materials such

as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure
alcohol, etc. These materials may cause an explosion.

● Do not store medicine or research materials in the Wine Coolers. When
the material that requires a strict control of storage temperatures is to

be stored, it is possible that it will deteriorate or an uncontrolled reaction
may occur that can cause risks.

● Maintain the ventilation openings in the appliance enclosure or in the

built-in structure, free of obstruction.

● Do not place objects and/or containers lled with water on the top of the

appliance.

● Do not perform repairs on this Wine Coolers. All interventions must be
performed solely by qualied personnel.

● This appliance can be used by children aged from 8 years and above

and by persons with reduced physical, sensory or mental capabilities or

with a lack of experience and knowledge; provided that they have been
given adequate supervision or instruction concerning how to use the

appliance in a safe way and understand the hazards involved.

● Children should not play with the appliance. Cleaning and user

maintenance should not be made by children without supervision

● This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

.02.

INSTRUCTION MANUAL

Children should be supervised to ensure that they do not play with the

appliance.

● The appliance must be positioned so that the plug is accessible

● If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.

● The appliance shall not be installed in the laundry

● GWP for R600a: 3

● Do not store explosive substances such as aerosol cans with a ammable

propellant in this appliance.

– WARNING: Keep ventilation openings, in the appliance enclosure or in

the built-in structure, clear of obstruction.

– WARNING: Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the
manufacturer.

– WARNING: Do not damage the refrigerant circuit.
– WARNING: Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type
recommended by the manufacturer

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU
on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative

consequences for the environment) and basic components (which can
be re-used). It is important to have WEEE subjected to specic treatments,

in order to remove and dispose properly all pollutants, and recover and
recycle all materials.
Individuals can play an important role in ensuring that WEEE does not

become an environmental issue; it is essential to follow some basic rules:

--WEEE should not be treated as household waste;

--WEEE should be handed over to the relevant collection points managed

by the municipality or by registered companies. In many countries, for
large WEEE, home collection could be present.

.03.

INSTRUCTION MANUAL

In many countries, when you buy a new appliance, the old one may be
returned to the retailer who has to collect it free of charge on a one-to-one
basis, as long as the equipment is of equivalent type and has the same
functions as the supplied equipment.

Conformity

By placing the marking on this product, we declare, on our own responsibility,
compliance to all of European safety ,health and environmental requirements stated in

the legislation for this product.

Energy Saving

--Always ensure good ventilation. Do not cover ventilation opening or grille.

--Always keep fan louvers clear.

--Do not place appliance in areas of direct sunlight or close to a stove,
heather or similar object.

--Open or keep the doors open as little as possible

--Remove dust present on the rear of the appliance

Service

● You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Customer Care Department

INSTRUCTION MANUAL

DESCRIPTION OF APPLIANCE AND INSTALLATION

The following pictures only show description of appliance. The dimension and shelf

145L Control In Cabinet-Height:81.3cm

IBC178 Beverage 178Cans Single Zone

Control Panel

Long Shelf

Short Shelf

Front Louver

Long Shelf
Control Panel

Short Shelf

Front Louver

IWCD46 46Bottles Dual Zone

Outside Canbinet

Outside Canbinet

Height Adjustable:

•

Door

Handle

Gasket

Adjustable
Foot

Door

Handle

Gasket

Adjustable
Foot

m813 833m-

INSTRUCTION MANUAL

ACCESSORY INSTALLATION BEFORE OPERATING

UNPACKING AND CLEANING THE WINE COOLER

Remove the exterior and interior packing materials.

•

Let the appliance stand upright for approximately

•

it to the power source, which helps to reduce the possibility of a cooling-system
malfunction from handling during transportation.
Use a soft cloth to clean the interior surface with lukewarm water.

•

IMPORTANT: The front louver at the base of the appliance is for ventilation. Nothing
should be placed in front of this front louver; otherwise your Wine Cooler may not
operate properly.

o

should be made in the plinth with bigger size than the front louver. The
cut out is required whether the front louver is removed or not.

24 hours

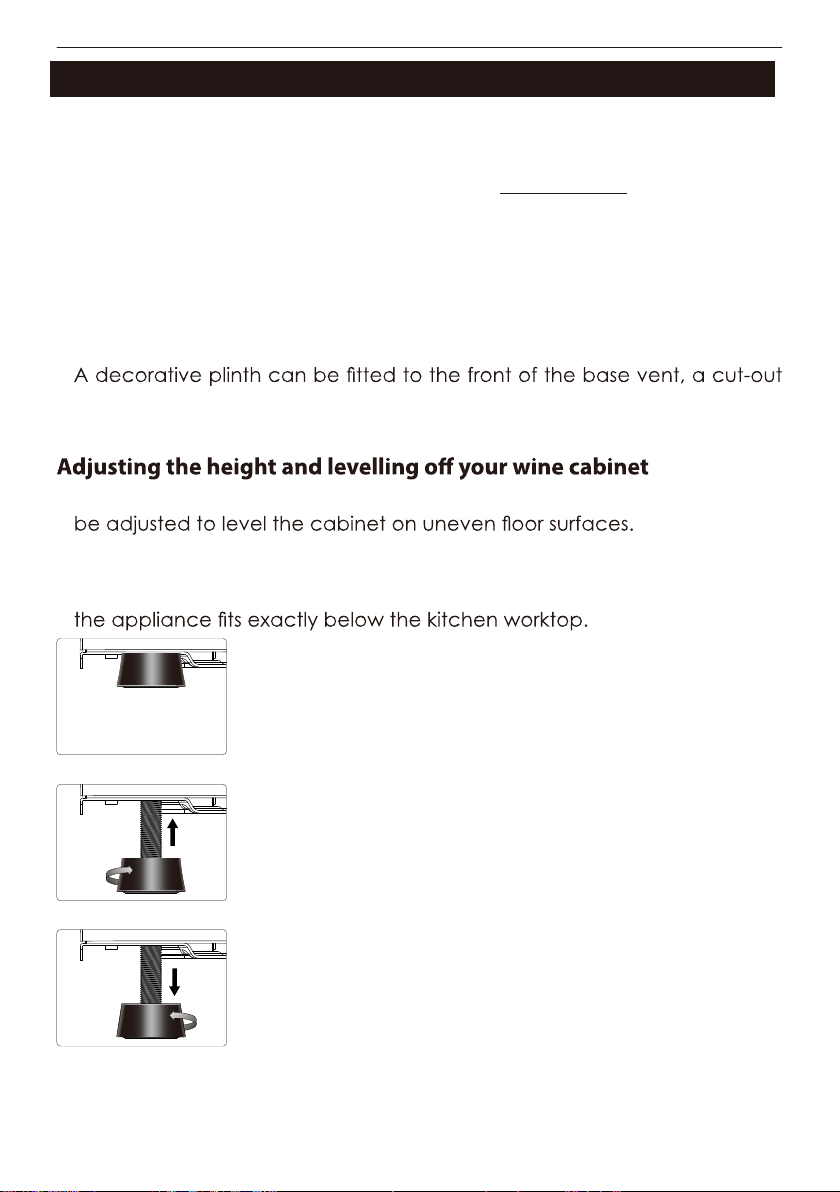

o The appliance is equipped with adjustable feet, so that the height may

o We recommend that two people carry out this procedure.
o The height must be adjusted prior to building the appliance into the

housing unit and it should be set at such a height that the top panel of

before connecting

o Tilt the appliance approximately 60° to allow access
to the adjustable feet.
o Take care to ensure the cabinet is supported at all
times.

o Twist the foot into a suitable position to level the
cabinet.

o Repeat these steps for the other adjustable feet.

.06.

INSTRUCTION MANUAL

Gasket

Washer

Handle Screws

Handle

IMPORTANT: If the appliance is not level, then the door and door seal may be

IMPORTANT: Do not move the appliance when the feet are adjusted high.

Installing The Handle

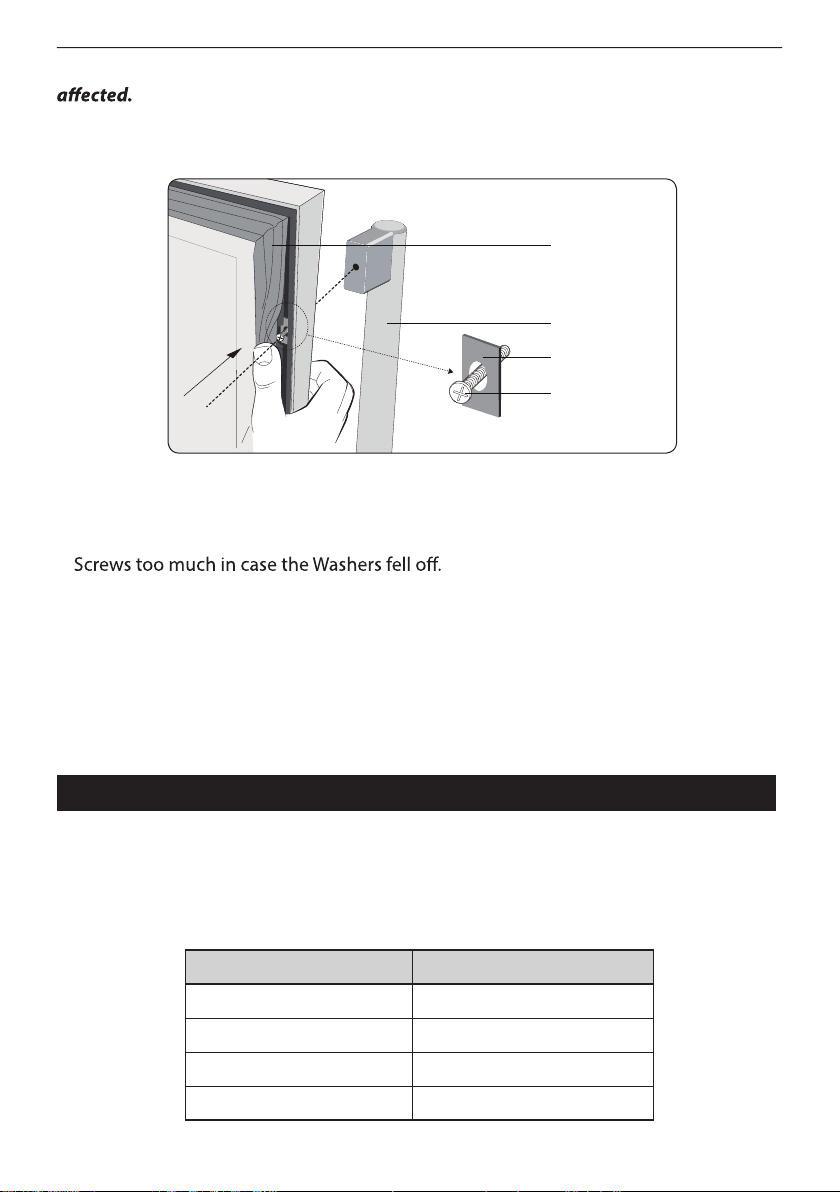

● Remove the door Gasket slightly to expose the two screw holes.

●Fix the Handle by screwing the two Handle Screws tightly, the Handle Screws with
Washers are pre-installed inside the screw holes, pls.do not unscrew the Handle

● Replace the Gasket.

LOCK & UNLOCK THE DOOR (FOR OPTION)

●Lock is an optional function. If your Wine Cooler has such function, a key should be
attached inside the packing of this Manual.

●Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock
it, please turn clockwise. Please save the key well.

OPERATING THE WINE COOLER

WORKING CLIMATE

The appliance is designed for operating from SN to N climate (see below climate class

•

chart). It is recommended to maintain the ambient around 22-25°C which helps the
appliance working with low power consumption.

Klimaklasse Romtemperatur

SN 10 - 32 °C (50

N 16 - 32 °C (61

ST 16 - 38 °C (61

T 16 - 43 °C (61

.07.

ºF-90ºF)

ºF-90ºF)

ºF-100ºF)

ºF-109ºF)

INSTRUCTION MANUAL

If the ambient temperature is above or below the designed climate range, the

•

performance of the unit may be aected. For example, the appliance operating in

temperature set 5-22°C may not be reached sometimes.

WINE STORAGE

The standard shelves are designed per fectly for Bordeaux bottle storage. The

•

maximum loaded bottles may vary subject to the dierent size or dimension wine
bottles you store.

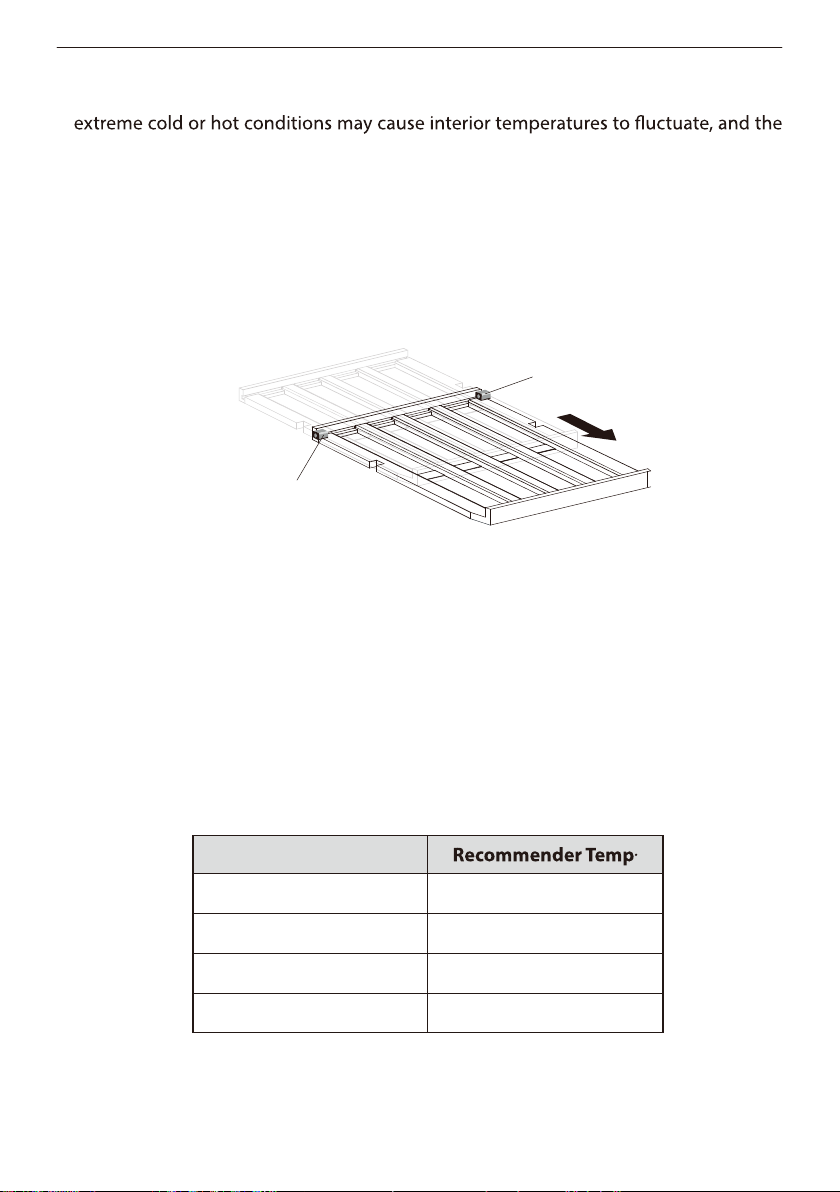

The shelves is allowed to be pulled out by about 1/3 length of it for easy access to the

•

wine storage.

Stopper

Stopper

To prevent damaging the door gasket, make sure to have the door opened fully all

•

the way before pulling the shelves out.
Please store wine in sealed bottles.

•

Do not cover the shelves with aluminum foil or any other shelf material which may

•

prevent air circulation.

Should the wine cooler be left empty for long periods it is suggested that the

•

appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to
circulate inside the cabinet in order to avoid possible condensation, mold or odours
forming.
Recommended temperatures for chilling/storing your wines.

•

Wine Type

Red Wines 15 - 18ºC (59ºF-64ºF)

Dry⁄White Wines 9 - 14ºC (48ºF-57ºF)

Rose Wines 10 - 11ºC (50ºF-52ºF)

Sparkling Wines 5 - 8ºC (41ºF-46ºF)

.08.

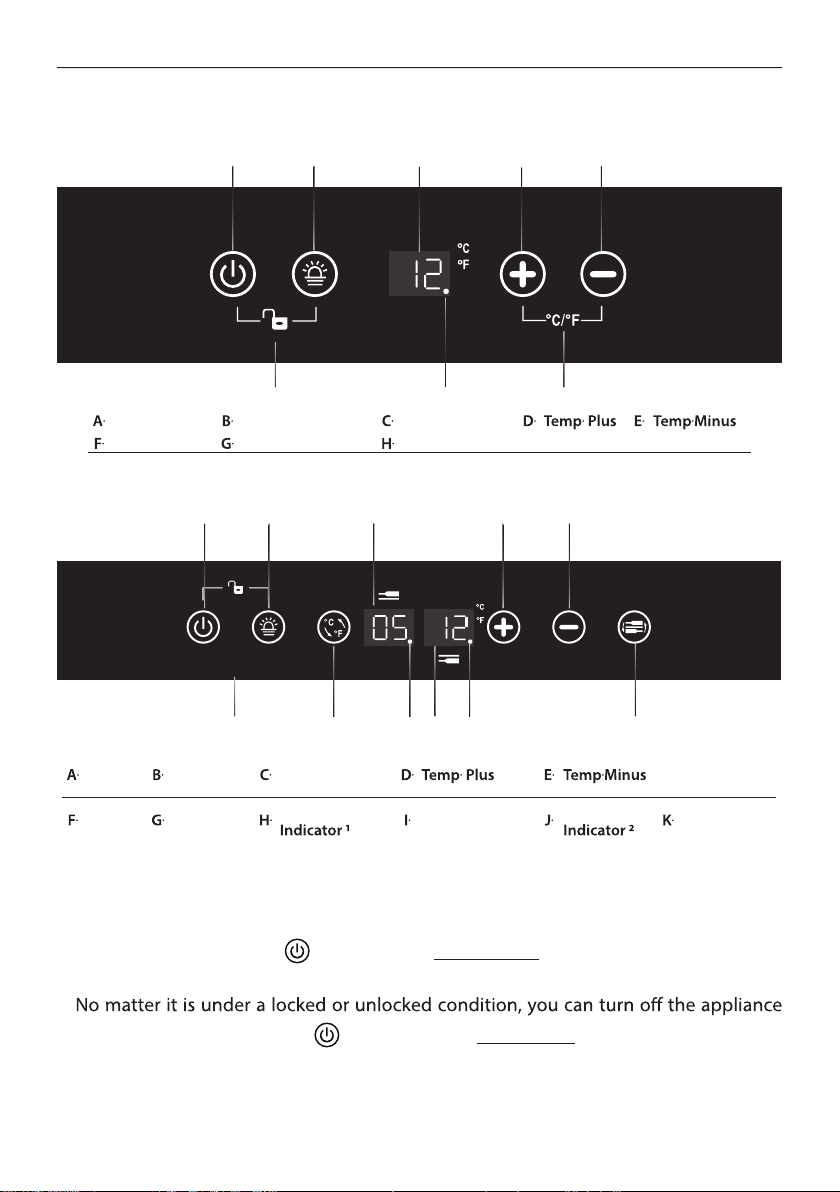

CONTROL PANEL (Control In Cabinet)

A B DC E

IBC178

•

A B DC E

INSTRUCTION MANUAL

F

Power Lighting Display Window
Lock ⁄ Unlock Function Indicator

IWCD46

•

F

Power Lighting

Lock⁄
Unlock

ºC/ºF

Switch

G H I J K

Upper Zone
Display Window

Function

G H

Switch

ºC/ºF

Lower Zone
Display Window

Function

Zone Select

POWER ON/OFF CONTROL

When the appliance is plugged in to a power outlet, it powers on automatically.

•

Touch the power mark and hold for 10 seconds to turn o (or turn on) the

•

appliance.

•

by touching the power mark

and holding for 10 seconds.

.09.

INSTRUCTION MANUAL

Warning: To avoid damaging the compressor, please do not turn on the
appliance again within 5 minutes

UNLOCKING THE CONTROL PANEL

To unlock the control panel, touch the power mark and lighting mark

•

will be heard.

The control panel will be automatically locked with a buzz sound heard after 10

•

seconds without being touched.
Under the locked condition, the control panel will not react to any touching order for

•

INTERIOR LIGHTING ON/OFF CONTROL

Under the unlocked condition, touch the lighting mark

•

interior cool LED lighting.

•

TEMPERATURE DISPLAY WINDOW

The temperature is displayed in digital which is the best way to be read out. The

•

digital is shown as the actual temperature when you are setting the temperature.
When the temperature probe is out of order, the display window will show with “HH”

•

or “LL
of this happens, this appliance is considerately designed to keep periodical running
of compressor and fans which helps to keep the coldness of the inside cabinet to
protect your stored wines.

3 seconds . When unlocked a buzz sound

Warning: To avoid destroying your stored wines, it is strongly recommended

to have the appliance repaired immediately, as the spare periodical running
can not ensure the appliance to achieve the temperature you have set.

TEMPERATURE RANGE SETTING

IBC178

The default temperature setting range is F: 2-20 ºC (36-68 ºF).

•

To set a temperature range as desired, pls.make sure the control panel is under locked

•

condition.

Press the mark for 3 seconds

•

loop with a sound of beep by every pressing.

•

.10.

INSTRUCTION MANUAL

Display Temp.Range (Single Zone)

E

F (Default)

H 10 - 19 °C (50

L 12 - 22 °C (36

IWCD46

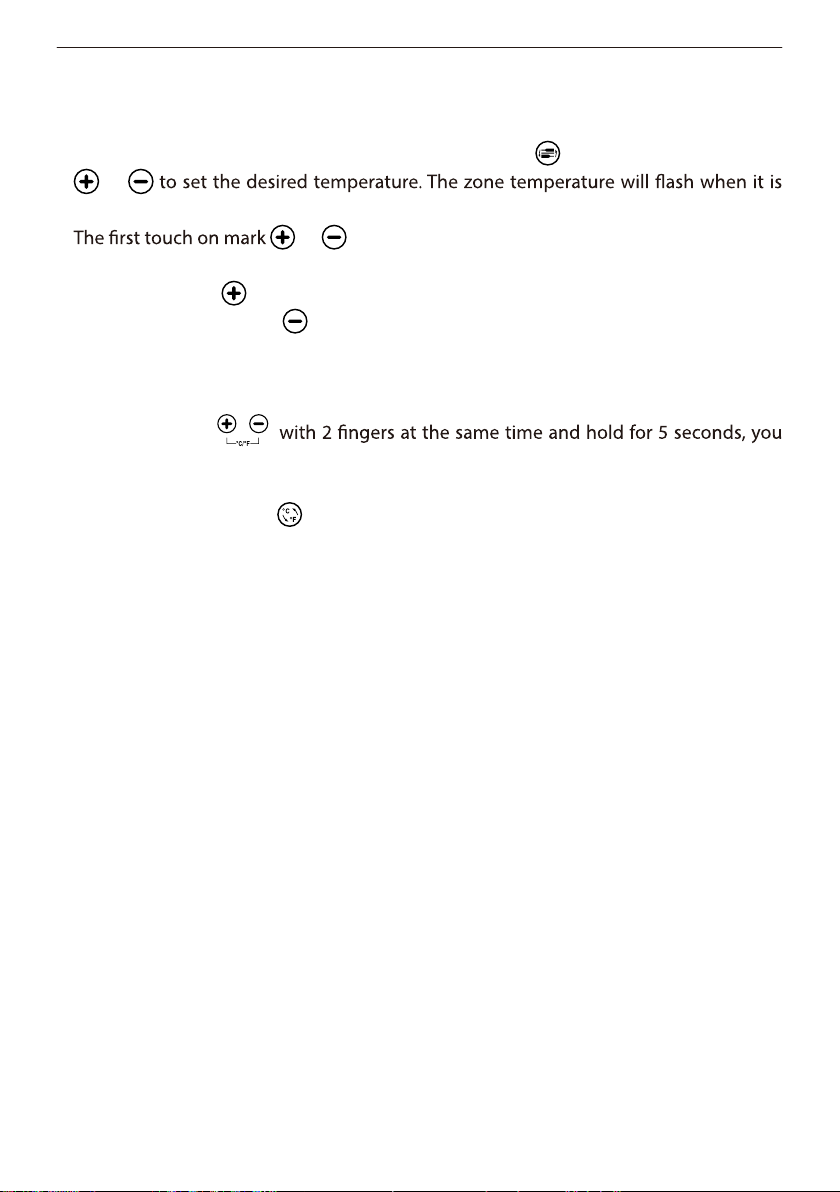

The default temperature setting ranges are E: 5-12 ºC (41-54 ºF) for the upper zone

•

and 12-22 ºC (54-72 ºF) for the bottom zone.
To set a temperature range as desired, pls.make sure the control panel is under locked

•

condition.

Press the mark for 3 seconds

•

loop with a sound of beep by every pressing.

•

the setting.

5 - 22 °C (41
2 - 20 °C (36

ºF-72ºF)
ºF-68ºF)

ºF-66ºF)

ºF-68ºF)

Display

Upper Zone Lower Zone

E (Default) 5 - 12 °C (41

F 2 - 12 °C (36

H 5 - 12°C (41

L 2 - 10 °C (36

Temp.Range (Dual Zone)

ºF-54ºF)

ºF-54ºF)

ºF-54ºF)

ºF-50ºF)

12 - 22 °C (54

12 - 20 °C (54

8 - 19 °C (46

12 - 22 °C (54

ºF-72ºF)

ºF-68ºF)

ºF-66ºF)

ºF-72ºF)

TEMPERATURE SETTING

IBC178

The default temperature setting range is F: 2-20 ºC (36-68 ºF).

•

Directly touch the or mark to set the wine cooler temperature as you want.

•

•

Touch the mark to increase the actual temperature by 1

•

contrary, touch the mark to decrease the actual temperature by 1

or mark will recall the previous Actual Temp displayed.

ºC (or by 1ºF)

ºC (or by 1ºF)

. On the

.

.11.

INSTRUCTION MANUAL

IWCD46

The default temperature setting ranges are E: 5-12 ºC (41-54 ºF) for the upper zone

•

and 12-22 ºC (54-72 ºF) for the bottom zone.

You need to select the set zone by touching the mark before touching the mark

•

or

ready to be set.

•

in the digital window.

Touch the mark to increase the actual temperature by 1

•

contrary, touch the mark to decrease the actual temperature by 1ºC

or will recall the previous actual temperature displayed

ºC (or by 1ºF)

(or by 1ºF).

SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY

IBC178

Touch the marks

can interchange the Fahrenheit and Celsius display.

For IWCD46

Directly touch the mark

for both zones at the same time.

, you can interchange the Fahrenheit and Celsius display

. On the

.12.

FUNCTION INDICATING LIGHT

F
Indicator

IBC178

o When the compressor starts to work, the Indicator will stay
on;

o In other conditions, the Indicator will be off.

INSTRUCTION MANUAL

unction

IWCD46

Function

1

Indicator

2 seconds when
the unit is plugged in;
o The Indicator 1 will stay on when the compressor
starts to work;

3 seconds when
the heating function of lower zone starts to work;
o The Indicator 2 will stay on when the cooling
function of lower zone starts to work.

2

.13.

INSTRUCTION MANUAL

REVERSE THE DOOR SWING

Remarks:

The following operations are available for a model with control in cabinet only and

●

with Right Door Hinge installed.
All removed parts must be saved in order to do the door reinstallation.

●

F

or IBC178/IWCD46

Remarks:

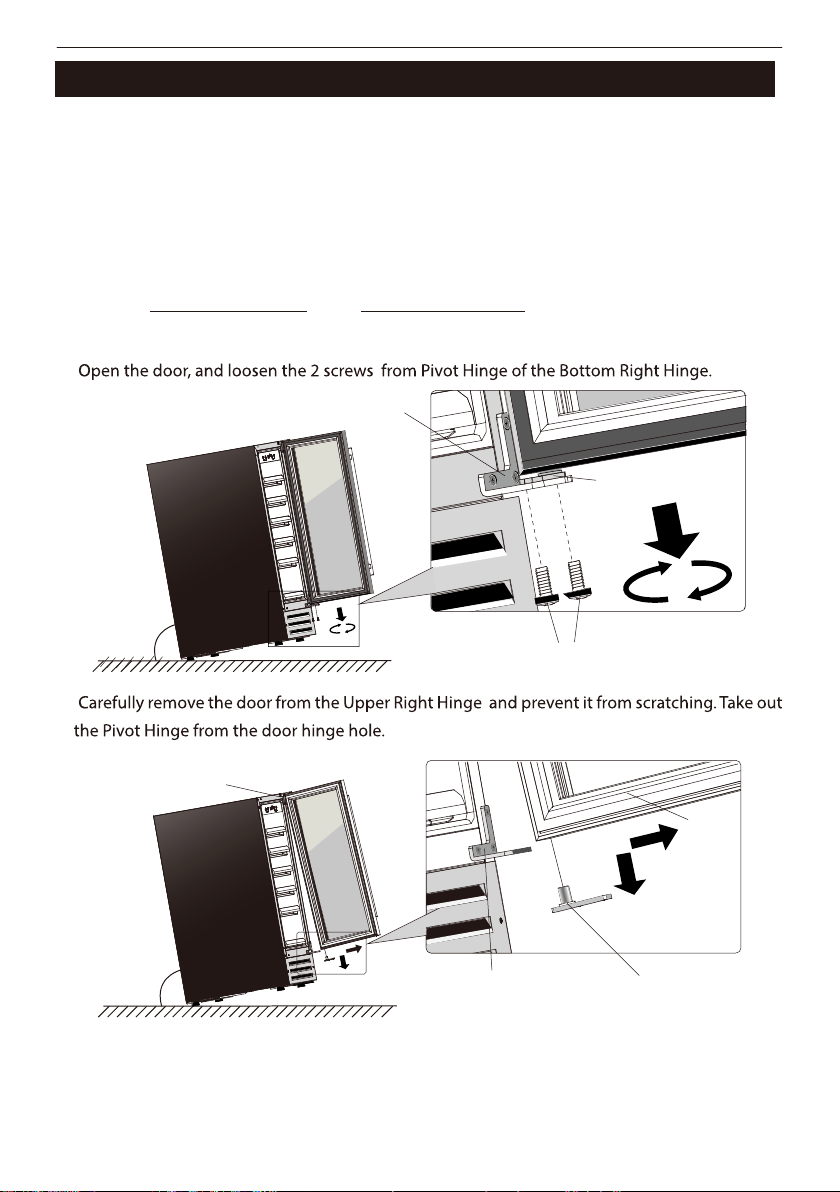

To reverse the door from right hinge to left hinge, you need to get ready 2 new spare

•

parts: an Upper Left Hinge, and a Bottom Left Hinge.
All removed parts is suggested to be saved in case of door re-reversal.

•

1.

Bottom Right Hinge

Pivot Hinge

o

60

Min.

2.

Upper Right Hinge

o

60

Min.

.19.

Bottom Right Hinge

.14.

Screw

Door

Pivot Hinge

3.

4.

INSTRUCTION MANUAL

Upper Right Hinge

Bottom Right Hinge

Plastic Caps (6pcs)

5.

Upper Left Hinge
Bottom Left Hinge

.15.

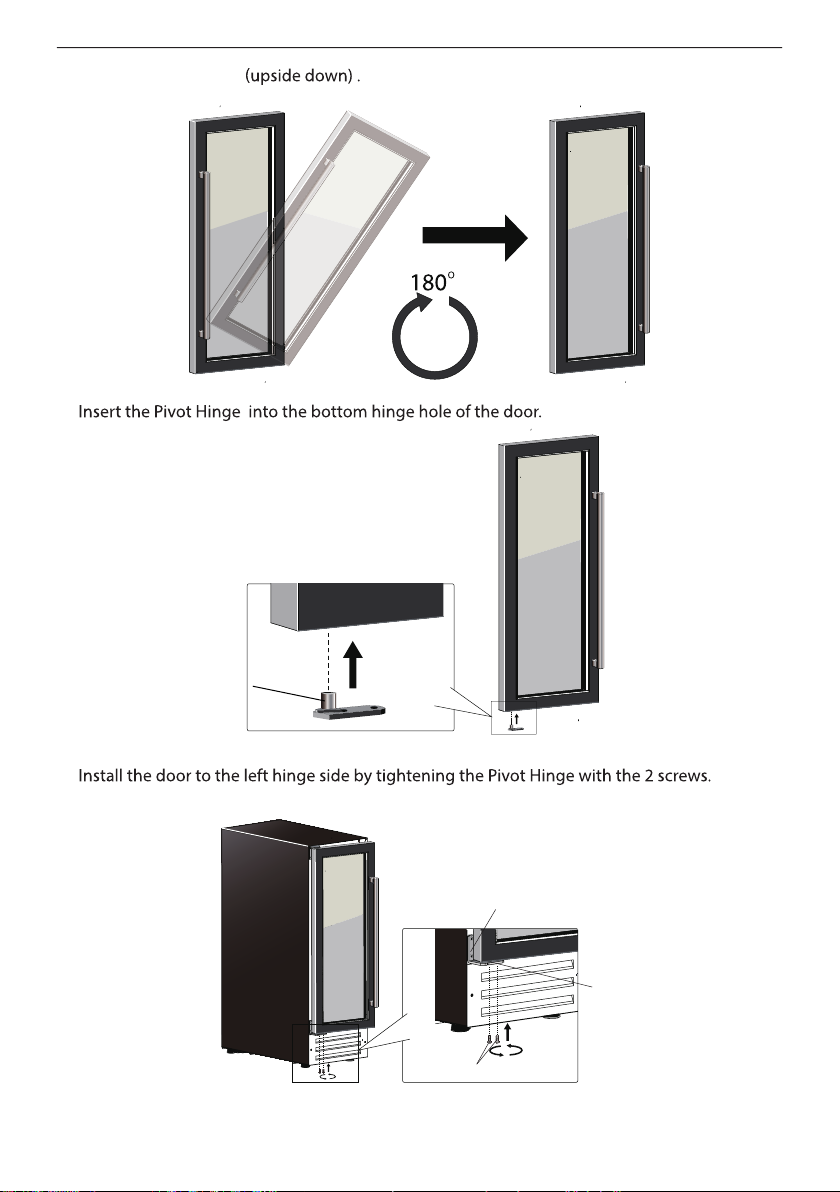

6.Turn the door by 180

7.

INSTRUCTION MANUAL

o

8.

Pivot Hinge

Bottom Left Hinge

Pivot Hinge

Screws (2pcs)

.16.

INSTRUCTION MANUAL

Note:

depending on the position of the bottles.

CARE AND MAINTENANCE

CLEANING THE WINE COOLER

•

Wipe the inside surfaces with a sponge and baking soda solution. The solution should

•

be about 2 tablespoons of baking soda to 1 quart (approx. 1 litre) of warm water.
Wash the shelves with a mild detergent solution. Allow wooden shelves to dry before

•

placing back into the wine cooler.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or

•

any electrical parts.
Wipe the outside cabinet with warm water and mild liquid detergent. Wipe dry with

•

a clean soft cloth.

Do not use steel wool or steel brush on the stainless steel. These will scratch the

•

stainless steel with steel particles and rusting may occur.

REMOVING THE SHELVES

Before removing a Shelf from the appliance, it is necessary to remove all the bottles

•

on the Shelf ;

For a model without Telescopic Rail, move the shelf to the position where the cut

•

of the wooden shelf is directly under the plastic stopper and lift the wooden shelf.
Please ensure these are replaced when the shelf is put back.

Make sure the shelves are fully engaged before loading any bottle into the cabinet.

•

Pull the shelves out all the way to the STOPPER position and push them back in
several times to make sure the shelves are properly engaged.

Cut Plastic Stopper

BA

.17.

INSTRUCTION MANUAL

Defrosting

o Defrosting occurs automatically inside of the Wine Cooler during operation. The
defrost water is collected by the evaporating tray and evaporates automatically.

o The evaporating tray and defrost water drain hole should be cleaned

periodically. This will prevent water from collecting in the bottom of the

drain hole.

o You can also pour a small amount of water down the drain hole to clean

inside of it.

o You should be careful to make sure that wine bottles do not touch the

rear wall of the appliance, as this can interrupt the automatic defrosting

.18.

INSTRUCTION MANUAL

Moving Your Wine Cooler

If you need to move your Wine Cooler to another location you should

follow the steps outlined below.
o Remove all items from the Wine Cooler.
o Securely tape down all loose items such as the shelves inside of the

appliance.
o Turn the adjustable foot up to the base to avoid damage.
o Tape the door closed.
o Ensure the appliance stays secure in the upright position d uring

transportation. Also protect the outside of the appliance with a blanket

or similar item.

Power Failure

o If power is cut to the appliance, for a few hours it will be able to maintain

the temperature inside the cabinet. Providing that the number of times

that the door is opened is kept to a minimum.
o If the power cut is for longer than a few hours, then you will need to store

the contents in an alternate location to prevent them being affected by

temperature rise.

wait 5 minutes before restarting the Wine Cooler. If you attempt to restart before this
time delay, the compressor could be damaged.

Vacation Time

Short vacations: Leave the Wine Cooler in operation for holidays of less than 3 weeks.
Long vacations:

o If your appliance is not going to be in use for a period of time, you should

remove the bottles of wine and switch off the appliance
o The interior should be cleaned with a solution of bicarbonate of soda

and lukewarm water.
o The interior should then be thoroughly dried.
o To prevent mould growth, the door should be left slightly ajar.

Disconnecting From Power

o If the unit is unplugged, or there is a power cut, you must wait for 5

minutes before restarting. Attempting to restart the Wine Cooler before 5

minutes has elapsed, may cause it not to function.

.19.

INSTRUCTION MANUAL

TROUBLESHOOTING

If you feel the appliance is not working properly, follow these instructions to try to see

if you can solve the problem simply by yourself before calling for service.

No. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE

The wine cooler does not operate

The wine cooler is not cold enough

A large amount of contents has been added to the wine

The lighting does not work

Too much vibration Check to assure no parts inside the cabinet or in the

The rattling noise may come from the o w of the

The wine cooler seems to make
too much noise

The display window is shown with “HH”

Contraction and expansion of the inside walls may

-End-

.20.

A HIGHER LEVEL OF COOKING

—

WWW.RESIDENTIA.GROUP
