USER MANUAL INALTO.HOUSE
Portable
Air-conditioner
—
MODEL CODE/S
IAP2740W
IAP3000W
IAP3800W
A HIGHER LEVEL OF LIVING
V.3 0920
Welcome!
Residentia Group Pty Ltd
ACN. 600 546 656
165 Barkly Avenue
Burnley, Victoria
Australia 3121
—
Applico Ltd
635 Great South Road
Penrose, Auckland 1061
New Zealand
Congratulations on purchasing your new appliance!
The InAlto brand is proudly distributed within
Australia by Residentia Group Pty Ltd and within
New Zealand by Applico Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit online at:
→ www.residentia.group
→ www.applico.co.nz
→ www.inalto.house
Both Residentia Group & Applico are customer
obsessed and our Support Teams are there to ensure
you get the most out of your appliance. Should you
want to learn more about recommended usage, the
various features of your appliance, and importantly
taking care of the unit when cleaning, our Support
Teams are here to help.
Telephone Contacts:
→ AU: 1300 11 4357
→ NZ: 0800 763 448
It is important that you read through the following
use and care manual thoroughly to familiarise
yourself with the installation and operation
requirements of your appliance to ensure optimum
performance.
Again, thank you for choosing an InAlto appliance
and we look forward to being of service to you.
2
Contents
2 Welcome
4 Safety Instructions
10 Your Portable Air-conditioner
12 Installation
14 Getting Started
16 Operation Instructions
18 Troubleshooting
19 Technical Data
20 Other Useful Information
22 Your Receipt
23 Purchase Details
24 Warranty Information
Safety Instructions
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if
you are familiar with this type of product. The safety
precautions enclosed herein reduce the risk of fire,
electric shock and injury when correctly adhered to.
Make sure you understand all instructions and warnings.
Keep the manual in a safe place for future reference,
along with the completed warranty card and purchase
receipt. If you sell or transfer ownership of this product,
pass on these instructions to the new owner.
Always follow basic safety precautions and accident
prevention measures when using an electrical
appliance, including the following:
ELECTRICAL SAFETY AND CORD HANDLING
– Voltage: Before turning on the air conditioner,
ensure the electrical voltage and circuit frequency
correspond to those indicated on the appliance.
– Socket: Ensure your electrical outlet is properly
installed and earthed and complies with your local
electrical safety requirements.
– Moisture: To reduce the risk of electrocution, never
operate the appliance with wet hands; never
submerge it in water or spill liquids into it. Do not
use it in a bathroom or laundry, or where it can be
splashed with water.
– Power supply cord: Do not kink or damage the
cord. Do not pull the cord or place it near a heat
source. Always unwind the cord completely to avoid
overheating. Run the cord in such a way so that no
one will trip over it.
– Extension cord/adaptor: Do not use this appliance
with an extension cord or power adaptor.
– Damaged cord: If the supply cord is damaged, do
not use the appliance. A damaged power supply cord
must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid
a hazard. Contact our after sales support centre.
– WARNING: Do not use when damaged! In case of
damage, switch o the appliance, unplug it and
contact our after sales support centre. Do not pick
up or operate a damaged appliance, or after it
malfunctions or has been dropped or damaged in
any manner.
– Power button: Always use the on/o button on the
control panel to turn the product on or o. Never
simply switch the product on or o by plugging it
into or unplugging it from the wall socket.
– Disconnect: Turn o the unit first and then unplug
it when it is not in use and before maintenance or
cleaning, but do not unplug it when it is in operation,
as this could create a spark and cause a fire. Grip by
the plug, do not pull by the cord when disconnecting.
– RCD: The installation of a residual current device
(safety switch) is recommended to provide
additional safety protection when using electrical
appliances. It is advisable that a safety switch with
a rated residual operating current not exceeding
30mA be installed in the electrical circuit supplying
the appliance. See your electrician for professional
advice.
– Never try to open the housing, modify or alter the
product in any way.
USAGE CONDITIONS AND RESTRICTIONS
– Intended use: This appliance is intended for air
conditioning domestic environments. It is not suitable
for commercial, industrial or trade use. Do not use it
for any other purpose (such as cooling food, etc.)
and only use it as described in this manual.
– Common sense: These instructions are not intended
to cover every possible condition and situation. As
with any electrical appliance, common sense and
caution are therefore always recommended when
installing, operating and maintaining the unit.
– No outdoor use: Do not use the unit outdoors.
It is for indoor use only.
– Usage restriction: This appliance is not intended for
use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved.
– No external timer: This appliance is not intended to
be used with an external timer or a separate remote
control system.
– WARNING: Do not cover! Do not cover the air
conditioner or obstruct any air inlet or outlet grilles.
Obstructing these openings causes a fire hazard,
reduces the operating eciency and may lead to
malfunction or damage.
– Air outlets: Do not insert any objects, or your fingers,
into the air outlet, and make sure to warn children of
the dangers.
– Children: Supervise children to ensure they do
not play with the appliance. Close supervision is
necessary when any appliance is used by or near
children. Cleaning and user maintenance shall not
be made by children without supervision.
4
– Unattended: Do not leave the appliance unattended
when in use.
– Attachments: The use of attachments not
recommended or sold by the manufacturer may
cause fire, electric shock or injury.
– Startup settings: Set the unit to maximum cooling
and high speed ventilation for the initial startup,
then adjust the unit down to a more comfortable
setting as required.
– Airflow: Do not direct the airflow onto plants or
animals, as long and direct exposure to cold air from
the air conditioner could adversely aect them.
– Cold air exposure: Never remain directly exposed
to the flow of cold air for a long time, as direct
and prolonged exposure to cold air from the air
conditioner could be dangerous for your health. Take
particular care in rooms where there are children,
old, or sick people.
– Moving the appliance: When moving the air
conditioner, always turn o and disconnect the
power supply, and move it slowly.
– Never place any objects containing liquid, such as
flower vases or drinks, on top of the product.
– Never handle the product with wet hands or
while barefoot.
– Switch o and unplug the product when it is not in use.
– WARNING! If the product should tip over,
immediately turn it o and unplug it.
INSTALLATION
– Proper installation: Install the appliance according to
the instructions in this manual and national wiring
regulations. Improper installation may result in the
risk of fire, electric shock and/or injury. We assume
no responsibility for any eventual damages caused
by improper installation or faulty use.
– Upright position: Place the unit on a flat surface to
reduce the risk of it tipping over. Do not tilt the unit,
always keep it upright. If the unit has not been kept
upright (such as during storage), wait for at least
24 hours before operation.
– Obstructions: Do not locate the air conditioner where
furniture or other objects can obstruct the airflow.
– Do not cover: Do not cover the air conditioner or
obstruct any air inlet or outlet grilles. Obstructing
these openings causes a fire hazard, reduces the
operating eciency and may lead to malfunction or
damage.
– Chemicals: Do not install the air conditioner in
environments where the air could contain gas, oil or
sulphur. Do not let chemical substances come into
contact with the unit. Do not use the unit in the
presence of flammable substances or vapour such as
alcohol, insecticides, petrol etc.
– Heat: Do not install the air conditioner near sources
of heat, or exposed to direct sunlight.
– Clearances: Always keep a clearance of at least
30cm from walls, furniture and curtains.
CLEANING AND MAINTENANCE
– Disconnect: Make sure the appliance is disconnected
from the power supply when it will not be used for a
long time and before carrying out any cleaning
or maintenance.

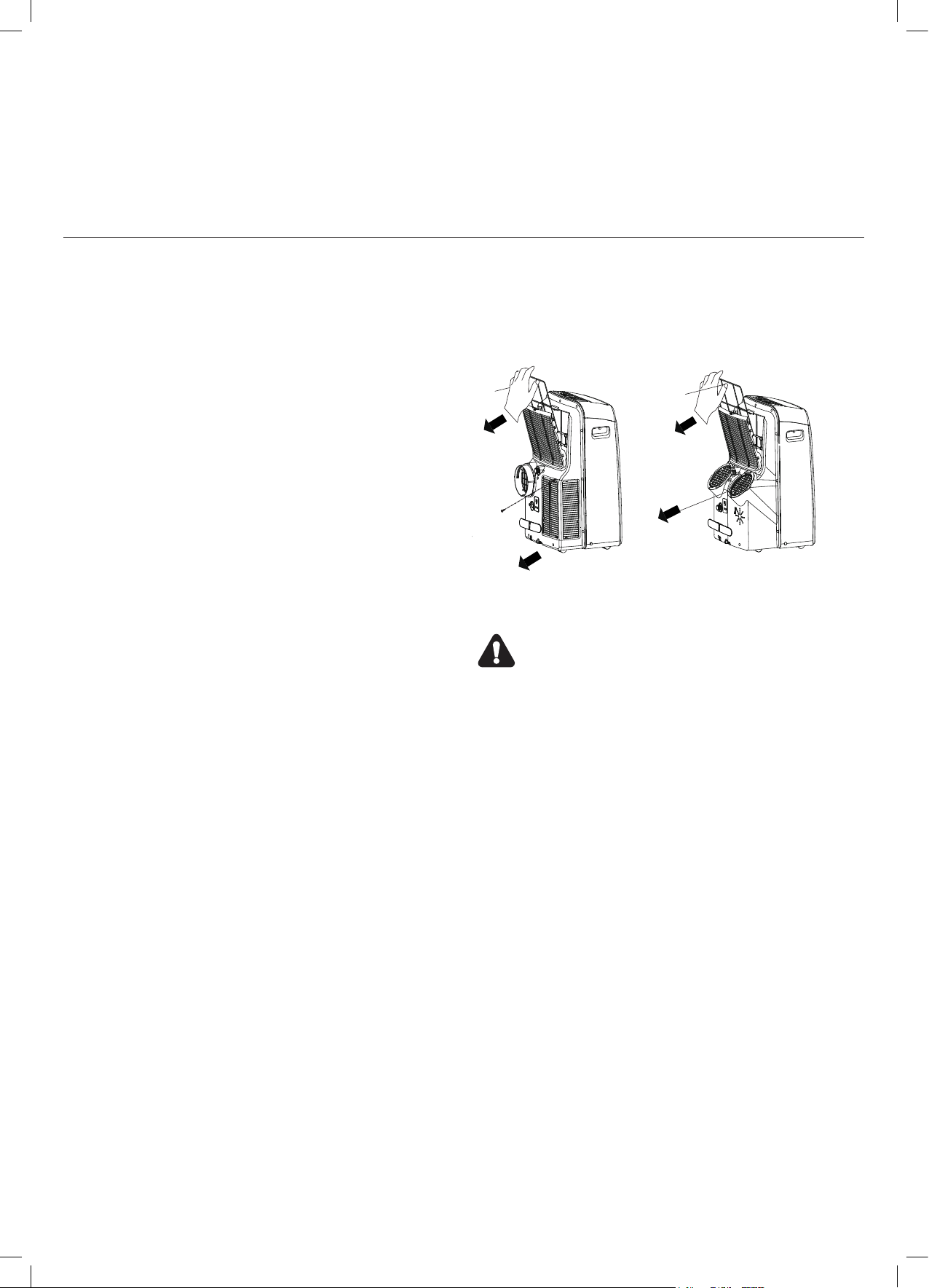

– Air filter: Keep the air filter clean. Do not use the
unit without the air filters fitted. Using it without
air filters could cause an excessive accumulation of
dust or waste on the inner parts of the device with
possible subsequent failures.
– Service and repair: The air conditioner has no
user-serviceable parts contained inside. Do not
attempt to disassemble, modify or conduct repairs
on this unit. It has been built in accordance with
relevant safety and performance standards. An
electrical specialist must carry out all repairs.
Contact our after sales support line for advice on
service.
– Cooling eciency: To help cooling eciency, keep
blinds and curtains closed during the sunniest part
of the day. Close o any fireplace damper, floor and/
or wall register so cool air does not escape through
the chimney or duct work.
This symbol shows that this appliance uses a flammable refrigerant
(R290). If the refrigerant is leaked and exposed to an external ignition
source, there is a risk of fire.
NOTE ABOUT FLUORINATED GAS NOT APPLICABLE
TO UNITS USING R290 REFRIGERANT
– Fluorinated greenhouse gases are contained
in hermetically sealed equipment. For specific
information on the type, the amount and the CO2
equivalent in tonnes of the fluorinated greenhouse
gas(on some models), please refer to the relevant
label on the unit itself.
– Installation, service, maintenance and repair of this
unit must be performed by a certified technician.
– Product uninstallation and recycling must be
performed by a certified technician.
5
Caution: Risk of fire/
flammable materials
WARNING
This symbol shows that this appliance used a
flammable refrigerant. If the refrigerant is leaked and
2
Caution: Risk of fire/
flammable materials
WARNING
CAUTION
This symbol shows that this appliance used a
flammable refrigerant. If the refrigerant is leaked and
exposed to an external ignition source, there is a risk
of fire.
This symbol shows that the operation manual
should be read carefully.
2
Caution: Risk of fire/
flammable materials
WARNING
CAUTION
CAUTION
This symbol shows that this appliance used a
flammable refrigerant. If the refrigerant is leaked and
exposed to an external ignition source, there is a risk
of fire.
This symbol shows that the operation manual
should be read carefully.
This symbol shows that a service personnel should be
handling this equipment with reference to the
2
Caution: Risk of fire/
flammable materials
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that this appliance used a
flammable refrigerant. If the refrigerant is leaked and
exposed to an external ignition source, there is a risk
of fire.
This symbol shows that the operation manual
should be read carefully.
This symbol shows that a service personnel should be
handling this equipment with reference to the
installation manual.
This symbol shows that information is available such
2
Safety Instructions (Continued)
WARNING FOR USING R32/R290 REFRIGERANT
– Do not use means to accelerate the defrosting
process or to clean, other than those recommended
by the manufacturer.
– The appliance shall be stored in a room without
continuously operating ignition sources (for example:
open flames, an operating gas appliance or an
operating electric heater).
– Do not pierce or burn.
– Be aware that the refrigerants may not contain
an odour.
– Appliance should be installed, operated and stored
in a room with a floor area according to the amount
of refrigerant to be charged. For specific information
on the type of gas and the amount, please refer to
the relevant label on the unit itself. When there are
dierences between the label and the manual on the
Min. room area description, the description on label
shall prevail.
For R290:
Amount of refrigerant (kg)
> 0.0836 and ≤ 0.1045 5
> 0.1045 and ≤ 0.1254 6
> 0.1254 and ≤ 0.1463 7
> 0.1463 and ≤ 0.1672 8
> 0.1672 and ≤ 0.1881 9
> 0.1881 and ≤ 0.2090 10
> 0.2090 and ≤ 0.2299 11
> 0.2299 and ≤ 0.2508 12
> 0.2508 and ≤ 0.2717 13
> 0.2717 and ≤ 0.2926 14
> 0.2926 and ≤ 0.3135 15
– Compliance with national gas regulations shall be
observed.
– Keep ventilation openings clear of obstruction.
– The appliance shall be stored so as to prevent
mechanical damage from occurring.
– A warning that the appliance shall be stored in a
well-ventilated area where the room size corresponds
to the room area as specified for operation.
– Any person who is involved with working on or breaking
into a refrigerant circuit should hold a current valid
certificate from an industry-accredited assessment
authority, which authorises their competence to handle
refrigerants safely in accordance with an industry
recognised assessment specification.
Min. room area
(m²)
– Servicing shall only be performed as recommended
by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision
of the person competent in the use of flammable
refrigerants.
– The appliance shall be stored in a room without
continuously operating open flames (for example an
operating gas appliance) and ignition sources (for
example an operating electric heater).
Caution: Risk of fire /
flammable materials
Explanation of symbols displayed on the unit
(For the unit adopts R32/R290 Refrigerant only):
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that this
appliance used a flammable
refrigerant. If the refrigerant is
leaked and exposed to an external
ignition source, there is a risk of fire.
This symbol shows that the operation
manual should be read carefully.
This symbol shows that a service
personnel should be handling this
equipment with reference to the
installation manual.
This symbol shows that information
is available such as the operating
manual or installation manual
6
Transport of equipment containing flammable
refrigerants
See transport regulations
Marking of equipment using signs
See local regulations
Disposal of equipment using flammable refrigerants
See national regulations.
Storage of equipment/appliances
The storage of equipment should be in accordance with
the manufacturer’s instructions.
Storage of packed (unsold) equipment
Storage package protection should be constructed such
that mechanical damage to the equipment inside the
package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted
to be stored together will be determined by local
regulations.
Information on servicing
1. Checks to the area
Prior to beginning work on systems containing
flammable refrigerants, safety checks are necessary to
ensure that the risk of ignition is minimised. For repair
to the refrigerating system, the following precautions
shall be complied with prior to conducting work on the
system.
2. Work procedure
Work shall be undertaken under a controlled
procedure so as to minimise the risk of a flammable
gas or vapour being present while the work is being
performed.
3. General work area
All maintenance sta and others working in the local
area shall be instructed on the nature of work being
carried out. Work in confined spaces shall be avoided.
The area around the workspace shall be sectioned o.
Ensure that the conditions within the area have been
made safe by control of flammable material.
4. Checking for presence of refrigerant
The area shall be checked with an appropriate
refrigerant detector prior to and during work,
to ensure the technician is aware of potentially
flammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use
with flammable refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
5. Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be
available to hand. Have a dry powder or CO2 fire
extinguisher adjacent to the charging area.
6. No ignition sources
No person carrying out work in relation to a
refrigeration system which involves exposing any
pipe work that contains or has contained flammable
refrigerant shall use any sources of ignition in such
a manner that it may lead to the risk of fire or
explosion. All possible ignition sources, including
cigarette smoking, should be kept suciently
far away from the site of installation, repairing,
removing and disposal, during which flammable
refrigerant can possibly be released to the
surrounding space. Prior to work taking place, the
area around the equipment is to be surveyed to make
sure that there are no flammable hazards or ignition
risks. No Smoking signs shall be displayed.
7. Ventilated area
Ensure that the area is in the open or that it is
adequately ventilated before breaking into the
system or conducting any hot work. A degree of
ventilation shall continue during the period that
the work is carried out. The ventilation should safely
disperse any released refrigerant and preferably expel
it externally into the atmosphere.
8. Checks to the refrigeration equipment
Where electrical components are being changed,
they shall be fit for the purpose and to the correct
specification. At all times the manufacturer’s
maintenance and service guidelines shall be followed.
If in doubt consult the manufacturer’s technical
department for assistance. The following checks
shall be applied to installations using flammable
refrigerants:
The charge size is in accordance with the room size
within which the refrigerant containing parts are
installed;
The ventilation machinery and outlets are operating
adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the
secondary circuit shall be checked for the presence
of refrigerant; Marking to the equipment continues
to be visible and legible. Markings and signs that are
illegible shall be corrected;
Refrigeration pipe or components are installed in a
position where they are unlikely to be exposed to any
substance which may corrode refrigerant containing
components, unless the components are constructed
of materials which are inherently resistant to being
corroded or are suitably protected against being
so corroded.
7
Safety Instructions (Continued)
Information on servicing (Continued)
9. Checks to electrical devices
Repair and maintenance to electrical components shall
include initial safety checks and component inspection
procedures. If a fault exists that could compromise
safety, then no electrical supply shall be connected to
the circuit until it is satisfactorily dealt with. If the fault
cannot be corrected immediately but it is necessary to
continue operation, an adequate temporary solution
shall be used. This shall be reported to the owner of the
equipment so all parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a
safe manner to avoid possibility of sparking;
That there no live electrical components and wiring
are exposed while charging, recovering or purging the
system; That there is continuity of earth bonding.
10. Repairs to sealed components
• During repairs to sealed components, all electrical
supplies shall be disconnected from the equipment
being worked upon prior to any removal of sealed
covers, etc. If it is absolutely necessary to have an
electrical supply to equipment during servicing, then
a permanently operating form of leak detection shall
be located at the most critical point to warn of a
potentially hazardous situation.
• Particular attention shall be paid to the following to
ensure that by working on electrical components, the
casing is not altered in such a way that the level of
protection is aected. This shall include damage to
cables, excessive number of connections, terminals
not made to original specification, damage to seals,
incorrect fitting of glands, etc. Ensure that apparatus
is mounted securely. Ensure that seals or sealing
materials have not degraded such that they no
longer serve the purpose of preventing the ingress of
flammable atmospheres. Replacement parts shall be
in accordance with the manufacturer’s specifications.
NOTE: The use of silicon sealant may inhibit the
eectiveness of some types of leak detection
equipment. Intrinsically safe components do not have
to be isolated prior to working on them.
11. Repair to intrinsically safe components
Do not apply any permanent inductive or
capacitance loads to the circuit without ensuring
that this will not exceed the permissible voltage
and current permitted for the equipment in use.
Intrinsically safe components are the only types
that can be worked on while live in the presence of a
flammable atmosphere. The test apparatus shall be
at the correct rating. Replace components only with
parts specified by the manufacturer. Other parts may
result in the ignition of refrigerant in the atmosphere
from a leak.
12. Cabling
Check that cabling will not be subject to wear, corrosion,
excessive pressure, vibration, sharp edges or any other
adverse environmental eects. The check shall also take
into account the eects of aging or continual vibration
from sources such as compressors or fans.
13. Detection of flammable refrigerants
Under no circumstances shall potential sources of
ignition be used in the searching for or detection
of refrigerant leaks. A halide torch (or any other
detector using a naked flame) shall not be used.
14. Leak detection methods
The following leak detection methods are deemed
acceptable for systems containing flammable
refrigerants. Electronic leak detectors shall be used
to detect flammable refrigerants, but the sensitivity
may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a
refrigerant-free area.) Ensure that the detector is not
a potential source of ignition and is suitable for the
refrigerant used. Leak detection equipment shall be
set at a percentage of the LFL of the refrigerant and
shall be calibrated to the refrigerant employed and
the appropriate percentage of gas (25 % maximum)
is confirmed. Leak detection fluids are suitable for
use with most refrigerants but the use of detergents
containing chlorine shall be avoided as the chlorine
may react with the refrigerant and corrode the
copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage
of refrigerant is found which requires brazing, all of
the refrigerant shall be recovered from the system, or
isolated (by means of shut o valves) in a part of the
system remote from the leak. Oxygen free nitrogen
(OFN) shall then be purged through the system both
before and during the brazing process.
15. Removal and evacuation
When breaking into the refrigerant circuit to make
repairs or for any other purpose conventional
procedures shall be used. However, it is important
that best practice is followed since flammability is
a consideration. The following procedure shall be
adhered to:
Remove refrigerant; Purge the circuit with inert
gas; Evacuate; Purge again with inert gas; Open the
circuit by cutting or brazing.
The refrigerant charge shall be recovered into the
correct recovery cylinders. The system shall be flushed
with OFN to render the unit safe. This process may
need to be repeated several times. Compressed air or
oxygen shall not be used for this task. Flushing shall
be achieved by breaking the vacuum in the system
with OFN and continuing to fill until the working
pressure is achieved, then venting to atmosphere,
8
and finally pulling down to a vacuum. This process shall
be repeated until no refrigerant is within the system.
When the final OFN charge is used, the system shall
be vented down to atmospheric pressure to enable
work to take place. This operation is absolutely vital if
brazing operations on the pipe-work are to take place.
Ensure that the outlet for the vacuum pump is not
close to any ignition sources and there is ventilation
available.
16. Charging procedures
In addition to conventional charging procedures,
the following requirements shall be followed. Ensure
that contamination of dierent refrigerants does not
occur when using charging equipment. Hoses or lines
shall be as short as possible to minimise the amount
of refrigerant contained in them. Cylinders shall be
kept upright. Ensure that the refrigeration system is
earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not
already). Extreme care shall be taken not to overfill
the refrigeration system. Prior to recharging the
system it shall be pressure tested with OFN. The
system shall be leak tested on completion of charging
but prior to commissioning. A follow up leak test shall
be carried out prior to leaving the site.
17. Decommissioning
Before carrying out this procedure, it is essential
that the technician is completely familiar with the
equipment and all its detail. It is recommended good
practice that all refrigerants are recovered safely.
Prior to the task being carried out, an oil and
refrigerant sample shall be taken in case analysis is
required prior to re-use of reclaimed refrigerant. It is
essential that electrical power is available before the
task is commenced.
a. Become familiar with the equipment and its operation.
b. Isolate system electrically.
c. Before attempting the procedure ensure that:
Mechanical handling equipment is available, if
required, for handling refrigerant cylinders;All
personal protective equipment is available and being
used correctly; The recovery process is supervised
at all times by a competent person; Recovery
equipment and cylinders conform to the appropriate
standards.
d. Pump down refrigerant system, if possible.
e. If a vacuum is not possible, make a manifold so that
refrigerant can be removed from various parts of
the system.
f. Make sure that cylinder is situated on the scales
before recovery takes place.
g. Start the recovery machine and operate in
accordance with manufacturer’s instructions.
h. Do not overfill cylinders. (No more than 80 % volume
liquid charge).
i. Do not exceed the maximum working pressure of the
cylinder, even temporarily.
j. When the cylinders have been filled correctly and the
process completed, make sure that the cylinders and
the equipment are removed from site promptly and
all isolation valves on the equipment are closed o.
k. Recovered refrigerant shall not be charged into
another refrigeration system unless it has been
cleaned and checked.
18. Labelling
Equipment shall be labelled stating that it has been
de-commissioned and emptied of refrigerant. The
label shall be dated and signed. Ensure that there
are labels on the equipment stating the equipment
contains flammable refrigerant.
19. Recovery
When removing refrigerant from a system, either for
servicing or decommissioning, it is recommended good
practice that all refrigerants are removed safely. When
transferring refrigerant into cylinders, ensure that only
appropriate refrigerant recovery cylinders are employed.
Ensure that the correct number of cylinders for holding
the total system charge is available. All cylinders to be
used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders shall be complete
with pressure relief valve and associated shut-o valves
in good working order. Empty recovery cylinders are
evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order
with a set of instructions concerning the equipment
that is at hand and shall be suitable for the recovery of
flammable refrigerants. In addition, a set of calibrated
weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect
couplings and in good condition. Before using the
recovery machine, check that it is in satisfactory working
order, has been properly maintained and that any
associated electrical components are sealed to prevent
ignition in the event of a refrigerant release. Consult
manufacturer if in doubt. The recovered refrigerant shall
be returned to the refrigerant supplier in the correct
recovery cylinder, and the relevant Waste Transfer Note
arranged. Do not mix refrigerants in recovery units and
especially not in cylinders. If compressors or compressor
oils are to be removed, ensure that they have been
evacuated to an acceptable level to make certain
that flammable refrigerant does not remain within
the lubricant. The evacuation process shall be carried
out prior to returning the compressor to the suppliers.
Only electric heating to the compressor body shall be
employed to accelerate this process. When oil is drained
from a system, it shall be carried out safely
9
Your Portable
Installation
Instructions
rear
MODEAL A1
power plug socket
power cord buckle
bottom tray
drain outlet
power cord outlet
upper air filter
(behind the grille)
upper air intake
air outlet
lower air filter
lower air intake
drain outlet
Air-conditioner
FRONT
IAP2740W
FRONT
IAP3000W & IAP3800W
Control Panel
Automatically
swinging horizontal
louver blade
Handle (both sides)
Panel
Caster
REAR
NOTE: All illustrations in this manual are for explanation purposes only. Your unit may appear dierently.
10
ACCESSORIES
Shape Name of Accessories Quantity
Exhaust Hose 1 piece
Window Slider Adaptor 1 piece (*)
Window Slider A 1 piece (*)
Window Slider B 1 piece (*)
Bolt 1 piece (*)
Remote Controller and Batteries 1 set (*)
Exhaust Hose Adaptor 1 piece (*)
NOTE: Items with (*) are on some models. Slight variations in design may occur.
11
Installation
Consider the following for optimal performance:
– Make sure that no furniture or other objects are
obstructing airflow.
– Keep the filter clean.
– Shut any curtains in any room exposed to direct
sunlight to prevent the room from becoming
unnecessarily warm.
– Keep all doors and windows closed to prevent warm
air from entering the room.
– The cooling function of the air conditioner works best
in rooms with an ambient temperature of 17–35ºC.
– The dehumidifying function of the air conditioner
works best in rooms with an ambient temperature
of 13–35ºC.
UNPACKING
– This product has been packaged to protect it against
transportation damage. Unpack the appliance and
keep the original packaging carton and materials
in a safe place. It will help prevent any damage if
the product needs to be transported in the future,
and you can use it to store the appliance when it is
not in use. In the event the carton is to be disposed
of, please recycle all packaging materials where
possible.
– Plastic wrapping can be a suocation hazard for
babies and young children, so ensure all packaging
materials are kept out of their reach and disposed
of safely.
– Unwind the cord fully and inspect it for damage.
Do not use if any part is damaged. In case of
damage, contact our after sales support line for
advice.
– Read the manual to familiarise yourself with all parts
and operating principles. Pay particular attention to
the safety instructions on the previous pages.
WARNING! ELECTRIC SHOCK HAZARD!
Before installation or servicing, ensure the unit is
switched o and disconnected from the power outlet to
prevent possible injury.
LOCATION
When deciding on an installation place, keep the
following points in mind:
– The area must be flat and the air outlets must not be
covered up.
– There must be a properly earthed AC 220~240V 50Hz
power point nearby.

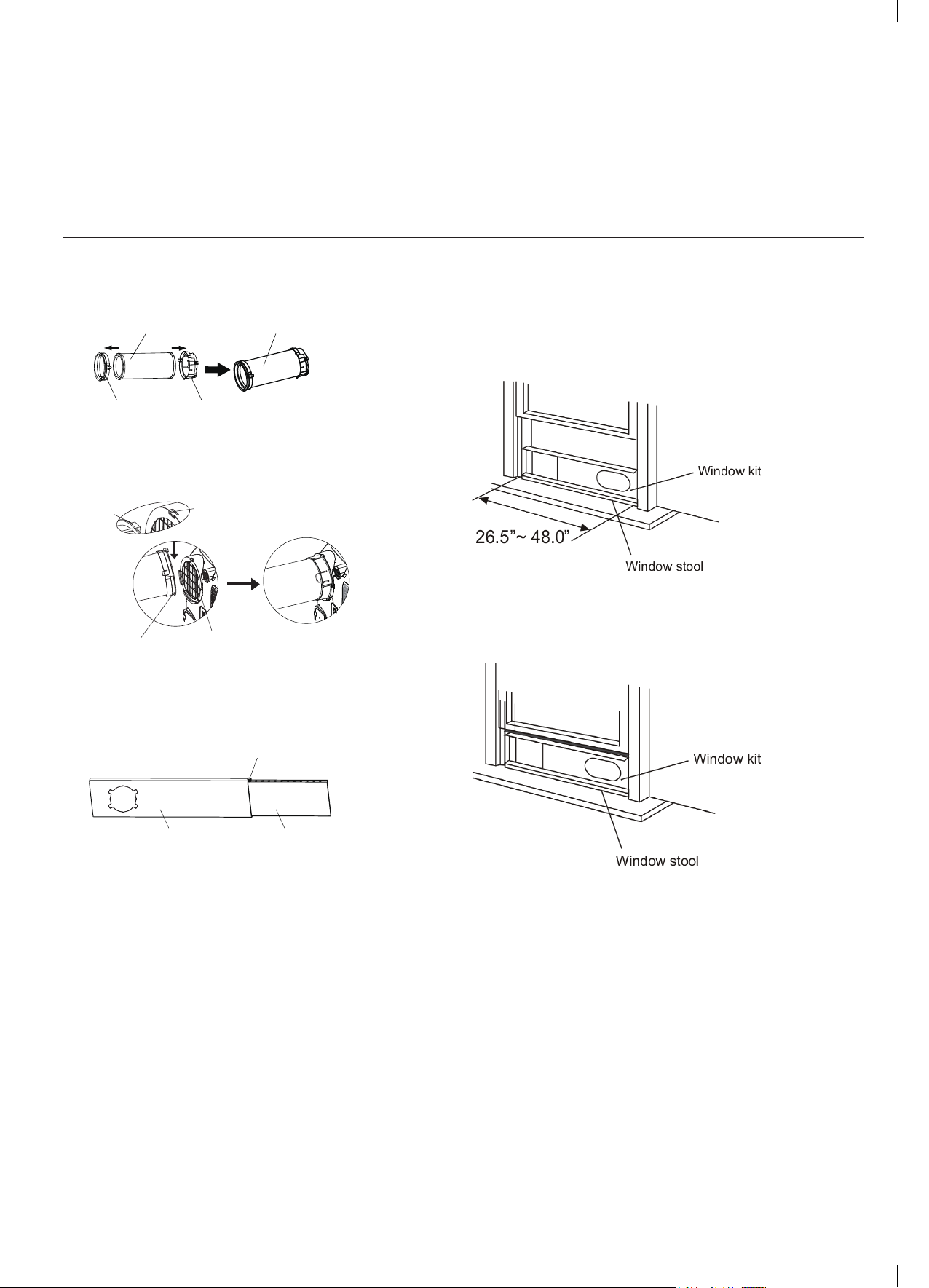

– The air exhaust can be installed in a vertical or
horizontal sliding window. Window installation
instructions follow on the next pages.
– There must be a clearance of at least 30cm between
the appliance and the wall or any other obstacles.
Maintaining this 30cm clearance is essential;
failure to keep that distance can result in the unit
malfunctioning or causing injury.
IMPORTANT NOTE: Do not install this appliance at a dry
cleaner’s premises.
TOOLS REQUIRED
– Medium Philips screwdriver
– Tape measure or ruler
– Knife or scissors
– Optional: Saw, to shorted window adaptor for narrow
windows (Window Installation Kit suits windows
67.5–123cm)
Installation, service, maintenance and repair of this unit
must be performed by a certified technician.
INSTALLING THE AIR EXHAUST DUCT
The portable air conditioner window kit comes with
the parts shown on page 11.
Note:
– The exhaust hose should be used when the COOL or
AUTO functions are selected in order to divert warm
exhaust air.
– The exhaust hose does not need to be mounted when
the FAN or DRY functions are used.
– The exhaust hose can be mounted in a window or a
simple temporary set up can be used to prop up the
exhaust hose to discharge the excess warm exhaust
air.
NOTE: All illustrations in this manual are for explanation purposes only. Your unit may appear dierently.
12
Window Installation Kit
Exhaust hose
Exhaust hose assembly
Unit adaptor
Wall exhaust adaptor A
Exhaust hose
Press the exhaust hose(or extended exhaust hose)
into the window slider adaptor(or wall exhaust
adaptor) and unit adaptor, clamp automatically by
Step One: Preparing the Exhaust Hose assembly
Other Regions
Name of Accessories
Qty.
Shape
Name of Accessories
Qty.
Shape
1 pc(*)Window Slider A Bolt
1 pc 1 set(*)Unit Adaptor Security Bracket and 2 Screws
1 pc 1 pcExhaust Hose Drain Hose
1 pc(*) 1 pcWindow Slider Adaptor Power Cord Buckle
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
SWING
LED
1 set(*)1 pc(*)Window Slider B
Remote Controller and Battery
(only for remote control models)
1 pc(*)
Wall Exhaust Adaptor A
(only for wall installation models)
2 pc(*)Foam Seal A (Adhesive)
1 pc(*)
Wall Exhaust Adaptor B(with cap)
(only for wall installation models)
2 pc(*)Foam Seal B (Adhesive)
4 set(*)
Screw and anchor
(only for wall installation models)
1 pc(*)Foam Seal C (Non-adhesive)
1 pc(*)
Drain Hose Adaptor
(only for heat pump mode)
1 pc(*)
1 pc(*)
1 pc(*)
Exhuast Hose Adaptor
Extended Exhuast Hose
Or
adaptor
Exhaust hose
Exhaust hose
assembly
Hook
Hole Seat
Lower groove
adaptor
Make sure the adaptor
is inserted into the lower
Step Two: Install the Exhaust hose assembly to
the unit
Insert unit adaptor of the Exhaust hose assembly
into the lower groove of the air outlet of the unit
while the hook of the adaptor is aligned with the
hole seat of the air outlet and slide down the
Type window installation Type wall installation
Type window installation Type wall installation
Exhaust hose assembly
Unit adaptor
Wall exhaust adaptor A
Exhaust hose
Press the exhaust hose(or extended exhaust hose)
into the window slider adaptor(or wall exhaust
adaptor) and unit adaptor, clamp automatically by
elastic buckles of the adaptors.
Step One: Preparing the Exhaust Hose assembly
Exhaust hose
Extended Exhaust hose
Exhaust hose assembly
Exhaust hose
Extended Exhaust hose
Exhaust hose assembly
Other Regions
Name of Accessories
Qty.
Shape
Name of Accessories
Qty.
Shape
1 pc(*)Window Slider A Bolt
1 pc 1 set(*)Unit Adaptor Security Bracket and 2 Screws
1 pc 1 pcExhaust Hose Drain Hose
1 pc(*) 1 pcWindow Slider Adaptor Power Cord Buckle
ON/OFF
TEMP
SHORT
CUT
TIMER
ON
TIMER
OFF
MODE
FAN
SLEEP
SWING
LED
1 set(*)1 pc(*)Window Slider B
Remote Controller and Battery
(only for remote control models)
1 pc(*)
Wall Exhaust Adaptor A
(only for wall installation models)
2 pc(*)Foam Seal A (Adhesive)
1 pc(*)
Wall Exhaust Adaptor B(with cap)
(only for wall installation models)
2 pc(*)Foam Seal B (Adhesive)
4 set(*)
Screw and anchor
(only for wall installation models)
1 pc(*)Foam Seal C (Non-adhesive)
1 pc(*)
Drain Hose Adaptor
(only for heat pump mode)
1 pc(*)
1 pc(*)
1 pc(*)
Exhuast Hose Adaptor
Extended Exhuast Hose
Step Three: Preparing the Adjustable Window
Slider
Window slider A Window slider B
Bolt
WINDOW KIT ASSEMBLY
1. Press exhaust hose into window slider adaptor.
Exhaust hose
assembly
Unit adaptor Window slider
adaptor
2. Install exhaust hose assembly to unit.
WINDOW KIT INSTALLATION
Attach the window kit to the window stool. Adjust the
length of the window slider kit according to the width of
the window.
Open the window and place the window slider kit on the
window stool.
your window.
3. Adjust window slider to required size according to
Window slider A
Bolt
Window slider B
Close the window securely against the window kit.
Vertically-sliding windows (pictured) and horizontally-
sliding windows will function similarly.
13
Getting Started
CONTROL PANEL
9
8
1 2 3 4 4
5 6 7
1. Swing: Initiate the auto swing feature. Press again to halt at current angle.
2. Timer: Used to initiate the AUTO ON start time and AUTO OFF stop time program, in conjunction with the + & -
buttons. The timer on/o indicator light illuminates under the timer on/o settings.
3. Mode: Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence
that goes from AUTO, COOL, DRY, FAN and HEAT (cooling only models do not include Heat). The mode indicator
light illuminates under the dierent mode settings.
4. Up (+) and Down (-): Adjust temperate or time settings.
5. Fan: Set fan speed to LOW, MID, HIGH or AUTO. The fan speed indicator light illuminates under dierent fan
settings except AUTO speed, where no indicators are illuminated.
6. Sleep (Eco): Initiate sleep / eco option.
7. [
] Power: Turn the unit on or o.
8. LED Screen: Displays temperature and timer settings. On DRY and FAN models shows room temperature.
Displays error codes (see Troubleshooting page 18).
9. Follow Me (not available on all models): Allows the remote to measure the
temperature at its current location, adjusting the temperature for maximum comfort.
REMOTE CONTROL
10. ON/OFF: On/o switch
11. MODE (Select function): (Auto, Air conditioner (Cool), fan (Fan) or dehumidifier (Dry)
12. FAN: Fan speed setting low/high
13. ▲TEMP▼: Temperature setting
14. SHORTCUT: Go back to current or previous setting.
15. TIMER ON: Setting for when the timer is to switch the air conditioner on
16. TIMER OFF: Setting for when the timer is to switch the air conditioner o
17. SLEEP: Gradual lowering of room temperature,
for example before going to bed
18. SWING: Initiates the auto swing feature
10
ON/OF F
11 15
MOD E
12 16
TEM P
FAN
13
SHO RT
CUT
TIM ER
ON
TIM ER
OFF
14
19. FOLLOW ME (not all models): Allows the remote to measure the temperature at
its current location, adjusting the temperature for maximum comfort.
20. LED: Switch the LED display on/o
SLE EP
17 18 19 20
SWI NG
FOL LOW
ME
LED
NOTE: All illustrations in this manual are for explanation purposes only. Your unit may appear dierently.
14
Note: The included remote control is a universal type
for example before going to bed.
28. [ SHORT CUT ] Go back to current or previous
setting.
29. [ ▲TEMP ▼ ] Temperature setting
30. [ TIMER ON ] Setting for when the timer is to
switch the air conditioner on.
31. [ TIMER OFF ] Setting for when the timer is to
switch the air conditioner off.
32. [ LED ] Switch the LED display on/off
Remote control display
Note: The included remote control is a universal type
which is used for several different models. This model of
air conditioner and the included remote control differ
from other types in the following two ways:
1. The remote control has an “Auto” mode which the
main unit does not have. If “Auto” is selected using
the remote control, the main unit will be set to
“Cool” mode but without the option of selecting the
fan speed.
2. The remote control has 3 settings for the fan speed:
Low, high and “Auto”. The “Auto” fan speed setting
does not work with this model of air conditioner.
There are in effect only 2 fan speed settings, low and
high.

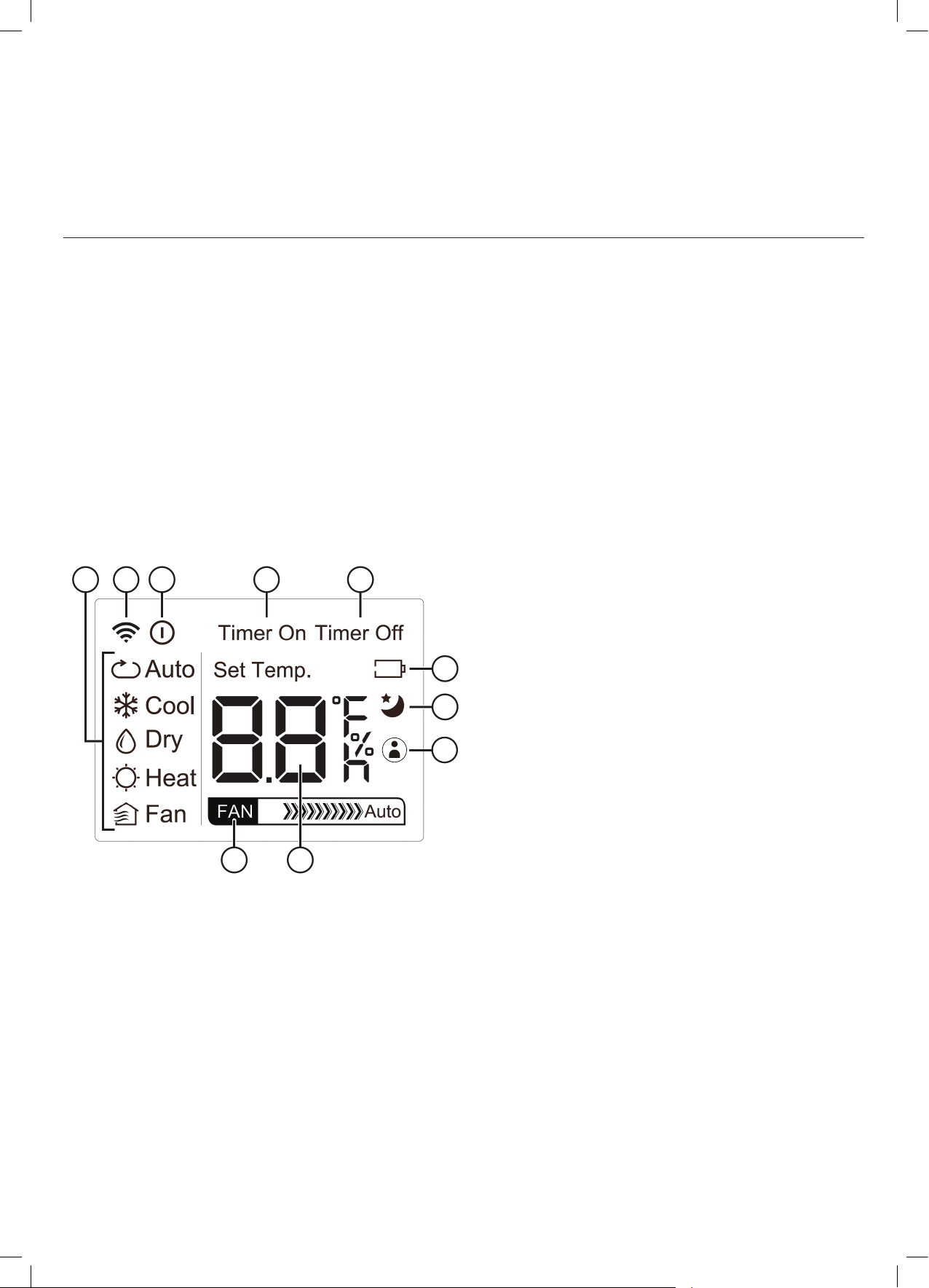

REMOTE CONTROL DISPLAY
21 22 23 24 25
21. Displayed functions.
22. Shown when the remote control transmits a signal.
23. Shown when the air conditioner is switched on.
24. Shown when the Timer On mode is activated.
25. Shown when the Timer Off mode is activated.
26. Sho
wn when the remote control batteries
need changing.
27. Shown when the sleep mode is activated.
28. Shown when the FOLLOW ME function is on.
29. Shows the chosen fan speed.
30. Shows the chosen temperature or timer setting.
In fan mode nothing is shown on the display.
INSERTING BATTERIES INTO THE REMOTE CONTROL
1. Remove the battery cover on the back of the remote
control by sliding it in the direction of the arrow.
2. Insert 2 x AAA batteries (included). Note the polarity
markings in the battery compartment to ensure
correct insertion.
3. Slide the battery cover back into place.
26
27
28
3029
15
Operation Instructions
Note:
– The air conditioner should be placed on a firm, level
surface capable of supporting its weight.
– Make sure to keep at least 30 cm of free space
around the air conditioner.
– The wheels are fitted to facilitate movement over
flat surfaces. Never try to roll the air conditioner over
uneven or soft surfaces.
– If the air conditioner should be shut o inadvertently
e.g. by a power cut, it will restart automatically with
the same settings it had before the power cut when
the power comes back on.
– The remote control has an 8-metre range. Point the
remote directly at the air conditioner making sure
that there is no furniture or other objects obstructing
the signals from reaching the air conditioner.
– The signals from the remote can be blocked if the
IR sensor on the air conditioner is exposed to strong
sunlight.
– Do not expose the remote control to strong sunlight,
impacts, shocks or wetting
– Before switching the unit on for the first time, make
sure you have properly installed the exhaust hose
and inserted batteries into the remote control.
– Plug the portable air conditioner into a properly
earthed 220~240V AC 50Hz mains socket and switch
on power to the outlet.
Note: Do not connect it to a multiple socket outlet that
is also being used for other electrical appliances.
Do not connect it to an extension cord.
AIR CONDITIONER MODE COOL
1. Switch the air conditioner on.
2. Press [ MODE ] until the “COOL” indicator lights up.
3. Press [ + ]/[ - ] to set the desired temperature,
17–30ºC (62–86ºF). The display shows the set
temperature.
4. Press the “FAN SPEED” button to choose the fan
speed.
DEHUMIDIFIER MODE DRY
– Press [ MODE ] until the “Dry” indicator lights up.
Note: The temperature and fan speed cannot be set
when the dehumidifier mode is activated. The fan
motor operates at LOW speed.
– Keep windows and doors closed for best results.
– Do not put the duct to window.
AUTO MODE
When you set the air conditioner in AUTO mode, it
will automatically select cooling or fan only operation
depending on what temperature you have selected and
the room temperature. Under AUTO mode, fan speed
cannot be set.
FAN MODE
1. Press [ MODE ] until the “Fan” indicator lights up.
2. Press the “FAN SPEED” button to choose the fan
speed.
Note: The temperature cannot be set when the fan mode
is activated. Do not put the duct to window.
CHANGING THE UNITS OF TEMPERATURE, °C OR °F
Using your Remote control, hold in [ ▲TEMP▼ ] to
switch between units.
USING THE MAIN UNIT
Hold in [ + ] and [ - ] simultaneously to switch
between units.
THE COOL, DRY AND FAN MODES
– The Cool, Dry and Fan modes can be controlled both
from the main unit and using the remote control.
The instructions below explain how the modes are
controlled from the main unit. In some of the modes,
the fan speed can only be set using the remote
control (see below).
– If you wish to use the remote control: Press [ MODE ]
on the remote control and set the temperature with
[ ▲TEMP▼ ].
TIMER OPERATION
– When the unit is on, press Timer button to initiate
Auto-o stop program: TIMER OFF indicator will
illuminate. Press Up (+) or Down (-) to select time.
Press the TIMER button again within 5 seconds to
initiate the Auto-on start program: the TIMER ON
indicator will illuminate. Press Up (+) or Down (-) to
select Auto-on start time.
– When the unit is o, press the Timer button to
initiate Auto-on start program. Press it again within
five seconds to initiate the Auto-o stop program.
– Press or hold Up (+) or Down (-) to set the Auto time
by 0.5 hour increments up to 10 hours, then at 1 hour
increments up to 24 hours. The remaining time will
be displayed.
– Turning the unit ON or OFF, adjusting the timer
setting to 0.0 or any instance of malfunction will
cancel the Auto Start/Stop timer program.
16
SLEEP/ECO MODE
– The selected temperature will increase by 1°C over
30 minutes. The temperature will then increase by
another 1°C after an additional 30 minutes. This new
temperature will be maintained for 7 hours before
it returns to the originally selected temperature.
Sleep/Eco mode will end and the unit will continue to
operate as originally programmed.
Note: This feature is unavailable under FAN or DRY mode.
WATER DRAINAGE
– Remove the upper drain plug from the back of the
unit and attach 3/4ÿhose (not included).
– NOTE: Make sure the hose is secure so there are no
leaks.
– Direct the hose toward the drain, making sure that
there are no kinks. Place the end of the hose into the
drain and make sure the end of the hose is down to
let the water flow smooth.
– When the water level of the bottom tray is full,
the unit will beep 8 times and display “PI”. The
air conditioning/dehumidification process will
immediately stop, while the fan motor continues to
operate. Carefully move the unit to a drain location,
remove the bottom drain plug and allow the water
to drain. Reinstall bottom drain plug and restart the
machine until the “PI” symbol disappears.
NOTE: Always install drain plugs and hose firmly to
prevent leaking.
Remove the
upper drain plug
Continuous
drain hose
√
SCALE 0.500
17
Troubleshooting
If you experience problems with your portable air conditioner, or it appears not to be operating correctly, check the
information below for solutions to common problems. If none of the solutions oered help you solve your problem,
please contact our after sales support centre on 1300 11 HELP (4357) or emailing support@residentiagroup.com.au
for advice. Do not attempt to repair the appliance yourself!
The air conditioner will not start • Is it plugged into a wall socket?
• Is the wall socket live?
• Is the Water Collection Tray is full? Turn o the unit, drain the water from
the Water Collection Tray and restart the unit.
The room temperature is lower than the set temperature. Adjust the
temperature using [ ▲TEMP▼ ].
Insucient cooling • Makes sure there are no open windows or doors that are allowing warm
air in.
Close all windows and doors.
• There are other sources of heat present in the room. Turn these o.
• The exhaust hose is not attached.
See the Connecting the exhaust hose section.
• The temperature is set too high. Reduce the temperature.
• The air filter is clogged. See ‘Care and cleaning’ under the
Other Useful Information section.
Noise and vibrations occur Make sure that the air conditioner is placed on a steady, even and level
surface.
A gurgling sound is heard This can often be explained by the movement of the coolant in the air
conditioner. This is completely normal.
18
Technical Data
RATING LABELS
IAP2740W: IAP3000W: IAP3800W:
MADE IN CHINA
MADE IN CHINA
19
Other Useful Information
DO NOT operate the unit without filter because dirt
CARE AND CLEANING
WARNING! ELECTRIC SHOCK HAZARD!
Before cleaning and servicing, ensure the unit is
switched o and disconnected from the power outlet to
prevent possible injury.
– DO NOT use flammable liquids or chemicals to clean
the unit.
– DO NOT wash the unit under running water. Doing so
poses an electrical hazard.
– Clean the air filter every 2 weeks for optimal
performance.
– If PI error occurs (see Troubleshooting p8), drain the
water collection tray immediately after PI and before
storage to prevent mould forming.
– In households with animals, animal hair can block
the airflow: periodically wipe down the grill.
– Store unit in a cool, dark place. Exposure to direct
sunshine or extreme heat can shorten the lifespan of
the unit.
– Clean the unit using a damp, lint-free cloth and mild
detergent. Dry the unit with a dry lint-free cloth.
– Run the appliance on FAN mode for 12 hours in a
warm room to dry it and prevent mold.
CLEANING THE AIR FILTERS
The air filter should be cleaned every 14 days.
– Turn o the air conditioner and pull out the plug
from the wall socket.
– Allow the filter to completely dry before refitting it.
Uper air filter
(take out)
Lower air filter
(take out)
SCALE 0.500
MODEL A
MODEL B
Remove the air filter
CAUTION
and lint will clog it and reduce performance.
CAUTION: Do not wash the unit directly. Do not use any
solvent or alcohol-based cleaning agent on any surface.
Using such harsh cleansers will scratch or damage the
surface, or can even lead to deformation of the housing.
BATTERY REPLACEMENT
If the batteries in the remote control are flat, insert two
new AAA size batteries in the compartment at the back
of the remote control.
Open the cover to the battery compartment at the back
of the remote control.
– Take out the depleted batteries (if applicable) and
replace them with two fresh batteries of the same
size and type (AAA size), making sure to match the
polarity markings (+ / -) on the batteries with those
inside the compartment.
Close the battery compartment.
BEFORE STORAGE
At the end of the summer season, follow the simple
steps below before disconnecting and storing the
portable air conditioner. The ambient temperature should
be below 23°C.
– Drain the uni t’s water collection tray according to
the instructins in the following section.
– Run the appliance on FAN mode for 12 hours in a
warm room to dry it and prevent mold.
– Turn o the appliance and unplug it.
– Clean the air filter according to the instructions in
the previous section. Reinstall the clean, dry filter
before storing.
– Remove the batteries from the remote control.
Note: Be sure to store the unit in a cool, dark place.
Exposure to direct sunshine or extreme heat can shorten
the lifespan of the unit.
Note: The cabinet and front may be dusted with an oilfree cloth or washed with a cloth dampened in a solution
of warm water and mild liquid dishwashing detergent.
Rinse thoroughly and wipe dry. Never use harsh
cleansers, wax or polish on the cabinet front. Be sure to
wring excess water from the cloth before wiping around
the controls. Excess water in or around the controls may
cause damage to the unit.
20
BATTERY PRECAUTIONS
Safety
Precautions
Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific
information on the type, the amount and the CO2 equivalent in tonnes of the fluorinated
greenhouse gas(on some models), please refer to the relevant label on the unit itself.
Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
Product uninstallation and recycling must be performed by a certified technician.
– Do not open batteries or short-circuit batteries. Do
not mix old and new, or dierent types of batteries.
Only use fresh batteries of the correct size and type.
– Due to increased risk of leakage, remove batteries
when they are empty and when the remote control is
not going to be used for long periods.
– WARNING: Avoid contact with battery acid! If
battery acid has leaked, avoid contact with skin,
eyes and mucous membranes to prevent injury. In
the event of contact with the acid, rinse the aected
areas immediately with plenty of clean water and
contact a doctor at once.
– WARNING: Keep out of reach of children! Children
often cannot assess dangers correctly and are
injured as a result. Please therefore ensure that the
remote control is kept out of children’s reach as it
contains batteries. If batteries are swallowed, seek
immediate medical assistance. Also ensure the
remote control packaging is disposed of safely.
– Only dispose of batteries when they are fully
discharged. Dispose of them in accordance with
statutory regulations. Do not dispose of them in
household waste.
– WARNING: Danger of explosion! To prevent a
risk of explosion, normal batteries must not be
charged, heated or disposed of by burning. Never
throw batteries into a fire or subject them to high
temperatures.
SERVICE AND REPAIR
If you look after your portable air conditioner it should
give you years of good service. Should you experience
problems with the appliance that you cannot solve
yourself using the advice given within this manual,
please contact our after sales support centre for advice.
WARNING!
Do not attempt to repair the appliance yourself!
SPARE PARTS
Our after sales support centre stocks spare parts for this
Portable Air Conditioner. To purchase a part, call the
centre on 1300 11 4357.
COMPLIANCE
This appliance has been fully tested and meets all
requirements as set out by standards AS/NZS 60335.1
and AS/NZS 60335.2.40.
RESPONSIBLE DISPOSAL
At the end of its working life, do not throw this appliance
out with your household rubbish. Electrical and
electronic products contain substances that can have
a detrimental eect on the environment and human
health if disposed of inappropriately. Observe any local
regulations regarding the disposal of electrical consumer
goods and dispose of it appropriately for recycling
and recovery of the refrigerant. Contact your local
authorities for advice on recycling facilities in your area.
21
Attach your receipt
to this page
22
Purchase Details
For future reference, please record the following information which can be found on the
rating plate and the date of purchase which can be found on your sales invoice.
STORE DETAILS
STORE NAME
ADDRESS
TELEPHONE
|
|
PURCHASE DATE
|
|
PRODUCT DETAILS
MODEL NO.
SERIAL NO.*
|
|
23
Warranty Information
AUSTRALIAN WARRANTY TERMS & CONDITIONS
AIR CONDITIONING
This document sets out the terms and conditions
of the product warranties for Residentia Group
Appliances. It is an important document. Please keep
it with your proof of purchase documents in a safe
place for future reference should you require service
for your Appliance.
1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of
this warranty has the same meaning referred to
in the ACL;
(b) ‘ACL’ means Trade Practices Amendment
(Australian Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty
Ltd of 165 Barkly Avenue Burnley VIC, ACN 600
546 656 in respect of Appliances purchased in
Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to
in the ACL and includes a situation when an
Appliance cannot be repaired or it is uneconomic
for Residentia Group, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the
instruction manual, the Appliance is
warranted against manufacturing defects
for 36 months, following the date of
original purchase of
the Appliance;
(h) ‘you’ means the purchaser of the Appliance not
having purchased the Appliance for re-sale, and
‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances
purchased and used in Australia and is in addition
to (and does not exclude, restrict, or modify in
any way) any
non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or
its ASR will, at no extra charge if your Appliance
is readily accessible for service, without special
equipment and subject to these terms and
conditions, repair or replace any parts which it
considers to be defective. Residentia Group or
its ASR may use remanufactured parts to repair
your Appliance. You agree that any replaced
Appliances or parts become the property of
Residentia Group. This warranty does not apply to
light globes, batteries, filters or similar perishable
parts.
4. Parts and Appliances not supplied by Residentia
Group are not covered by this warranty.
5. You will bear the cost of transportation, travel
and delivery of the Appliance to and from
Residentia Group or its ASR. If you reside outside
of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance
to and from Residentia Group or its ASR, in all
instances, unless the Appliance is transported
by Residentia Group or its ASR, the Appliance is
transported at the owner’s cost and risk while in
transit to and from Residentia Group or its ASR.
6. Proof of purchase is required before you can make
a claim under this warranty.
7. You may not make a claim under this warranty
unless the defect claimed is due to faulty or
defective parts or workmanship. Residentia Group
is not liable in the following situations (which are
not exhaustive):
24
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly
maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or
incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate
operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional
instructions supplied with the Appliance;
(b) the Appliance is modified without authority from
Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has
been removed or defaced;
(d) the Appliance was serviced or repaired by anyone
other than Residentia Group, an authorised
repairer or ASR.
8. This warranty, the contract to which it relates and
the relationship between you and Residentia Group
are governed by the law applicable where the
Appliance was purchased.
9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than
as contained in this document) including liability
for any loss or damage whether direct or indirect
arising from your purchase, use or non use of the
Appliance.
10. For Appliances and services provided by Residentia
Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the Appliance repaired or
replaced if the Appliance fails to be of acceptable
quality and the failure does not amount to a major
failure. The benefits to you given by this warranty
are in addition to your other rights and remedies
under a law in relation to the Appliances or services
to which the warranty relates.
11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether
repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to
it.
12. To enquire about claiming under this warranty,
please follow these steps:
(a) carefully check the operating instructions, user
manual and the terms of this warranty;
(b) have the model and serial number of the Appliance
available;
(c) have the proof of purchase (e.g. an invoice)
available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps
in point 12 have been followed.
Telephone contact
► Service: Please call 1300 11 HELP (4357)
The Australian Consumer Law requires the inclusion of the following statement with this warranty:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure.
25
THIS PAGE IS INTENTIONALLY LEFT BLANK
26
Warranty Information
NEW ZEALAND WARRANTY TERMS & CONDITIONS
AIRCONDITIONING
To help care for your investment, be sure to register
your appliance online. Registration will help you if you
need to arrange service in the future, and serves as a
record of your purchase – including critical information
like model number and serial number – that you can
refer to at any time.
Simply visit the below website, or ask your retailer
for help: www.inalto.co.nz/register
WARRANTY:
These products are covered by a warranty for a
period of 24 months from the date of purchase,
subject to the following conditions*. The warranty
covers rectification free of charge of any fault arising
from defective materials or components, or faulty
workmanship or assembly.
* The conditions above mentioned are:
1. That the purchaser carefully follows all
instructions packed with the product;
2. That the purchaser and/or installer carefully
follows the installation instructions provided and
complies with electrical wiring regulations, gas
and/or plumbing codes;
3. That the purchaser carefully follows instructions
provided in the owner’s handbook relating to the
proper use and care of the product and does not
use the product for any purpose other than the
domestic use for which it has been designed;
4. Commercial use of the product for professional
or industrial purposes will void this warranty.;
5. That the product was purchased and installed in
New Zealand;
6. That this warranty does not extend to:
a) optional glass lids for hobs apart from claims
which relate to mechanical or physical
damage thereof at the date of purchase;
b) ‘consumable’ parts such as light bulbs or
filters;
c) damage to ceramic glass caused by liquid
or solid spill-overs, lack of maintenance,
or impact;
d) damage to surface coatings caused by
cleaning or maintenance using products not
recommended by the owner’s handbook;
e) defects caused by normal wear and tear,
accident, negligence, alteration, misuse or
incorrect installations;
f) a product dismantled, repaired or serviced
by any serviceman other than an authorised
service agent;
g) a product not in possession of the original
purchaser;
h) damage caused by power outages or surges
i) damage caused by pests (eg. rats,
cockroaches etc.)
7. That if the product is a freestanding microwave
oven or small appliance it must be returned to
the dealer/ retailer for servicing. These products,
unless stated otherwise, have a 12 month
warranty from original date of purchase with
24 months on the microwave magnetron; Waste
disposers have a 12 month warranty.
8. The provision of service under this warranty is
limited by a 25km boundary from the retailer
where the product was purchased except for
microwaves. Such travelling outside of these
limits will incur commercial cost to be paid by
you, regulated by the number of kilometres
travelled beyond the 25km limit (50km return
trip). Microwaves are to be delivered to the
nearest authorised service agent by the
customer.
Please refer to your user manual for any further
conditions that may apply to your specific model.
Nothing herein contained shall be construed in any
way as excluding or limiting your rights under the
Consumer Guarantees Acts 1993.
For Service please visit www.applico.co.nz/service or
contact the dealer/retailer from whom you purchased
the product from or call the 0800 number listed below.
If you are unable to establish the date of purchase,
or the fault is not covered by this warranty, or if the
product is found to be in working order, you will be
required to bear all service call charges.
Registration of this warranty constitutes acceptance
of the terms and conditions of this warranty.
Should you require any assistance, please call
Customer Services on 0800 763 448.
Distributed by Applico Ltd.
www.applico.co.nz
July 2019
After registering your appliance online, we
recommend you fill out the below information for your
reference and keep this warranty card in a
safe place.
THIS WARRANTY IS VALID IN NEW ZEALAND ONLY.
27
A HIGHER LEVEL OF LIVING
WWW.INALTO.HOUSE
Loading...
