MODEL CODE / S
PR ODUCT
DOCUMENT
I4DF545X
545L
Four Door
Refrigerator
User
Manual
Dear Customer, Congratulations on purchasing your refrigerator. The
InAlto brand is proudly distributed within Australia by
Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.
At Residentia Group, we are customer obsessed
and our Support Team are there to ensure you get
the most out of your appliance. Should you want
to learn more about the various oven functions
our Support Team are here to help.
You can use our online Support Centre at anytime by
visiting http://support.residentiagroup.com.au,
or you can contact us via phone by dialling:
1300 11 HELP (4357).
It is important that you read through the following use
and care manual thoroughly to familiarise yourself with
the installation and operation requirements of your
appliance to ensure optimum performance.
Again, thank you for choosing an InAlto appliance and
we look forward to being of service to yo
u.
Kind Regards,
The Residentia Team
1300 11 4357
info@residentiagroup.com.au
residentiagroup.com.au
600 546 656
Residentia Group
PO Box 581
Stanhope Gardens
NSW Australia 2768
CONTENTS
Safety warnings
Safety warnings
Installtion Instruction
Placement Start
Human-Machine Interface and Button Operation
Refrigerator Features
Names of components
Refrigerating chamber
Freezing chamber
Maintenance of refrigerators
Cleaning
Defrost
Stop using
001
005
006
009
009
009
010
010
010
Frequently asked questions
011
Safety warnings
This chapter describes the important security matters to prevent
usersfrom injury or property damage. Please understand fully the
followingtext (logo, icon) and comply with the safety warnings.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
The symbols indicate prohibited matters, and those
behaviors are forbidden. Non-compliance with the
instructions may result in product damages or endanger
Prohibition symbols
Warning symbols
Note symbols
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
--obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other
--than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
--Do not use electrical appliances inside the food storage compartments of the appliance,
---
unless they are of the type recommended by the manufacturer.
The appliance has to be unplugged after use and before carrying out user maintenance on
---
the appliance.
This appliance is not intended for use by persons (including children) with reduced physical,
---
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
--If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
---
similarly qualified persons in order to avoid a hazard.
Please abandon the refrigerator according to local regulators for it use flammable blowing
---
gas and refrigerant.
Please according to local regulations regarding disposal of the appliance for its flammable
---
refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to
prevent children trapped.
This appliance is intended to be used in household and similar applications such as
---
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
---
appliance.
the personal safety of users.
The symbols indicate matters that must be followed, and
those behaviors must be strictly executed in line with the
operation requirements. Non-compliance with the
instructions may result in product damages or endanger
the personal safety of users.
The symbols indicate matters to pay attention to, and
these behaviors shall be specially noted. Due
precautions are needed or minor or moderate injuries
or damages of the product will be caused.
001
Safety warnings
This chapter describes the important security matters to prevent
usersfrom injury or property damage. Please understand fully the
followingtext (logo, icon) and comply with the safety warnings.
Electricity related warnings
Do not pull the power cord when pulling thepower plug of the
refrigerator. Please firmlygrasp the plug and pull out it from the
socket directly.
Do not damage the power cord under any condition so as to
ensure safety use, do not use when the power cord is
damaged or the plug is worn.
Worn or damaged power cord shall be replaced in
manufacture-authorized maintenance stations.
Please use a dedicated three-hole power socket which is 10A or
more and the power socket shall not be sharedwith other electrical
appliances.
The power cord should be firmly contacted with thesocket or else
fires might be caused. Please ensurethat the grounding electrode
of the power socket is equipped with a reliable grounding line.
The refrigerator adopts 220-240V/50Hz AC power, voltage fluctuations
over the range of 220-240±10%V will cause malfunction or even damage,
so a 750 W automatic voltage regulator must be installed in concert
with the AC power.
Please turn off the valve of the leaking gas and then open the doors
and windows in case of leakage of gas and other flammable gases.
Do not unplug the refrigerator and other electrical appliances
considering that spark may cause a fire.
To ensure safety, it is not recommended that to place regulators,
rice cookers, microwave ovens and other appliances at the top of the
refrigerator, those recommended by the manufacture are not included.
Do not use electrical appliances in the food pantry.
002
Safety warnings
This chapter describes the important security matters to prevent
usersfrom injury or property damage. Please understand fully the
followingtext (logo, icon) and comply with the safety warnings.
Related warnings for use
Authorized demolition or renovation of the refrigerator is not prohibited.
It is forbidden to damage the refrigerant lines and the repair and
maintenance of the refrigerator must be carried out by professionals.
Damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid
danger.
The surrounding of the appliances around or the embedded structure
shall not be obstructed while good ventilation shall be maintained.
The gaps between refrigerator doors and between doors and
refrigerator body are small, be noted not to put your hand in these
areas to prevent squeezing the finger. Please be gentle when
switching off the refrigerator door to avoid falling articles.
Do not pick foods or containers in the freezing chamber when the
refrigerator is running, especially metal containers in order to avoid
frostbite.
Do not allow children to enter or climb the refrigerator to prevent that
children are sealed in the refrigerator or children are injured by the
falling refrigerator.
Do not spray or wash the refrigerator; do not put the refrigerator in
moist places easy to be splashed with water so as not to affect the
electrical insulation properties of the refrigerator.
Do not place heavy objects on the top of the refrigerator considering
that objectives may fall when switching the door, and accidental
injuries might be caused.
Please pull of the plug in case of power failure or cleaning. Do not
connect the freezer to power supply within five minutes to prevent
damages to the compressor due to successive starts.
003
Safety warnings
This chapter describes the important security matters to prevent
usersfrom injury or property damage. Please understand fully the
followingtext (logo, icon) and comply with the safety warnings.

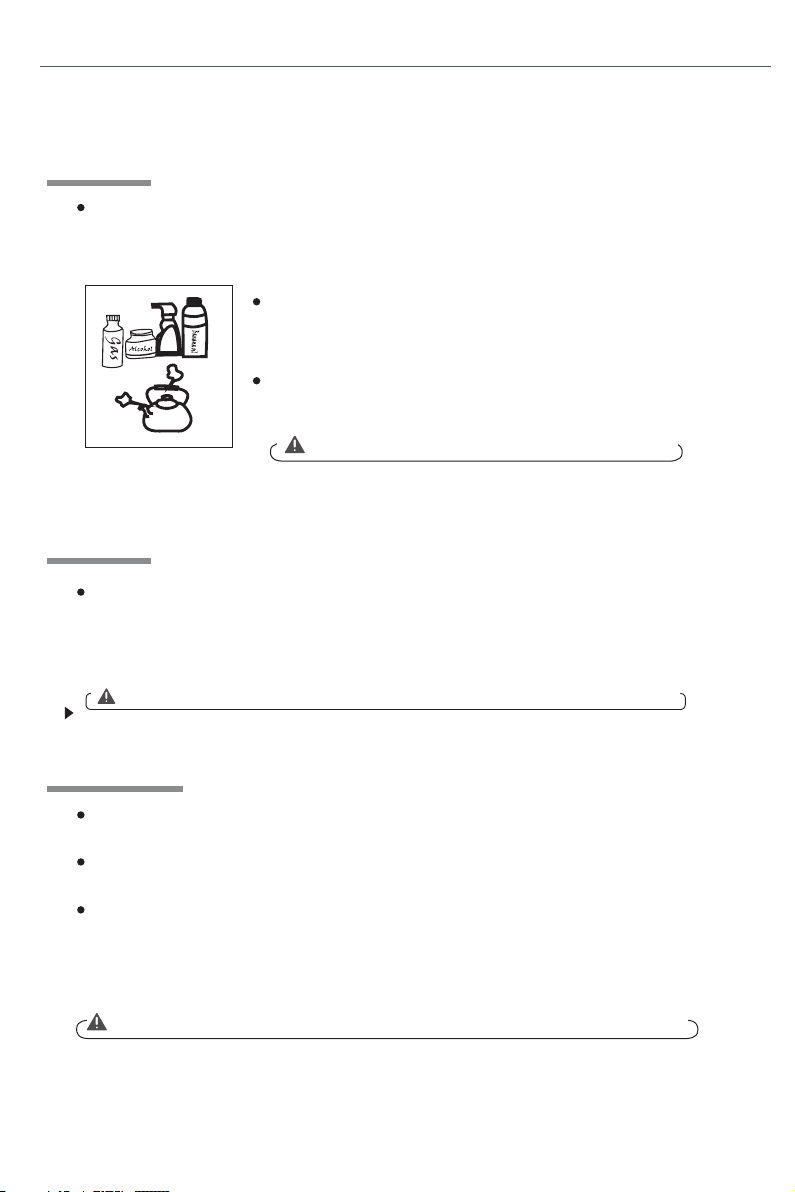

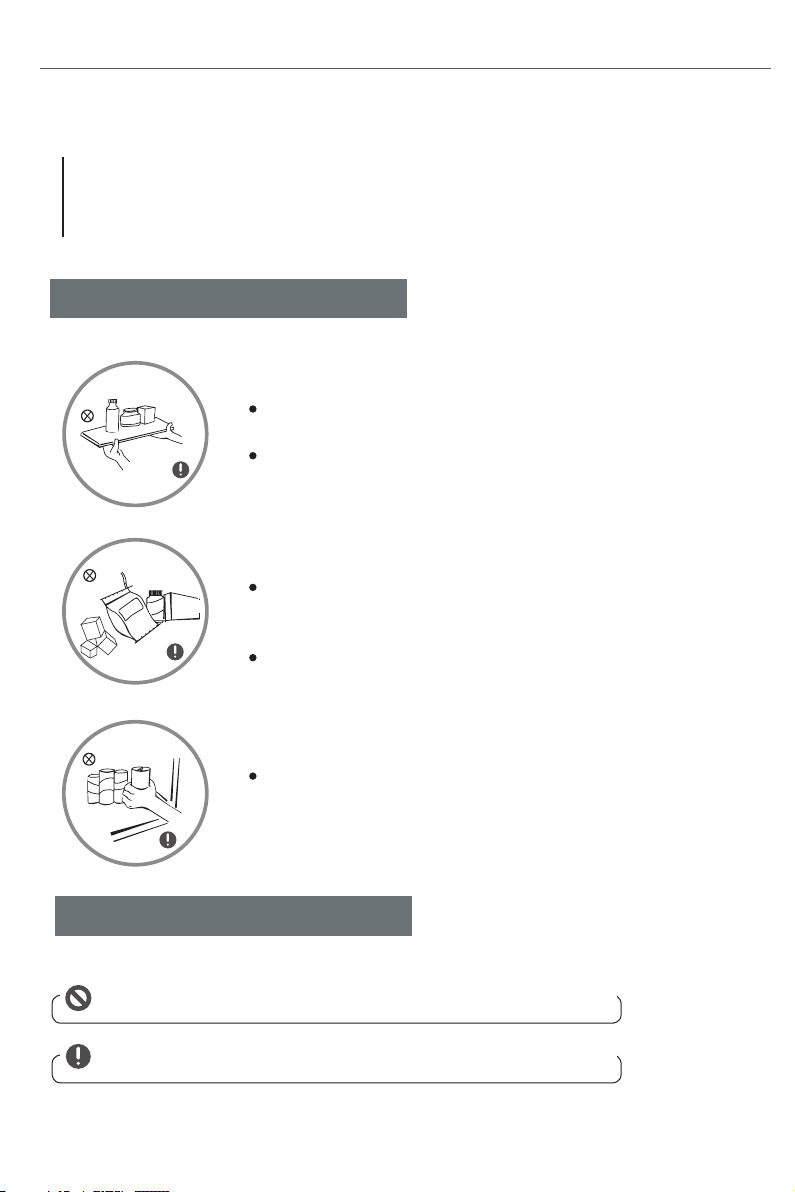

Warnings related to placing items
Flammable
s
e
s
siv
ive
s
ro
r
o
C
o
pl
Ex
Do not put flammable, explosive, volatile and highly corrosive items
in the refrigerator to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
e
n
ci
i
ls
a
c
gi
d
o
ol
i
b
o
ed
M
Blo
ce
y i
r
D
e
y ic
Dr
This product is household refrigerators and shall be only suitable for
the storage of foods. According to national standards, household
refrigerators shall not be used for other purposes, such as storage
of blood, drugs or biological products.
Do not store or place dry ice in the refrigerator.
Freezer
Beer
Do not place items such as bottled or sealed container of fluid such
as bottled beers and beverages in the freezer to prevent bursts and
other losses.
Warnings related to disposal
The refrigerator's R600a refrigerant and cyclopentane foam materials are combustible materials
and discarded refrigerators should be isolated from fire sources and can not be burned.
Please transfer the freezer to qualified professional recycling companies for processing to avoid
damages to the environment or other hazards.
Please remove the door of the refrigerator and shelves which shall be properly
placed to avoid accidents of children entering and playing in the refrigerator.
004

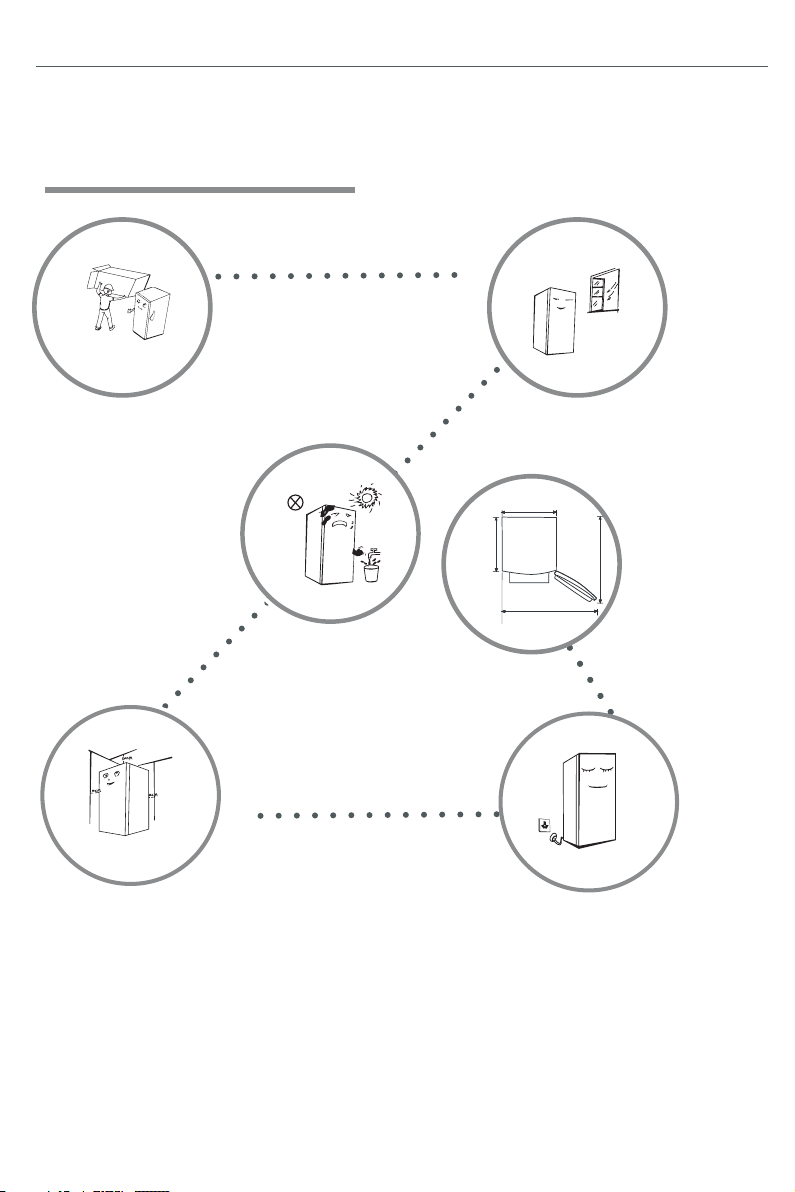

Installtion Instruction
Placement
Before using the refrigerator, remove all
packaging materials including bottom
cushions and foam pads and tapes
inside the refrigerator, tear off the
protective film on the door and the
refrigerator body.
Keep away from heat and avoid
direct sunlight. Do not place the
freezer in moist or watery places
to prevent rust or reduction of
insulating effect.
Start
Placement
The refrigerator is placed in a
well-ventilated indoor place; the
ground shall be flat, and sturdy
(rotate left or right to adjust the
wheel for leveling if unstable).
745mm
Please leave enough space to ensure
feasible opening and drawer removal.
Dimensions shown are for reference only.
833mm
1051mm
927mm
The top space of the refrigerator shall be
greater than 30cm, and the distances from
both sides and backside shall be more
than 10 cm to facilitate the opening and
closing and heat dissipation.Wipe the
refrigerator inside and outside with warm
moist rag (add a small amount of
detergent in the warm water and wipe
clean finally with clean water).
Start
The refrigerator shall stay for half an
hour before connecting 220-240V/
50Hz power when it is firstly started.
The refrigerator shall run 2 to 3
hours before loading fresh or
frozen foods; the refrigerator shall
run for more than 4 hours in summer
in advance considering that the
ambient temperature is high.
005

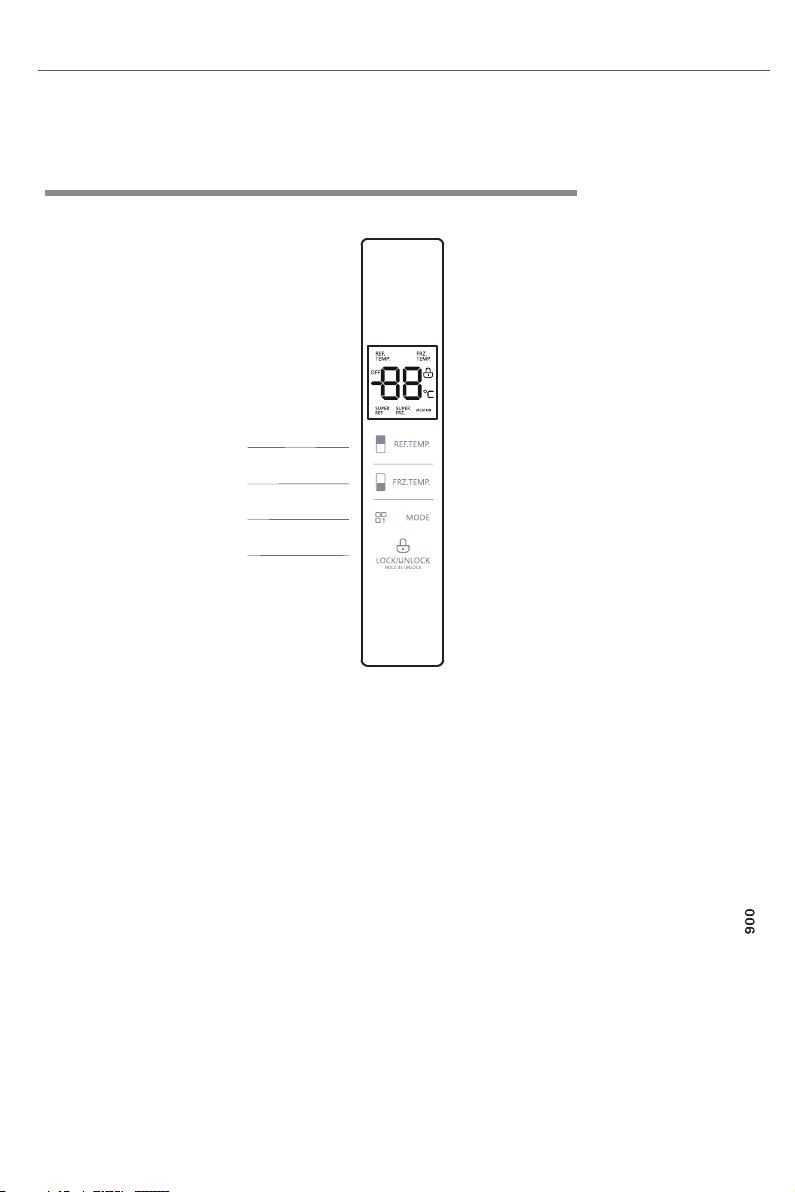

Human-Machine Interface and Button Operation
Display screen
A
B
C
D
Keys
A.REF.TEMP
FRZ.TEMP
B.
MODE
C.
LOCK/UNLOCK
D.
Display
For the first power-on, the full display lasts 3s while the start-up tone rings;
then, the panel displays normally (The setting temperature of refrigerating
chamber and freezing chamber is 5℃ and -18℃, respectively, upon the first
power-on).
Display of normal running
Display a fault code (loop display) when a failure occurs; display the setting
temperature of refrigerating chamber when no failure occurs;
Display control
In normal cases, the display screen will display LOCK without door opening
and key operations for 30s, and then die out after 30s under the locking state;
when the display screen is off, it will light up normally with key operations;
when a failure to the category of "Visible Fault Code", the display screen turns
on and then dies out after 30s;
Lock/Unlock
Hold the key "LOCK/UNLOCK" for 2s under the unlocking state, the system
enters the locking state and gives a buzzing sound of locking.
Hold the key "LOCK/UNLOCK" for 2s under the locking state, the system
enters the unlocking state and gives a buzzing sound of unlocking.
The system enters the locking state automatically without any key operation
for 30s.
Except that door opening alarm and fault alarm can be relieved under the
locking state as well, the following key operations must be operated under
the unlocking state. For any operation under the locking state, a buzzing
sound of wrong operation will ring.
Settings of refrigerating chamber
Temperature setting of refrigerating chamber
Press the key REF.TEMP to select the area of refrigerating temperature and
then press the key REF.TEMP to adjust the temperature of refrigerating
chamber; the temperature drops 1℃ for pressing the key REF.TEMP once;
press the key REF.TEMP again after the temperature reaches 2℃, the
refrigerating chamber is set to 8℃. The temperature setting of refrigerating
chamber varies between 2 ~8℃, which will be effective upon locking.
007
Settings of freezing chamber
Temperature setting of freezing chamber
Press the key FRZ.TEMP to select the freezing temperature area and then
press the key FRZ.TEMP to adjust the temperature of freezing chamber; the
temperature drops 1℃ for pressing the key FRZ.TEMP once; press the key
FRZ.TEMP again after the temperature reaches -24℃, the freezing chamber
is set to -16℃ and the temperature setting varies between -24 ~ -16℃, which
will be effective upon locking.
Mode setting
Press the key “MODE”, the corresponding modes will be circulated as below:
When the refrigerating chamber is on, cycle settings SUPER COOL→ SUPER
FRZ→SUPER COOL/SUPER FRZ→VACATION→NONE→SUPER COOL…
When the refrigerating chamber is off, cycle settings SUPER FRZ→VACATION
→NONE→SUPER FRZ…
Under the SUPER COOL mode, the refrigerating chamber defaults to 2℃
automatically; upon exiting the SUPER COOL mode, the setting temperature
of refrigerating chamber will restore to that before the SUPER COOL mode.
Under the SUPER FRZ mode, the freezing chamber defaults to -24℃
automatically; upon exiting the SUPER FRZ mode, the setting temperature of
freezing chamber will restore to that before the SUPER FRZ mode.
Under the VACATION mode, the refrigerating chamber defaults to closed while
the freezing chamber defaults to -18℃ automatically;
Upon exiting the VACATION mode, the setting temperature of
refrigerating chamber and freezing chamber will both be restored to those
before the VACATION mode.
List of Fault Codes
Error Code
E1
E2
E4
E5
E6
E7
EH
Description
Temperature sensor failure of refrigerating chamber
Temperature sensor failure of freezing chamber
Failure of defrosting sensor in refrigerating chamber
Failure of freezing & defrosting sensor
Communication Failure
Failure of circulating temperature
Humidity sensor failure
008
Refrigerator Features

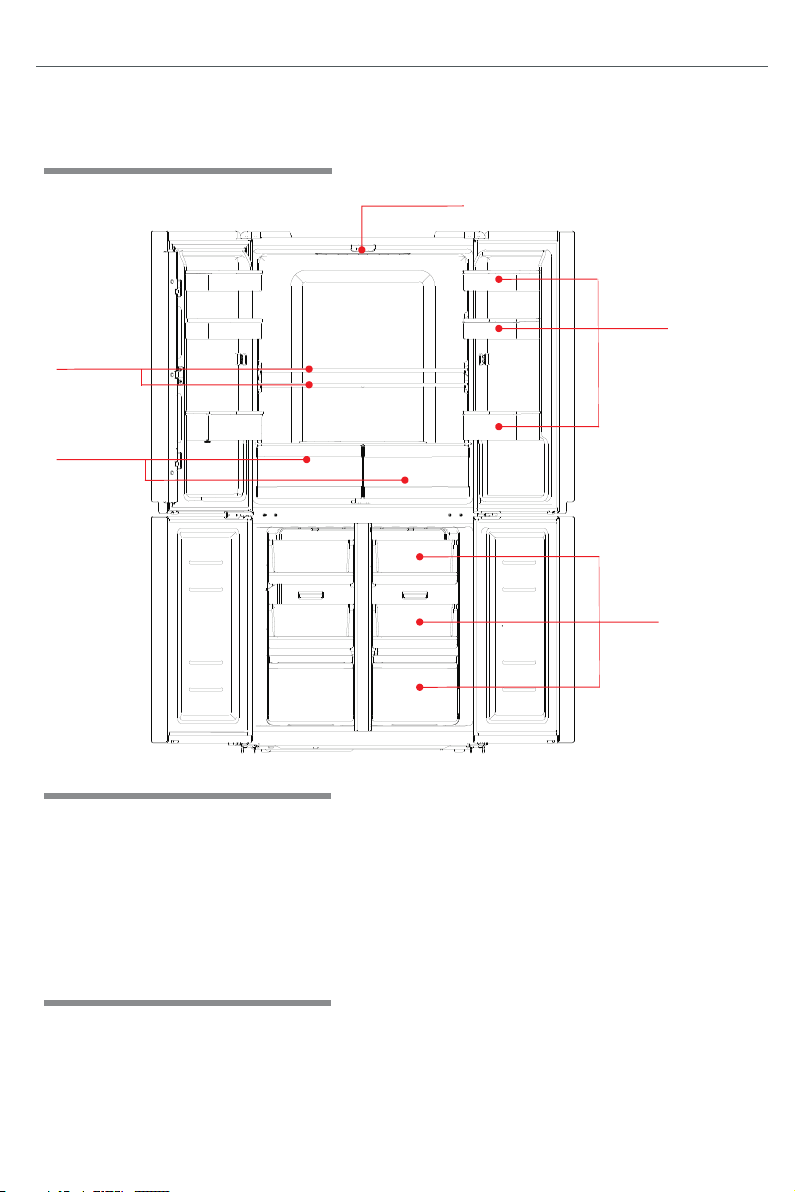

Names of components
（Ref riger ating c hambe r）
Glass she lf
Fruits an d
vegetab le s box
（Fre ezing c hambe r）
LED light in g
Do or tray
D rrawe
Refrigerating chamber
Refrigerating Chamber
1.The is suitable for storage of a variety of fruits,
vegetables, beverages andother food consumped in the short term.
2.Cooking foods shall not be put in the refrigerating chamber until cooled to
room temperature.
3.Foods are recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of
storage space and easy use.
Freezing chamber
1.The low temperature freezing chamber may keep food fresh for a long time
and it is mainly used to store frozen foods and making ice.
2.The freezing chamber is suitable for storage of meat, fish, rice balls and other
foods not to be consumed in short term.
3.Chunks of meat are preferably to be divided into small pieces for easy access.
Please be noted food shall be consumed within the shelf time.
009
Maintenance of refrigerators
Cleaning
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling
effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor.
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for
cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for
natural drying before the power is turned on.
Do not use hard brushes, clean steel balls, wire brushes,
abrasives, such as toothpastes, organic solvents (such as
alcohol, acetone, banana oil, etc.), boiling water, acid or
alkaline items clean refrigerator considering that this may
damage the fridge surface and interior.
Do not rinse with water so as not to affect the electrical insulation
properties. Please use a dry cloth when cleaning lighting lamps,
temperature control knob and electrical components.
Please unplug the refrigerator for defrost and cleaning.
Defrost
The ref ri gerat or i s made ba se d on the ai r- cooli ng p rinci pl e and thu s ha s autom atic
defro st ing fun ct ion. Fr os t forme d du e to chan ge o f seaso n or t emper ature may a lso
be manu al ly remo ve d by disc on necti on o f the app li ance fr om p ower su pp ly
or by wip in g with a dr y to wel.
Do not use metal utensils or electric heater for defrost so as not to damage the appliance. Please
remove the food and put in a cool place when defrosting before removing drawers and other accessories.
Stop using
Foods can be preserved for a couple of hours even in summer in case of power failure; it is
recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.
Please unplug the refrigerator left unused for a long time for cleaning. Keep the door open to avoid
the bad odor.
Before moving the refrigerator, please emove all items in the refrigerator and fasten the glass
partitions, fruit and vegetable boxes, freezer drawers with taps lest the door opens during
displacement; Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle can
not be greater than 45 ℃.
Continuous operation is recommended when the refrigerator is started. Please do not move
the refrigerator under normal circumstances so as not to affect the refrigerator's service life.
010
Frequently asked questions
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
Whether the freezer is plugged and connected to power;
Inoperation
Odor
Low voltage;
Failure power or tripping circuit
Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
Foods in the refrigerating
chamber are frozen
Long-term operation
of compressor
The refrigerator door
can not be properly
closed.
Loud noises
Warm tips:
◆The refrigerator enclosure may emit heat during operation specially in summer, this is caused by
the radiation of the condenser, and it is a normal phenomenon.
◆Condensation: condensation phenomenon will be detected on the exterior surface and door
seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the
condensation can be wiped away with a dry towel.
◆Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and
grunts which is normal does not affect the cooling effect.
◆Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.
◆Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon
and does not affect the operation.
◆The refrigerating chamber will periodically frost and defrost (water drops will be generated on the
backside of the refrigerating chamber when defrosting) which are normal.
Whether the thermostat is over adjusted;
Whether foods containing water is put in inside the
glass partition.
It is normal that refrigerator operates for longer time in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one time;
Do not put foods until they are cooled;
Frequent opening of refrigerator door.
Thick frost layer (defrost is needed)
The freezer door is stuck by food packages;
Too much food;
Tilt refrigerator.
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
011
The Australian Consumer Law requires the
inclusion of the following statement with
this warranty:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Loading...
