Inalto ARCBBQ User Manual
USER MANUAL
BBQ Rangehood
120cm
MODEL
ARCBBQ
Residentia Group
—
Head Office
118 Campbell Street
Collingwood, VIictoria
Australia 3066
—
ACN.
600 546 656
—
Online.
residentia.group
Dear Customer,
Congratulations on purchasing your new rangehood. The Airvolution
brand is proudly distributed within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information
regarding your product’s parts and labour warranty, or visit us online at
www.residentia.group
At Residentia Group, we are customer obsessed and our Support Team
are there to ensure you get the most out of your appliance. Should you want
to learn more about optional accessories (such as carbon filters) or most
importantly taking care of your rangehood when cleaning, our Support Team
are here to help.
You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via telephone
by dialling 1300 11 HELP (4357).
It is important that you read through the following use and care manual
thoroughly to familiarise yourself with the installation and operation
requirements of your appliance to ensure optimum performance.
Again, thank you for choosing an Airvolution appliance and we look forward
to being of service to you.
Kind Regards,
The Airvolution & Residentia Teams
Postage.
PO Box 341
Mt Eliza, Victoria
Australia 3930
Telephone.
1300 11 4357
Email.
support@residentiagroup.com.au
CONTENTS
PAGE
4
5
6
7
11
12
13
SECTION
Safety Instructions
Your Rangehood
Operating Your Rangehood
Installation Instructions
Cleaning & Maintenance
Troubleshooting & Technical Data

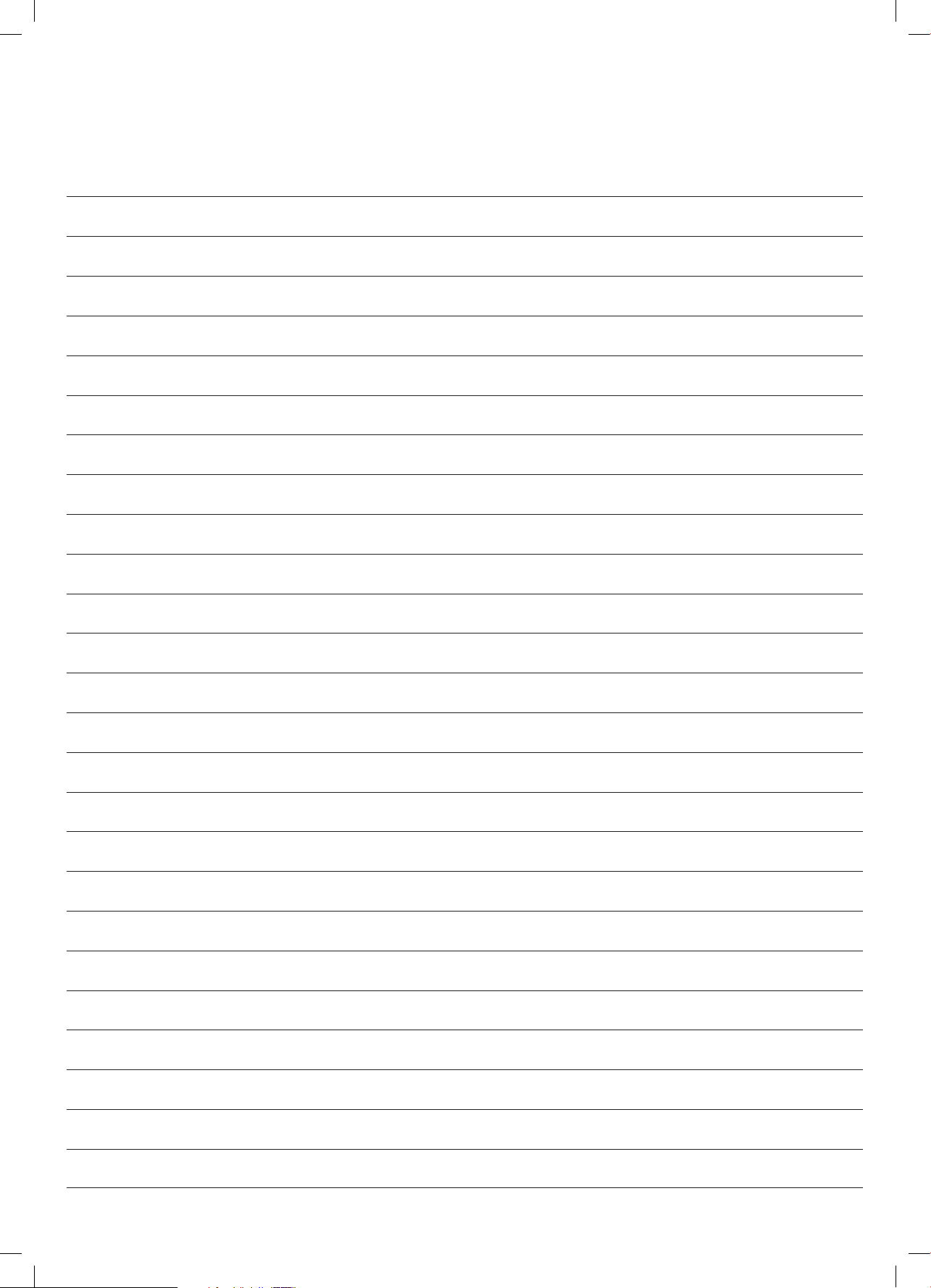

Notes
14
16
Warranty Information
Purchase Details
SAFETY INSTRUCTIONS
This rangehood must only be installed in accordance
with the instructions provided. Incorrect installation
may cause harm to persons, damage property and void
the product’s warranty.
Important
Please ensure that you read the entire instructions before
beginning the installation of your rangehood.
Warning
All electrical work must be done in accordance with local
and national electrical codes as applicable and should be
undertaken by licenced and qualified persons onl .
– This rangehood is designed for domestic household
use only.
– This appliance is not intended to be used by
children, or persons with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the rangehood
by a person responsible for their safety.
– Young children should be supervised to ensure that
they do not play with the appliance.
– You must read the instructions concerning the
method and frequency of cleaning.
Unpacking
During transportation, protective packaging was used
to protect the appliance against any damage. After
unpacking, please dispose of all elements of packaging
in a way that will not cause damage to the environment.
All materials used for packaging the appliance are
environmentally friendly; they are 100% recyclable
and are marked with the appropriate symbol.
Caution! During unpacking, the packaging materials
(polythene bags, polystyrene pieces, etc.) should be kept
out of reach of children.
Disposal of the appliance
Old appliances should not simply be disposed of with
normal household waste, but should be delivered to a
collection and recycling centre for electric and electronic
equipment. A symbol shown on the product, the
instruction manual or the packaging shows that it is
suitable for recycling.
Materials used inside the appliance are recyclable
and are labelled with information concerning this. By
recycling materials or other parts from used devices you
are making a significant contribution to the p otection
of our environment.
Important!
There is a risk of fi e if cleaning isn’t carried out in
accordance with the instructions.
– Never flambé under the rangehood.
– Exhaust air must not be discharged into an existing
flue which is used by other appliances for exhausting
fumes.
– If the power supply cord of this rangehood is
damaged in any way, it must only be replaced by
Residentia Group or one of it’s authorised service
agents. Please call the Residentia Support Team for
further assistance.
– Your new rangehood is guaranteed against electrical
or mechanical defects, subject to certain exclusions
that are noted in the Warranty Terms and Conditions
(at the rear of this user manual). The foregoing does
not affect your statutory rights.
– The use of this rangehood for any other purpose
or in any other environment, without the express
agreement of Residentia Group, will invalidate any
warranty or liability claim.
– No modifications to the appliance a e permitted by
Residentia Group.
– Repairs may only be carried out by authorised service
agents.
– Cleaning of the rangehood should be carried out on
a regular basis.
Information on appropriate disposal centres for used
devices can be provided by your local authority.
There shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels (not applicable to appliances
that only discharge the air back into the room).
CAUTION: Accessible parts may become hot when
used with cooking appliances.
4
Specifications
Y
OUR RANGEHOOD
Model Product dimensions (W,D,H mm)
ARCBBQ
Model Extraction Other features:
ARCBBQ
Rangehood components
Your Airvolution Canopy Rangehood is supplied with:
– 1 × Rangehood
2 × Expandable 150mm ducting adapter
–
– 1 × Packet of fasteners and wall plugs
– 2 × Stainless Steel flue pieces (upper and lower)
– 1 × Wall Bracket (“hook”) for the rangehood
– 1 × Wall Bracket for the inside of the chimney pieces
– 1 × “Outside Chimney” bracket
1200mm × 700mm × 689-1279mm
2 × 1000m3/hr extraction
–
3 speed push button control
–
6 × 1W LED lamp
–
8 × Baffle filter

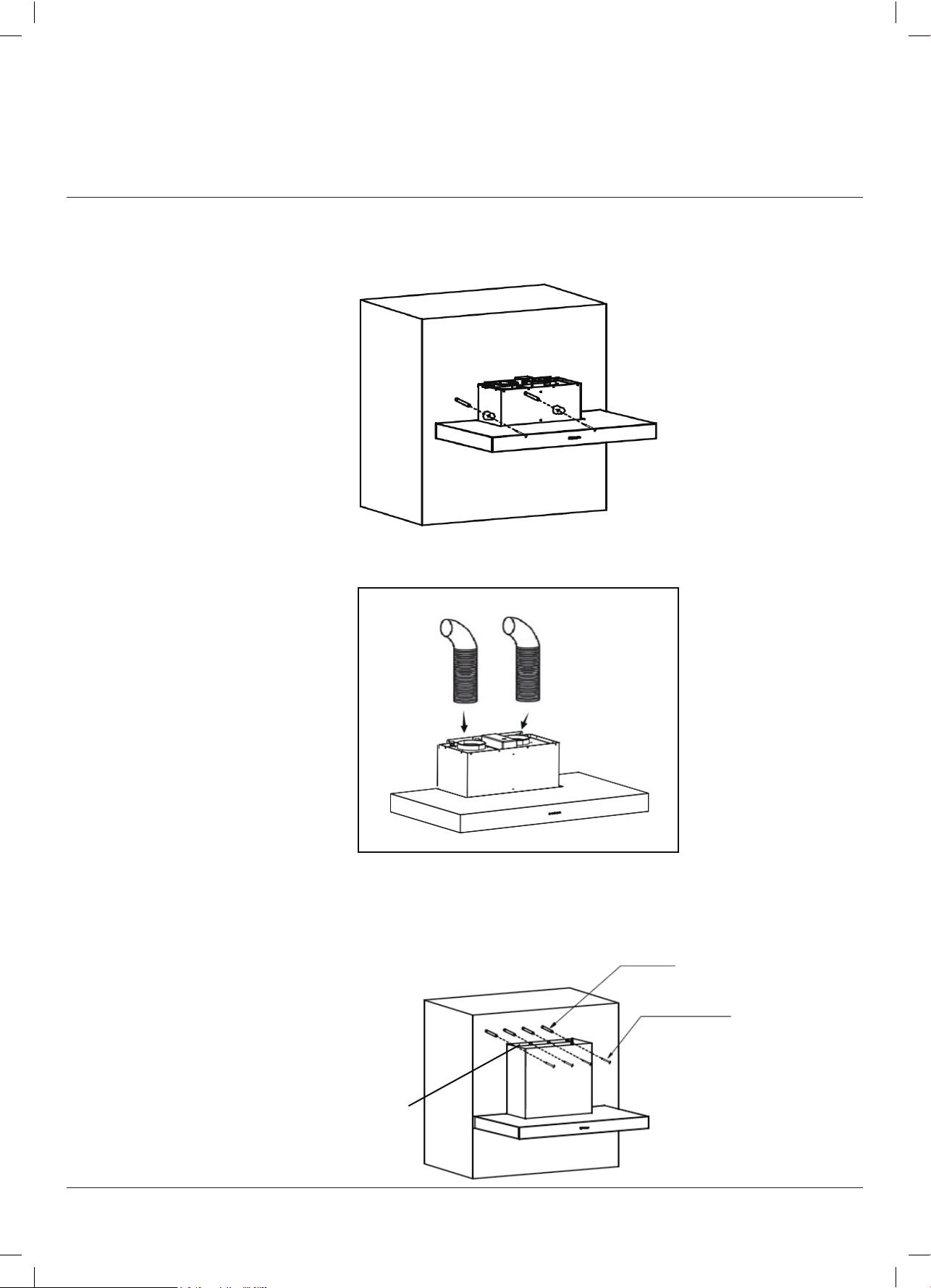

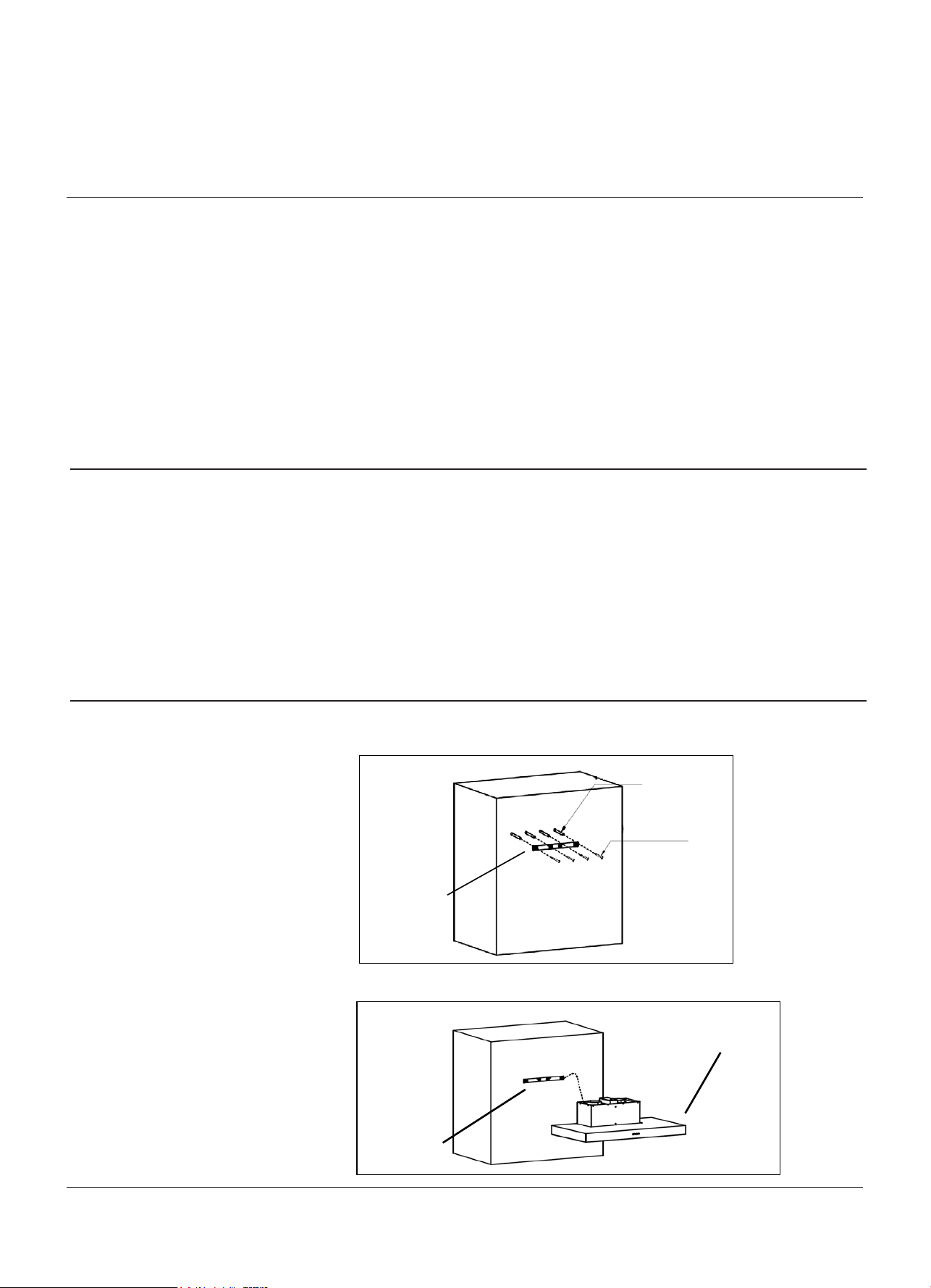

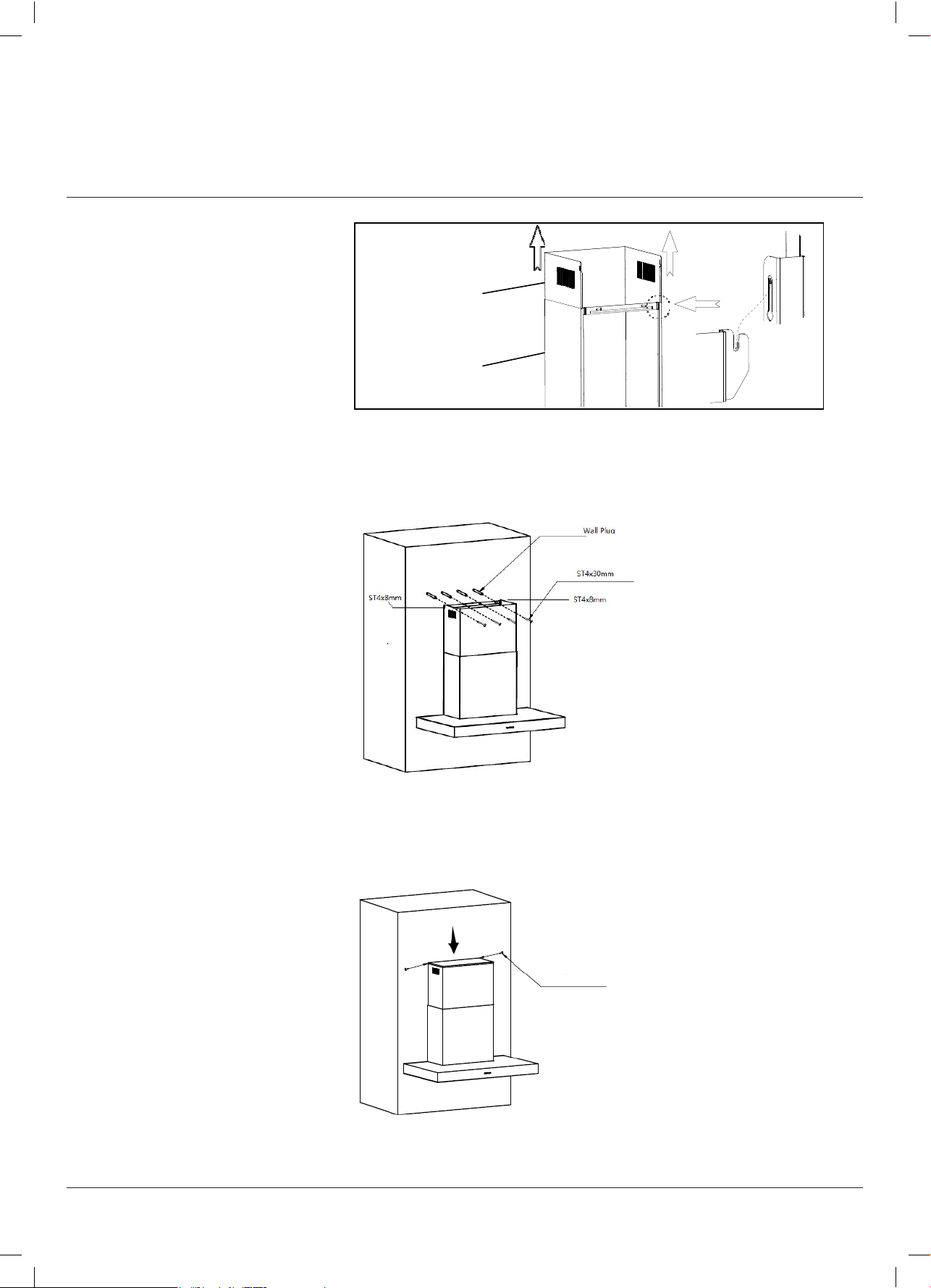

Typical installation tools required
You’ll most likely require the following tools/equipment
(not supplied) for the installation of your rangehood.
– Electrical drill
– Tape Measure
– Screw-driver
– Spirit Level

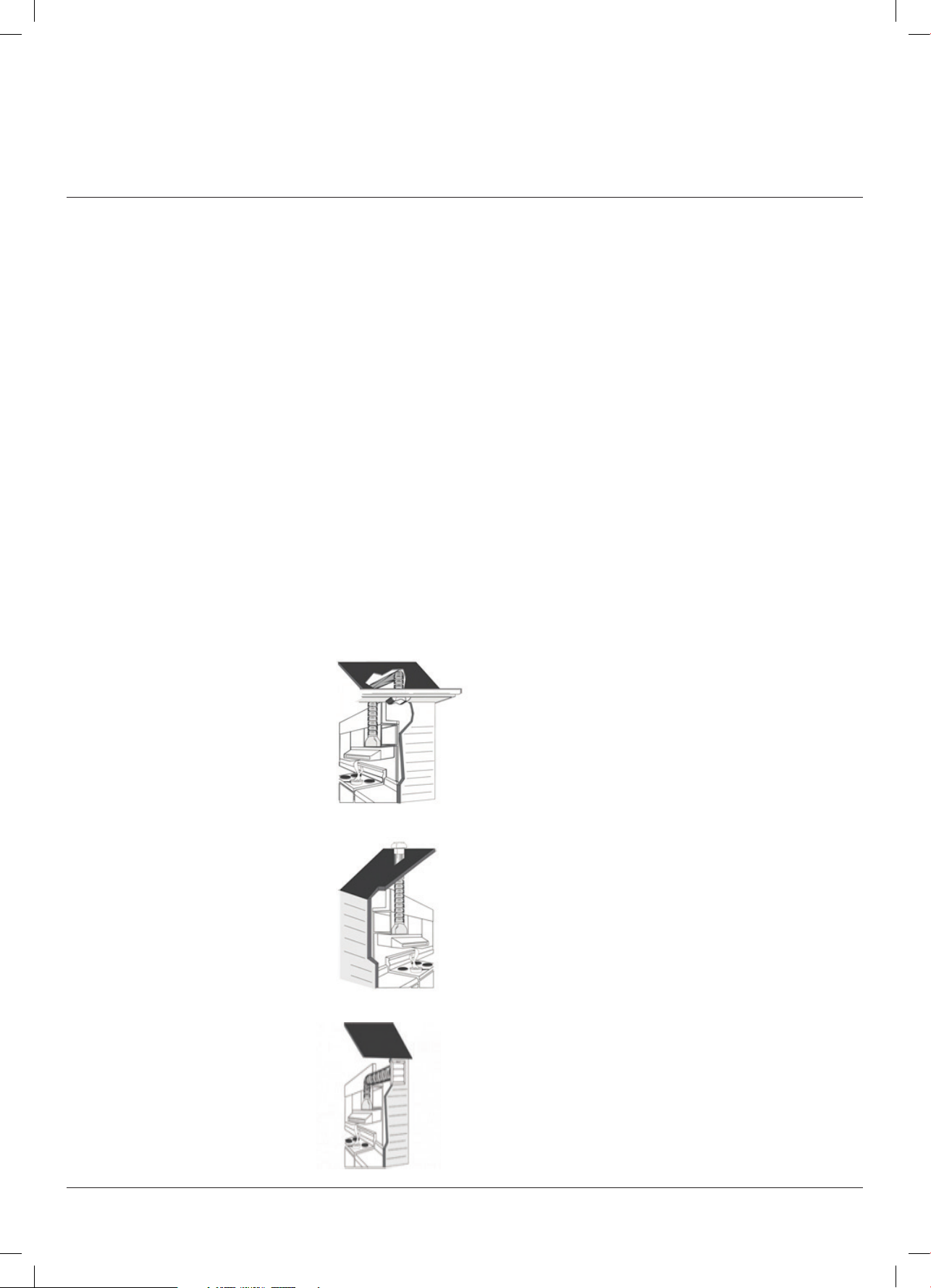

If ducting your rangehood, you’ll also most likely require:
– Jig saw
– Ladder
– Duct-tape
– Ducting
5
OPERATING YOUR RANGEHOOD
Controls
Your Airvolution Canopy Rangehood features push button controls.
Of f button
It’s used for turning off the fan.
1
2
3
Lo w Speed button
It’s used for Ventilation on the kitchen. It is suitable for simmering and
cooking which do not make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button
for highest effective ventilation.
Light button
NOTE If Low / Medium / High speed buttons are press at the same time, the
unit will only operate at the highest speed.
6
