IMPRESSA S9 User Manual
The IMPRESSA S9 One Touch Manual
The ‘IMPRESSA Manual’ has been awarded the seal of
approval by the independent German T echnical Inspection
Agency, TÜV SÜD, due to its easy-to-understand style, its
thoroughness and coverage of safety aspects.
Table of contents
Your IMPRESSA S9 One Touch
IMPORTANT SAFEGUARDS 4
Control elements
Proper use
For your safety
The IMPRESSA S9 One Touch Manual
Symbol description ......................................................................................................................................14
1 IMPRESSA S9 One Touch 15
Connector System© ....................................................................................................................................16
JURA on the Internet ....................................................................................................................................16
Knowledge Builder .......................................................................................................................................16
2 Preparing and using for the first time 17
Setting up ......................................................................................................................................................17
Filling the water tank ...................................................................................................................................17
Bean container filling ...................................................................................................................................17
First-time use ................................................................................................................................................18
Using and activating filter ..........................................................................................................................19
Determining and adjusting the degree of water hardness ..................................................................21
Adjusting grinder ........................................................................................................................................22
Switching on ................................................................................................................................................23
Switching off (Standby) ..............................................................................................................................24
3 Familiarising yourself with the control options 25
Preparation at the touch of a button .......................................................................................................26
One-off settings before and during preparation ...................................................................................26
Entering a permanent setting for the amount of water for a cup size..............................................27
Permanent settings in programming mode ..........................................................................................28
Viewing information and maintenance status .......................................................................................31
4 Preparation at the touch of a button 32
Espresso ........................................................................................................................................................32
Coffee ............................................................................................................................................................33
Coffee à la Carte ..........................................................................................................................................33
Cappuccino...................................................................................................................................................34
Latte macchiato ...........................................................................................................................................35
Pre-ground coffee .......................................................................................................................................37
Hot milk and milk foam .............................................................................................................................37
Hot water .....................................................................................................................................................39
8
10
10
13
2
Table of contents
5 Permanent settings in programming mode 41
Products .........................................................................................................................................................41
Energy-saving mode (Energy Save Mode, E.S.M.
©
) ..............................................................................44
Time and weekday ......................................................................................................................................45
Programmable switch-on and switch-off time ......................................................................................45
Automatic switch-off ..................................................................................................................................47
Rinses ............................................................................................................................................................48
Unit amount of water / time format ........................................................................................................48
Language ......................................................................................................................................................49
6 Maintenance 51
Maintenance tips ..........................................................................................................................................51
Rinsing the machine ....................................................................................................................................51
Changing the filter ......................................................................................................................................52
Cleaning the machine ................................................................................................................................54
Descaling the machine ...............................................................................................................................56
Rinsing the cappuccino frother ................................................................................................................58
Cleaning the cappuccino frother ..............................................................................................................60
Disassembling and rinsing the Professional Cappuccino Frother .......................................................61
Disassembling and rinsing the Easy Cappuccino Frother....................................................................62
Cleaning the bean container .....................................................................................................................62
Descaling the water tank ...........................................................................................................................63
7 Display messages 64
8 Troubleshooting
9 Transport and environmentally neutral disposal
66
68
Transport/Emptying the system ...............................................................................................................68
Disposal .........................................................................................................................................................68
10 Technical data 69
Index
70
JURA contact details / Legal information
72
3
Important Safeguards
IMPORTANT SAFEGUARDS
These safeguards apply for machines with UL safety test (see rating
plate and chapter 10, ‘Technical data’).
Follow the basic safety
precautions
When using electrical appliances, basic safety precautions should
always be followed, to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
Z Read all instructions.
Z Do not touch hot surfaces. Use handles or knobs.
Z To protect against fire, electric shock and injury to persons, do
not immerse cord, plugs, or body of machine in water or other
liquid.
Z Close supervision is necessary when any appliance is used by
or near children.
Z Unplug from outlet when not in use and before cleaning.
Allow to cool before putting or taking off parts, and before
cleaning the appliance.
Z Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or has been damaged in any
manner. Return appliance to the nearest authorized service
facility for examination, repair or adjustment.
Z The use of accessory attachement not recommended by the
appliance manufacturer may result in fire, electric shock, or
injury to persons.
Z Do not use outdoors.
Z Do not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
Z Do not place on or near a hot gas or electric burner, or in a
heated oven.
Z Always attach plug to appliance first, then plug cord into the
wall outlet. To disconnect, turn any control to ‘OFF’ then
remove plug from wall outlet.
Z Do not use appliance for other than intented use.
Z Use extreme caution when dispensing hot steam.
Z For household use only.
SAVE THESE INSTRUCTIONS
4
Important Safeguards
Special cord set instructions
a. A short power supply cord is provided to reduce the risk
resulting from becoming entangled in or tripping over a long
cord.
Your IMPRESSA has a 3-pin grounded plug.
b. Longer extension cords are available and may be used if care
is exercised in their use.
c. If an extension cord is used,
1. the marked electrical rating of the extension cord should be
at least as great as the electrical rating of the appliance,
and
2. if the appliance is of the grounded type, the extension
courd should be a grounding type 3-wire cord, and
3. the longer cord shall be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children of tripped over.
Z As a safety feature, this plug will fit in a polarized outlet only
one way.
Z If the plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician.
Z Do not modify the plug in any way or attempt to defeat this
safety feature.
Warning
Caution
To reduc e the risk of fire or electric shock, do not remove any service
covers. No user serviceable parts inside. Repair should be done by
authorized personnel only.
This appliance is for household use. Any servicing other than cleaning and user maintenance should be performed by an authorized
service representative:
Z Do not immerse base in water or try to disassemble.
Z To reduce the risk of fire or electric shock, do not remove the
base. No user serviceable parts inside. Repair should be done
by authorized service personnel only.
Z Check voltage to be sure that the voltage indicated on the
name plate agreees with your voltage.
Z Never use warm or hot water to fill the water container! Use
cold water only.
5
Important Safeguards
Z Keep your hands and the cord away from hot parts of the
appliance during operation.
Z Never clean with scouring powders or hard implements.
NEVER DO
(or you will void your
warranty protection):
Z Never fill instant coffee, chocolate mix etc. into the grinder or
ground coffee funnel (grunder by-pass). It will damage the
functioning of the brewing chamber
Z Never fill sugar coated coffee beans into the bean hopper. In
case of doubt, call your dealer.
Z Never fill anything other than coffee beans into the bean con-
tainer (no chocolate, no rice, no nuts, no spices, nothing other
than roasted coffee beans).
Z Never do anything with the machine which is not described in
the User‘s Manual. In case of doubt, call your dealer.
6
Important Safeguards
7
Control elements
Control elements
1
2
3
4
5
6
8
9
10
11
12
13
14
15
7
Figure: IMPRESSA S9 Platinum
1 Bean container cover
2 Bean container with aroma preservation
cover
3 Water tank with handle
4 Power switch and power cable
(back of machine)
5 Coffee grounds container
6 Drip tray
7 Cup platform
8
8 Fineness of grind switch
9 Cup tray
10 Cover of filler funnel for pre-ground coffee
11 Filler funnel for pre-ground coffee
12 Connector System
©
for removable
frothers
13 Professional Cappuccino Frother
14 Height-adjustable coffee spout
15 Hot water spout
Control elements
1
2
3
Front left
1 Display
2 Rotary Switch cover
3 f Rotary switch
Q On/off button
c Maintenance button
i 1 Espresso button
4 2 Espressi button
o 1 Coffee button
d 2 Coffees button
e Coffee à la Carte button
v Pre-ground coffee button
4
5
Front right
4 ö Selector switch
5 Professional Cappuccino Frother
6 Easy Cappuccino Frother
a Hot water portion symbol
m Hot water symbol
p Cappuccino button
z Milk portion symbol
n Milk symbol
q Latte Macchiato button
The Connector System
56
©
permits the use of different frothers. These are available from stockists.
9
Important information
Proper use
The machine has been designed and built for domestic use. It should
only be used to prepare coffee and to heat milk and water. Use for
any other purpose will be deemed improper. JURA Elektroapparate
AG cannot accept any responsibility for the consequences of
improper use.
Before using the machine always carefully read and comply with all
these instructions. Keep this manual close to the IMPRESSA and, if
appropriate, pass it on to the next user.
For your safety
Please read and note carefully the following important safety information.
By doing this, you can avoid the life-threatening danger of electric
shock:
Z Never use a machine which has been damaged or with a
defective power cable.
Z For information on what to do in case of damage, for example
if there is a smell of burning, unplug the machine immedi ately
from the mains supply and contact the JURA service centre.
Z If the power cable for this machine is damaged, it must be
repaired either directly by JURA or by a JURA appro ved service
centre.
Z Make sure that the IMPRESSA and the power cable are not
located close to hot surfaces.
Z Be careful to ensure that the power cable does not get caught
and does not rub against sharp edges.
Z Never open and repair the machine yourself. Do not modify
the machine in any way that is not described in the IMPRESS A
Manual. The machine contains live parts. If opened, there is a
danger of serious injury. Repairs may only be carried out by
JURA approved service centres, using original spare parts and
accessories.
10
There is a risk of scalds or burns on the spouts or in the nozzle:
Z Place the machine out of the reach of children.
Z Do not touch any hot parts. Use the handles provided.
Important information
Z Be careful to ensure that the appropriate nozzle is installed
and clean. The nozzle or parts of the nozzle might come off if
the parts are not assembled correctly or a blockage occurs.
A defective machine is not safe and could cause injury or fire. To
avoid damage and any associated risk of injury or fire:
Z Never allow the power cable to loosely hang down. The po wer
cable can be tripped over or damaged.
Z Protect your IMPRESSA from environmental influences such
as rain, frost and direct sunlight.
Z Do not put the IMPRESSA, cable or connections in water.
Z Do not put the IMPRESSA or any individual parts in the dish-
washer.
Z Turn your IMPRESSA off at the power switch before starting
any cleaning operation. Always wipe your IMPRESSA with a
damp cloth rather than a wet one, and protect it from pro-
longed water splash.
Z Only connect the machine to a power supply in accordance
with the information on the rating plate. The rating plate is
located on the underside of your IMPRESSA. Further technical
data is given in Chapter 10 ‘Technical Data’.
Z Use only original JURA care products. Use of accessories that
are not explicitly recommended by JURA could damage the
IMPRESSA.
Z Do not use any coffee beans treated with additives or caramel-
ised coffee beans.
Z Always fill the water tank with cold, fresh mains water.
Z If you will be absent for an extended period, turn the machine
off and unplug.
Risk to children and persons with limited capabilities in operating
machines:
Z The machine is not designed to be operated by children and
persons with limited capabilities.
Z The machine may only be used by persons who are able to
operate the machine safely.
11
Important information
Safe handling of the CLARIS filter cartridges:
Z Filter cartridges should be kept out of the reach of children.
Z Store them dry in the sealed package.
Z Protect them from heat and direct sunlight.
Z Do NOT use damaged filter cartridges.
Z Do NOT open filter cartridges.
12
The IMPRESSA S9 One Touch Manual
You are holding the manual for your IMPRESSA S9 One Touch in
your hand. It will help you to familiarize y ourself with your IMPRESSA
safely and quickly and teach you the full range of facilities it offers.
Chapter 2, ‘Preparing and using your IMPRESSA for the first time’,
explains step-by-step how to set up and prepare the IMPRESSA.
Chapter 3, ‘Familiarising yourself with the control options’ is important for you to read as you are familiarising yourself with your
IMPRESSA. It invites you to actively explore all the different coffee
experiences that it offers.
All the other chapters are intended to help you when you have a
specific query.
If you use the IMPRESSA S9 One Touch Manual, you will become
a master at preparing exciting coffee specialities, you will be a
Barista!
The IMPRESSA S9 One Touch Manual
You can download the short operating instructions for y our machine
from the JURA website (www.jura.com).
13
The IMPRESSA S9 One Touch Manual
Symbol description
Warnings
CAUTION
CAUTION
Symbols used
E
@
T
Always take note of any information marked
with the CAUTION or WARNING symbol. The
signal word WARNING points out potential risk
of serious injury, and the signal word CAUTION
potential risk of slight injury.
The CAUTION symbol is used to dr aw attention
to circumstances which could cause the
machine to become damaged.
Information and tips to make things easier for
you as you use your IMPRESSA.
References to the online JURA website, where
you can find interesting further information:
www.jura.com.
Prompt to take action. This symbol means that
you are being prompted to perform some
action.
14
1 IMPRESSA S9 One Touch
1 IMPRESSA S9 One Touch
Coffee that fulfils your
wildest dreams
With the new flagship of the IMPRESSA S range, cappuccino and
latte macchiato are prepared at the touch of a button without you
having to move the cup. With its elegant platinum styling and
upgraded design, this high-quality product is fully in keeping with
contemporary trends and exudes superiority, solidity and competence. It impressively demonstra tes these attributes with each coffee
speciality that you enjoy.
Z One Touch Cappuccino/Latte Macchiato: Your IMPRESSA S9
makes a cup of cappuccino at the touch of a button, without
you having to move the cup. Hot milk foam, flowing into the
cup and slowly starting to fill it. Steam which rises, awakening
the anticipation of a delicious speciality. Aromatic coffee,
blending with the milk, pushing up the milk foam topping.
These are the protagonists in a sensuous drama – the drama
of perfect coffee preparation. A latte macchiato can also be
made equally easily and sensuously at the touch of a button.
Z Energy-saving mode (Energy Save Mode, E.S.M.©): The IM-
PRESSA S9 One Touch actively assists you in saving energy.
With the various stages of the energy-saving mode, you can
adjust the energy saving potential to suit the way you like to
enjoy your bever ages. The machine can be completely discon-
nected from the power supply at the main switch – for in-
stance if you are going to be absent for some time.
Z Control philosophy: You can ‘navigate’ reliably through all
operating and programming steps simply by turning and
pressing the switch. The information on the plain text and
graphic display is in full view at all times. The focus is on your
personal taste. Simply select the coffee strength, amount of
water and temperature according to your individual prefe-
rences.
15
1 IMPRESSA S9 One Touch
Z Professional technology for the home: The active bean mon-
itoring feature of your IMPRESSA S9 banishes the sound of
empty rotating coffee grinders and the inconvenience of
half-full cups once and for all. It always shows you in good
time when the coffee beans need replenishing. The filling level
of the 280 gram bean container is continuously optically
monitored.
Connector System©
JURA on the Internet
Knowledge Builder
The Connector System
frothers:
Z Professional Cappuccino Frother
U Cappuccino/latte macchiato
U Hot milk
Z Easy Cappuccino Frother
U Cappuccino/latte macchiato
Visit us on the Internet.
@ At www.jura.com you will find interesting and up-to-date
information on your IMPRESSA and on every aspect of coffee.
You can familiari z e yourself with your IMPRESSA S9 in a fun way on
the PC.
@ The Knowledge Builder awaits you at www.jura.com. The
interactive assistant, LEO, will support you and explain the
benefits of and how to use your IMPRESSA.
©
permits the use of different cappuccino
16
2 Preparing and using for the first time
This chapter provides you with the information y ou need to use your
IMPRESSA without any problems. You will prepare your IMPRESSA
step-by-step for your first coffee experience.
2 Preparing and using your IMPRESSA for the first time
Setting up
Filling the water tank
CAUTION
Bean container filling
CAUTION
When setting up your IMPRESSA, please note the following:
Z Set the IMPRESSA down on a horizontal surface that is not
sensitive to water.
Z Choose a spot for your IMPRESSA which is protected against
overheating.
To enjoy perfect coffee we recommend changing the the water
every day.
Milk, mineral water or other liquids can damage the water tank or
the machine.
T Only fill the water tank with fresh, cold water.
T Remove the water tank and rinse it with cold water.
T Fill the water tank with fresh, cold water and reinsert.
The bean container has an aroma preservation cover . This will ensure
that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar),
pre-ground or freeze-dried coffee will damage the grinder.
T Only use untreated coffee beans to refill the bean container.
T Open the cover of the bean container and remove the aroma
preservation cover.
T Remove any dirt or foreign objects inside the bean con-
tainer.
T Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
17
2 Preparing and using your IMPRESSA for the first time
First-time use
If the machine is operated with a defective power cable, there is a
danger of electric shock.
WARNING
T Never use a machine which has a defective power cable.
Precondition: The water tank and bean container are full.
T Insert the mains plug into a power socket.
3 T Switch on the IMPRESSA using the pow er switch on the back
of the machine.
The on/off button Q lights up (standby).
Q T Press the on/off button to switch the IMPRESSA on.
The pre-set language appears on the display.
T Open the cover of the Rotary Switch.
g T Turn the Rotary Switch until the desired language is dis-
played. For Example:
k T Press the Rotary Switch to confirm the language.
CONFIRMED √ appears briefly on the display to confirm
the setting.
TIME --:--
g T Turn the Rotary Switch to set the hour.
TIME 12:00 (Example)
k T Press the Rotary Switch to confirm the hour setting.
TIME 12:00
g T Turn the Rotary Switch to set the minutes.
TIME 12:45 (Example)
k T Press the Rotary Switch to confirm the minute setting.
CONFIRMED √ appears briefly on the display.
WEEKDAY MONDAY
g T Turn the Rotary Switch to set the weekday.
WEEKDAY WEDNESDAY (Example)
k T Press the Rotary Switch to confirm the setting.
CONFIRMED √ appears briefly on the display.
FILL SYSTEM / PRESS RINSE, the maintenance
button c lights up.
LANGUAGE ENGLISH
18
2 Preparing and using your IMPRESSA for the first time
T Place a receptacle under the hot water spout and another
under the frother.
c T Press the maintenance button.
SYSTEM FILLS, the system fills up with water and the
maintenance button flashes. A small amount of water flows
from the frother and the hot water spout.
This operation stops automatically .
appears on the display.
WELCOME TO JURA
HEATING UP
PRESS RINSE, the maintenance button c lights up.
T Place a receptacle under the coffee spout.
c T Press the maintenance button.
The machine rinses itself, stopping automatically.
COFFEE READY appears on the display. Your IMPRESSA
is ready to use.
E After first-time use do not disconnect the IMPRESSA from the
power supply for 24 hours to ensure that it is in the optimum
operating condition.
E When a coffee speciality has been prepared for the first time,
it is possible that
the grinder has not yet been completely filled with coffee
beans. In this case prepare a different coffee speciality.
E If you have not been able to use the machine for the first time
correctly and fully, contact Customer Support in your country
(see ‘JURA contact details / Legal information’).
FILL BEANS is shown on the display as
Using and
activating filter
Your IMPRES SA no longer has to be descaled if you are using CLARIS
filter cartridges.
@ You can also try out the ‘Insert filter’ operation online. Visit the
Knowledge Builder at www.jura.com.
E Perform the ‘Insert filter’ operation without interruptions. This
will ensure that your IMPRESSA always produces its best.
19
2 Preparing and using your IMPRESSA for the first time
Precondition: COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
k T Keep the Rotary Switch pressed until
appears on the display.
g T Turn the Rotary Switch until FILTER NO is displayed.
k T Press the Rotary Switch to enter the programme item.
FILTER NO
g T Turn the Rotary Switch until FILTER YES is displayed.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display to confirm
the setting.
INSERT FILTER / PRESS RINSE, the maintenance
button c lights up.
T Remove a CLARIS filter cartridge and the filter cartridge ex-
tension from the Welcome Pack.
T Fit the extension on top of the filter cartridge.
T Remove the water tank and empty it.
T Lift the cartridge holder and insert the filter car tridge into
the water tank, applying slight pressure.
T Close the cartridge holder. It will click into place audibly.
T Fill the water tank with fresh, cold water and reinsert.
MAINTENANCE
20

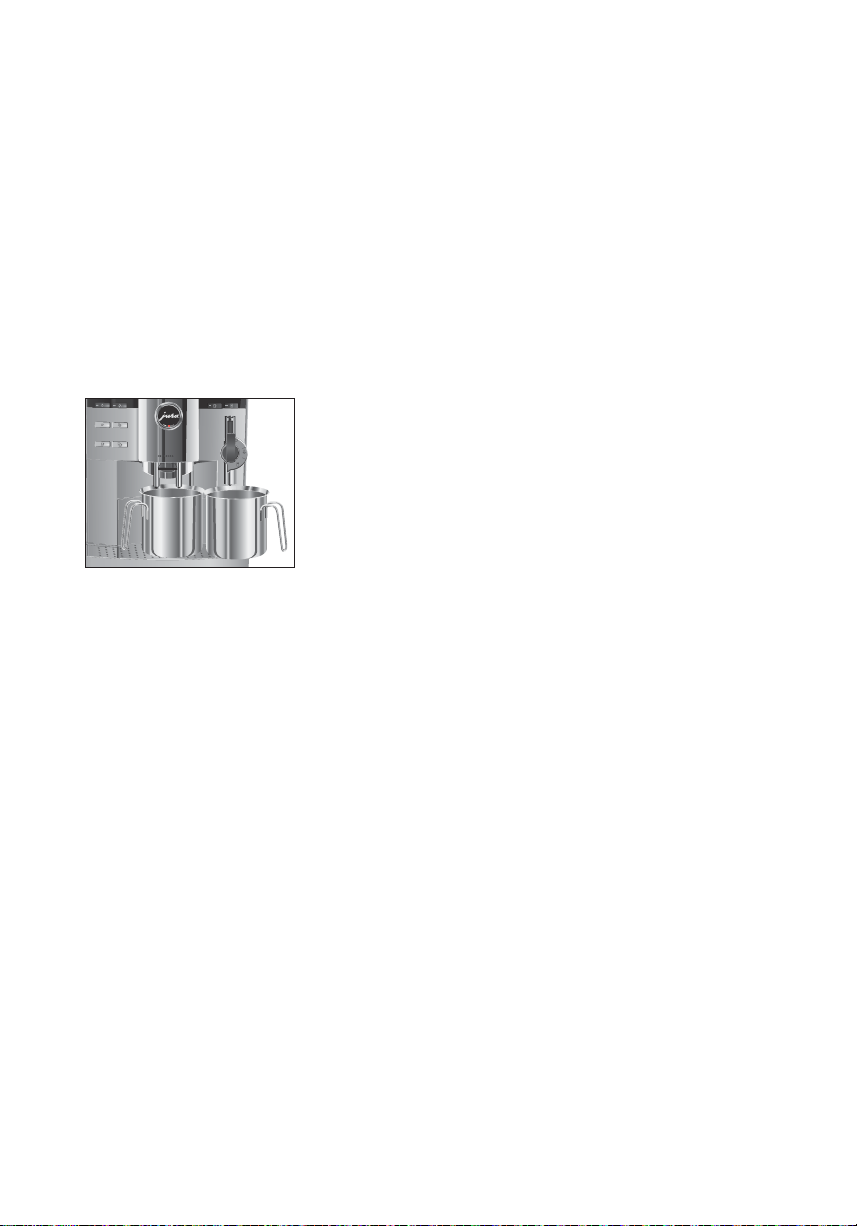

T Place a receptacle (at least 500 ml) under the frother.

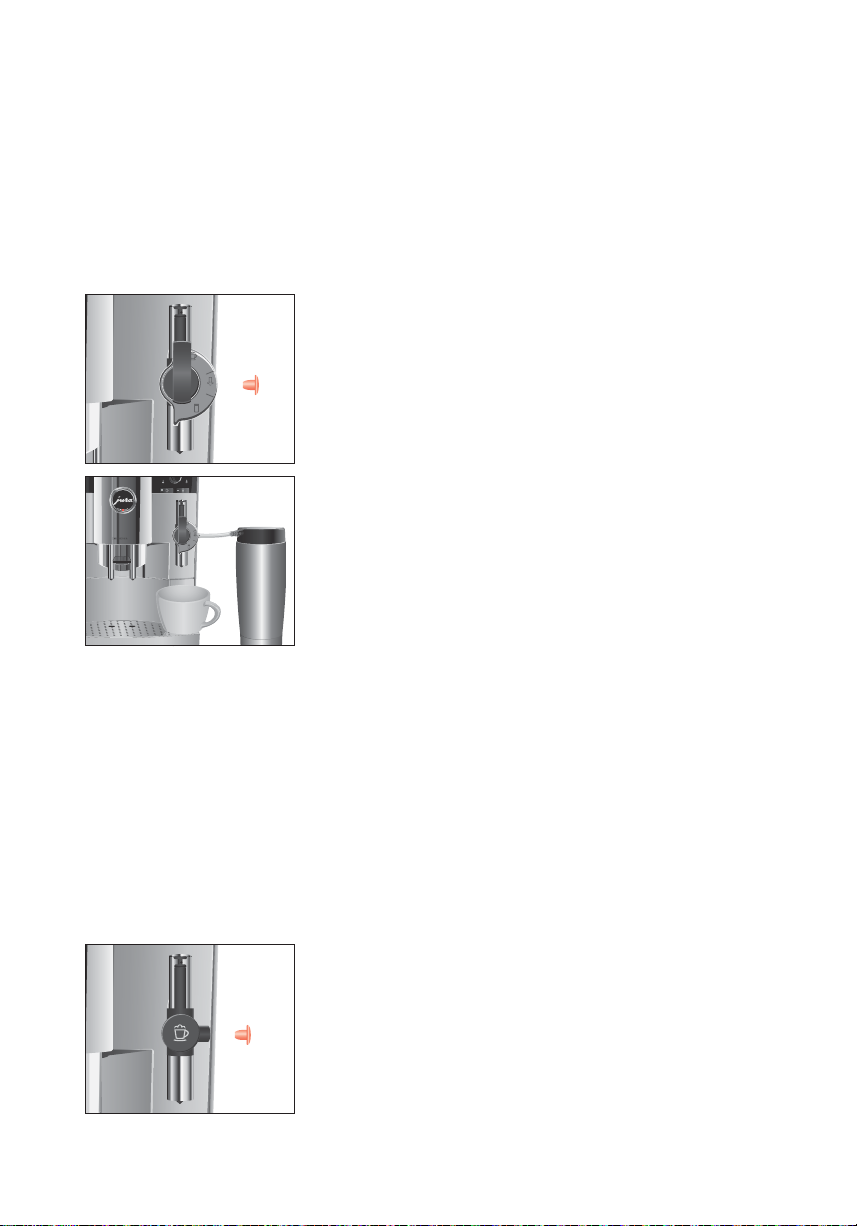

E If you are using the Professional Cappuccino Frother, set the
selection lever of the frother to the steam position n.
c T Press the maintenance button.
FILTER RINSING, water flows out of the frother.
E You can interrupt rinsing of the filter at any time by pressing
any button.
E The water may be slightly discoloured. This is not harmful to
health and does not affect the taste.
2 Preparing and using your IMPRESSA for the first time
Filter rinsing stops automatically after approx. 500 ml.
COFFEE READY appears on the display . The filter is now
activated.
Determining and
adjusting the degree
of water hardness
The harder the water is, the more frequently the IMPRESSA needs to
be descaled. It is therefore important to adjust the water hardness.
The water hardness can be adjusted on a continuous scale between
1° dH and 30° dH. This can also be deactivated, which means that
the IMPRESSA will not let you know when it has to be descaled.
E However, if you are using the CLARIS filter cartridge and have
activated it, you will not be able to adjust the water
hardness.
You can find out what the w at er hardness is by using the Aquadur®
test strip supplied as standard.
T Hold the test strip briefly (for one second) under flowing
water. Shake off the water.
T Wait for about one minute.
T You will then be able to read the degree of water hardness
from the discolouration of the Aquadur® test strip and the
description on the packaging.
You can now adjust the water hardness.
Example: To change the water hardness from
proceed as follows:
Precondition:
k T Keep the Rotary Switch pressed until
g T Turn the rotary switch until
k T Press the Rotary Switch to enter the programme item.
COFFEE READY is displayed.
T Open the cover of the Rotary Switch.
appears.
displayed.
16°d H to 25°dH,
MAINTENANCE
HARDNESS 16°dH is
16°dH
g T Turn the Rotary Switch until 25°dH is displayed.
21
2 Preparing and using your IMPRESSA for the first time
k T Press the Rotary Switch to confirm the setting.
CONFIRMED w appears briefly on the display.
HARDNESS 25°dH
g T Turn the Rotary Switch until EXIT is displayed.
k T Press the Rotary Switch to exit programming mode.
COFFEE READY is shown on the display.
Adjusting grinder
CAUTION
You can adjust the grinder continuously to suit the roast of your
coffee.
If you adjust the fineness of grind when the grinder is not operating,
the grinding wheel could be damaged.
T Only adjust the fineness of grind when the grinder is run-
ning.
The fineness of grind setting is correct if the coffee flows regularly
from the coffee spout. A fine, thick crema is also formed.
Our recommendations:
Z Select a fine setting for a light roast.
U If the fineness of grind setting is too fine, the coffee only
drips from the coffee spout.
Z Select a coarse setting for a darker roast.
U If the fineness of grind is too coarse the coffee flows too
quickly from the coffee spout.
22
Example: T o change the fineness of grind during coffee preparation,
proceed as follows:
T Open the cover of the bean container.

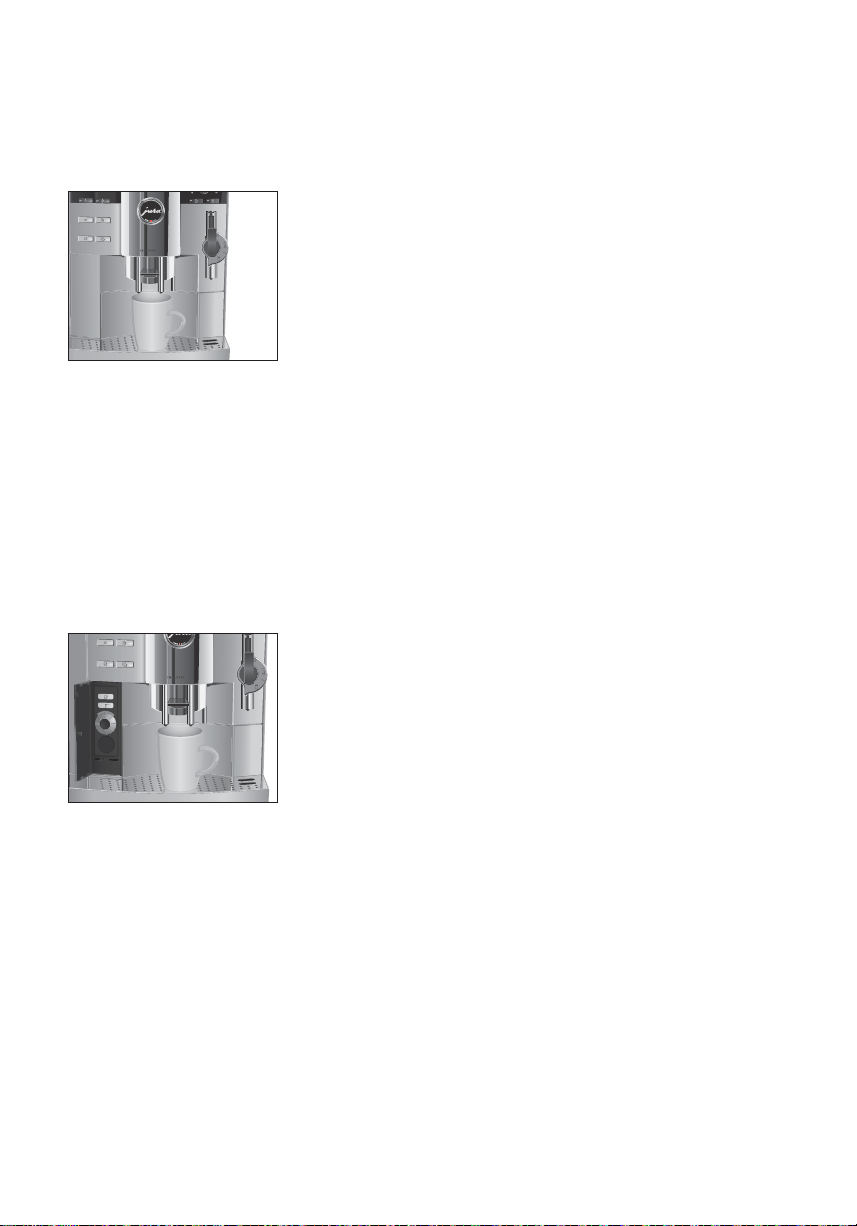

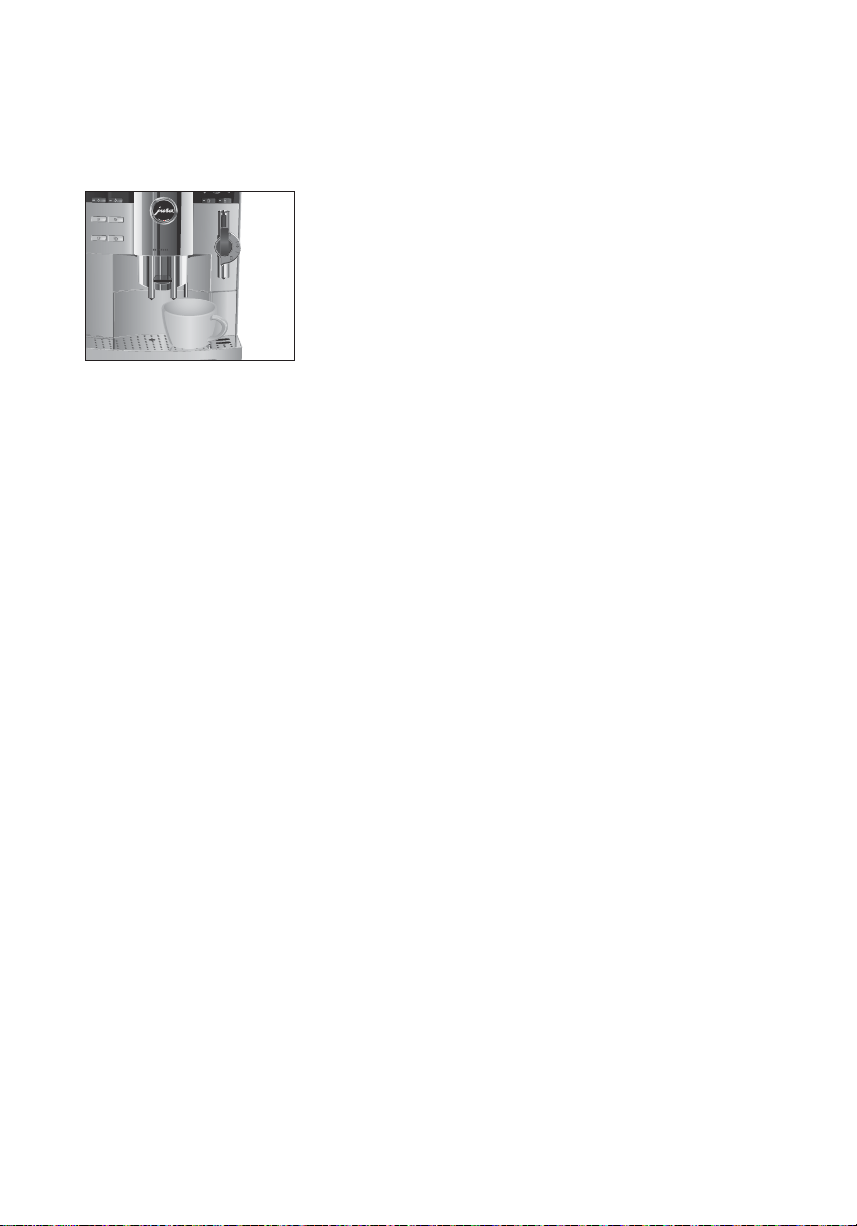

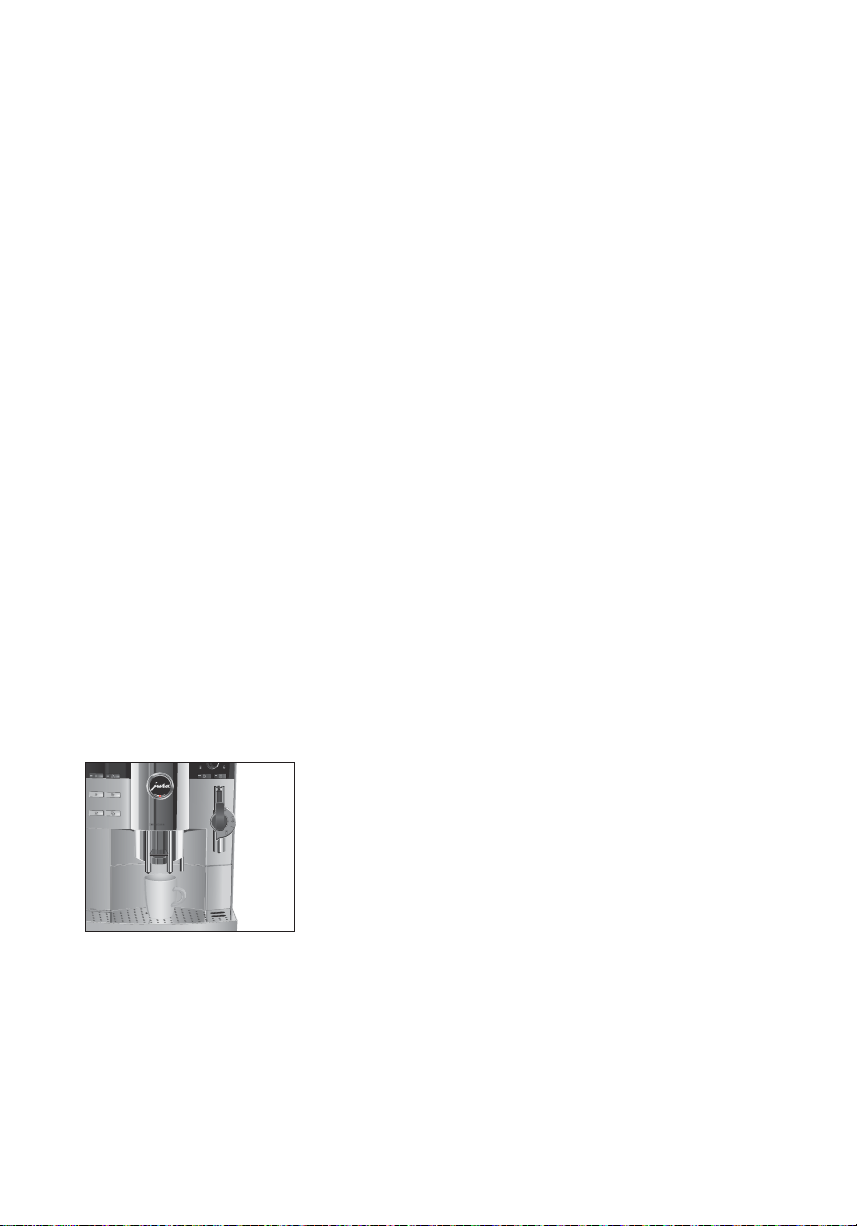

T Place a cup under the coffee spout.
o T Press the 1 Coffee button.
The grinder starts and
1 COFFEE is displayed.
Loading...
