Impex TT-360 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Important Assembly

Information

Care and Maintenance

Parts List

Warranty

Ordering Parts

Gym Dandy

TEETER TOTTER

TT-360

Model

TT-360

Retain This

Manual for

Reference

111228

OWNER'S

MANUAL

IMPORTANT: Please read this manual before commencing

assembly of this product.

IMPEX® INC.

2801 S. Towne Ave, Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

info@impex-fitness.com

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................………… 1

IMPORTANT SAFETY NOTICES...................................................................……….. 2

WARNING LABEL PLACEMENT.....….....................................................................… 4

IMPORTANT ASSEMBLY INFORMATION.................................................................. 5

CARE AND MAINTANENCE, WEIGHT CAPACITY…………………………. ………… 6

PARTS LIST…………………………………………………………………………………. 7

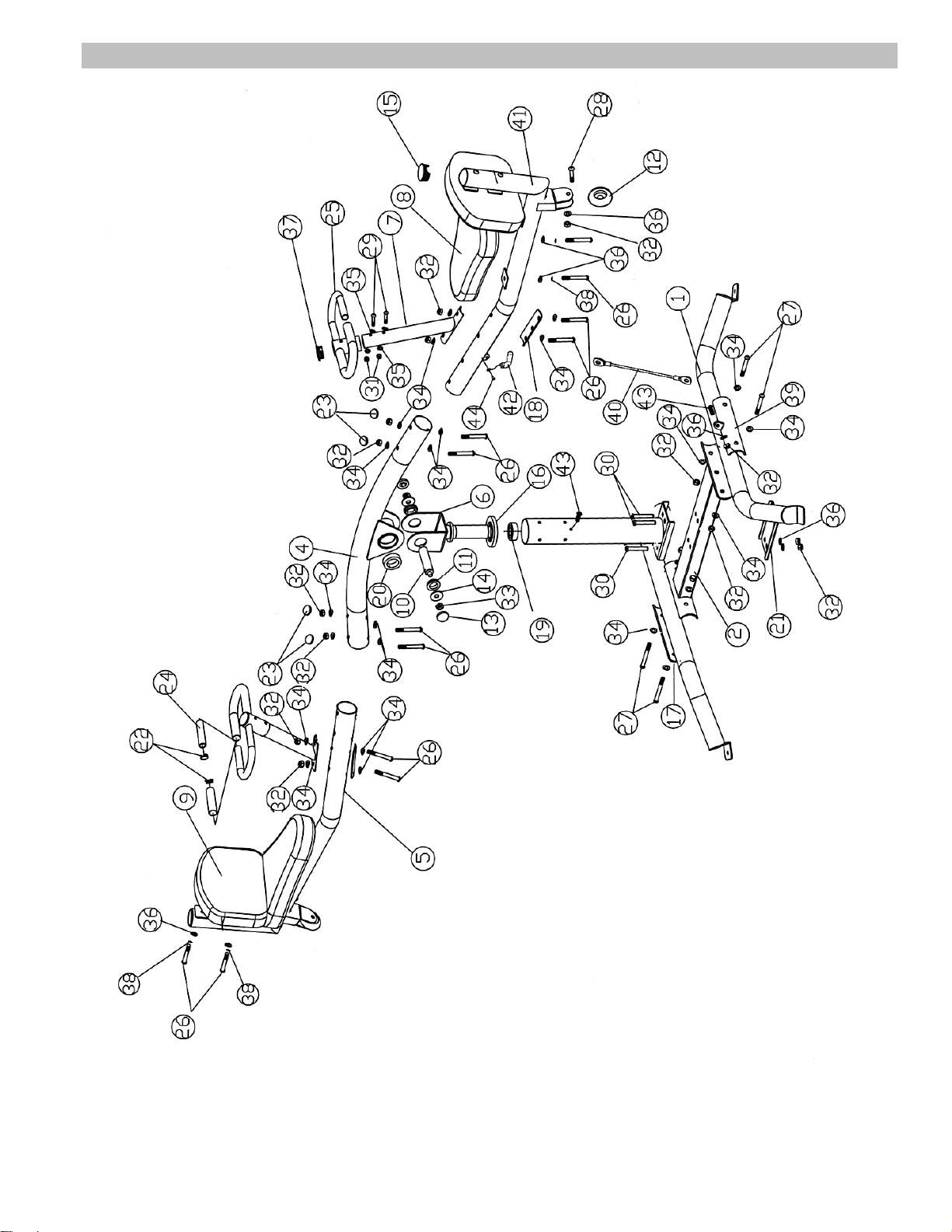

EXPLODED DIAGRAM……………………………………………………………………… 9

WARRANTY.................................................................................................…………. 10

ORDERING PARTS.......................................................................................………… 10

This item conforms to ASTM F1148, Consumer Safety Performance Specification for Home Playground Equipment.

BEFORE YOU BEGIN

Thank you for selecting the Gym Dandy Teeter Totter TT-360 by IMPEX® INC. For your safety and benefit, read this manual carefully before using the equipment. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory. To avoid unnecessary delays, please call our TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

www.impex-fitness.com

info@impex-fitness.com

IMPORTANT SAFETY NOTICE

©IMPEX INC. www.impex-fitness.com

This play ground equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of play ground equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions to reduce the likelihood of serious or fatal injury.

1. Children must be supervised at all times and never left unattended with the unit.

2. Do not install the equipment over concrete, asphalt, packed earth, grass, carpet or any other hard surface. A fall onto a hard surface can result in serious injury to the user.

3. Make sure the surfaces, either indoors or outdoors, are free of objects that may cause tipping over.

4. Place the equipment on level ground, not less than 6 ft (1.8 m) from any structure or obstruction such as fence, garage, house, overhanging branches, laundry lines, or electrical wires.

5. Make sure bystanders are at least 5 feet away from the equipment while it is in motion. No one should be allowed to walk close to, in front of, behind, or between moving items.

6. Keeps hands and feet away from the pivot area.

7. Do not get off from seat while it is in motion.

8. Do not stand on the teeter-totter. This could cause damage to the ride and result in injury.

9. Do not swing with empty seat.

10. Children should not wear loose clothing. Attire should include well-fitting shoes.

11. This teeter totter is intended for use by children from ages 3 to 13.

12. Maximum weight capacity 300 lbs.

13. Only two persons should be using the equipment at the same time.

14. Impact-absorbing material must be placed around the teeter totter. Please refer to the PLAYGROUND SURFACING MATERIALS in page 3.

15. Maximum fall height: 52 inches.

16. To prevent serious injury, children must NOT use the equipment until properly installed.

17. To prevent serious injury, parents must make warnings to children not to use this equipment in a manner other than intended.

18. To prevent serious injury, parents must make warnings to children not to attach items to the equipment that are not specifically designed for use with the equipment.

19. Lock this Teeter Totter with Cable Strap when not in use.

20. This Teeter Totter is for Home Use only.

SAVE THESE INSTRUCTIONS.

CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS

The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipmentrelated injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the injury-causing potential of a fall. It is self evident that a fall onto a shock absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. Playground equipment should never be placed on hard surfaces such as concrete or asphalt and while grass may appear to be acceptable it may quickly turn to hard packed earth in areas of high traffic. Shredded bark mulch, wood chips, fine sand or fine gravel are considered to be acceptable shock absorbing surfaces when installed and maintained at a sufficient depth under and around playground equipment.

The following table lists the maximum height from which a child would not be expected to sustain a life-threatening head injury in a fall onto four different loose-fill surfacing materials if they are installed and maintained at depths of 6, 9, and 12 inches. However, it should be recognized that all injuries due to falls cannot be prevented no matter what surfacing material is used.

FALL HEIGHT IN FEET FROM WHICH A LIFE THREATENING HEAD INJURY

WOULD NOT BE EXPECTED

TYPE OF MATERIAL 6-INCH DEPTH 9-INCH DEPTH 12-INCH DEPTH

Double Shredded Bark

Mulch

6 10 11

Wood Chips . . 6 7 12

Fine Sand 5 5 9

Fine Gravel 6 7 10

It is recommended that a shock absorbing material should extend a minimum of 6 feet in all directions from the perimeter of stationary equipment such as climbers and slides. However, because children may deliberately jump from a moving swing, the shock absorbing material should extend in the front and rear of a swing a minimum distance of 2 times the height of the pivot point measured from a point directly beneath the pivot on the supporting structure.

This information is intended to assist in comparing the relative shock-absorbing properties of various material. No particular material is recommended over another. However, every material is only effective when properly maintained. Materials should be checked periodically and replenished to maintain correct depth as determined necessary for your equipment. The choice of a material depends on the type and height of the playground equipment, the availability of the material in your area, and its cost.

'This information has been extracted from the CPSC publications "Playground Surfacing - Technical Information Guide" and "Handbook for Public Playground Safety:' Copies of these reports can be obtained by sending a postcard to the: Office of Public Affairs, U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hot line: 1-800-638-2772.
