Impex TC-3502 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

APEX

POWER STATION

TC-3502

Model

TC-3502

Retain This

Manual for

Reference

06-23-08

OWNER'S
MANUAL

IMPEX® INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE IDENTIFIER.....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 5

EXPLODED DIAGRAM……………………………………………………………… 9

PARTS LIST...................................................................................................... 10

WARRANTY.................................................................................................…. 11

ORDERING PARTS.......................................................................................… 11

BEFORE YOU BEGIN

Thank you for selecting the APEX TC-3502 by IMPEX
benefit, read this manual carefully before using the machine. As a manufacturer,
we are committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number. Our
Customer Service Agents will provide immediate assistance to you.

®

INC. For your safety and

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply whenever
you operate a piece of exercise equipment. Be sure to read the entire manual before you
assemble or operate your machine. In particular, note the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

3. Maximum user’s weight: 300 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35
OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS
BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY
FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE
USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL REPLACEMENT

The warning label shown here has been placed on the Rear Base. If the labels are missing or illegible, please
call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown.

3

HARDWARE PACK

4

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injury.

STEP 1 (See Diagram 1)

A.) Attach the Lower Vertical Frame (#2) to the Rear Base (#4). Secure it with two M10 x 3 ½”

Carriage Bolts (#32), one U-shaped Bracket (#14), two Ø ¾” Washers (#35), and two M10
Aircraft Nuts (#33).

B.) Attach the Right & Left Stabilizers (#5 & #6) to the Lower Vertical Frame. Align the holes and

secure them with four M10 x 3 5/8” Carriage Bolts (#30), Ø ¾” Washers (#35), and M10 Aircraft
Nuts (#33).

C.) Attach the Push-up Handles (#40) to the Right & Lef t Stabilizers. Secure each Handle with two

M10 x 3 1/8” Allen Bolt (#41), Ø ¾” Washers (#35), and M10 Aircraft Nuts (#33).

5

STEP-2 (See Diagram 2)

A.) Attach the Upper Vertical Frame (#1) onto the Lower Vertical Frame (#2). Secure it with two

L-shaped Brackets (#9), two M10 x 3” Carriage Bolts (#31) from the front, two M10 x 3 5/8”
Carriage Bolts (#30) from the side, four ∅ ¾” Washers (#35), and four M10 Aircraft Nuts
(#33).

B.) Attach the Chin-up Bar (#3) to the front of Upper Vertical Frame. Secure it with two M10 x 2”

Allen Bolts (#25) and ∅ ¾” Washers (#35). Cover the Bolts with a 2” x 2 ¾” Plastic Cover
(#16).

6

STEP 3 (See Diagram 3) A.) Attach the Left & Right Dip Supports (#7 & #8) to the Upper Vertical Frame (#1). Secure

them to the Upper Vertical Frame with one M12 x 3 ¾” Allan Bolt (#26), two ∅ ¾”
Washers (#37), and one M10 Aircraft Nut (#34). Do NOT over tighten the nut and bolt.
Make sure the arms are able to move freely.

B.) Secure the Left & Right Dip Supports together with one Four-hole Bracket (# 15) and four

M8 x 3/8” Allen Bolts (#29).

C.) Insert a Vertical Handle (#13) into the hole on each Dip Support. Secure each Handle

with one M10 x 1” Allen Bolt (#27) and Ø ¾” Curved Washer (#38).

D.) Flip the Dip Supports up to a vertical position when doing Chin-up exercises.

7

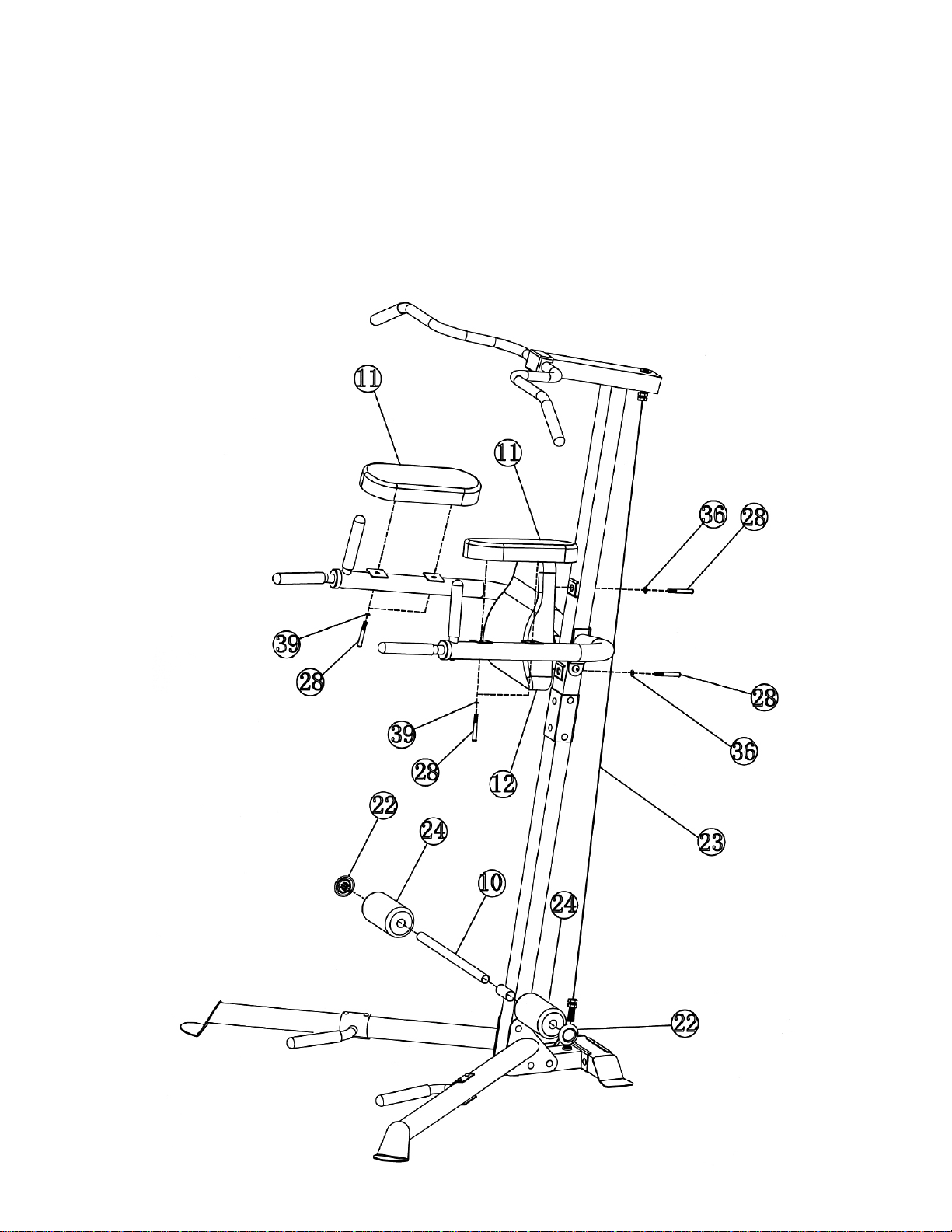

STEP 4 (See Diagram 4)

A.) Attach the Backrest Pad (#12) to the Upper Vertical Frame (#1). Secure it with two M8 x 2 ¾”

Allen Bolts (#28) and ∅ 5/8” Washers (#36).

B.) Attach the Arm Pads (#11) to the Left & Right Dip Supports (#7 & #8). Secure each Arm Pad

with two M8 x 2 ¾” Allen Bolts (#28) and Ø 5/8” Curved Washers (#39).

C.) Insert a Foam Tube (#10) halfway through the holes on the Lower Vertical Frame (#2). Push

two Foam Rolls (#24) onto the Tube from both ends. Plug two Foam Roll End Caps (#22) to the

end of the tube.
D.) Firmly thread each end of the Cable (#23) into the Upper and Lower Vertical Frames.
E.) Securely tighten all nuts and bolts pervious installed.

EXPLODED DIAGRAM

8

9

Parts list

KEY NO. DESCRIPTION Q’ty

1 Upper Vertical Frame 1
2 Lower Vertical Frame 1
3 Chin-up Bar 1
4 Rear Base 1
5 Right Stabilizer 1
6 Left Stabilizer 1
7 Left Dip Support 1
8 Right Dip Support 1
9 L-shaped Bracket 2
10 Foam Tube 1
11 Arm Pad 2
12 Backrest Pad 1
13 Vertical Handle 2
14 U-shaped Bracket 1
15 Four-hole Bracket 1
16 2” x 2 ¾” Plastic Cover 1
17 Sleeve 2
18 Push-up Handle Grip 2
19 Chin-up Handle Grip 2
20 Dip Handle Grip 4
21 2” x 2 ¾” End Cap 1
22 Foam Roll End Cap 2
23 Cable 1
24 Foam Roll 2
25 M10 x 2” Allen Bolt 2
26 M12 x 3 ¾” Allen Bolt 1
27 M10 x 1” Allen Bolt 2
28 M8 x 2 ¾” Allen Bolt 6
29 M8 x 3/8” Allen Bolt 4
30 M10 x 3 5/8” Carriage Bolt 6
31 M10 x 3” Carriage Bolt 2
32 M10 x 3 ½” Carriage Bolt 2
33 M10 Aircraft Nut 14
34 M12 Aircraft Nut 1
35 Ø ¾” Washer 16
36 Ø 5/8” Washer 2
37 Ø 1” Washer 2
38 Ø ¾” Curved Washer 2
39 Ø 5/8” Curved Washer 4
40 Push-up Handle 2
41 M10 x 3 1/8” Allen Bolt 4

10

IMPEX® INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and
material, under normal use and s ervice conditions, for a period of two years on the Fram e from
the date of purchase. This warranty extends only to the original purchas er. IMPEX 's obligation
under this Warranty is limited to replacing or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to
IMPEX must be prepaid by the customer. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an IMPEX authorized service center or for produc ts
used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or cons equential damages aris ing out of or
in connection with the use or performance of the pr oduct or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, cos ts of
removal, installation or other consequential damages or whatsoever natures. Some states do not
allow the exclusion or limitation of inc idental or consequential damages. Accordingly, the above
limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is lim ited in its sc ope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state
to state.

ORDERING REPLACEMENT PARTS
Replacement parts can be order ed by calling our Custom er Ser vice Department toll-free at 1-800-

999-8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific

standard time.

[e-mail]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

Register on-line www.impex-fitness.com

11

®

INC.

IMPEX

14777 Don Julian

City of Industry, CA 91746
