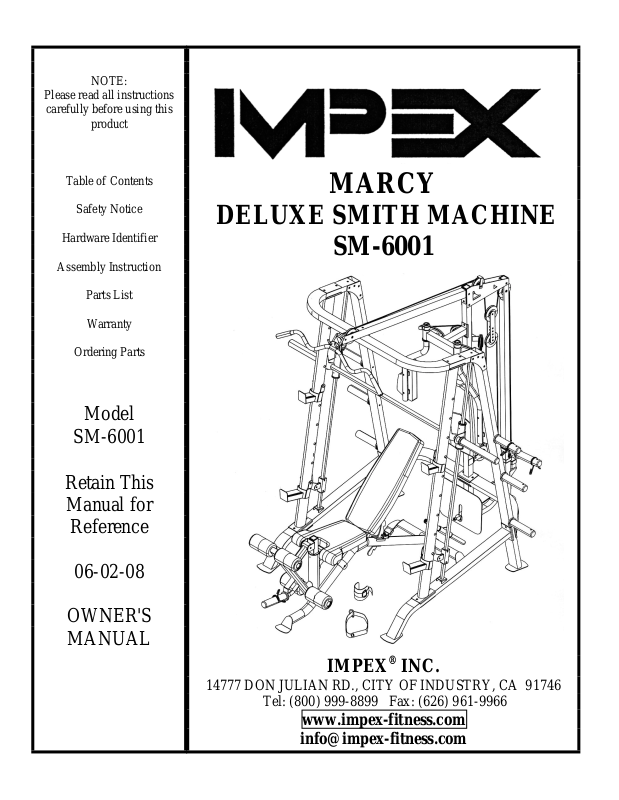

Impex SM-6001 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

MARCY

DELUXE SMITH MACHINE

SM-6001

Model

SM-6001

Retain This

Manual for

Reference

06-02-08

OWNER'S
MANUAL

IMPEX® INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[e-mail]

TABLE OF CONTENTS

BEFORE YOU BEGIN..................................................................................... 1

IMPORTANT SAFETY NOTICES.................................................................... 2

SMITH MACHINE HARDWARE PACK….......…............................................. 4

SMITH MACHINE ASSEMBLY INSTRUCTIONS............................................ 7

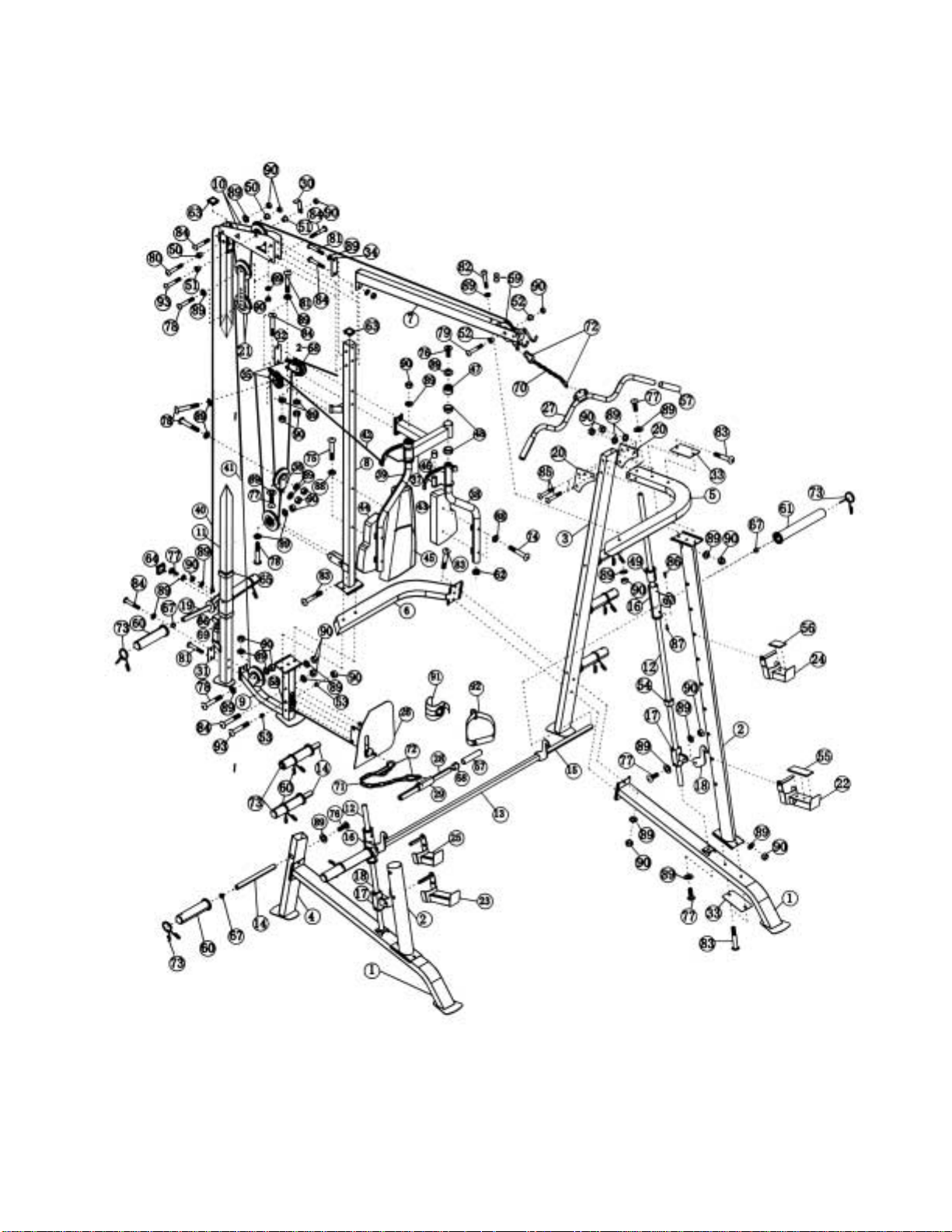

EXPLODED DIAGRAM…………………………………………………………….. 19
SMITH MACHINE PARTS LIST………..…………………………………………. 20

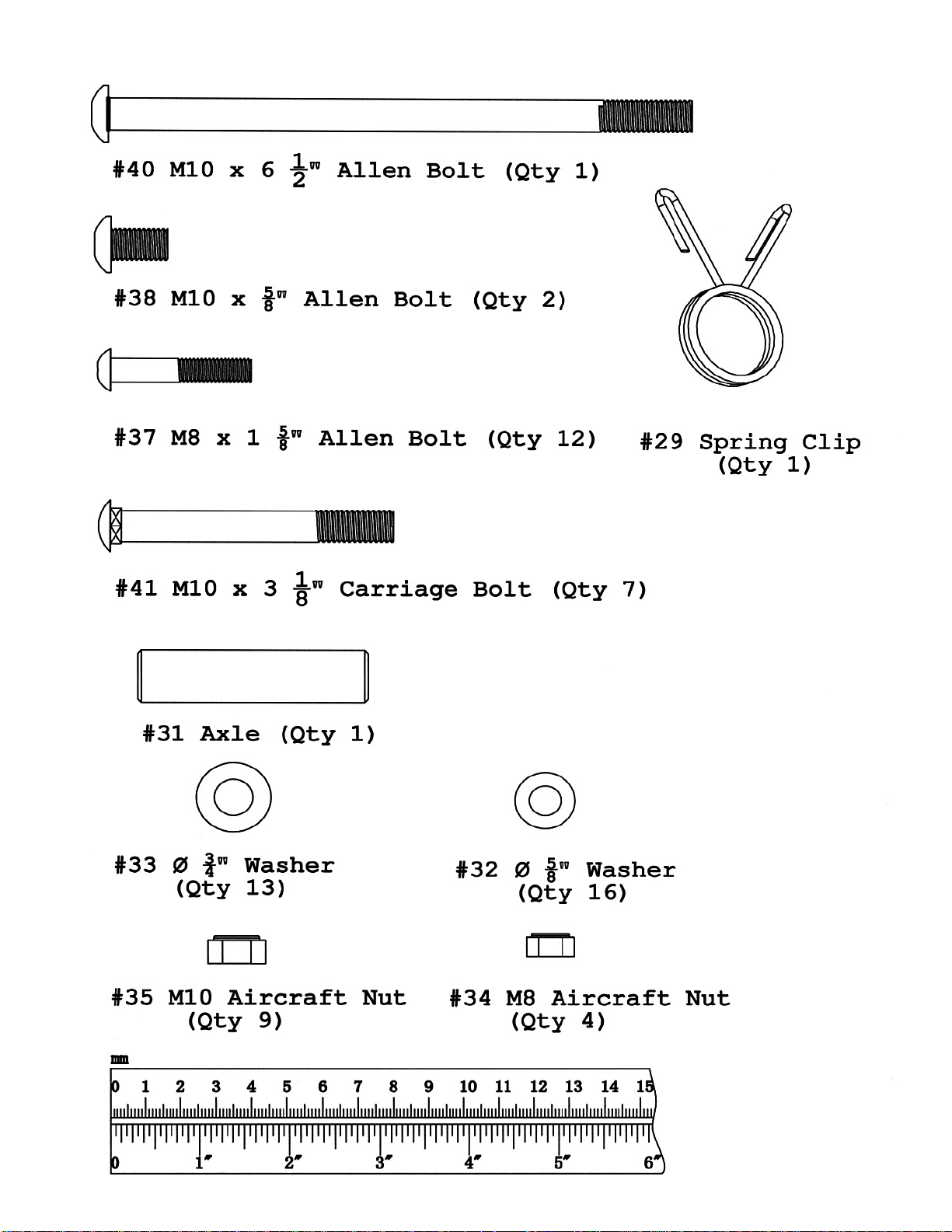

MULTI-PURPOSE BENCH HARDWARE PACK………………………………… 21

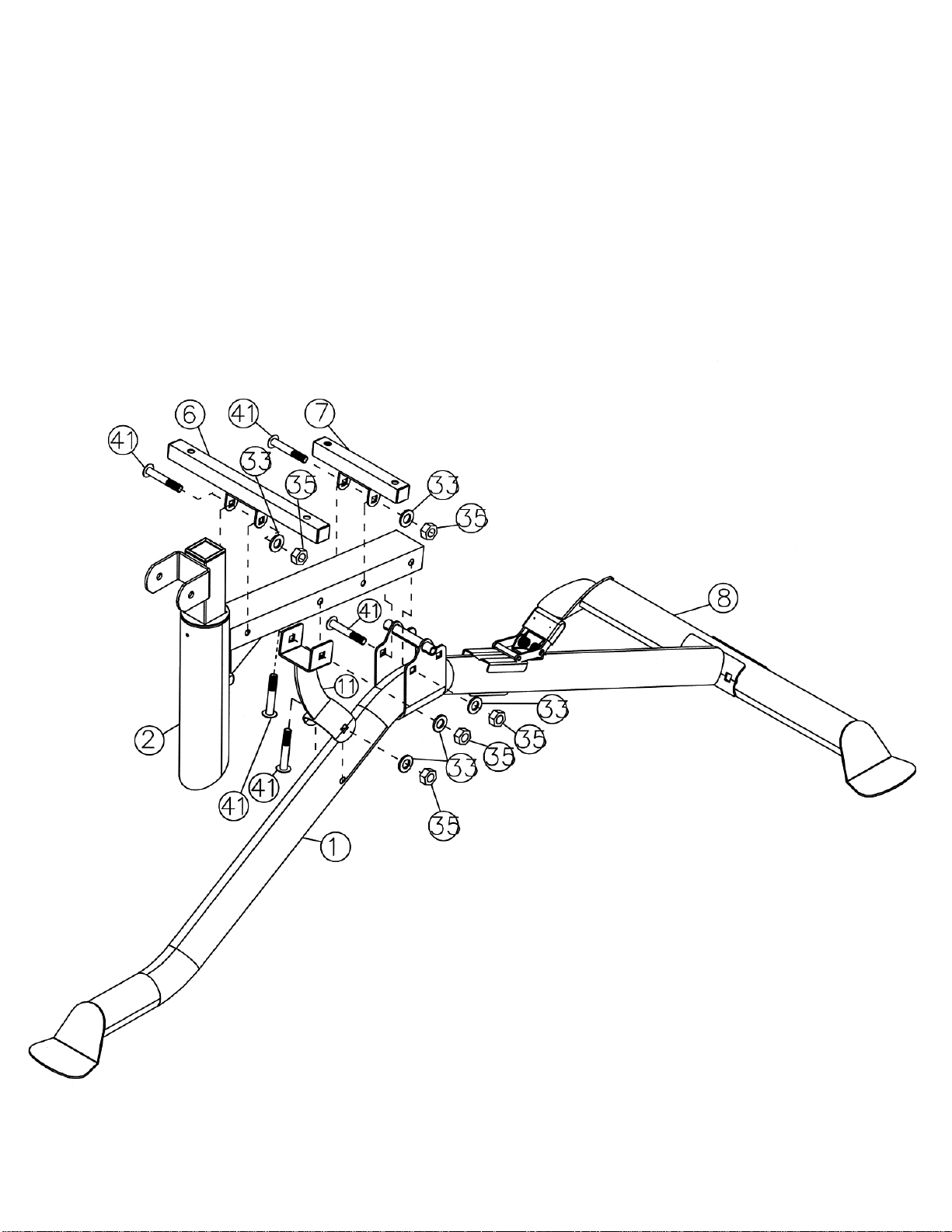

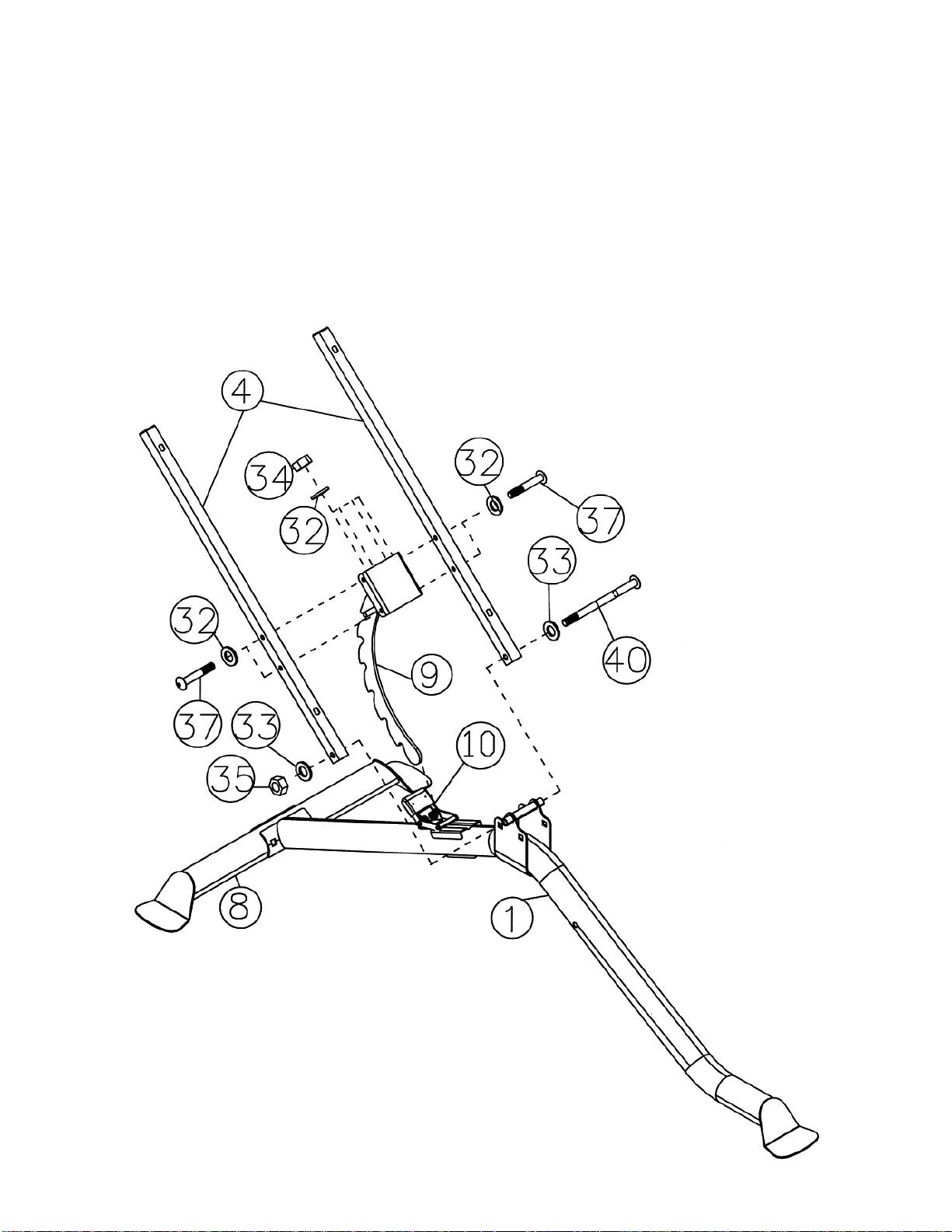

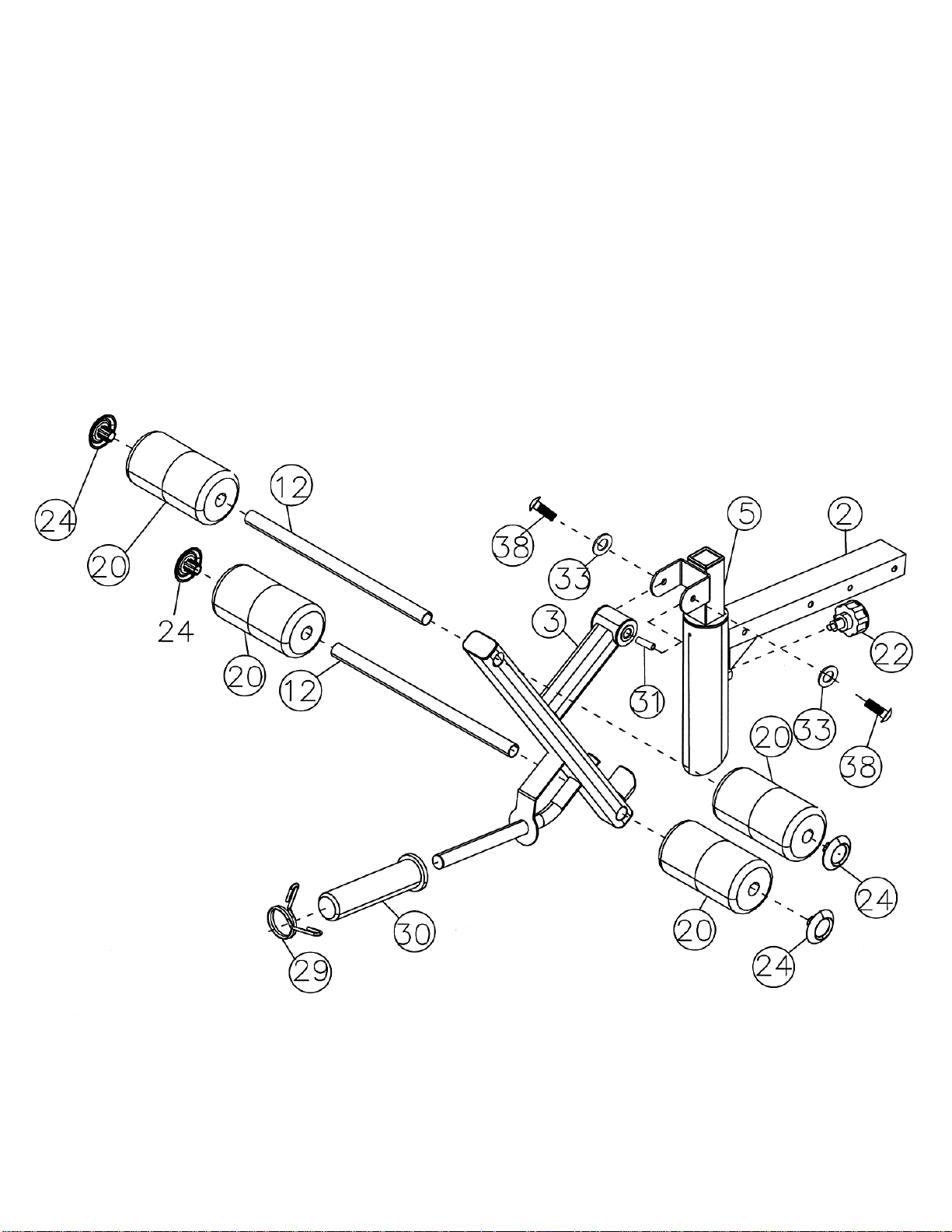

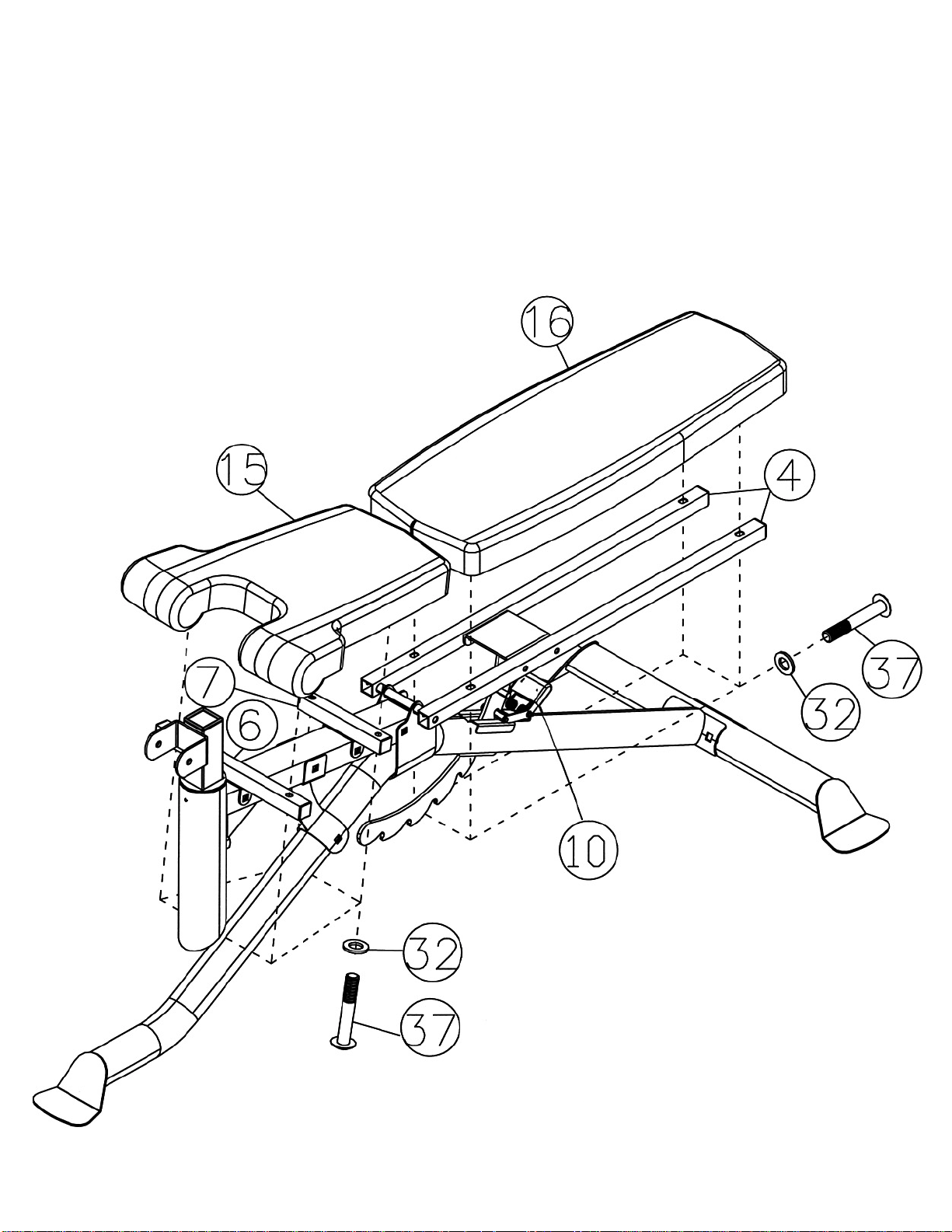

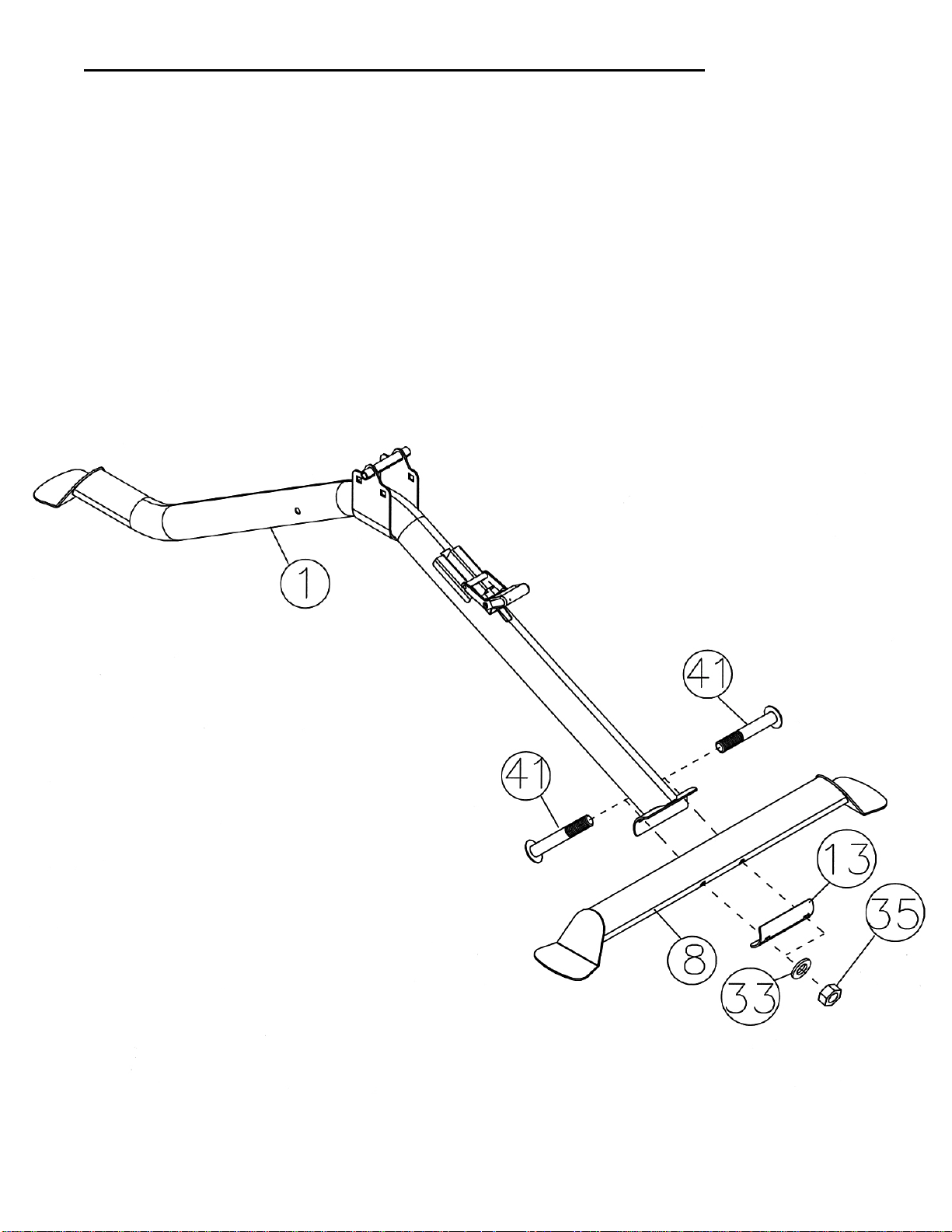

MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTIONS.............................. 22

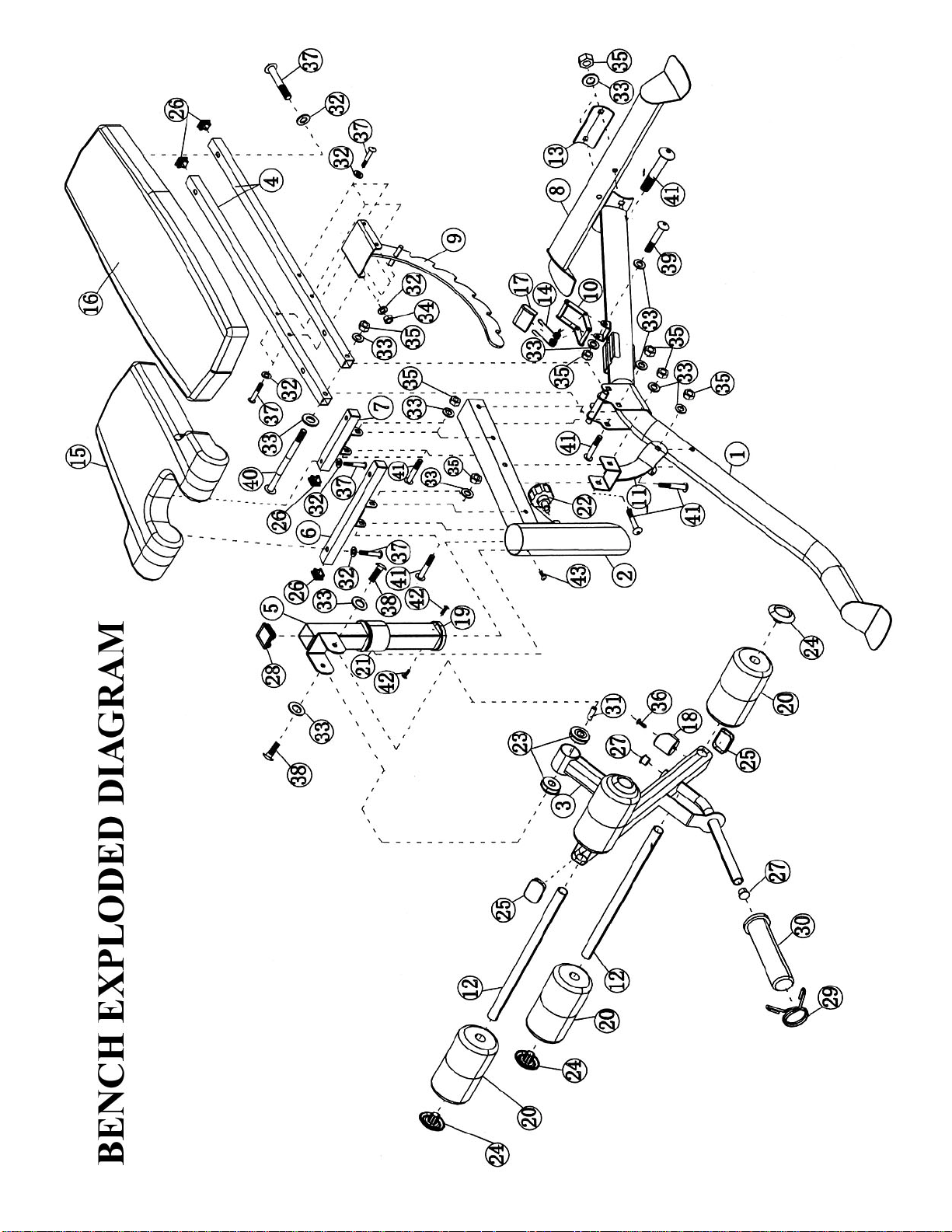

EXPLODED DIAGRAM…………………………………………………………….. 27
MULTI-PURPOSE BENCH PARTS LIST………………………………………… 28

WARRANTY.................................................................................................… 29

ORDERING PARTS......................................................................................... 29

BEFORE YOU BEGIN

Thank you for selecting the MARCY SM-6001 Smith Machine by IMPEX
For your safety and benefit, read this manual carefully before using the
machine. As a manufacturer, we are committed to provide you complete
customer satisfaction. If you have any questions, or find there are missing or
damaged parts, we guarantee you complete satisfaction through direct
assistance from our factory. To avoid unnecessary delays, please call our
TOLL-FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.

®

INC.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[e-mail]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

5. Maximum weights on the rack: 600 lbs.

6. Maximum weights on Leg Developer: 100 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL PLACEMENT

The warning labels shown here have been placed on the Cross Brace and Upper Frame. If the labels
are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the
labels in the location shown.

3

SMITH MACHINE HARDWARE PACK

4

SMITH MACHINE HARDWARE PACK

5

SMITH MACHINE HARDWARE PACK

6

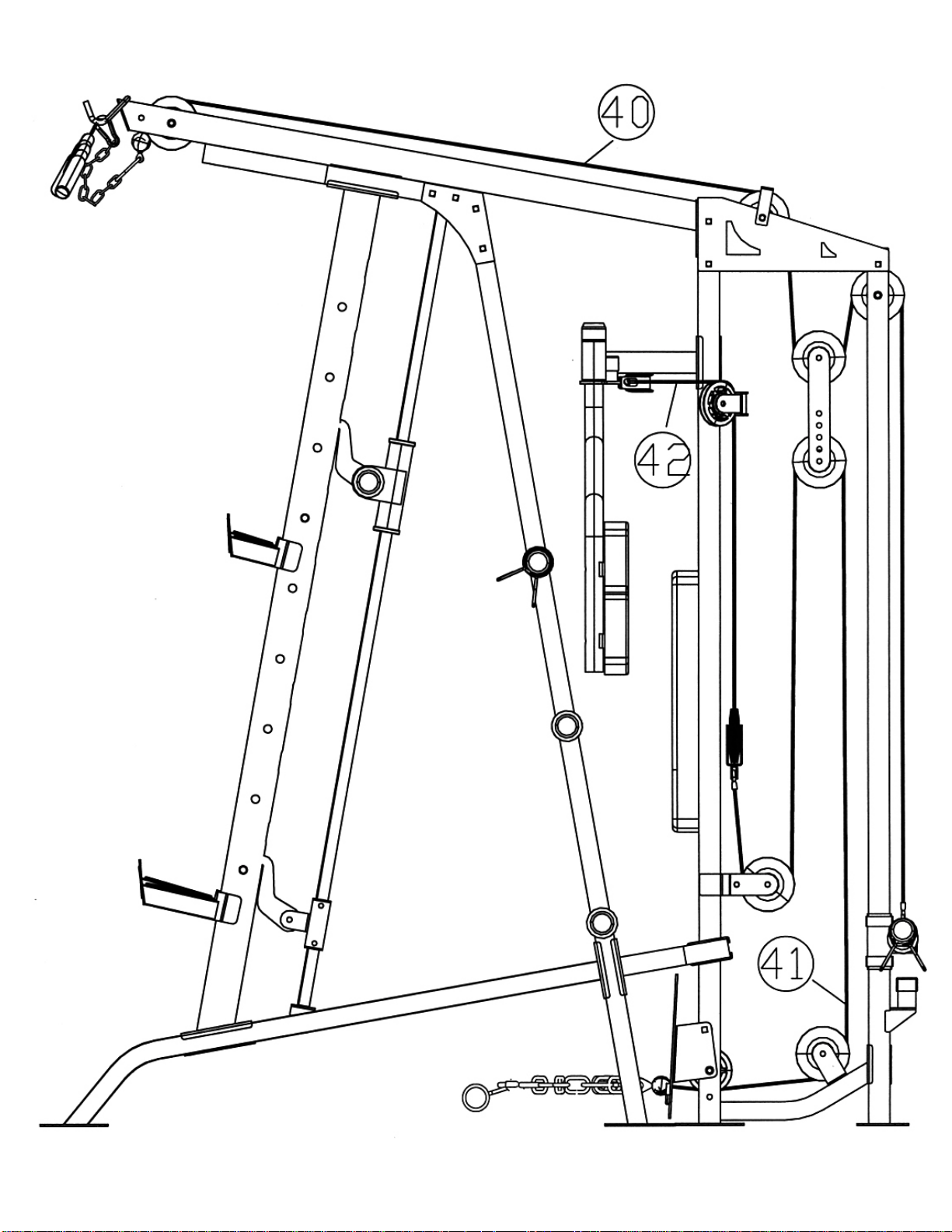

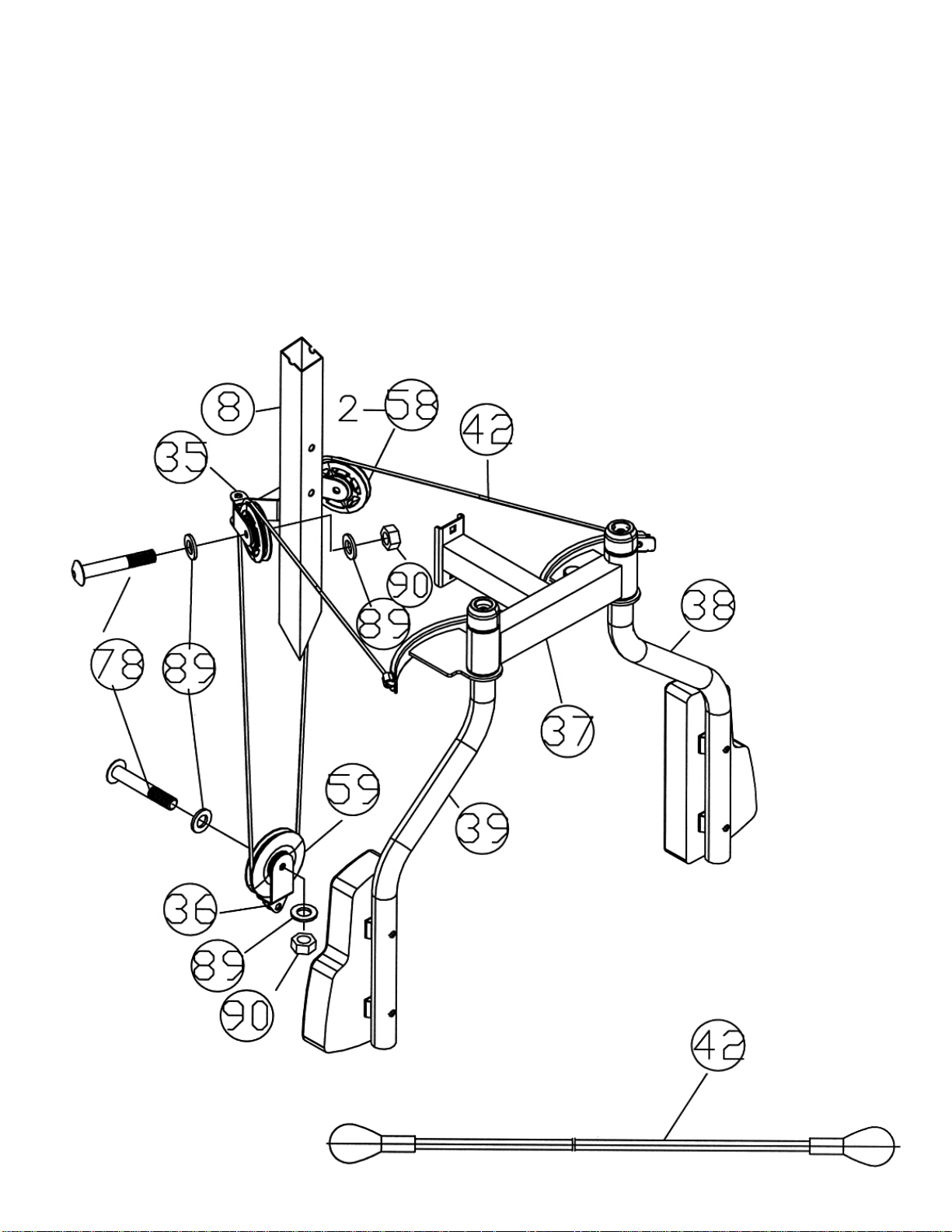

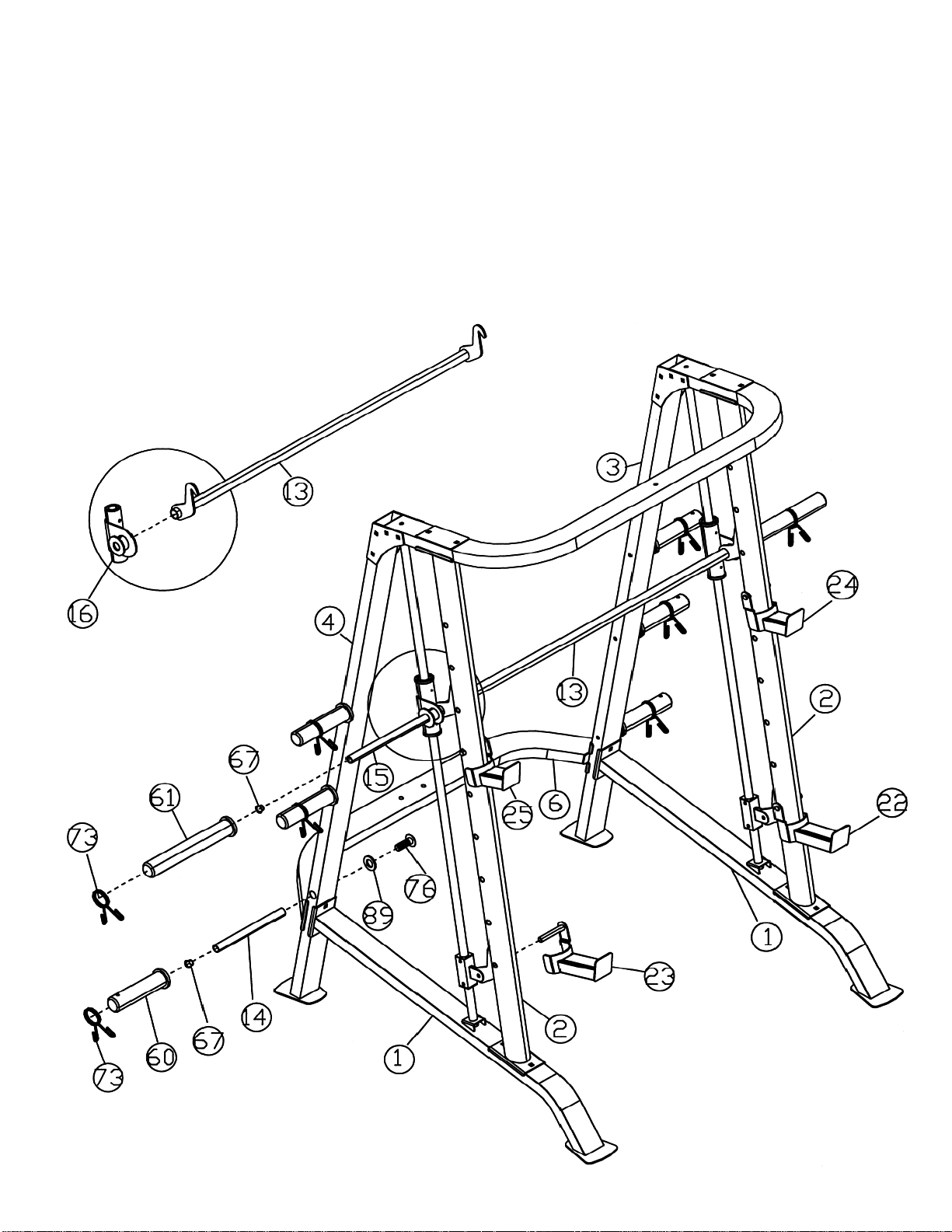

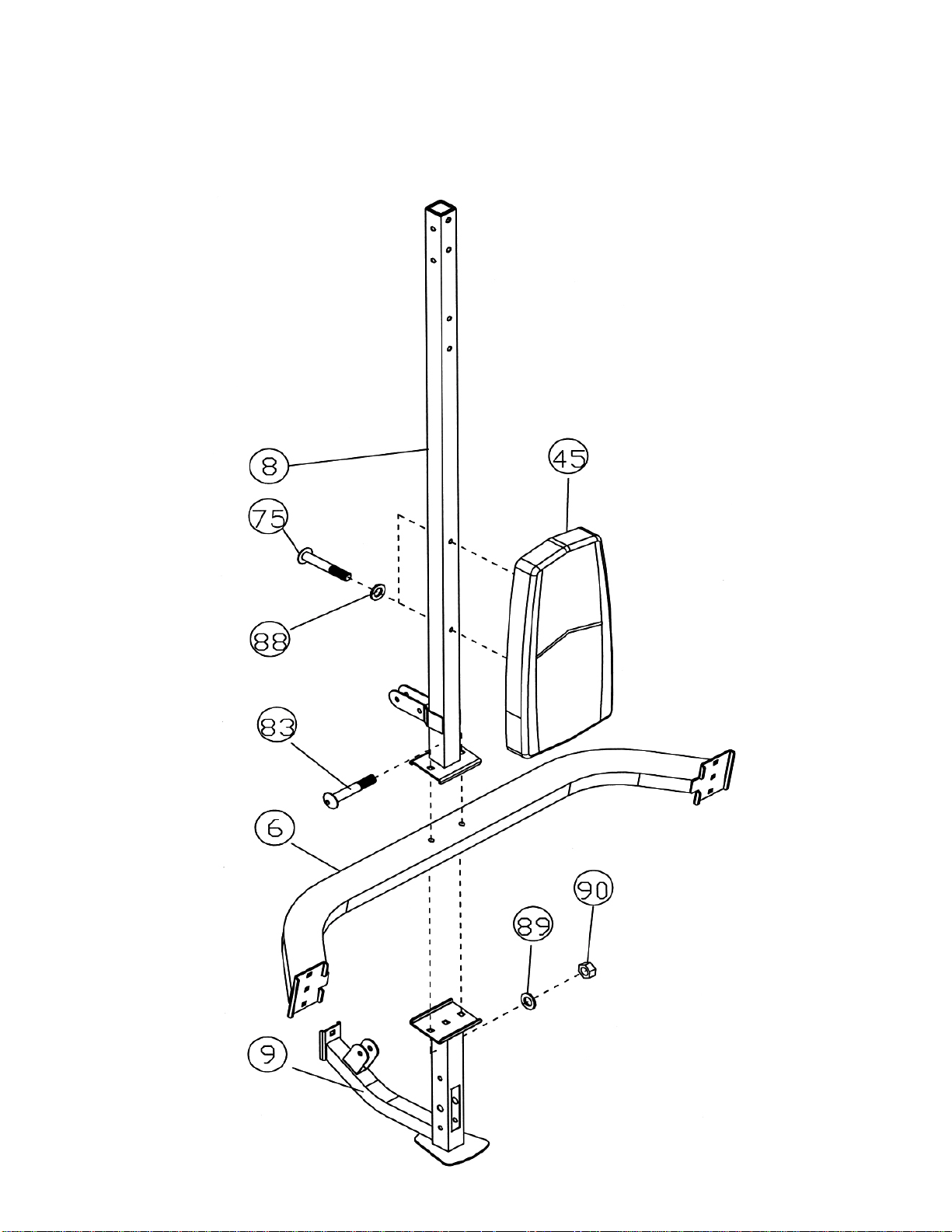

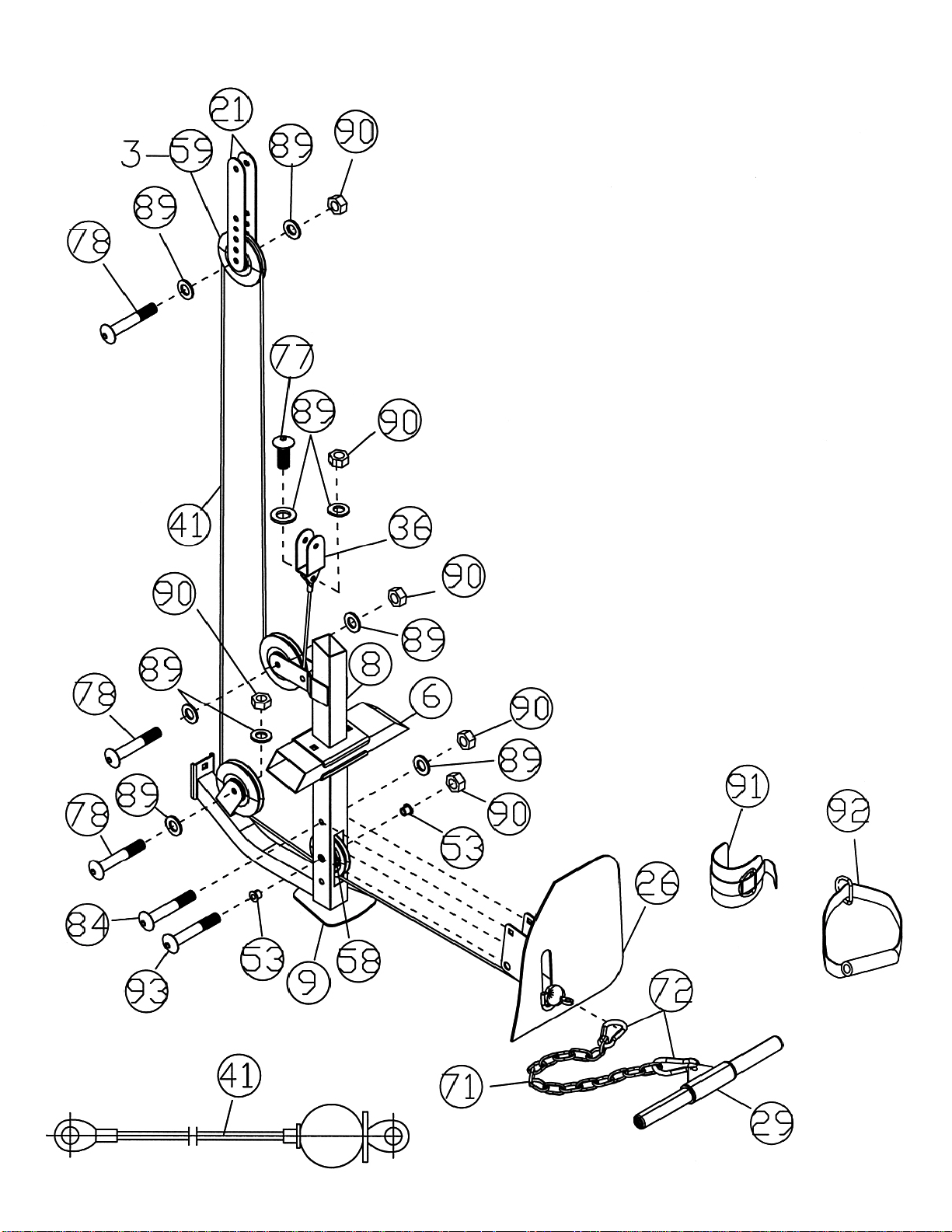

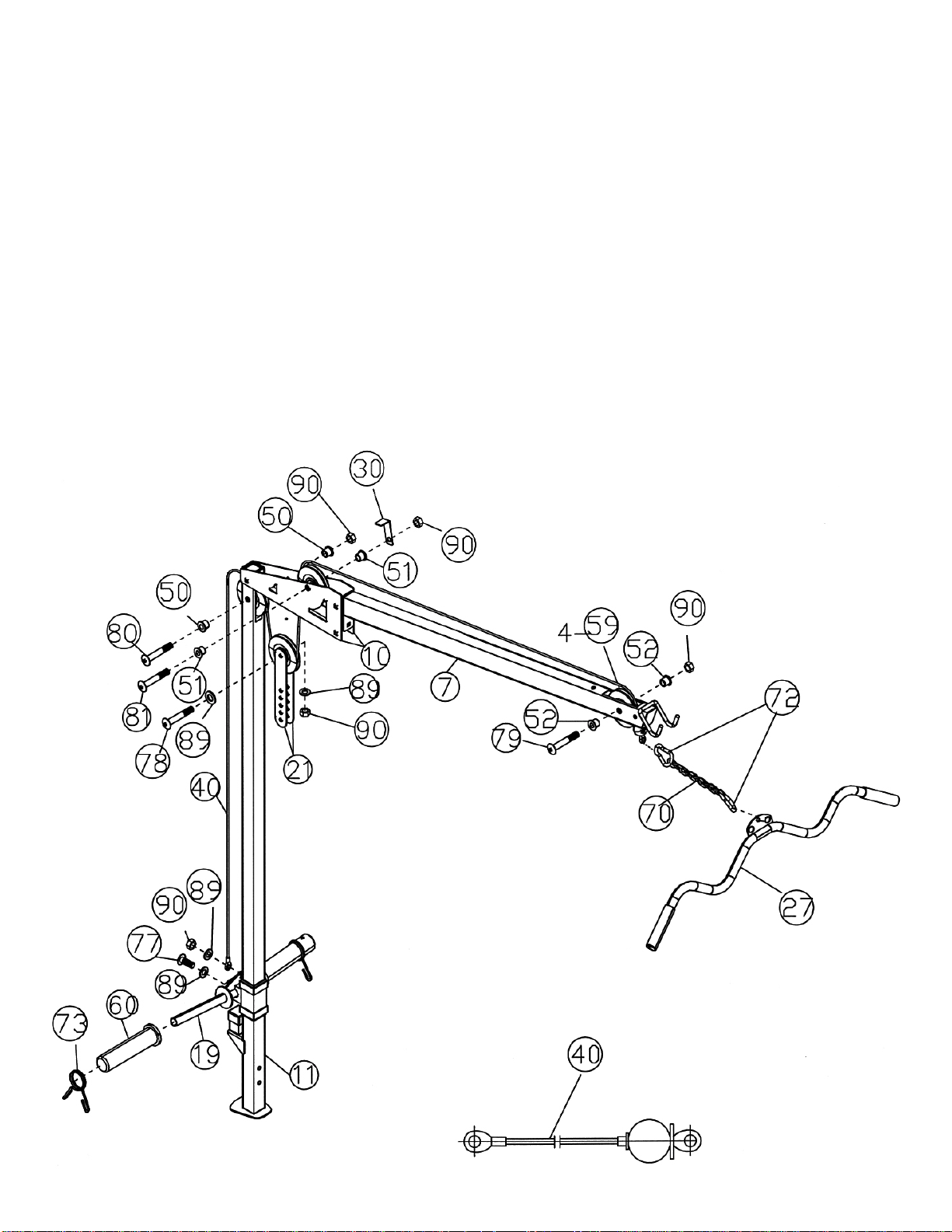

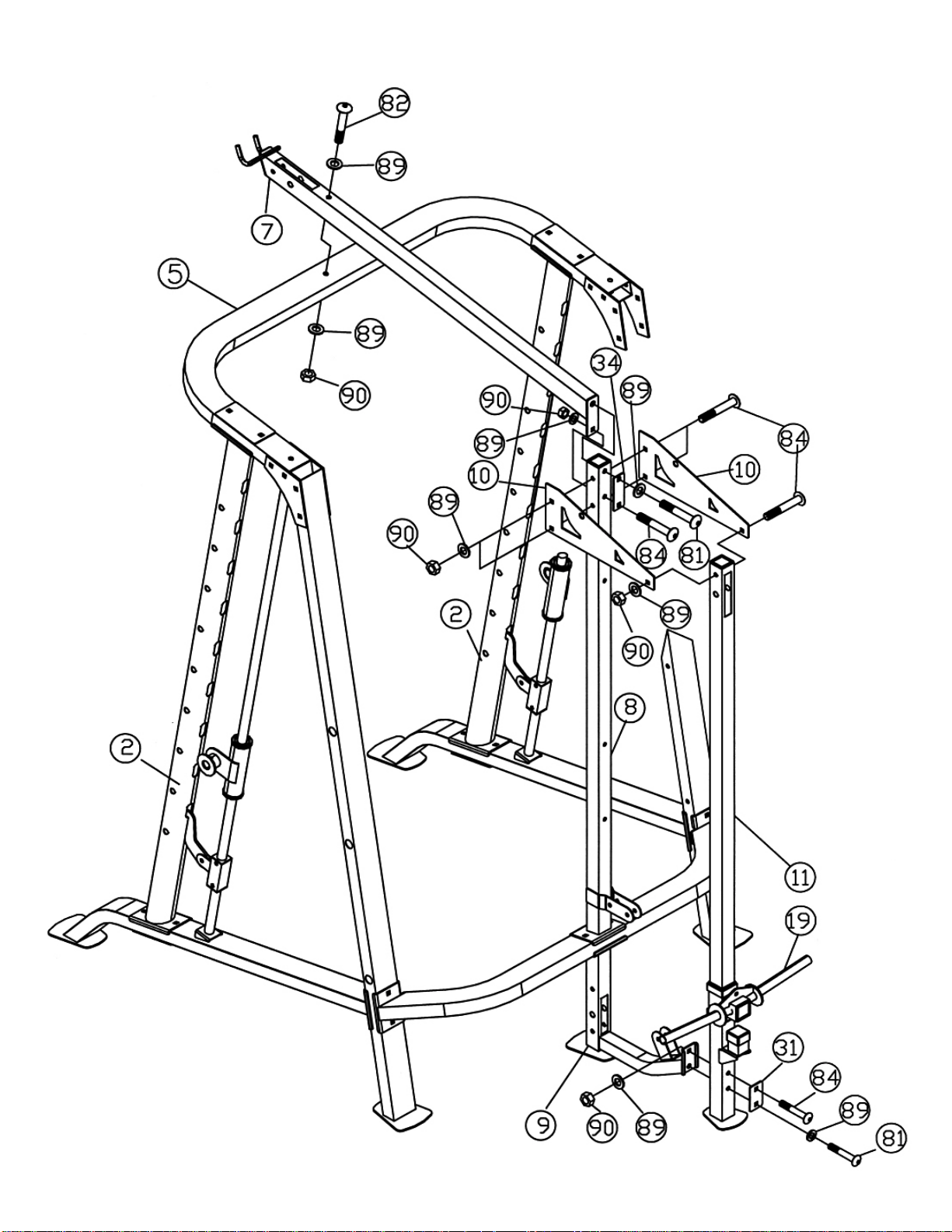

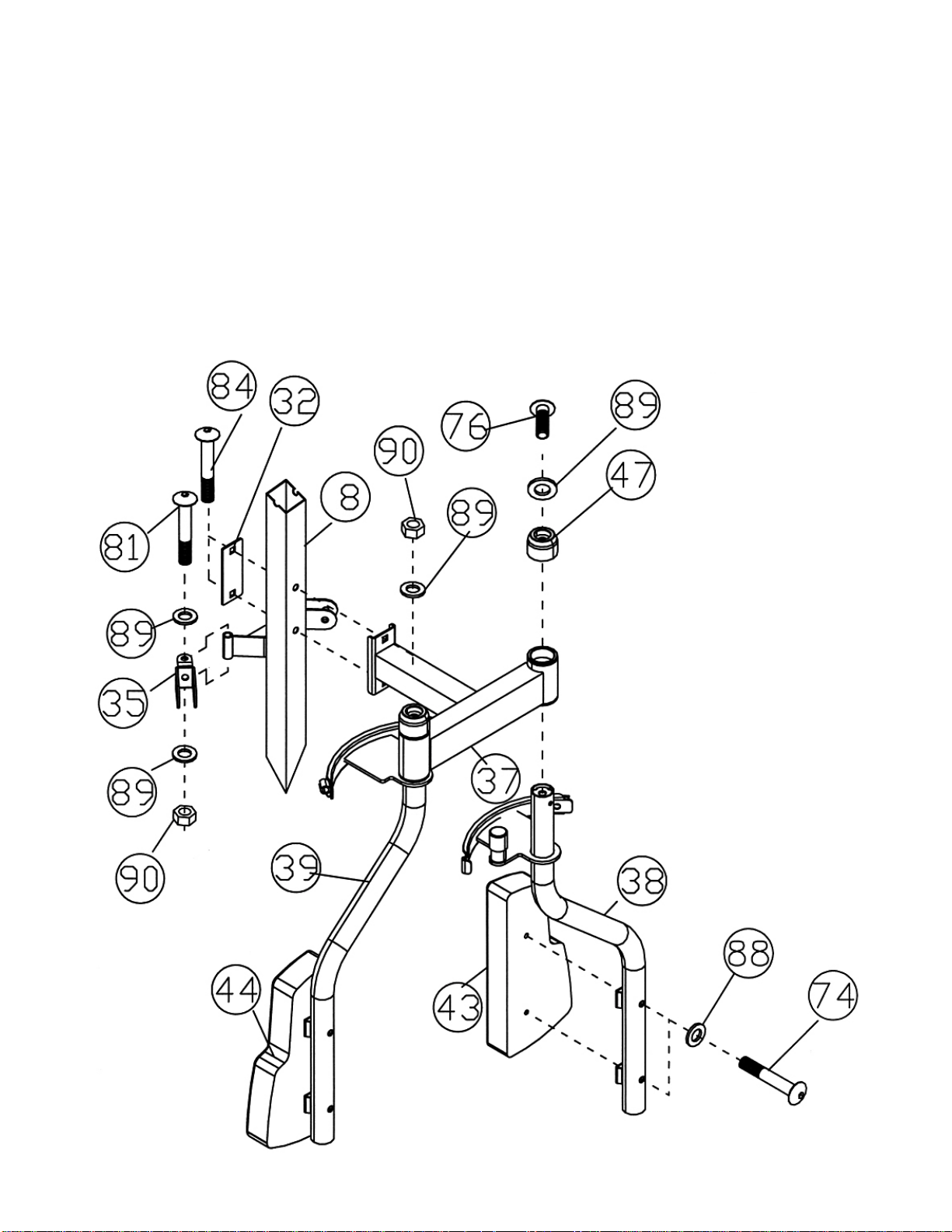

SMITH MACHINE ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

STEP 1 (See Diagram 1)

A.) Do not tighten all nuts and bolts until instructed to do so.
B.) Attach one Base Frame (#1) to the Left Vertical Frame (#3). Attach the Cross Brace (#6)

to the back of the Left Vertical Frame. Align the holes and secure the Base Frame, Left
Vertical Frame, and the Cross Brace together with two M10 x 2 3/8” Carriage Bolts (#83),
Ø ¾” Washers (#89), and M10 Aircraft Nuts (#90). Repeat the same procedure to install
the other side.

C.) Attach a Guide Rod (#12) onto the Base Frame (#1). Secure it to the Base Frame with

one M10 x 1” Allen Bolt (#77) and Ø ¾” Washer (#89) from the bottom.

D.) Slide one Lower Safety Stop Frame (#17) onto the Guide Rod from the top then slide one

Safety Stop Frame (#16) onto the Guide Rod.

E.) Attach a Front Vertical Frame (#2) onto the Base Frame (#1). Secure it with two M10 x 2

3/8” Carriage Bolts (#83), one 6” x 2 ¾” Bracket (#33), two Ø ¾” Washers (#89), and two
M10 Aircraft Nuts (#90).

F.) Attach a Safety Hook (#18) to the Lower Safety Stop Frame (#17). Securely it with one

M10 x 1” Allen Bolt (#77), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#90).

Attach the Safety Hook onto the selected slot on the back of the Front Vertical Frame.
G.) Repeat Procedure C through F above to install the other side.
H.) Place the Front Top Beam (#5) onto the two Front Vertical Frames (#2).
I.) Insert the top of the Guide Rods (#12) into the holes on the Front Top Beam. Secure

each Guide Rod to the Front Top Beam with one M10 x 1” Allen Bolt (#77) and Ø ¾”

Washer (#89).
J.) Secure each Front Vertical Frame (#2) to the Front Top Beam (#5) with two M10 x 2 3/8”

Carriage Bolts (#83), one 6” x 2 ¾” Bracket (#33), two Ø ¾” Washers (#89), and two M10

Aircraft Nuts (#90).
K.) Secure the Front Top Beam to the Left Vertical Frame (#3) with four M10 x 4” Carriage

Bolts (#85), two Triangle Brackets (#20), four Ø ¾” Washers (#89), and four M10 Aircraft

Nuts (#90). Repeat the same procedure to secure the other side.

7

DIAGRAM 1

8
