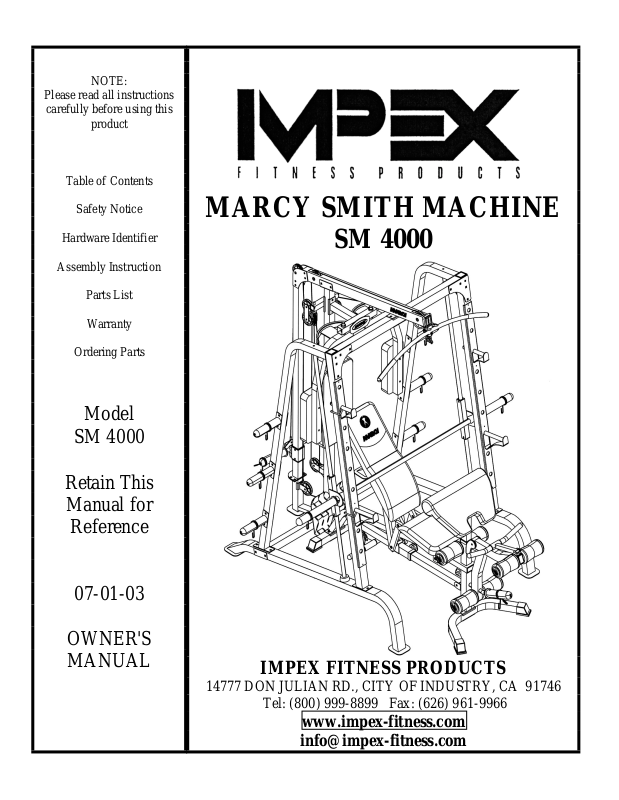

Impex SM 4000 User Manual
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
MARCY SMITH MACHINE
SM 4000
Model
SM 4000
Retain This
Manual for
Reference
07-01-03
OWNER'S
MANUAL
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
SMITH MACHINE HARDWARE PACK….......…............................................. 3
SMITH MACHINE ASSEMBLY INSTRUCTIONS............................................. 5
EXPLODED DIAGRAM…………………………………………………………….. 17
SMITH MACHINE PARTS LIST………..………………………………………….. 18
MULTI-PURPOSE BENCH HARDWARE PACK………………………………… 19
MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTIONS............................... 20
EXPLODED DIAGRAM……………………………………………………………... 25
MULTI-PURPOSE BENCH PARTS LIST…………………………………………. 26
WARRANTY.................................................................................................…. 27
ORDERING PARTS.......................................................................................… 27
BEFORE YOU BEGIN
Thank you for selecting the MARCY SM4000 by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully
before using the machine. As a manufacturer, we are committed to
provide you complete customer satisfaction. If you have any questions,
or find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service
number. Our Customer Service Agents will provide immediate assistance
to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
info@impex-fitness.com
1
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire
manual before you assemble or operate your machine. In particular, note the following
safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2
SMITH MACHINE HARDEWARE PACK
3
SMITH MACHINE HARDEWARE PACK
4
SMITH MACHINE ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Connect the two Base Frames (#1) by a Cross Brace (#2) in the mid-span. Secure
each end of The Cross Brace with two M10 x 3 ½” Carriage Bolts (#79), one 4 ¾”
x 2” Bracket (#36), two Ø ¾” Washers (#66), and two M10 Aircraft Nuts (#86).
B.) NOTE: DO NOT tighten the Nuts and Bolts yet.
DIAGRAM 1
5
STEP 2 (See Diagram 2)
A.) Attach the right Front Vertical Frame (#3) to the right Base Frame (#1). Secure it
with two M10 x 3” Carriage Bolts (#76), one 5 1/8” x 2 ¾” Bracket (#34), two Ø ¾”
Washers (#66), and two M10 Aircraft Nuts (#86). Do not tighten the Nuts and Bolts
yet.
B.) Align a Ø 2 ½” Rubber Bumper (#59) to the hole on the Base Frame. Insert a
Guide Rod (#25) through the Rubber Bumper and into the Base Frame. Secure it
with one M10 x 1” Allen Bolt (#68) and Ø ¾” Washer (#66).
C.) Slide a Safety Stop Frame (#26) onto the Guide Rod (#25).
D.) Attach the hole on top of the Right Vertical Frame (#5) to the top of the Guide Rod
(#25). Attach the top of Right Vertical Frame (#5) to the top of Front Vertical Frame
(#3). Attach the bottom of Right Vertical Frame (#5) to the Base Frame (#1).
E.) Secure the Guide Rod (#25) to the Right Vertical Frame (#5) with one M10 x 1”
Allen Bolt (#68) and Ø ¾” Washer (#66). Secure the Right Vertical Frame (#5) to
the Base Frame with two M10 x 3” Carriage Bolts (#76), one 6 ¼” x 2” Bracket
(#37), two Ø ¾” Washers (#66), and two M10 Aircraft Nuts (#86). Do not tighten
the Nuts and Bolts yet.
F.) Secure the Right Vertical Frame (#5) to the Front Vertical Beam (#3) with one
Triangle Bracket (#33), M10 x 3 1/8” Allen Bolt (#72), and ∅3/4” Washer (#66) to
the top hole. Secure the bottom two holes with two M10 x 3 3/8” Carriage Bolts
(#78), ∅3/4” Washers (#66) and M10 Aircraft Nuts (#86).
G.) Repeat the above Procedures A, B, C, D, E and F to install the other side.
H.) Attach the Front Top Beam (#15) to the Front Vertical Beams (#3) and the Triangle
Brackets (#33). Align the Holes. Secure each end with two M10 x 3 3/8” Carriage
Bolts (#78), Ø3/4” Washers (#66), and M10 Aircraft Nuts (#86).
I.) Securely tighten all Nuts and Bolts previously installed.
6
DIAGRAM2
7
STEP 3 (See Diagram 3)
A.) Attach the Rear Vertical Beam (#6) to the top of the Cross Brace (#2). Attach the
Weight Glide Base (#8) to the Cross Brace from the Bottom. Align the holes. Secure
them with two M10 x 3” Carriage Bolts (#76), Ø ¾” Washers (#66), and M10 Aircraft
Nuts (#86).
B.) Attach the Backrest Board (#38) to the Rear Vertical Beam. Secure it with two M8 x 2
½” Allen Bolts (#80) and Ø 5/8” Washers (#65).
DIAGRAM 3
8
