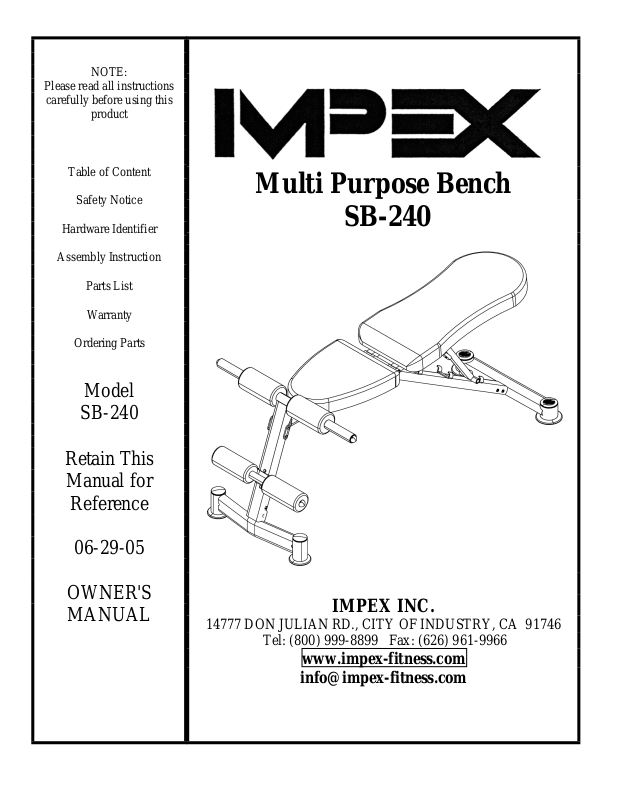

Impex SB-240 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Content

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Multi Purpose Bench

SB-240

Model

SB-240

Retain This

Manual for

Reference

06-29-05

OWNER'S

MANUAL

IMPEX INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE IDENTIFIER.....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 5

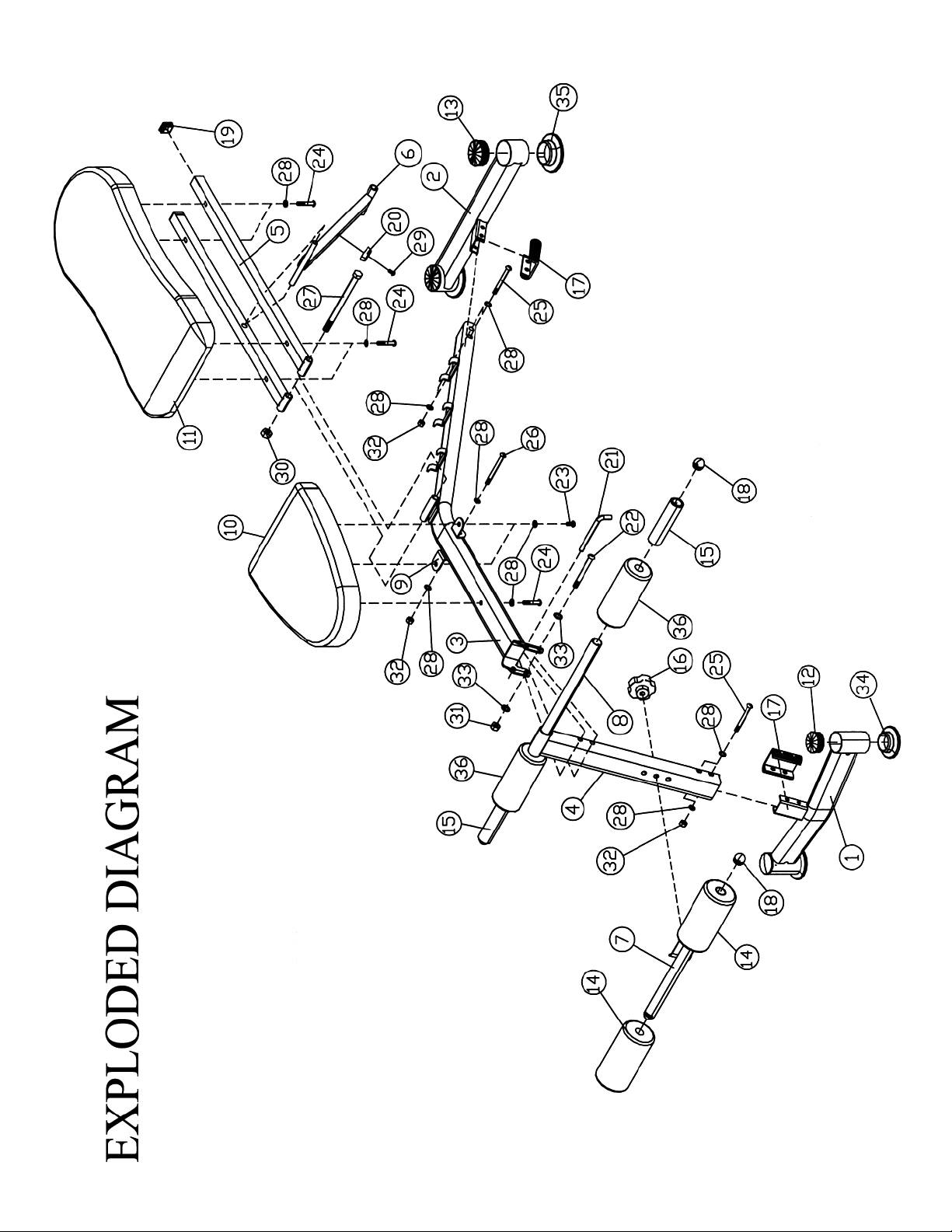

EXPLODED DIAGRAM……………………………………………………………… 8

PARTS LIST...................................................................................................... 9

WARRANTY.................................................................................................…. 10

ORDERING PARTS.......................................................................................… 10

BEFORE YOU BEGIN

Thank you for selecting the SB-240 Multi-Purpose Bench by IMPEX INC. For
your safety and benefit, read this manual carefully before using the machine.
As a manufacturer, we are committed to provide you complete customer
satisfaction. If you have any questions, or find there are missing or damaged
parts, we guarantee you complete satisfaction through direct assistance from
our factory. To avoid unnecessary delays, please call our TOLL-FREE
customer service number. Our Customer Service Agents will provide
immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]

1111

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. Maximum user weight 300 lbs.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

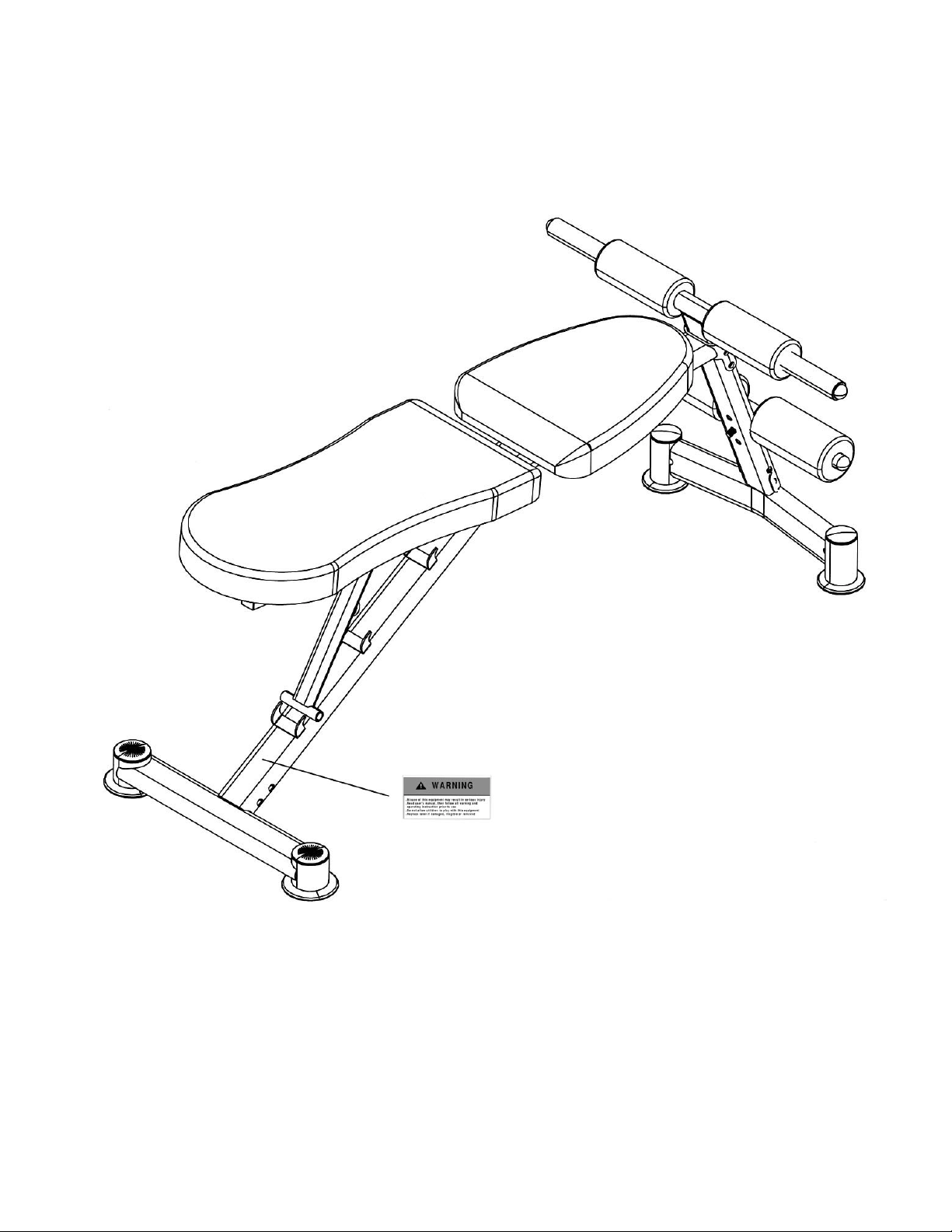

WARNING LABEL PLACEMENT

The Warning Label shown here has been placed on the Main Frame. If the label is missing or illegible, please
call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

3

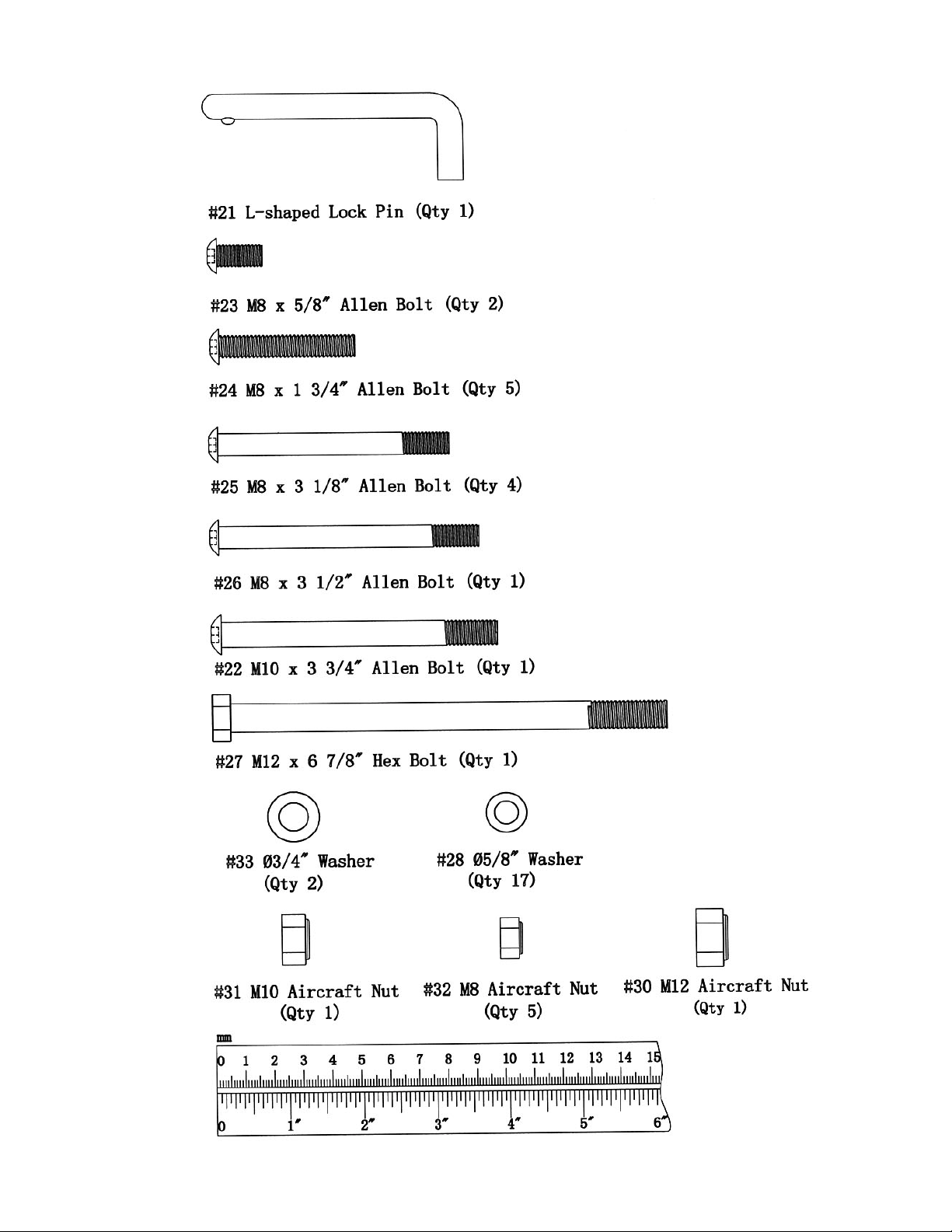

HARDWARE PACK

4

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injuries.

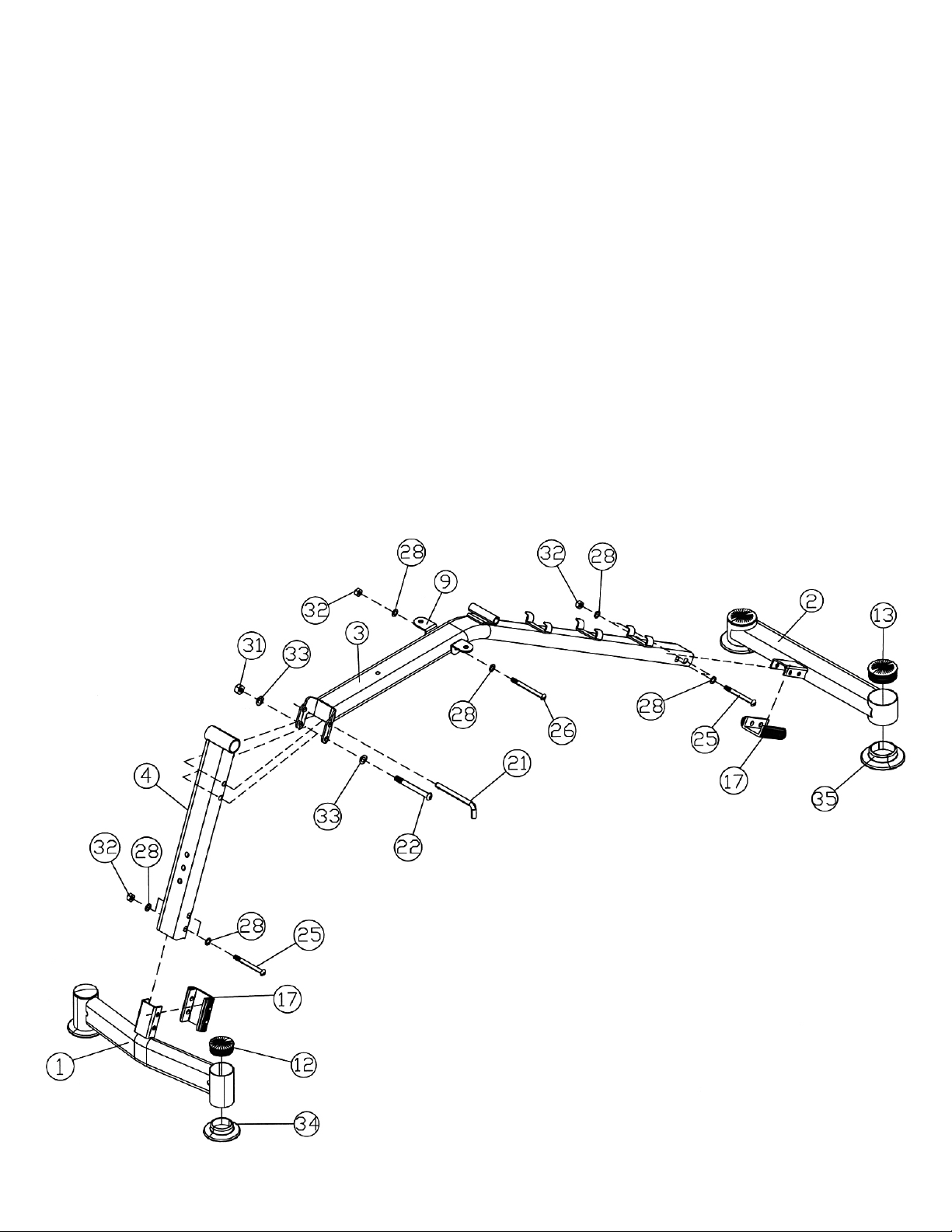

STEP 1 (See Diagram 1)

A.) Push two Front Stabilizer End Caps (#12) and Front Stabilizer Bases (#34) into the Front

Stabilizer (#1). Push two Rear Stabilizer End Caps (#13) and Rear Stabilizer Bases (#35) into
the Rear Stabilizer (#2).

B.) Attach a U-shaped Sleeve (#17) onto the bracket on the Front Stabilizer (#1). Make sure the

opening on the Sleeve is facing towards the front. Attach the Front Stabilizer to the Front
Vertical Frame (#4). Secure it with two M8 x 3 1/8” Allen Bolts (#25), four Ø 5/8” Washers
(#28), and two M8 Aircraft Nuts (#32).

C.) Attach one U-shaped Sleeve (#17) to the bracket on the Rear Stabilizer (#2). Attach the Main

Frame (#3) to the Rear Stabilizer (#2). Secure it with two M8 x 3 1/8” Allen Bolts (#25), four Ø
5/8” Washers (#28), and two M8 Aircraft Nuts (#32).

D.) Connect the Main Frame (#3) to the Front Vertical Frame (#4). Secure the lower hole with one

M10 x 3 ¾” Allen Bolt (#22), two Ø ¾” Washers (#33), and one M10 Aircraft Nut (#31). Insert a
L-shaped Lock Pin (#21) through the upper hole to lock the Front Vertical Frame in position.
Remove the Pin when folding the bench for storage.

E.) Attach two L-shaped Brackets (#9) to the Main Frame (#3). Secure them with one M8 x 3 ½”

Allen Bolt (#26), two Ø 5/8” Washers (#28), and one M8 Aircraft Nut (#32).

5

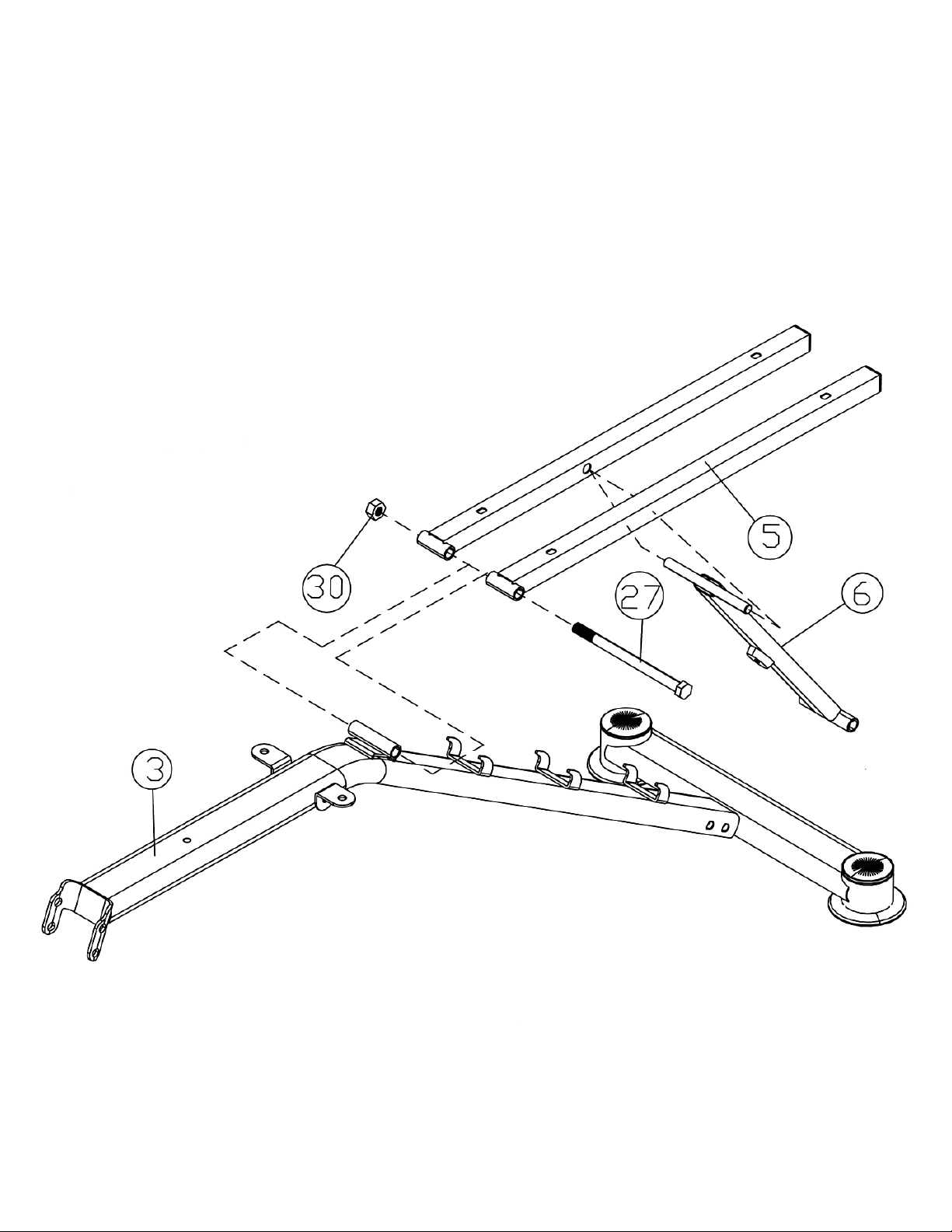

STEP 2 (See Diagram 2)

A.) Attach the Incline Support (#6) in between the two Backrest Supports (#5).
B.) Attach the Pivot of the Backrest Supports (#5) to the Pivot on the Main Frame (#3).

Secure them with one M12 x 6 7/8” Hex Bolt (#27) and M12 Aircraft Nut (#30).

DIAGRAM 2

6

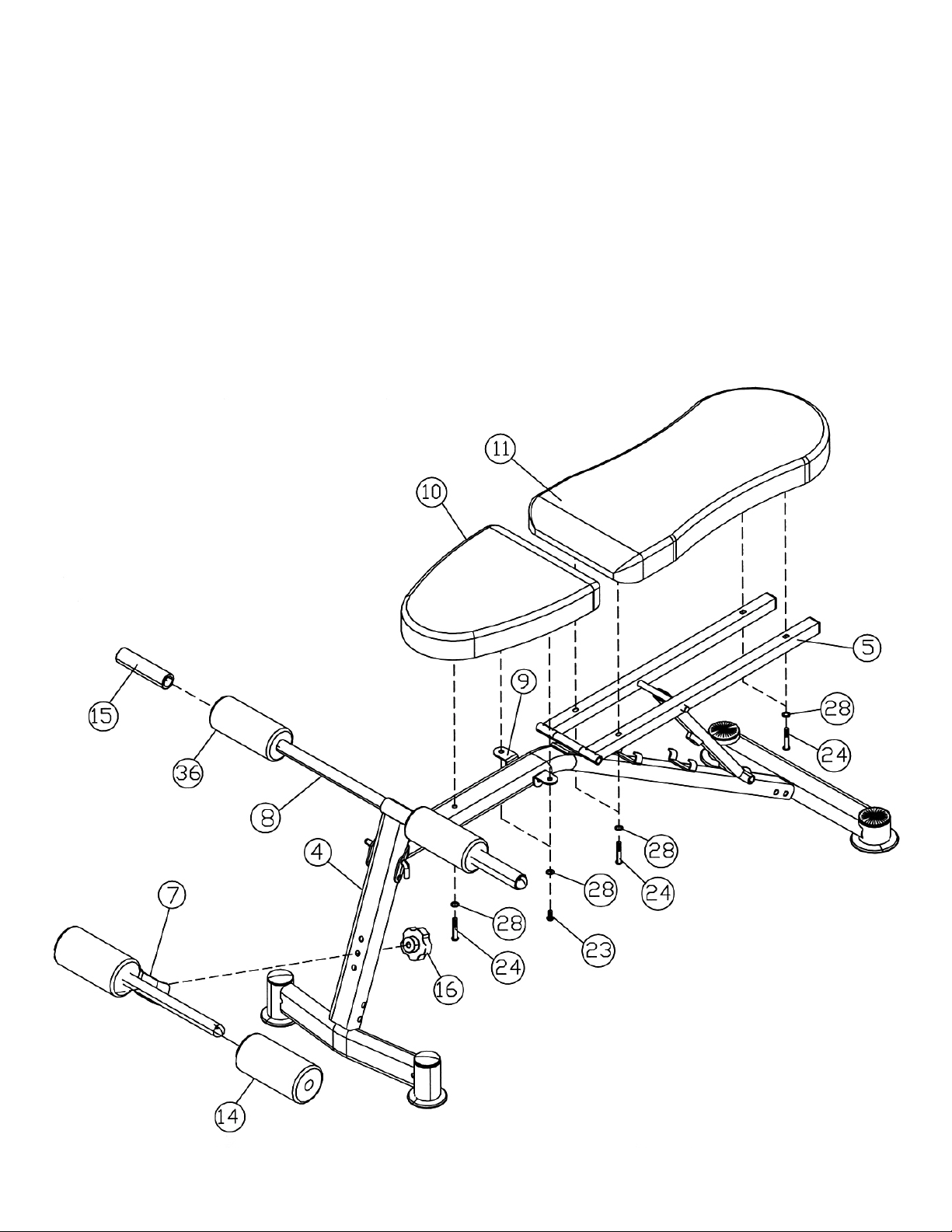

STEP 3 (See Diagram3)

A.) Place the Seat (#10) onto the Main Frame (#3). Secure it to the two L-shaped Brackets (#9)

with two M8 x 5/8” Allen Bolts (#23) and Ø 5/8” Washers (#28). Secure the Seat to the Main
Frame with one M8 x 1 ¾” Allen Bolt (#24) and Ø 5/8” Washer (#28).

B.) Place the Backrest Board (#11) onto the Backrest Supports (#5). Secure it with four M8 x 1 ¾”

Allen Bolts (#24) and Ø 5/8” Washers (#28).

C.) Attach the Cross Tube (#7) to the Front Vertical Frame (#4). Use a Lock Knob (#16) to secure

the Tube at selected hole. Push two Small Foam Rolls (#14) onto the Cross Tube.

D.) Insert the Foam Tube (#8) halfway through the hole on the Front Vertical Frame (#4). Push

two Large Foam Rolls (#36) onto the Tube.

E.) Lubricate the inside of the Foam Grips (#15) with water. Slide the Foam Grips onto the Foam

Tube (#8) from both sides.

DIAGRAM 3

7

8

Parts list

KEY NO. DESCRIPTION Q’ty

1 Front Stabilizer 1
2 Rear Stabilizer 1
3 Main Frame 1
4 Front Vertical Frame 1
5 Backrest Support 2
6 Incline Support 1
7 Cross Tube 1
8 Foam Tube 1
9 L-shaped Bracket 2
10 Seat 1
11 Backrest Board 1
12 Ø 2” Front Stabilizer End Cap 2
13 Ø 2 3/8” Rear Stabilizer End Cap 2
14 Small Foam Roll 2
15 Foam Grip 2
16 Lock Knob 1
17 U-shaped Sleeve 2
18 Ø 1” End Cap 4
19 1” Square End Cap 2
20 Rubber Bumper 1
21 L-shaped Lock Pin 1
22 M10 x 3 ¾” Allen Bolt 1
23 M8 x 5/8” Allen Bolt 2
24 M8 x 1 ¾” Allen Bolt 5
25 M8 x 3 1/8” Allen Bolt 4
26 M8 x 3 ½” Allen Bolt 1
27 M12 x 6 7/8” Hex Bolt 1
28 Ø 5/8” Washer 17
29 M6 x 5/8” Philips Screw 1
30 M12 Aircraft Nut 1
31 M10 Aircraft Nut 1
32 M8 Aircraft Nut 5
33 Ø ¾” Washer 2
34 Front Stabilizer Base 2
35 Rear Stabilizer Base 2
36 Large Foam Roll 2

9

IMPEX INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX") warrants this pr oduct to be f ree fr om def ects in workm ans hip and m aterial,
under normal use and service conditions, for a per iod of two years on the Frame f rom the date of
purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this
Warranty is limited to replacing or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to
IMPEX must be prepaid by the customer. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an IMPEX authorized service center or for produc ts
used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or cons equential damages aris ing out of or
in connection with the use or performance of the pr oduct or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, cos ts of
removal, installation or other consequential damages or whatsoever natures. Some states do not
allow the exclusion or limitation of inc idental or consequential damages. Accordingly, the above
limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is lim ited in its sc ope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state
to state.

IMPEX INC.

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS
Replacement parts can be order ed by calling our Custom er Ser vice Department toll-free at 1-800-

999-8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific

standard time.

www.impex-fitness.com
[email protected]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

10
