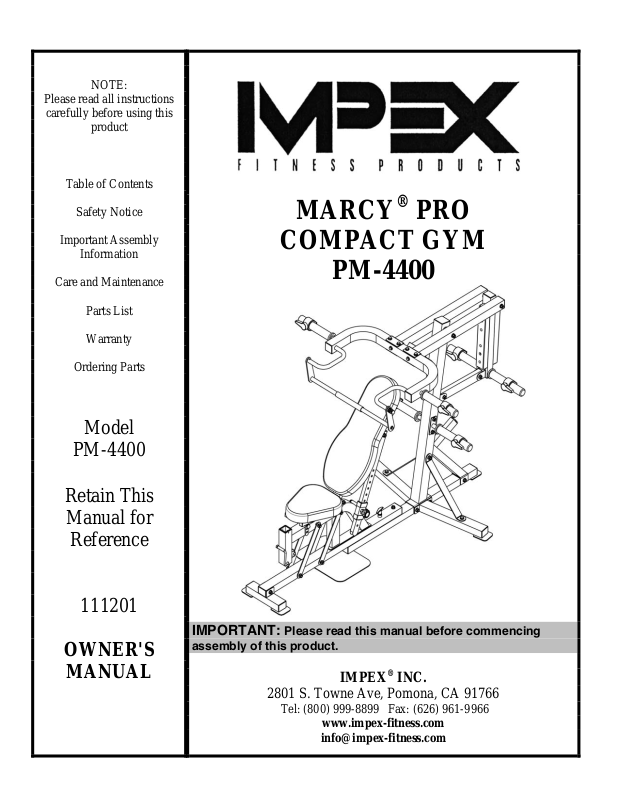

Impex PM-4400 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Important Assembly

Information

Care and Maintenance

Parts List

Warranty

Ordering Parts

MARCY® PRO

COMPACT GYM

PM-4400

Model

PM-4400

Retain This

Manual for

Reference

111201

OWNER'S

MANUAL

IMPORTANT: Please read this manual before commencing

assembly of this product.

IMPEX® INC.

2801 S. Towne Ave, Pomona, CA 91766

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................………….. 1

IMPORTANT SAFETY NOTICES...................................................................………….. 2

EXERCISE GUIDELINES………………………………………………………………….. … 3

WARNING LABEL PLACEMENT.....….....................................................................….. 5

IMPORTANT ASSEMBLY INFORMATION..................................................................... 6

CARE AND MAINTANENCE, WEIGHT CAPACITY, OPERATING NOTES…………. …..7

PARTS LIST……………………………………………………………………………………. 8

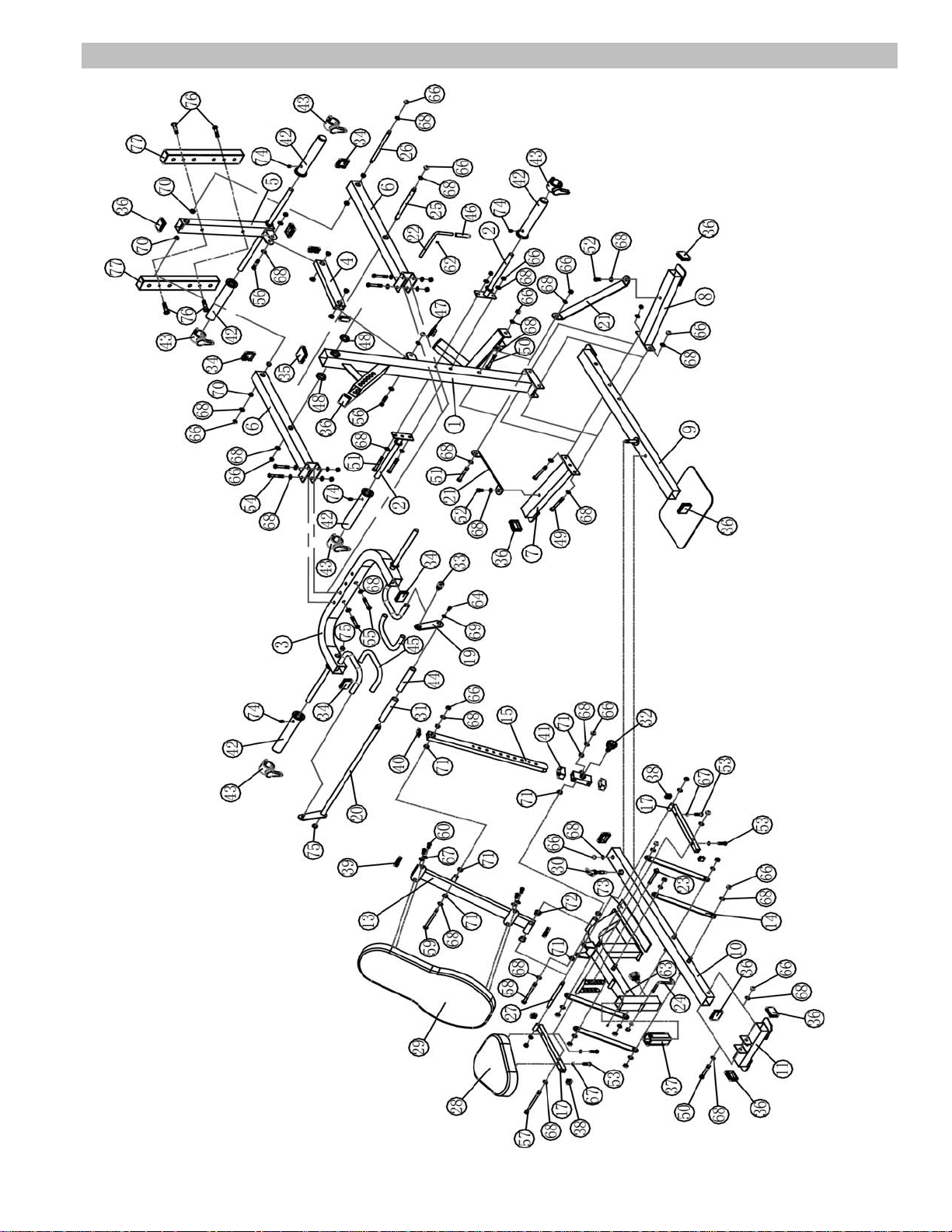

EXPLODED DIAGRAM…………………………………………………………………………..10

WARRANTY.................................................................................................……………….11

ORDERING PARTS.......................................................................................………….. 11

BEFORE YOU BEGIN

Thank you for selecting the MARCY PRO PM-4400 Compact Gym by
IMPEX
using the equipment. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.

®

INC. For your safety and benefit, read this manual carefully before

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

©IMPEX INC.

www.impex-fitness.com

[email protected]

1

IMPORTANT SAFETY NOTICE

This exercise equipment is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your equipment. In particular, note the following safety
precautions:

1. Keep children and pets away from the equipment at all times. DO NOT

leave children unattended in the same room with the equipment.

2. Only one person at a time should use the equipment.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.

4. Position the equipment on a clear, leveled surface. DO NOT use the equipment
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the equipment. Running
or aerobic shoes are also required when using the equipment.

7. Use the equipment only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the equipment.

9. Disabled person should not use the equipment.

10. Before using the equipment to exercise, always do stretching exercises to
properly warm up.

11. Never operate the equipment if the equipment is not functioning properly.

12. A spotter is recommended during exercise.

13. This equipment is designed and intended for home and consumer use only, not for

commercial use.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

©IMPEX INC.

2

EXERCISE GUIDELINES

Building Muscle and Gaining Weight

Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on
strength training. A gradual weight gain can occur while building the size and strength of muscles.
While developing muscle mass, your body adapts to the stress placed upon it. You can modify your
diet to include foods such as meat, fish and vegetables. These foods help muscles recover and
replenish important nutrients after a strenuous workout.

Muscle Strength and Endurance

To achieve the greatest benefit from exercise, it is important to develop an exercise program that
allows you to work all of the major muscle groups equally.

To increase muscles strength; follow this principle:
Increasing resistance and maintaining the number of repetitions of an exercise results in increased
muscle strength.

To tone your body, follow the principle: Decreasing resistance plus increasing the number of
repetitions of an exercise results in increased body tone.

Once you feel comfortable with an exercise, you can change the resistance, the number of
repetitions, or the speed at which you do the exercise. It is not necessary to change all three
variables. For example, let’s say that you are training at 50 lbs and performing the exercise 10 times
in 3 minutes. When this becomes too easy, you may decide to move up lifting 60 lbs for the same
number of repetitions in the same amount of time. Lifting more weights fewer times most often
develops muscle strength. To gain both muscle strength and endurance, it is recommended that you
perform each exercise 15 to 20 reps per set.

Training Intensity

How hard you begin to train depends on your overall level of fitness. The soreness you experienced
can be lessened by decreasing the load you place on your muscles and by performing fewer sets. To
avoid injury, you should gradually work into an exercise program and set the load to your individual
fitness level. The load should increase as your fitness level increases.

Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a
long time, it may be time to change your program. Eventually, your muscle system will become
accustomed to the stress and strain placed on it.

©IMPEX INC.

3

Beginning a Strength Building Program

Warming Up

To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes.
This helps prepare the body for more strenuous exercise by increasing circulation, raising your body
temperature and developing more oxygen to your muscles.

Workout

Each workout to keep in mind that muscle soreness that lasts for a long period in not desirable and
may mean that injury has occurred.

Cool Down

At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each
stretch only going as far as you can. This stage allows your muscles wind down after training.

To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is
performed in addition to the strength training.

Drinking Water

For the body to function properly, it must be properly hydrated. If you are exercising, you should
increase your fluid intake. The reason for this is that the water you take in will leave your system
through the sweating mechanism that cools your body during exercise. The water you lose through
exercise must be replaced so that the muscles can recover properly.

Rest Day

Although you may not feel like doing it, taking a rest day at least once a week is important because it
gives you body a chance to heal it self. Continuously working your muscle will result in over training
which will not benefit in the long run.

©IMPEX INC.

4

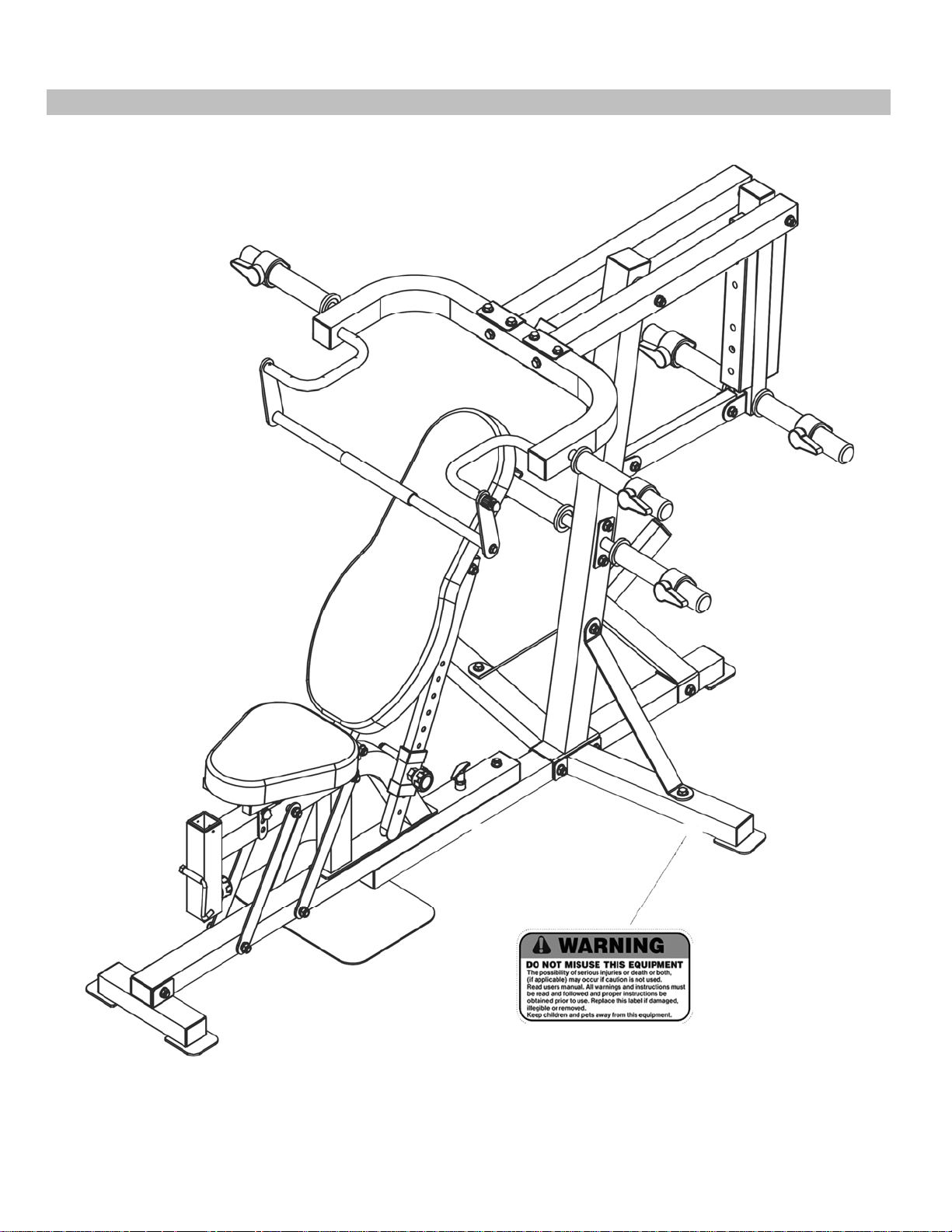

WARNING LABEL PLACEMENT

The warning labels shown here have been placed on the Base Frame. If the labels are missing or illegible, please
call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown.

©IMPEX INC.

5

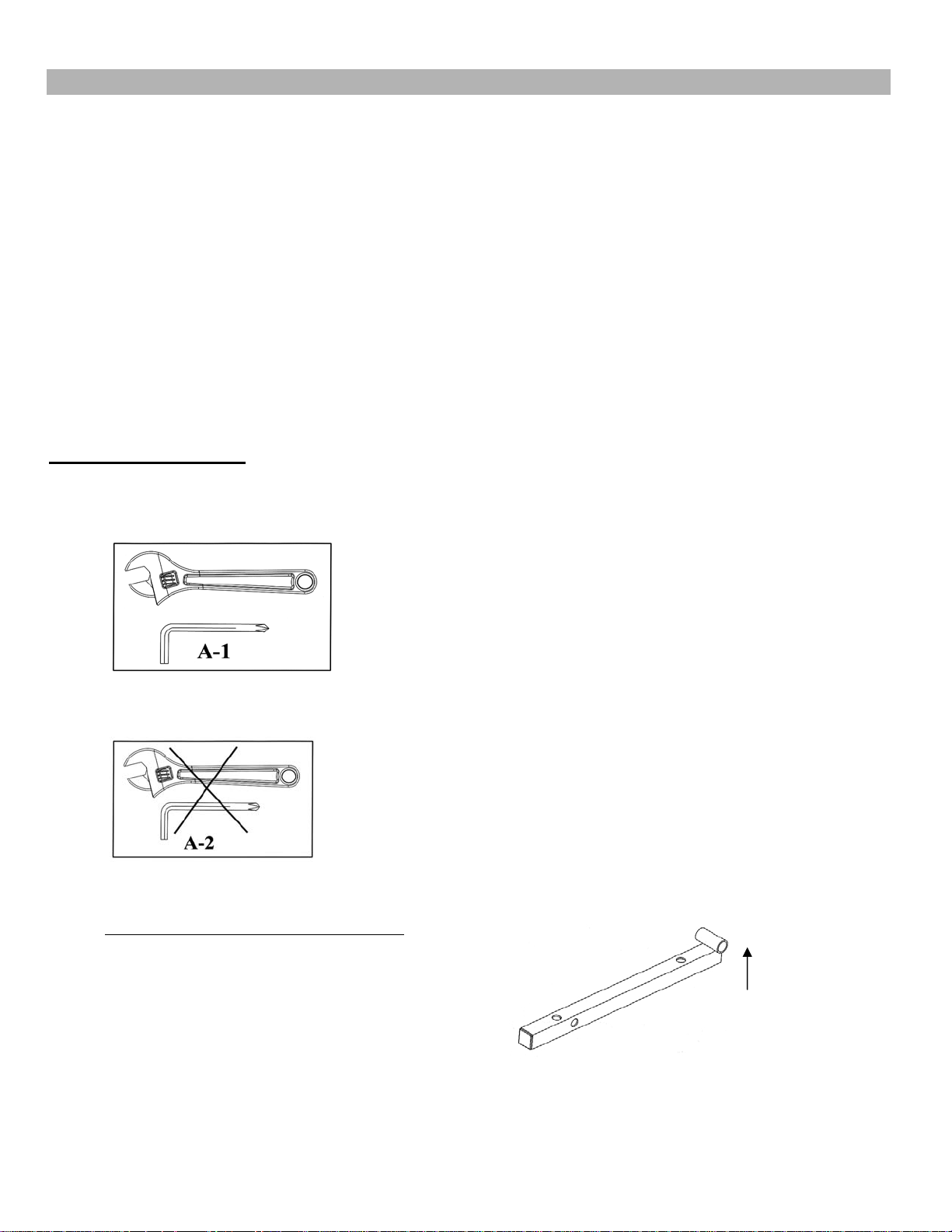

IMPORTANT ASSEMBLY INFORMATION

 Tools required for assembling the equipment: Two Adjustable Wrenches and Allen

Wrenches.

 NOTE: It is strongly recommended that this equipment is assembled by two or more

people to avoid possible injury.

 Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to

be assembled. Attach washer only to end of the Carriage Bolt.

 Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to

be assembled.

 Always wait until all bolts are assembled onto the equipment before tightening the bolts. Do not

fasten each bolt right after it is installed

Fasten Nuts and Bolts

Securely tighten all Nuts and Bolts after all
components have been assembled in current and
previous steps.
NOTE: Do not over tighten any component with
pivotal function.
Make sure all pivotal components are able to move
freely.

Do not tighten all Nuts and Bolts in this step.

Seat Support (Part# 17) Assembly

The pivot on Seat Support needs to face upward
when assembling the Seat Support.

©IMPEX INC.

6

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the equipment.

3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

4. Examine the equipment regularly for signs of damages or wear.

5. Replace any defective components immediately and/or keep the equipment out of use until
repair.

6. Failure to examine regularly may affect the safety level of the equipment.

Weight Capacity & Dimension

1. Maximum weight on Lever Arm: 500 lbs. (250 lbs on each Post)

2. Maximum weight on rear Weight Post: 400 lbs. (200 lbs on each Post)

3. Maximum weight on Weight Storage Post: 200lbs on each Post

4. Maximum user’s weight on Bench: 350 lbs.

5. Assembled Dimension: 92.5” x 114.5” x75”

OPERATING NOTES

1. Use the Seat Incline Lock Pin (# 23) to select the Seat Incline.

2. Use the Lock Knob (#32) to select the Backrest Incline. Each hole increment will increase
about 10 degree of incline.

3. *Optional: Insert Leg Developer Holder into the opening in front of the Seat. Use the Lock
Knob (#32) to hold the Holder in selected position. Use the Front Lock Pin (#24) to lock Leg
Developer in place. Release the Front Lock Pin (#24) when doing Leg Developer exercises.
(Leg Developer sold separately)

4. *Optional: Insert Arm Curl Stand into the opening in front of the Seat. Use the Lock Knob (#32)
to hold the Stand in selected position. (Arm Curl sold separately)

Moving Bench Forward and Backward

1. Move Bench forward for flat, decline, and some incline positions. The rear position is for

shoulder press and higher incline.

2. When using the Leg Developer, move back to have front stability without tipping when

loading weight plates to Leg Developer.

3. When the Bench is not being used, it is stored in the rear position to save space.

©IMPEX INC.

7

PARTS LIST

PART
NO. DESCRIPTION

1 Vertical Frame 1
2 Weight Storage Post 2
3 Lever Arm 1
4 Linkage Tube 1
5 Weight Post Frame 1
6 Lever Support Tube 2
7 Right Base Frame 1
8 Left Base Frame 1

9 Base Frame 1
10 Bench Base Frame 1
11 Front Stabilizer 1
12 Seat Main Frame 1
13 Backrest Support 1
14 Seat Linkage Bar 4
15 Backrest Adjustment Frame 1
16 Sliding Block 1
17 Seat Support 2
18 Seat Adjustment 1
19 Swivel Training Bar Bracket 1
20 Swivel Training Bar 1
21 Vertical Frame Diagonal Support 2
22 Leverage Adjustment Lock Pin 1
23 Seat Incline Lock Pin Ø1/2” x 4” 1
24 Front Lock Pin 1
25 Axle M12 x Ø ¾” x 10 ¼” 1
26 Axle M12 x Ø5/8” x 10 1/8” 1
27 Axle M12 x Ø5/8” x 8 ¼” 1
28 Seat Pad 1
29 Backrest Board 1
30 T-shaped Lock Pin M18 1
31 Grip 1
32 Lock Knob M18 2
33 Linkage Tube Lock Pin 1
34 End Cap 2 3/8” x 2 3/8” 4
35 End Cap 3” x 3” 1
36 End Cap 2” x 2 ¾” 10
37 Sleeve 2 3/8” x 2” 1
38 End Cap 1” x 1” 4

SIZE QUANTITY

©IMPEX INC.

8

39 End Cap 1 1/8” x 2 3/8” 4
40 End Cap 1” x 2” 1
41 Sleeve 1 1/8” x 2 3/8” 2
42 Olympic Sleeve Ø2” 6
43 Clip Ø2” 6
44 Grip Ø1 ¼” x 23 ¾” 1
45 Grip Ø1” x 20” 2
46 Grip Ø ¾” x 4” 1
47 Rubber Bumper 1 7/8” x 1 7/8” 1
48 Ball Bearing 6004 2
49 Hex Bolt M12 x 4 1/8” 2
50 Hex Bolt M12 x 3 ¾” 2
51 Hex Bolt M12 x 4” 3
52 Hex Bolt M12 x ¾” 2
53 Hex Bolt M10 x 1 5/8” 6
54 Hex Bolt M12 x 3 3/8” 4
55 Hex Bolt M12 x 3 1/8” 2
56 Hex Bolt M12 x 2 3/8” 2
57 Hex Bolt M12 x 6 ¾” 1
58 Hex Bolt M12 x 6 1/8” 1
59 Hex Bolt M12 x 6” 1
60 Hex Bolt M10 x 5/8” 4
61 Allen Wrench (Tool) #4 1
62 Allen Bolt M6 x 3/8” 1
63 Philips Screw M4 x ¼” 2
64 Hex Bolt M10 x ¾” 1
65 Aircraft Nut M10 1
66 Aircraft Nut M12 31
67 Washer Ø ¾” 11
68 Washer Ø 1” 51
69 Large Washer Ø 1” x Ø 3/8” 1
70 Metal Bushing Ø 1” x Ø 5/8” 6
71 Metal Bushing Ø 1” x Ø ½” 12
72 Metal Bushing Ø 1 ¼” x Ø 5/8” 2
73 Seat Base Rubber Panel 1
74 Allen Screw M8 x ½” 6
75 End Cap Ø 1” 3
76 Flat Allen Bolt M10 x 2 3/8" 4
77 Counterbalance Bar 2
78 Allen Wrench (Tool) #6 1

©IMPEX INC.

9

EXPLODED DIAGRAM

©IMPEX INC.

10

IMPEX® INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to
replacing or repairing, at IMPEX's option.

All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be
prepaid by the customer. This warranty does not extend to any product or damage to a product caused by
or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an
IMPEX authorized service center or for products used for commercial or rental purposes. No other
warranty beyond that specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from state to state.

Register on-line at www.impex-fitness.com

IMPEX

2801 S. Towne Ave.

Pomona, CA 91766

ORDERING REPLACEMENT PARTS

Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

[email protected]

Please always provide the following information when ordering replacement parts.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

®

INC.

©IMPEX INC.

11
