Impex MP-2500 Owner's Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

MARCY PLATINUM

MP-2500 HOME GYM

Model

MP-2500

Retain This

Manual for

Reference

11-06-07

OWNER'S
MANUAL

IMPEX® INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE PACK……….....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 7

WEIGHT RESISTANCE CHART.......................................................................28

PARTS LIST………………………………………………………………………….. 29

WARRANTY.................................................................................................… 30

ORDERING PARTS......................................................................................... 30

BEFORE YOU BEGIN

Thank you for selecting the MARCY PLATINUM MP2500 HOME GYM by
IMPEX

®

INC. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions
apply whenever you operate a piece of exercise equipment. Be sure to read the
entire manual before you assemble or operate your machine. In particular, note the
following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL REPLACEMENT

The warning labels shown here have been placed on the Rear Stabilizer and Upper Frame. If the
labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements.
Apply the labels in the location shown.

3

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

4

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

5

HARDWARE PACK

6

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended this machine be assembled by two or more
people to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Insert two Guide Rods (#17) into the holes on the Rear Stabilizer (#2). Secure each

Guide Rod with one M10 x ¾” Allen Bolt (#85) and Ø ¾” Washer (#93) from the
bottom. Slide two Ø 2 3/8” Rubber Bumpers (#57) onto the two Guide Rods.

B.) Attach the Vertical Frame (#5) onto the Main Base Frame (#1). Secure it with two

M10 x 2 5/8” Carriage Bolts (#90), one 2 ¾” x 4 ¾” Bracket (#23), two ∅ ¾”
Washers (#93), and two M10 Aircraft Nuts (#92). DO NOT tighten the Nuts and
Bolts yet.

C.) Attach the Main Base Frame to the Rear Stabilizer. Secure them together with two

M10 x 3 ½” Carriage Bolts (#89), one 2” x 7” Bracket (#29), two Ø ¾” Washers
(#93), and two M10 Aircraft Nuts (#92).

D.) Slide nine Weight Plates (#66) onto the Guide Rods. Make sure the deep groves on

all the Plates face down and toward the back. Insert the Selector Rod (#18) through
the center hole on the Weight Plates. Slide the Weight Selector Stem (#67) onto the
Guide Rods. Attached the ring on the Weight Plate Selector Pin (#74) to the
Selector Rod (#18).

E.) Use the Weight Plate Selector Pin (#74) to select desired number of Weight Plates

to exercise. NOTE: Each Plate weights approximately 10 lbs. Please refer to the
Weight Resistance Chart on page 28.

7

DIAGRAM 1

8

STEP 2 (See Diagram 2)

A.) Attach the Upper Frame (#15) onto the two Guide Rods (#16). Secure it with two M10 x

¾” Allen Bolts (#85) and ∅ ¾” Washers (#93). DO NOT tighten the Bolts yet.

B.) Place the Upper Frame onto the Vertical Frame (#5). Secure it with two M10 x 2 5/8”

Carriage Bolts (#90), one 2 ¾” x 4 ¾” Bracket (#23), two ∅ ¾” Washers (#93), and two

M10 Aircraft Nuts (#92).
C.) Securely tighten all Nuts and Bolts previously installed.
D.) Attach the Stopper Frame (#14) to the Vertical Frame. Secure it with one M10 x 3 ½”

Carriage Bolt (#89), ∅ ¾” Washer (#93), and M10 Aircraft Nut (#92).
E.) Attach the Low Pulley Base Frame (#3) to the Main Base Frame (#1). Secure it with two

M10 x 3 ½” Carriage Bolts (#89), one 2” x 5 ½” Bracket (#28), two Ø ¾” Washers (#93),

and two M10 Aircraft Nuts (#92).

9

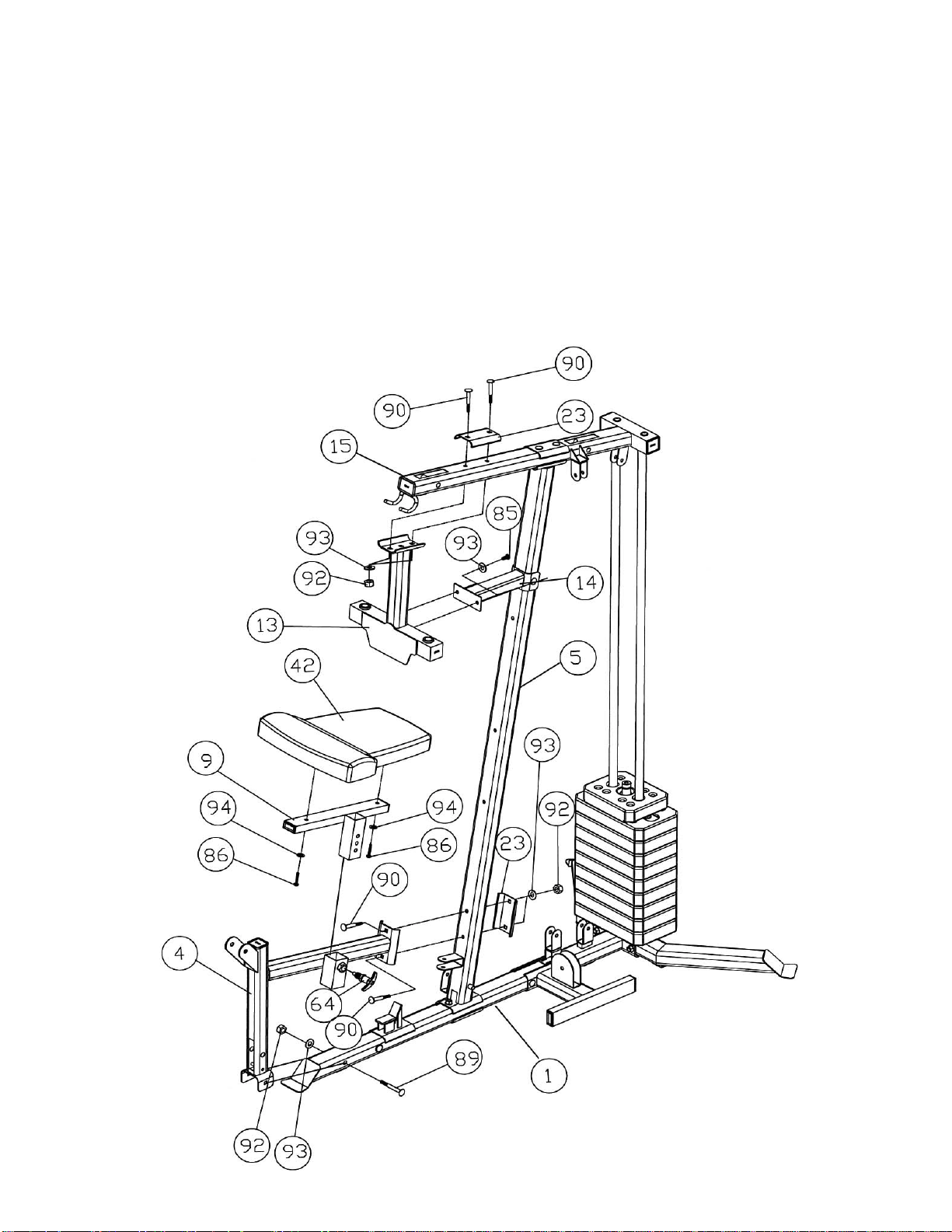

STEP 3 (See Diagram 3)

A.) Attach the Butterfly Base (#13) to the Upper Frame (#15) and the Stopper Frame (#14).

Secure it to the Upper Frame with two M10 x 2 5/8” Carriage Bolts (#90), one 2 ¾” x 4

¾” Bracket (#23), two Ø ¾” Washers (#93), and two M10 Aircraft Nuts (#92). Secure it

to the Stopper Frame with two M10 x ¾” Allen Bolts (#85) and Ø ¾” Washers (#93).
B.) Attach the Seat Support Frame (#4) onto the Main Base Frame (#1). Secure it with one

M10 x 3 ½” Carriage Bolt (#89), Ø ¾” Washer (#93), and M10 Aircraft Nut (#92).
C.) Attach the Seat Support Frame to the Vertical Frame (#5). Secure it with two M10 x 2

5/8” Carriage Bolts (#90), one 2 ¾” x 4 ¾” Bracket (#23), two Ø ¾” Washers (#93), and

two M10 Aircraft Nuts (#92).
D.) Attach the Seat Pad (#42) to the Seat Post (#9). Secure it with two M8 x 1 5/8” Allen

Bolts (#86) and Ø 5/8” Washers (#94).
E.) Insert the Seat Post into the opening on the Seat Support Frame. Thread the T-shaped

Lock Pin (#64) into the hole to lock the Seat at selected height.

10

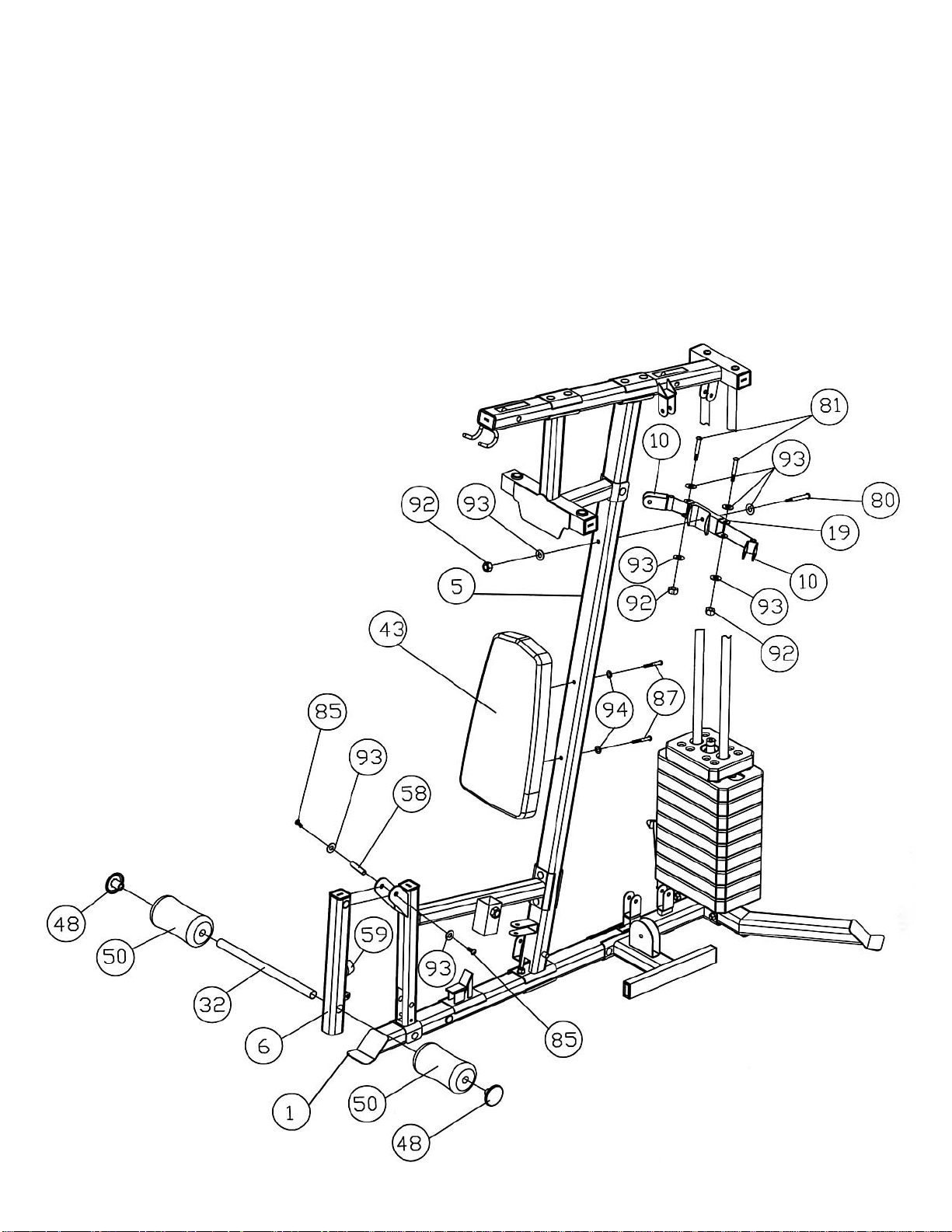

STEP 4 (See Diagram 4)

A.) Attach the Butterfly Pulley Bracket (#19) to the Vertical Frame (#5). Secure it with one M10

x 3 ½” Allen Bolt (#80), two Ø ¾” Washers (#93), and one M10 Aircraft Nut (#92).

B.) Attach two Swivel Pulley Brackets (#10) to the Butterfly Pulley Bracket. Secure each Swivel

Pulley Bracket with one M10 x 2 ½” Allen Bolt (#81), two Ø ¾” Washers (#93), and one
M10 Aircraft Nut (#92).

C.) Attach the Backrest Board (#43) to the Vertical Frame. Secure it with two M8 x 2 ½” Allen

Bolts (#87) and two Ø 5/8” Washers (#94).

D.) Attach the Leg Developer (#6) to the open bracket on the Seat Support Frame (#4). Secure

it with a Leg Developer Axle (#58), two Ø ¾” Washers (#93), and two M10 x ¾” Allen Bolts
(#85).

E.) Insert a Foam Tube (#32) halfway through the holes on the Leg Developer. Push two

Foam Rolls (#50) onto the Foam Tube from both ends. Plug two Foam Roll End Caps
(#48) into the ends of the Tube.

11

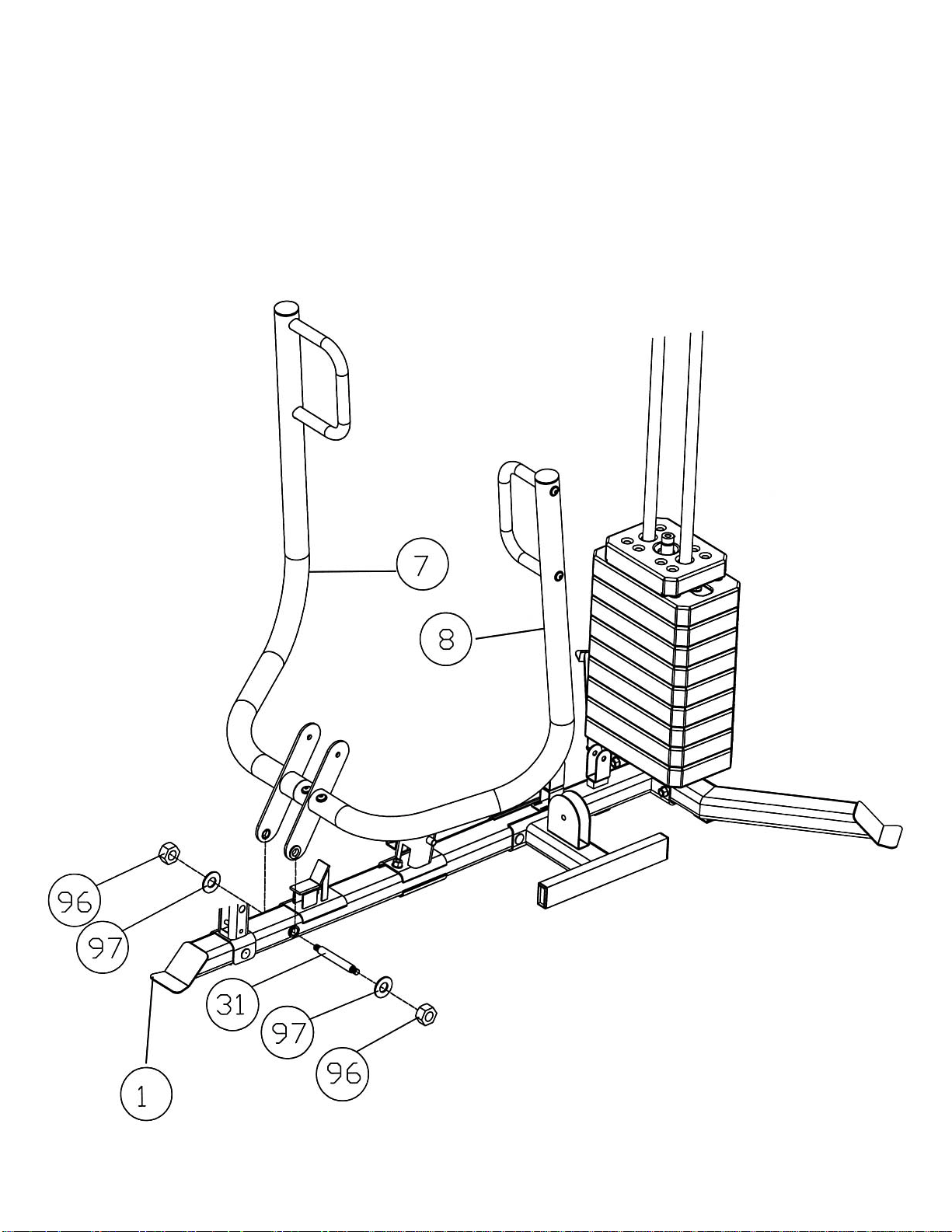

STEP 5 (See Diagram 5)

A.) Attach the Right & Left Front Press (#7 & #8) onto the Main Base Frame (#1) from

both sides.

B.) Align the holes. Insert a Front Press Axle (#31) through the holes. Secure the Axle

with one Ø1” Washer (#97) and M12 Aircraft Nut (#96) no each side.

DIAGRAM 5

12

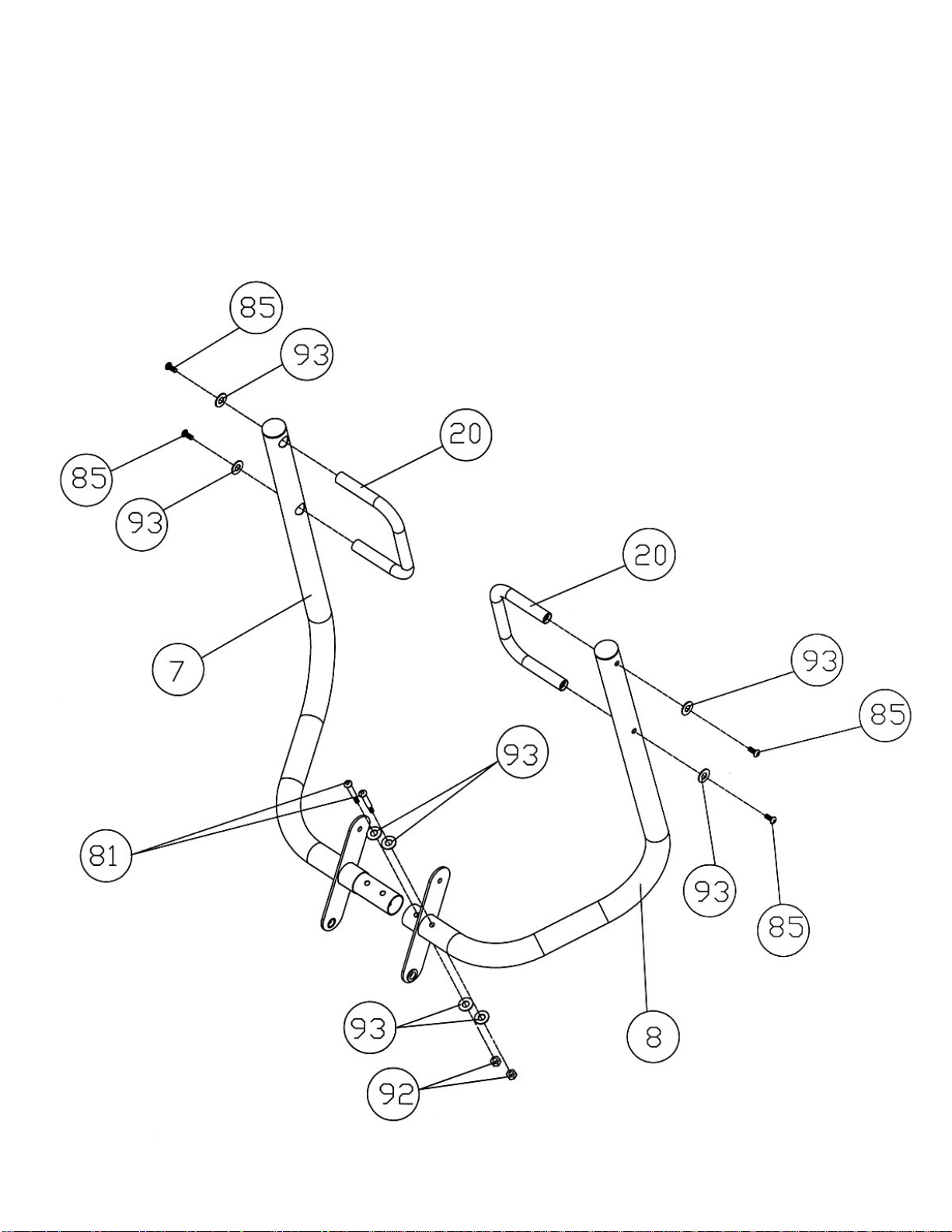

STEP 6 (See Diagram 6)

A.) Secure the Right Front Press (#7) and the Left Front Press (#8) together with two M10 x 2

½” Allen Bolts (#81), four Ø ¾” Washers (#93), and two M10 Aircraft Nuts (#92).

B.) Attach one Front Press Handle (#20) to the holes on the Right Front Press (#7). Secure it

with two M10 x ¾” Allen Bolts (#85) and Ø ¾” Washers (#93). Repeat the same step to
install the other side.

DIAGRAM 6

13

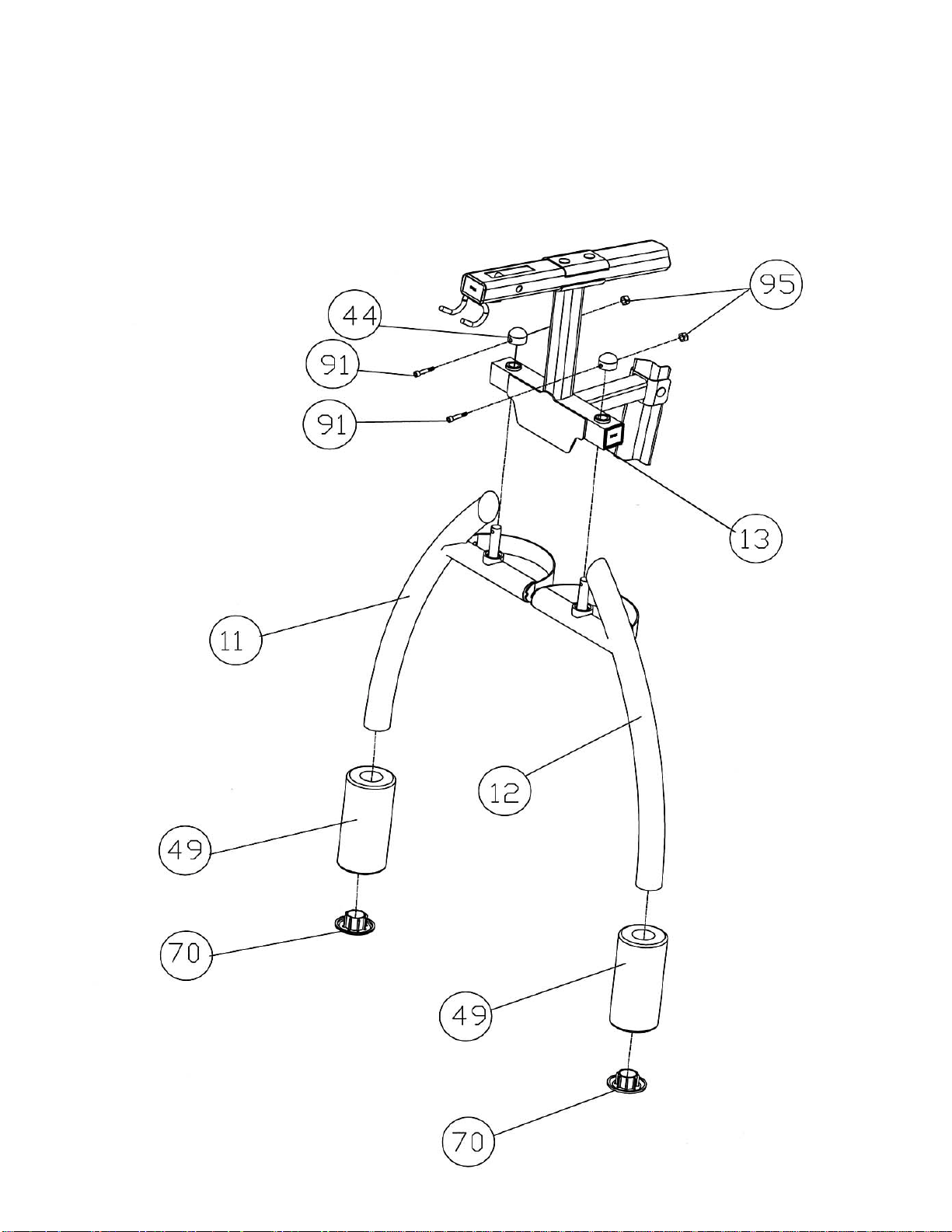

Step 7 (See Diagram 7)

A.) Insert the axle on the Right Butterfly (#11) through the holes on the Butterfly Base

(#13). Cover the axle with a Lock Ring (#44). Secure the Lock Ring to the axle with one
M6 x 1 ¼” Allen Bolt (#91) and M6 Aircraft Nut (#95).

B.) Push a Butterfly Large Foam Roll (#49) onto the Right Butterfly. Push a Butterfly Foam

Roll End Cap (#70) into the end of Right Butterfly.

C.) Repeat Procedure A & B above to install the Left Butterfly (#12).

DIAGRAM 7

14

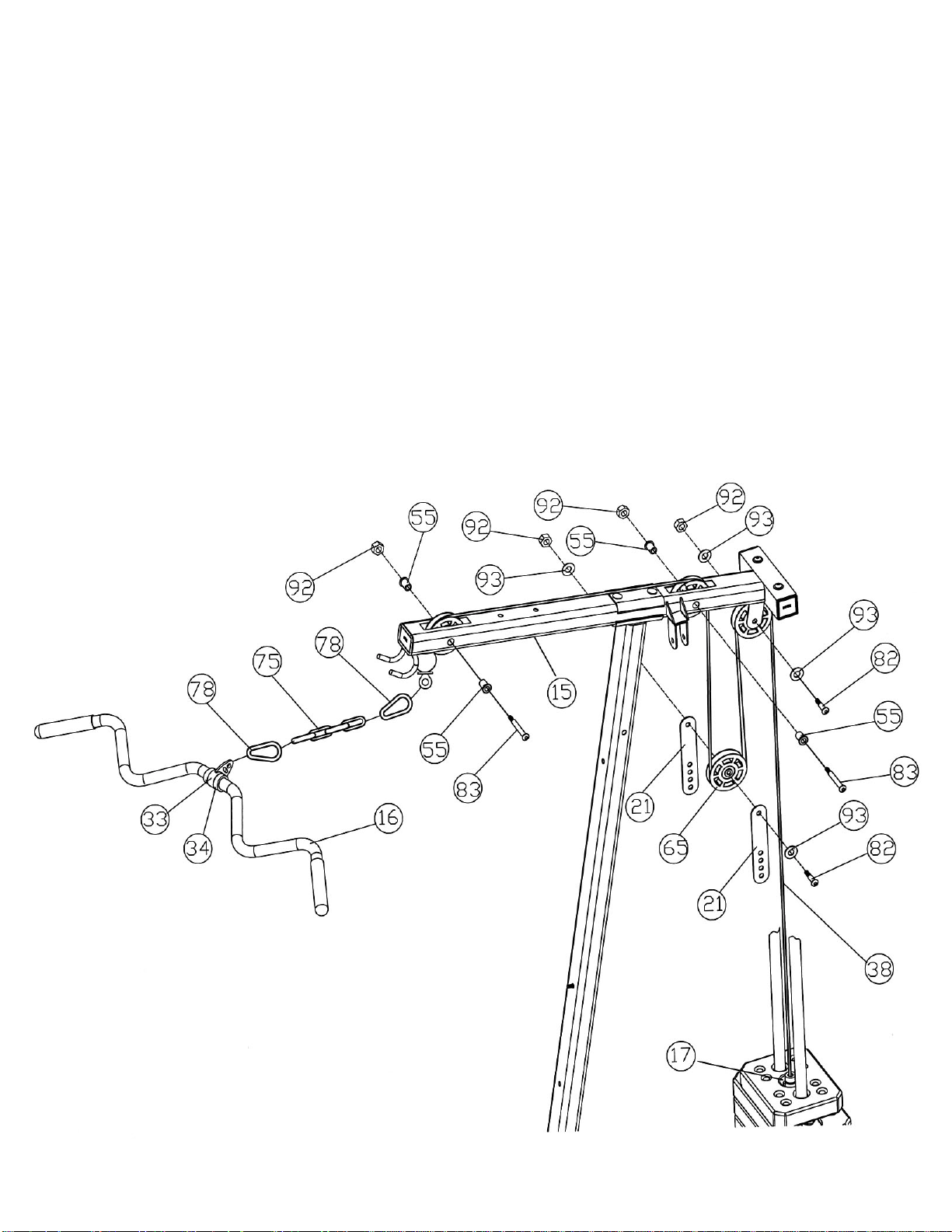

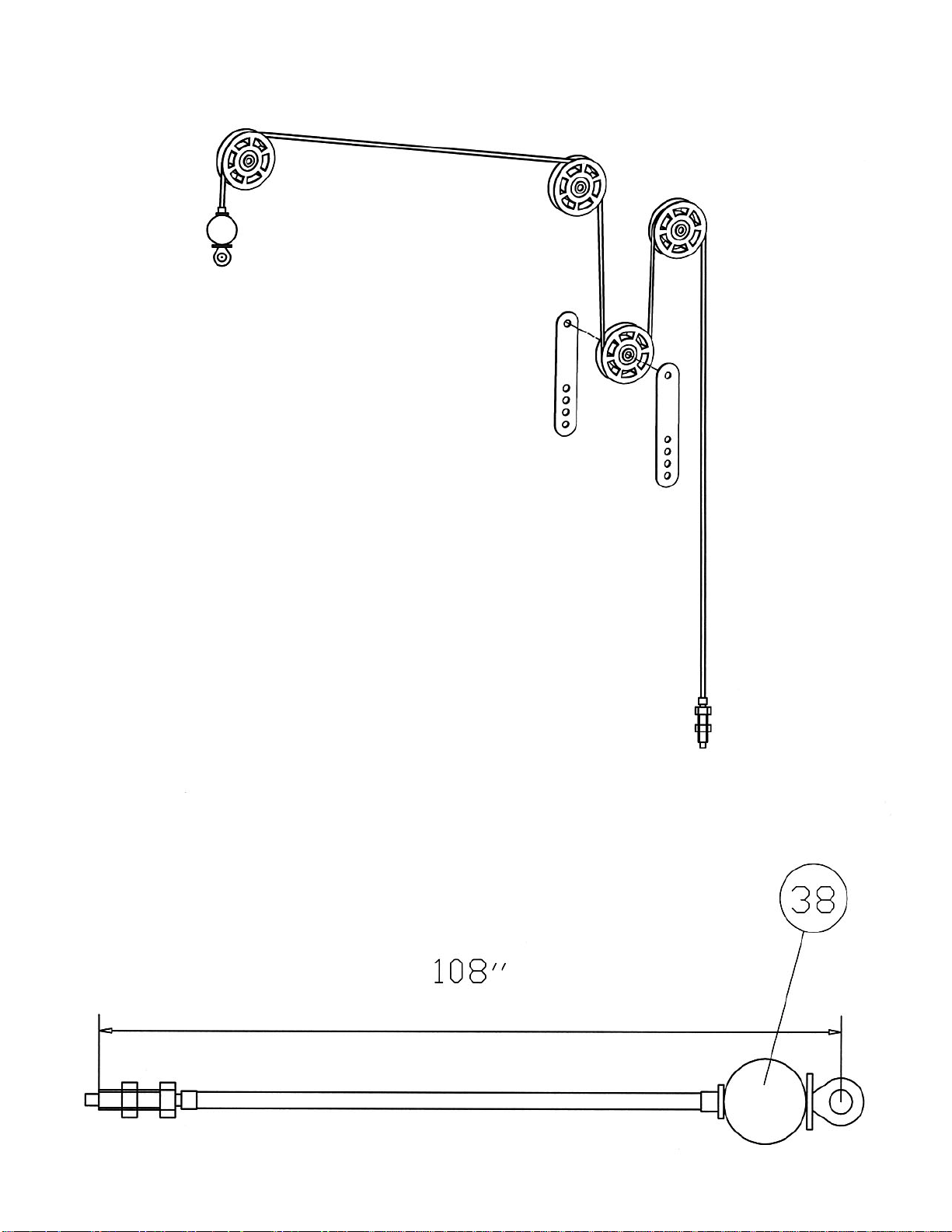

STEP 8 (See Diagram 8 & Upper Cable Loop Diagram)

A.) Attach the 108” Upper Cable (#38) to the opening on the front of Upper Frame (#15).

Make sure the ball stopper is underneath the Frame. Attach a Pulley (#65) to the Cable.

B.) Secure the Pulley to the opening with one M10 x 3 3/8” Allen Bolt (#83), two Ø 7/8” x 1”

Pulley Bushings (#55), and one M10 Aircraft Nut (#92).

C.) Draw the Cable over the Pulley along the Upper Frame towards the back of the

machine to the opening in the middle of Upper Frame. Repeat Procedure B above to
install a Pulley.

D.) Draw the Cable around the Pulley then downward. Attach a Pulley to the top hole on

the Double Floating Pulley Brackets (#21). Secure a Pulley to the brackets with one
M10 x 1 ¾” Allen Bolt (#82), two Ø ¾” Washers (#93), and one M10 Aircraft Nut (#92).
Let the Bracket hanging for now.

E.) Draw the Cable around the Pulley then upward to the open bracket between the two

Guide Rods. Repeat Procedure E above to install a Pulley.

F.) Draw the Cable around the Pulley then downward to the Selector Rod (#17). Securely

thread the Head Bolt at end of the Cable into the Selector Rod.

G.) Connect the Lat Bar (#16) to the Cable with two Hooks (#78) and one Short Chain

(#75).

DIAGRAM 8

15

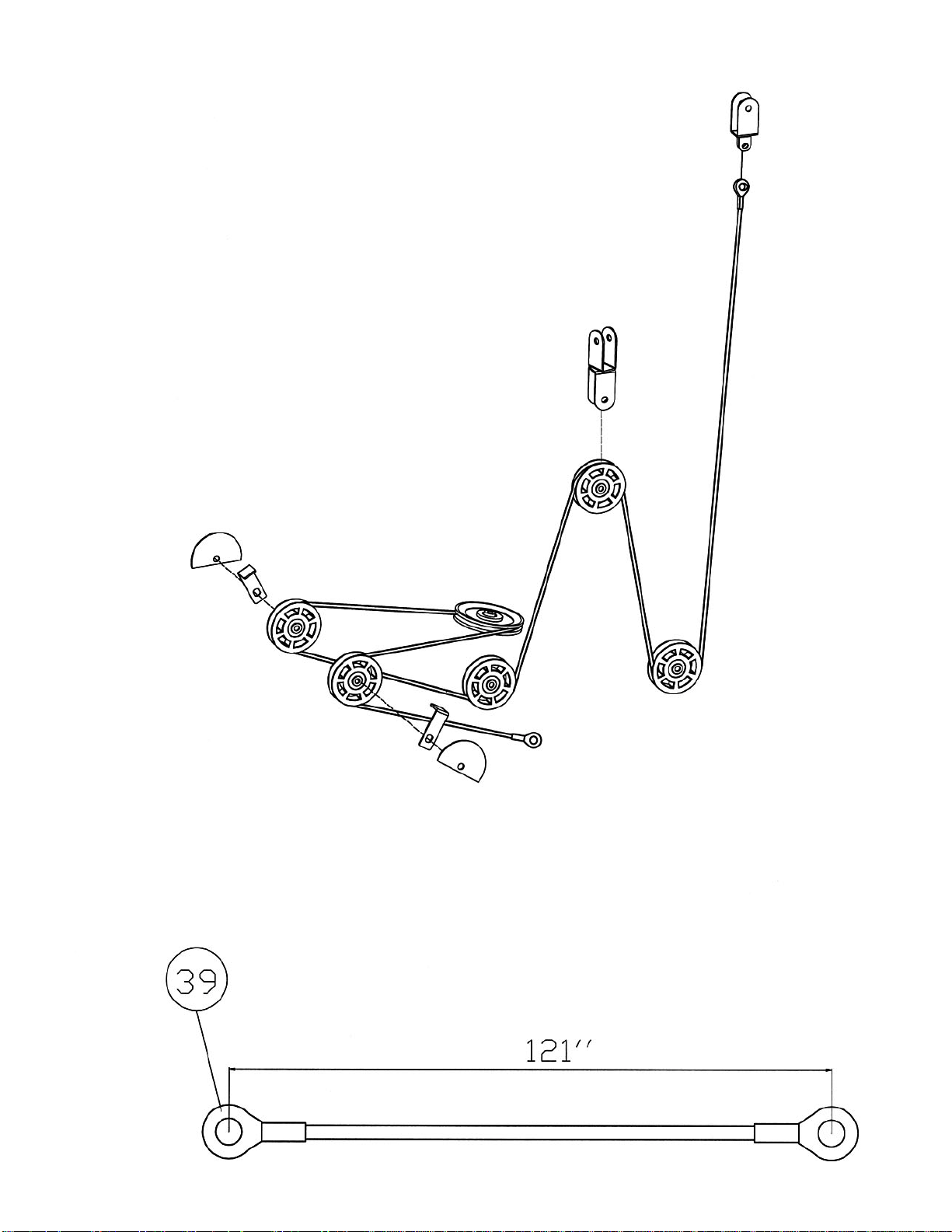

Upper Cable Loop Diagram

16

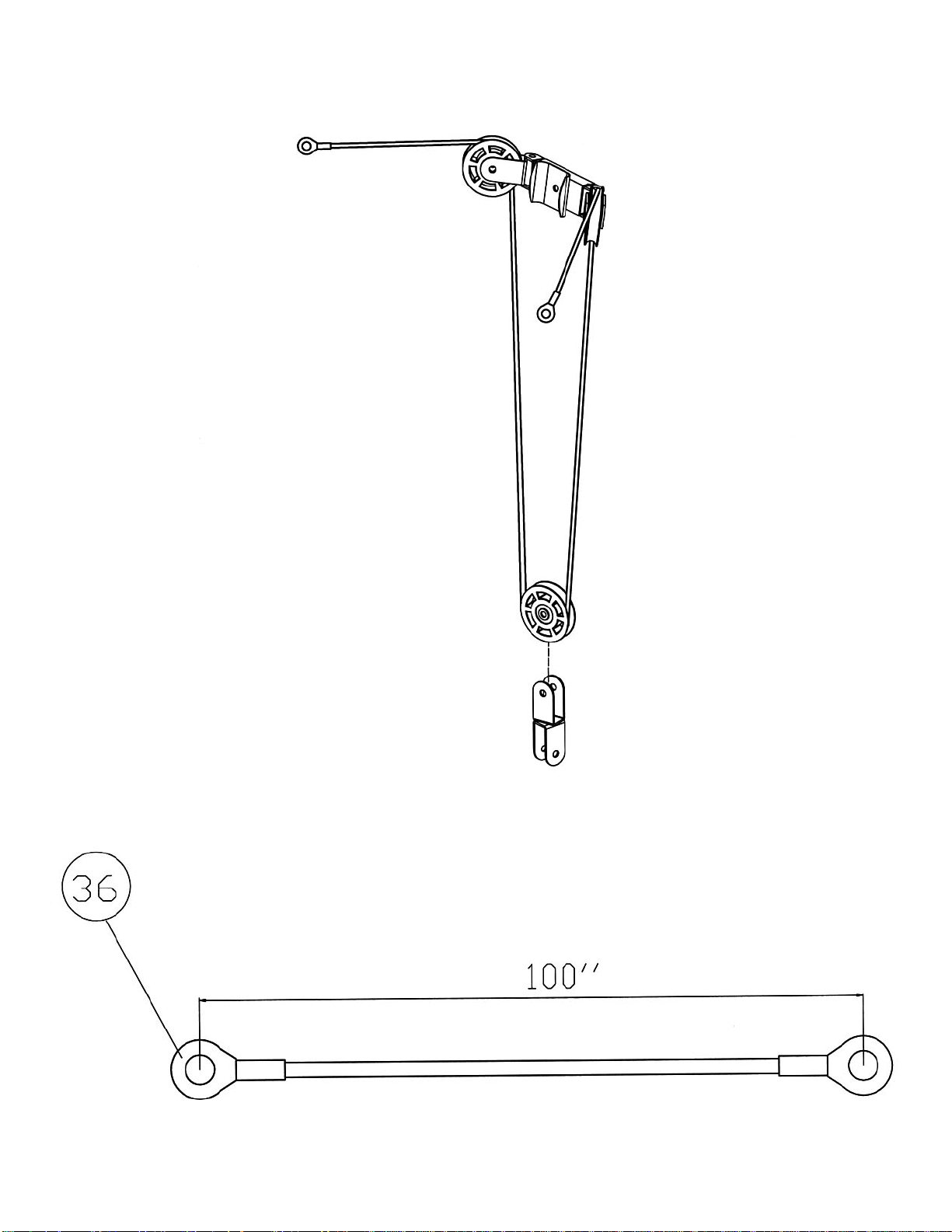

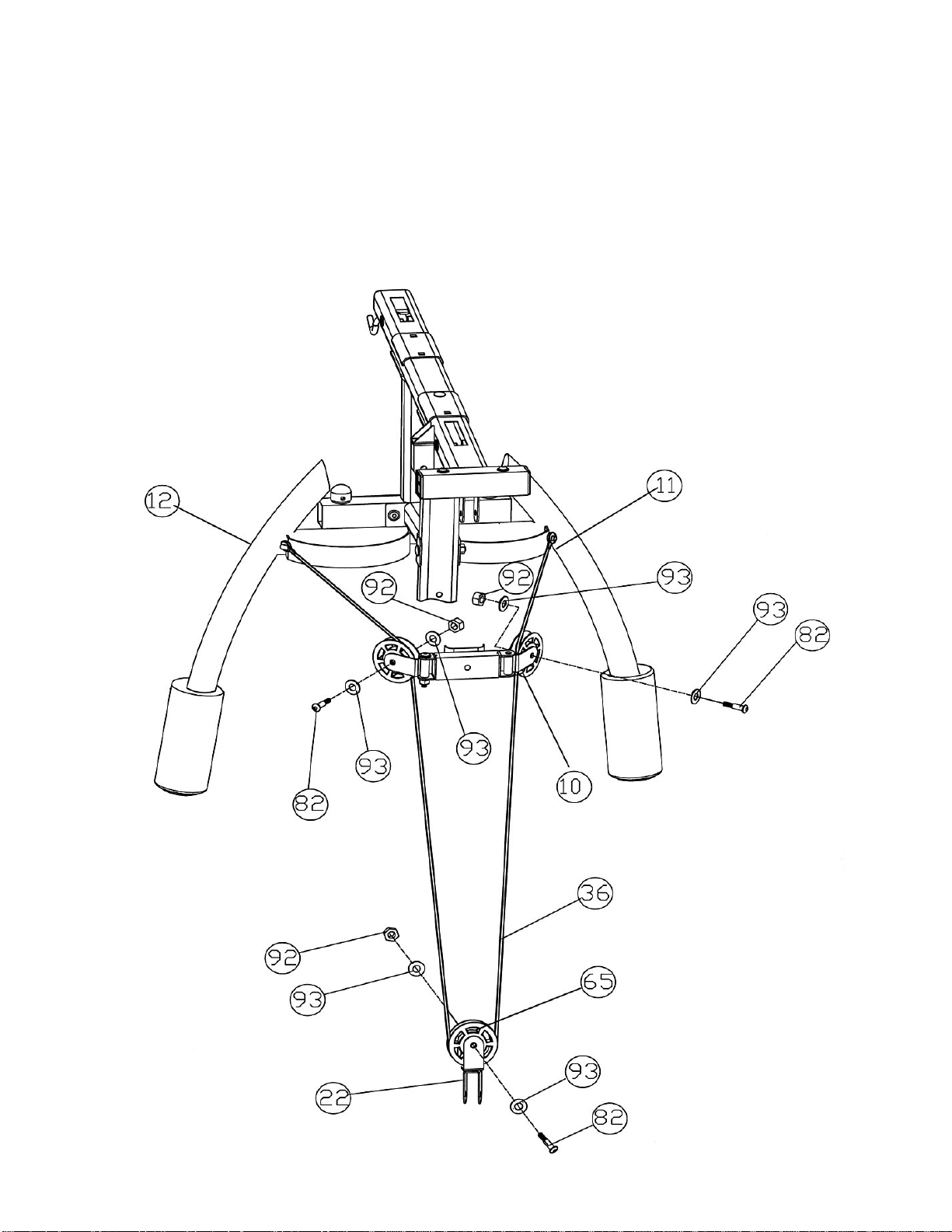

STEP 9 (See Diagram 9 & Butterfly Cable Loop Diagram)

A.) Clip one end of the 100” Butterfly Cable (#36) onto the Right Butterfly (#11).
B.) Draw the Cable to the right open Swivel Pulley Bracket (#10).
C.) Attach a Pulley (#65) to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#82), two

Ø ¾” Washers (#93), and one M10 Aircraft Nut (#92).
D.) Draw the Cable over the Pulley then downward.
E.) Attach a Pulley to an Angled Double Floating Pulley Bracket (#22). Repeat Procedure C

to install a Pulley.
F.) Draw the Cable around the Pulley. Let the Bracket hanging for now.
G.) Draw the Cable upward to the left open Swivel Pulley Bracket. Install a Pulley.
H.) Draw the Cable over the Pulley and clip the end onto the Left Butterfly (#12).

17

Butterfly Cable Loop Diagram

18

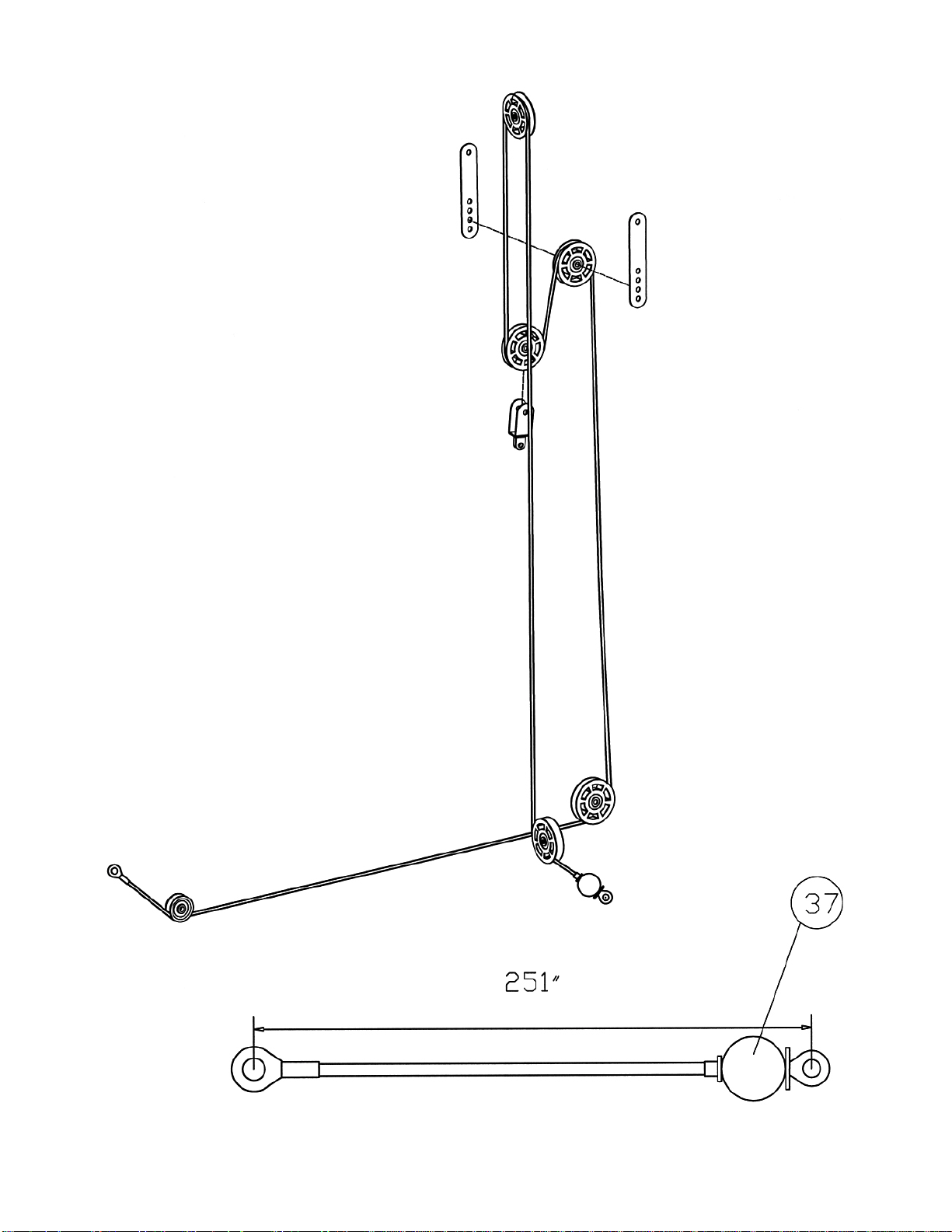

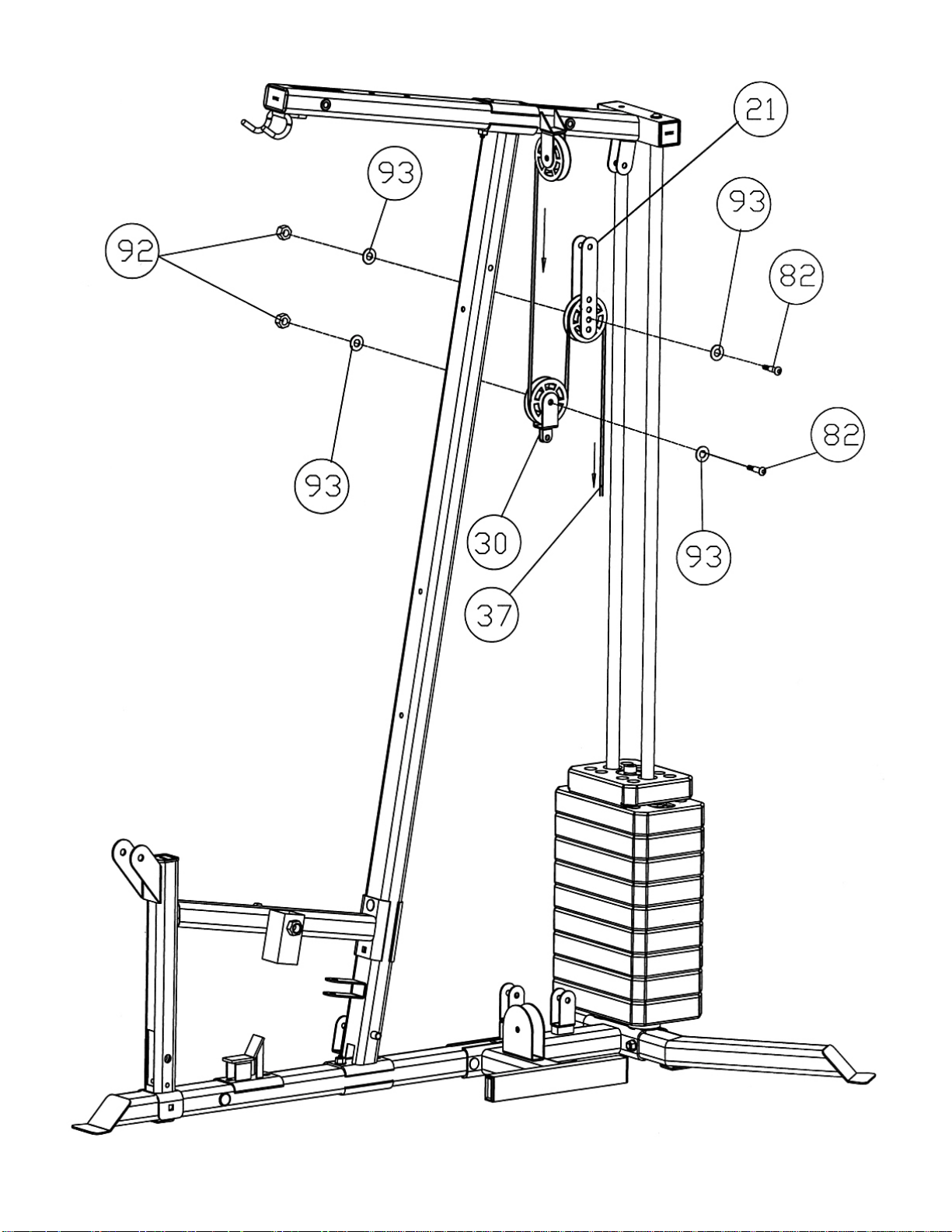

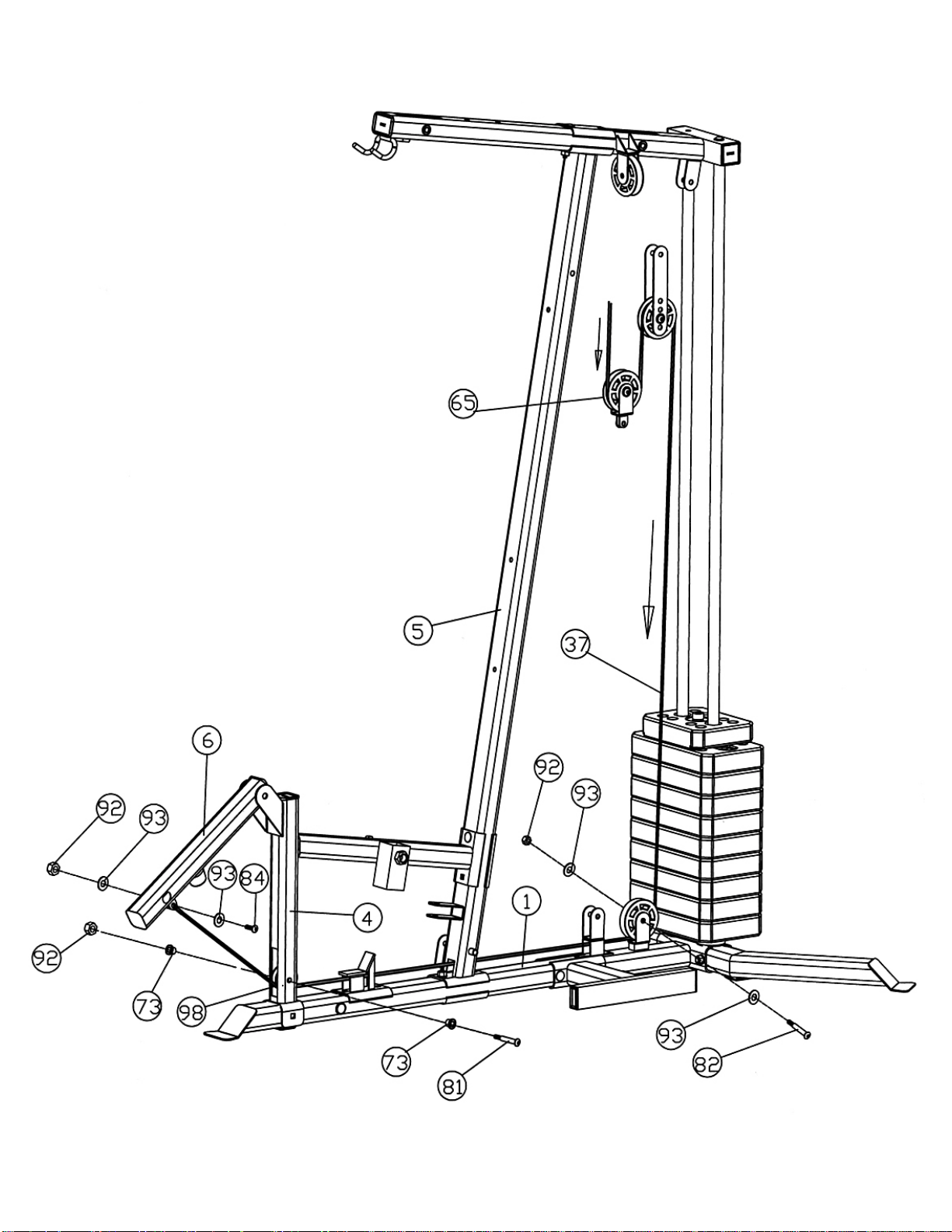

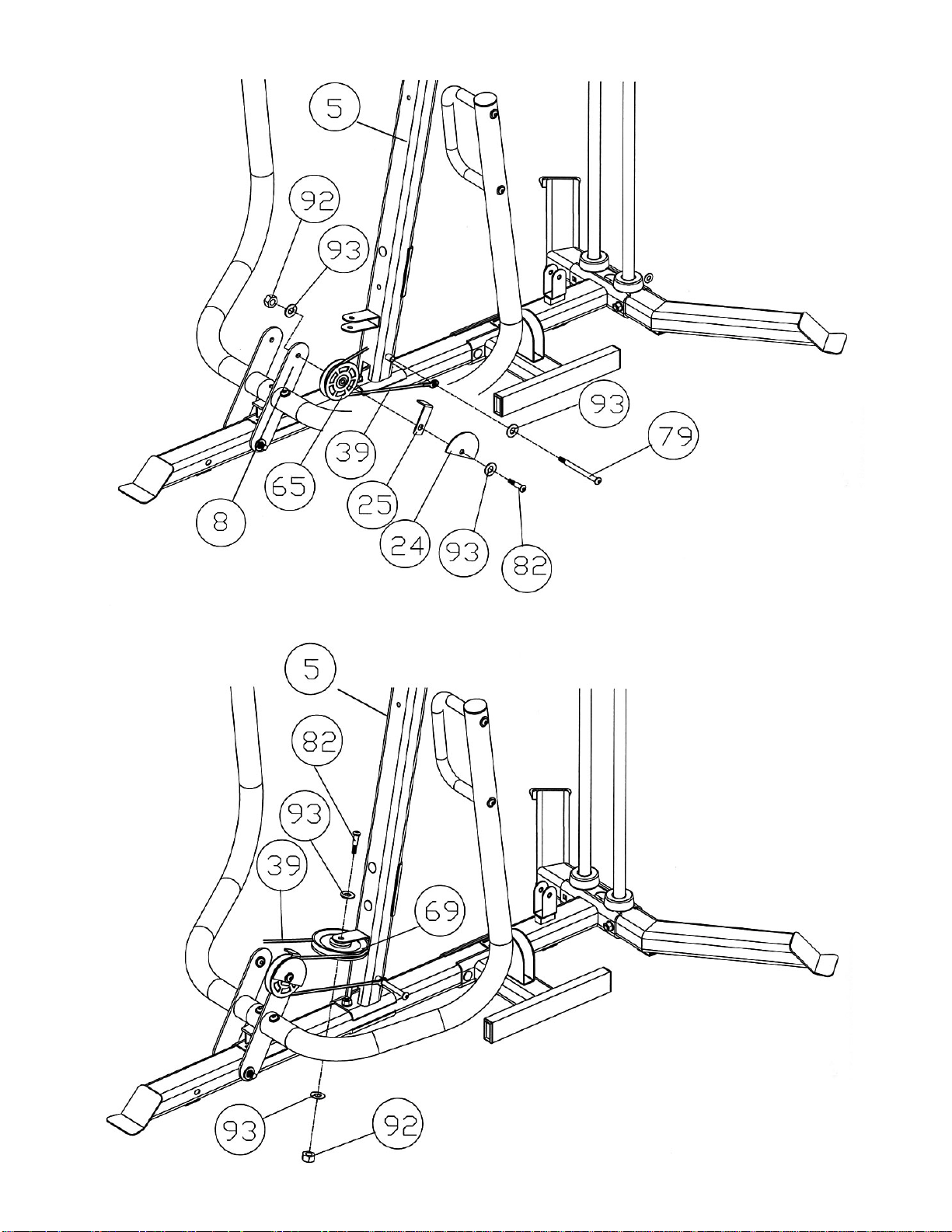

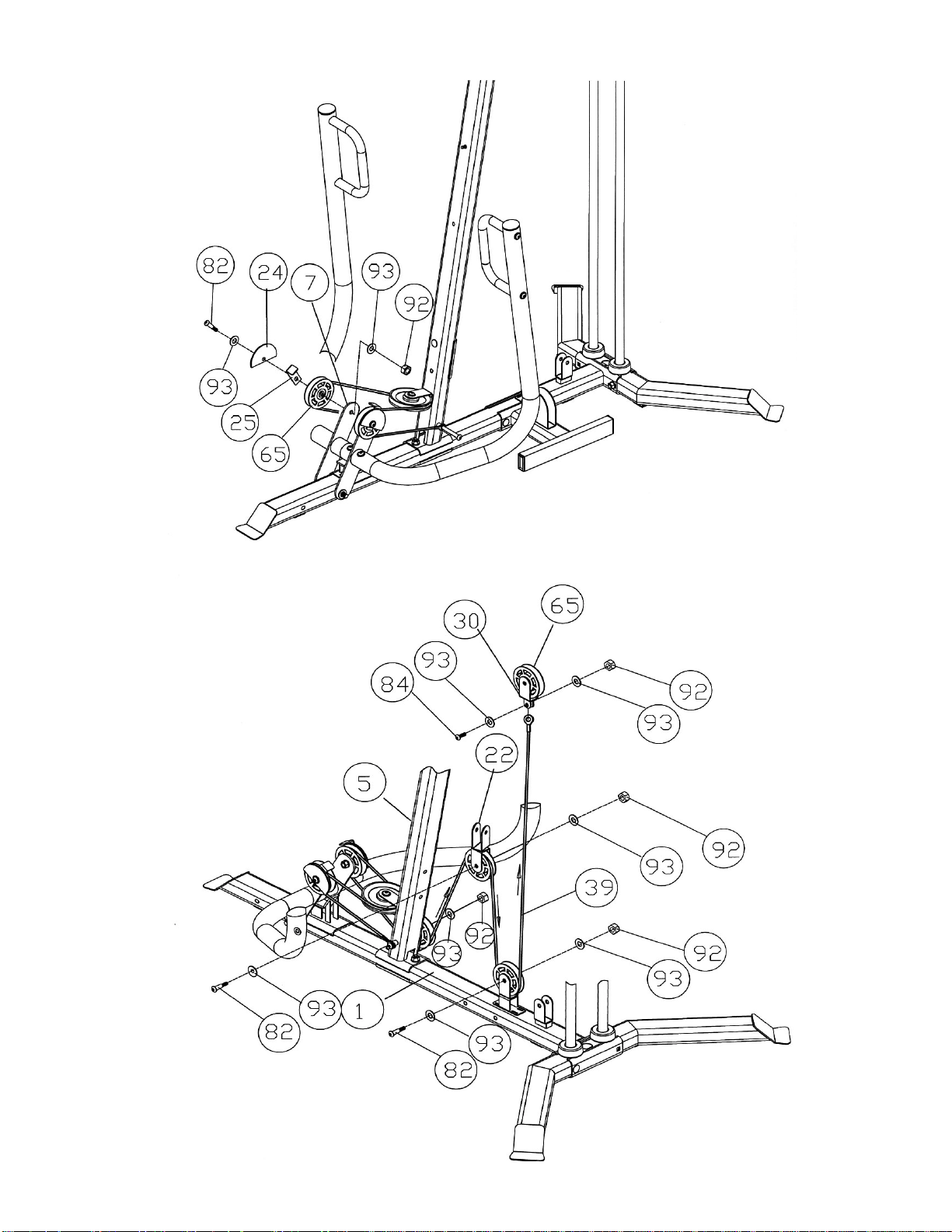

STEP 10 (See Diagram 10-1,10-2,10-3, & Lower Cable Loop Diagram))

A.) Attach the 251” Lower Cable (#37) to the open bracket on the Lower Pulley Base

Frame (#3). Attach a Pulley (#65) to the bracket. (See Diagram 10-1).

B.) Secure the Pulley with one M10 x 1 ¾” Allen Bolt (#82), two Ø ¾” Washers (#93), and

one M10 Aircraft Nut (#92).

C.) Draw the Cable underneath the Pulley and upward to the open bracket on the Upper

Frame (#15). Repeat Procedure B to install a Pulley.

D.) Draw the Cable around the Pulley and downward. Repeat procedure B to install a

Pulley to a Single Floating Pulley Bracket (#30). Draw the Cable around the Pulley. Let
the Bracket hanging for now. (See Diagram 10-2).

E.) Draw the Cable upward to the Double Floating Pulley Bracket (#21) previously installed

in Step-8. Repeat Procedure B to install a Pulley.

F.) After completing the installation of all Cables, come back to this procedure to adjust the

tension of the Cable System. If the tension is too tight, move the Pulley downward on
the Bracket. If the tension is too loose then move up the Pulley on the Bracket.

G.) Draw the Cable around the Pulley and downward to the open bracket on the Main Base

Frame (#1). Repeat Procedure B to install a Pulley. (See Diagram 10-3).

H.) Draw the Cable underneath the Pulley then through the bottom opening on the Vertical

Frame (#5) to the bottom opening on the Seat Support Frame (#4).

I.) Attach a Small Pulley (#98) to the opening. Secure it with one M10 x 2 ½” Allen Bolt

(#81), two Ø 7/8” x 5/8” Pulley Bushings (#73), and one M10 Aircraft Nut (#92).

J.) Draw the Cable underneath the Pulley then to the bracket on the Leg Developer (#6).

Secure the end of Cable to the bracket with M10 x 1” Allen Bolt (#84), two Ø ¾”
Washers (#93), and one M10 Aircraft Nut (#92).

K.) Connect the Shiver Bar (#26) to the Lower Cable with two Hooks (#78) and one Long

Chain (#76).

L.) Replace the Shiver Bar with Single Handle (#40) or Ankle Strap (#41) for different

exercises.

19

DIAGRAM 10-1

20

DAIGRAM 10-2

21

DAIGRAM 10-3

22

Lower Cable Loop Diagram

23

Step 11 (See Diagram 11-1, 11-2, 11-3, 11-4, & Front Press Cable Loop Diagram)

A.) Attach the 121” Front Press Cable (#39) to the small tube on the bottom right side of

the Vertical Frame (#5). Align the holes then insert a M10 x 5 ½” Allen Bolt (#79)
through a Ø ¾” Washer (#93) into the Cable head and the Vertical Frame. (See
Diagram 11-1).

B.) Draw the Cable to the Left Front Press (#8). Attach a Pulley (#65) to the Cable.

Align the holes then secure the Pulley with one M10 x 1 ¾” Allen Bolt (#82), one
Pulley Cover (#24), one L-shaped Cable Retainer (#25), two Ø ¾” Washers (#93),
and one M10 Aircraft Nut (#92).

C.) Draw the Cable around the Pulley to the open bracket on the Vertical Frame. Attach

a Large Pulley (#69) to the bracket. (See Diagram 11-2).

D.) Secure the Pulley to the bracket with one M10 x 1 ¾” Allen Bolt (#82), two Ø ¾”

Washers (#93), and one M10 Aircraft Nut (#92).

E.) Draw the Cable around the Pulley to the hole on the Right Front Press (#7). Repeat

Procedure B above to install a Pulley. (See Diagram 11-3).

F.) Draw the Cable around the Pulley to the open bracket on the bottom left side of

Vertical Frame. Secure the Pulley to the Bolt installed in Procedure A above.
Secure it with one Ø ¾” Washer (#93) and one M10 Aircraft Nut (#92). (See
Diagram 11-4).

G.) Draw the Cable underneath the Pulley and upward to the Angled Double Floating

Pulley Bracket (#22) previously installed in Step-9. Repeat Procedure D to install a
Pulley.

H.) Draw the Cable around the Pulley then downward to the open bracket on the Main

Base Frame (#1). Repeat Procedure D to install a Pulley.

I.) Draw the Cable underneath the Pulley then upward to the Single Floating Pulley

Bracket (#30) previously installed in Step-10. Secure the end of the Cable to the
Bracket with M10 x 1” Allen Bolt (#84), two Ø ¾” Washers (#93), and one M10
Aircraft Nut (#92).

24

DIAGRAM 11-1

DIAGRAM 11-2

25

DIAGRAM 11-3

DIAGRAM 11-4

26

Front Press Cable Loop Diagram

27

WEIGHT RESISTANCE CHART

Station 1 2 3 4 5 6 7 8 9

Lat Pull 30 40 50 60 70 80 90 100 110

Butterfly 30 40 50 60 70 80 90 100 110

Front Press 30 50 70 90 110 130 150 170 190

Low Pulley 30 40 50 60 70 80 90 100 110

WEIGHT PLATE

Leg Developer 30 40 50 60 70 80 90 100 110

*Numbers are approximate. Actual weight may vary.

*Numbers are approximate. Actual weight may vary.

*Numbers are approximate. Actual weight may vary.*Numbers are approximate. Actual weight may vary.
*Value for butterfly is for each arm.

*Value for butterfly is for each arm.

*Value for butterfly is for each arm.*Value for butterfly is for each arm.

28

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Main Base Frame 1
2 Rear Stabilizer 1 52 Ø 1” End Cap 1
3 Low Pulley Base Frame 1 53 2” End Cap 3
4 Seat Support Frame 1 54 1” x 2” End Cap 4
5 Vertical Frame 1 55 Ø 7/ 8” x 1” Pulley Bushing 4
6 Leg Developer 1 56 Ø 3/8” Bushing 4
7 Right Front Press 1 57 Ø 2 3/8” Rubber Bumper 2
8 Left Front Press 1 58 Leg Developer Axle 1
9 Seat Post 1 59 ∅ 1 ¾” Rubber Bumper 1
10 Swivel Pulley Bracket 2 60 ∅ 1 ½” Bushing 2
11 Right Butterfly 1 61 5 3/8” Shiver Bar Handle Grip 2
12 Left Butterf ly 1 62 Front Press Handle Grip 2
13 Butterfly Base 1 63 Front Pr ess Suppor t Panel 1
14 Stopper Frame 1 64 T-shaped Lock Pin 1
15 Upper Frame 1 65 Pulley 17
16 Lat Bar 1 66 Weight Plate 9
17 Guide Rod 2 67 Selector Stem 1
18 Selector Rod 1 68 6” Lat Bar Handle Grip 2
19 Butterfly Pulley Bracket 1 69 Large Pulley 1
20 Front Press Handle 2 70 Butterfly Foam Roll End Cap 2
21 Double Floating Pulley Bracket 2 71 2” x 6” Support Panel 3
22 Angled Double Floating Pulley Bracket 1 72 2” Square End Cap 4
23 2 ¾” x 4 ¾” Bracket
24 Pulley Cover 2 74 Weight Plate Selector Pin 1
25 L-shaped Cable Retainer 2 75 Short Chain 1
26 Shiver Bar 1 76 Long Chain 1
27 Shiver Bar Handle Frame 1 77 Ø 3/8” Bushing 2
28 2” x 5 ½” Bracket 1 78 Hook 4
29 2” x 7” Bracket 1 79 M10 x 5 ½” Allen Bolt 1
30 Single Floating Pulley Bracket 1 80 M10 x 3 ½” Allen Bolt 1
31 Front Press Axle 1 81 M10 x 2 ½” Allen Bolt 5
32 Foam Tube 1 82 M10 x 1 ¾” Allen Bolt 15
33 Rotating Ring 1 83 M10 x 3 3/8” Allen Bolt 2
34 Plastic Ring 2 84 M10 x 1” Allen Bolt 2
35 Ø 1 1/8” x 2 3/8” Bushing 2 85 M10 x ¾” Allen Bolt 12
36 100” Butterfly Cable 1 86 M8 x 1 5/8” Allen Bolt 2
37 251” Lower Cable 1 87 M8 x 2 ½” Allen Bolt 2
38 108” Upper Cable 1 88 M6 x 5/8” Screw 1
39 121” Front Press Cable 1 89 M10 x 3 ½” Carriage Bolt 6
40 Single Handle 1 90 M10 x 2 5/8” Carriag e Bolt 8
41 Ankle Strap 1 91 M6 x 1 ¼” Allen Bolt 2
42 Seat Pad 1 92 M10 Aircraft Nut 40
43 Backrest Board 1 93 Ø ¾” Washer 72
44 Lock Ring 2 94 Ø 5/8” Washer 4
45 Ø 2” End Cap 2 95 M6 Aircraft Nut 2
46 Butterfly Axle Spacer 2 96 M12 Aircraft Nut 2
47 2 ¾” x 2” Butterfly End Cap 2 97 Ø 1” Washer 2
48 Foam Roll End Cap 2 98 Small Pulley 1
49 Butterfly Large Foam Roll 2
50 Foam Roll 2

4 73 Ø 7/8” x 5/8” Pulley Bushing 2

51 2” x 2 ¾” End Cap 1

29

®

IMPEX

INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Fram e from the date of purc hase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing
or repairing, at IMPEX's option.

All returns must be pre- authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Custom er
Service Department at 1-800-999-8899. All f reights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, im proper or abnorm al usage or repairs not provided by an IMPEX authorized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or perform ance of the product or other dam ages with respect to any economic los s,
loss of property, loss of revenues or profits, loss of enjoyments or use, c osts of removal, ins tallation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a par ticular purpose is limited in its scope and duration to the term s set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which var y from state to s tate.

Register on-line at www.imp ex-fitness. com

IMPEX

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS

Replacement parts can be ordered by calling our Custom er Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

[email protected]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

®

INC.

30
