Impex MD-MXM6 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

MARCY DIAMOND ELITE

SMITH CAGE

MD-MXM6

Model

MD-MXM6

Retain This

Manual for

Reference

08-3-06

OWNER'S
MANUAL

®

IMPEX

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE PACK….......…..........................................………………………. 4

ASSEMBLY INSTRUCTIONS...........................................……………………. 8

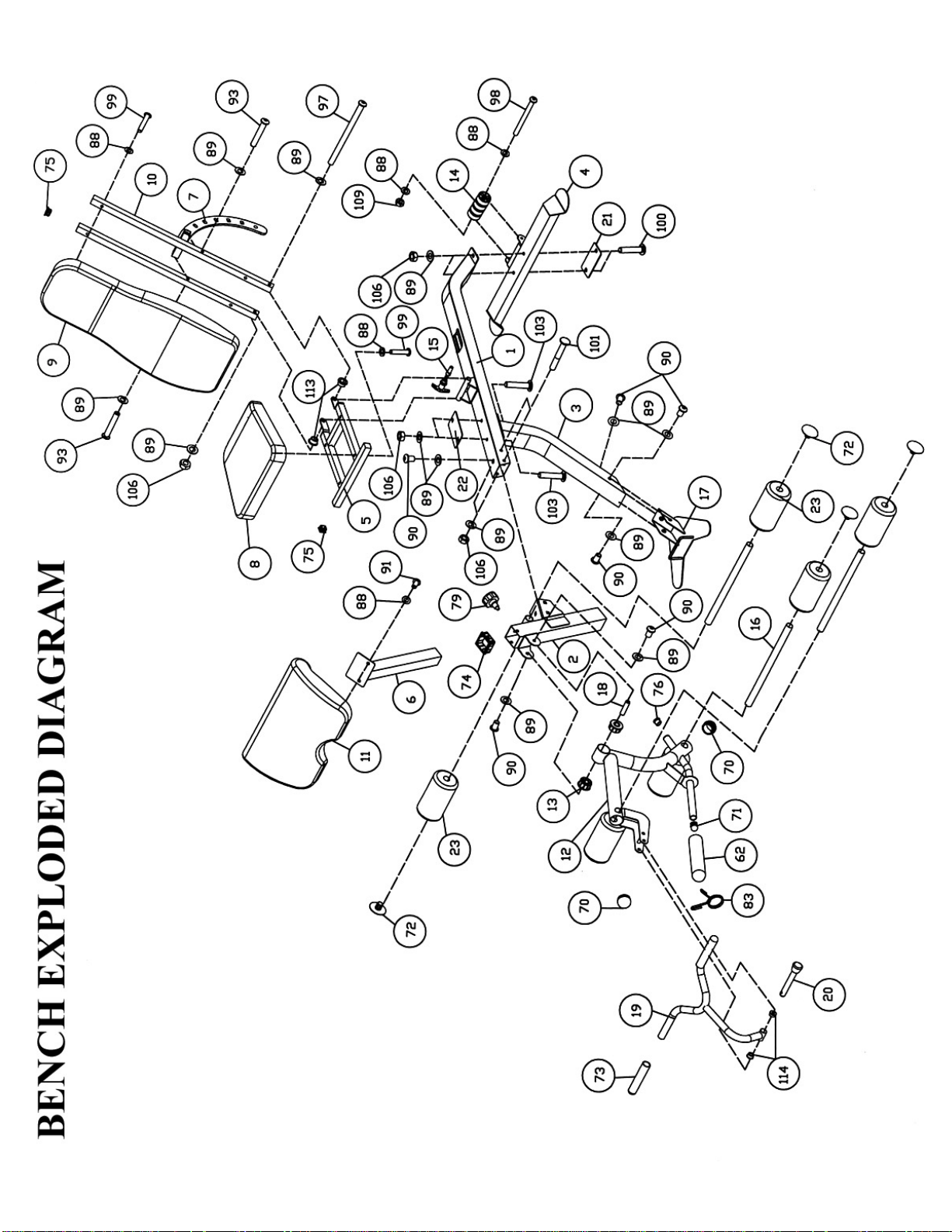

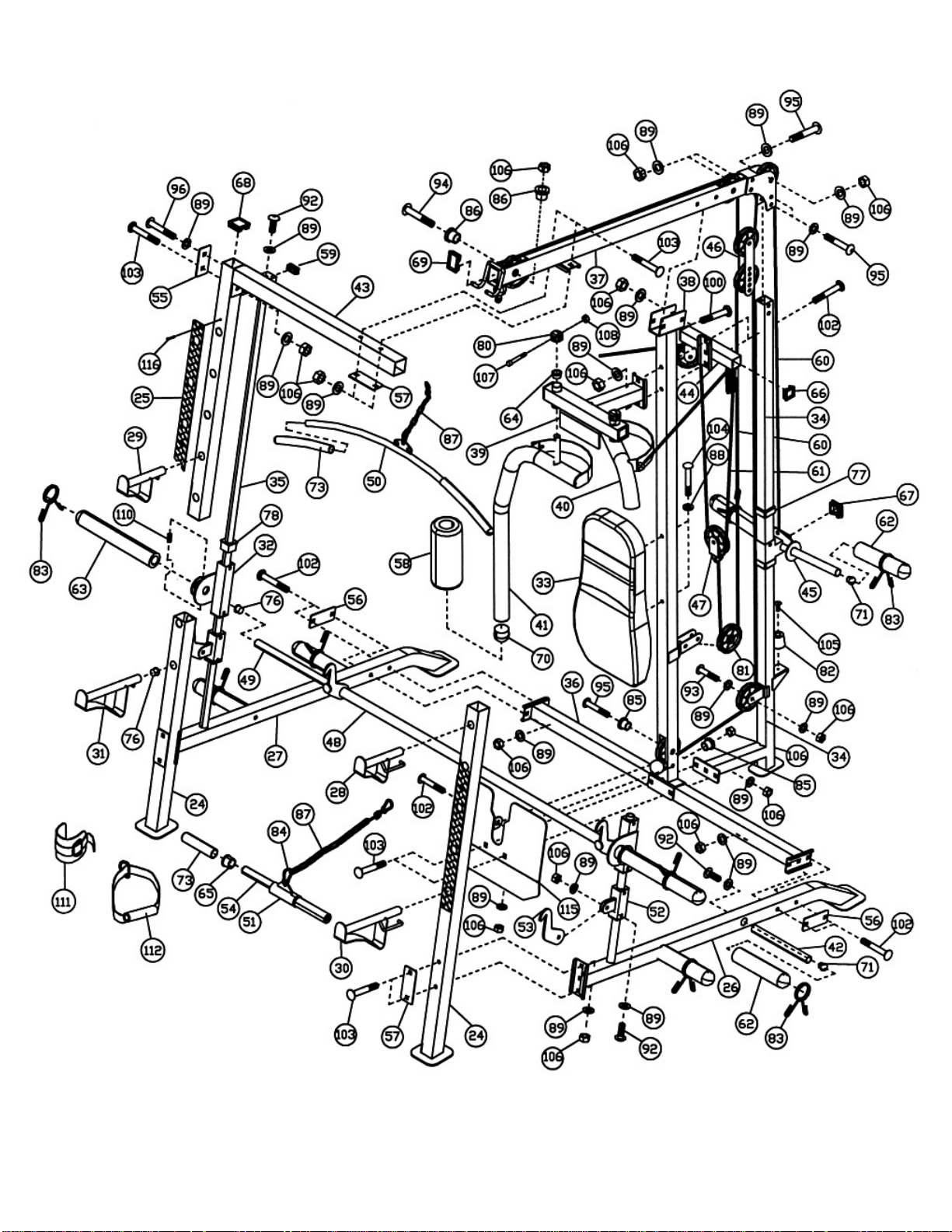

EXPLODED DIAGRAM…………………………………………………………….. 25
PARTS LIST………..……………………………………………………………….. 27

WARRANTY.................................................................................................…. 28

ORDERING PARTS.......................................................................................… 28

BEFORE YOU BEGIN

Thank you for selecting the MARCY DIAMOND ELITE Smith Cage MD­MXM6 by IMPEX

®

. For your safety and benefit, read this manual carefully
before using the machine. As a manufacturer, we are committed to provide
you complete customer satisfaction. If you have any questions, or find there
are missing or damaged parts, we guarantee you complete satisfaction
through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer
Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire
manual before you assemble or operate your machine. In particular, note the following
safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

5. Maximum weight on Rack: 300 lbs.

6. Maximum weight on Smith Bar: 300 lbs.

7. Maximum weight on Weight Holder: 200 lbs.

8. Maximum weight on Leg Developer: 100 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL REPLACEMENT

The warning labels shown here have been placed on the Cross Brace, Rear Stabilizer, and Upper
Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for
replacements. Apply the labels in location shown.

3

HARDEWARE PACK

4

HARDEWARE PACK

5

HARDEWARE PACK

6

HARDEWARE PACK

7

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

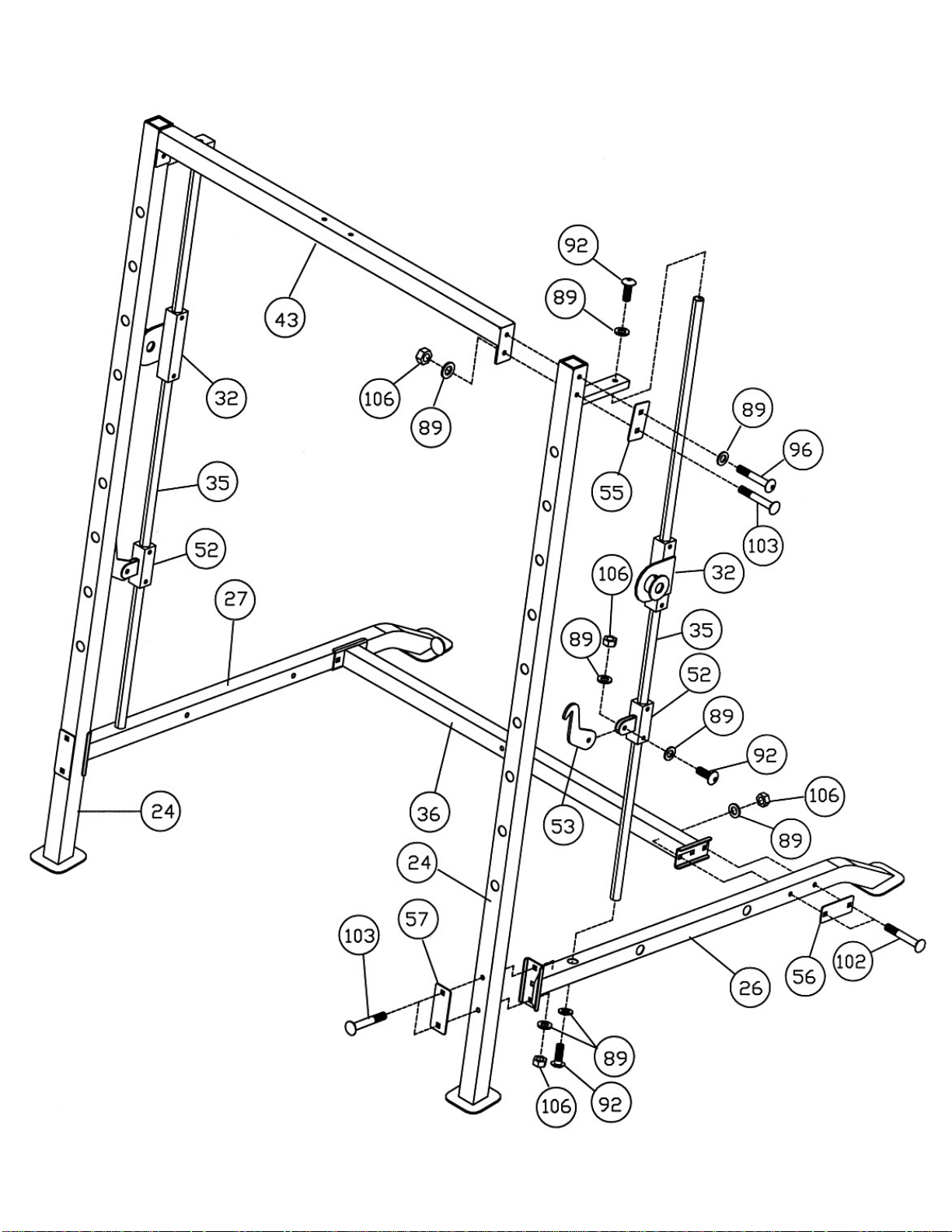

STEP 1 (See Diagram 1)

A.) NOTE: Do not tighten the Nuts and Bolts until instructed to do so.
B.) Connect the Left & Right Base Frames (#26 & #27) by a Cross Brace (#36) in the mid-

span. Secure each end of the Cross Brace with two M10 x 2 ½” Carriage Bolts (#102),
one 4 3/8” x 1 ¾” Bracket (#56), two Ø ¾” Washers (#89), and two M10 Aircraft Nuts
(#106).

C.) Attach a Front Vertical Beam (#24) to the Left Base Frame (#26). Secure it with two

M10 x 2 ¾” Carriage Bolts (#103), one 4 ¾” x 2” Bracket (#57), two Ø ¾” Washers
(#89), and two M10 Aircraft Nuts (#106). Repeat the same procedure to install the
other side.

D.) Attach the Front Top Beam (#43) to the two Front Vertical Beams. Secure each end

with one M10 x 2 ½” Allen Bolt (#96), 4” x 2” Bracket (#55), and Ø ¾” Washer (#89) to
the top hole. Secure the bottom hole with one M10 x 2 ¾” Carriage Bolt (#103), Ø ¾”
Washer (#89), and M10 Aircraft Nut (#106).

E.) Insert a Guide Rod (#35) into the hole on the Left Base Frame (#26). Secure it with

one M10 x 1” Allen Bolt (#92) and ∅ ¾” Washer (#89) from the bottom.

F.) Slide a Lower Safety Stop Frame (#52) and a Safety Stop Frame (#32) onto the Guide

Rod (#35).

G.) Secure the top of the Guide Rod to the Front Vertical Beam with one M10 x 1” Allen

Bolt (#92) and ∅ ¾” Washer (#89).

H.) Attach a Safety Hook (#53) to the Lower Safety Stop Frame (#52). Secure it with one

M10 x 1” Allen Bolt (#92), two ∅ ¾” Washers (#89), and one M10 Aircraft Nut (#106).
I.) Attach the Safety Hook to the selected hole on the Front Vertical Beam.
J.) Repeat procedures E through I above to install the other side.

8

DIAGRAM 1

9

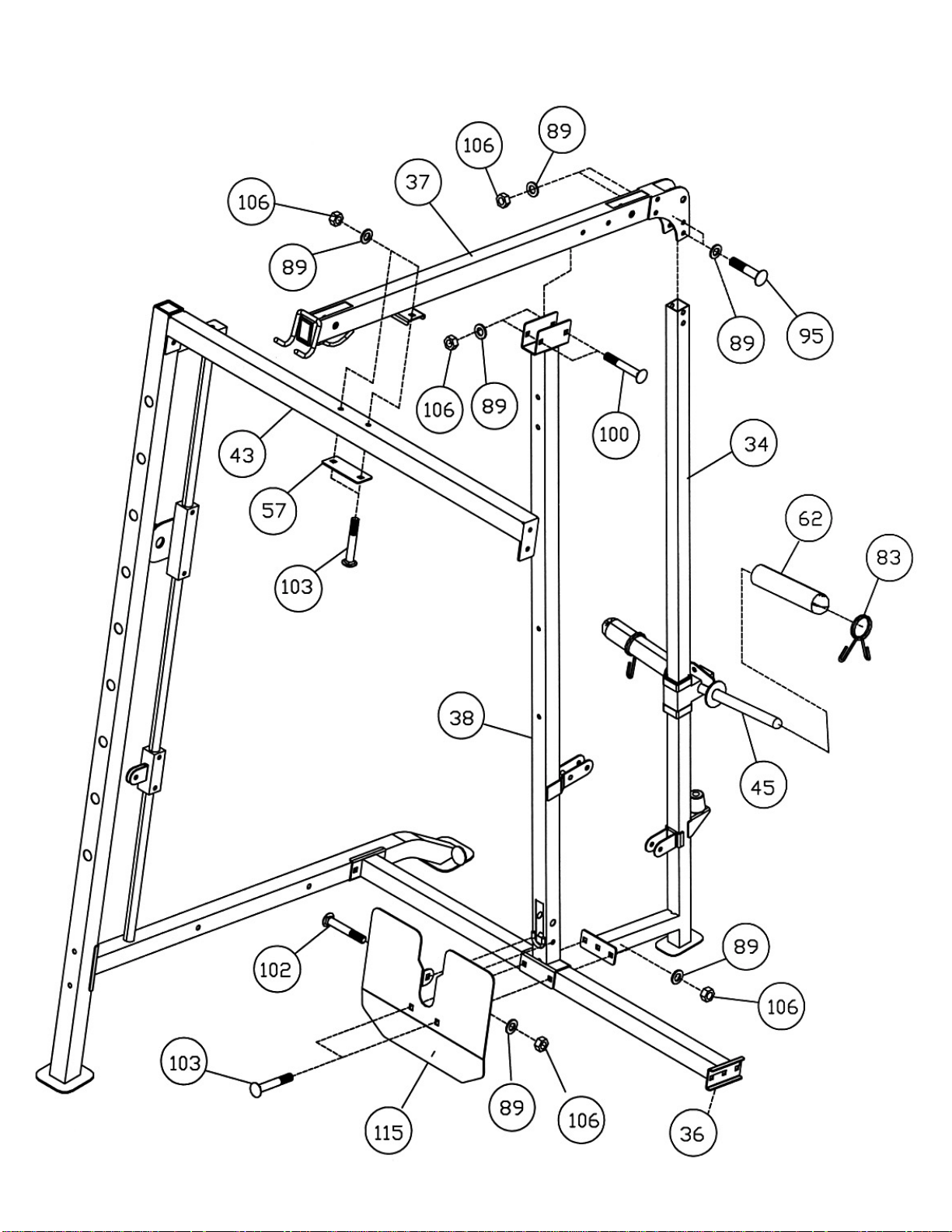

STEP 2 (See Diagram 2)

A.) Attach the Rear Vertical Beam (#38) onto the Cross Brace (#36). Attach the Weight Glide

Post (#34) to the Rear Vertical Beam and Cross Brace. Attach the Foot Plate (#115) to the
Cross Brace. Align the holes and secure them with two M10 x 2 ¾” Carriage Bolts (#103),

∅ ¾” Washers (#89), and M10 Aircraft Nuts (#106).
B.) Slide the Sliding Weight Post (#45) onto the Weight Glide Post (#34).
C.) Place the Upper Frame (#37) onto the Rear Vertical Beam (#38), Weight Glide Post (#34),

and Front Top Beam (#43).
D.) Secure the Upper Frame to the Weight Glide Post (#34) with two M10 x 2 3/8” Allen Bolts

(#95), four ∅ ¾” Washers (#89), and two M10 Aircraft Nuts (#106).
E.) Secure the Upper Frame to the Rear Vertical Beam (#38) with two M10 x 2 3/8” Carriage

Bolts (#100), ∅ ¾” Washers (#89), and M10 Aircraft Nuts (#106).
F.) Secure the Upper Frame to the Front Top Beam (#43) with two M10 x 2 ¾” Carriage Bolts

(#103), one 4 ¾” x 2” Bracket (#57), two ∅ ¾” Washers (#89), and two M10 Aircraft Nuts

(#106).
G.) Slide two Olympic Sleeves (#62) onto the posts on the Sliding Weight Post (#45). Attach a

Spring Clip (#83) to each Sleeve.
H.) Secure the Foot Plate (#115) to the Rear Vertical Beam (#38) with one M10 x 2 ½”

Carriage Bolt (#102), Ø ¾” Washer (#89), and M10 Aircraft Nut (#106).
I.) Securely tighten all nuts and bolts previously installed.

10

DIAGRAM2

11

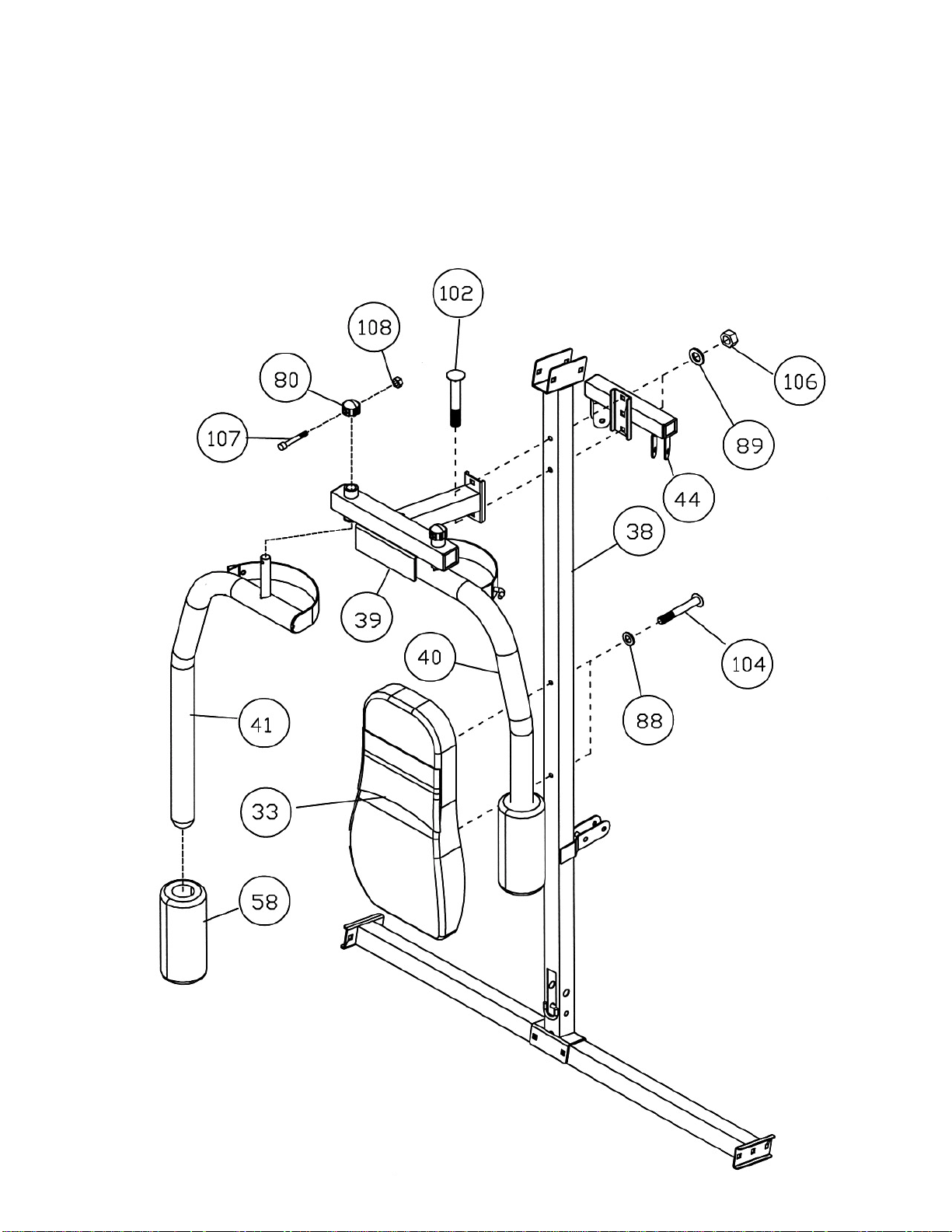

STEP 3 (See Diagram 3)

A.) Attach the Butterfly Base (#39) and Butterfly Pulley Bracket (#44) to the Rear Vertical Beam

(#38). Align the holes and secure them with two M10 x 2 ½” Carriage Bolts (#102), ∅ ¾”
Washers (#89), and M10 Aircraft Nuts (#106).

B.) Insert the axle on the Right Butterfly (#41) through the hole on the Butterfly Base. Secure it

with one Lock Ring (#80), M6 x 1 ¼” Allen Screw (#107), and M6 Aircraft Nut (#108).
C.) Push a Butterfly Arm Pad (#58) onto the Right Butterfly.
D.) Repeat Procedures B and C above to install the other side.
E.) Attach the Backrest Board (#33) to the Rear Vertical Beam. Secure it with two M8 x 2 3/8”

Allen Bolts (#104) and ∅ 5/8” Washers (#88).

12

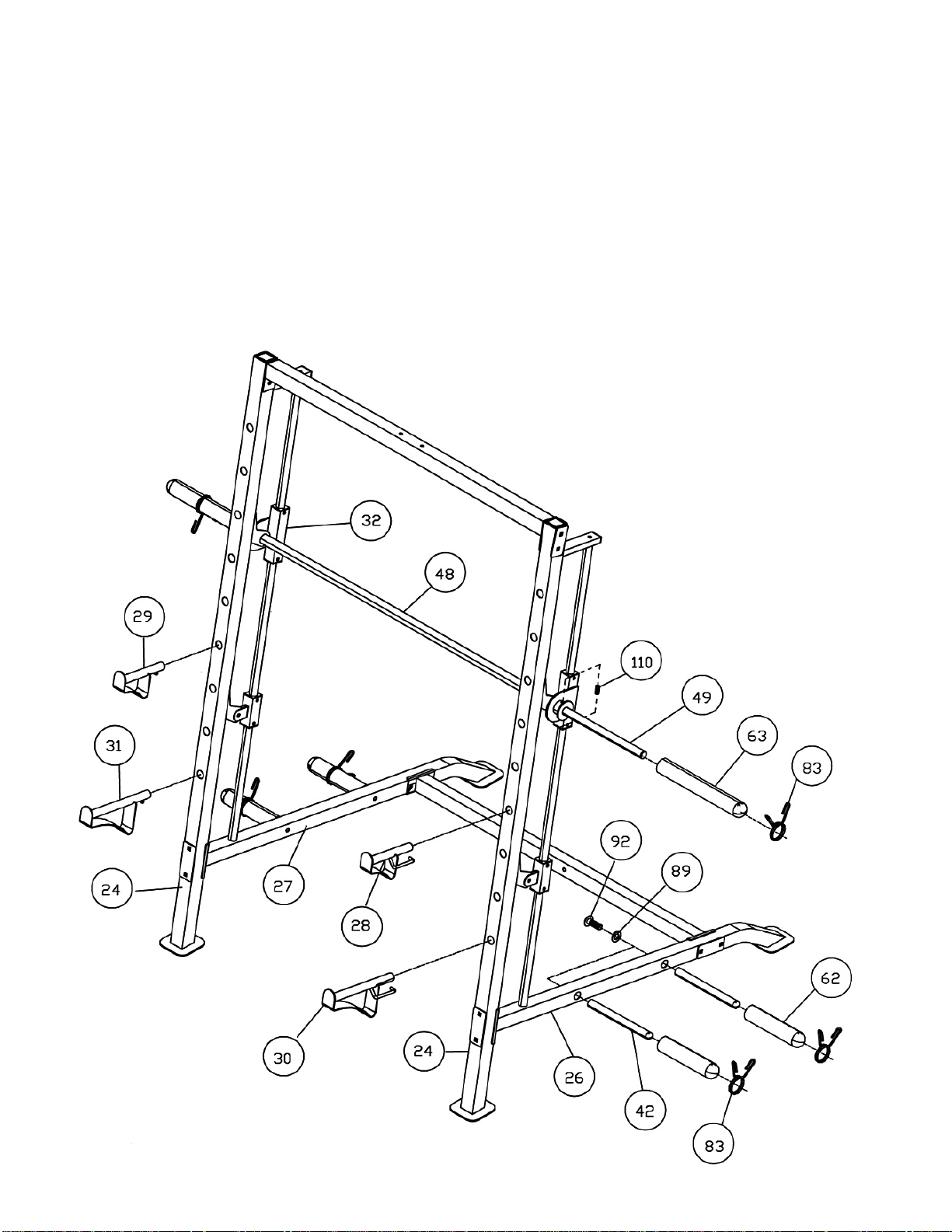

STEP 4 (See Diagram 4)

A.) Note: Help of another person is strongly recommended for this step. Place the Weight Lifting

Sleeve (#48) in between the two Safety Stop Frames (#32). Align the holes and insert the

Weight Bar (#49) into the Safety Stop Frame from one end through the Weight Lifting Sleeve

to the other Safety Stop Frame on the opposite end. Center the bar and secure it to each

Safety Stop Frame with two M8 x 3/8” Allen Bolts (#110) on each end.
B.) Turn the safety hook on the Weight Lifting Sleeve to secure its position on the selected holes

on the Front Vertical Beams. Slide two Long Olympic Sleeves (#63) onto the Weight Bar.

Attach two Spring Clips (#83) to the Olympic Sleeves.
C.) Attach four Weight Posts (#42) to the Left & Right Base Frames (#26 & #27). Secure each

Post with one M10 x 1” Allen Bolt (#92) and ∅ ¾” Washer (#89).
D.) Attach four Olympic Sleeves (#62) to the Posts. Attach a Spring Clip (#83) to each Sleeve.
E.) Insert the Left & Right Bar Holders (#28 & #29), Left & Right Safety Catches (#30 & #31) into

the selected holes on the two Front Vertical Beams (#24).

13

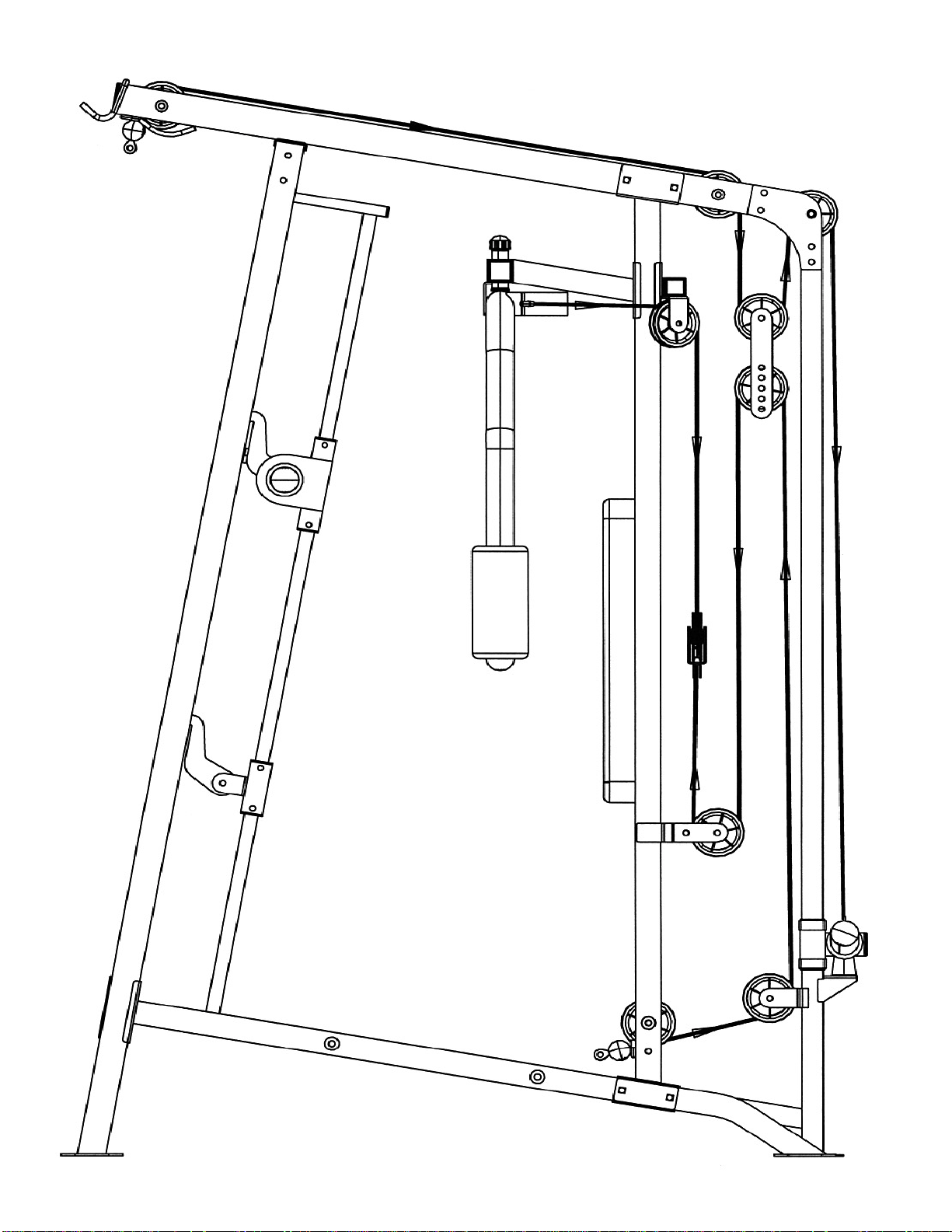

CABLE LOOP DIAGRAM

14

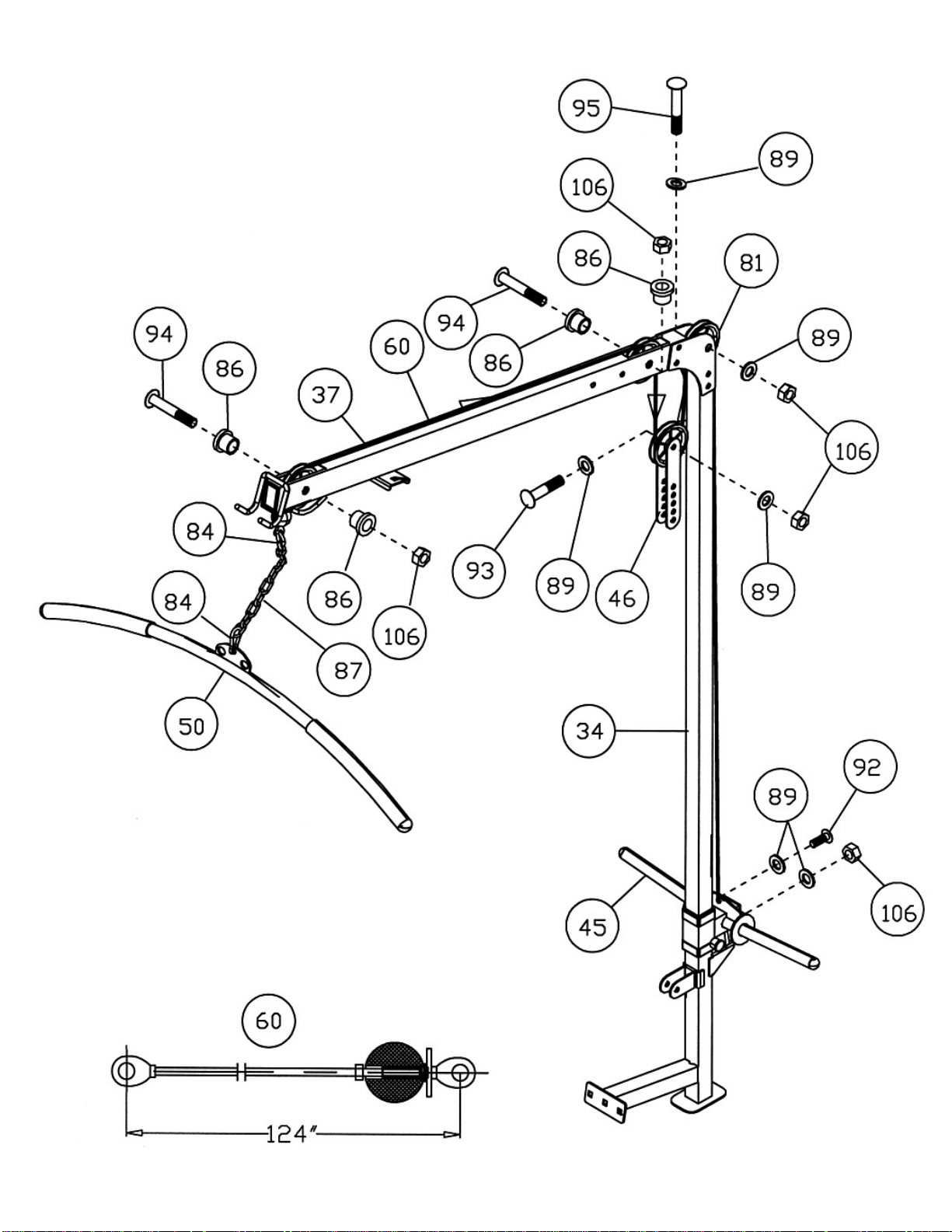

STEP 5 (See Diagram 5 & Cable Loop Diagram)

A.) Attach a 124” Cable (#60) to the front opening on the Upper Frame (#37). Attach a

Pulley (#81) to the opening. Secure it with one M10 x 2 1/8” Allen Bolt (#94), two Ø 1
1/8” Bushings (#86), and one M10 Aircraft Nut (#106). Make sure the ball stopper on
the Cable is underneath the Upper Frame.

B.) Draw the Cable over the Pulley along the Upper Frame to the opening on the rear of

Upper Frame. Attach a Pulley to the opening. Secure it with one M10 x 2 1/8” Allen Bolt
(#94), two Ø 1 1/8” Bushings (#86), and one M10 Aircraft Nut (#106).

C.) Draw the Cable around the Pulley then downward. Install a Pulley to the top holes on

the two Double Floating Pulley Brackets (#46). Secure the Pulley with one M10 x 1 ¾”
Allen Bolt (#93), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#106). Let the
Brackets hanging for now.

D.) Draw the Cable around the Pulley then upward to the opening on the top of Weight

Glide Post (#34). Attach a Pulley to the opening. Secure it with one M10 x 2 3/8” Allen
Bolt (#95), two Ø ¾” Washers (#89), and one M10 Aircraft Nut (#106).

E.) Draw the Cable around the Pulley then downward to the Sliding Weight Post (#45).

Secure the Cable to the Sliding Weight Post with one M10 x 1” Allen Bolt (#92), two Ø
¾” Washers (#89), and one M10 Aircraft Nut (#106).

F.) Connect the Lat Bar (#50) to the Cable with a Chain (#87) using two C-clips (#84).

15

DIAGRAM 5

16

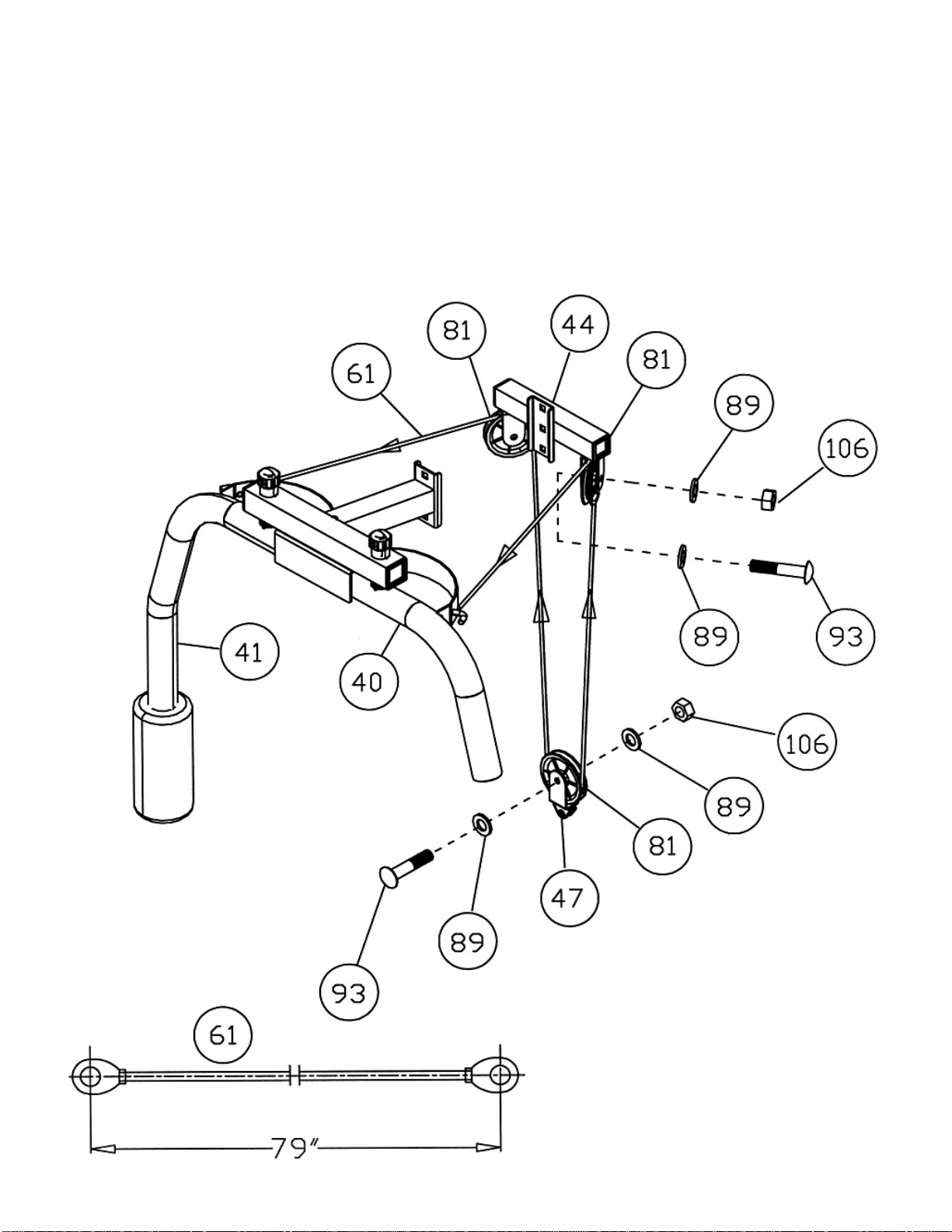

STEP 6 (See Diagram 6 & Cable Loop Diagram)

A.) Attach one end of the 79” Butterfly Cable (#61) to the clip on the Left Butterfly (#40). Draw the

Cable to the left Butterfly Pulley Bracket (#44).

B.) Attach a Pulley (#81) to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#93), two ∅ ¾”

Washers (#89), and one M10 Aircraft Nut (#106).

C.) Draw the Cable around the Pulley then downward. Attach the Cable to a Single Floating Pulley

Bracket (#47). Install a Pulley to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#93),
two ∅ ¾” Washers (#89), and one M10 Aircraft Nut (#106). Let the Bracket hanging for now.

D.) Draw the Cable around the Pulley then upward to the right Butterfly Pulley Bracket. Install

another Pulley. Draw the Cable around the Pulley then clip to the Right Butterfly (#41).

DIRGARM 6

17

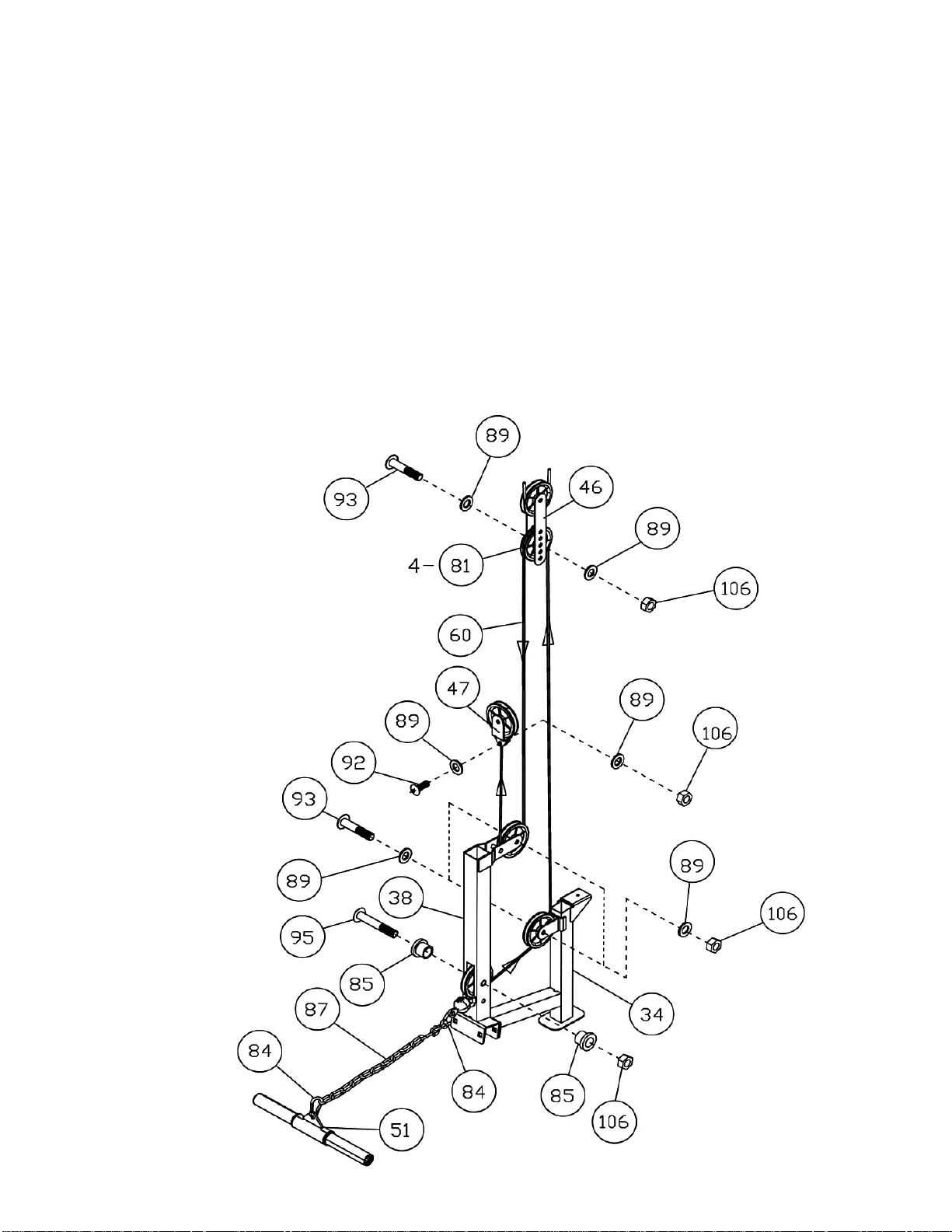

STEP 7 (See Diagram 7 & Cable Loop Diagram)

A.) Attach one 124” Cable (#60) to the lower opening on the Rear Vertical Beam (#38). Attach

a Pulley to the opening. Secure it with M10 x 2 3/8” Allen Bolt (#95), two Ø 1” Bushings
(#85), and one M10 Aircraft Nut (#106).

B.) Draw the Cable underneath the Pulley to the open bracket on the Weight Glide Post (#34).

Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#93), two ∅ ¾”
Washers (#89), and one M10 Aircraft Nut (#106).

C.) Draw the Cable around the Pulley then upward to the Double Floating Pulley Bracket

previously installed in Step-5. Install a Pulley.

D.) Draw the Cable around the Pulley then downward to the open bracket on the back of Rear

Vertical Beam. Install a Pulley then draw the Cable upward to the Single Floating Pulley
Bracket (#47) installed in Step-6. Secure the end of the Cable to the bracket with one M10

x 1” Allen Bolt (#92), two ∅ ¾” Washers (#89), and one M10 Aircraft Nut (#106).
E.) Connect the Shiver Bar (#51) to the Cable with a Chain (#87) using two C-clips (#84).
F.) Check the tension of the Cables. If the Cables are too loose, adjust the tension by moving

up the Pulley on the Double Floating Pulley Bracket (#46). If the Tension is too tight, then

move down the Pulley.

18

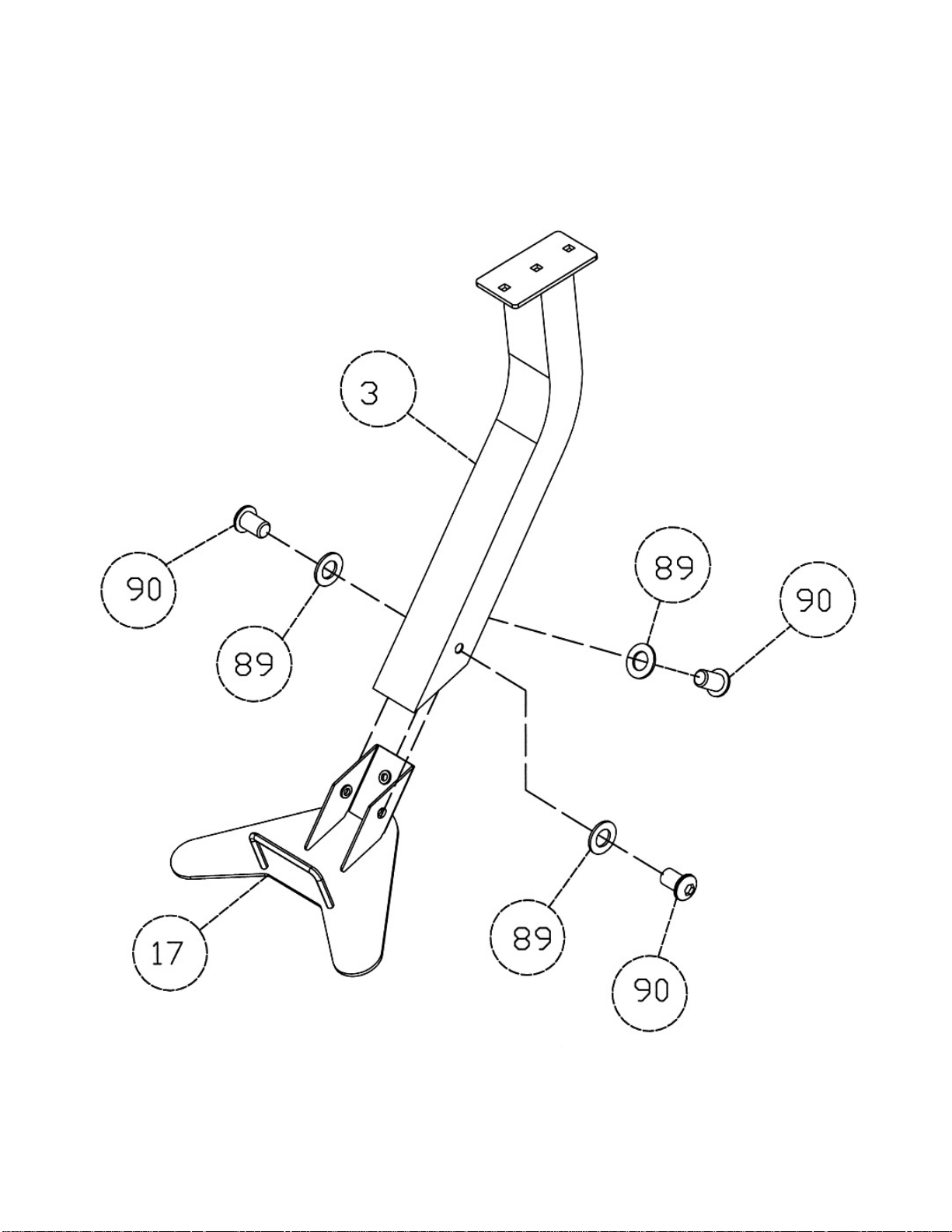

STEP 8 (See Diagram 8)

A.) Attach the Front Post (#3) to the Front Stabilizer (#17).
B.) Secure it with three M10 x 5/8” Allen Bolts (#90) and ∅ ¾” Washers (#89).

DIAGRAM 8

19

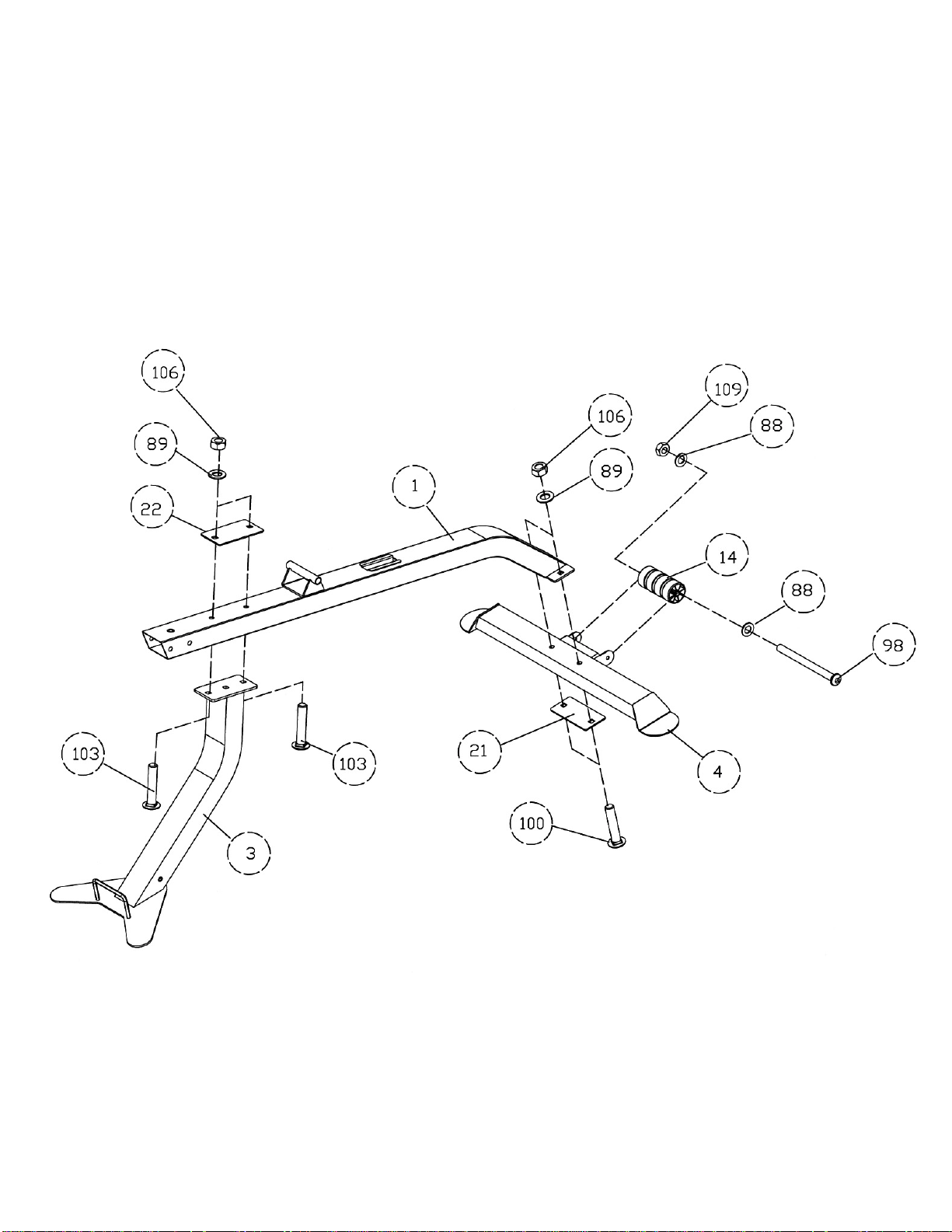

STEP 9 (See Diagram 9)

A.) Attach the Main Seat Support (#1) to the Rear Stabilizer (#4). Secure it with two M10 x

2 3/8” Carriage Bolts (#100), one 5 1/8” x 2 3/8” Bracket (#21), two Ø ¾” Washers
(#89), and two M10 Aircraft Nuts (#106).

B.) Attach the Wheel (#14) to the Rear Stabilizer. Secure it with one M8 x 5 1/8” Allen Bolt

(#98), two Ø5/8” Washers (#88), and one M8 Aircraft Nut (#109).

C.) Place the Main Seat Support (#1) onto the Front Post (#3). Secure it with two M10 x 2

¾” Carriage Bolts (#103), one 5 1/8” x 2 ¾” Bracket (#22), two Ø ¾” Washers (#89),
and two M10 Aircraft Nuts (#106).

DIAGRAM 9

20

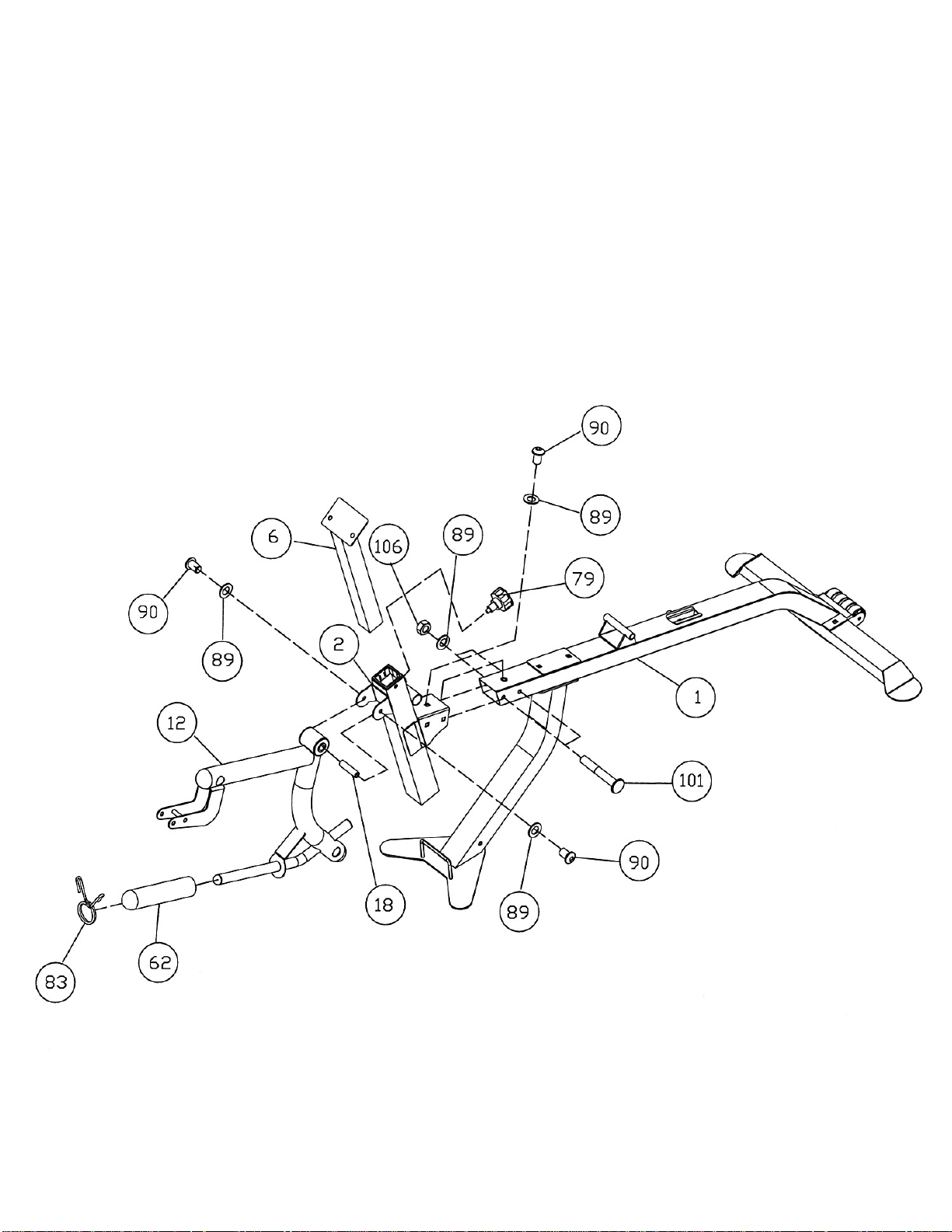

STEP-10 (See Diagram 10)

A.) Attach the Leg Developer Holder (#2) to the Main Seat Support (#1). Secure it with one

M10 x 5/8” Allen Bolt (#90) and Ø ¾” Washer (#89) from the top, two M10 x 3 ¾” Carriage
Bolts (#101), two Ø ¾” Washers (#89), and two M10 Aircraft Nuts (#106) from the side.

B.) Attach the Leg Developer (#12) to the Leg Developer Holder (#2). Secure it with one Axle

(#18), two M10 x 5/8” Allen Bolts (#90), and two ∅ ¾” Washers (#89).

C.) Attach an Olympic Sleeve (#62) onto the weight post on Leg Developer. Attach a Spring

Clip (#83) to the Sleeve.

D.) Insert the Arm Curl Stand (#6) into the top opening on the Leg Developer Holder. Use a

Lock Knob (#79) to secure the Stand at desired height.

DIAGRAM 10

21

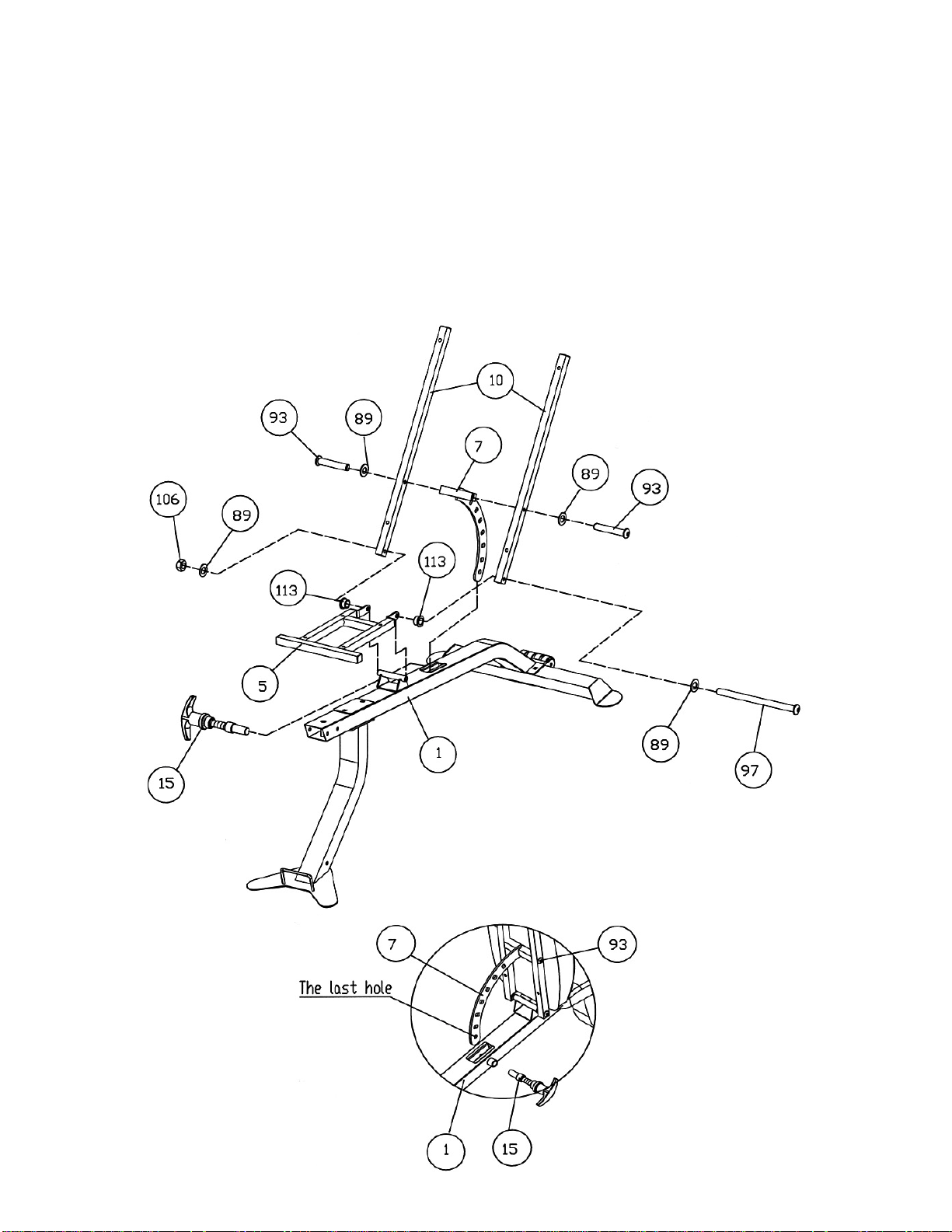

STEP-11 (See Diagram 11)

A.) Insert two ؽ” Bushings (#113) into the holes on the Seat Bracket (#5) and align the

holes to the pivot on the Main Seat Support (#1).

B.) Attach the two Backrest Supports (#10) to the Seat Bracket and align the holes. Secure

them with a M10 x 7 ¼” Allen Bolt (#97), two Ø ¾” Washers (#89), and one M10 Aircraft
Nut (#106). Do not over tighten the Nut and Bolt. Make sure the Backrest Supports are
able to swivel.

C.) Attach the Backrest Incline Support (#7) to the opening on the Main Seat Support (#1).

Use the T-shaped Locked Pin (#15) to secure the Backrest Incline Support at “the last
hole”. See diagram below.

D.) Attach the other end of the Backrest Incline Support to the Backrest Supports (#10).

Align the holes and secure them with two M10 x 1 ¾” Allen Bolts (#93) and Ø ¾”
Washers (#89).

22

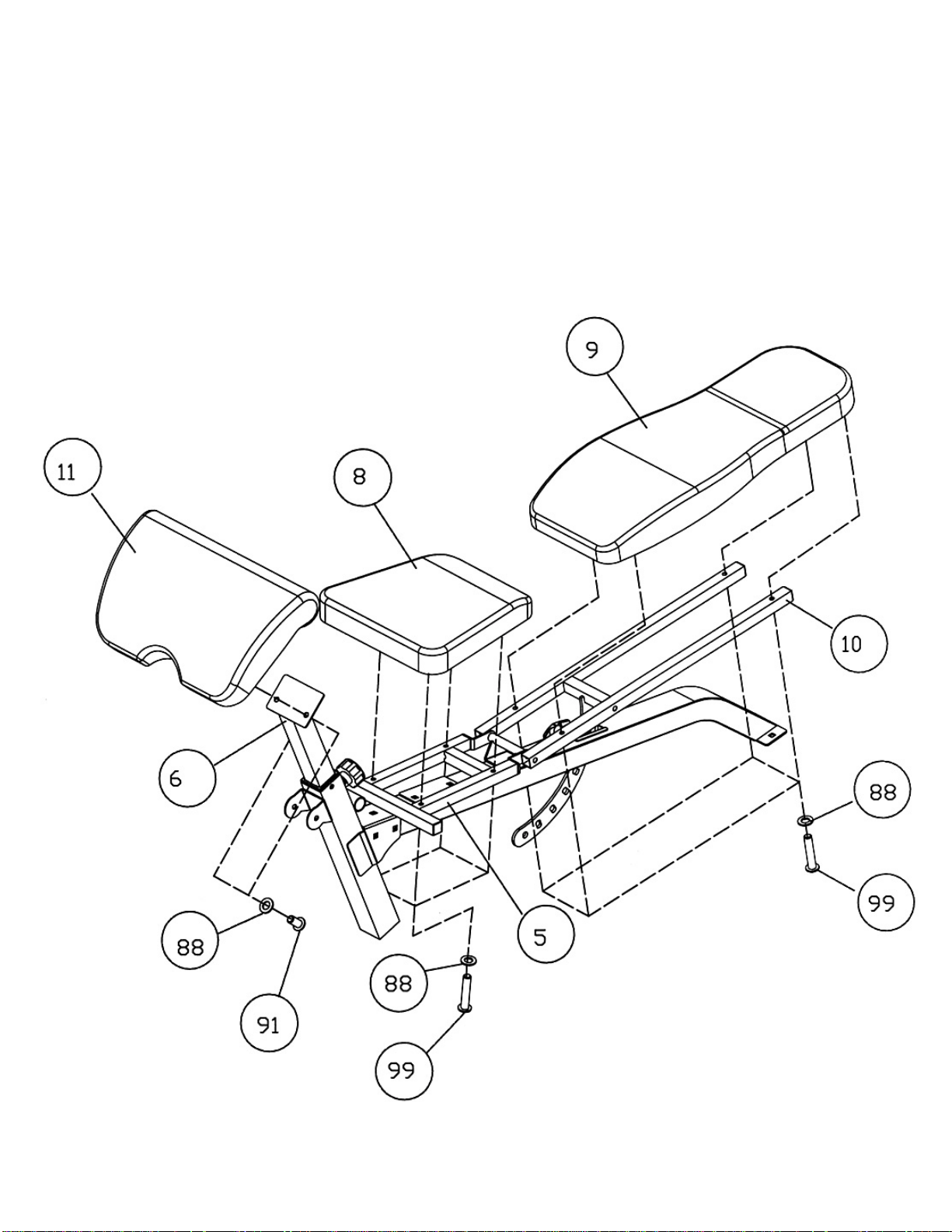

STEP-12 (See Diagram 12)

A.) Place the Seat Pad (#8) onto the Seat Bracket (#5). Secure it with four M8 x 1 5/8” Allen

Bolts (#99) and Ø5/8” Washers (#88).

B.) Attach the Bench Backrest Board (#9) to the Backrest Supports (#10). Secure it with four M8

x 1 5/8” Allen Bolts (#99) and Ø5/8” Washers (#88).

C.) Attach the Arm Curl Pad (#11) to the Arm Curl Stand (#6). Secure it with two M8 x 5/8” Allen

Bolts (#91) and Ø 5/8” Washers (#88).

DIAGRAM 12

23

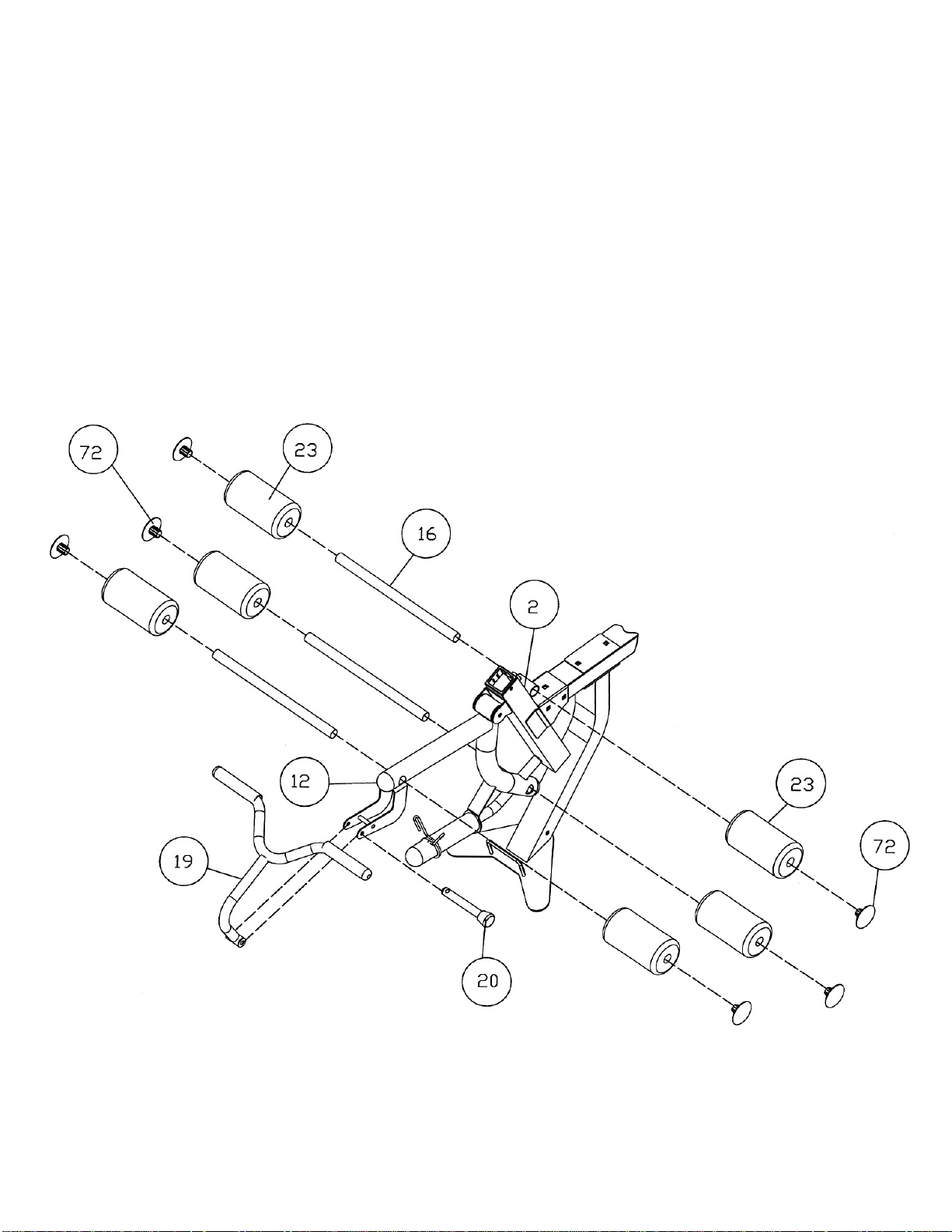

STEP-13 (See Diagram 13)

A.) Insert three Foam Tubes (#16) halfway through the holes on Leg Developer Holder (#2) and

Leg Developer (#12).
B.) Push six Foam Rolls (#23) onto the Tubes from both ends.
C.) Push six Foam Roll End Caps (#72) into the ends.
D.) Attach the Arm Curl Handle (#19) to the bracket on the Leg Developer and secure it with a

Lock Pin (#20). Remove the Arm Curl Handle when doing Leg Developer exercises.

DIAGRAM 13

24

SMITH MACHINE EXPLODED DIAGRAM

25
26

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Main Seat Support 1 59 1 5/8” x ¾” End Cap 2
2 Leg Developer Holder 1 60 124” Cable 2
3 Front Post 1 61 79” Butterfly Cable 1
4 Rear Stabilizer 1 62 Olympic Sleeve 7
5 Seat Bracket 1 63 Long Olympic Sleeve 2
6 Arm Curl Stand 1 64 Ø 1 1/8” Bushing 4
7 Backrest Incline Support 1 65 ∅ 1 ½” x 1” Bushing 2
8 Seat Pad 1 66 1 ½” Square End Cap 2
9 Bench Backrest Board 1 67 1 ¾” Square End Cap 3
10 Backrest Support 2 68 2” Square End Cap 2
11 Arm Curl Pad 1 69 1 5/8” x 2 3/8” End Cap 1
12 Leg Developer 1 70 ∅ 2” End Cap 4
13 Ø 2” Leg Developer Bushing 2 71 ∅ 1” Cone-shaped End Cap 7
14 Wheel 1 72 Foam Roll End Cap 6
15 T-shaped Lock Pin 1 73 6” Grip 6
16 Foam Tube 3 74 2 3/8” x 1 ¾” Sleeve 1
17 Front Stabilizer 1 75 1” Square End Cap 4
18 Axle 1 76 Ø 1” End Cap 7
19 Arm Curl Handle 1 77 1 ¾” x 1 ½” Sleeve 2
20 Lock Pin 1 78 1 ½” x 1” Sleeve 8
21 5 1/8” x 2 3/8” Bracket 1 79 Lock Knob 1
22 5 1/8” x 2 ¾” Bracket 1 80 Lock Ring 2
23 Foam Roll 6 81 Pulley 11
24 Front Vertical Beam 2 82 1 ¾” x 1 5/8” Rubber Bumper 1
25 Panel 2 83 Spring Clip 9
26 Left Base Frame 1 84 C-clip 4
27 Right Base Frame 1 85 ∅ 1” Bushing 2
28 Left Bar Holder 1 86 ∅ 1 1/8” Bushing 4
29 Right Bar Holder 1 87 Chain 2
30 Left Safety Catch 1 88 Ø 5/8” Washer 14
31 Right Safety Catch 1 89 Ø ¾” Washer 71
32 Safety Stop Frame 2 90 M10 x 5/8” Allen Bolt 6
33 Backrest Board 1 91 M8 x 5/8” Allen Bolt 2
34 Weight Glide Post 1 92 M10 x 1” Allen Bolt 12
35 Guide Rod 2 93 M10 x 1 ¾” Allen Bolt 9
36 Cross Brace 1 94 M10 x 2 1/8” Allen Bolt 2
37 Upper Frame 1 95 M10 x 2 3/8” Allen Bolt 4
38 Rear Vertical Beam 1 96 M10 x 2 ½” Allen Bolt 2
39 Butterfly Base 1 97 M10 x 7 ¼” Allen Bolt 1
40 Left Butterfly 1 98 M8 x 5 1/8” Allen Bolt 1
41 Right Butterfly 1 99 M8 x 1 5/8” Allen Bolt 8
42 Weight Post 4 100 M10 x 2 3/8” Carriage Bolt 4
43 Front Top Beam 1 101 M10 x 3 ¾” Carriage Bolt 2
44 Butterfly Pulley Bracket 1 102 M10 x 2 ½” Carriage Bolt 7
45 Sliding Weight Post 1 103 M10 x 2 ¾” Carriage Bolt 12
46 Double Floating Pulley Bracket 2 104 M8 x 2 3/8” Allen Bolt 2
47 Single Floating Pulley Bracket 1 105 M6 x 5/8” Philips Screw 1
48 Weight Lifting Sleeve 1 106 M10 Aircraft Nut 43
49 Weight Bar 1 107 M6 x 1 ¼” Allen Bolt 2
50 Lat Bar 1 108 M6 Aircraft Nut 2
51 Shiver Bar 1 109 M8 Aircraft Nut 1
52 Lower Safety Stop Frame 2 110 M8 x 3/8” Allen Bolt 4
53 Safety Hook 2 111 Ankle Strap 1
54 Shiver Bar Tube 1 112 Single Handle 1

4” x 2”

55

56 4 3/8” x 1 ¾” Bracket 2 114 Ø 1” x 3/8” Bushing 2
57 4 ¾” x 2” Bracket 3 115 Foot Plate 1
58 Butterfly Arm Pad 2 116 Panel Screw 8
#6 Allen Wrench (Tool) 2
#5 Allen Wrench (Tool) 1

Bracket 2 113 Ø ½” Bushing 2

27

IMPEX®

LIMITED WARRANTY

IMPEX® warrants this product to be free from def ects in workmanship and material, under norm al use and

service conditions, for a period of two years on the Frame fr om the date of purchase. T his warr anty extends

only to the original purchaser. IMPEX's obligation under this W arranty is limited to replacing or repairing, at

IMPEX's option.

All returns must be pre- authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Custom er

Service Department at 1-800-999-8899. All f reights on products returned to IMPEX must be prepaid by the

customer. This warranty does not extend to any product or damage to a product caused by or attributable to

freight damage, abuse, misuse, im proper or abnorm al usage or repairs not provided by an IMPEX authorized

service center or for products used for commercial or rental purposes. No other warranty beyond that

specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in

connection with the use or perform ance of the product or other dam ages with respect to any economic los s,

loss of property, loss of revenues or profits, loss of enjoyments or use, c osts of removal, ins tallation or other

consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of

incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a par ticular purpose is limited in its scope and duration to the term s set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal right. You may also have other rights which var y from state to s tate.

Register on-line at www.impex-fitness.com

IMPEX

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS

Replacement parts can be ordered by calling our Custom er Service Department toll-free at 1-800-999-8899

during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

[email protected]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

28

®
