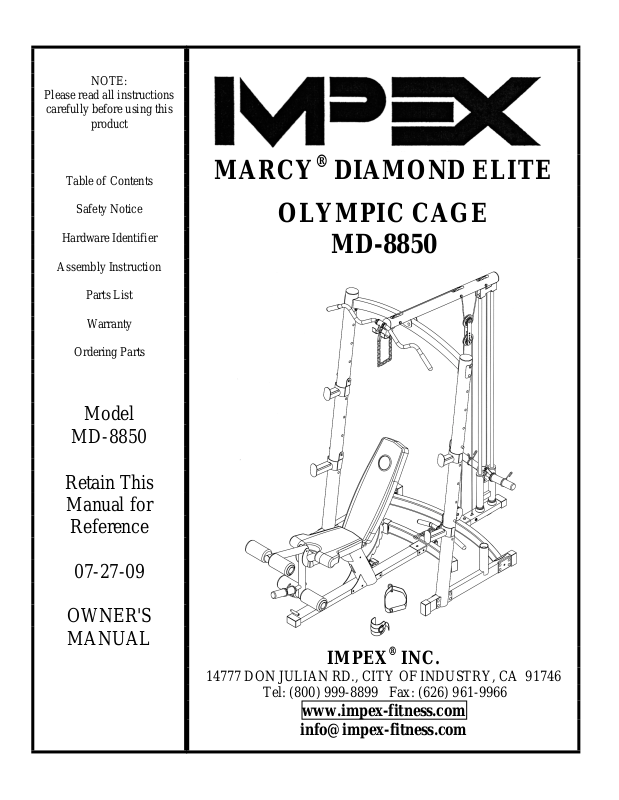

Impex MD-8850 User Manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

MARCY® DIAMOND ELITE

OLYMPIC CAGE

MD-8850

Model

MD-8850

Retain This

Manual for

Reference

07-27-09

OWNER'S
MANUAL

IMPEX® INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: [phone] Fax: [phone]

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

CAGE HARDWARE PACK……….....….............................................................4

CAGE ASSEMBLY INSTRUCTIONS.................................................................6

CAGE EXPLODED DIAGRAM.......................................................................…14

CAGE PARTS LIST…………………………………………………………………. 15

BENCH HARDWARE PACK……….....…..................................................…….16

BENCH ASSEMBLY INSTRUCTIONS......................................................…….18

BENCH EXPLODED DIAGRAM...............................................................……. 23

BENCH PARTS LIST……………………………………………………………….. 24

WARRANTY.................................................................................................… 25

ORDERING PARTS......................................................................................... 25

BEFORE YOU BEGIN

Thank you for selecting the MARCY DIAMOND ELITE MD-8850 Olympic
Cage by IMPEX

®

INC. For your safety and benefit, read this manual
carefully before using the machine. As a manufacturer, we are committed
to provide you complete customer satisfaction. If you have any questions,
or find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service
number. Our Customer Service Agents will provide immediate assistance
to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]

1

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or
physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to
properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

5. Maximum weights on the Sliding Weight Post: 100 lbs.

6. Maximum weights on Leg Developer: 100 lbs.

7. Maximum weights capacity: 600 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT
YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF
THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

2

WARNING LABEL PLACEMENT

The warning labels shown here have been placed on the Rear Base Frame, Rear Stabilizer, and Upper Frame.
If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply
the labels in the location shown.

3

CAGE HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

4

CAGE HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

5

CAGE ASSEMBLY INSTRUCTION

Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended that two or more people assemble this machine
to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Attach a Ø 2 ½” Rubber Bumper (#29) and the Weight Storage Post (#14) to Right

Stabilizer (#3). Secure it with one M10 x ¾” Allen Bolt (#50) and Ø ¾” Washer (#52).

B.) Note: Do not tighten the Nuts and Bolts in following steps until instructed to do

so.

C.) Connect the Right and Left Stabilizer (#2 & #3) by the Rear Base Frame (#4). Secure

each end of the Rear Base Frame to each Stabilizer with four M10 x 2 3/8” Carriage
Bolts (#43), one 4 ¾” x 3 ¼” Bracket (#17), four Ø ¾” Washers (#52), and four M10
Aircraft Nuts (#54).

D.) Attach an Upright Beam (#1) onto th e Right Stabilizer. Secure it with four M10 x 2 3/8”

Carriage Bolts (#43), four Ø ¾” Washers (#52), and four M10 Aircraft Nuts (#54).
Repeat the same step to install the other Upright Beam to the Left Stabilizer.

E.) Attach the Top Beam (#5) to the two Upright Beams. Secure each end of the Top

Beam with one M10 x 4 1/8” Allen Bolt (#45) to the upper hole, one M10 x 4 1/8”
Carriage Bolt (#40) to the lower hole, one 4” x 2 3/8” Curved Bracket (#16), two Ø ¾”
Washers (#52), and one M10 Aircraft Nut (#54).

6

DIAGRAM 1

7

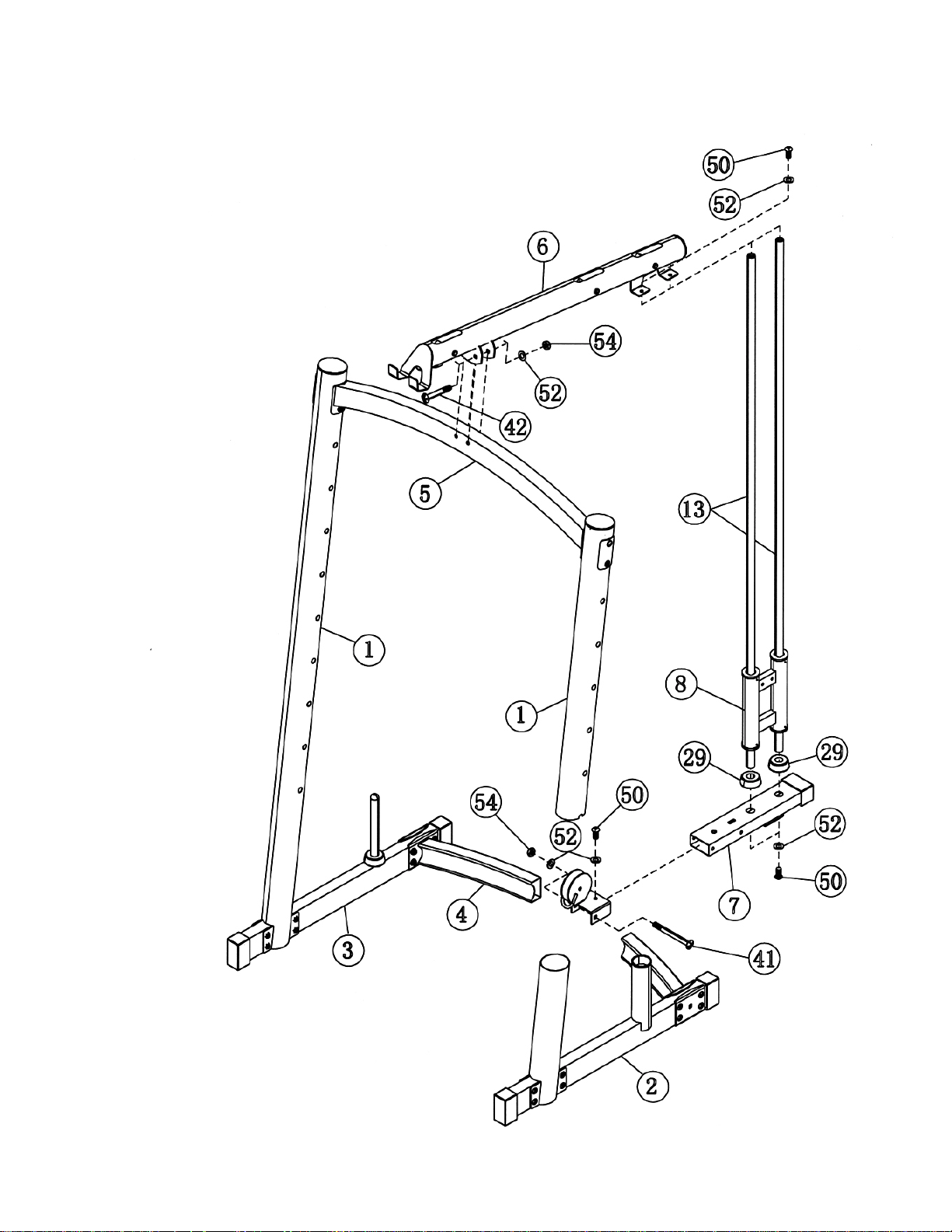

STEP 2 (See Diagram 2)

A.) Insert two Guide Rods (#13) into the holes on the Weight Gliding Base (#7).

Secure each Guide Rod with one M10 x ¾” Allen Bolt (#50) and Ø ¾” Washer
(#52).

B.) Slide two Ø 2 ½” Rubber Bumpers (#29) onto the two Guide Rods to the bottom.

Slide the Sliding Frame (#8) onto the two Guide Rods.

C.) Attach the Weight Gliding Base to the Rear Base Frame (#4). Secure the side

hole with one M10 x 4” Carriage Bolt (#41), one Ø ¾” Washer (#52), and one
M10 Aircraft Nut (#54), secure the top hole with one M10 x ¾” Allen Bolt (#50)

and one Ø ¾” Washer (#52).
D.) Attach the Upper Frame (#6) to Top Beam (#5) and the two Guide Rods.
E.) Secure the Upper Frame to the Top Beam with two M10 x 2 ¾” Carriage Bolts

(#42), two Ø ¾” Washers (#52), and two M10 Aircraft Nuts (#54).
F.) Secure the Top Beam to the two Guide Rods with two M10 x ¾” Allen Bolts (#50)

and two Ø ¾” Washes (#52).
G.) Securely tighten all Nuts and Bolts installed in Step-1 and Step-2.

8

DIAGRAM 2

9

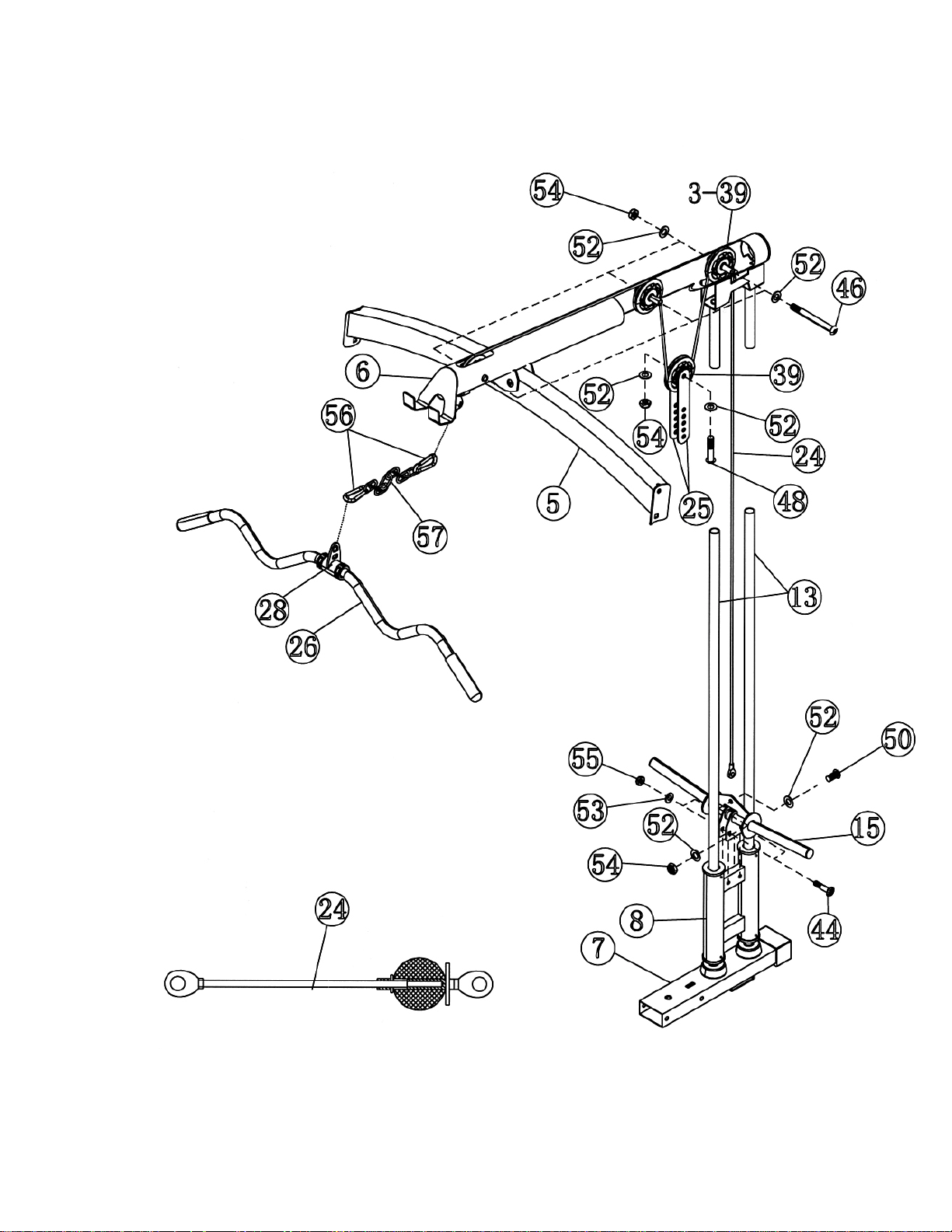

STEP 3 (See Diagram 3)

A.) Attach the Sliding Weight Post (#15) to the Sliding Frame (#8). Secure it with two M8 x 1

3/8” Carriage Bolts (#44), two Ø 5/8” Washers (#53), and two M8 Aircraft Nut (#55). Make
sure the triangular cable connecting bracket faces up.

B.) Attach one 128” Cable (#24) to the front opening on Upper Frame (#6).
C.) Attach a Pulley (#39) to the opening. Secure it with M10 x 3 ¾” Allen Bolt (#46), two Ø ¾”

Washer (#52), and one M10 Aircraft Nut (#54).

D.) Draw the Cable over the Pulley toward the back of the machine. Make Sure the ball

stopper on Cable is underneath the Frame.

E.) Draw the Cable to the second opening on the Upper Fame. Repeat B to install a Pulley.
F.) Draw the Cable around the Pulley and then downward. Attach a Pulley to the two Double

Floating Pulley Brackets (#25). Secure the Pulley to the top hole on the Brackets with one
M10 x 1 ¾” Allen Bolt (#48), two Ø 3/4” Washers (#52), and one M10 Aircraft Nut (#54).

G.) Draw the Cable around the Pulley then upward to the opening on the rear of Upper Frame.

Let the Brackets hanging for now.

H.) Repeat B to install another Pulley. Draw the Cable around the Pulley then downward

through the two Guide Rods (#13) to the triangular bracket on the Sliding Weight Post.

I.) Secure the end of Cable to the bracket with one M10 X ¾” Allen Bolt (#50), two Ø ¾”

Washers (#52), and one M10 Aircraft Nut (#54).

J.) Connect the Lat Bar (#26) to the Cable with two Hooks (#56) and one 10-link Chain (#57).

10

DIAGRAM 3

11

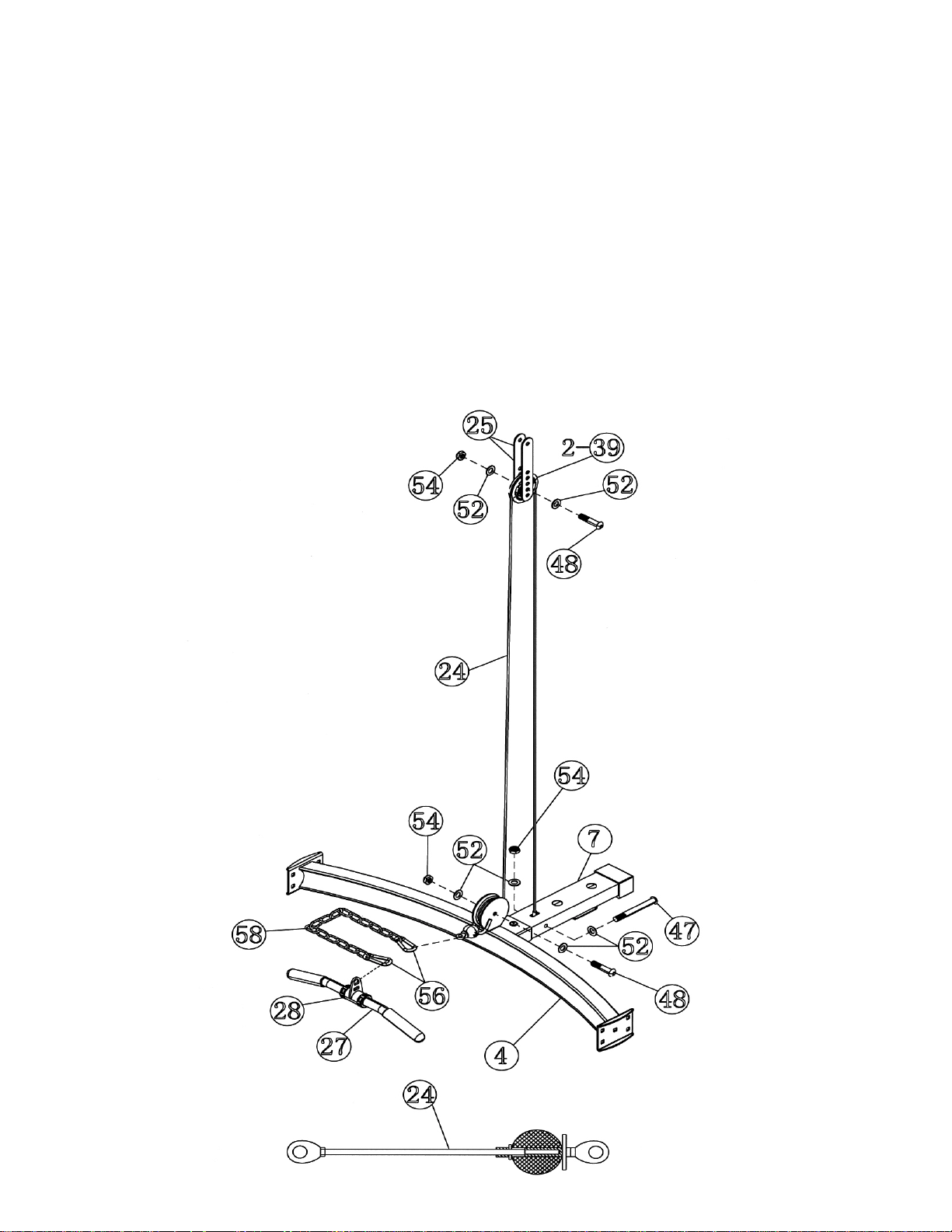

STEP 4 (See Diagram 4)

A.) Attach the 128” Cable (#24) to the open Pulley bracket on Rear Base Frame (#4).
B.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#48), two Ø ¾”

Washers (#52), and one M10 Aircraft Nut (#54).

C.) Draw the Cable around the Pulley then upward to the Double Floating Pulley Brackets

(#25) installed in Step-3. Repeat B to install a Pulley.

D.) Draw the Cable around the Pulley then downward to the open hole on the Weight

Glide Base (#7). Secure the end of the Cable to the open hole with M10 x 4” Allen Bolt
(#47), two Ø ¾” Washers (#52), and one M10 Aircraft Nut (#54).

E.) Adjust the tension of the Cable system by adjusting the Pulley position on the Double

Floating Pulley Brackets. If the Cable is too loose, move up the Pulley one hole. If the
cable is too tight, move down the Pulley one hole.

F.) Connect the Shiver Bar (#27) to the Cable with two Hooks (#56) and one 15-link Chain

(#58).

DIAGRAM 4

12

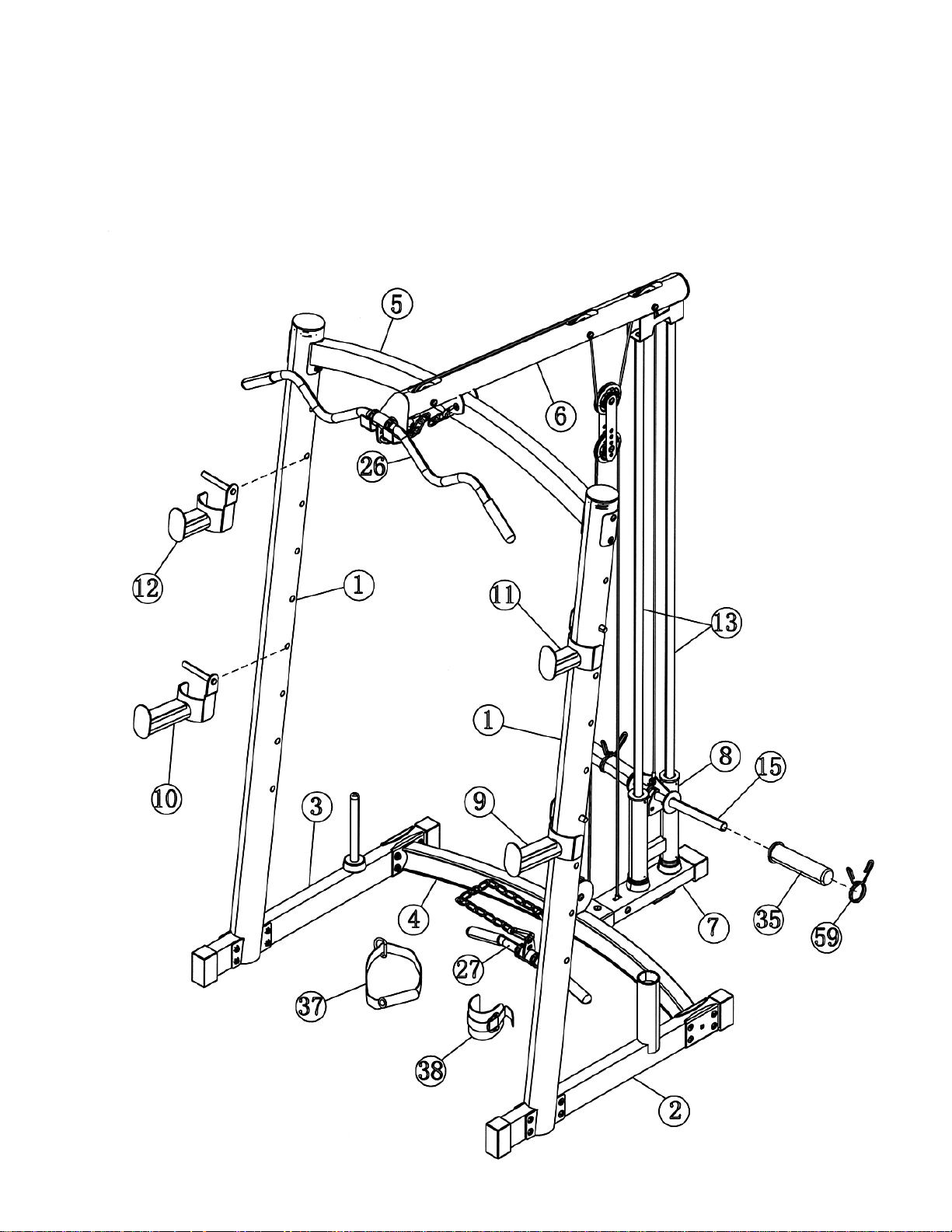

STEP 5 (See Diagram 5)

A.) Slide two Olympic Sleeves (#35) to the Weight Sliding Post (#8). Attach two Spring

Clips (#59) to the Sleeves.
B.) Attach the Left and Right Bar Catches (#11 & #12), Left and Right Safety Catches (#9

& #10) to selected slot on the two Upright Beams (#1).

DIAGRAM 5

13

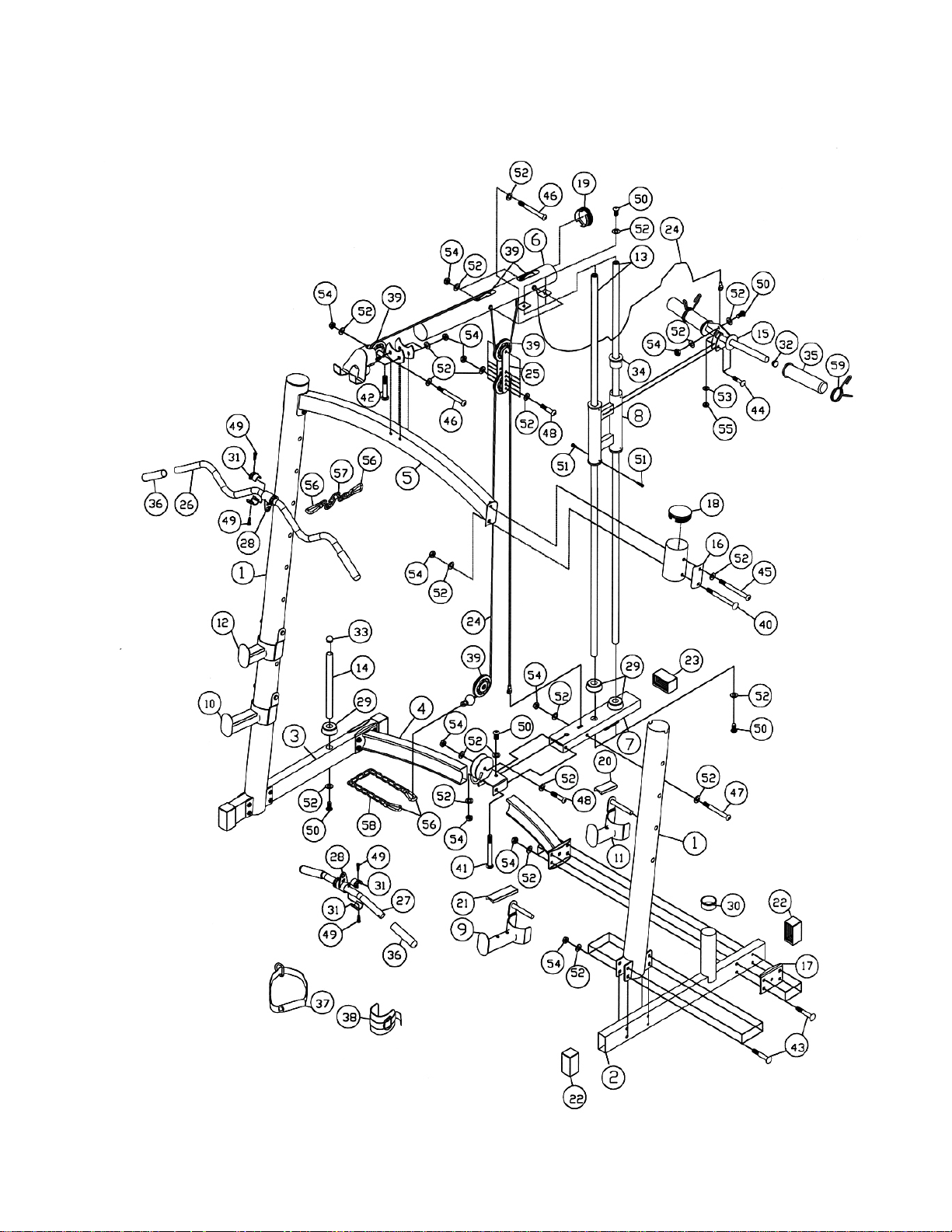

CAGE EXPLODED DIAGRAM

14

CAGE PART LIST

KEY NO. DESCRIPTION Q’ty

1 Upright Beam 2 51 ST3.8 Philips Sc rew 8

2 Left Stabilizer 1 52 Ø ¾” Washer 45
3 Right Stabilizer 1 53 Ø 5/8” Washer 2
4 Rear Base Frame 1 54 M10 Aircraft Nut 29
5 Top Beam 1 55 M8 Aircraft Nut 2
6 Upper Frame 1 56 Hook 4
7 Weight Glide Base 1 57 10-link Chain 1
8 Sliding Frame 1 58 15-link Chain 1
9 Left Safety Catch 1 59 Spring Clip 2
10 Right Safety Catch 1 #4 Allen Wrench (Tool) 1
11 Left Bar Catch 1 #6 Allen Wrench (Tool) 1
12 Right Bar Catch 1
13 Guide Rod 2
14 Weight Storage Post 1
15 Sliding We ight Post 1
16 4” x 2 3/8” Curved Bracket 2
17 4 ¾” x 3 ¼” Bracket 2
18 Ø 3 ½” End Cap 2
19 Ø 3” End Cap 1
20 3 ½” x 1 5/8” Rubber Bumper 2
21 5 ½” x 1 5/8” Rubber Bumper 2
22 Stabilizer End Cap 4
23 Weight Glide Base End Cap 1
24 128” Cable 2
25 Double Floating Pulley Bracket 2
26 Lat Bar 1
27 Shiver Bar 1
28 Rotate Ring 2
29 Ø 2 ½” Rubber Bumper 3
30 Sleeve 1
31 Plastic Ring 8
32 Ø 1” End Cap 2
33 Ø 1” Cone-shaped End Cap 1
34 Sliding Sleeve 4
35 Olympic Sleeve 2
36 6” Handle Grip 4
37 Single Handle 1
38 Ankle Strap 1
39 Pulley 6
40 M10 x 4 1/8” Carriage Bolt 2
41 M10 x 4” Carriage Bolt 1
42 M10 x 2 ¾” Carriage Bolt 2
43 M10 x 2 3/8” Carriage Bolt 16
44 M8 x 1 3/8” Carriage Bolt 2
45 M10 x 4 1/8” Allen Bolt 2
46 M10 x 3 ¾” Allen Bolt 3
47 M10 x 4” Allen Bolt 1
48 M10 x 1 ¾” Allen Bolt 3
49 Rivet 8
50 M10 x ¾” Allen Bolt 7

15

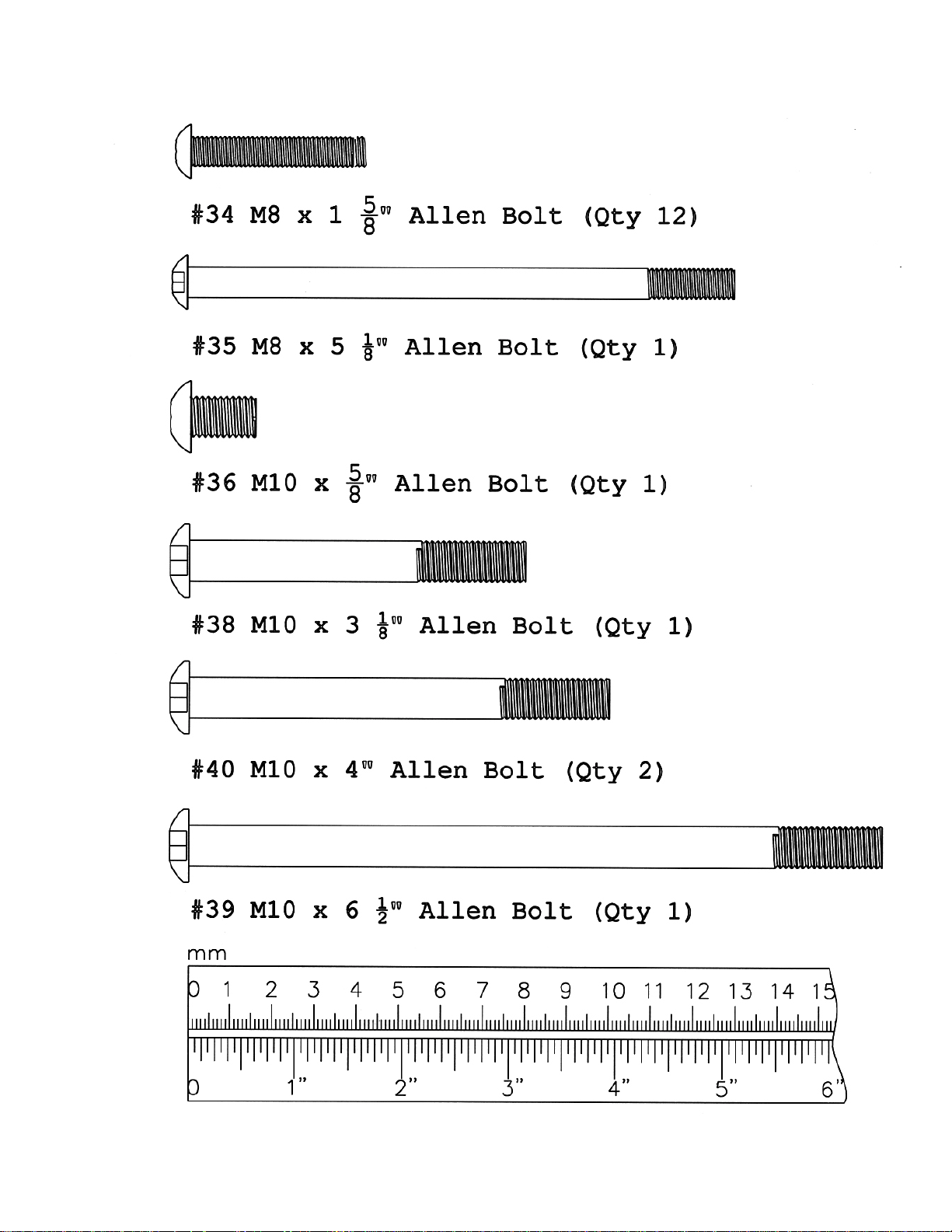

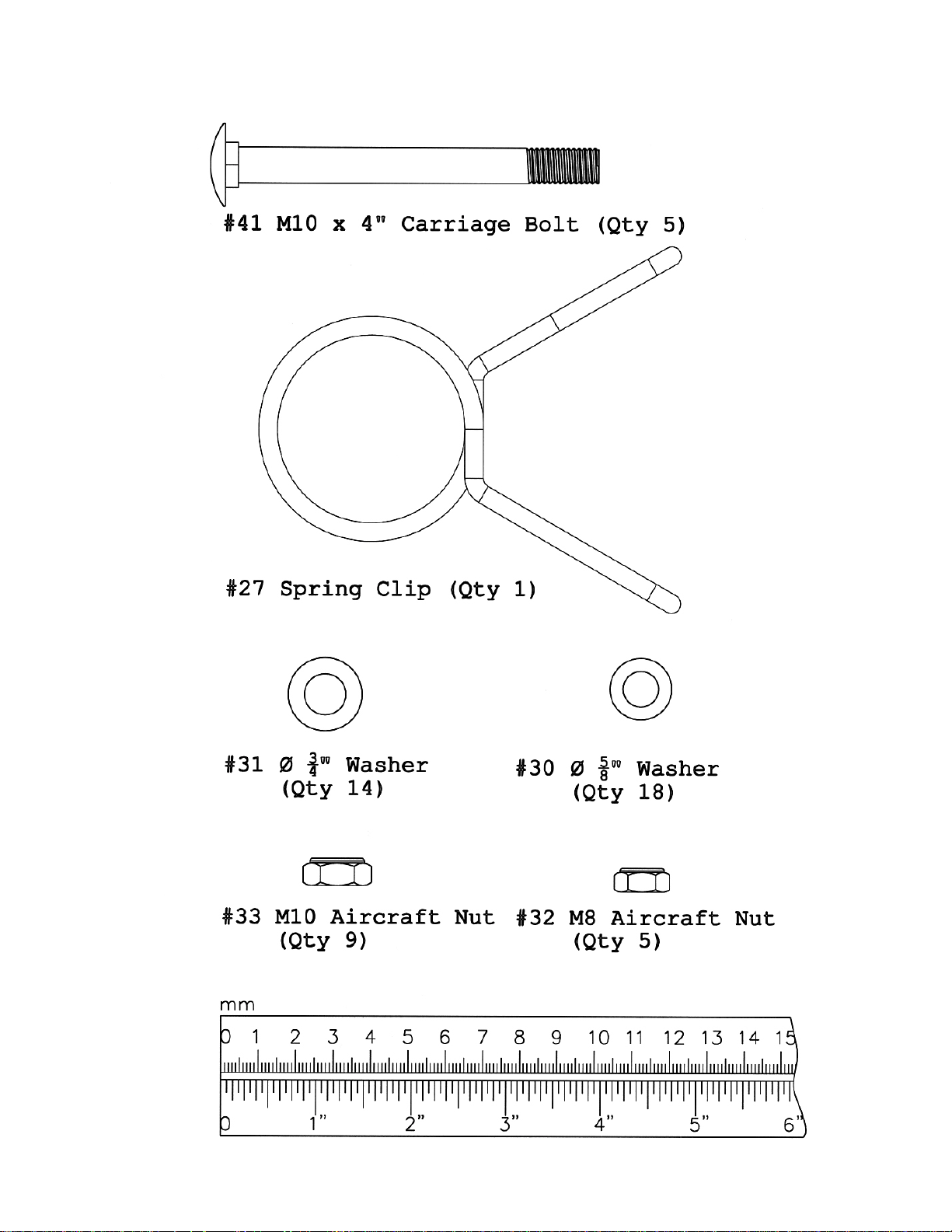

BENCH HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

16

BENCH HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

17

BENCH ASSEMBLY INSTRUCTION

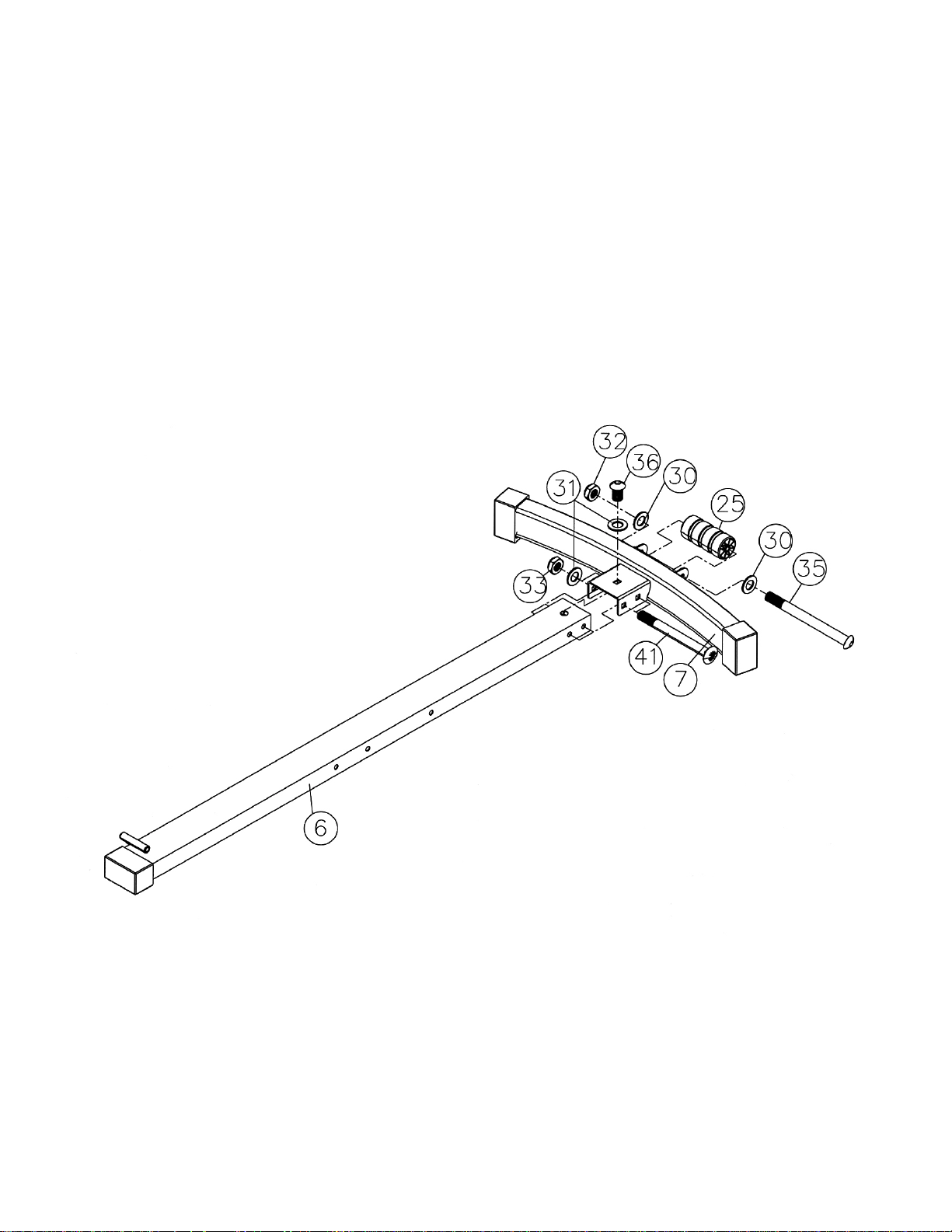

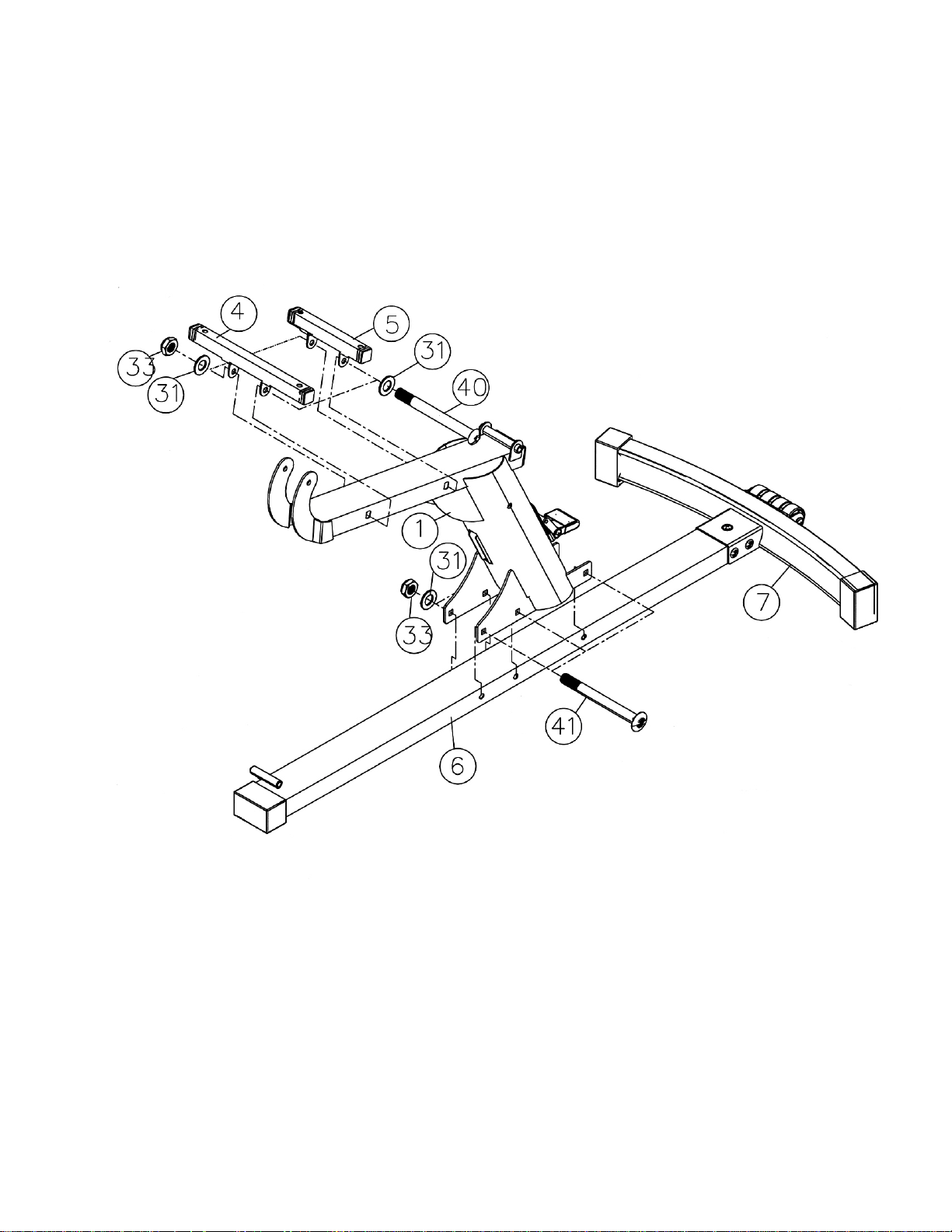

STEP 1 (See Diagram 1)

A.) Attach the Bench Base Frame (#6) to the Rear Stabilizer (#7). Secure the side-holes

with two M10 x 4” Carriage Bolts (#41), two Ø ¾” Washers (#31), and two M10

Aircraft Nuts (#33). Secure the top hole with one M10 x 5/8” Allen Bolt (#36) and one

Ø ¾” Washer (#31).
B.) Attach the Wheel Set (#25) to the bracket on Rear Stabilizer. Secure it with one M8 x

5 1/8” Allen Bolt (#35), two Ø 5/8” Washers (#30), and one M8 Aircraft Nut (#32)

DIAGRAM 1

18

STEP 2 (See Diagram 2)

A.) Attach the Main Seat Support (#1) to the Bench Base Frame (#6). Secure it with three M10 x 4”

Carriage Bolts (#41), three Ø ¾” Washers (#31), and three M10 Aircraft Nuts (#33).

B.) Attach the Front & Rear Seat Bracket (#4 & #5) to Main Seat Support. Secure each Bracket

with one M10 x 4” Allen Bolt (#40), two Ø ¾” Washers (#31), and one M10 Aircraft Nut (#33).

DIAGRAM 2

19

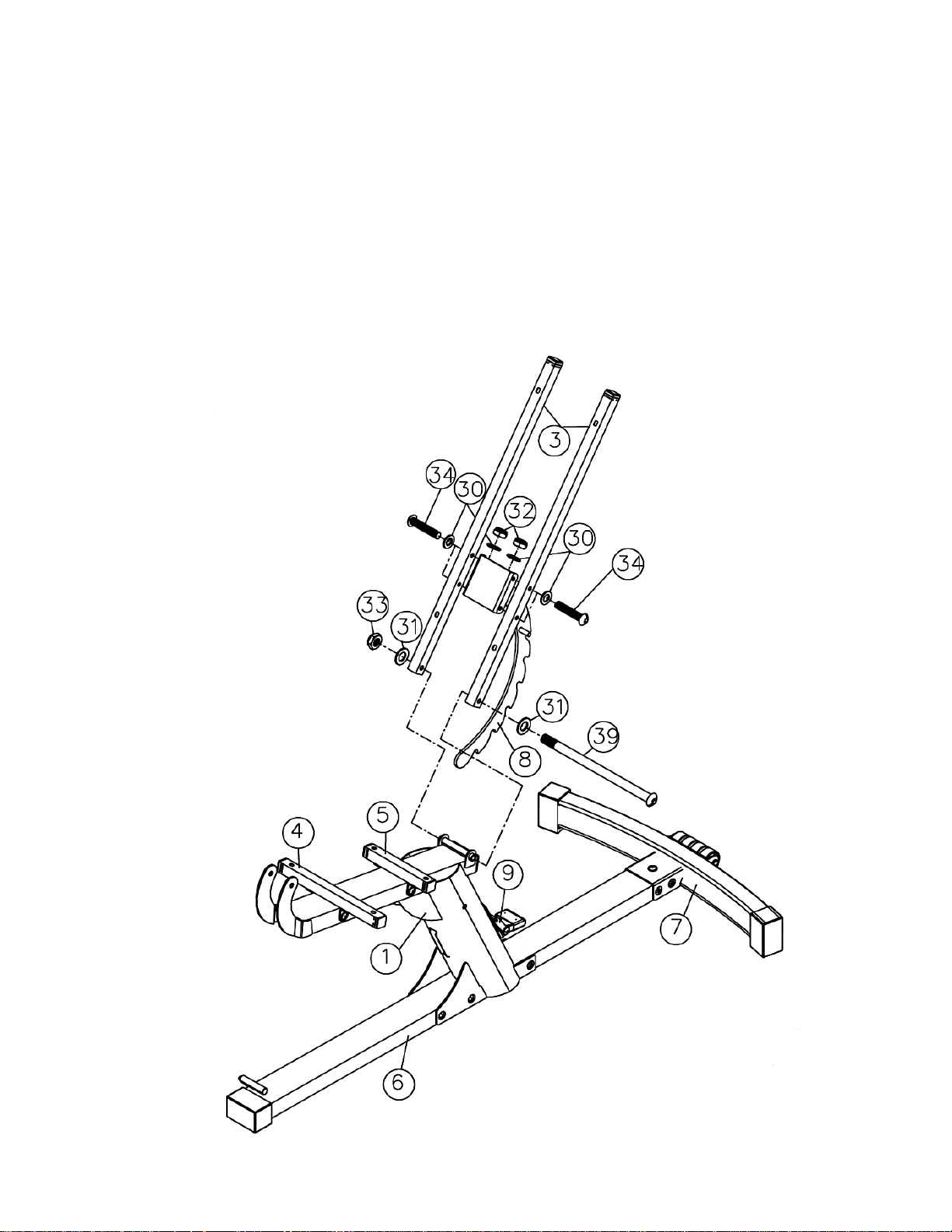

STEP 3 (See Diagram 3)

A.) Align the bracket on the Backrest Adjustment Support (#8) in between the two Backrest

Supports (#3). Secure it with four M8 x 1 5/8” Allen Bolts (#34), eight Ø 5/8” Washers (#30),
and four M8 Aircraft Nuts (#32). Do not tighten the Nuts and Bolts yet.

B.) Insert the Backrest Adjustment Support into the opening on the Main Seat Support (#1).

Press or step down on the Backrest Adjustment Lever (#9) to allow the Support to go
through.

C.) Attach the bottom side-holes on the two Backrest Supports to the pivot on the Main Seat

Support. Secure it with one M10 x 6 ½” Allen Bolt (#39), two Ø ¾” Washers (#31), and one

M10 Aircraft Nut (#33).
D.) Securely tighten all Nuts and Bolts in B & C.
E.) Do not over tighten the Nut and Bolt in C.
F.) Make sure the Backrest Supports are able to swivel.

DIAGRAM 3

20

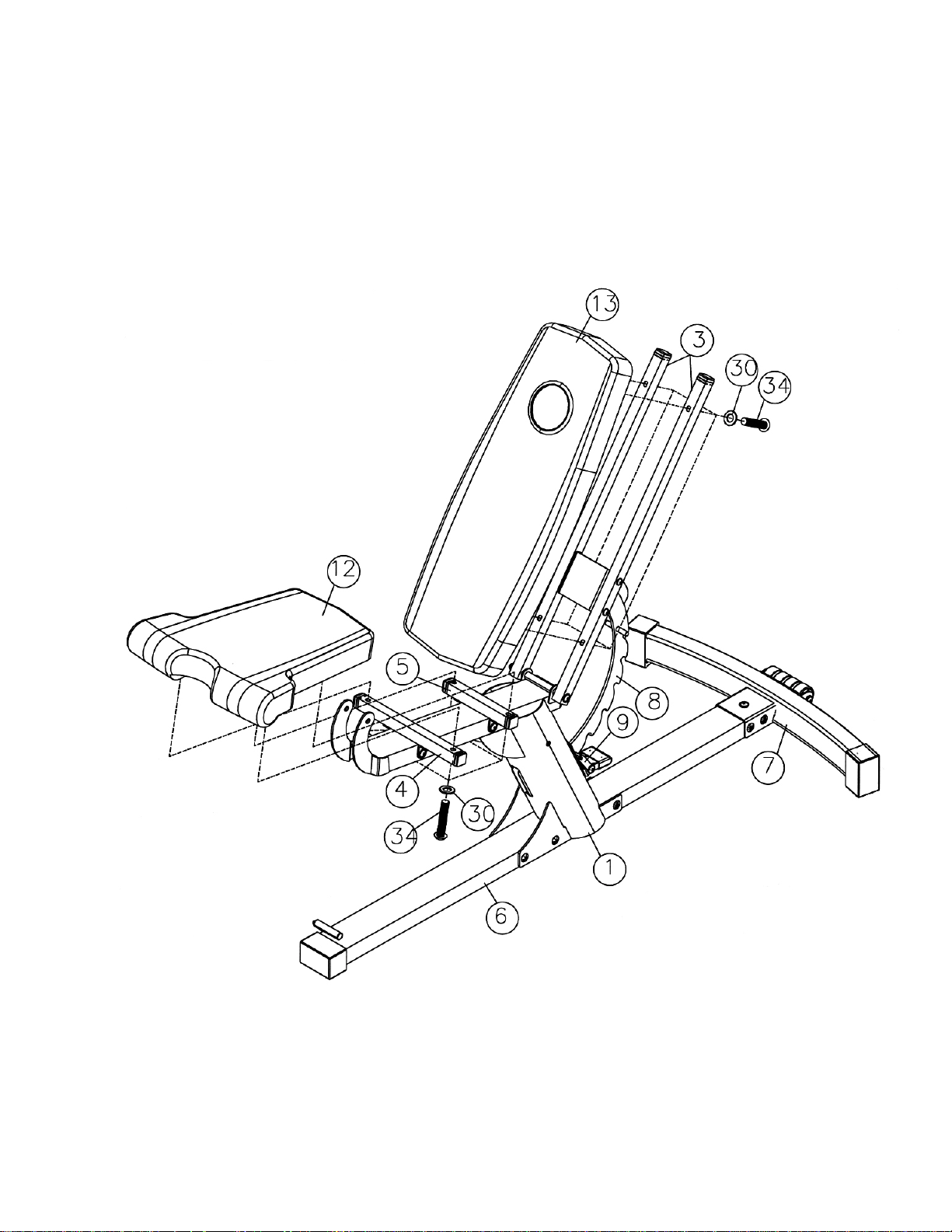

STEP 4 (See Diagram 4)

A.) Attach the Backrest Board (#13) to the Backrest Supports (#3). Secure it with four M8 x 1

5/8” Allen Bolts (#34) and four Ø 5/8” Washers (#30).

B.) Attach the Seat Pad (#12) to Front & Rear Seat Bracket (#4 & #5). Secure them with four M8

x 1 5/8” Allen Bolts (#34) and four Ø 5/8” Washers (#30).

C.) Pull up the Backrest Adjustment Support (#8) or press down the Backrest Adjustment Lever

(#9) to adjust the Backrest incline position.

DIAGRAM 4

21

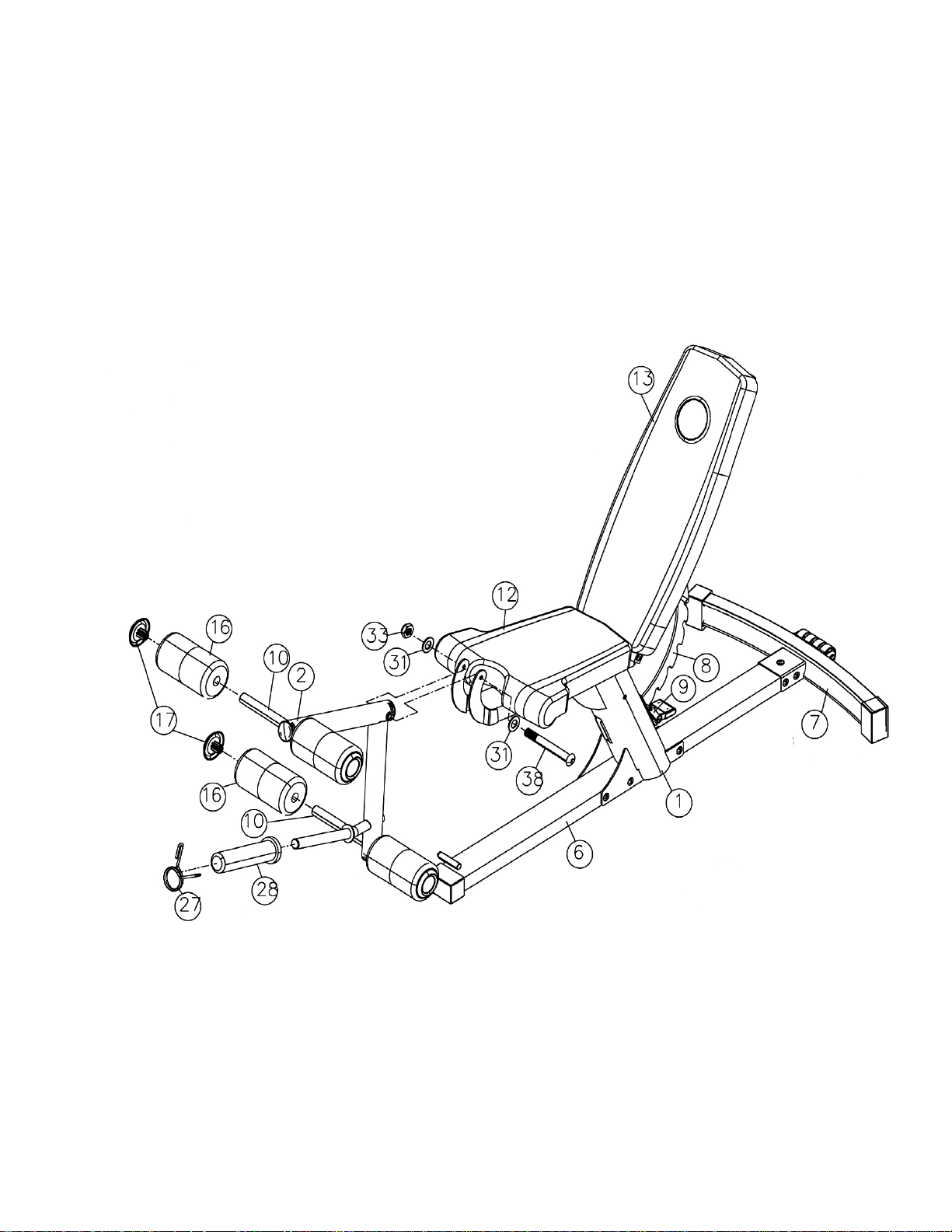

STEP 5 (See Diagram 5)

A.) Attach the Leg Developer (#2) to Main Seat Support (#1). Secure it with one M10 x 3 1/8”

Allen Bolt (#38), two Ø ¾” Washers (#31), and one M10 Aircraft Nut (#33).

B.) Insert two Foam Tubes (#10) halfway through the holes on Leg Developer. Push four Foam

Rolls (#16) onto the Tubes from both ends. Plug four Foam Roll End Caps (#17) into the
ends.

C.) Slide an Olympic Sleeve (#28) on the weight post on Leg Developer. Attach a Spring Clip

(#27) to the Sleeve.

DIAGRAM 5

22

23

BENCH PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Main Seat Support 1 2 Leg Developer 1 3 Backrest Support 2 4 Front Seat Bracket 1 5 Rear Seat Bracket 1 6 Bench Base Frame 1 7 Rear Stabilizer 1 8 Backrest Adjustment Support 1 9 Backrest Adjustment Lever 1 10 Foam Tube 2 11 Spring 1 12 Seat Pad 1 13 Backrest Board 1 14 2 ¾” Grip 1 15 2” x 1 5/8” Rubber Bumper 1 16 Foam Roll 4 17 Foam Roll End Cap 4 18 1 5/8” x 3 1/8” End Cap 1 19 1” Square End Cap 6 20 Ø 1” End Cap 2 21 Ø 2” End Cap 3 22 Base Frame End Cap 1 23 Rear Stabilizer Left End Ca p 1 24 Rear Stabilizer Right End Cap 1 25 Wheel Set 1 26 Lever Cover 1 27 Spring Clip 1 28 Olympic Sleeve 1 29 Ø ¾” Leg Developer Bushing 2 30 Ø 5/8” Washer 18 31 Ø ¾” Washer 16 32 M8 Aircraft Nu t 5 33 M10 Aircraft Nut 10 34 M8 x 1 5/8” Allen Bolt 12 35 M8 x 5 1/8” Allen Bolt 1 36 M10 x 5/8” Allen Bolt 1 37 M10 x 2 ½” Allen Bolt 1 38 M10 x 3 1/8” Allen Bolt 1 39 M10 x 6 ½” Allen Bolt 1 40 M10 x 4” Allen Bolt 2 41 M10 x 4” Carriage Bolt 5

24

®

IMPEX

INC.

LIMITED WARRANTY

IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purc hase. This
warranty extends only to the original purchaser. IMPEX's obligation under this W arranty is limited to replacing
or repairing, at IMPEX's option.

All returns must be pre- authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, im proper or abnormal usage or repairs not pr ovided by an IMPEX authorized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.

IMPEX is not responsible or liable for indirect, special or c onsequential damages arising out of or in connection
with the use or performance of the product or other damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.

This warranty gives you specific legal right. You may also have other rights which vary from s tate to state.

Register on-line at www.imp ex-fitness. com

IMPEX

14777 Don Julian

City of Industry, CA 91746

ORDERING REPLACEMENT PARTS

Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.

[email protected]

When ordering replacement parts, always give the following information.

1. Model

2. Description of Parts

3. Part Number

4. Date of Purchase

25

®

INC.
