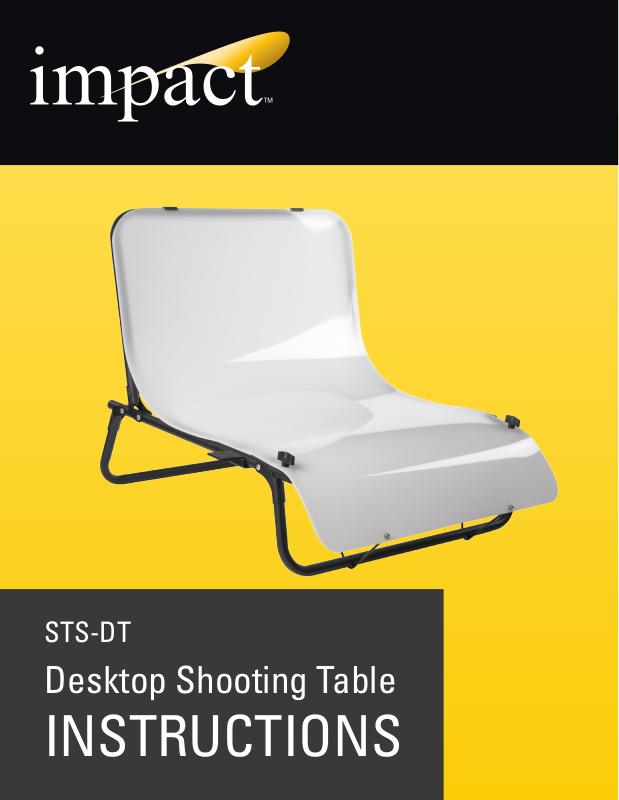

Page 1
STS-DT
Desktop Shooting Table
INSTRUCTIONS
1
Page 2
Introduction
Thank you for choosing Impact.
The Impact STS-DT Desktop Shooting Table is designed for product
photography and other still life. It comprises a collapsible metal frame and a
glossy, translucent white plexiglass sheet. The plexiglass easily mounts to
the frame to provide a seamless background. Two 7˝ legs make the STS-DT
ideal for desktop use, and the compact frame and lightweight design make
it easy to bring to locations for on-site shooting.
Precautions ⚠
• Please read and follow these
instructions and keep this manual
in a safe place.
• Do not attempt to disassemble or
repair this product.
• Make sure that this product
is intact and that there are no
missing parts.
• To avoid damage to this product,
be careful not to overtighten or
improperly thread any of the
threaded fittings.
• Do not collapse the metal frame
while the plexiglass sheet is
inside it.
• Be careful not to trap your fingers
when collapsing the metal frame.
• All photos are for illustrative
purposes only.
2
Contents Include
• Metal frame
• Plexiglass sheet
• Two (2) hooks
• Two (2) wing nuts
• User manual
Specifications
• Dimensions: 24˝″× 36˝
(60 × 91 cm)
• Weight: 6.9 lb. (3.12 kg)
Page 3
Assembling the STS-DT
1. Remove the plastic backing from the
plexiglass sheet, and place it with
either side facing up.
2. Unscrew the nut from one of the
hooks, and insert the threaded tip of
the hook into one of the holes on the
bottom edge of the plexiglass sheet.
3. Screw the nut back onto the
threaded tip of the hook. Make sure
the hook is facing the inside of the
plexiglass.
4. Repeat steps 2 and 3 for the other
hook.
5. Open the metal frame.
6. Place the plexiglass sheet onto the
metal frame while inserting the top
edge of the plexiglass into the clips
at the top of the frame.
7. Match up the holes in the plexiglass
with the threaded posts in the frame.
8. Screw the wing nuts onto the
threaded posts.
9. Bend the bottom edge of the
plexiglass sheet to secure the hooks
under the front leg of the metal
frame.
1
2
3
4
1
2
3
4
3
Page 4
One-Year Limited Warranty
This IMPACT product is warranted to the original purchaser to be free from
defects in materials and workmanship under normal consumer use for a period of
one (1) year from the original purchase date or thirty (30) days after replacement,
whichever occurs later. The warranty provider’s responsibility with respect
to this limited warranty shall be limited solely to repair or replacement, at the
provider’s discretion, of any product that fails during normal use of this product in
its intended manner and in its intended environment. Inoperability of the product
or part(s) shall be determined by the warranty provider. If the product has been
discontinued, the warranty provider reserves the right to replace it with a model
of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect,
accident, alteration, abuse, improper installation or maintenance. EXCEPT AS
PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS
WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty provides you with specic legal rights, and
you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Impact Customer Service Department
to obtain a return merchandise authorization (“RMA”) number, and return the
defective product to Impact along with the RMA number and proof of purchase.
Shipment of the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.impactstudiolighting.com
or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
IMPACT is a registered trademark of the Gradus Group.
© 2014 Gradus Group LLC. All Rights Reserved.
