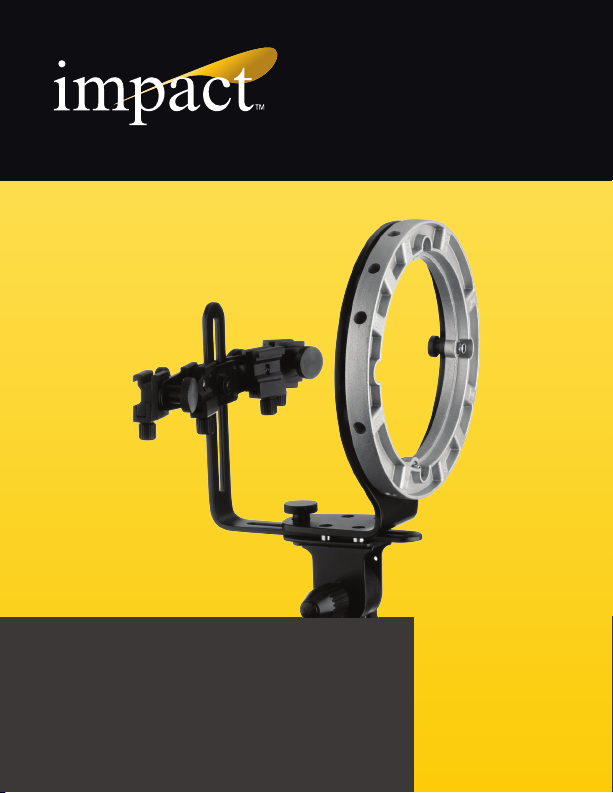

SR-SHOE-D Speed Ring
INSTRUCTIONS
Introduction
The Impact SR-SHOE-D Speed Ring for Dual Shoe Mount Flashes offers a portable
solution to achieve beautiful, soft lighting with equipment that you already own. It
mounts up to two speedlights and radio receivers for optimal power and efficient
recycle time, and accommodates a small- to medium-size rectangular, square, strip,
or octagonal softbox to control and shape your light.
The SR-SHOE-D is equipped with a 360° rotating, self-locking outer ring with labeled
rod mounts to make it easy to assemble and orient your softbox. Dual brackets
let you manipulate the angles and adjust the depth of the speedlights within your
softbox to adjust the light spread. The 5/8″ (16 mm) mounting adapter has sockets
for a light stand or boom arm, plus a built-in pivoting stand adapter with a ratchet
handle to adjust the vertical angle.
Precautions
• Please read and follow these instructions and keep this manual in a safe place.
• Clean this product with only a soft, dry cloth.
• Keep this product away from children.
• Use only parts provided by the manufacturer.
• Make sure everything is secure before proceeding.
• Make sure that this product is intact and that there are no missing parts.
• To avoid damage to this product, be careful not to overtighten or improperly thread
any of the threaded fittings.
• All photos are for illustrative purposes only.
Contents:
· Impact SR-SHOE-D Speed Ring
· User manual
· One-Year Limited Warranty
2
Overview
A B
1
6
2
C
987
3
5
A. Speed Ring:
1. Softbox rod mounts
2. L-bracket mount
3. Locking knob
4. Ratchet handle
5. Mounting socket
6. L Bracket thumbscrew
Specifications
• Mounting socket: 5/8″ (16 mm)
• Dimensions (H × W × D): 12″ × 7.5″ × 10″ (30.5 × 19 × 25.4 cm)
• Weight: 3 lb. (1.4 kg)
4
B. L Bracket
C. Flash Bracket:
7. Shoe mounts (×4)
8. Small thumbscrews (×4)
9. Large thumbscrews (×5)
Also Included: User manual
3
