Wall Plate

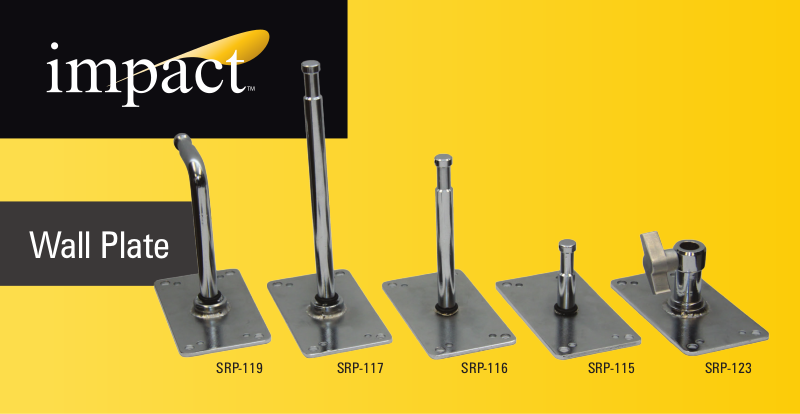

SRP-115 SRP-123SRP-116SRP-117SRP-119
Thank you for choosing Impact.
The Impact SRP Wall Plates mount to any flat surface, including
set walls and apple boxes. You can use a wall plate as a low
stand by fixing it to the floor and mounting a fixture directly onto
the 5/8” stud or receiver. Since wall plates take up less room
than tripod legs, you can fit them into tighter spots where stands
or clamps are inconvenient to use.
The Impact SRP-115, 116, and 117 Wall Plates feature welded
steel baby pins 3”, 6”, and 9”, respectively, and the Impact SRP119 has a baby pin set at a right angle. The SRP-123 features a
5/8” baby receiver that allows the plate to be used as a small
speaker or monitor platform, as well as a low stand. All wall
plates have eight anchor points, and all baby pin wall plates
feature a small hole for a safety cable (not included).
Specifications
• Stud size – 5/8” (SRP-115,
116, 117, 119)
• Receiver size – 5/8” (SRP-123)
• Color – silver
• Material – chrome steel
Recommended Accessories
• Impact CT-40MK/40MBK, C-Stand Turtle Base
Kit, Silver or Black
• Impact CS-40MK/MBK, C-Stand Sliding Leg Kit,
Silver or Black
• Impact KCP-200/200B 2.5” Grip Head, Silver or
Black
• Impact KCP-240/240B 40” Extension Arm, Silver
or Black
• Impact KCP-700B26 Super Clamp with 1/4”-20
Stud
Visit our website at www.impactstudiolighting.com
for more Impact accessories.
Warnings ⚠
Do not attempt to disassemble or repair the
equipment – doing so will void the warranty, and
Impact Studio Lighting will not be responsible for
any damage.
Handle the unit with care.
Clean the unit with a soft dry cloth.
Keep this unit away from children.
Use only parts provided by the manufacturer.
Make sure everything is secure before proceeding.
Make sure the item is intact and that there are no
missing parts.
Do not exceed the maximum load capacity.
This IMPACT product is warranted to the original purchaser to be free from defects in materials and workmanship under normal
consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever
occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or
replacement, at the provider’s discretion, of any product that fails during normal use of this product in its intended manner and
in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product
has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation
or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES
NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specic legal rights, and you may also have
additional rights that vary from state to state.
To obtain warranty coverage, contact the Impact Customer Service Department to obtain a return merchandise authorization
(“RMA”) number, and return the defective product to Impact along with the RMA number and proof of purchase. Shipment of
the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
IMPACT is a registered trademark of the Gradus Group.
© 2014 Gradus Group LLC. All Rights Reserved.
