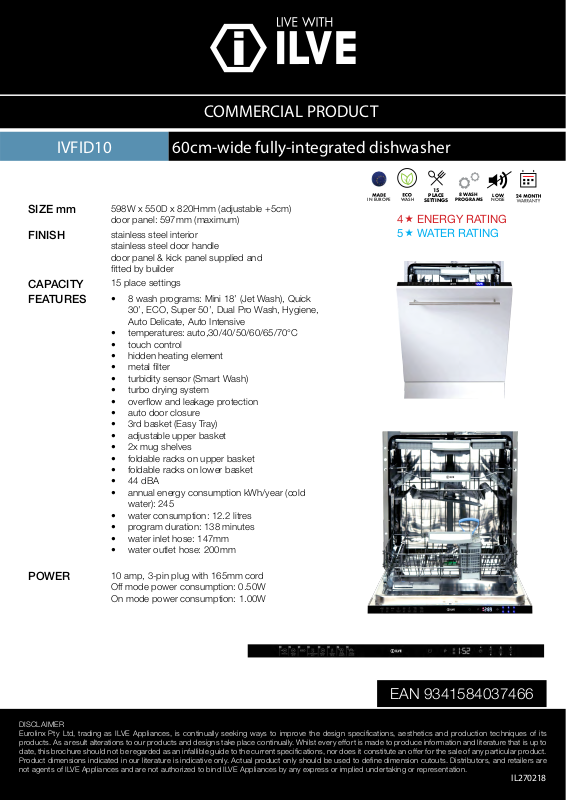

ILVE IVFID10 Specifications Sheet
IVFID10 60cm-wide fully-integrated dishwasher
PROGRAMS
NOISE
SETTINGS
WASH
IN EUROPE
SIZE mm
FINISH
CAPACITY
FEATURES
COMMERCIAL PRODUCT
598W x 550D x 820Hmm (adjustable +5cm)
door panel: 597mm (maximum)
stainless steel interior
stainless steel door handle
door panel & kick panel supplied and
fitted by builder
15 place settings
• 8 wash programs: Mini 18’ (Jet Wash), Quick
30’, ECO, Super 50’, Dual Pro Wash, Hygiene,
Auto Delicate, Auto Intensive
• temperatures: auto,30/40/50/60/65/70°C
• touch control
• hidden heating element
• metal filter
• turbidity sensor (Smart Wash)
• turbo drying system
• overflow and leakage protection
• auto door closure
• 3rd basket (Easy Tray)
• adjustable upper basket
• 2x mug shelves
• foldable racks on upper basket
• foldable racks on lower basket
• 44 dBA
• annual energy consumption kWh/year (cold
water): 245
• water consumption: 12.2 litres
• program duration: 138 minutes
• water inlet hose: 147mm
• water outlet hose: 200mm
15
PLACE
8 WASH
LOW
4 ENERGY RATING
5 WATER RATING
POWER
10 amp, 3-pin plug with 165mm cord
Off mode power consumption: 0.50W
On mode power consumption: 1.00W
EAN 9341584037466
DISCLAIMER
Eurolinx Pty Ltd, trading as ILVE Appliances, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its
products. As a result alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to
date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product.
Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are
not agents of ILVE Appliances and are not authorized to bind ILVE Appliances by any express or implied undertaking or representation.
IL270218
COMMERCIAL PRODUCT
IVFID10 60cm-wide fully-integrated dishwasher
•
•
•
•
•
647–717
•
•
820–820
•
•
•
820–870 (+50)
•
•
•
•
•
•
•
•
NB: drawings are not to scale — they are to be used as a guide only. For detailed
installation instructions, please refer to user guide.
