Dear Customer,
Please carefully read this manual before using the
dishw ash er, it will help you to us e and mainta in the
dishwasher properly.
Keep it to refer to it at a later date.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc .
To r e v iew the se ct i on on t r o ub l esh o oti n g T i ps
will help you to solve some common problems
by yourself .
If you can not solve the problems by yourself ,
please ask for the help of professional technicians.
Contr ol Pan el.. ...... ... ...................... ... ... ... ............3
Di shw asher Fea tures..... ... . ...... .................. ... . ......3
A Fill th e Rin se Aid Dispe n ser... . ... ... ... .. 3、 ......... ....
BFunctionofDetergent ............................4、 ........
Recommengation...............................................7
For washing in the dishwasher the
folliwing cutlery/dishes.......................................7
Attention before or after loading the
Dishwasher Baskets...........................................7
Removing the Dishes.......................................... 7
The Method Loading Normal Dishware..................8
Wash Cycle Table... .... ......... ............ ......... .... ... ....9
Turning on the Appliance.....................................9
Change the Programme......................................10
At the end of the Wash Cycle...............................10
Filtering System.................................................11
Cari ng for the Dishwashe r... ........ .......... . .............12
The manu facturer, following a pol icy of con sta nt
development and updating of the product, may
make modifications without giving prior notice.
This user manual shall also be got from the
manufacturer or responsible vendor.
..................................... 13Installation preparation
......14Aesthetic panel's dimensions and installation
.................16Te n s io n ad j u st m e nt of t h e do o r s pr i ng
................................. 16Connection of drain hoses
............................ 17Dishwasher installation steps
About Electricity Connecting..............................18
Cold Water Connection..................................... 19
Before calling for service....................................20
Er ror co des. ................ ...... ... ... ...... ......... . ...... ... 21
Tec h ni c a l in fo r mat i on. . ... . .. . .. . ... . .. . . .. . ... . .. . . .. . . .. . . . 2 2
When using your dishwasher,
follow the precautions listed below:
This appliance is intended to be used in household and similar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
For EN60335-1
（）
This appliance is not intended for use by persons(including children )with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
For IEC60335-1
（）
This appliance is for indoor use only, for household use only. To protect
against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft
cloth moisten with mild soap, and then use a dry cloth to wipe it again .
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having
an equipment-earthing conductor and a earthing plug.
The plug must be plugged into an appropriate outlet that is installed and
earthed in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are markeddishwasher safe or the
equivalent. For plastic items n
ot so marked,
check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.
The maximum number of place settings to be washed is 9.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international
abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a
recycling centre. Therefore cut off the power supply cable
and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper
and should be disposed in the waste paper collection for
recycling.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact yourlocalcityofficeandyour
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately for
special treatment is necessary.
For detailed operating method read the corresponding content on the instruction manual.
Switch on the appliance
Fill the detergent dispenser
Check the rinse aid level
Load the baskets
Select a program
Running the dishwasher
Open the door, press the On/Off button to switch on the appliance.
For each wash cycle.
Compartment
For programs with pre-wash only.
(Follow the user instructions)
Electric indicator on control panel (if provided).
Scrape off any large food particles. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Close the door,press the Program Button until the selected program lights up.
( See the section entitled Operation instruction )“”
Turn on the water tap and press the . The machine will start working
after about 10 seconds.
Start/Pause Button
A
C
B
Changing the program
Add forgotten dishes in the
dishwasher.
If the appliance is switched
off during a wash cycle.
Switch off the appliance
Turn off the water tap,
unload the baskets
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If in this case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button, the machine will be in standby state, press the program
button more than 3 seconds then you can change the program to the desired cycle setting.
3. Press the Start/Pause Button, the dishwasher will run after 10 seconds.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little.
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the Start/Pause Button, the dishwasher will run
after 10 seconds.
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
When the working cycle is finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appiance was under standby mode, it will be power off automaticly after 30 minutes without any operation.
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,as
the dishes and utensils are still hot and more susceptible to break.
They could also dry better.Unload the appliance, starting from the lower basket.
Open the door carefully.
Hot steam may escape
when the door is opened!
E
C
P
S
2
3
Front view
1
4
Back View
5
6
7
8
9
Upper Basket
1
Inner pipe
2
Lower Basket
Cup Shelf
4
Spray arms
5
Filter assembly
6
Inlet pipe connector
7
Drain pipe
8
Adjuster
93
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Fill in detergent
Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill t he dispens er, open the cap a nd pou r the rinse a id int o t he dispenser until the leve l i ndicato r t urn s completely
black. The volume of the rinse aid container is about 110ml.
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rin se aid for dish was her. Ne ver fil l the rin se aid di spe nser with any other subs tances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level
indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the
rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
How to fill the Rinse Aid Dispenser
To op e n th e d i s p e n s e r , tu r n t h e c a p t o th e " o p e n " (l e ft ) ar r o w a n d l i f t it o u t .
1
Pour the rinse aid into the dispenser, being careful not to overfill.
2
Replace the cap by inserting it alig ned with " open" arrow and tur nin g it to the cl ose d (right ) a r row.
3
Be c aref ul not to overfil l the dispen ser, becaus e this coul d caus e ove r s uds ing. Wip e awa y any spi lls
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming
during the next wash.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
during the next wash. Don't f org et to replac e the cap before yo u close dishwas her doo r.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for this purpose.
Detergents
There are 3 sorts of detergents
1.With pho sph ate an d with chl orine
2.Wit h p hospha te and wit hou t c hlo rine
3.Without phosphate an d w ith out chlorine
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
Concentrated Detergent
Based on their chemical composition, detergents can be split in two basic types:
Conventional, alkaline detergents with caustic components
Low alkaline concentrated detergents with natural enzymes
The use of normal washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programs in which concentrated detergents are used can achieve the same
“”
results that can otherwise only be achieved using intensive programs.
“”
“”
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conve ntiona l dish was her. Generally, only one tab les poon o f d ete rge nt is nee ded for
anormalwashload.Moreheavilysoileditemsneedmoredetergent.Alwaysaddthe
deter gent just bef ore starting the dishwasher, otherwise it could get damp and wi ll not
dissolve properly.
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Adding detergent to dispenser

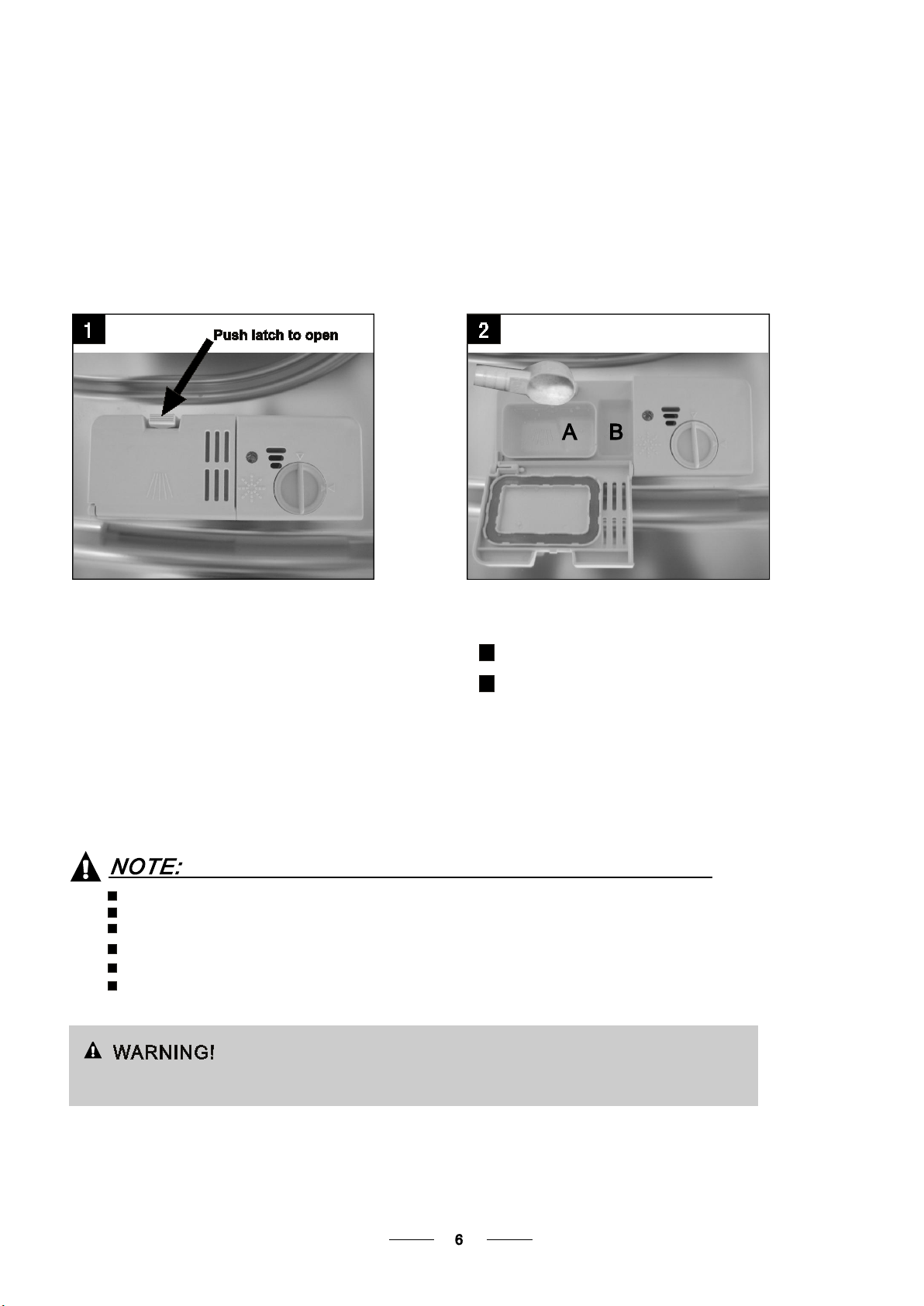

Fill in Detergent
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
For main wash detergent.
A
For pre-wash detergent.
B
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre -wa sh det erg ent chamber. This detergent wil l take effect dur ing the pr e-wash phase.
If the lid is closed: push the latch to open.
Always add the detergent just before starting each wash cycle.
Only us e bra nde d d etergent and rin se aid for dishwasher.
You se e in f o r ma tio n ab out th e amo u n t of de t erge n t for th e sin g l e p r o gram m e on
Please be aware that soiling levels and water hardness can effect wash results.
Please observe the manufacturer's recommendations on the detergent packaging.
last pa ge9.
Dishwasher detergent is corrosive!
Take c a r e to k eep i t o u t o f r e a c h o f c h i l d r e n .
Loading...
