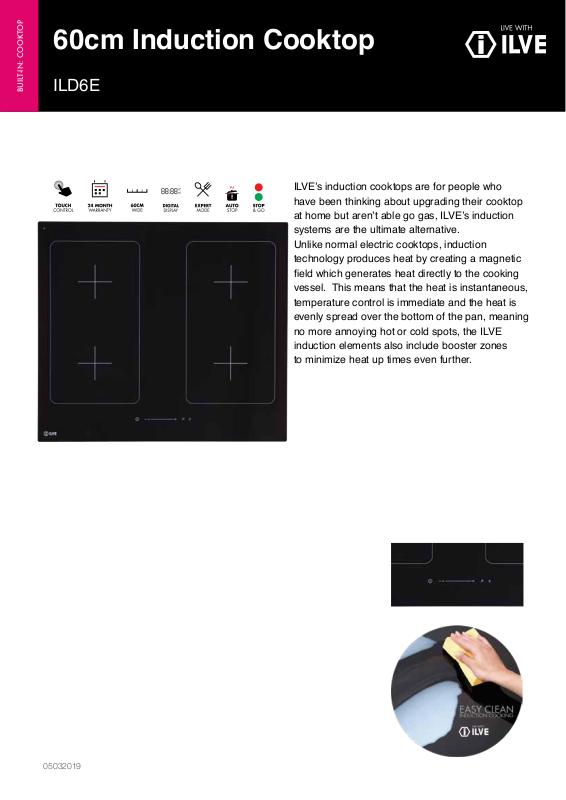

ILVE ILD6E Specifications Sheet
60cm Induction Cooktop
BUILT-IN: COOKTOP
ILD6E
ILVE’s induction cooktops are for people who
have been thinking about upgrading their cooktop
at home but aren’t able go gas, ILVE’s induction
systems are the ultimate alternative.
Unlike normal electric cooktops, induction
technology produces heat by creating a magnetic
eld which generates heat directly to the cooking
vessel. This means that the heat is instantaneous,
temperature control is immediate and the heat is
evenly spread over the bottom of the pan, meaning
no more annoying hot or cold spots, the ILVE
induction elements also include booster zones
to minimize heat up times even further.
05032019
590
560
4
41
520
490
60cm Induction Cooktop
BUILT-IN: COOKTOP
ILD6E
Model ILD6E - 60cm Induction Cooktop
FE ATURE
• Slider central control panel
• cooking levels 0-9
• Simultaneous timers for each zone
• Independent egg timer
• Pause mode
• Recall mode
• Automated keep warm option at 70°C
CLEANING
• Easy clean ceran glass surface
ZONES
• 4 cooking zones (see diagram for power statistics)
• 4 Zone Boost, 2 double boost & NEW Start-up Boost on all zones
• Zone bridging mode
SAFETY
• Child lock
• Residual heat indicator
• Overow detection
• Time limitation system according to heat level assisting the
cooktop to not overheat
• Long-life protection - protects the electronics against overheating
520
590
590
41
560
520
490
Model ILD6E Induction Hob
Cut out (LxD) : 560 x 490 mm –
appliance’s thickness: 49mm + glass 4mm
Size (LxD) : 590 x 520 mm, R=5
Electrical network 220-240 V, 50/60 Hz
Total Electrical Load: 7400W
Power cord not included
Single phase or two phase
4
For installation specications, please consult with ILVE. For optimum
installation, we recommend using the actual product as the best guide.
DISCLAIMER
Eurolinx PTY LTD, trading as ILVE Appliances, is continually seeking ways to improve the design specications, aesthetics and production techniques of its products. As a result
alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
regarded as an infallible guide to the current specications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is
indicative only. Actual product only should be used to dene dimension cutouts. Distributors, and retailers are not agents of ILVE Appliances and are not authorized to bind ILVE
Appliances by any express or implied undertaking or representation.
