ILUV i322 User Manual

Auto Speaker Phone with

Bluetooth

®

Wireless Technology

Instruction Manual

i322

Please read this manual carefully before operating and save it

for future reference.

Have a question? Please visit http://www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

USER SAFETY GUIDE

INSTRUCTIONS ON ENVIRONMENT PROTECTION

Do not dispose of this product in the usual household garbage at
the end of its life cycle; bring it to a collection point for the
recycling of electrical and electronic appliances.
This symbol on the product means the instructions
for use or the packaging will inform about the
methods of disposal. The materials are recyclable
as mentioned in its marking. By recycling, material
recycling, and other forms of re-utilization of old appliances, you
make an important contribution to the protection of the
environment. Please inquire at your local community
administration for an authorized disposal location.

Important Safety Instructions

1. Read instructions – All safety and operating instructions
should be read before the appliance is operated.

2. Retain instructions – The safety and operating instructions
should be retained in a secure place for future reference.

3. Heed warnings – All warnings on the appliance and in the
operating instructions should be observed.

4. Follow instructions – All operating and use instructions
should be followed.

5. Water and moisture – The appliance should not be used
near water (bathtub, kitchen sink, laundry tub, pool, etc.).

6. Heat – The appliance should be situated away from heat

- 1 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

USER SAFETY GUIDE

Important Safety Instructions-Continued

sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.

7. Power sources – The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.

8. Cleaning – The appliance should be cleaned with a dry cloth.

9. Objects and liquids entry – Care should be taken so that
objects do not fall and liquids are not spilled into the device’s
openings.

10. Servicing – The user should not attempt to service the
appliance beyond that described in the user's operating
instructions. All other servicing should be referred to qualified
service professional.

FCC Notice (USA)

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Refer to 47 CFR Sec. 15.19.

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio

- 2 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

USER SAFETY GUIDE

FCC Notice (USA)-Continued

communications, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for
help.

NOTE: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment. Refer to 47 CFR Sec.

15.21.

Industry Canada Notice to Canadian Users

Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device. Refer to IC
RSS 210 Sec. 5.11. The term “IC” before the certification or
registration number only means that the registration was
performed based on a Declaration of Conformity and that
Industry Canada technical specifications were met. It does not
imply that Industry Canada (IC) approved this equipment. Refer
to Self-Marking 6(f) and RSP 100 Sec. 4.

- 3 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

USER SAFETY GUIDE

Additional Safety Instructions

• When not in use, keep your device in a safe place where it
will not be bent or crushed.

• Keep this device away from children. Some small and
detachable parts might be swallowed by children and result in
harm to them.

• This unit contains magnets. Keep magnets away from
computers, discs, video tapes, color TV sets, and wallets or
purses containing credit cards.

About Electromagnetic Interference (EMI)

This device is designed and manufactured not to exceed the
exposure limit for radio frequency energy, which is set by the
Federal Communications Commission of the U.S government.

The term “EMI” is short for the electromagnetic interference
caused by the electromagnetic field generated by electronic
devices. In fact, most electrical appliances and devices emit
electric and magnetic fields, and most of modern electronic
devices are susceptible to the EMI if they are inadequately
shielded or designed.

• If you use any personal medical device, such as a pacemaker,
please consult the manufacture of your medical device to
determine if it is adequately shielded from EMI. Your
physician might assist you in obtaining this information.

- 4 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

USER SAFETY GUIDE

IMPORTANT NOTES ON HEARING

Your hearing is very important to you and to us. We strongly
recommend you to follow the guideline below in order to prevent
possible damage to or loss of hearing.

Hearing experts caution that listening to loud sounds can
damage hearing over time. With continuous listening to loud
sounds, hearing adapts and will give the impression that volume
has reduced. What seems normal may, in fact, be harmful. To
guard against this before hearing adapts, set the volume at a low
level and slowly increase the volume level until sound can be
heard comfortably and clearly without distortion. Damage to
hearing is accumulative and is irreversible. Ringing or discomfort
in the ears indicates that the volume is too loud. Once a
comfortable listening level has been established, do not increase
the volume level further.

Cautions

• If you experience a ringing sound in your ear, lower the
volume or discontinue the use of this product.

• Although this product allows hands-free operation, talking on
the phone while driving can be distracting. Do not play the
speaker at high volume as warning signals such as a car
horn may not be heard, resulting in an accident. Avoid
emotionally-charged phone conversations and pay close
attention to traffic signals and signs as well as other vehicles
on the road.

- 5 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

…

…

…

…

…

…

…

…

…

…

…

…

…

…

…

…

…

TABLE OF CONTENTS

GETTING STARTED

Introduction. …..………..……………………………………
What’s Included in the Package…………………………..… 8

What is Bluetooth wireless technology? ............................. 8

Location of Controls…………………………………………
Reading the LCD Screen… …………………………………
Charging the Speaker Phone Unit…………………………
Turning on the Speaker Phone……………………………… 11
Pairing the Speaker Phone…………………………………

7

9
10
11

12

OPERATING INSTRUCTIONS

Menu Mode…………………………………………………….13
Setting the Ring Tone………………………………………
Storing Numbers in the Phone Book………………………

Downloading the Phone Book…………………………........ 15

Storing Numbers in the Hotline……………………………
Deleting Numbers from the Hotline………………………… 17

13
14

17

Closing the Menu Mode……………………………………
Making a Call…………………………………………………
Receiving a Call………………………………………………
Adjusting a Volume…………………………………………
Muting the Microphone………………………………………. 20
Ending / Rejecting a Call……………………………………
Transferring a Call……………………………….…………… 20
Call Waiting………………………………………..…………
Turning off the Speaker Phone……………………………

TROUBLESHOOTING GUIDE

Questions and answers about the product………………

SPECIFICATIONS

Technical information about the product…………………

17
18
19
19

20

20
20

21

22

- 6 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

GETTING STARTED

Auto Speaker Phone with Bluetooth Wireless
Technology

Thank you for purchasing the i322 from iLuv. This speaker
phone has been designed for mobile phone connection using
Bluetooth wireless technology. Please keep this manual in a
safe place for future reference.

• Digital Signal Processor (DSP)

• Answer mobile phone calls hands free

• Phonebook function

• Caller ID display

• Hotline function

• Adjustable LCD

• Supports the headset (HSP), hands-free (HFP), and object

push profiles

• Standby time up to 200 hours

• Continuous talking time up to 8 hours

• Communication range up to 33ft

• Compliant with Bluetooth wireless technology V2.0

- 7 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

GETTING STARTED

What’s included in the package?

• Speaker Phone unit

• Clamp

• Car Charger

• Instruction

manual

• Warranty card

What is Bluetooth wireless technology?

Bluetooth wireless technology is a short-range wireless
communication technology intended to replace the cables
connecting electronic devices while maintaining the high level of
security. With Bluetooth wireless technology, two devices can be
connected at the same time without the need to face each other
or the concern of interference from other wireless communication
within its optimum range of 33 feet.

Through a process called “Pairing,” two or more devices with
Bluetooth wireless technology can interact with each other
without interference from other wireless platforms nearby,
including other Bluetooth wireless communications between
unrelated devices.

- 8 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

GETTING STARTED

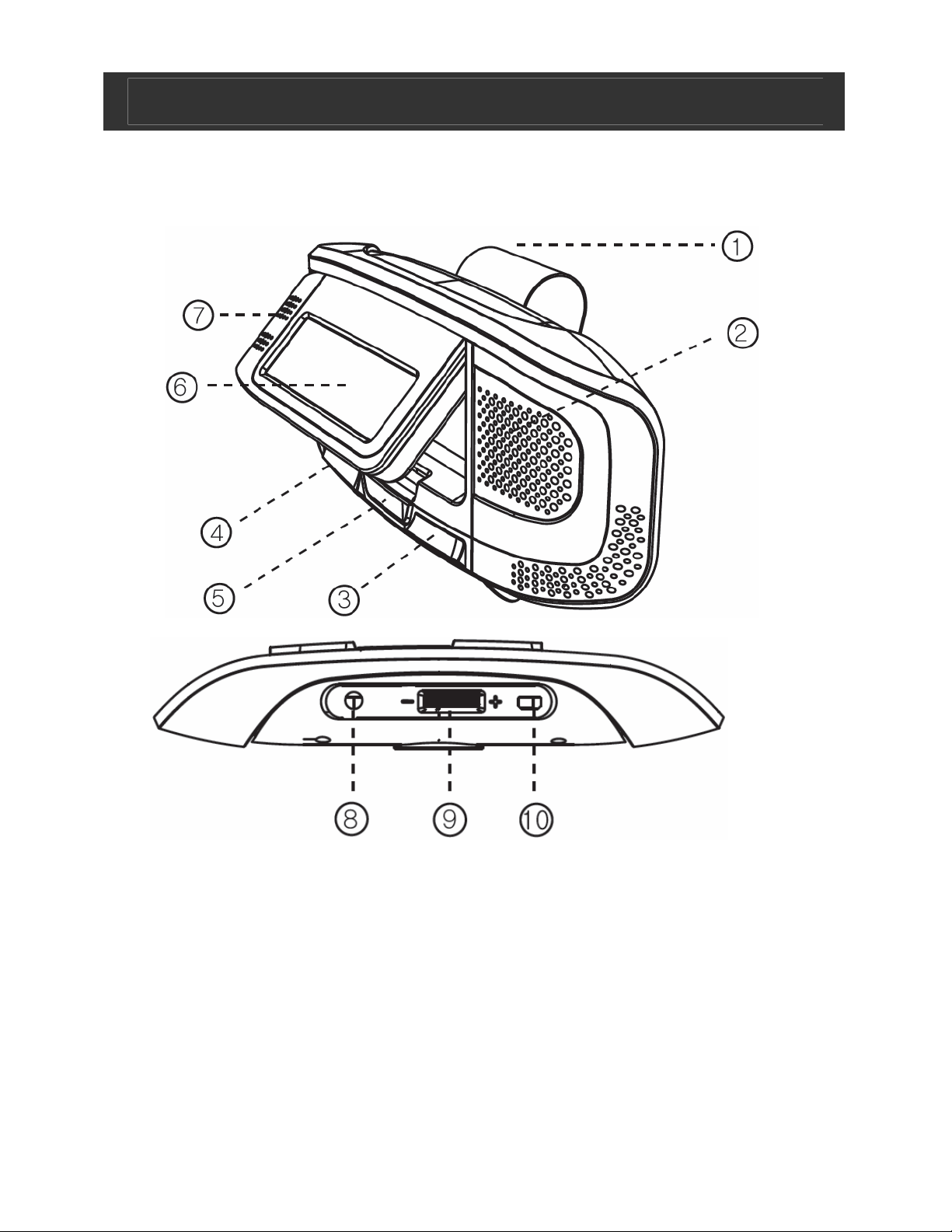

LOCATION OF CONTROLS

Front view

Bottom view

1. Clamp 2. Speaker

3. TALK button 4. END button

5. HOTLINE button 6. LCD display

7. Microphone 8. Earphone jack

9. JOG button 10. Mini USB Charging Port

- 9 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

GETTING STARTED

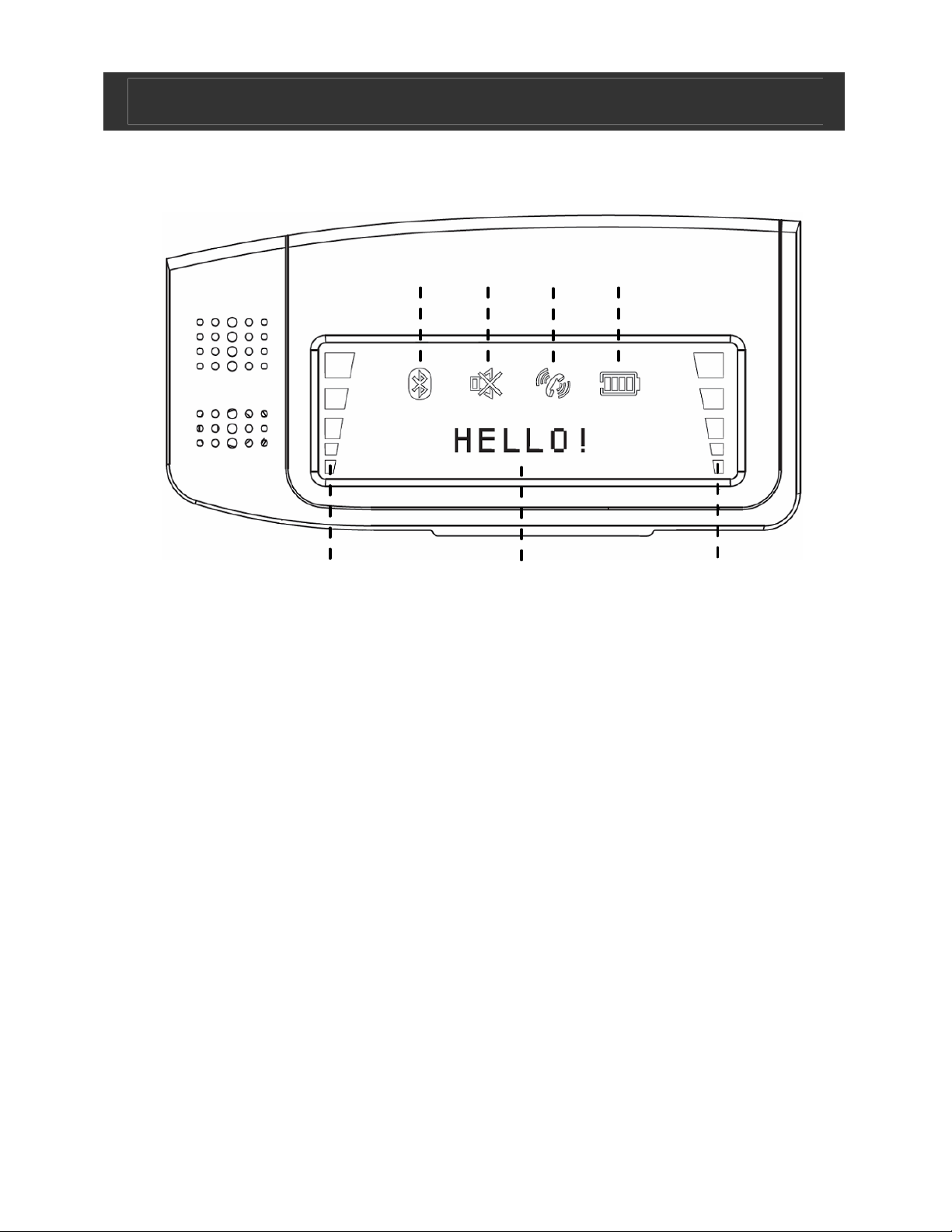

Reading the LCD Screen

1

1. Bluetooth Indicator 2. MIC Mute Indicator

3. Call Activation Indicator 4. Battery Status Indicator

5

2

6

3

4

7

5. Received Signal Strength Indicator (RSSI)

6. Status Display 7. Volume Level Indicator

- 10 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

GETTING STARTED

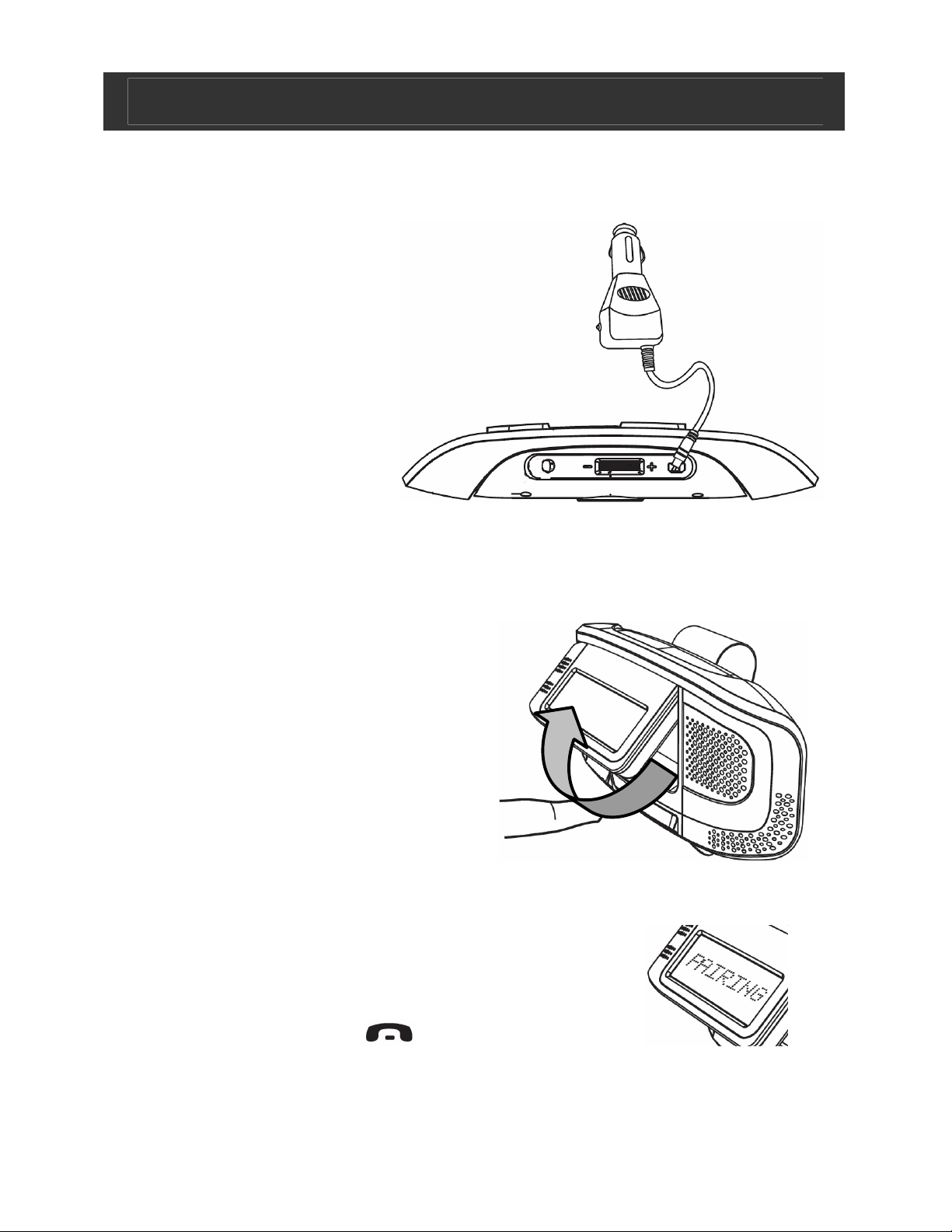

Charging the Speaker Phone Unit

Fully charge the
speaker phone unit
by connecting the car
charger to the mini­USB port on the
bottom right side of
the i322.

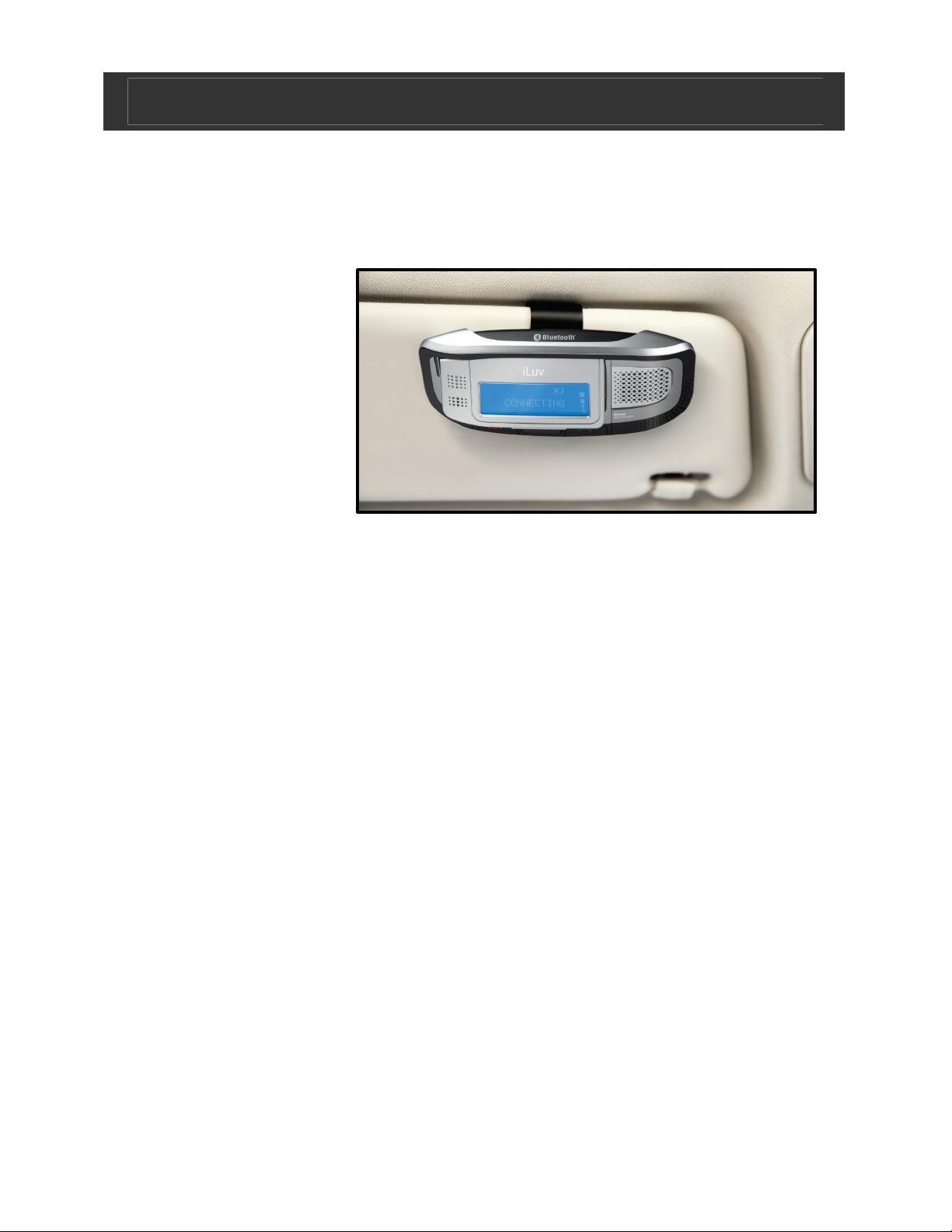

Turning on the Speaker Phone

The LCD screen is on a hinge allowing it to fold in and out.

1. Fold out the LCD display
screen to turn the unit on.

2. The i322 will automatically
enter Pairing mode when
turned on and will remain in
Pairing mode for 60
seconds.

3. To Pair the unit with a
mobile phone, follow the instructions for “Pairing the
Speaker Phone” in this manual.

4. To turn off Pairing mode (to Pair later or
if phone has already paired), either wait
60 for Pairing mode to end automatically,
or push the END (

) button once.

- 11 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

GETTING STARTED

Pairing the Speaker Phone

The i322 will enter Pairing mode immediately after the unit is
turned on and will remain in Pairing mode for 60 seconds.

1. If the 60 second period when the i322 is automatically in
Pairing mode or if the Pairing mode manually ended, press
and hold the END (
enter (re-enter) the Pairing mode.

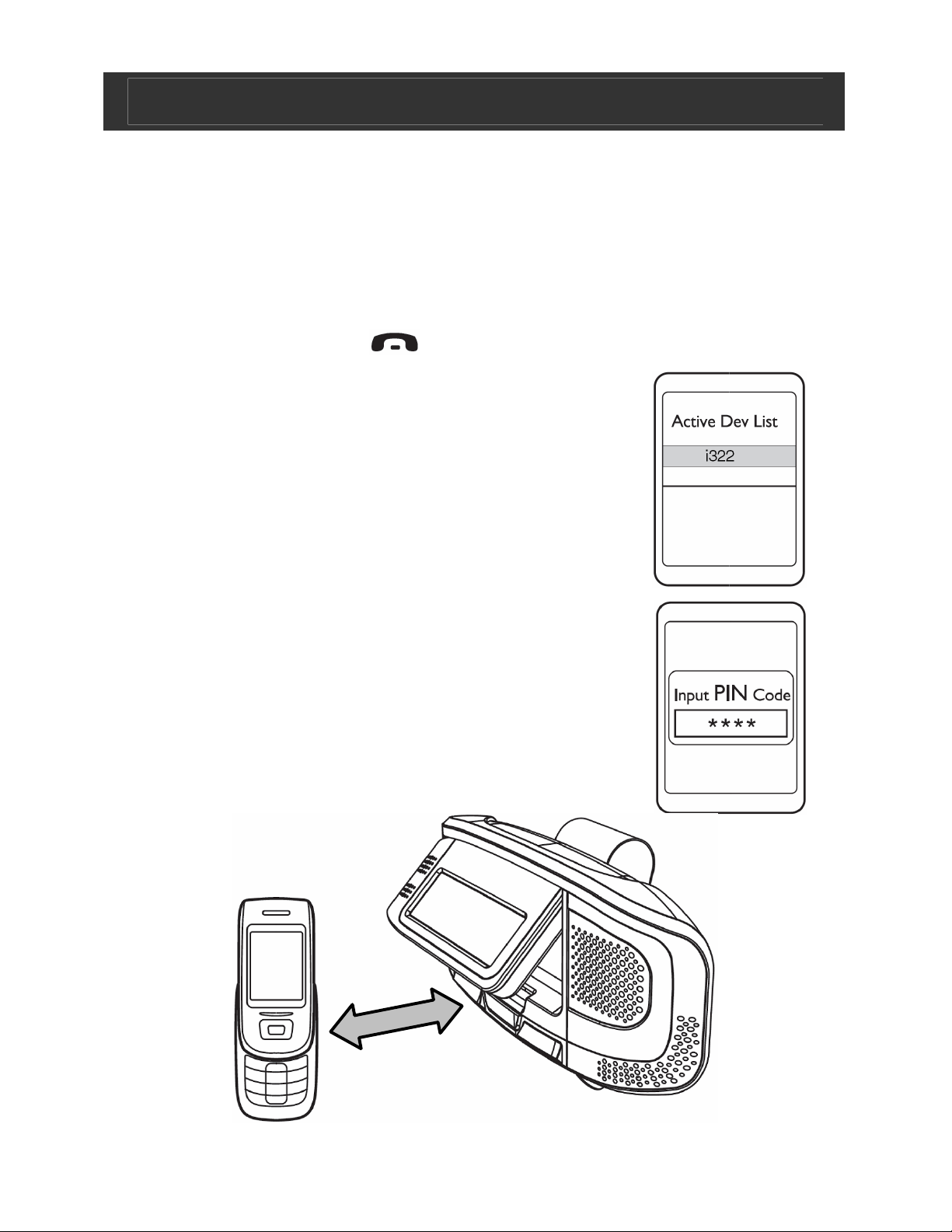

2. If your mobile phone is equipped with
Bluetooth wireless technology, follow the
directions on your mobile phone to set it
to SEARCH mode.

3. Your phone will find the i322 and will
identify it on the LCD screen. To confirm,
press YES or OK.

4. When asked for a PIN code or number,
enter “0000,” (four zeros) and press YES
or OK to confirm.

5. Your mobile phone is now successfully
paired with i322.

) button for three (3) seconds to

- 12 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATIONAL INSTRUCTIONS

Menu Mode

Please ensure that
the unit is unpaired
while using the
MENU MODE.

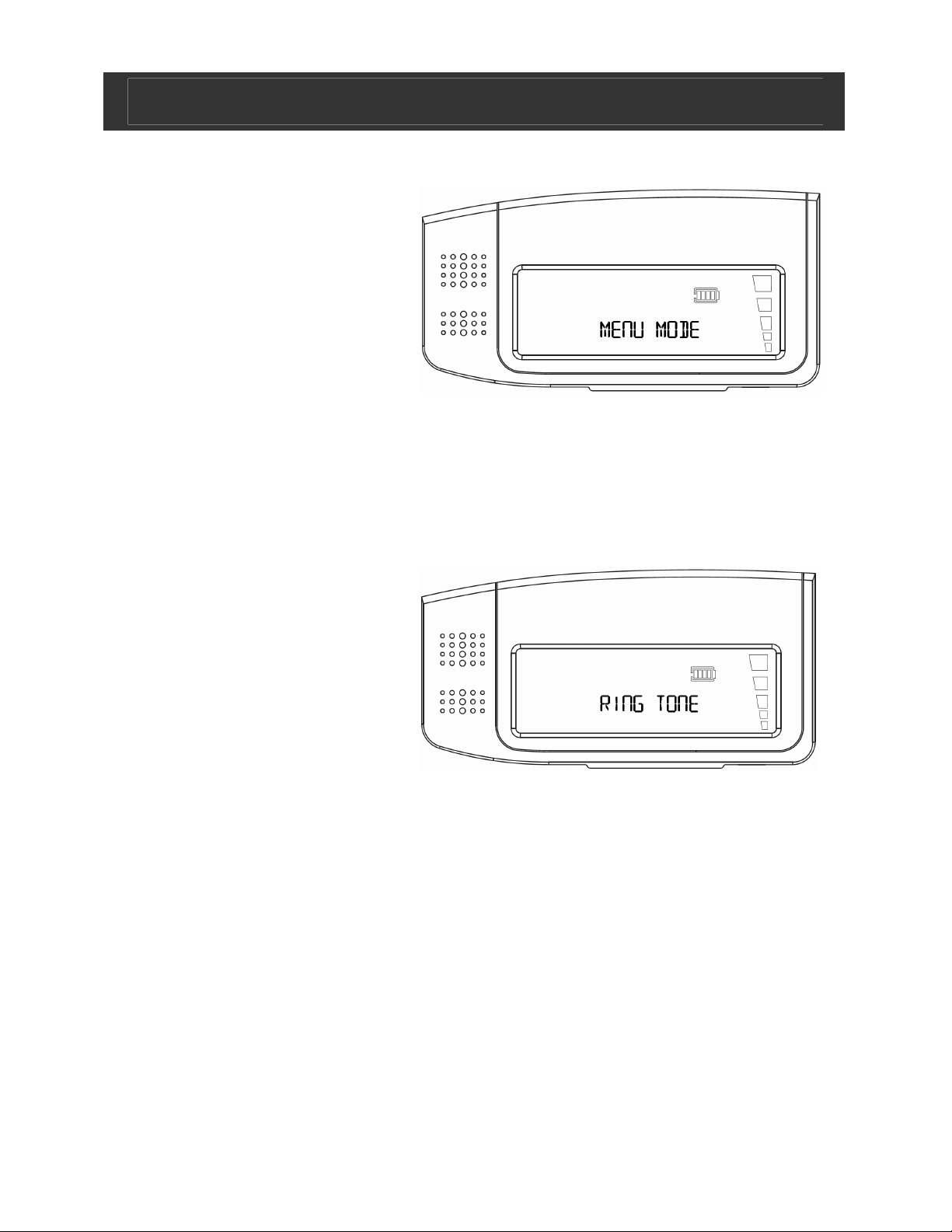

1. Press and hold the
JOG (+/-) button
until MENU MODE appears on the LCD screen.

2. Move the JOG (+/-) button left and right to find the desired
finction (RING TONE, PHONE BOOK, HOTLINE).

Setting the Ring Tone

1. In Menu mode,
move the JOG (+/-)
button left of right
until RING TONE
appears on the LCD
screen.

2. Press down the
JOG (+/-) center button to enter the Ring Tone menu.

3. There are three ring tones available (numbered 0-2). Ring
tone will sound with each move of the JOG (+/-) button.

4. Press and hold the JOG (+/-) center button for approximately
two (2) seconds to select and exit the Ring Tone menu.

- 13 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATIONAL INSTRUCTIONS

Storing Numbers in the Phone Book

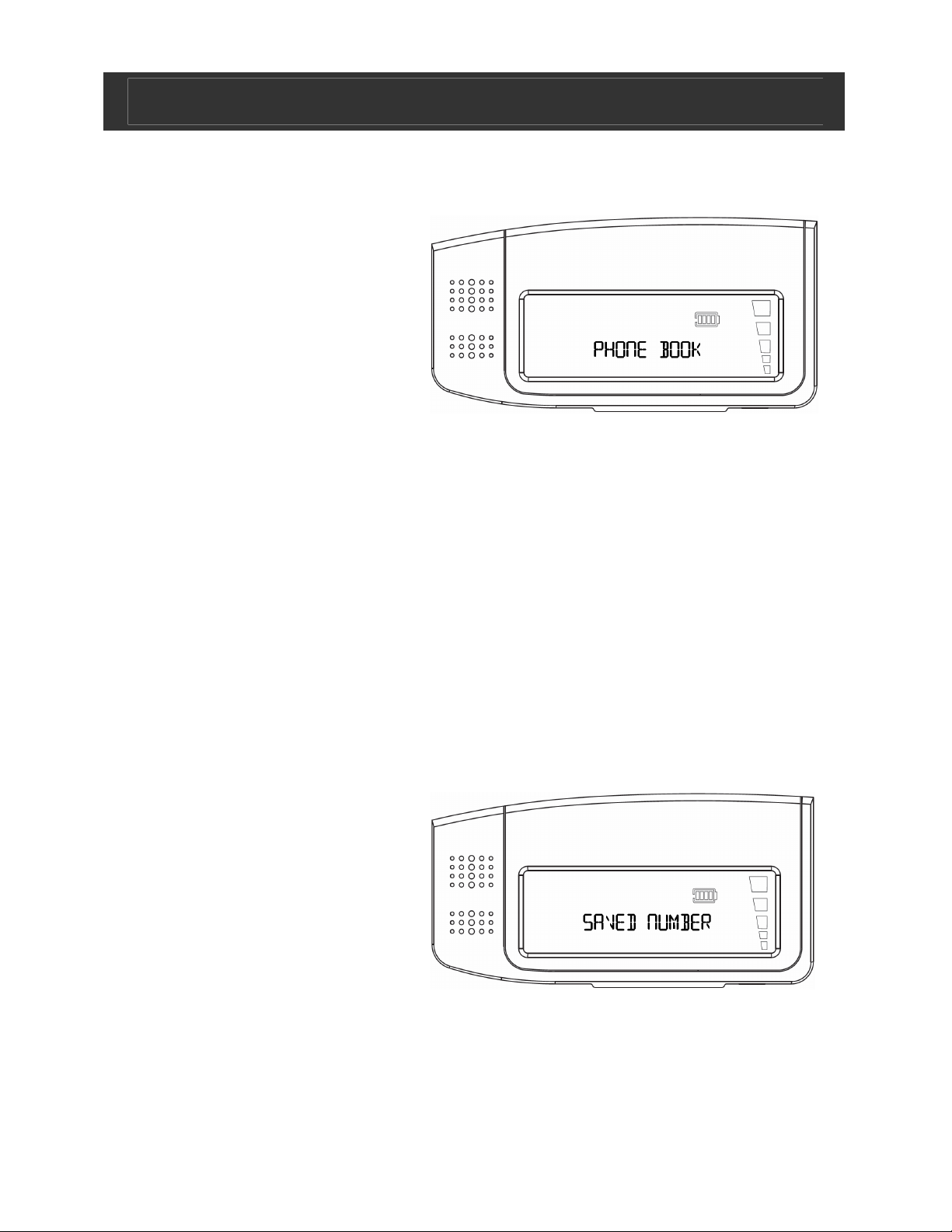

1. In the Menu Mode,
move the JOG (+/-)
button left or right
until PHONE BOOK
appears on the LCD
screen.

2. Once the Phone
Book is located, press down the JOG (+/-) center button.

3. INSERT NUM. will appear briefly on the LCD screen followed
by a blinking cursor.

4. Move the JOG (+/-) left of right to find the first digit of the
phone number you wish to enter.

5. Press down the JOG (+/-) center button to save the first digit.
A tone will sound and the cursor will advance to the second
digit.

6. Repeat this procedure for each digit.

7. When the complete phone number has been entered, press
and hold the JOG (+/-) center button. A tone will sound and
the words SAVED
NUMBER will
appear on the LCD
screen. Followed by
a blinking cursor.

8. Move the JOG (+/-)
left or right to choose
the letters of the name you wish to enter.

9. Save each letter the same way as digits are saved when
entering a phone number.

- 14 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATIONAL INSTRUCTIONS

Storing Numbers in the Phone Book-Cont.

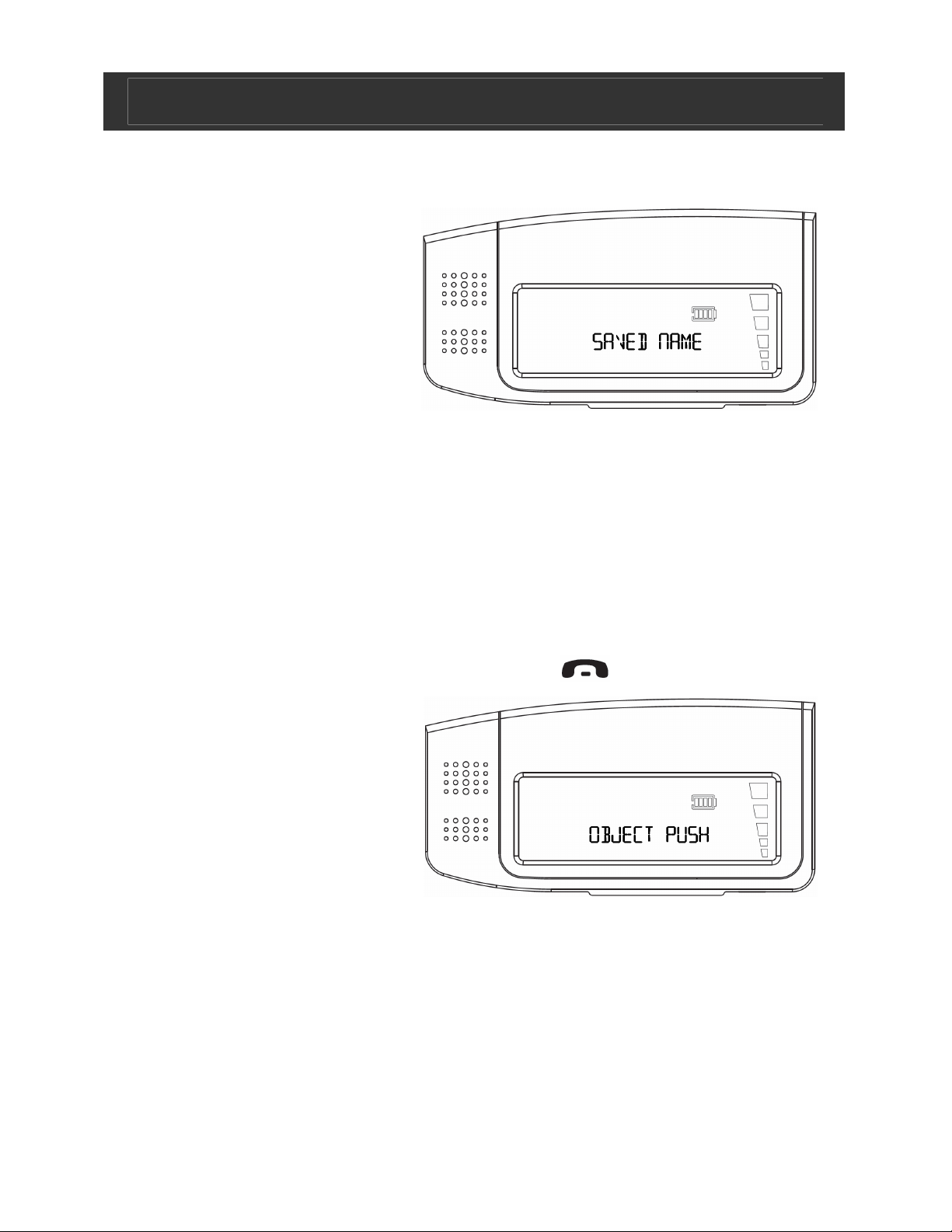

10. Once the name is

chosen, press and
hold the JOG (+/-)
until the words
SAVED NAME
appear briefly on
the LCD screen.

11. You will automatically exit the Phone Book menu once a

number and name have been saved.

Downloading to the Phone Book

If your mobile phone supports Object Push Profile, phone
numbers can be transferred from the mobile phone to the i322 by
following these instructions:

1. Open the LCD folder while the END (

2. The words OBJECT
PUSH will display
on the LCD screen.

3. While i322 is
unpaired with the
mobile phone, use
the mobile phones
instructions for sending numbers.

) button is pressed.

4. The PIN for i322 is “0000.”

- 15 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATING INSTRUCTIONS

Downloading to the Phone Book-Cont.

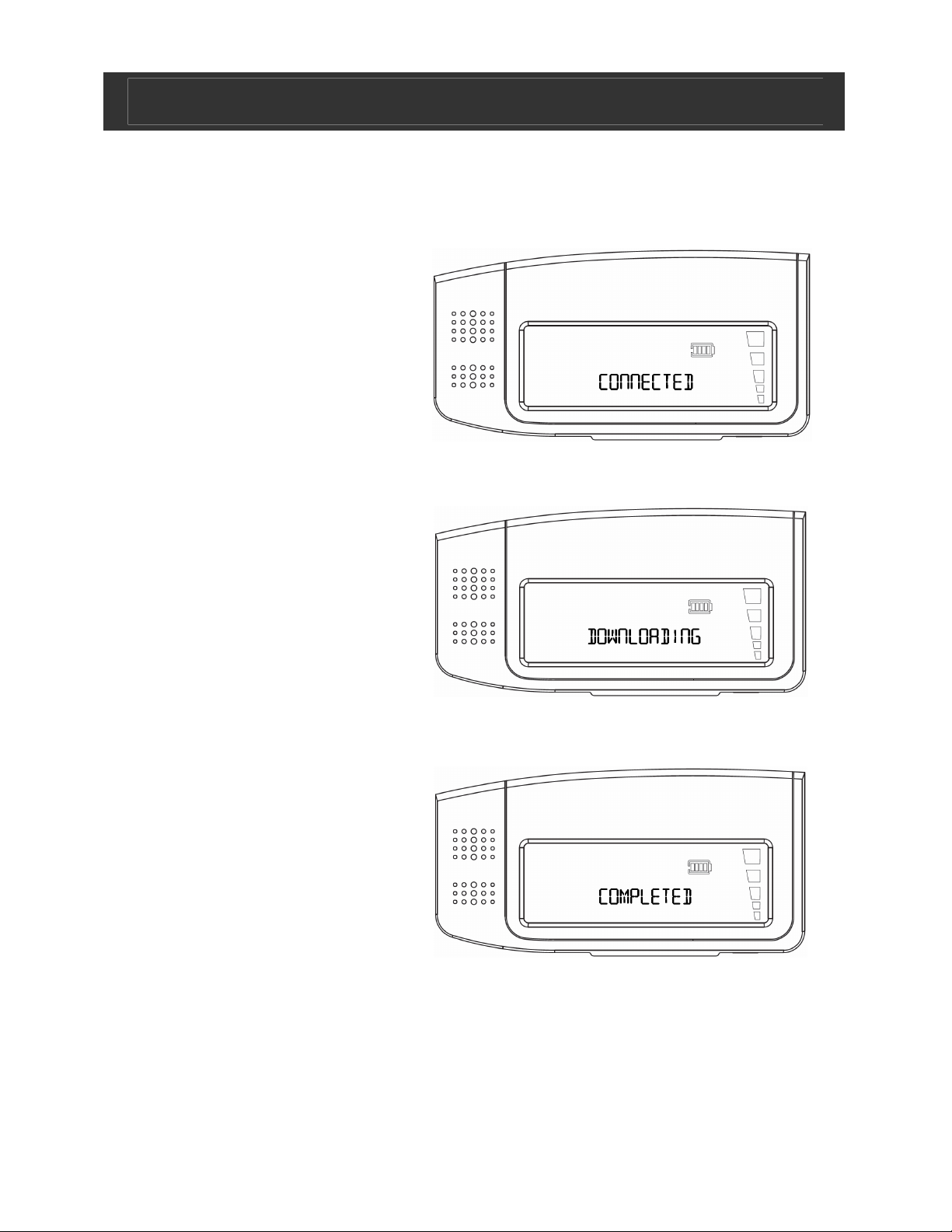

5. When the i322 has established connection with your mobile
phone, the word
CONNECTED will
appear on the LCD
screen.

6. The desired number will send automatically and the word
DOWNLOADING will
appear on the LCD
screen.

7. When the number has successfully transferred, the word
COMPLETED will
appear briefly on the
LCD screen, followed
by OBJECT PUSH.

8. After all desired numbers have been transferred, close the
LCD folder and follow the pairing instructions in this manual
under Pairing the Speaker Phone.

- 16 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATING INSTRUCTIONS

Storing Numbers in the Hotline

The Hotline function is for numbers to dial in case of an
emergency (close relative or friend).

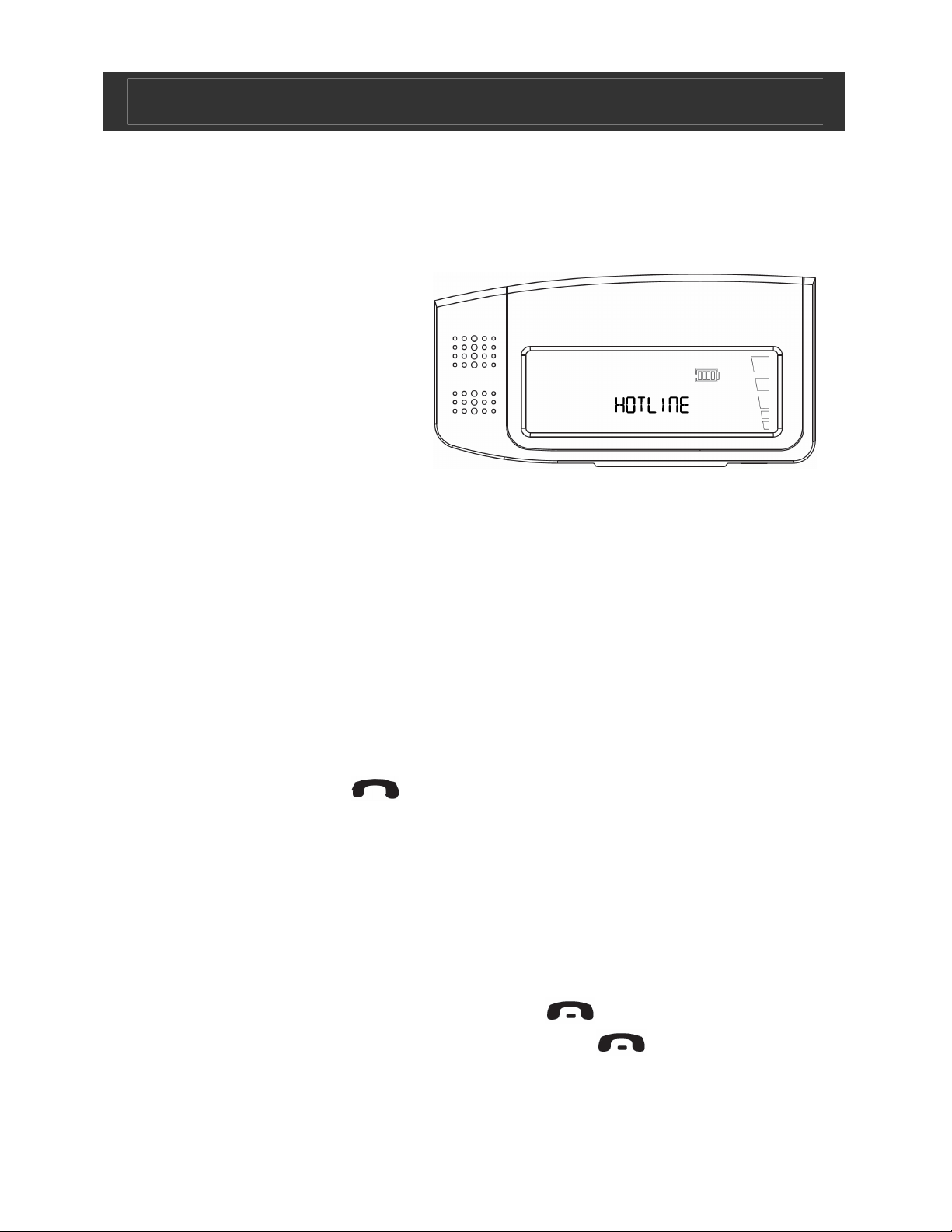

1. While in the Menu
mode, move the JOG
(+/-) left or right until
HOTLINE appears
on the LCD screen.

2. Follow the above
instructions for
Storing Numbers in the Phone Book.

3. The Hotline menu will close once all names and numbers
have been saved in the Hotline.

Deleting Numbers from the Hotline

1. Press the HOTLINE button for approximately three (3)

seconds

2. The stored number appears on the LCD screen and the

cursor will blink on the last digit.

3. Press the TALK (

4. Repeat this procedure for each digit.

5. To reset the Hotline number, follow the instructions on
Storing Numbers in the Hotline.

.

) button to delete the digit.

Closing the Menu Mode

1. To exit from each Menu mode item (RING TONE, PHONE
BOOK, HOTLINE), press the END (

2. To exit the Menu mode, press the END (

Note: When using the Menu Mode, the unit should unpaired.

- 17 -

) button.

) button again.

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATING INSTRUCTIONS

Making a Call

• There are four (4) ways to make a call using the i322: Last
Number Redial; Number Dial (from Phone Book); Voice
Recognition Dial; and Hotline Dial.

Note: If the paired Bluetooth phone moves beyond connection
range (33 ft.), the i322 must be turned off and turned on again to
re-establish the Bluetooth connection.

1. Last Number Redial

a. Press the TALK (

pairing with a mobile phone.

b. The most recently dialed number from the mobile phone

will be dialed out and displayed on the LCD screen.

2. Number Dial

a. Press the JOG (+/-) right button.

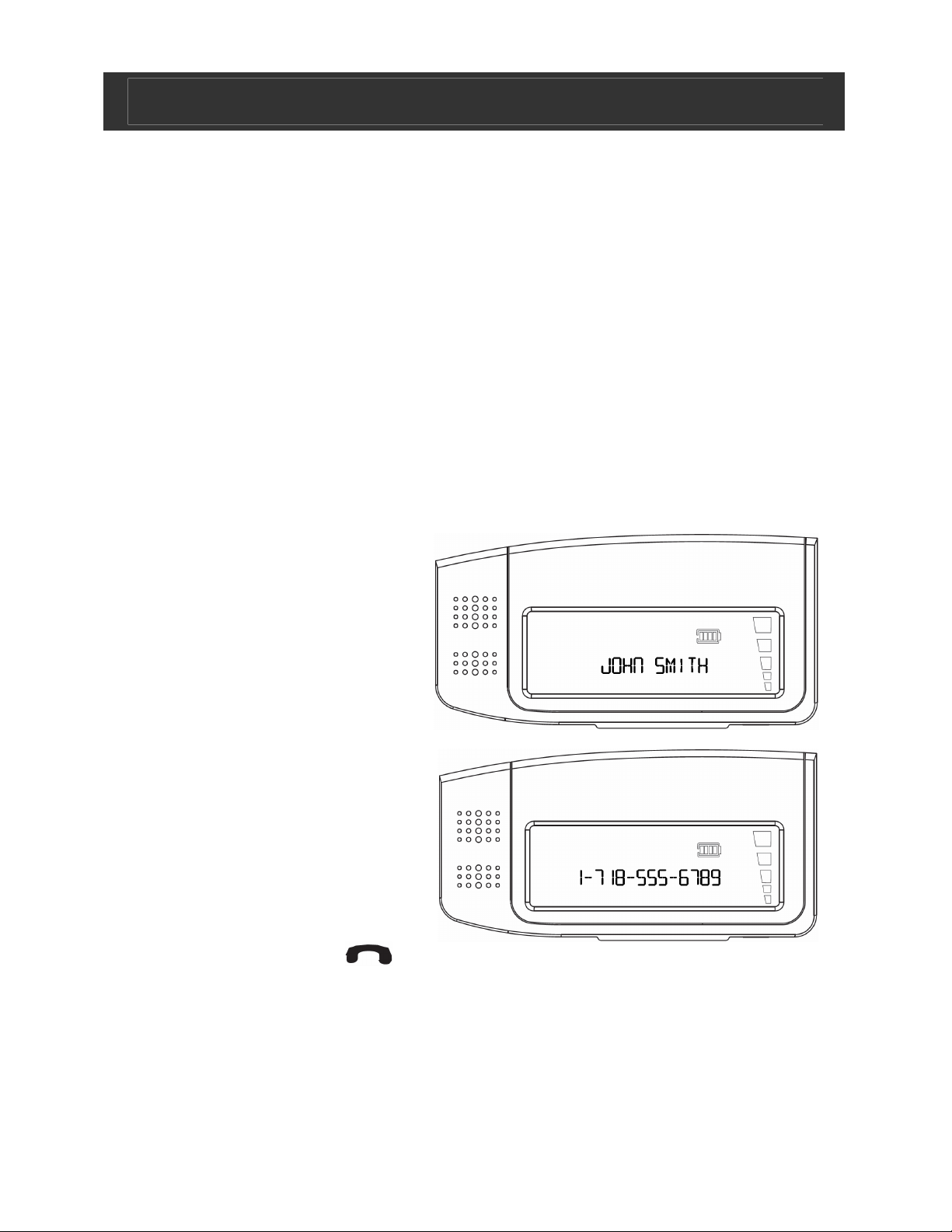

b. The last five (5) incoming calls can be displayed by sliding

the JOG (+/-) left and right buttons.

c. Numbers stored in the Phone Book can be displayed by

sliding the JOG (+/-) controller to the left.

d. When the desired phone number or name is displayed on

the LCD screen, press the TALK (
number.

) button once immediately after

) button to dial the

3. Voice Recognition Dial

a. Press the TALK (

seconds until there is a beep.
b. Speak the name of the person you wish to call.
c. The number of that person will be dialed.

) button for approximately three (3)

- 18 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATING INSTRUCTIONS

Making a Call-Cont.

Note: The Voice Recognition Function on your mobile phone

must be activated to use this function on the i322. See the
instruction manual for your mobile phone for information about
voice recognition capability and activation.

4. Hotline Dial

• Press the HOTLINE button once to dial the stored Hotline

number.

Receiving a Call

1. The unit will ring to indicate that a call is incoming.

2. If the caller’s
information has been
stored in the Phone
book, his/her name
will appear on the
LCD screen.

3. If the caller’s name
has not been stored
in the Phone Book,
the telephone number
will appear on the
LCD screen.

4. Push the TALK (

) button to answer the call.

Adjusting a Volume

z When on an active call, move the JOG (+/-) left and right

buttons to adjust the volume level.

- 19 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

OPERATING INSTRUCTIONS

Muting the Microphone

1. When on an active call, press the JOG (+/-) center button,

the microphone will be muted and other part can not hear you.

2. To end the mute function, press JOG (+/-) center button one
time again.

Ending / Rejecting a Call

1. When on an active call, press the END ( ) button to end
the call.

2. When the unit rings to indicate an incoming call, press the
END (

) button to reject the call.

Transferring a Call

• During an active call, press the TALK ( ) button to
transfer the call from the unit to the mobile phone or from the
mobile phone to the unit.

Call Waiting

When another call comes in during an active call, it can be
answered by following these instructions:

1. Press the left JOG (+/-) button for two (2) seconds until you
hear a beep. This will accept the incoming call and release
the current call.

2. Press the right JOG (+/-) button for two (2) seconds until you
hear a beep. This will accept the incoming call and place the
active call on hold.

3. Press the right JOG (+/-) button to return to the call on hold.

Turning off the Speaker Phone

To turn off the Speaker Phone, simply close the LCD folder.

- 20 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

TROUBLESHOOTING GUIDE

1. The Speaker Phone does not work with my mobile phone.

Be certain that your mobile phone is equipped with Bluetooth
wireless technology. This speaker phone will only work with
such mobile phones.

2. There is interference on the speaker phone.

The maximum distance for Bluetooth wireless communication
is 33 feet (10 meters). When this distance is approached,
background noise will increase. Also, a poor signal on the
mobile phone may contribute to degradation the quality of
sound as well.

3. There is no sound.

Ensure that the mobile phone is turned on and set up
correctly. Be certain that the volume is turned up on the
device.

4. Phone numbers do not transfer from mobile phone to the
Phone Book on i322.

The i322 has Object Push Profile (OPP) to facilitate such
transfer, and any connected mobile phone must support OPP
in order to transfer numbers between devices.

- 21 -

www.i-Luv.com

Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007

SPECIFICATIONS

• Bluetooth spec. v2.0 compliant

• Headset, Hands-free, Object Push Profiles supported

• Bluetooth Class ll

• Typically 8 hrs Talk Time

• Typically 200 hrs Stand-by Time

• Rechargeable Lithium Polymer Battery

- 22 -

www.i-Luv.com

TEL: [phone]
FAX: [phone]

website: www.i-Luv.com

iLuv is a trademark of jWIN Electronics Corp. Features and specifications are
subject to change without prior notification. iPod is a trademark of Apple
Computer, Inc. The Bluetooth word mark and logos are owned by Bluetooth
SIG, Inc. and any use of such marks by jWIN Electronics Corp. is under
license. Mobile phone not included in this package.

© 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed
material or product enclosed herewith including design, shape and graphics,
may be reproduced or transmitted in any form without the expressed written
consent of jWIN Electronics Corp. by any means, electronic or mechanical,
including photocopying, recording or the use of an information storage and
retrieval system. Any unauthorized distribution or reproduction of this printed
material or product, or any portion thereof, will be prosecuted to the fullest
possible extent of the law.

Printed in China
