Iluv i199 User Manual
Stereo Audio System for Your iPod®
Instruction Manual
Model: i199
Please read this manual carefully before operating and save it for future reference.
Have a question? Please visit www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
- 1 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
USER SAFETY GUIDE
INSTRUCTIONS ON ENVIRONMENT PROTECTION
Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of
electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods
for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling, or other forms of re-utilization of old
appliances, you make an important contribution to protect the environment. Please inquire at your local community administration for the
authorized disposal location.
FCC RULES
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.
Do not make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
IMPORTANT SAFETY WARNINGS
1. Before using the player, please ensure that your local AC voltage is suitable for this unit.
2. To prevent fire or electric shock, do not expose the unit to rain or moisture.
3. Never attempt to open the cabinet. Always refer servicing to a qualified technician.
IMPORTANT SAFETY INSTRUCTIONS
1. READ INSTRUCTIONS – All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS – The safety and operating instructions should be retained in a secure place for future reference.
3. HEED WARNINGS – All warnings on the appliance and in the operating instructions should be observed.
4. FOLLOW INSTRUCTIONS – All operating and use instructions should be followed.
5. WATER AND MOISTURE – The appliance should not be used near water. For example: near a bathtub, kitchen sink, laundry tub, and/or swimming
pool.
6. HEAT – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers)
that produce heat.
- 2 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
USER SAFETY GUIDE
IMPORTANT SAFETY INSTRUCTIONS – CONTINUED
7. POWER SOURCES – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on
the appliance itself.
8. CLEANING – The appliance should be cleaned with a dry cloth.
9. OBJECT AND LIQUID ENTRY – Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings.
10. CARTS AND STANDS – The appliance should be used only with a cart or stand that is recommended by the manufacturer. An
appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
11. DAMAGE REQUIRING SERVICE – The appliance should be serviced by qualified service professional when:
12. SERVICING – The user should not attempt to service the appliance beyond what is described in the user's operating instructions. All other servicing
13. BATTERY USAGE – To prevent battery leakage, which may result in bodily injury, property damage or damage to the unit, follow these instructions:
14. LEAD AND MERCURY – This product may contain lead and/or mercury. Disposal of these materials may be regulated by your local authorities due to
a. The power supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance’s apertures.
c. The appliance has been exposed to rain.
d. The appliance has been dropped and suffered damage.
e. The appliance does not appear to operate normally or exhibits a change in performance.
should be referred to qualified service professional.
a. Install all batteries correctly according to the polarity (+/-) as marked on the unit.
b. Do not mix old and new batteries, carbon and alkaline, etc.
c. Remove batteries from the unit when the device will not be used for an extended period of time.
environmental considerations. For more detailed disposal or recycling information, please contact your local authorities or the EIA (Electronic Industries
Alliance) – http://www.eiae.org
- 3 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
USER SAFETY GUIDE
FCC NOTICE (USA)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
IC NOTICE (CANADA)
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of
Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television operation (which can be determined by turning the equipment off), the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
- 4 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
USER SAFETY GUIDE
About Electromagnetic Interference (EMI)
This device is designed and manufactured not to exceed the exposure limit for radio frequency energy, which is set by the Federal Communications
Commission of the U.S government.
The term “EMI” is short for the electromagnetic interference caused by the electromagnetic field generated by electronic devices. In fact, most electrical
appliances and devices emit electric and magnetic fields, and most of modern electronic devices are susceptible to the EMI if they are inadequately shielded
or designed.
• If you use any personal medical device, such as a pacemaker, please consult the manufacture of your medical device to determine if it is adequately
shielded from EMI. Your physician might assist you in obtaining this information.
• Please turn off this device if you are instructed to do so, especially on an airplane or in a hospital.
• Please keep away from medical instruments in a hospital or medical unit while using this device.
IMPORTANT NOTES ON HEARING
Your hearing is very important to you and to us. We strongly recommend you to follow the guideline below in order to prevent possible damage to or loss of
hearing. Hearing experts caution that listening to loud sounds can damage hearing over time. With continuous listening to loud sounds, hearing adapts and
will give the impression that volume has reduced. What seems normal may, in fact, be harmful. To guard against this before hearing adapts, set the volume
at a low level and slowly increase the volume level until sound can be heard comfortably and clearly without distortion. Damage to hearing is cumulative and
irreversible. Ringing or discomfort in the ears indicates that the volume is too loud. Once a comfortable listening level has been established, do not increase
the volume level further.
Cautions
• If you experience a ringing sound in your ear, lower the volume or discontinue the use of this product.
• Do not use the headphones while driving or cycling. Because this product reduces the external noises, you might not be able to hear the warning sounds,
such as an automobile horn, and might result in a traffic accident. Additionally, listening to headphones while driving is illegal in many places
Warning: to prevent fire or shock hazard, don’t expose this appliance to rain or moisture.
These markings are located on the bottom, side or back of the unit.
- 5 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
- 6 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
TABLE OF CONTENTS
Getting Started
General features ……………………………………………………………………………………………………………………………………………...… 8
Installing the AC Power …………….……………………………………………………………..…………………………………………………………… 9
Installing the backup battery for clock and alarm settings ………………..……………………….………………………………………………………. 9
Installing the remote control battery ….....………………………………………………………………………………………………………….………… 11
Installing the AM loop antenna ………………………………………………………………………………………………………………………….…….. 11
Installing the dock adapter …………………………………………………………………………………………………………………………………….. 11
Location of controls on the main unit ……………………………………………………………………………………………………………….…...…… 12
Location of controls on the remote control …………………………………………………………………………………………………………………... 13

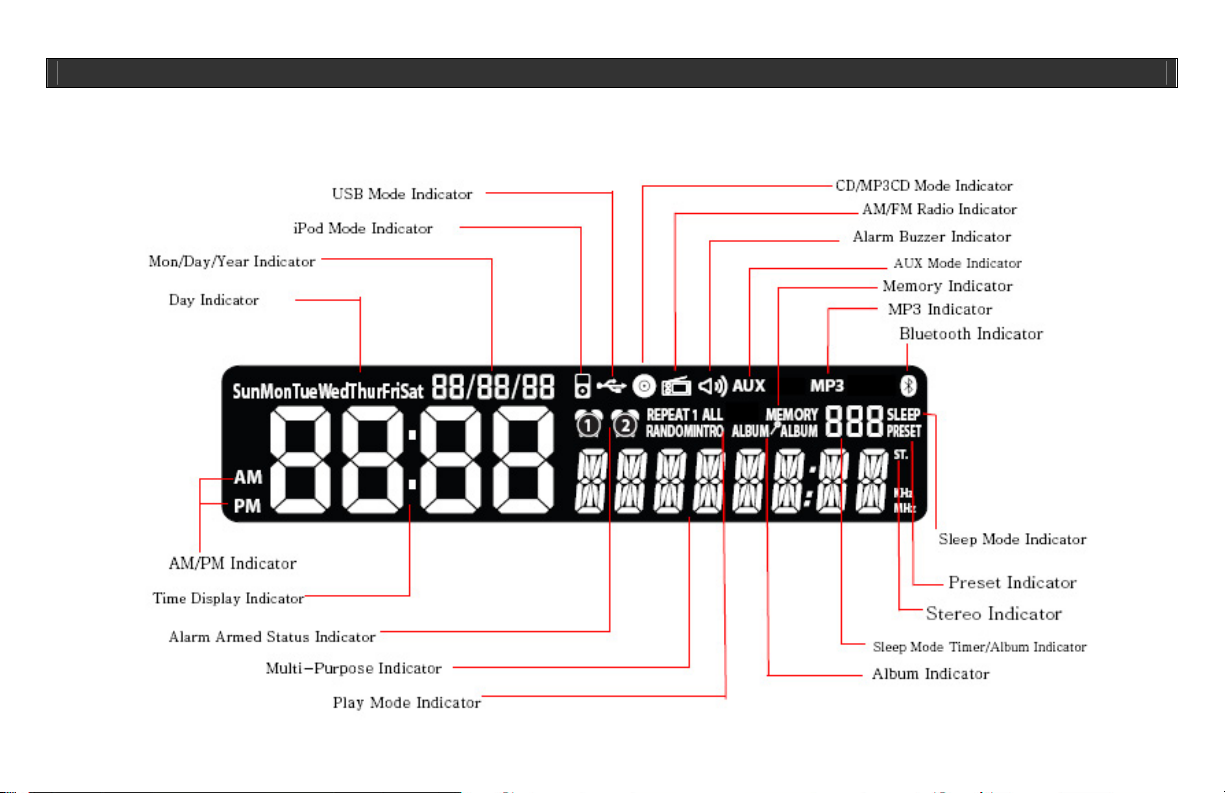

Location of indications on the LCD screen …...……………………………………………………………………………………………………………... 14
Operational Instructions
Setting the clock …….....……………………………………………………………………….………………………………………………………………. 15
Setting the alarm ………..………….………………………………………………………………………………………………………………….……..… 15
Using the alarm function ……..………………………………………………………………………………………………………………………………... 15
Adjusting the brightness of the LCD screen………………………………………………………………………………………………………………….. 16
Setting the sleep time ……………………….…………………………………………………………………………………………………………………. 17
Listening to your favorite radio stations …….………………………………………………………………………………………………………………... 17
Listening to your favorite songs on your iPod ..…….……………………………………………………………………………………………………….. 18
Listening to CDs/MP3-CDs…………………………………………………………………………………………………………………………………….. 19
Listening to your favorite music on a USB storage device…………………………………………………………………………………………………. 22
Using the AV out port to watch videos from your iPod on an external monitor or TV …….…………………………………………………………….. 22
Listening to other audio devices using the line-out port……………………………………………………………………………………………………. 24
Charging your iPod …………………………………………………………………………………………………………………………………………….. 24
BluePin Setup and operating Instructions ………………………………………………………………………………………………………..………….. 25
Maintenance & Troubleshooting Guide ……………………………………………………………………………………………………………..………….. 30
Specifications ……………………………………………………………………………………………………………………………………………………….. 33
- 7 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
GETTING STARTED
Congratulations on your purchase of the new iLuv i199 for your iPod. Uniquely designed to work with your iPod, this iLuv stereo audio system with built-in
universal dock provides advanced audio and radio performance that brings out the best in your music. Remember to keep this manual for future reference.
Maximize Your Enjoyment of the Music on Your iPod with the iLuv Stereo Audio System
• Enjoy Wireless freedom with new BluePin
• Enhance the richness of your iPod sound with jAura
• Powerful built-in speakers allow you to hear music with depth and clarity
• Watch your favorite videos on your TV if your iPod has the video capability
• Digital clock display with dual alarm
• Fall asleep or wake up to your iPod, CD, USB device, AM/FM radio, or buzzer
• Charges your iPod
• Integrated universal dock for your iPod
• MP3 CD / Audio CD playback with ESP anti-shock system
• Capable of playing MP3 files on USB devices, such as MP3 player, flash memories, etc
• Auxiliary line input for 1
st
, 2nd and 3rd generations of the iPod and other audio devices
• AM/FM radio with PLL digital tuning technology
• External loop antenna provides better AM reception
• Liquid crystal display with white backlight
• Remote control included
What’s included?
• BluePin
Adapter
TM
• Stereo audio system
• Remote control (Battery included)
• Made for iPod with video (30GB, 60GB, 80GB), iPod nano (1
Note: All iPod shuffle or other device users have to use the Line-In feature of i199 to listen to music stored on these players.
adapter w/ Bluetooth Wireless Technology
TM
acoustic speaker technology
TM
• Dock adapters • AM loop antenna
• AV (3.5mm to RCA) cable
st
generation, 2nd generation), iPod mini, iPod 4G only.
- 8 -
• Instruction manual
• Warranty card
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
GETTING STARTED
IMPORTANT:
1. Occasionally, files on your iPod can become corrupted. This may cause an erratic behavior with your iLuv products. Apple Computer recommends that
you visit their website www.apple.com to obtain instructions on resetting or restoring your iPod to factory settings.
2. It is imperative that you use the correct dock adapter for your iPod and that the dock adapter fits appropriately into the built-in universal dock. Ignoring
these rules can cause severe damage to your iPod. Please refer to the section “Installing the Dock Adapter” to properly install the dock adapter before
operating the i199 with your iPod.
Using AC Power
Locate the AC power plug on the back of the unit. Insert the end of the supplied power cord into the wall outlet.
Installing the Backup Battery for Clock and Alarm Settings
In order to offer consistent clock settings and alarm functions, the i199 uses a Backup Battery system. This means that in the event of a power failure, all the
settings of the i199 will remain saved. For example, after the installation of the Backup Battery, the AC cord is disconnected or a power failure occurs, the
display will NOT remain lit, but the time and date settings will be temporarily maintained. The alarm, however, will not sound when the i199 is powered only
by the Backup Battery. To install Backup Battery, follow the instructions below:
1. Make sure the connection between the AC power supply and the unit is secure. This is important because during battery replacement it is possible for
all settings to be lost if the clock and alarm have already been set.
- 9 -
www.i-Luv.com
Stereo Audio System for Your iPod V11M11_IM_EN_01122007
GETTING STARTED
Installing the Backup Battery for Clock and Alarm Settings -Continued
2. Locate the battery compartment on the bottom of the unit and open.
3. Insert two (2) “AA” batteries, following the correct polarity (+/-) drawings inside the battery compartment. For longer battery life, alkaline batteries are
suggested. Please note that new and used batteries should not be mixed. Likewise, alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium)
batteries should not be used together.
4. Secure the battery compartment by closing the cover.
Important Notes on Batteries
To prevent battery leakage, which may result in bodily injury, property damage or damage to the unit, follow these instructions.
• Install all batteries correctly according to the polarity (+/-) as marked on the unit.
• Do not mix old and new batteries, carbon and alkaline, etc.
• Remove batteries from the unit when the device will not be used for an extended period of time.
Please dispose the used batteries properly according to your local government regulations.
- 10 -
www.i-Luv.com
Loading...
