USER’S GUIDE

V: 682-01

ISPB592

Bluetooth Speaker System for iPod + iPhone

For the most up-to-date version of this User’s Guide, go to

www.iLiveElectronics.com

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock,

do not expose this apparatus to rain or moisture.

• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein

specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit

not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting

may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from

any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING:The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine,

re, or the like.

• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of

sufcient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Customer Support: 1-888-999-4215

Important Safety Instructions

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.

When the provided plug does not t into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Use only with a cart, stand, tripod,

bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

• The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on

apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux

éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Battery shall not be exposed to excessive heat such as sunshine, re

or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la

lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or back of the apparatus.

Attention marquage est situé à l’arrière ou à l’arrière de l’appareil

• The marking information is located at the rear or back of apparatus.

Les informations de marquage est situé à l’arrière ou à l’arrière de

l’appareil.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

Bluetoooth Speaker System for iPod + iPhone

Features Included

• Made for iPod and iPhone

• Plays and charges docked iPod and

iPhone

• Supports prole A2DP (Advanced Audio Distribution Prole)

• Wireless range: 33 feet

• Rotating dock for iPod and iPhone

• iPod and iPhone authentication IC

• Composite video output

• 3.5mm audio input

• Digital volume control

• Built-in speakers

• Full-function remote

• Cloth speaker grill

• DC power input: requires an AC/DC

power adapter (included)

• Remote control: requires a CR2025 battery (pre-installed)

• Magnetic spacers

• 3.5mm audio cable

• AC/DC power adapter

Customer Support: 1-888-999-4215

Table of Contents

Bluetoooth Speaker System for iPod + iPhone ...................................... 4

Features Included

Table of Contents .................................................................. 5

Introduction ...................................................................... 6

Setup ............................................................................. 8

Power Remote

iPod and iPhone ................................................................... 9

Docking an iPod or iPhone Rotating Dock Playing a Docked iPod or iPhone

3.5mm Audio Input & Composite Video Output ....................................10

Using the 3.5mm Audio Input Using the Composite Video Output

Bluetooth ........................................................................ 11

Pairing a Bluetooth Device Playing Audio Wirelessly Using the Speakerphone

Company Information ............................................................12

International Support Contact Information Compatibility Warranty Green Initiative

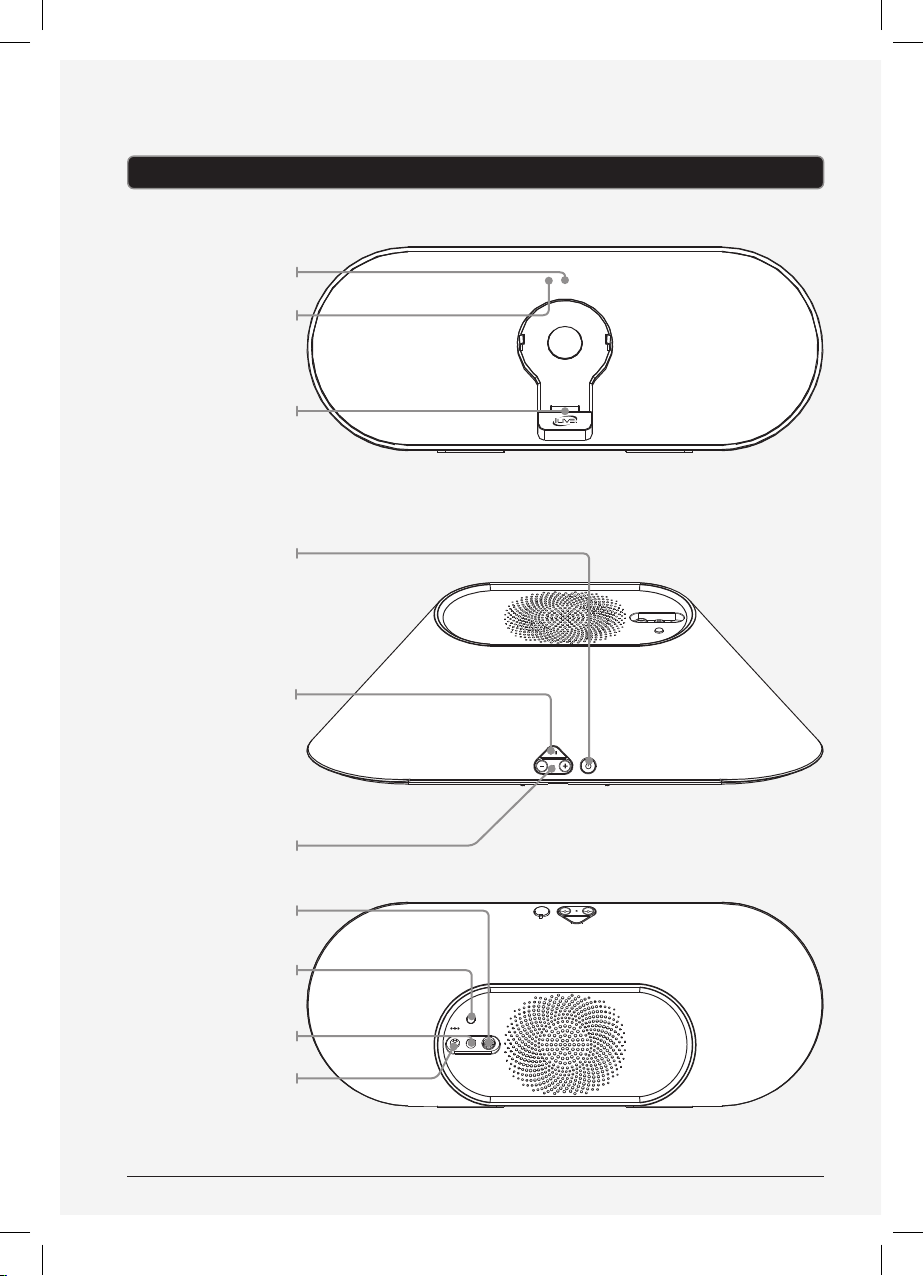

Introduction

Status Indicator

Pairing indicator

Dock for iPod + iPhone

Press to switch between

Power/Source

iPod and iPhone, Line In and Bluetooth mode. Press and hold

to turn the power o .

Talk/End/Play/Pause

Press to activate the speakerphone function and accept or end calls.

Press to play or pause

a docked iPod/iPhone

or a connected

Bluetooth device.

Volume

Press to adjust

the volume.

Composite

Video Output

Pair

Press to begin pairing

a Bluetooth device.

3.5mm Audio Input

DC Power Input

TALK/END

POWER/SOURCE

VOLUME

PAIR

DC IN LINE IN

VIDEO OUT

Customer Support: 1-888-999-4215

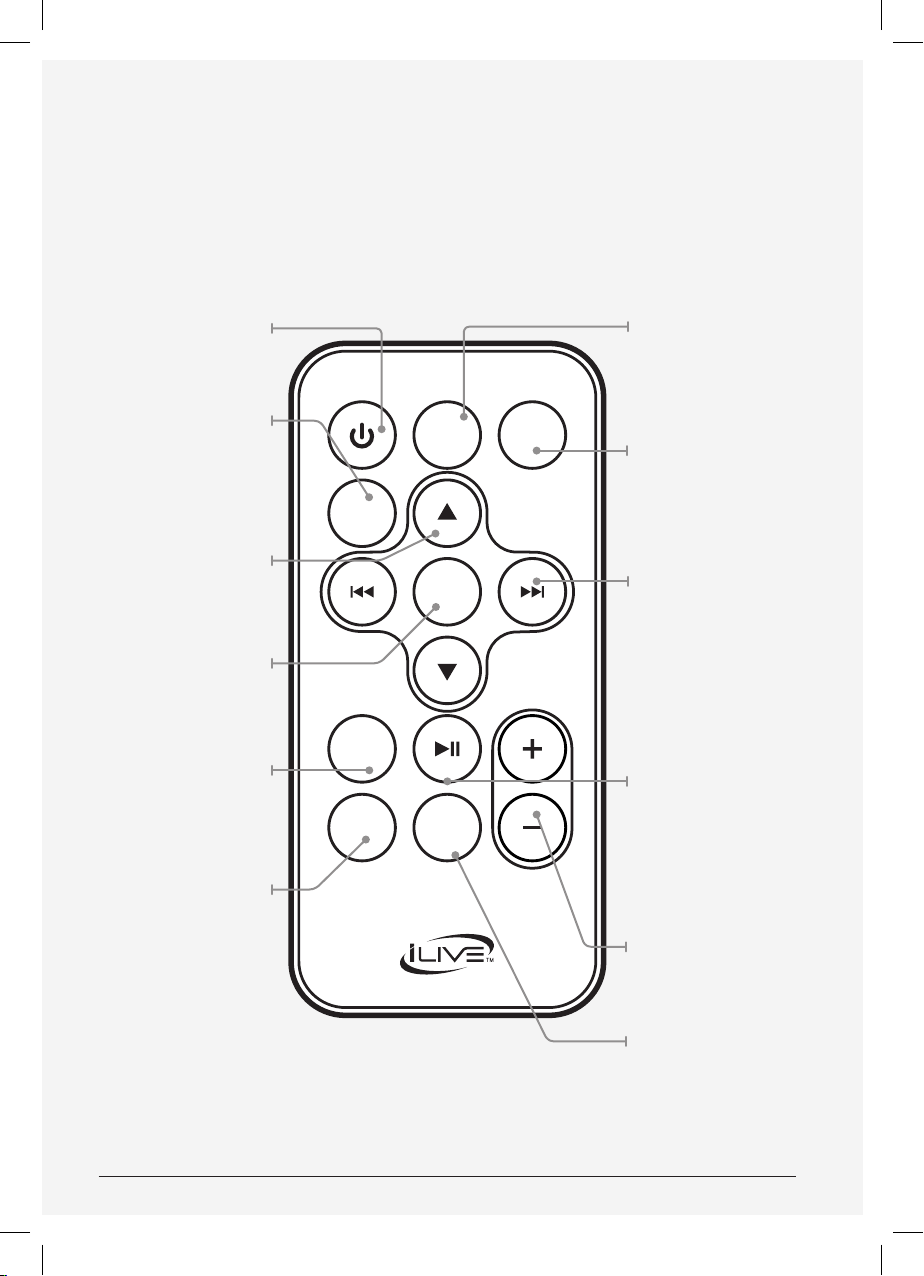

Power

Press to turn the

speaker o or on.

Press to move

through the menus

on a docked iPod

or iPhone.

Arrows (▲▼)

Press to navigate

menus on a docked

iPod or iPhone.

Enter

Press to select menu

items on a docked

iPod or iPhone.

Video

Press to switch to

Video out mode

and view video on a

connected television.

Repeat

Press to cycle

through repeat

options on a docked

iPod or iPhone.

POWER

ENTER

VIDEO

REPEAT SHUFFLE

Mute

Press to mute the volume of the speaker.

SOURCEMUTE

Source

Press to switch between iPod and iPhone, Line In and Bluetooth mode.

Skip/Search

Press to skip between tracks. Press and hold to search through an individual track (applies to docked

VOL

iPod/iPhone only).

Play/Pause

Press to play or pause a docked iPod/iPhone or a connected Bluetooth device.

Volume

Press to adjust the volume.

Shue

Press to cycle through shue options on a docked iPod or iPhone.

Setup

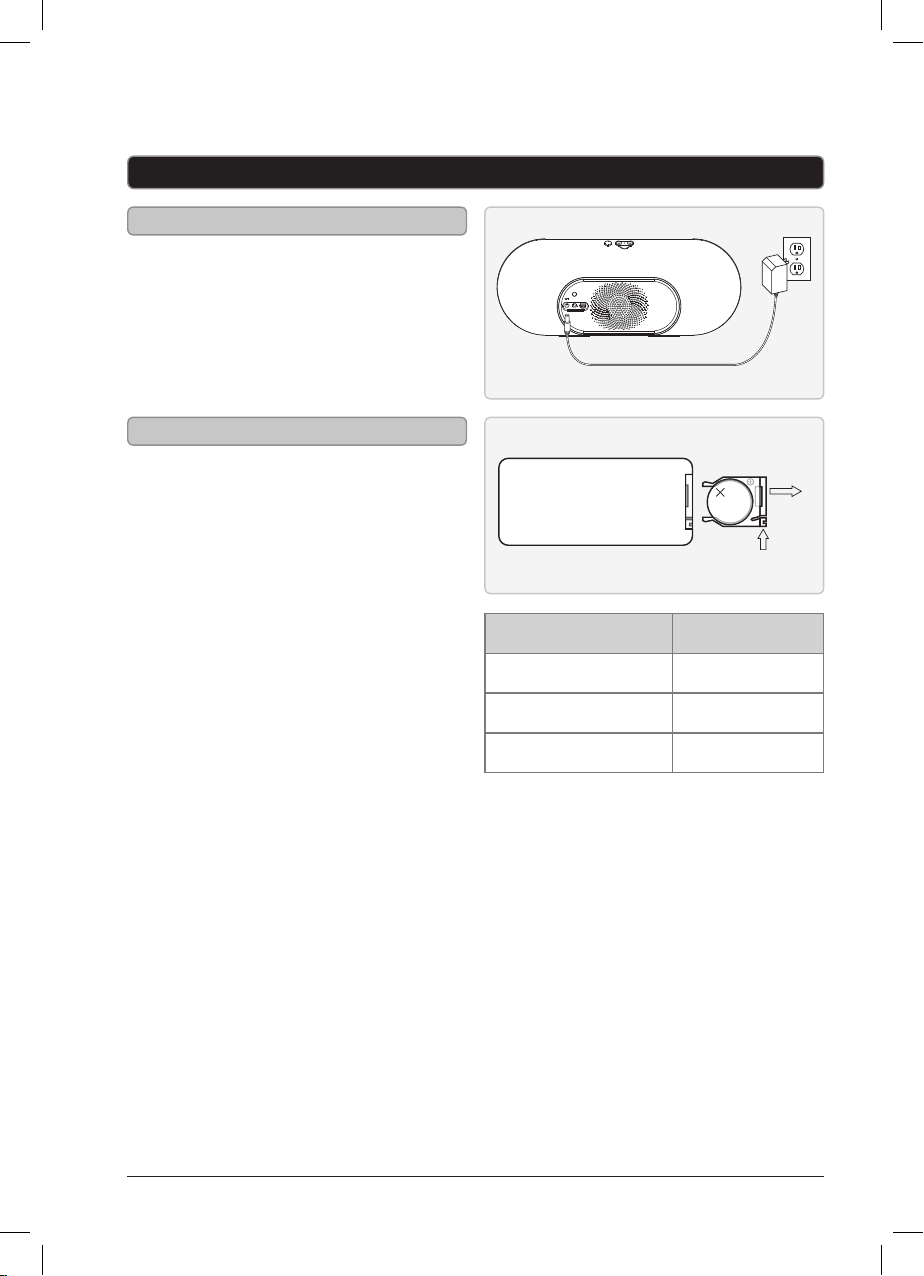

Power

DC power input: requires an AC/DC power adapter (included)

Remote

Remote control: requires a CR2025 battery (pre-installed)

PAIR

DC IN LINE IN

VIDEO OUT

CR2025

CR 2025

LITHIUM BATTERY

Status Indicator

iPod/iPhone Mode Green light

Bluetooth Mode Blue light

Line In Mode White light

OPEN

PUSH

Customer Support: 1-888-999-4215

iPod and iPhone

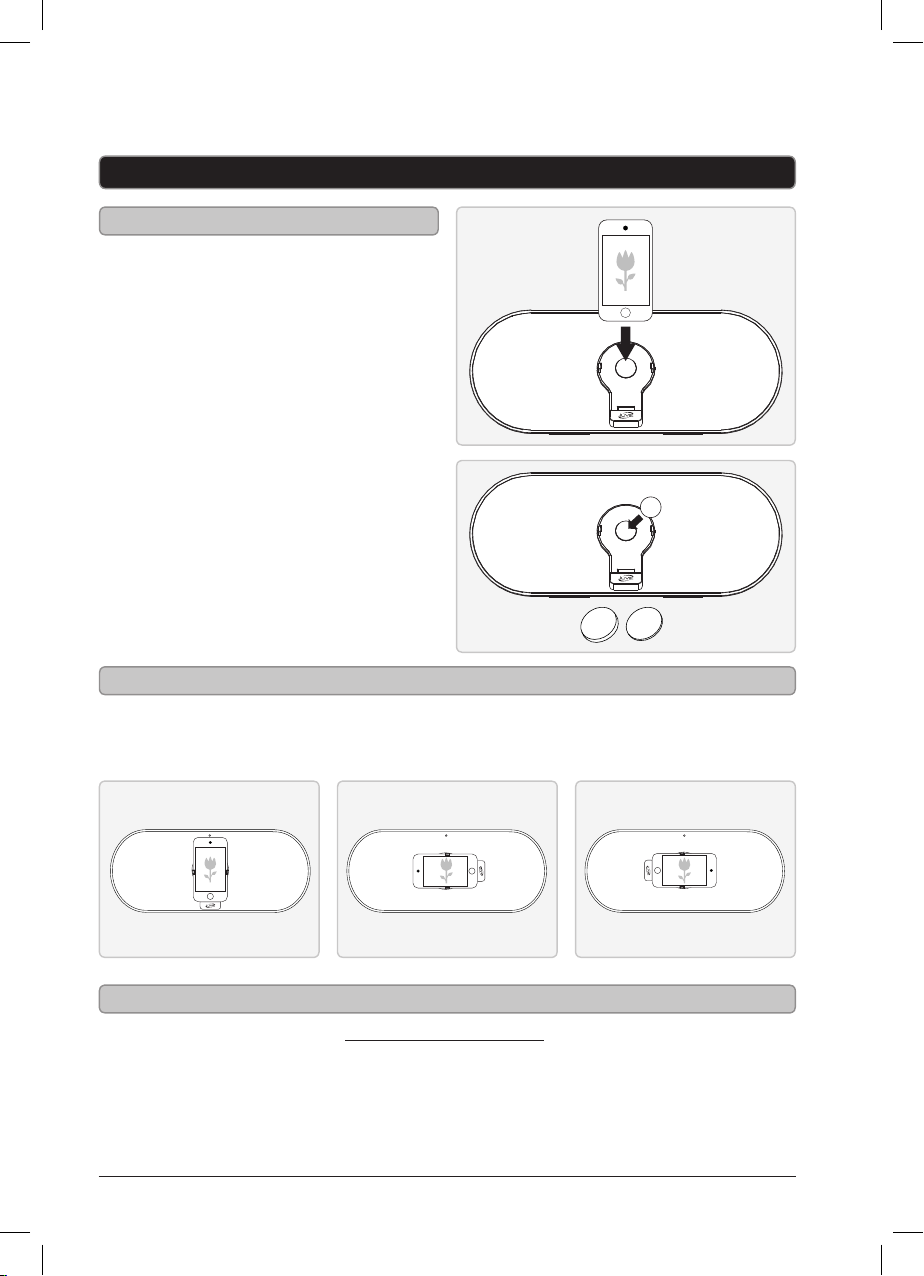

Docking an iPod or iPhone

1. Use the included spacers as needed to t your iPod or iPhone into the dock.

2. Connect the iPod or iPhone to the connector inside the Dock for iPod and iPhone.

3. When the speaker is plugged in, using AC power, the docked iPod or iPhone will charge.

Rotating Dock

The dock will rotate 90˚ to the right or left.

2.8 MM 1.2 MM

Do not attempt to rotate the dock further than 90˚ to either side to avoid damaging the speaker.

Playing a Docked iPod or iPhone

1. Follow the instructions for Docking an iPod or iPhone.

2. Press the Source/Power button to switch to iPod mode.

3. Press the Play/Pause button on the remote or on the docked iPod or iPhone to begin playing the docked iPod or iPhone.

3.5mm Audio Input & Composite Video Output

Using the 3.5mm Audio Input Using the Composite Video Output

Requires a 3.5mm audio cable (included)

1. Connect a 3.5mm audio cable to the

3.5MM Audio Input on the speaker and an audio output on an MP3 player or other audio source.

2. Press the Source/Power button to switch to Line In mode.

3. Use the native controls on the connected MP3 player or other audio source to play and control audio played through the speaker.

Requires an RCA composite video cable (not included)

1. Connect the RCA composite video cable to the Composite Video Output on the speaker and a composite video input on a television.

2. Press the Video button on the remote to switch to video out mode.

Note: Some older model iPods may require you to adjust the TV OUT settings on the docked iPod to OK.

3. Videos played from the docked iPod or iPhone will now play on the connected television.

Customer Support: 1-888-999-4215

Bluetooth

Pairing a Bluetooth Device

1. Power on the unit by pressing the Power button.

2. Press the Source/Power button to switch to Bluetooth mode.

3. Press the Pair button.

4. The Pairing Indicator will ash blue quickly.

When pairing, remain within 3 feet of the unit.

5. Using the native controls on your Bluetooth device, select the “ISBP592” in your Bluetooth settings to pair.

If your device requests a password, enter the default password “ 0 0 0 0 ”.

Refer to the user’s manual for your specic device for instructions on pairing and connecting Bluetooth devices.

6. When successfully paired and connected, the Pairing Indicator will display a solid blue light and a beep will sound from the unit.

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.

If your device should become unpaired, follow the above directions again.

Playing Audio Wirelessly

1. Follow the instructions for Pairing a Bluetooth Device.

2. Use the native controls on the connected Bluetooth Device to select a track.

3. To play, pause or skip the selected track, use the native controls on the connected Bluetooth Device or press the Play/Pause button.

4. Audio played through the connected Bluetooth device will now be heard through the speakers.

Using the Speakerphone

1. Follow the instructions in Pairing a Bluetooth Device.

2. When a call is received, a ringtone will sound through the speakers.

3. Press the Talk/End button to accept the call or accept the call with the native controls on the connected device.

4. The incoming call received through the device will now be heard through the speakers.

5. To end the call, press the Talk/End button or end the call using the native controls on the connected device.

Note : The source must be set to Bluetooth mode to use the speakerphone function.
