Page 1

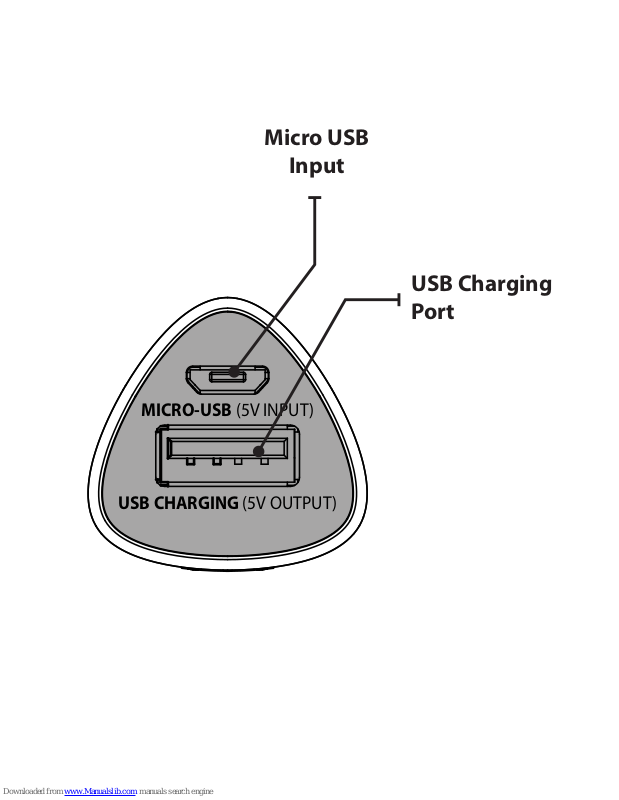

MICRO-USB (5V INPUT)
USB CHARGING (5V OUTPUT)
Micro USB
Input
USB Charging
Port
Page 2
POWER
ON
Power
Press to
power the
unit on.
Battery
Indicators
Page 3
Checking Battery Charge
Charge % Battery Indicators
33% One light
66% Two lights
100% Three lights
1. Press the Power button to
power the unit on.
The Battery Indicators will indicate how
much battery is left.
Page 4
Charging the Unit
1. Connect the included Micro-USB
to USB cable to the USB port on a
powered on computer to charge.
Initial charge time ~4 hrs.
Charge fully before use.
2. The corresponding Battery Indicators
will light up to indicate the charge level.
3. The unit will turn o automatically when disconnected.
Note: Charge the unit at least once a
month to maintain battery integrity even
when not in use.
Page 5
USER’S GUIDE
V:812-01
For the most up-to-date version of this User’s
Guide, go to www.iLiveElectronics.com

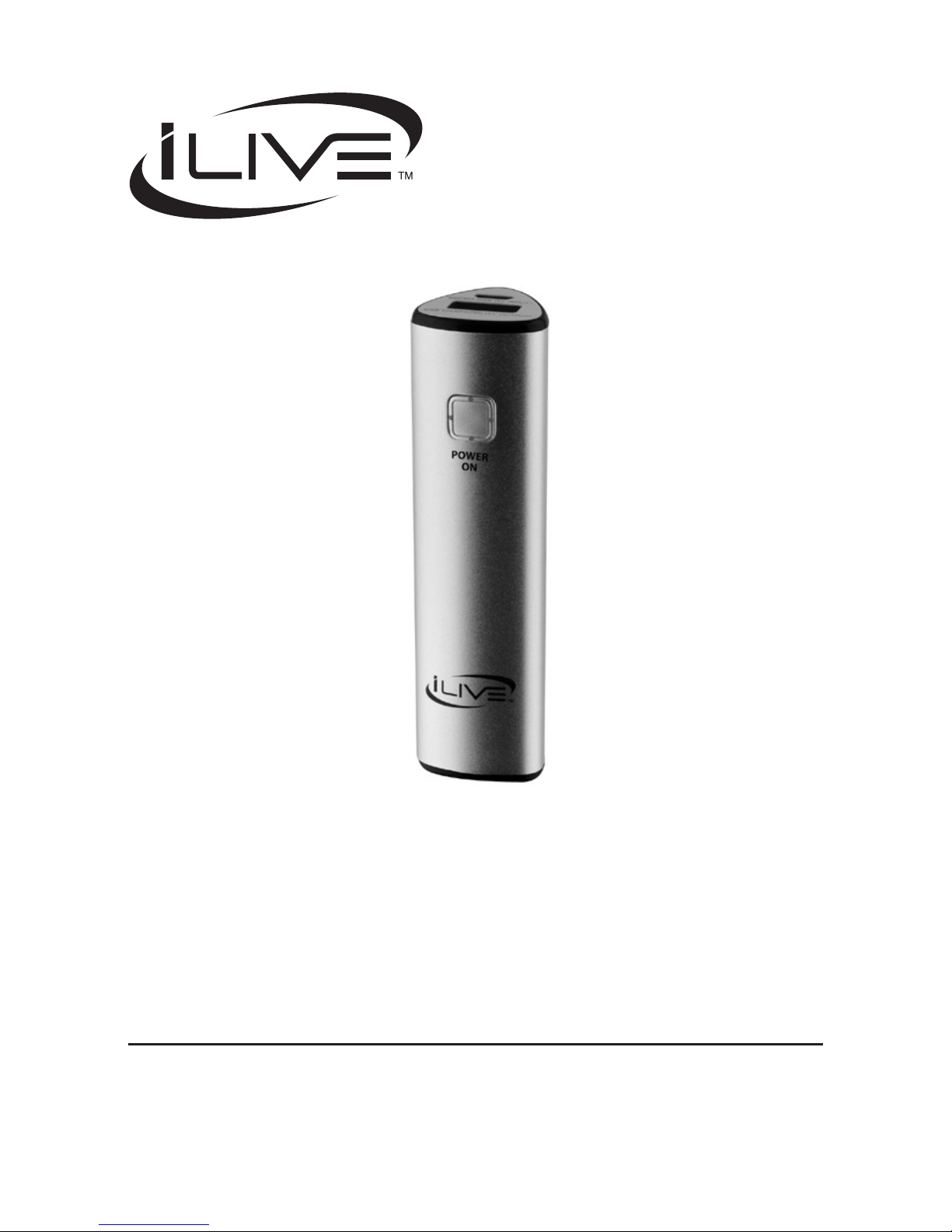

IPC303S
Rechargeable Mobile
Device Charger
Page 6
Charging Devices
1. Make sure the unit has battery power.
Refer to the power chart to determine the
amount of battery charge.
2. Using the appropriate USB charging cable and connector(several
included), connect one end to the
device and the other to the USB
Charging Port on the unit.
The output on this charge is 5V 1A. Refer
to the user’s manual for your specic
device for manufacturers required charging amperage as well as determining the
appropriate cable for your device before
charging.
3. Press the Power button to power the
unit on. The device will now charge.
If no connection is detected, after a short
time the unit will automatically power o.
Page 7
Warnings
WARNING: Changes or modications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Page 8
Page 9
Email Support: [email protected]
Email Parts: [email protected]
Phone Support: 1-888-999-4215
Website: www.iLiveElectronics.com
Company Information
Contact Information
For Warranty Information and the most up-todate version of this User’s Guide, go to
www.iLiveElectronics.com.
Warranty
Page 10
Copyright © 2013 Digital Products International (DPI, Inc.) |
All other trademarks appearing herein are the property of their
respective owners. Specications are subject to change without
notice
To download this User’s Guide in English,
Spanish, or French, or to get answers to
frequently asked questions, visit the support
section at www.iLiveElectronics.com.
Para descargar este Manual del Usuario en
inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección
de apoyo en www.iLiveElectronics.com.
Pour télécharger ce guide de l’utilisateur en
anglais, espagnol ou français, ou pour obtenir
des réponses à des questions fréquemment
posées, consultez la rubrique d’assistance sur
www.iLiveElectronics.com.
International Support
