Ik Multimedia iRig Mic Field USER MANUAL
iRig® Mic Field
Stereo audio/video microphone
USER MANUAL
Contents
Table of Contents
Contents |
2 |
||
English |
3 |
||
|
iRig Mic Field |
3 |
|
|
Register your iRig Mic Field |
3 |
|
|
iRig Mic Field overview |
4 |
|
|
Installation and setup |
5 |
|
|
|
iOS Devices |
5 |
|
iRig Mic Field status LED |
8 |
|
|

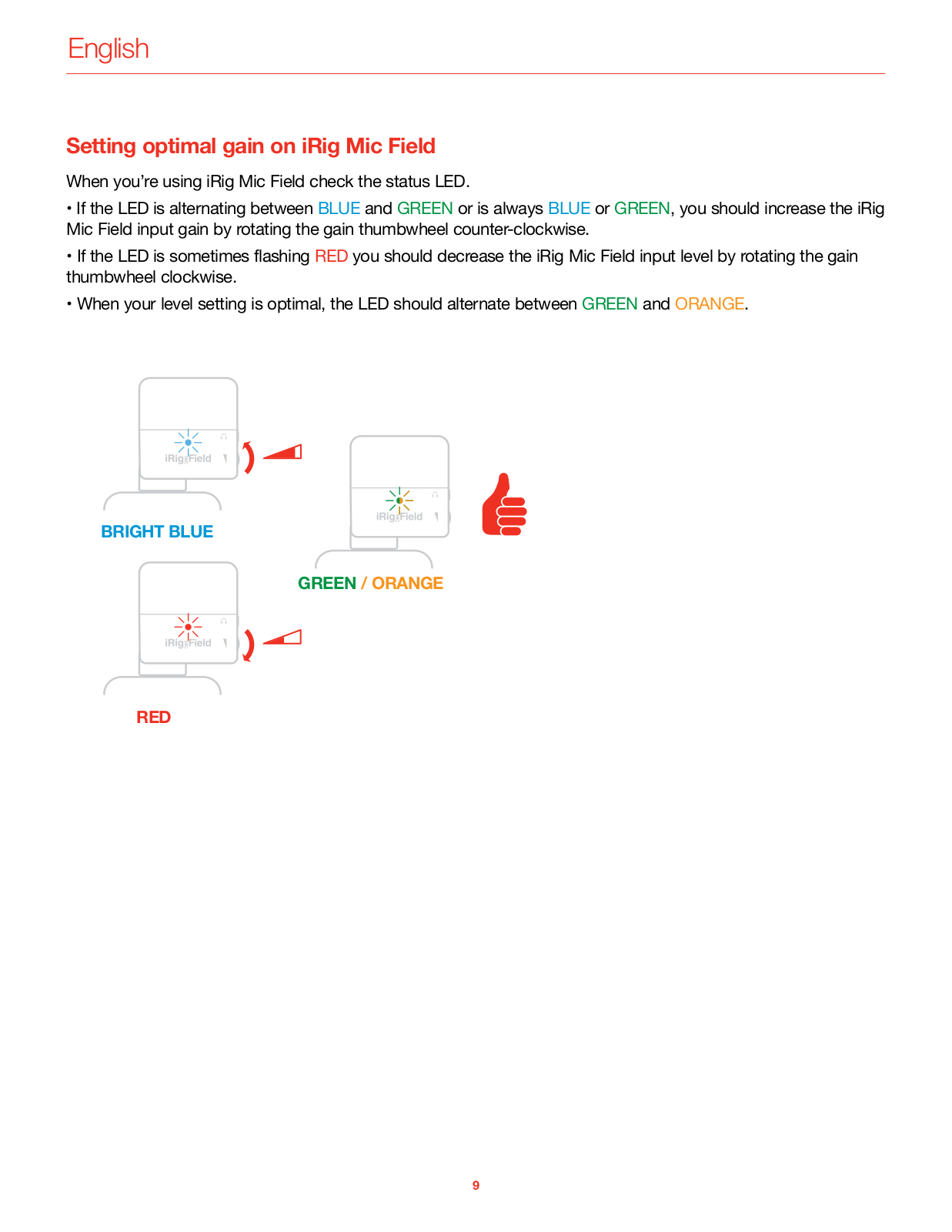

Setting optimal gain on iRig Mic Field |
9 |
|
|
Positioning iRig Mic Field |
10 |
|
|

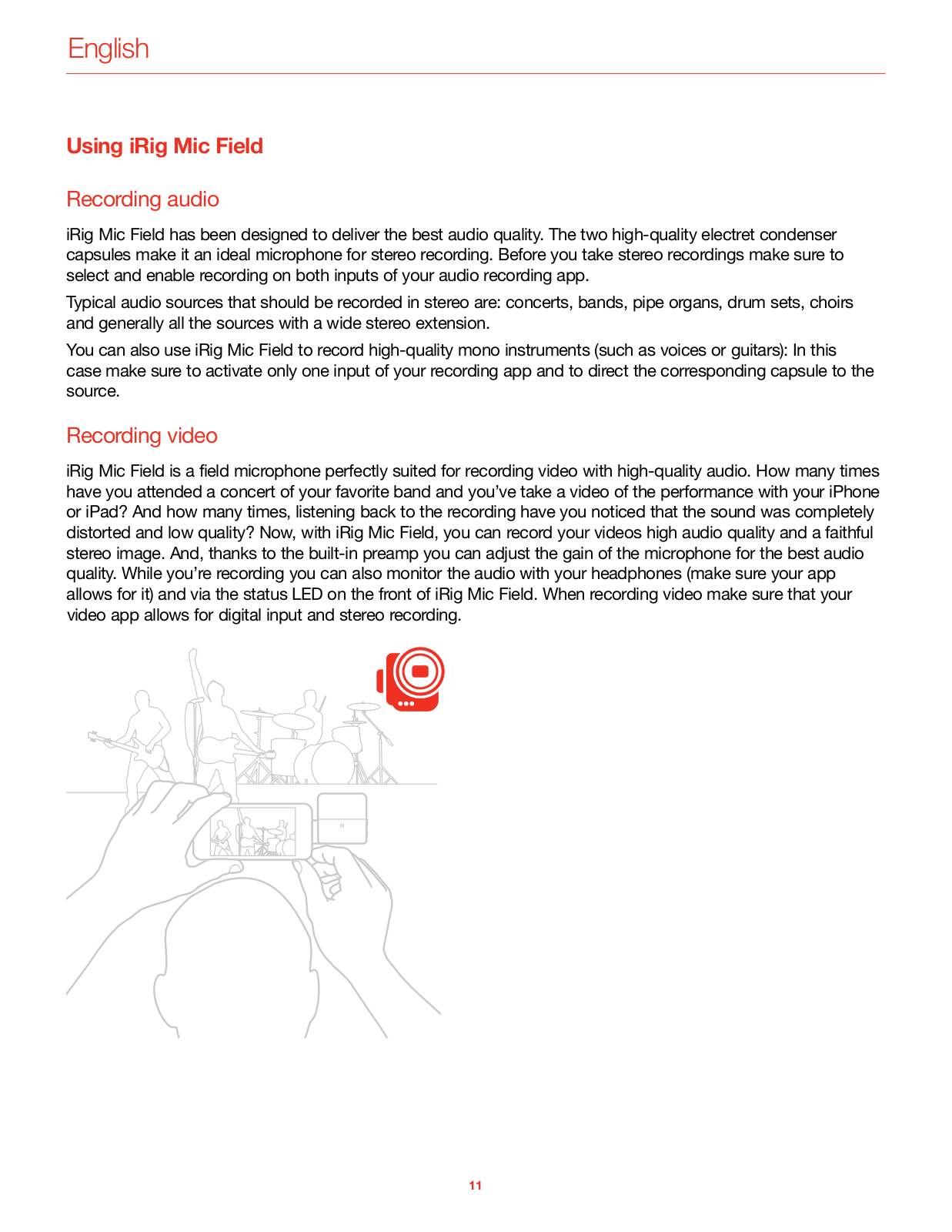

Using iRig Mic Field |
11 |
|
|
|
Recording audio |
11 |
|
|
Recording video |
11 |
|
|

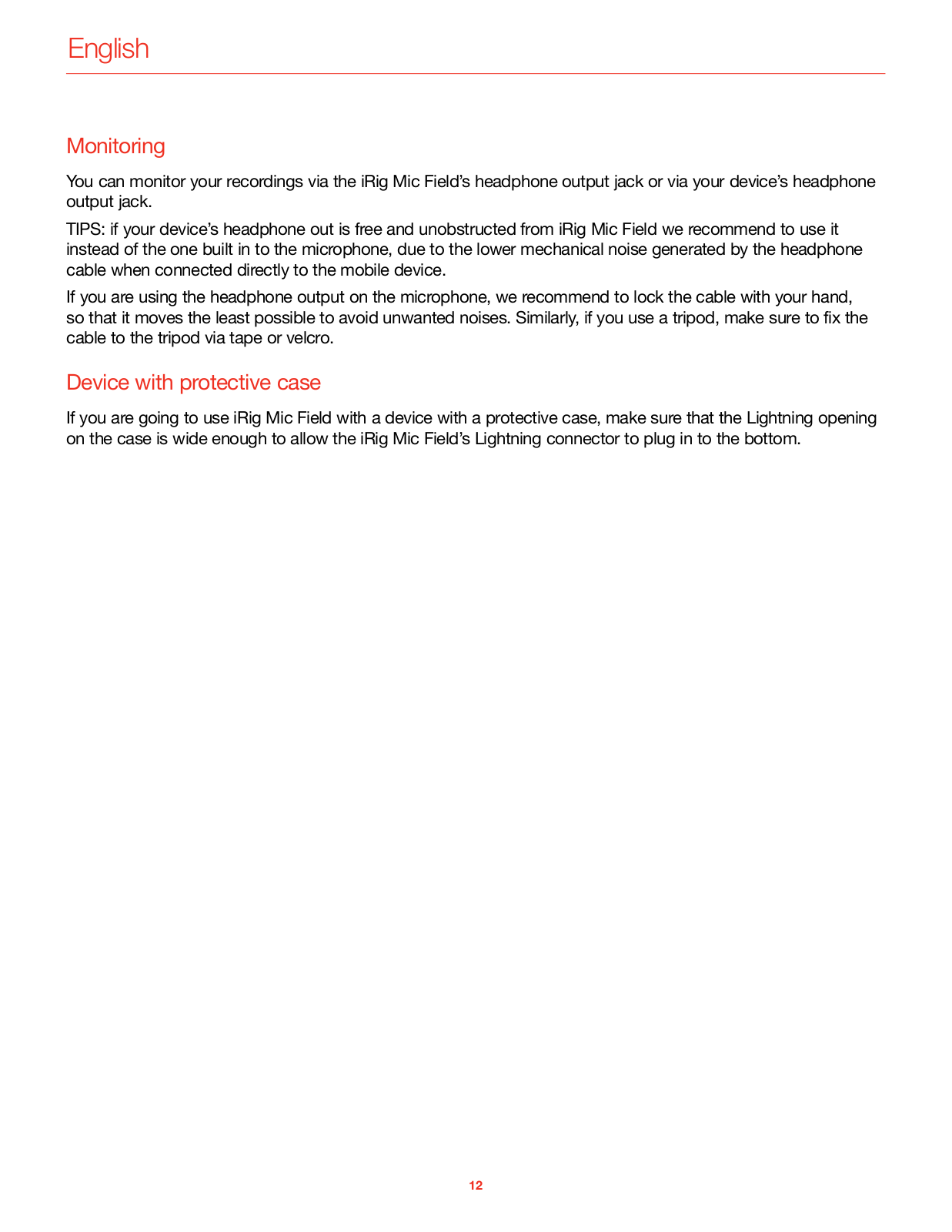

Monitoring |
12 |
|
|
Device with protective case |
12 |
|

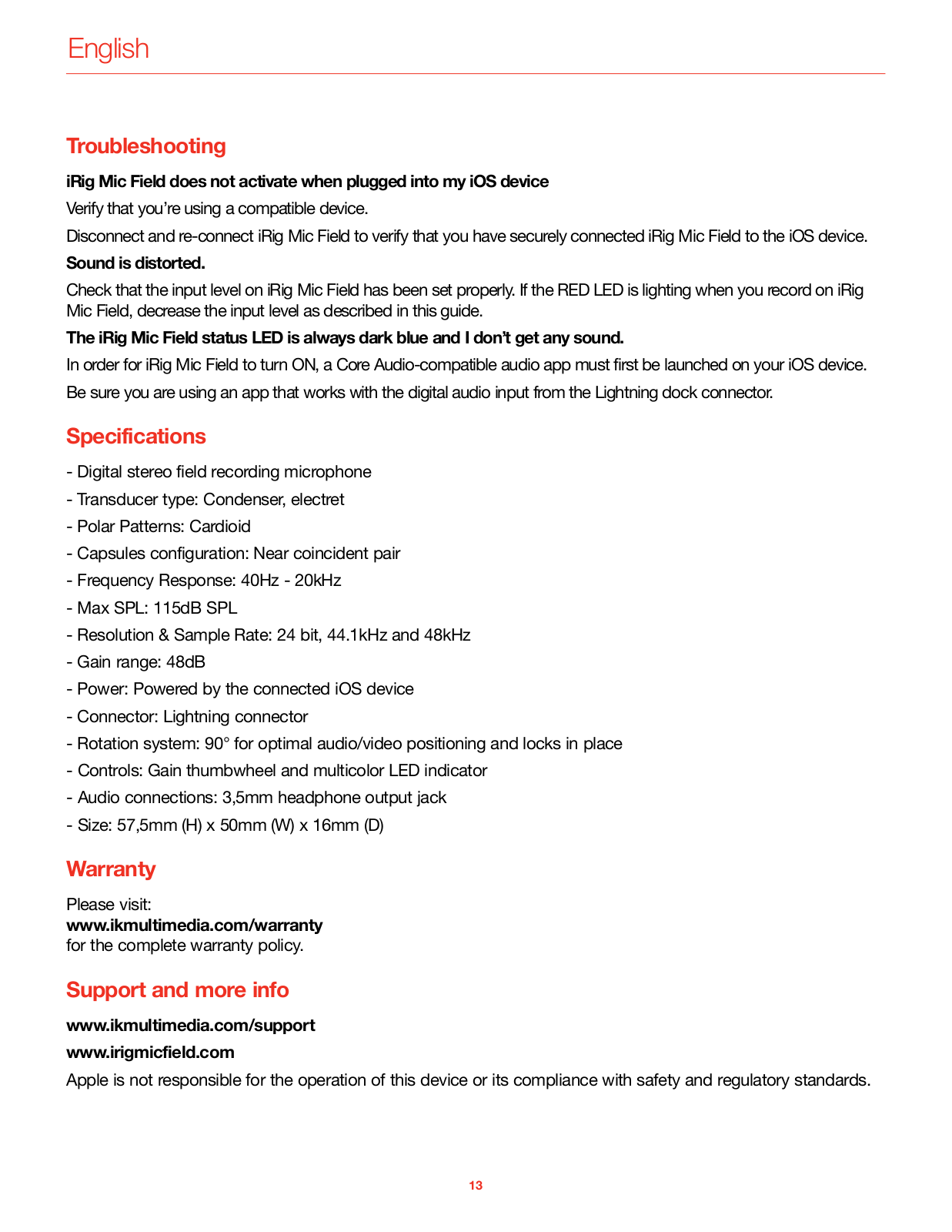

Troubleshooting |
13 |
|
|
Specifications |
13 |
|
|
Warranty |
13 |
|
|
Support and more info |
13 |
|
Português |
14 |
||
|

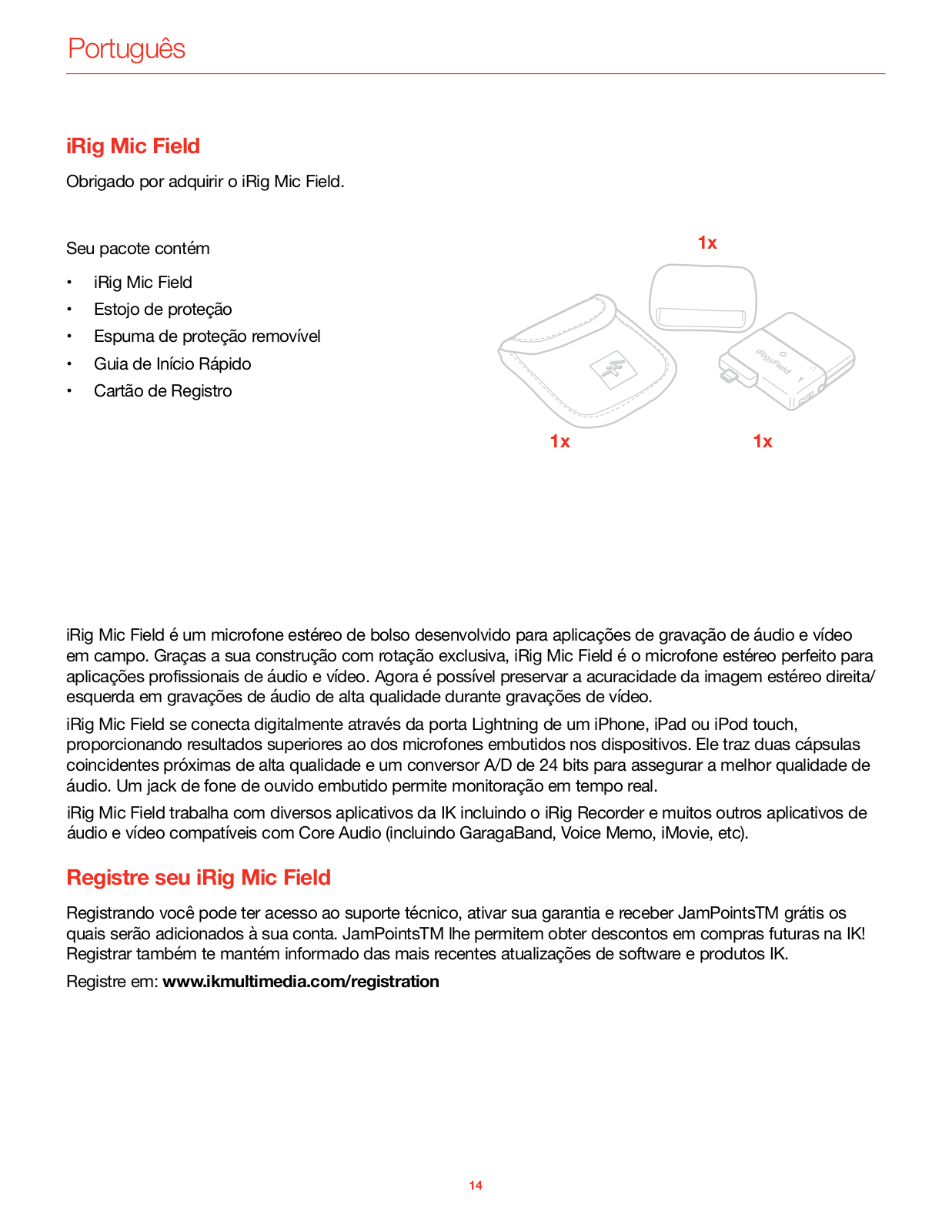

iRig Mic Field |
14 |
|
|
Registre seu iRig Mic Field |
14 |
|
|
Visão Geral do iRig Mic Field |
15 |
|
|

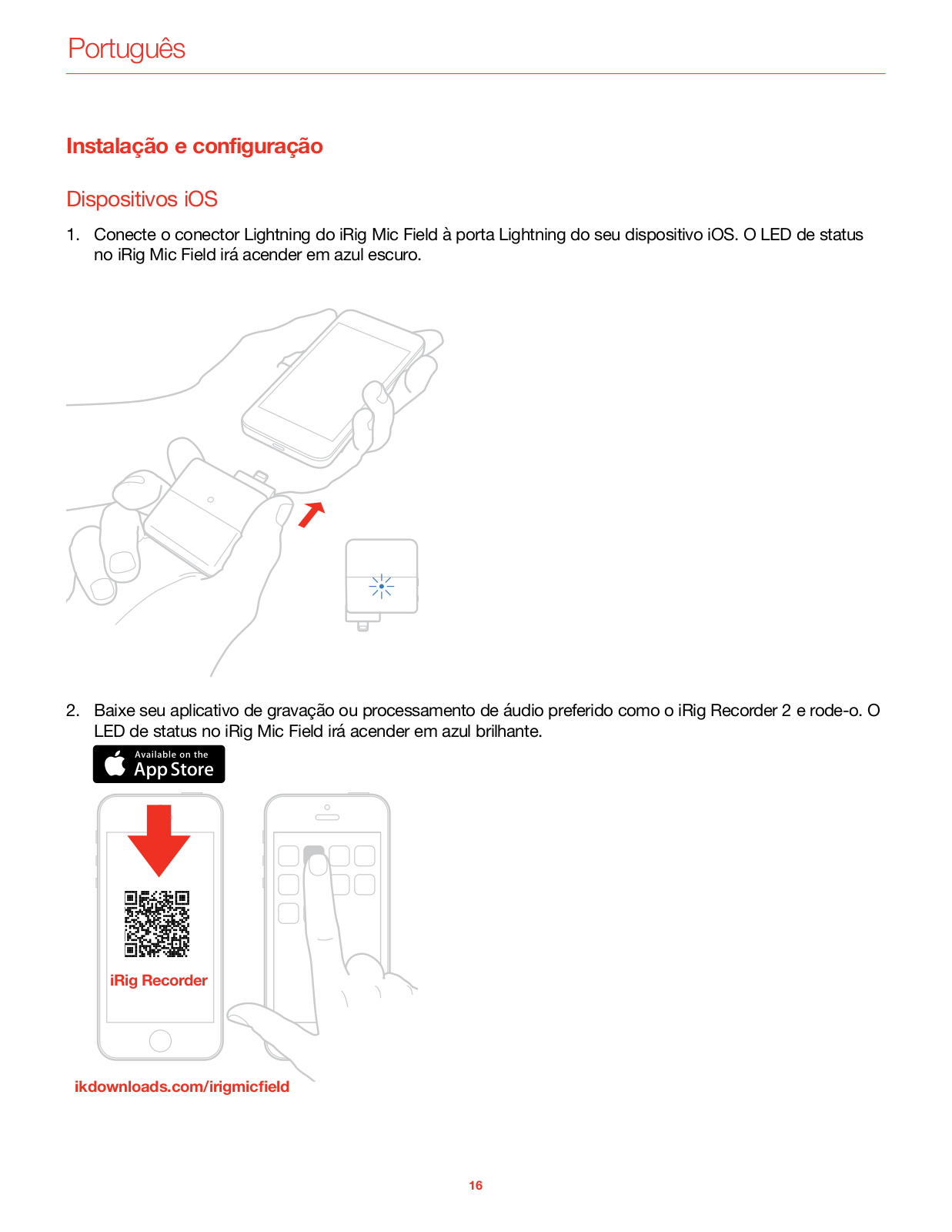

Instalação e configuração |
16 |
|
|
|
Dispositivos iOS |
16 |
|
LED de status do iRig Mic Field |
19 |
|
|

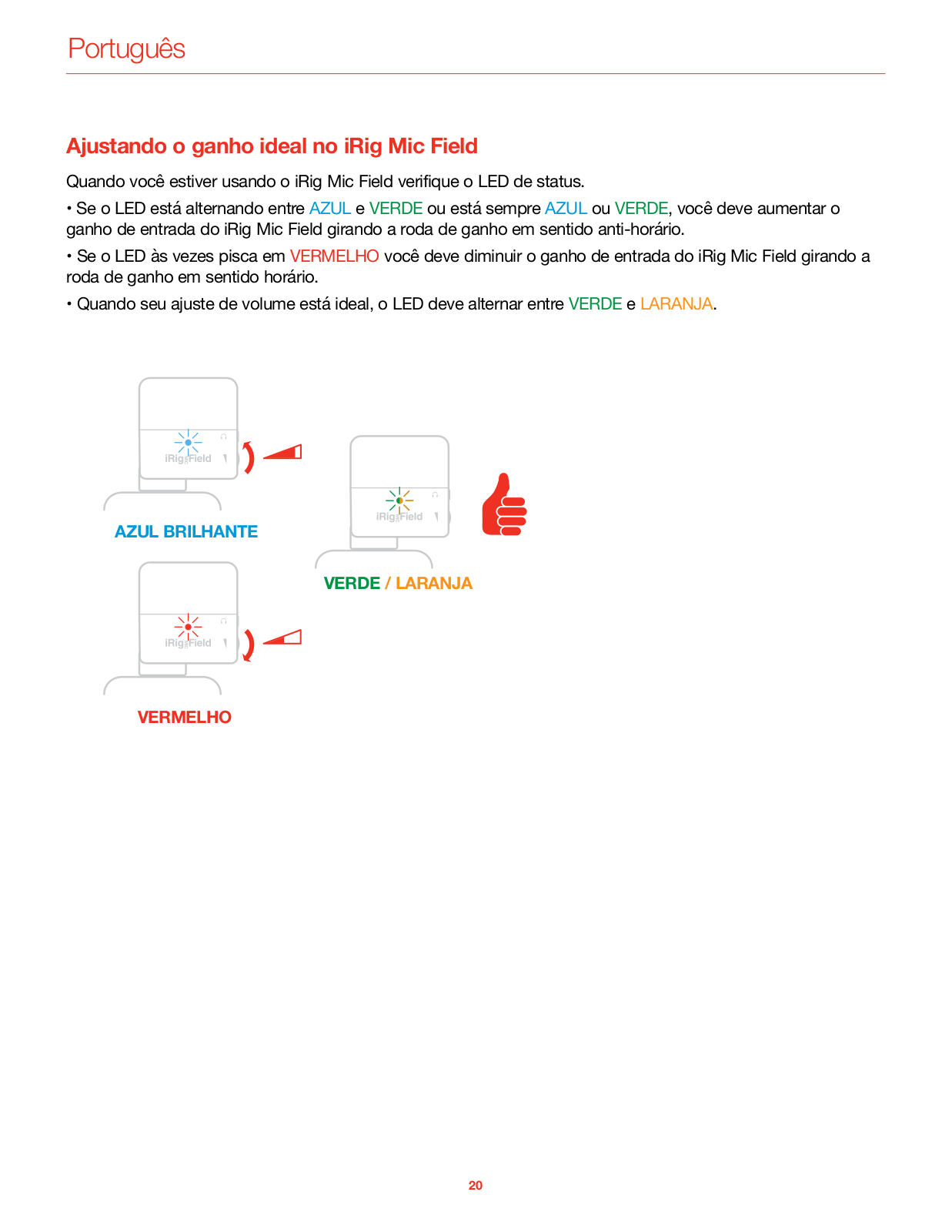

Ajustando o ganho ideal no iRig Mic Field |
20 |
|
|
Posicionando o iRig Mic Field |
21 |
|
|
Usando o iRig Mic Field |
22 |
|
|
|
Gravando áudio |
22 |
|
|
Gravando vídeo |
22 |
|
|
Monitorando |
23 |
|
|
Dispositivo com case de proteção |
23 |
|
Solução de Problemas |
24 |
|
|
Especificações |
24 |
|
|
Garantia |
24 |
|
|
Suporte e mais informações |
24 |
|
2
English
iRig Mic Field
Thank you for purchasing iRig Mic Field.
Your package contains |
1x |
|
• |
iRig Mic Field |
|
• |
Protective bag |
|
• |
Removable foam windshield |
|
• |
Quick start guide |
|
• |
Registration card |
|
|
1x |
1x |
iRig Mic Field is a pocket-size stereo microphone designed for audio and video field-recording applications. Thanks to its exclusive rotating enclosure, iRig Mic Field doubles as the perfect stereo microphone for professional audio and video applications. Now it’s possible to preserve accurate left/right stereo imaging for high-quality audio recordings during video shoots.
iRig Mic Field connects digitally through the Lightning port of an iPhone, iPad or iPod touch, giving far superior results than the built-in mono mic on the device. It features two high-quality near coincident capsules and a 24-bit A/D converter to ensure the best audio quality. A built-in headphone jack allows for real-time monitoring.
iRig MIC Field works with several IK companion apps including iRig Recorder 2 and many other iOS compatible Core Audio audio and video apps (including GarageBand, Voice Memo, iMovie, etc).
Register your iRig Mic Field
By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also keeps you informed of all the latest software updates and IK products.
Register at: www.ikmultimedia.com/registration
3
English

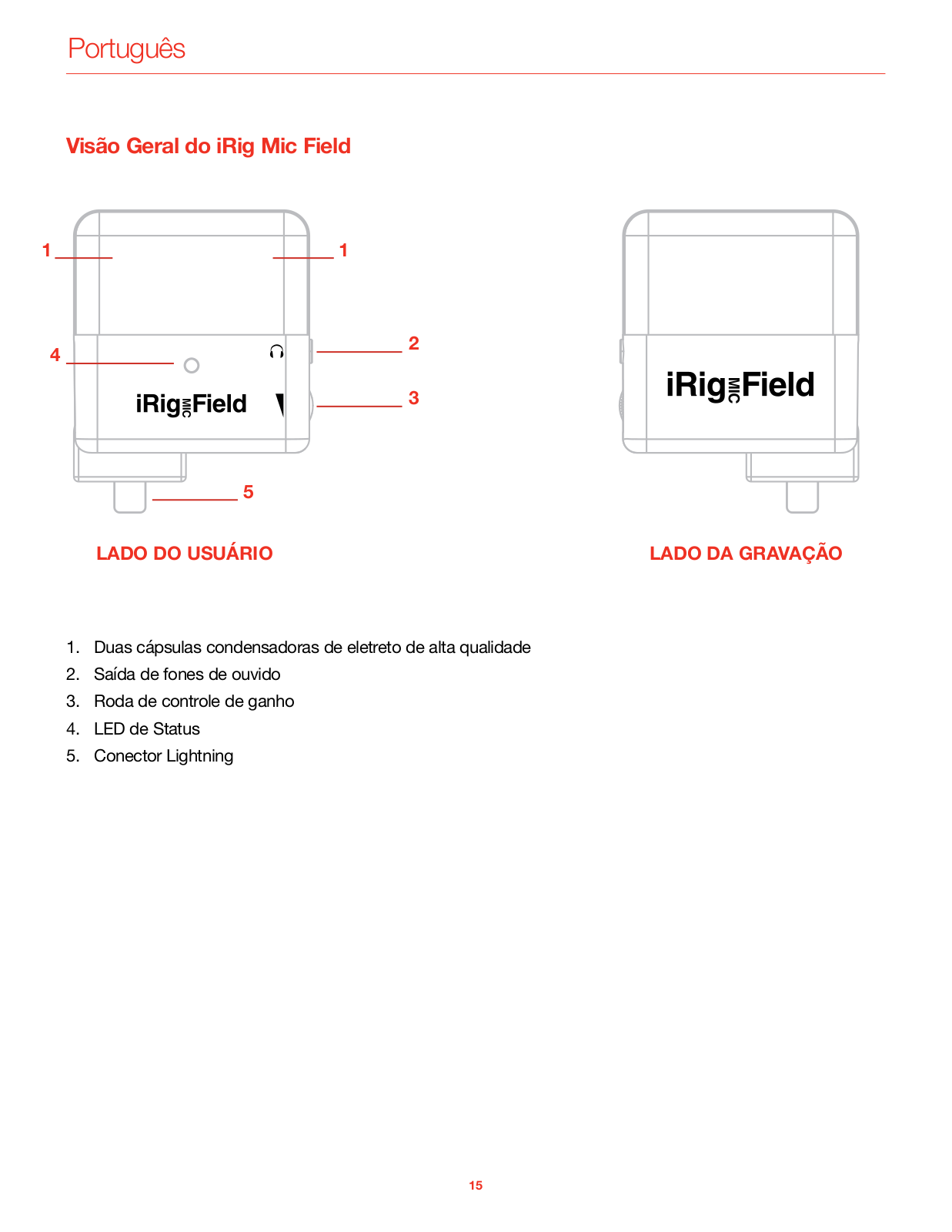

iRig Mic Field overview
1 |
1 |
4 |
2 |
|
|
|
3 |
5
USER SIDE |
RECORDING SIDE |
1.Two high-quality electret condenser capsules
2.Headphone out
3.Gain control thumbwheel
4.Status LED
5.Lightning connector
4
English
Installation and setup
iOS Devices
1.Connect the Lightning connector of iRig Mic Field to the Lightning port on your iOS device. The status LED on iRig Mic Field will turn dark blue.
2.Download your preferred audio processing or recording app like iRig Recorder 2, and launch it. The status LED on iRig Mic Field will turn bright blue.
iRig Recorder
ikdownloads.com/irigmicfield
5
English

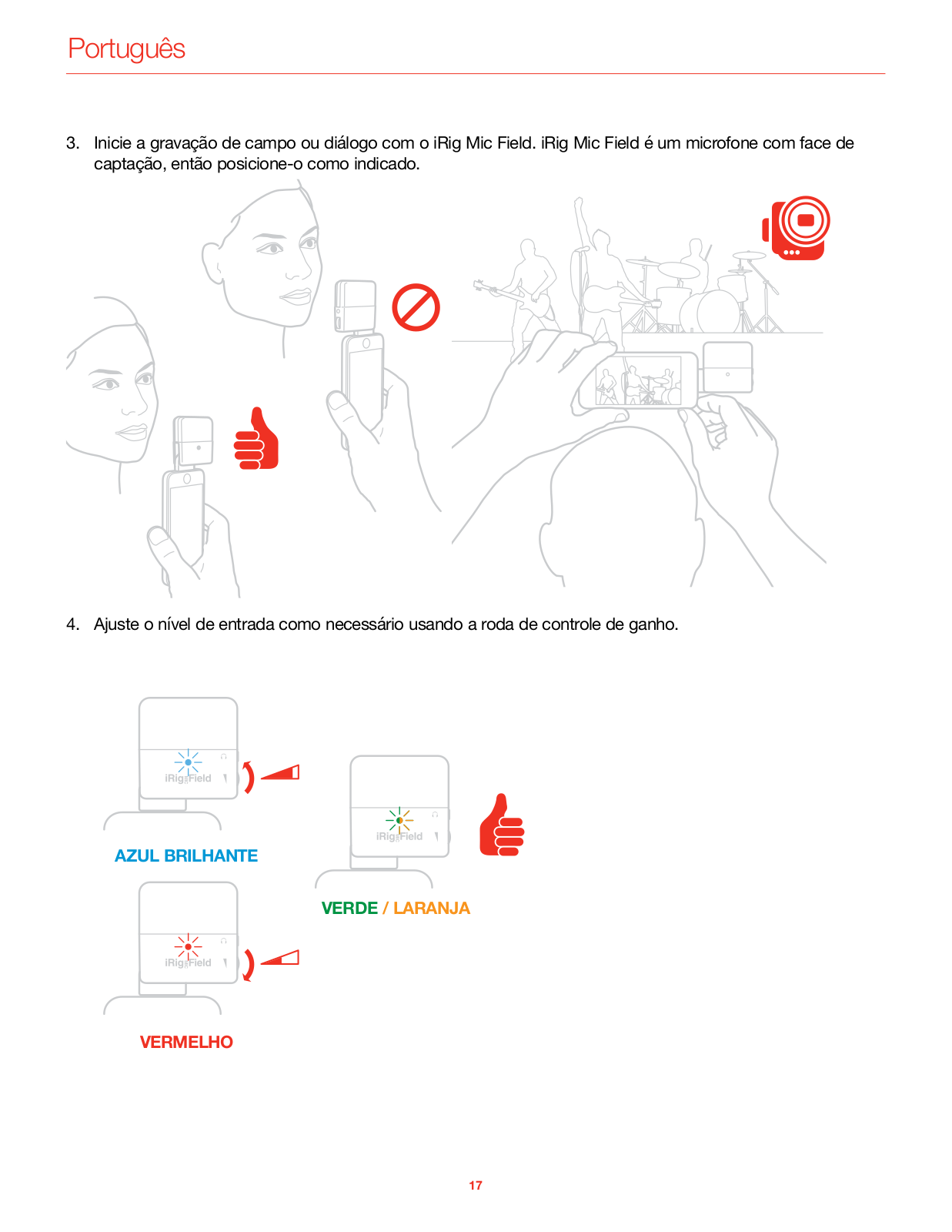

3.Start field recording or talking into iRig Mic Field. iRig Mic Field is a side address mic, so place the mic as shown.
4. Adjust the input level as required using the Gain thumbwheel.
BRIGHT BLUE
GREEN / ORANGE
RED
6
English

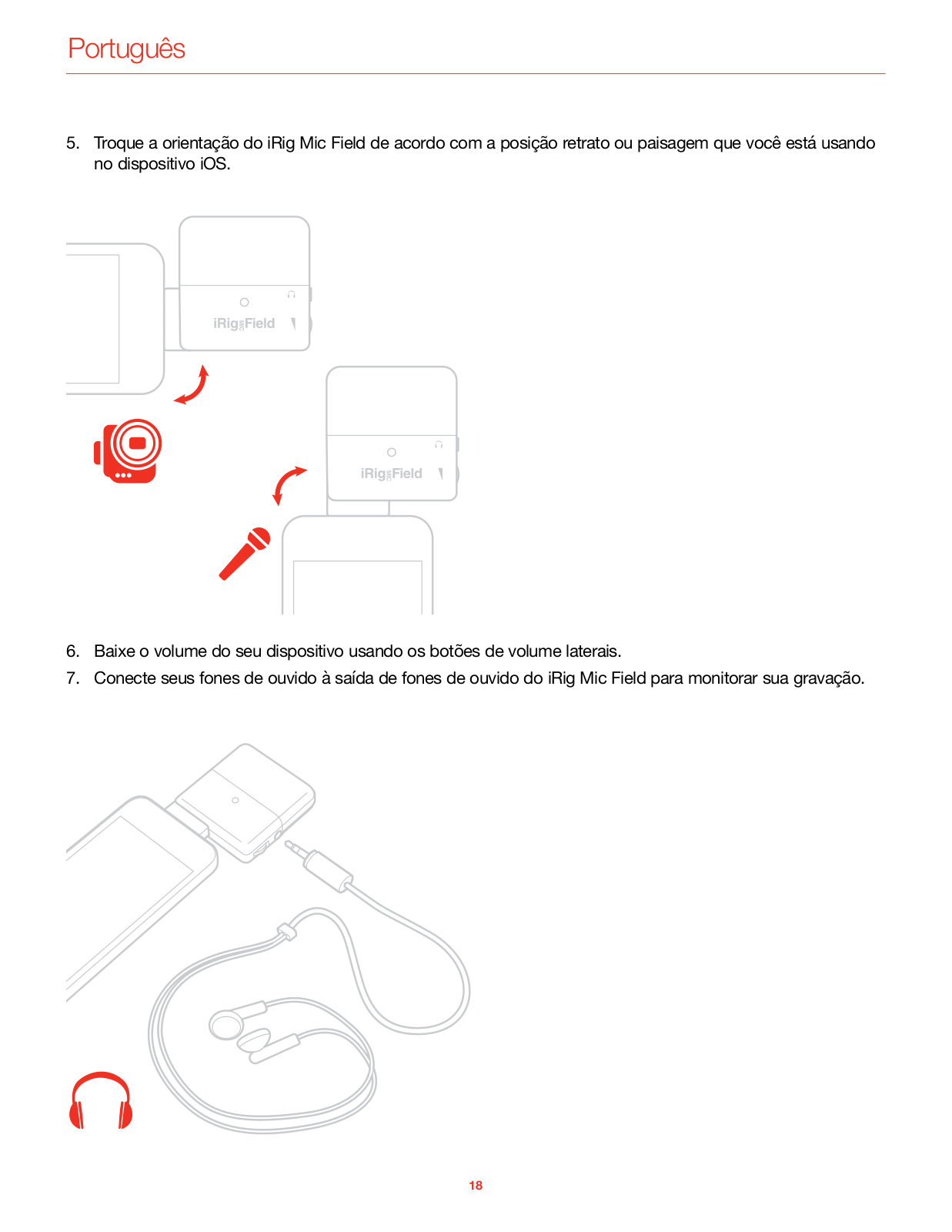

5.Change iRig Mic Field’s orientation depending on whether you’re using your iOS device in landscape or portrait position.
6.Lower the volume of your device by using the side volume buttons.
7.Connect your headphones to the iRig Mic Field headphone output jack to monitor your recording.
7
English
WARNING: Permanent hearing loss may occur if earbuds or headphones are used at high volume. You can adapt over time to a higher volume of sound, which may sound normal but can be damaging to your hearing. Set your device volume to a safe level before that happens. If you experience ringing in your ears, reduce the volume or discontinue use of earbuds or headphones with your device.

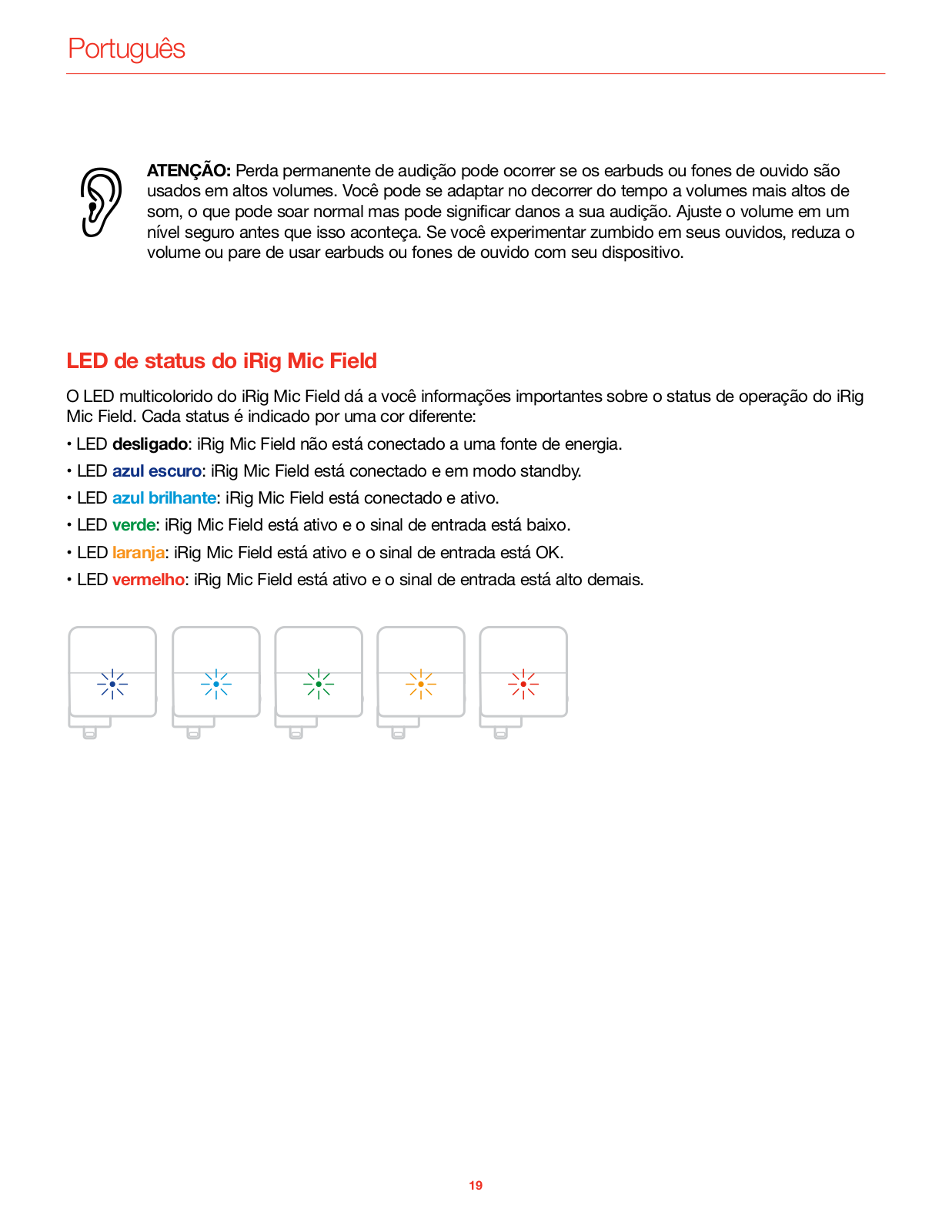

iRig Mic Field status LED
The multicolor LED on iRig Mic Field gives you important information about the iRig Mic Field’s operating status. Each status is indicated by a different color:
•LED is off: iRig Mic Field is not connected to any power source.
•LED is dark blue: iRig Mic Field is connected and in standby mode.
•LED is bright blue: iRig Mic Field is connected and active.
•LED is green: iRig Mic Field is active and the input signal is low.
•LED is orange: iRig Mic Field is active and the input signal is OK.
•LED is red: iRig Mic Field is active and the input signal is too high.
8
