Digital guitar interface
USER MANUAL
Contents
Table of Contents
Contents 2
English 3
iRig HD-A 3
Register your iRig HD-A 3
Installation and setup 4
Android 4
PC 6
iRig HD-A status LED 7
Setting input gain on iRig HD-A 7
Troubleshooting 8
Warranty 8
Support and more info 8
2
English
iRig HD-A
Thank you for purchasing iRig HD-A, the high-quality digital guitar interface for Android and PC.
Your package contains
• iRig HD-A
• Micro-USB cable
• USB cable
• Quick Start Guide
• Registration Card
1x
1x
1x
iRig HD-A is an ultra-compact digital guitar interface for Android and PC. Compatible with guitars, basses, and
other instrument-level sources, iRig HD-A offers a high-quality A/D converter for a crystal clear signal that’s free
from noise and crosstalk.
iRig HD-A is powered by your mobile device or computer, no batteries required. A preamp gain control allows
you to dial in the perfect signal for your instrument, and a multicolor status LED offers a clear indication of the
interface’s status.
Two cables are included: micro-USB cable for Android devices and USB for computer.
iRig HD-A is designed primarily for guitars and basses, but its preamp can also handle a wide range of
instrument signals including acoustic instruments equipped with piezo pickups or contact transducers,
synthesizers and more.
Register your iRig HD-A
By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will
be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also
keeps you up-to-date with product news and update information.
Register at: www.ikmultimedia.com/registration
3
English
Installation and setup
Android

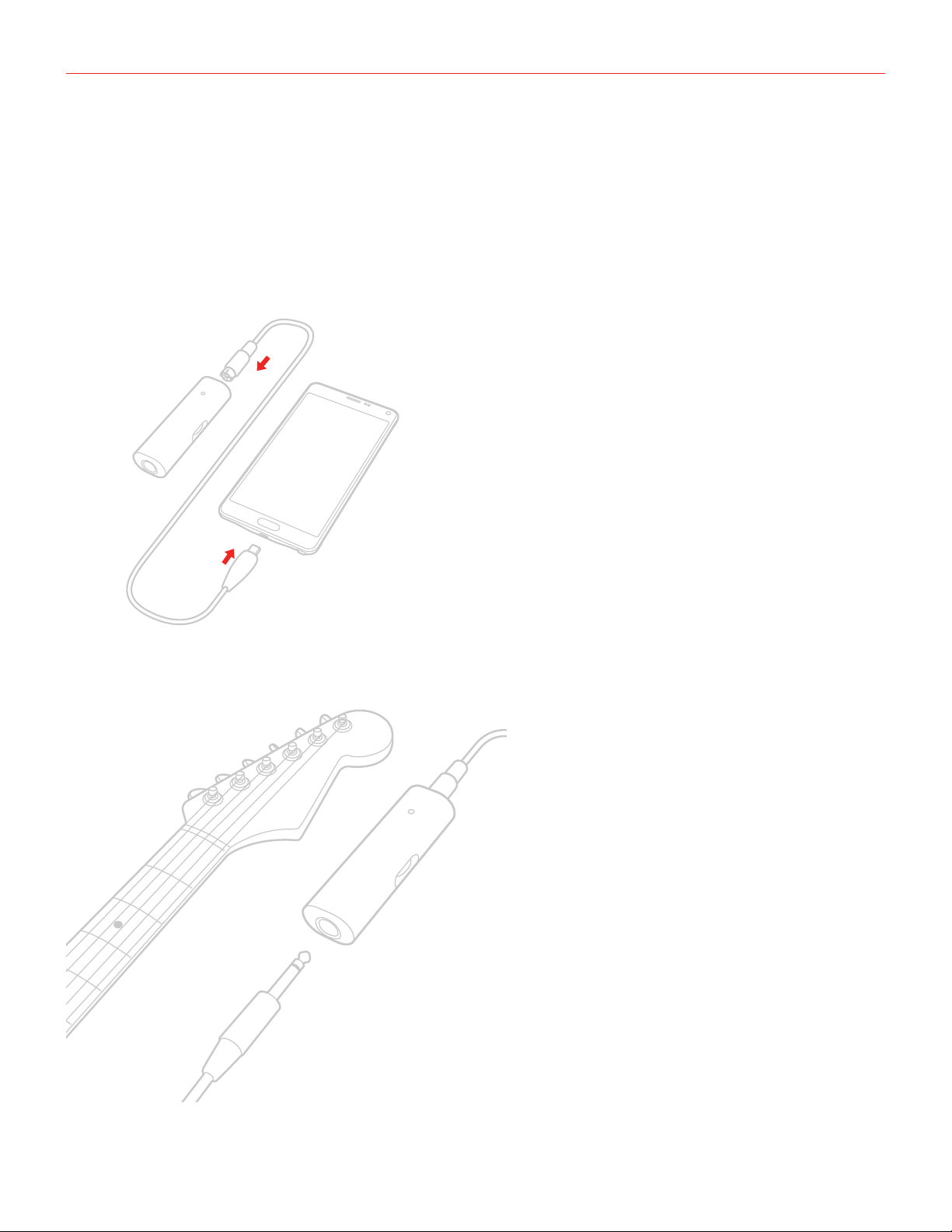

1. Connect the included micro-USB cable to iRig HD-A.
2. Connect the micro-USB cable to the connector on your device. The status LED on iRig HD-A will turn dark
blue.
1
2
3. Connect your guitar, bass or other mono instrument to the 1/4” input jack on iRig HD-A.
1/4”
4
English

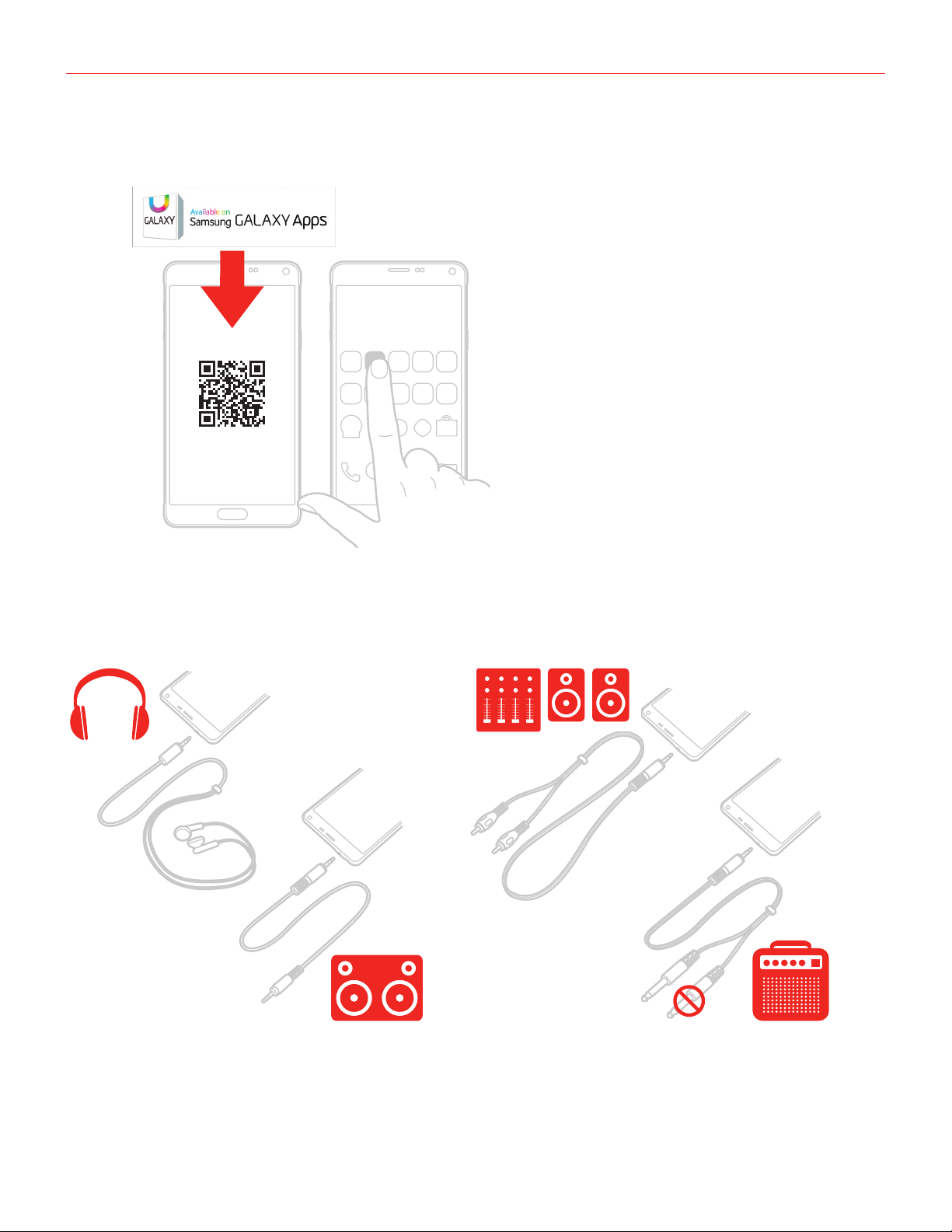

4. If you have not done so already, download the AmpliTube app from the Samsung Galaxy Apps and launch it.
AmpliTube
ikdownloads.com/irighda
5. Connect your headphones, guitar amplifier, mixer or powered speakers to the device headphone jack.
RCA
1/8"
1/4"
L
R
5
English
PC
1. Connect the included USB cable to iRig HD-A.
2. Connect the USB cable to a free USB port on your PC. The status LED on iRig HD-A will turn dark blue.
1
2
3. Connect your guitar/bass or any other mono instrument to the 1/4” input jack on iRig HD-A.
1/4”
6
English
4. Launch AmpliTube or any other Core Audio-compatible application and select iRig HD-A as the input device
from the audio preferences. The status LED on iRig HD-A will turn bright blue.
ikdownload.com/irighda
5. Connect your headphones, guitar amplifier, mixer or powered speakers to the headphone jack on your PC.
iRig HD-A status LED
The LED on iRig HD-A gives you important information about the iRig HD-A’s operative status. Each status is
indicated by a different color:
• LED is off: iRig HD-A is not connected to any power source.
• LED is dark blue: iRig HD-A is connected and in standby mode.
• LED is bright blue: iRig HD-A is connected and active.
• LED is green: iRig HD-A is active and the input signal is low.
• LED is orange: iRig HD-A is active and the input signal is OK.
• LED is red: iRig HD-A is active and the input signal is too high.
Setting input gain on iRig HD-A

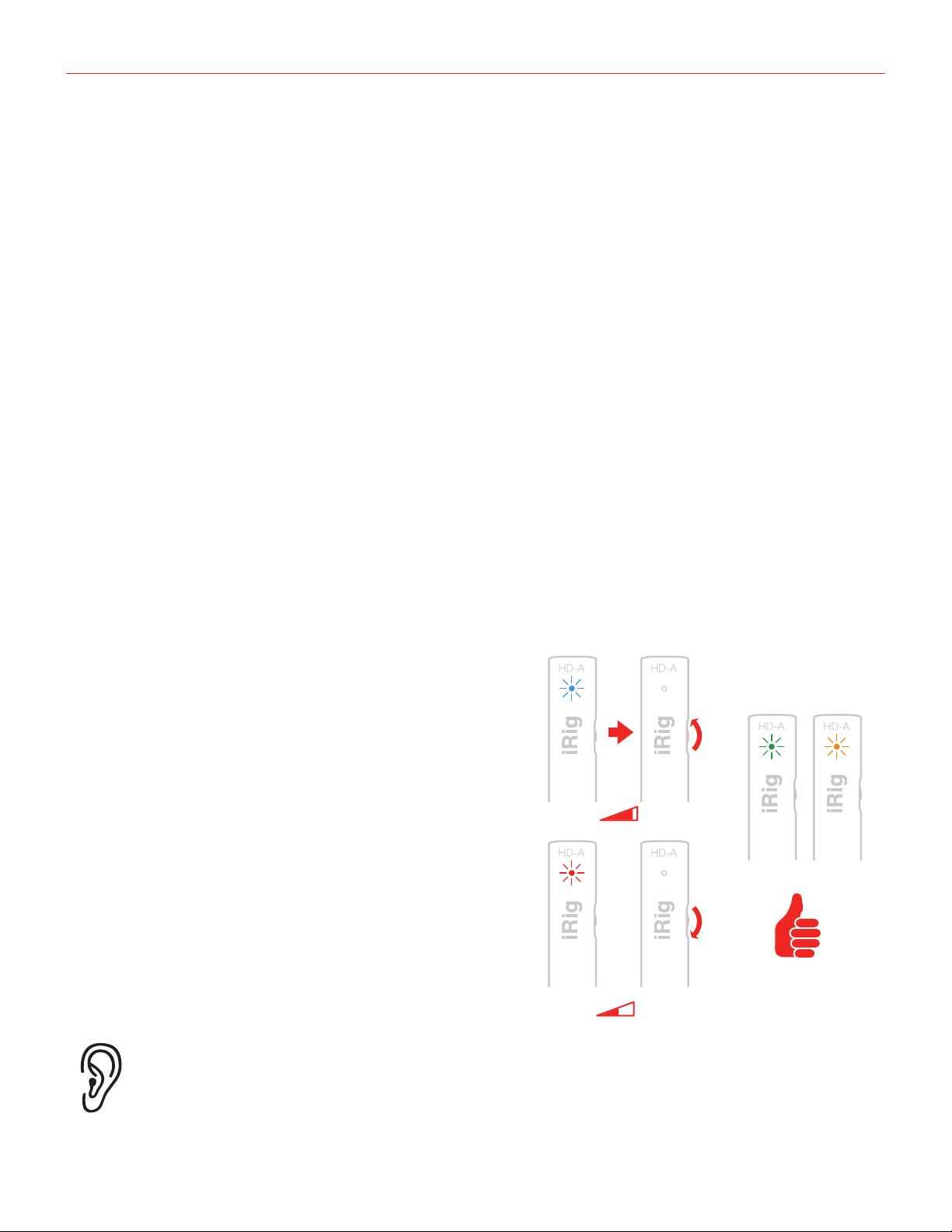

When playing your instrument check the iRig HD-A status LED.
• If the LED is alternating between BLUE and GREEN or
is always GREEN, you should increase the iRig HD-A
input gain by rotating the GAIN control toward the output
connector.
• If the LED is sometimes flashing RED you should
decrease the iRig HD-A input gain by rotating the GAIN
control toward the input connector.
• When your gain setting is optimal, the LED should
alternate between GREEN and ORANGE while you
play.
BLUE
GREEN / ORANGE
RED
WARNING: Permanent hearing loss may occur if earbuds or headphones are used at high
volume. You can adapt over time to a higher volume of sound, which may sound normal but can
be damaging to your hearing. Set your device volume to a safe level before that happens. If you
experience ringing in your ears, reduce the volume or discontinue use of earbuds or headphones
with your device.
7
English
Troubleshooting
I have connected iRig HD-A to my Android device, but it is not recognized and none of my audio apps
work with it.
Remember to always connect the included micro-USB cable to the iRig HD-A before connecting it to the
Android device.
Sound is distorted.
Check that the input gain on iRig HD-A has been set properly. If the red LED is lighting when you play your
instrument, decrease the input gain as described in this guide.
Warranty
Please visit:
www.ikmultimedia.com/warranty
for the complete warranty policy.
Support and more info
www.ikmultimedia.com/support
www.irighda.com
8
