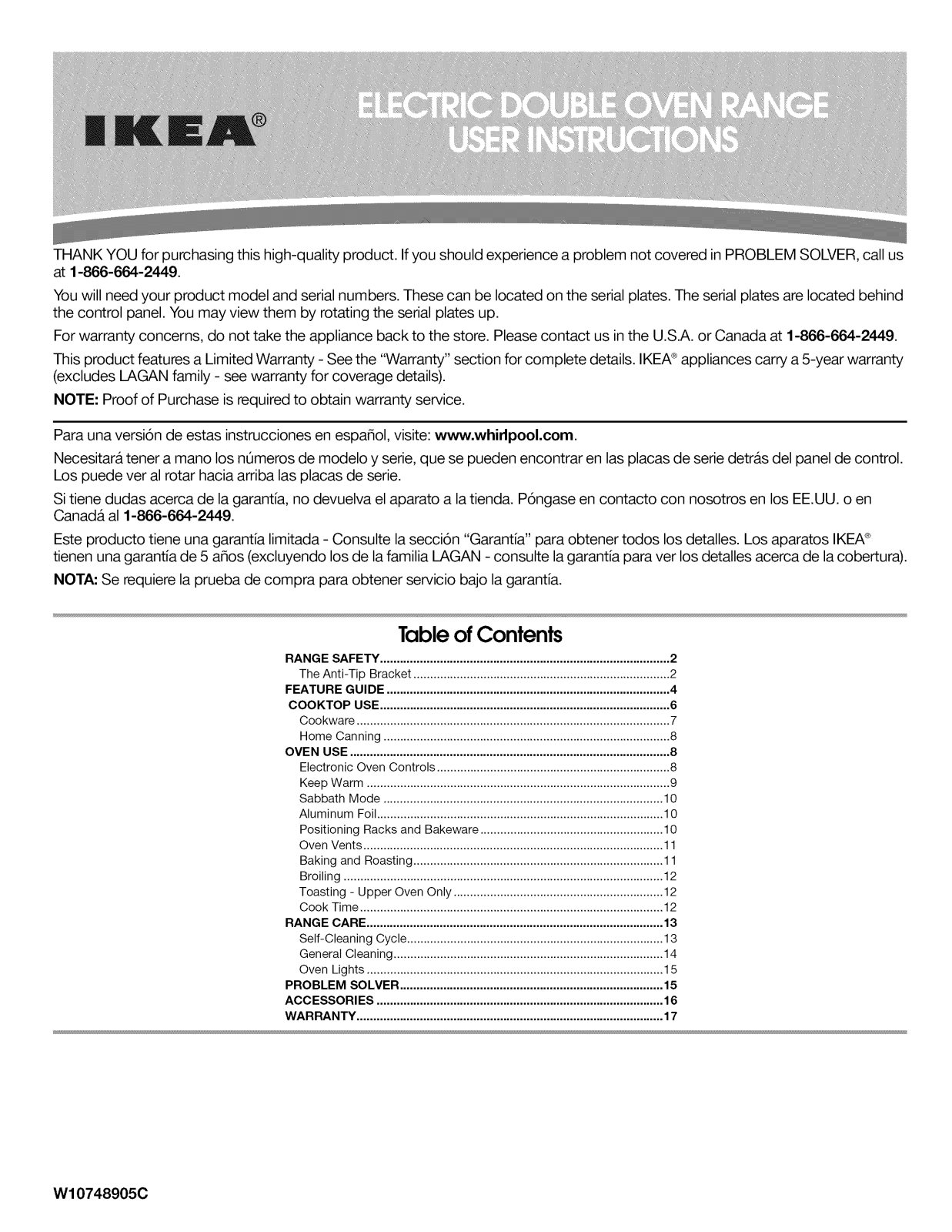

THANK YOU for purchasing this high-quality product. Ifyou should experience a problem not covered in PROBLEM SOLVER, call us
at 1-866-664-2449.
You will need your product model and serial numbers. These can be located on the serial plates. The serial plates are located behind
the control panel. You may view them by rotating the serial plates up.
Forwarranty concerns, do not take the appliance back to the store. Please contact us inthe U.S.A. or Canada at 1-866-684-2449.
This product features a Limited Warranty - See the "Warranty" section for complete details. IKEA®appliances carry a 5-year warranty
(excludes LAGAN family - see warranty for coverage details).
NOTE: Proof of Purchase is required to obtain warranty service.
Para una versi6n de estas instrucciones en espa_ol, visite: www.whirlpool.com.
Necesitara tener a mano los nOmeros de modelo y serie, que se pueden encontrar en las placas de serie detras del panel de control.
Los puede ver al rotar hacia arriba las placas de serie.
Si tiene dudas acerca de la garantia, no devuelva el aparato a la tienda. P6ngase en contacto con nosotros en los EE.UU. o en
Canada al 1-866-664-2449.
Este producto tiene una garantia limitada - Consulte la secci6n "Garantia" para obtener todos los detalles. Los aparatos IKEA®
tienen una garantia de 5 a_os (excluyendo los de lafamilia LAGAN - consulte lagarantia para ver los detalles acerca de la cobertura).
NOTA: Se requiere la prueba de compra para obtener servicio bajo la garantia.
TableofContents
RANGE SAFETY ....................................................................................... 2
The Anti-Tip Bracket ............................................................................. 2
FEATURE GUIDE ..................................................................................... 4
COOKTOP USE ....................................................................................... 6

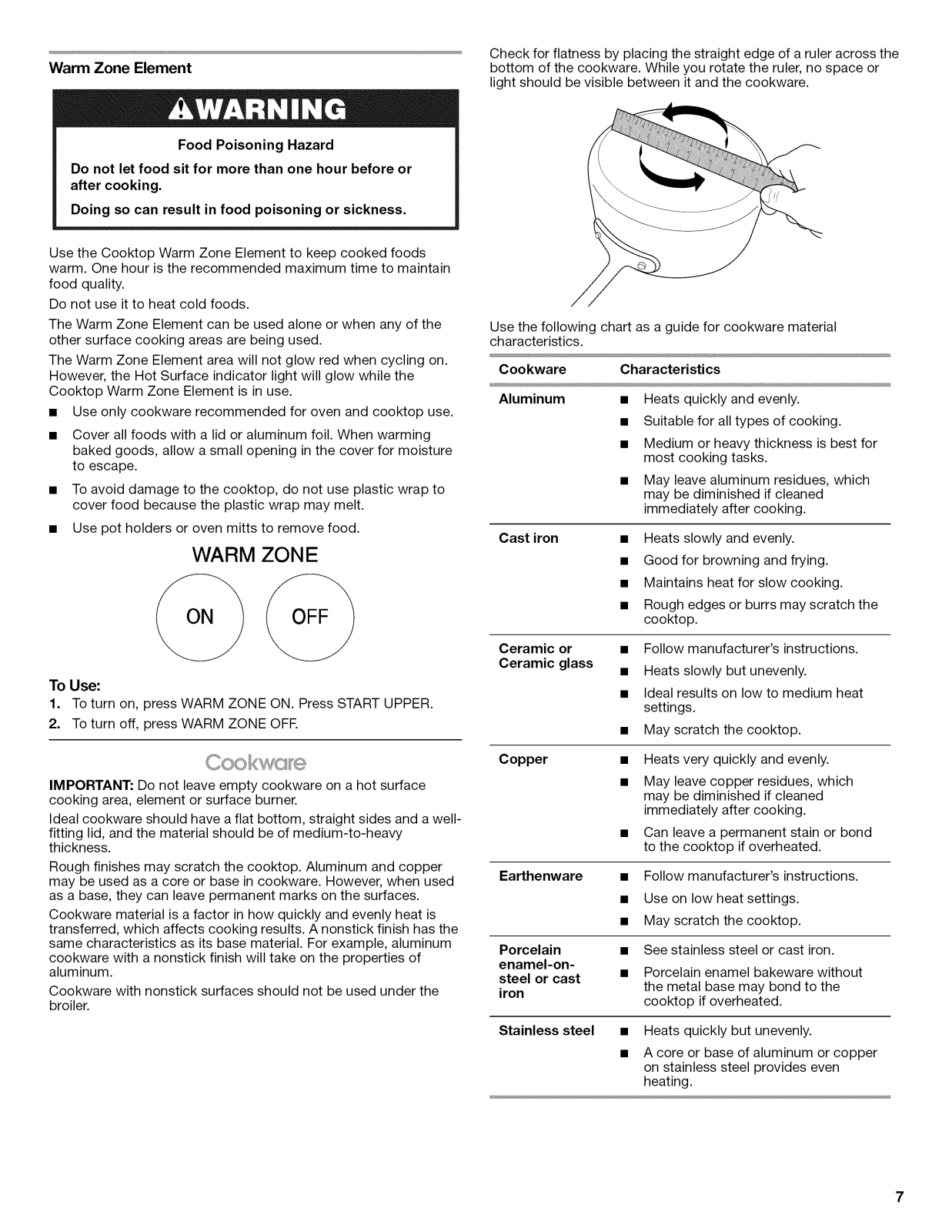

Cookware .............................................................................................. 7
Home Canning ...................................................................................... 8
OVEN USE ................................................................................................ 8
Electronic Oven Controls ...................................................................... 8

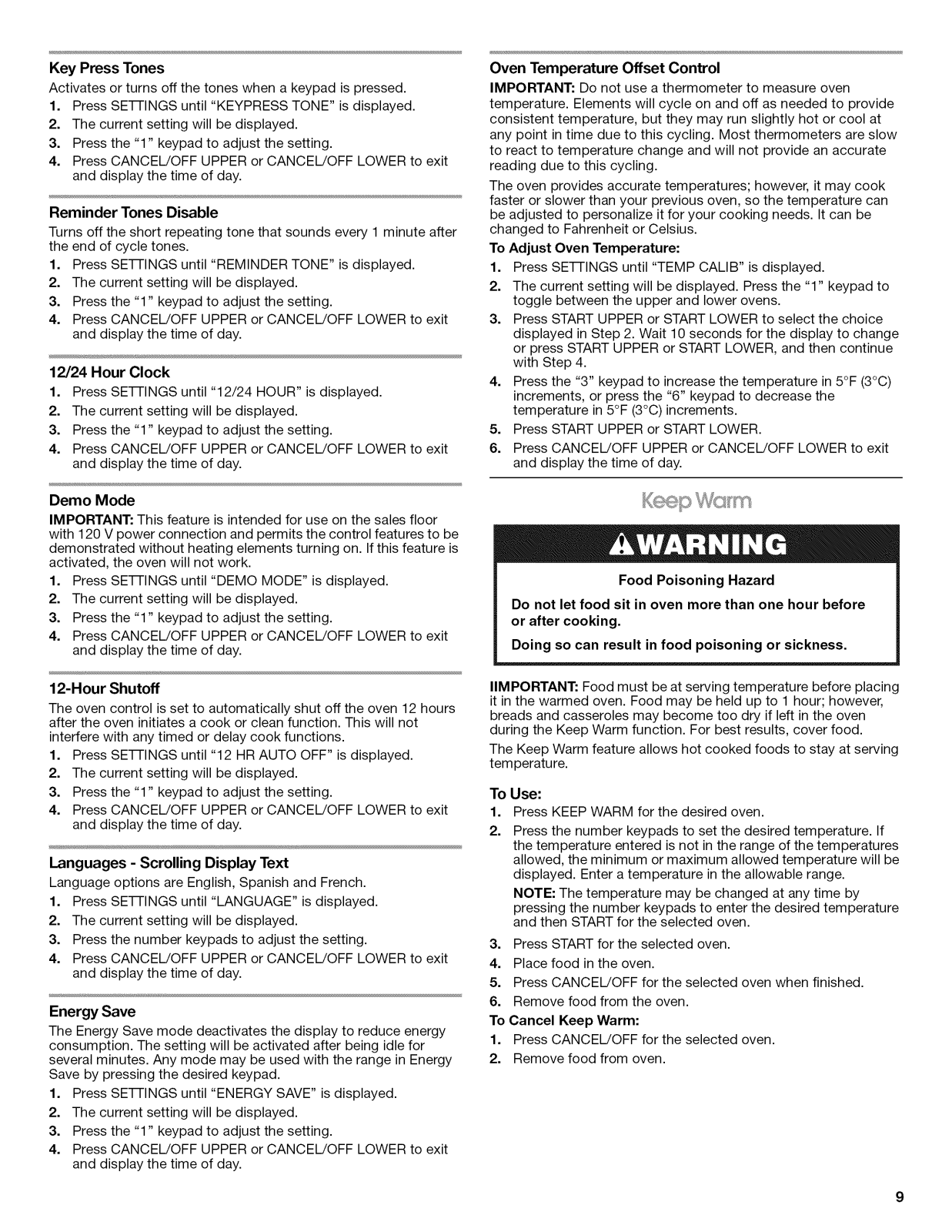

Keep Warm ........................................................................................... 9
Sabbath Mode .................................................................................... 10
Aluminum Foil...................................................................................... 10
Positioning Racks and Bakeware ....................................................... 10
Oven Vents .......................................................................................... 11
Baking and Roasting ........................................................................... 11

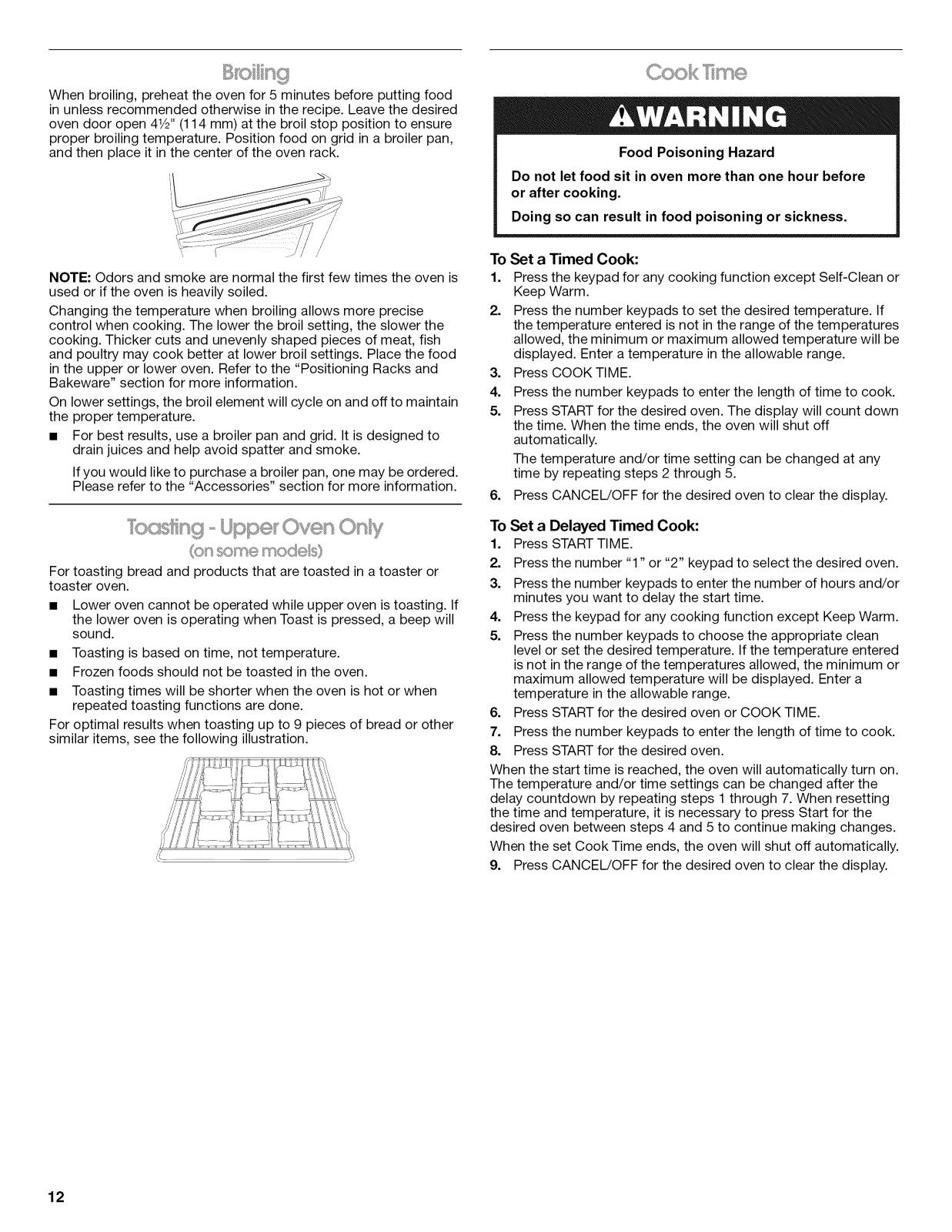

Broiling ................................................................................................ 12
Toasting - Upper Oven Only ............................................................... 12
Cook Time ........................................................................................... 12

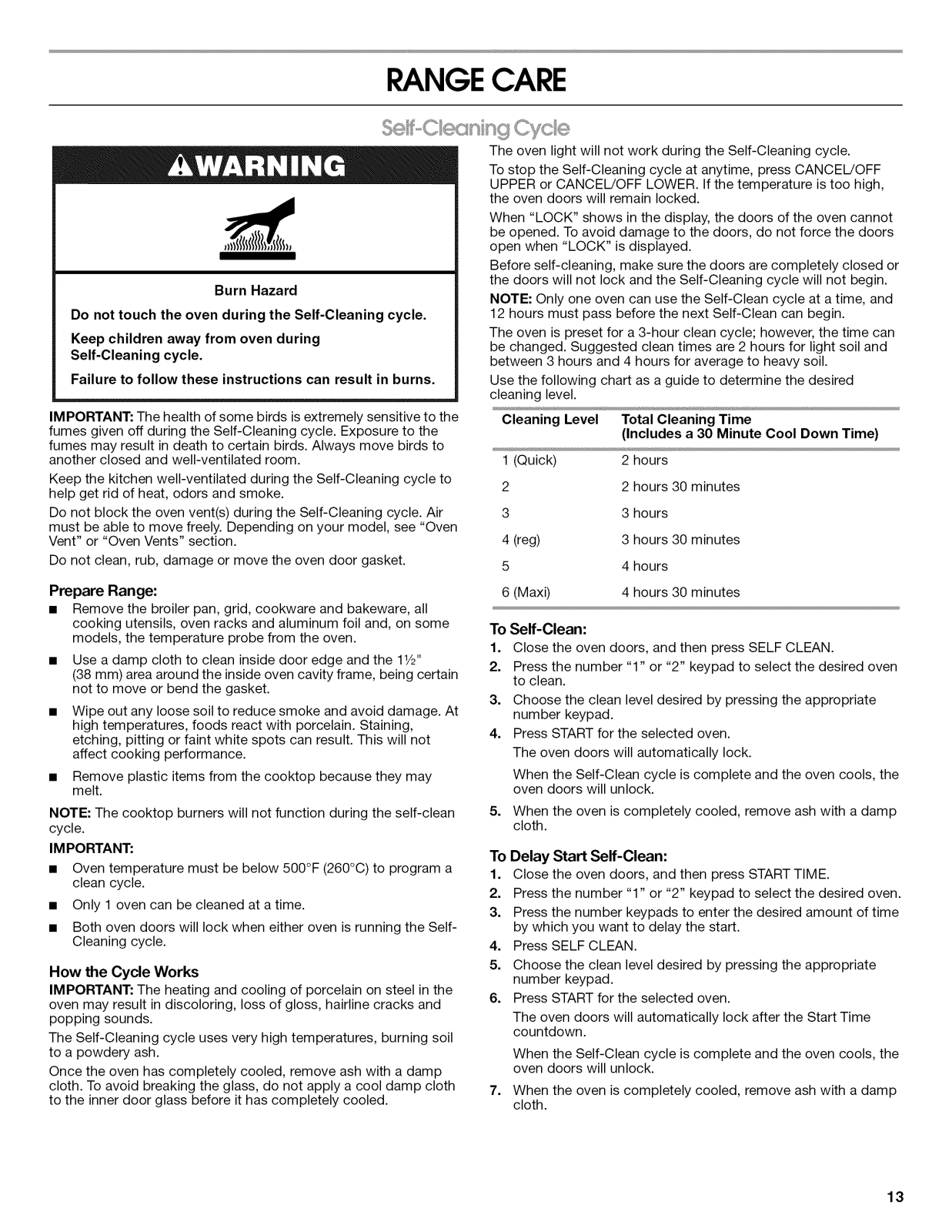

RANGE CARE ......................................................................................... 13
Self-Cleaning Cycle ............................................................................. 13

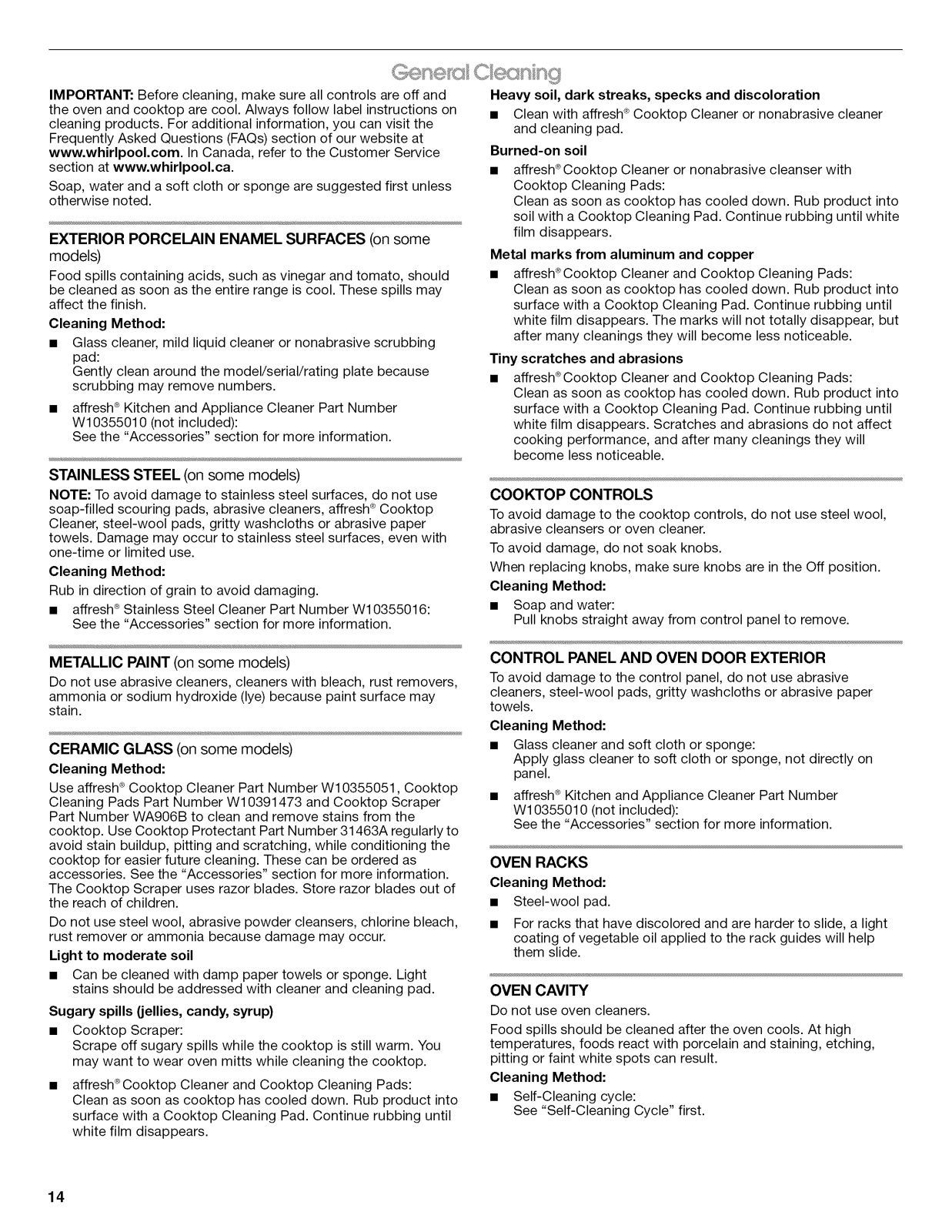

General Cleaning ................................................................................. 14
Oven Lights ......................................................................................... 15

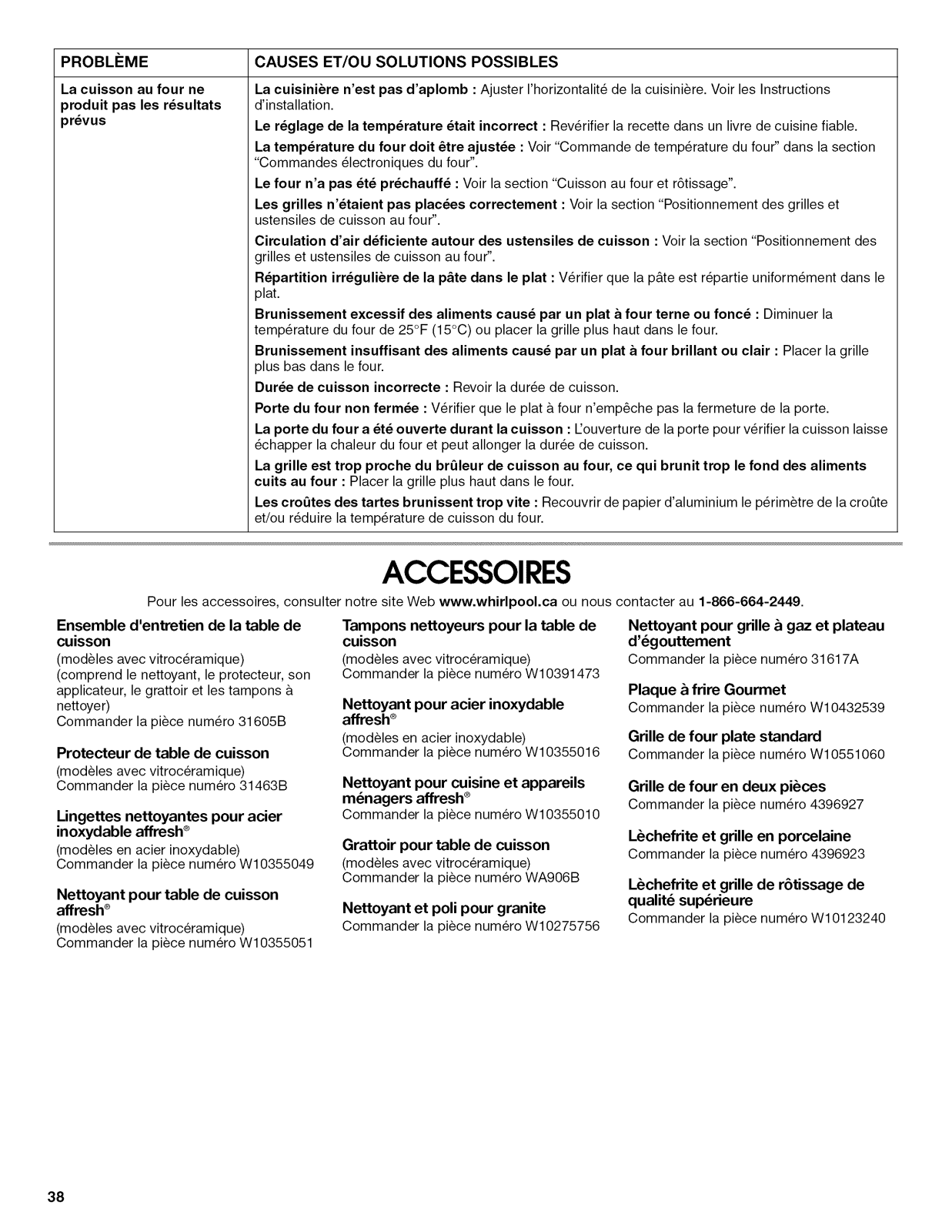

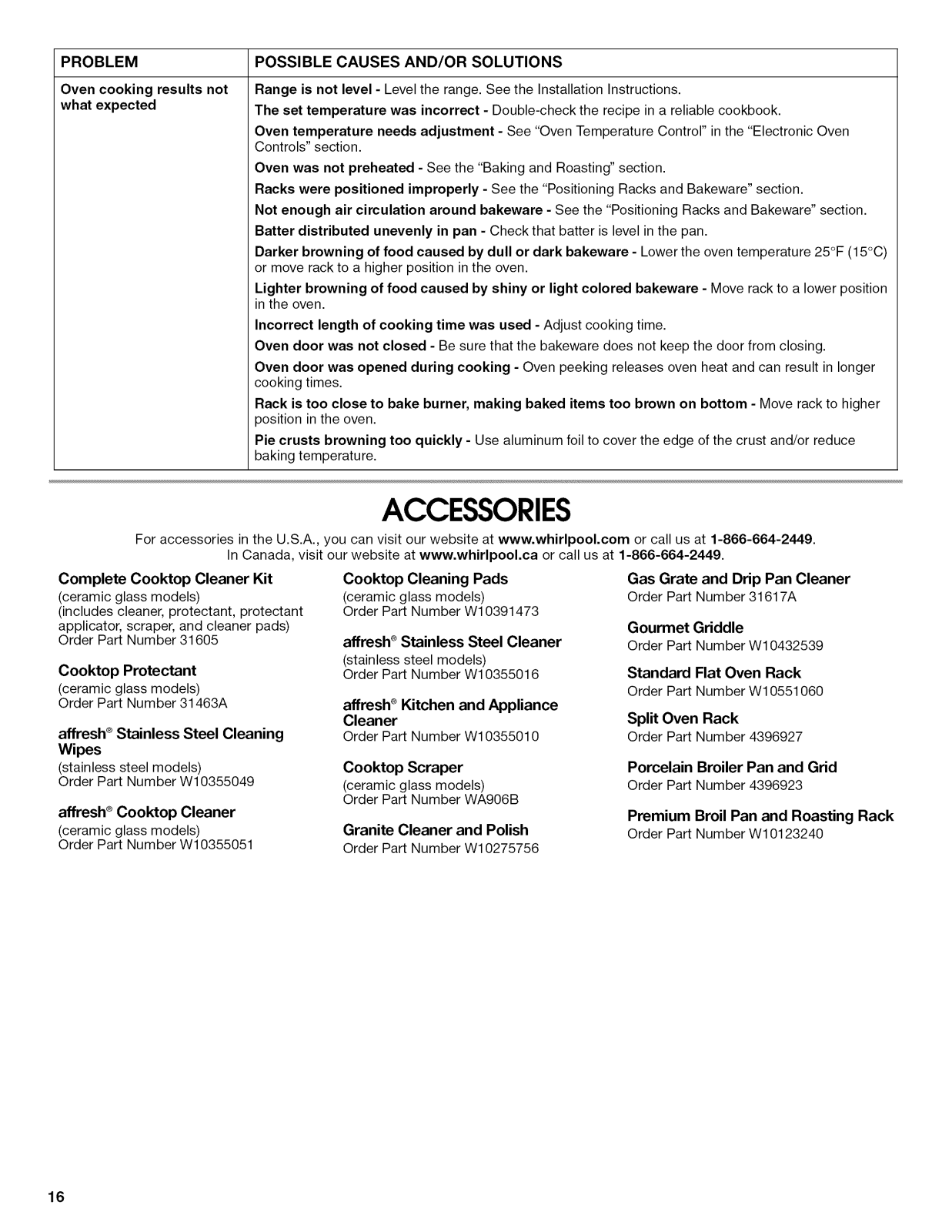

PROBLEM SOLVER ............................................................................... 15
ACC ESSORI ES ...................................................................................... 16
WARRANTY ............................................................................................ 17
W107489050
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg2.png)

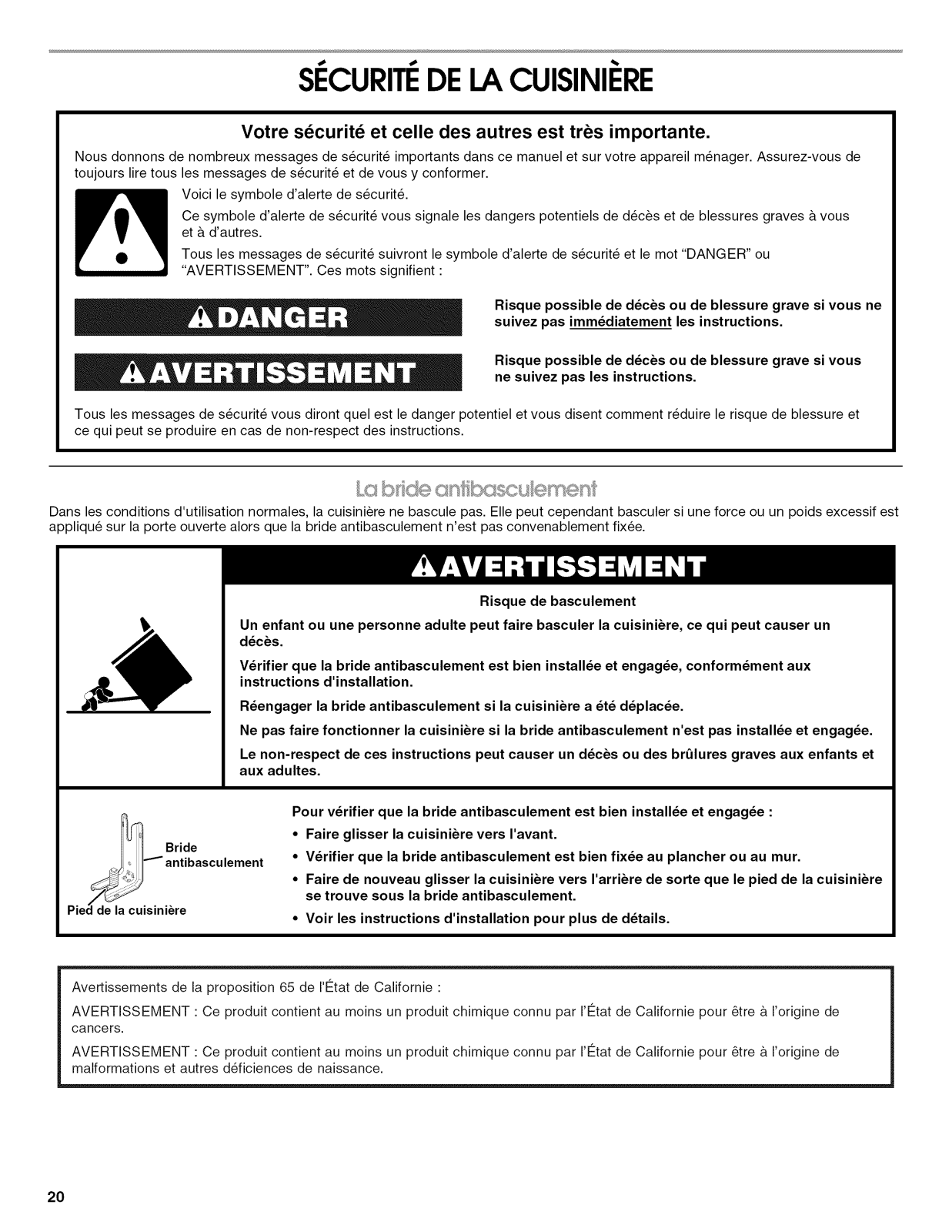

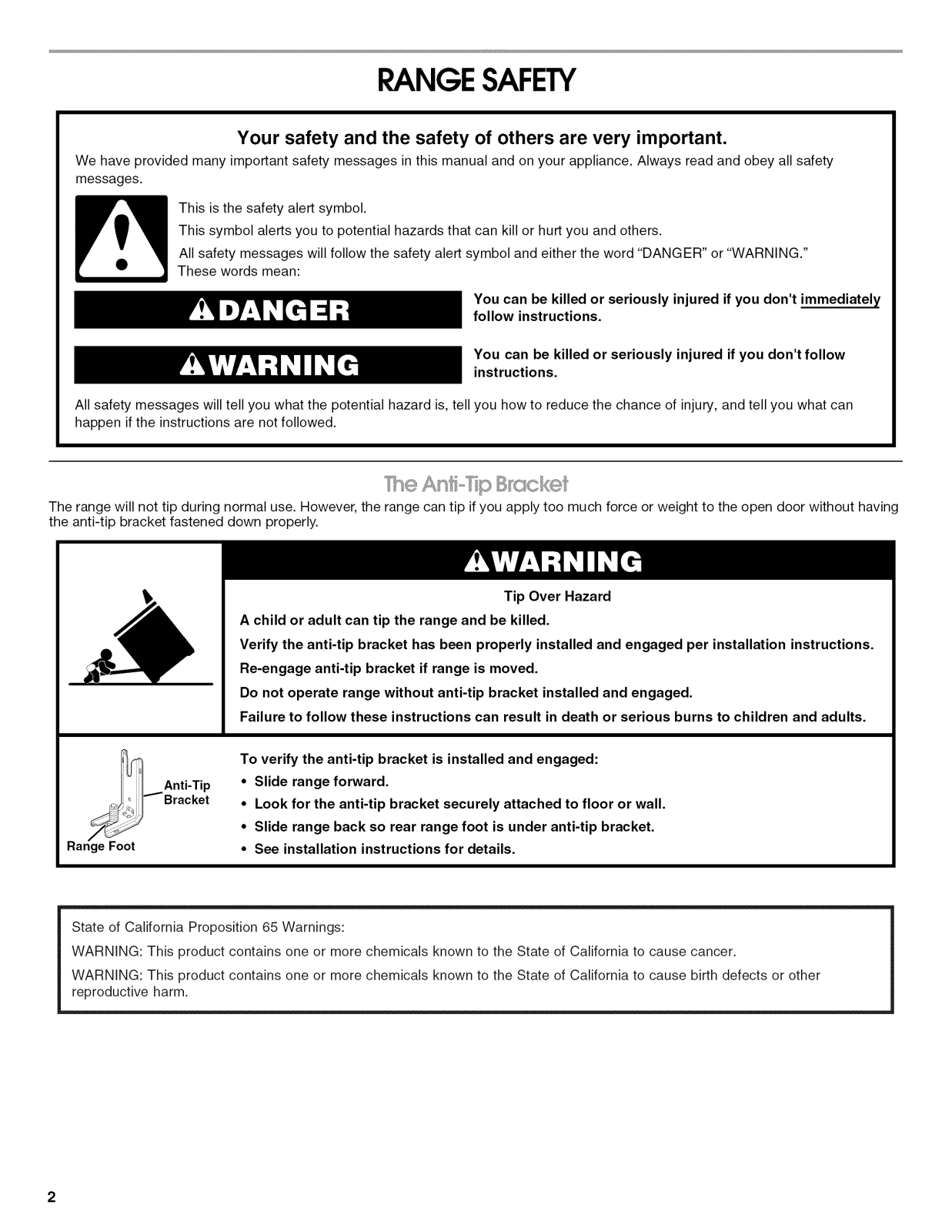

RANGESAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without having
the anti-tip bracket fastened down properly.
Tip Over Hazard
A child or adult can tip the range and be killed.
Verify the anti-tip bracket has been properly installed and engaged per installation instructions.
Re-engage anti-tip bracket if range is moved.
Do not operate range without anti-tip bracket installed and engaged.
Failure to follow these instructions can result in death or serious burns to children and adults.
To verify the anti-tip bracket is installed and engaged:
_Anti-Tip
RaS Bracket
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor or wall.
• Slide range back so rear range foot is under anti-tip bracket.
• See installation instructions for details.
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg3.png)

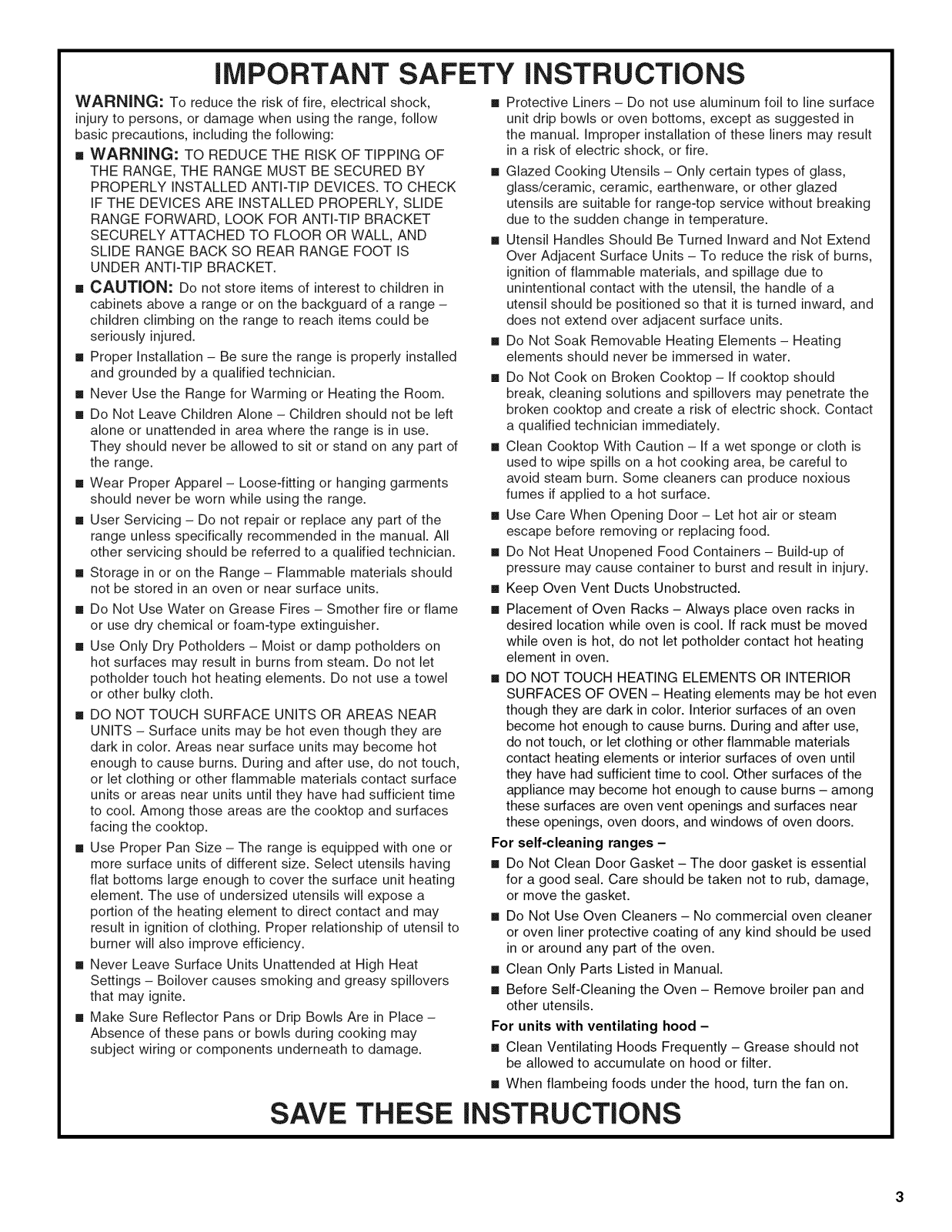

iMPORTANT SAFETY iNSTRUCTiONS
WARN(NG: To reduce the risk of fire, electrical shock,
injury to persons, or damage when using the range, follow
basic precautions, including the following:
[] WARNING: TO REDUCE THE RISK OF TIPPING OF
THE RANGE, THE RANGE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK
IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE
RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR OR WALL, AND
SLIDE RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
[] CAUTION: Do not store items of interest to children in
cabinets above a range or on the backguard of a range -
children climbing on the range to reach items could be
seriously injured.
[] Proper Installation - Be sure the range is properly installed
and grounded by a qualified technician.
[] Never Use the Range for Warming or Heating the Room.
[] Do Not Leave Children Alone - Children should not be left
alone or unattended in area where the range is in use.
They should never be allowed to sit or stand on any part of
the range.
[] Wear Proper Apparel - Loose-fitting or hanging garments
should never be worn while using the range.
[] User Servicing - Do not repair or replace any part of the
range unless specifically recommended in the manual. All
other servicing should be referred to a qualified technician.
[] Storage in or on the Range - Flammable materials should
not be stored in an oven or near surface units.
[] Do Not Use Water on Grease Fires - Smother fire or flame
or use dry chemical or foam-type extinguisher.
[] Use Only Dry Potholders - Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
[] DO NOT TOUCH SURFACE UNITS OR AREAS NEAR
UNITS - Surface units may be hot even though they are
dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, do not touch,
or let clothing or other flammable materials contact surface
units or areas near units until they have had sufficient time
to cool. Among those areas are the cooktop and surfaces
facing the cooktop.
[] Use Proper Pan Size - The range is equipped with one or
more surface units of different size. Select utensils having
flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a
portion of the heating element to direct contact and may
result in ignition of clothing. Proper relationship of utensil to
burner will also improve efficiency.
[] Never Leave Surface Units Unattended at High Heat
Settings - Boilover causes smoking and greasy spillovers
that may ignite.
[] Make Sure Reflector Pans or Drip Bowls Are in Place -
Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
[] Protective Liners - Do not use aluminum foil to line surface
unit drip bowls or oven bottoms, except as suggested in
the manual. Improper installation of these liners may result
in a risk of electric shock, or fire.
[] Glazed Cooking Utensils - Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for range-top service without breaking
due to the sudden change in temperature.
[] Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units - To reduce the risk of burns,
ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of a
utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
[] Do Not Soak Removable Heating Elements - Heating
elements should never be immersed in water.
[] Do Not Cook on Broken Cooktop - If cooktop should
break, cleaning solutions and spillovers may penetrate the
broken cooktop and create a risk of electric shock. Contact
a qualified technician immediately.
[] Clean Cooktop With Caution - If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to
avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
[] Use Care When Opening Door - Let hot air or steam
escape before removing or replacing food.
[] Do Not Heat Unopened Food Containers - Build-up of
pressure may cause container to burst and result in injury.
[] Keep Oven Vent Ducts Unobstructed.
[] Placement of Oven Racks - Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot, do not let potholder contact hot heating
element in oven.
[] DO NOT TOUCH HEATING ELEMENTS OR INTERIOR
SURFACES OF OVEN - Heating elements may be hot even
though they are dark in color. Interior surfaces of an oven
become hot enough to cause burns. During and after use,
do not touch, or let clothing or other flammable materials
contact heating elements or interior surfaces of oven until
they have had sufficient time to cool. Other surfaces of the
appliance may become hot enough to cause burns - among
these surfaces are oven vent openings and surfaces near
these openings, oven doors, and windows of oven doors.
For self-cleaning ranges -
[] Do Not Clean Door Gasket - The door gasket is essential
for a good seal. Care should be taken not to rub, damage,
or move the gasket.
[] Do Not Use Oven Cleaners - No commercial oven cleaner
or oven liner protective coating of any kind should be used
in or around any part of the oven.
[] Clean Only Parts Listed in Manual.
[] Before Self-Cleaning the Oven - Remove broiler pan and
other utensils.
For units with ventilating hood -
[] Clean Ventilating Hoods Frequently - Grease should not
be allowed to accumulate on hood or filter.
[] When flambeing foods under the hood, turn the fan on.
SAVE THESE INSTRUCTIONS
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg4.png)

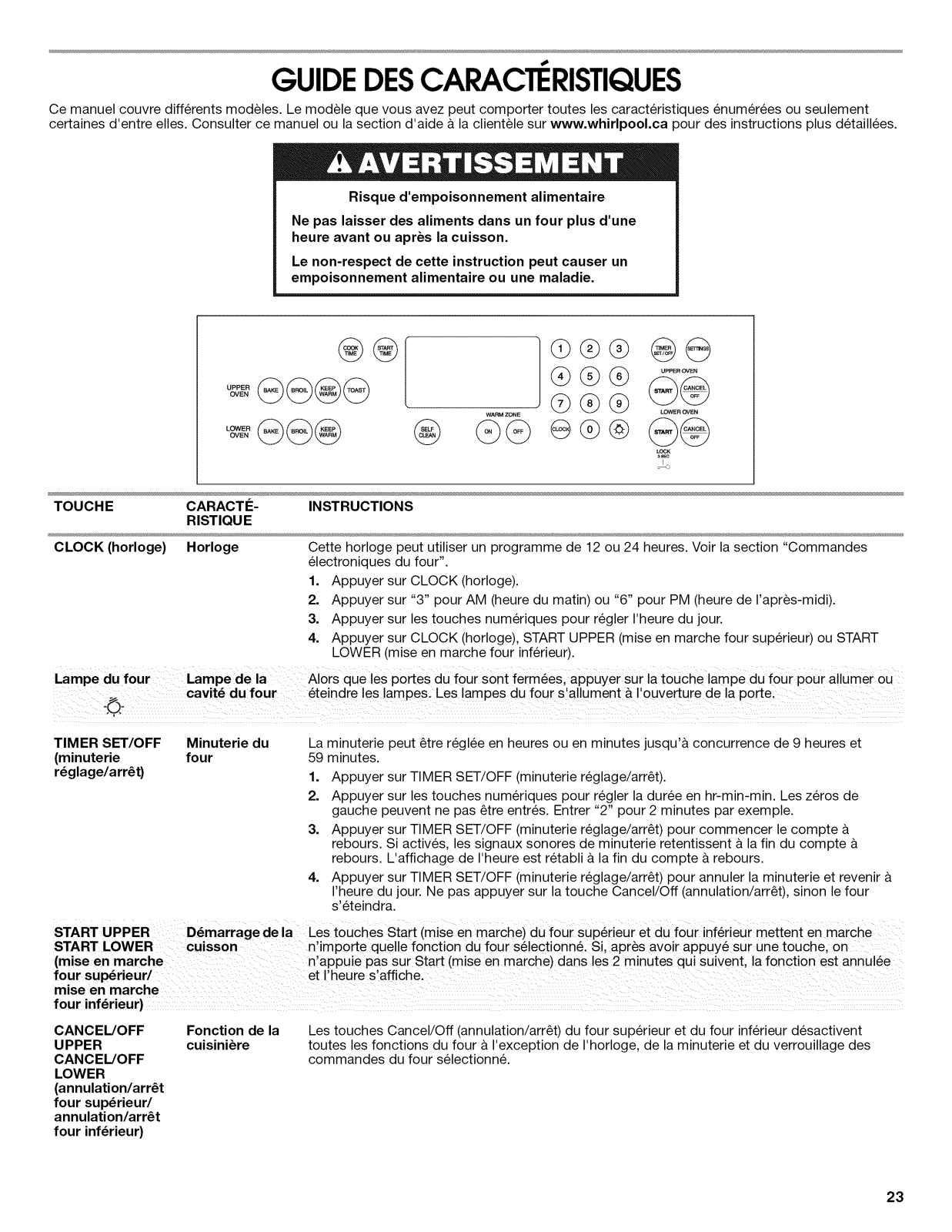

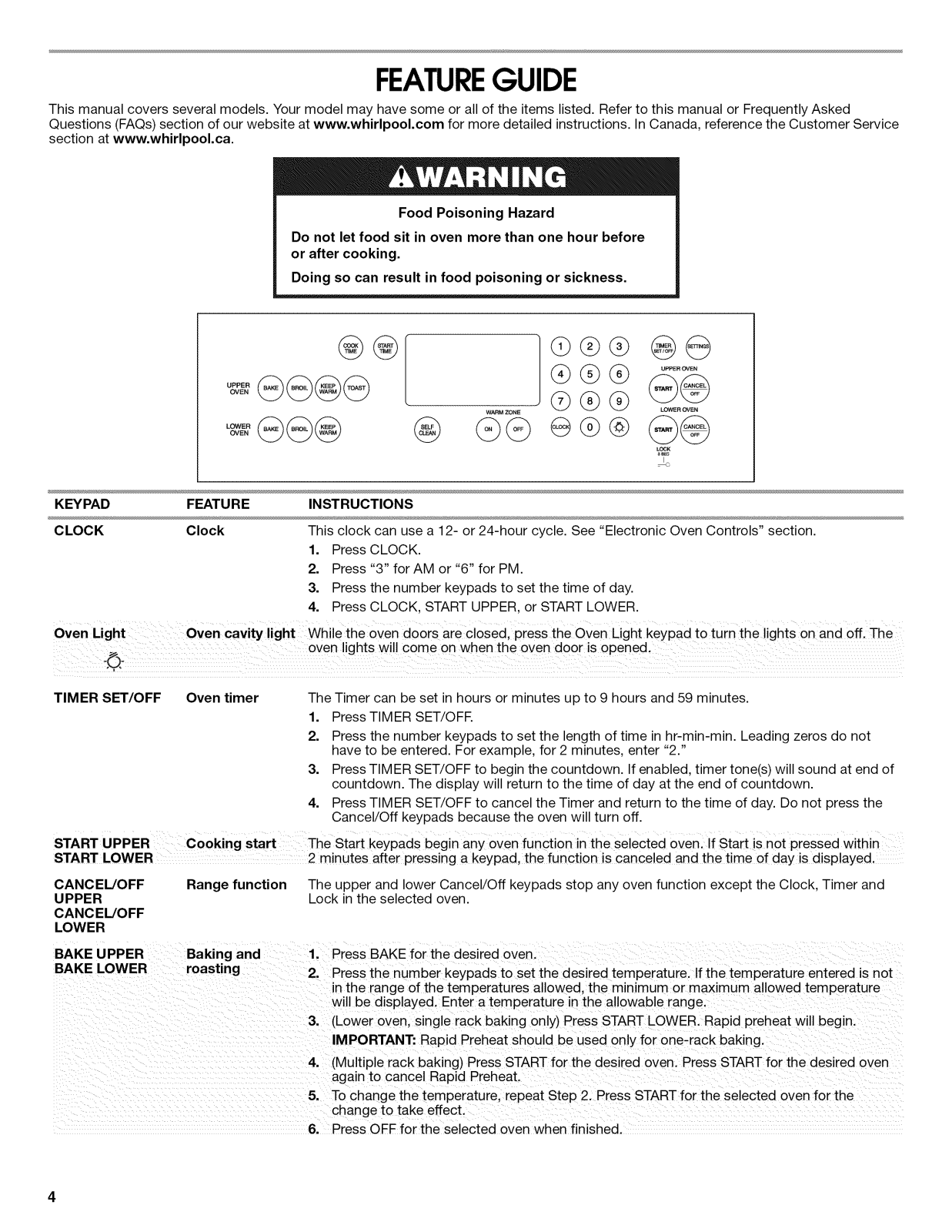

FEATUREGUIDE
This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or Frequently Asked
Questions (FAQs) section of our website at www.whirlpool.com for more detailed instructions. In Canada, reference the Customer Service
section at www.whirlpool.ca.
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
@@
oo® @@
@@@ .........
OVEN
uPPER
WARM ZONE
OVEN

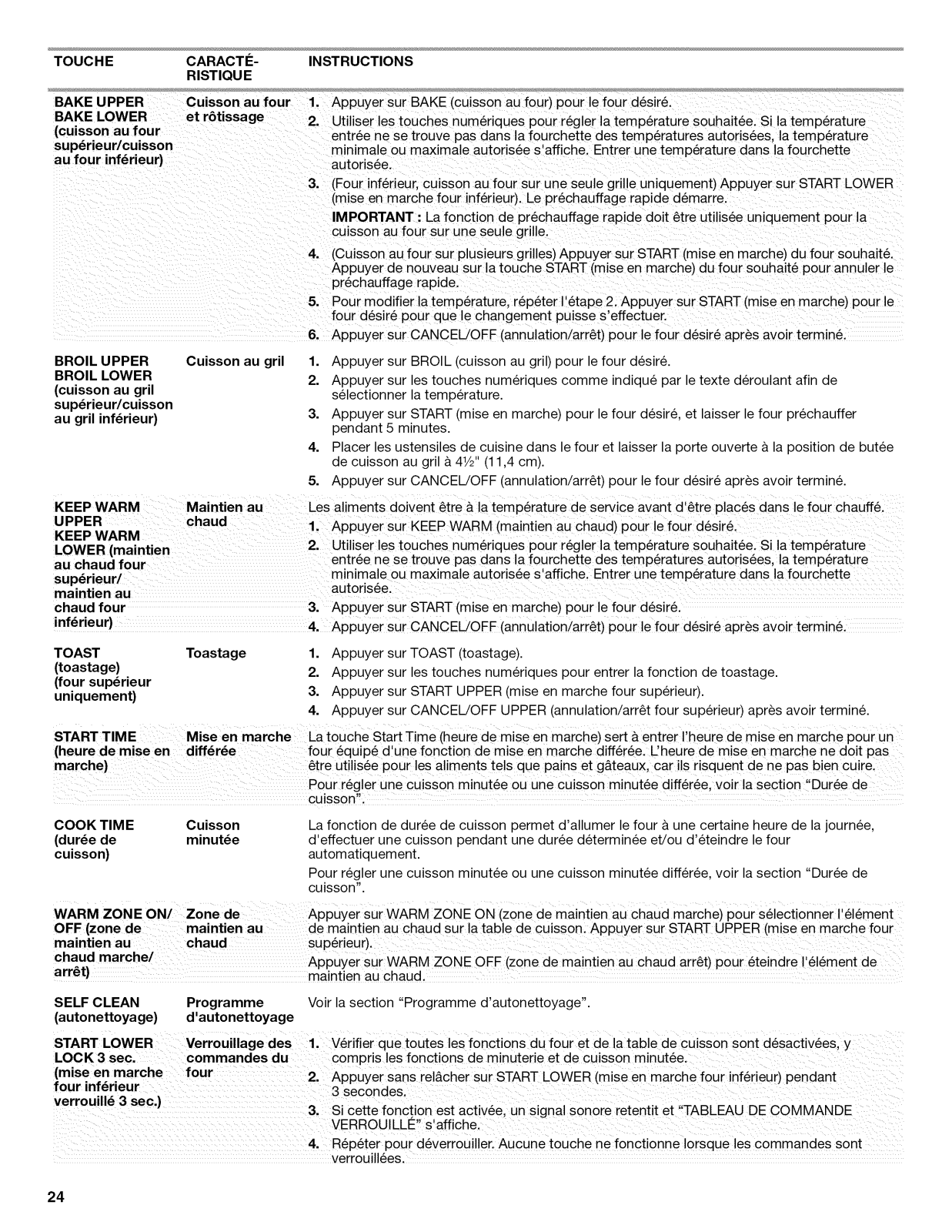

KEYPAD FEATURE INSTRUCTIONS
CLOCK Clock This clock can use a 12- or 24-hour cycle. See "Electronic Oven Controls" section.
1. Press CLOCK.
2. Press "3" for AM or "6" for PM.
3. Press the number keypads to set the time of day.
4. Press CLOCK, START UPPER, or START LOWER.
oven oven cavity ! ght While the oven do0Fs are cloSed, Press the oven Eight keYpad to tuin the lights on and off. The
oven lights will come on when the oven door is opened
TIMER SET/OFF Oven timer The Timer can be set in hours or minutes up to 9 hours and 59 minutes.
1. Press TIMER SET/OFE
2. Press the number keypads to set the length of time in hr-min-min. Leading zeros do not
have to be entered. For example, for 2 minutes, enter "2."
3. Press TIMER SET/OFF to begin the countdown. If enabled, timer tone(s) will sound at end of
countdown. The display will return to the time of day at the end of countdown.
4. Press TIMER SET/OFF to cancel the Timer and return to the time of day. Do not press the
Cancel/Off keypads because the oven will turn off.
START UPPER Cooking start The start keypads begin any oven function inthe selected oven. If StaFt is not pressed Within
START LOWER 2minutes after pressing a keypad, the function is canceled and the time of day is displayed,
CANCEL/OFF Range function The upper and lower Cancel/Off keypads stop any oven function except the Clock, Timer and
UPPER Lock in the selected oven.
CANCEL!OFF
LOWER
BAKE UPPER Baking and
BAKE LOWER roasting
1. Press BAKE for the desired oven.
2. Press the number keypads to set the desired temperature. If the temperature entered is not
in the range of the temperatures allowed, the minimum or maximum allowed tern perature
will be displayed. Enter a temperature in the allowable range.
3. (Lower oven, single rack baking only) Press START LOWER. Rapid preheat will begin.
IMPORTANT: Rapid Preheat should be used only for one-rack baking.
4. (Multiple rack baking) Press START for the desired oven. Press START for the desired oven
again to cancel Rapid Preheat.
5. To change the temperature, repeat Step 2. Press START for the selected oven for the
change to take effect.
6. Press OFF for the selected oven when finishedL
@ GG
LOWEROVEN
L_K
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg5.png)
KEYPAD FEATURE INSTRUCTIONS
BROIL UPPER Broiling
BROIL LOWER
KEEP WARM Hold warm F0od mus t beat Serving temperature before plaC ng it in the war med Oven
UPPER 1 Press KeeP WARM for the desired OVen
KEEPW A R M "
LOWER 2. Press the number keypads to set the desired temperature, lf the temperature entered is not
-- in the range of the tempe[atures allowed, the minimum or maximum allowed temperature
TOAST Toasting 1. Press TOAST.
(upper only) 2. Use the number keypad to select the desired toast setting.
1. Press BROIL for the desired oven.
2. Press the number keypad as instructed by the scrolling text to select the temperature.
3. Press START for the desired oven, and then allow the oven to preheat for 5 minutes.
4. Position the cookware in the oven, and then leave the door open 41/2'' (11.4 cm) at the broil
stop position.
5. Press CANCEL/OFF for the selected oven when finished.
will be displayed. Enter a temperature in the all0wable range. .........................................
3' Press START for the desired oVenl
4. Press CANCEL!OFF for the selected oven when finished.
3. Press START UPPER.
4. Press CANCEL!OFF UPPER when finished.
START TIME Delayed start The Start Time keypad is used to enter the starting time for an oven function with a delayed
COOK TIME Timed cooking Cook Time allows the oven to be set to turn on at a certain time of day, cook for a set length of
WARM ZONE Warming zone press WARM ZONE ON to select the warming element oHthe €0okt0pl Press START UPPER:
ON!OFF Press WARM ZONE OFF to turn off the warming element.
SELF CLEAN Self-clean cycle See the "Self-Clean Cycle" section.
START LOWER Oven control 1. Check that the ovens and timers are off.
LOCK 3 sec lockout
SEI-I'INGS Oven use
functions
start, Start Time should not be used for fo0ds such as breads and cakes because they may not
bake properly.
To set a Timed Cook or aDelayed Timed Cook, see "Cook Time" section.
time, and/or shut off automatically.
To set a Timed Cook or a Delayed Timed Cook, see "Cook Time" section.
2. PresS and hoid START for 3 Sec0nds:
if enab!ed' a tone Will Sound' and €ONTROLLocKED_'_ wi!! be displayed
4. Repeat to un!ock. No keypads wi!! function with the contro!s !ocked,
Enables you to personalize the audible tones and oven operation to suit your needs. See the
"Oven Use" section.
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg6.png)

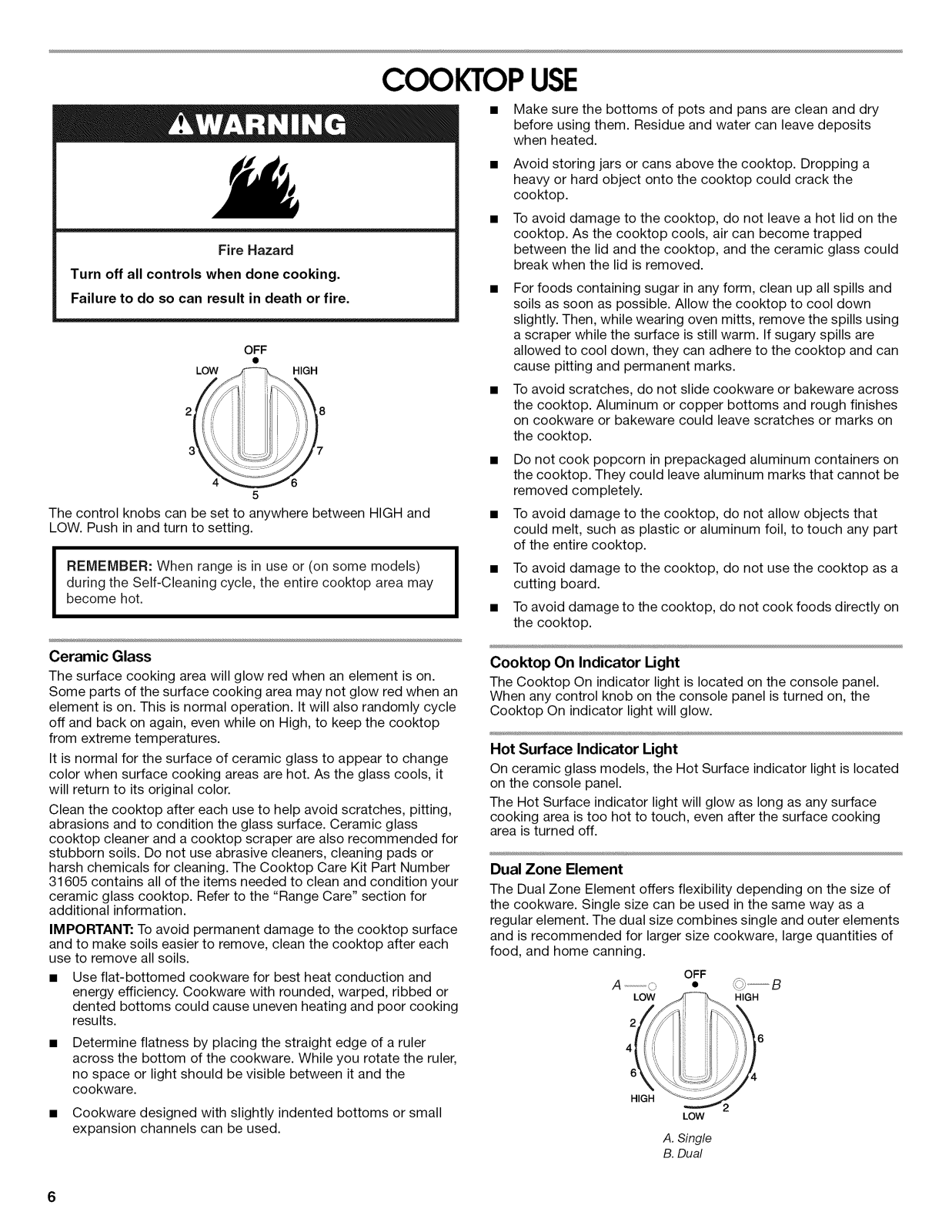

COOKTOP USE
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
OFF
LOW HIGH
3 7
The control knobs can be set to anywhere between HIGH and
LOW. Push in and turn to setting.
REMEMBER: When range is in use or (on some models)
during the Self-Cleaning cycle, the entire cooktop area may
become hot.
€
4
5
Make sure the bottoms of pots and pans are clean and dry
before using them. Residue and water can leave deposits
when heated.
• Avoid storing jars or cans above the cooktop. Dropping a
heavy or hard object onto the cooktop could crack the
cooktop.
• To avoid damage to the cooktop, do not leave a hot lid on the
cooktop. As the cooktop cools, air can become trapped
between the lid and the cooktop, and the ceramic glass could
break when the lid is removed.
• For foods containing sugar in any form, clean up all spills and
soils as soon as possible. Allow the cooktop to cool down
slightly. Then, while wearing oven mitts, remove the spills using
a scraper while the surface is still warm. If sugary spills are
allowed to cool down, they can adhere to the cooktop and can
cause pitting and permanent marks.
• To avoid scratches, do not slide cookware or bakeware across
the cooktop. Aluminum or copper bottoms and rough finishes
on cookware or bakeware could leave scratches or marks on
the cooktop.
• Do not cook popcorn in prepackaged aluminum containers on
the cooktop. They could leave aluminum marks that cannot be
removed completely.
• To avoid damage to the cooktop, do not allow objects that
could melt, such as plastic or aluminum foil, to touch any part
of the entire cooktop.
• To avoid damage to the cooktop, do not use the cooktop as a
cutting board.
• To avoid damage to the cooktop, do not cook foods directly on
the cooktop.
Ceramic Glass
The surface cooking area will glow red when an element is on.
Some parts of the surface cooking area may not glow red when an
element is on. This is normal operation. It will also randomly cycle
off and back on again, even while on High, to keep the cooktop
from extreme temperatures.
It is normal for the surface of ceramic glass to appear to change
color when surface cooking areas are hot. As the glass cools, it
will return to its original color.
Clean the cooktop after each use to help avoid scratches, pitting,
abrasions and to condition the glass surface. Ceramic glass
cooktop cleaner and a cooktop scraper are also recommended for
stubborn soils. Do not use abrasive cleaners, cleaning pads or
harsh chemicals for cleaning. The Cooktop Care Kit Part Number
31605 contains all of the items needed to clean and condition your
ceramic glass cooktop. Refer to the "Range Care" section for
additional information.
IMPORTANT: To avoid permanent damage to the cooktop surface
and to make soils easier to remove, clean the cooktop after each
use to remove all soils.
Use flat-bottomed cookware for best heat conduction and
energy efficiency. Cookware with rounded, warped, ribbed or
dented bottoms could cause uneven heating and poor cooking
results.
Determine flatness by placing the straight edge of a ruler
across the bottom of the cookware. While you rotate the ruler,
no space or light should be visible between it and the
cookware.
• Cookware designed with slightly indented bottoms or small
expansion channels can be used.
Cooktop On Indicator Light
The Cooktop On indicator light is located on the console panel.
When any control knob on the console panel is turned on, the
Cooktop On indicator light will glow.
Hot Surface Indicator Light
On ceramic glass models, the Hot Surface indicator light is located
on the console panel.
The Hot Surface indicator light will glow as long as any surface
cooking area is too hot to touch, even after the surface cooking
area is turned off.
Dual Zone Element
The Dual Zone Element offers flexibility depending on the size of
the cookware. Single size can be used in the same way as a
regular element. The dual size combines single and outer elements
and is recommended for larger size cookware, large quantities of
food, and home canning.
OFF
LOW HIGH
HIGH
LOW
A. Single
B.Dual
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg7.png)
Warm Zone Element
Food Poisoning Hazard
Do not let food sit for more than one hour before or
after cooking.
Doing so can result in food poisoning or sickness.
Use the Cooktop Warm Zone Element to keep cooked foods
warm. One hour is the recommended maximum time to maintain
food quality.
Do not use it to heat cold foods.
The Warm Zone Element can be used alone or when any of the
other surface cooking areas are being used.
The Warm Zone Element area will not glow red when cycling on.
However, the Hot Surface indicator light will glow while the
Cooktop Warm Zone Element is in use.
• Use only cookware recommended for oven and cooktop use.
• Cover all foods with a lid or aluminum foil. When warming
baked goods, allow a small opening in the cover for moisture
to escape.
• To avoid damage to the cooktop, do not use plastic wrap to
cover food because the plastic wrap may melt.
• Use pot holders or oven mitts to remove food.
WARM ZONE
o@@
To Use:
1. To turn on, press WARM ZONE ON. Press START UPPER.
2. To turn off, press WARM ZONE OFR
Check for flatness by placing the straight edge of a ruler across the
bottom of the cookware. While you rotate the ruler, no space or
light should be visible between it and the cookware.
Use the following chart as a guide for cookware material
characteristics.
Cookware Characteristics
Aluminum •
Cast iron
Ceramic or
Ceramic glass
Heats quickly and evenly.
Suitable for all types of cooking.
Medium or heavy thickness is best for
most cooking tasks.
• May leave aluminum residues, which
may be diminished if cleaned
immediately after cooking.
• Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Rough edges or burrs may scratch the
cooktop.
• Follow manufacturer's instructions.
• Heats slowly but unevenly.
• Ideal results on low to medium heat
settings.
• May scratch the cooktop.
IMPORTANT: Do not leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a flat bottom, straight sides and a well-
fitting lid, and the material should be of medium-to-heavy
thickness.
Rough finishes may scratch the cooktop. Aluminum and copper
may be used as a core or base in cookware. However, when used
as a base, they can leave permanent marks on the surfaces.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A nonstick finish has the
same characteristics as its base material. For example, aluminum
cookware with a nonstick finish will take on the properties of
aluminum.
Cookware with nonstick surfaces should not be used under the
broiler.
Copper
Earthenware
Porcelain
enamel-on-
steel or cast
iron
Stainless steel
• Heats very quickly and evenly.
• May leave copper residues, which
may be diminished if cleaned
immediately after cooking.
• Can leave a permanent stain or bond
to the cooktop if overheated.
• Follow manufacturer's instructions.
• Use on low heat settings.
• May scratch the cooktop.
• See stainless steel or cast iron.
• Porcelain enamel bakeware without
the metal base may bond to the
cooktop if overheated.
• Heats quickly but unevenly.
• A core or base of aluminum or copper
on stainless steel provides even
heating.
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg8.png)

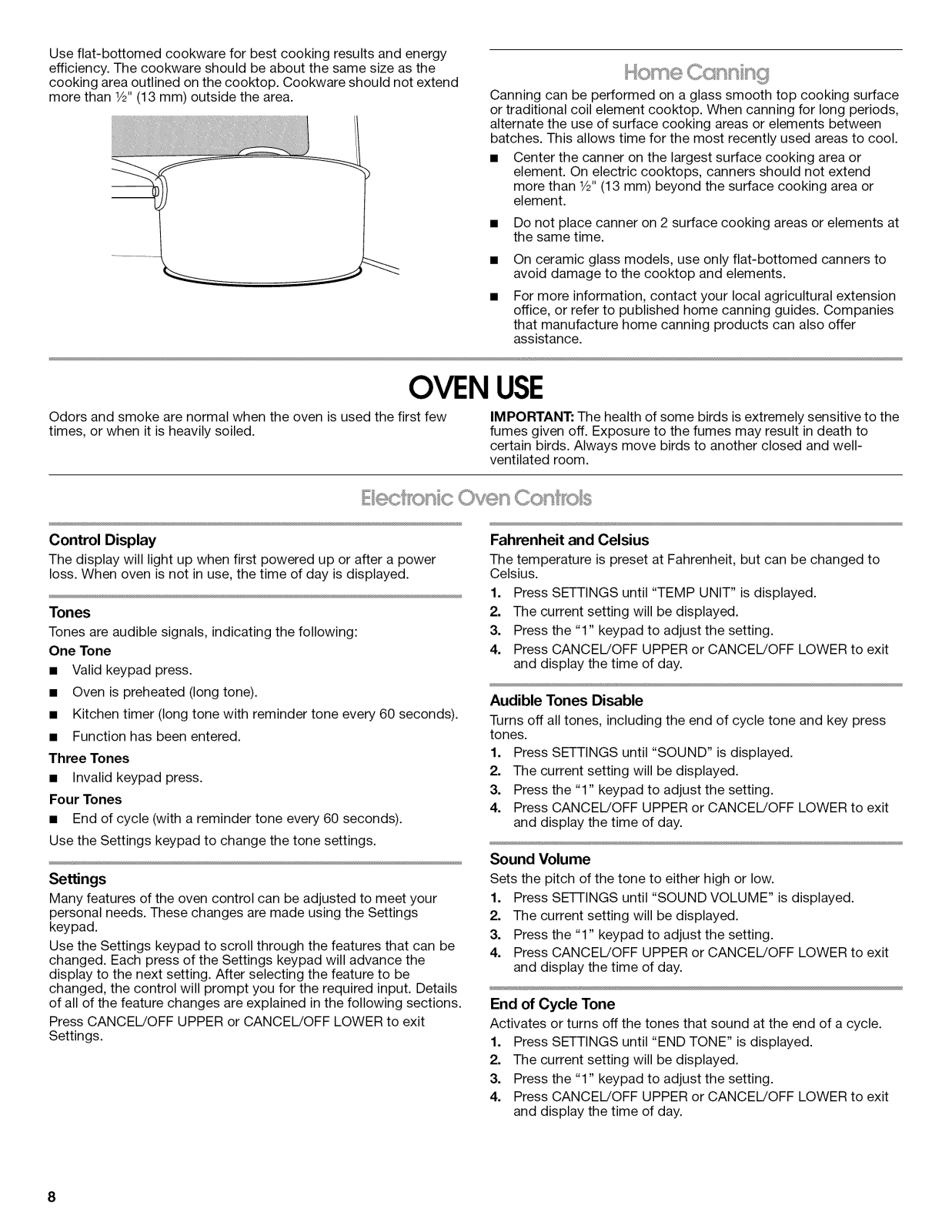

Useflat-bottomedcookwareforbestcookingresultsandenergy
efficiency.Thecookwareshouldbeaboutthesamesizeasthe
cookingareaoutlinedonthecooktop.Cookwareshouldnotextend
morethan1/2"(13mm)outsidethearea.
OVEN USE
Odors and smoke are normal when the oven is used the first few
times, or when it is heavily soiled.
EecRc} c 0 Co tK<}s
Home 6c£ g
Canning can be performed on a glass smooth top cooking surface
or traditional coil element cooktop. When canning for long periods,
alternate the use of surface cooking areas or elements between
batches. This allows time for the most recently used areas to cool.
• Center the canner on the largest surface cooking area or
element. On electric cooktops, canners should not extend
more than 1/2"(13 mm) beyond the surface cooking area or
element.
• Do not place canner on 2 surface cooking areas or elements at
the same time.
On ceramic glass models, use only flat-bottomed canners to
avoid damage to the cooktop and elements.
For more information, contact your local agricultural extension
office, or refer to published home canning guides. Companies
that manufacture home canning products can also offer
assistance.
IMPORTANT: The health of some birds is extremely sensitive to the
fumes given off. Exposure to the fumes may result in death to
certain birds. Always move birds to another closed and well-
ventilated room.
Control Display
The display will light up when first powered up or after a power
loss. When oven is not in use, the time of day is displayed.
Tones
Tones are audible signals, indicating the following:
One Tone
• Valid keypad press.
• Oven is preheated (long tone).
• Kitchen timer (long tone with reminder tone every 60 seconds).
• Function has been entered.
Three Tones
• Invalid keypad press.
Four Tones
• End of cycle (with a reminder tone every 60 seconds).
Use the Settings keypad to change the tone settings.
Settings
Many features of the oven control can be adjusted to meet your
personal needs. These changes are made using the Settings
keypad.
Use the Settings keypad to scroll through the features that can be
changed. Each press of the Settings keypad will advance the
display to the next setting. After selecting the feature to be
changed, the control will prompt you for the required input. Details
of all of the feature changes are explained in the following sections.
Press CANCEL/OFF UPPER or CANCEL!OFF LOWER to exit
Settings.
Fahrenheit and Celsius
The temperature is preset at Fahrenheit, but can be changed to
Celsius.
1. Press SETTINGS until "TEMP UNIT" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Audible Tones Disable
Turns off all tones, including the end of cycle tone and key press
tones.
1. Press SETTINGS until "SOUND" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Sound Volume
Sets the pitch of the tone to either high or low.
1. Press SE-i-i-INGS until "SOUND VOLUME" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
End of Cycle Tone
Activates or turns off the tones that sound at the end of a cycle.
1. Press SETTINGS until "END TONE" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bg9.png)
Key Press Tones
Activates or turns off the tones when a keypad is pressed.
1. Press SE-i-i-INGS until "KEYPRESS TONE" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL/OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Reminder Tones Disable
Turns off the short repeating tone that sounds every 1 minute after
the end of cycle tones.
1. Press SE-i-i-INGS until "REMINDER TONE" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
12/24 Hour Clock
1. Press SE-i-i-INGS until "12/24 HOUR" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Demo Mode
IMPORTANT: This feature is intended for use on the sales floor
with 120 V power connection and permits the control features to be
demonstrated without heating elements turning on. Ifthis feature is
activated, the oven will not work.
1. Press SE-i-i-INGS until "DEMO MODE" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Oven Temperature Offset Control
IMPORTANT: Do not use a thermometer to measure oven
temperature. Elements will cycle on and off as needed to provide
consistent temperature, but they may run slightly hot or cool at
any point in time due to this cycling. Most thermometers are slow
to react to temperature change and will not provide an accurate
reading due to this cycling.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature can
be adjusted to personalize it for your cooking needs. It can be
changed to Fahrenheit or Celsius.
To Adjust Oven Temperature:
1. Press SE-i-i-INGS until "TEMP CALIB" is displayed.
2. The current setting will be displayed. Press the "1" keypad to
toggle between the upper and lower ovens.
3. Press START UPPER or START LOWER to select the choice
displayed in Step 2. Wait 10 seconds for the display to change
or press START UPPER or START LOWER, and then continue
with Step 4.
4. Press the "3" keypad to increase the temperature in 5°F (3°C)
increments, or press the "6" keypad to decrease the
temperature in 5°F (3°C)increments.
5. Press START UPPER or START LOWER.
6. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
12-Hour Shutoff
The oven control is set to automatically shut off the oven 12 hours
after the oven initiates a cook or clean function. This will not
interfere with any timed or delay cook functions.
1. Press SE-i-i-INGS until "12 HR AUTO OFF" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Languages - Scrolling Display Text
Language options are English, Spanish and French.
1. Press SE-i-i-INGS until "LANGUAGE" is displayed.
2. The current setting will be displayed.
3. Press the number keypads to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
Energy Save
The Energy Save mode deactivates the display to reduce energy
consumption. The setting will be activated after being idle for
several minutes. Any mode may be used with the range in Energy
Save by pressing the desired keypad.
1. Press SE-i-i-INGS until "ENERGY SAVE" is displayed.
2. The current setting will be displayed.
3. Press the "1" keypad to adjust the setting.
4. Press CANCEL!OFF UPPER or CANCEL!OFF LOWER to exit
and display the time of day.
IIMPORTANT: Food must be at serving temperature before placing
it in the warmed oven. Food may be held up to 1 hour; however,
breads and casseroles may become too dry if left in the oven
during the Keep Warm function. For best results, cover food.
The Keep Warm feature allows hot cooked foods to stay at serving
temperature.
To
Use:
1.
Press KEEPWARMfor the desired oven.
2.
Press the number keypads to set the desired temperature. If
the temperature entered is not in the range of the temperatures
allowed, the minimum or maximum allowed temperature will be
displayed. Enter a temperature in the allowable range.
NOTE: The temperature may be changed at any time by
pressing the number keypads to enter the desired temperature
and then START for the selected oven.
3. Press START for the selected oven.
4. Place food in the oven.
5. Press CANCEL!OFF for the selected oven when finished.
6. Remove food from the oven.
To Cancel Keep Warm:
1. Press CANCEL!OFF for the selected oven.
2. Remove food from oven.
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bga.png)
v/o ,,xe

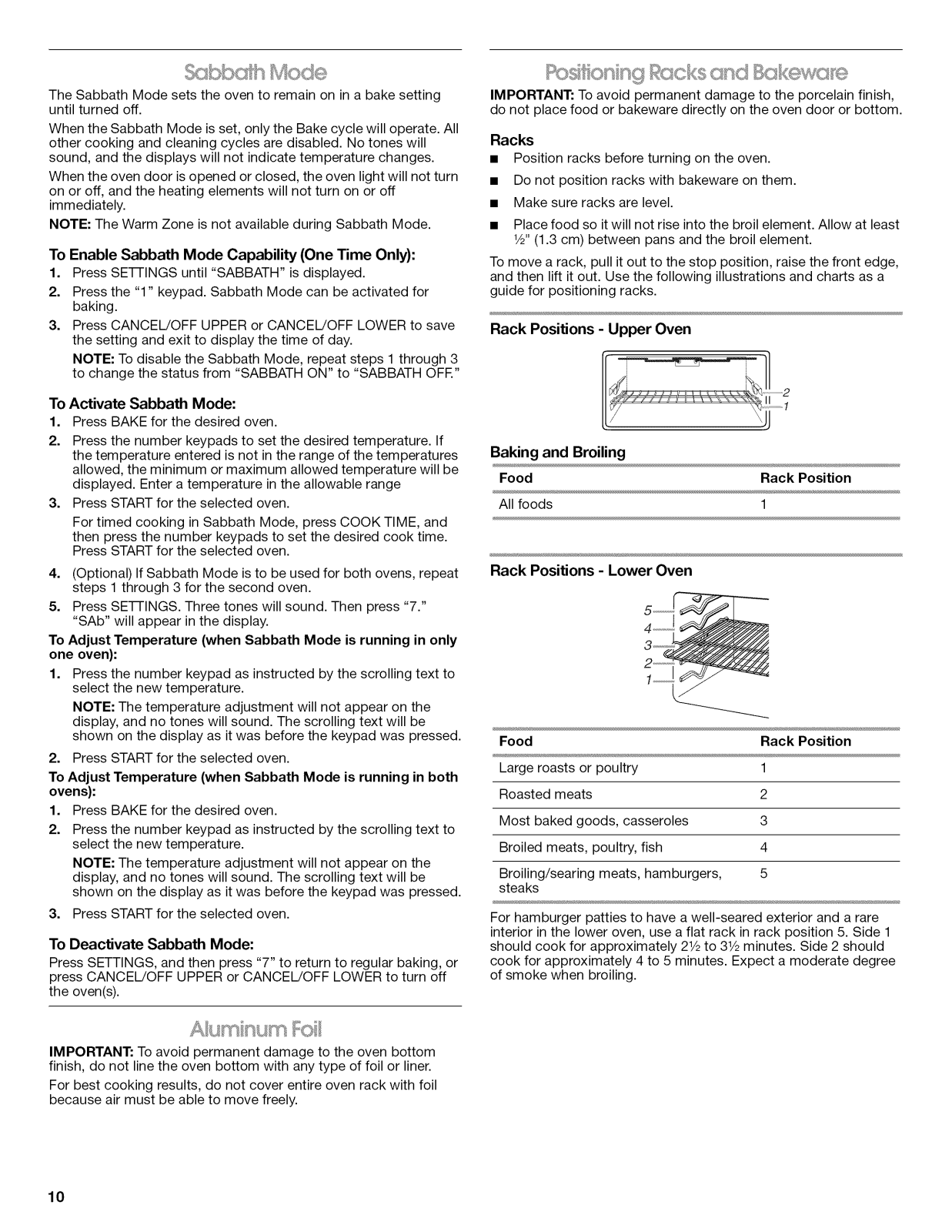

The Sabbath Mode sets the oven to remain on in a bake setting
until turned off.
When the Sabbath Mode is set, only the Bake cycle will operate. All
other cooking and cleaning cycles are disabled. No tones will
sound, and the displays will not indicate temperature changes.
When the oven door is opened or closed, the oven light will not turn
on or off, and the heating elements will not turn on or off
immediately.
NOTE: The Warm Zone is not available during Sabbath Mode.
To Enable Sabbath Mode Capability (One Time Only):
1. Press SE-n-INGS until "SABBATH" is displayed.
2. Press the "1" keypad. Sabbath Mode can be activated for
baking.
3. Press CANCEL/OFF UPPER or CANCEL!OFF LOWER to save
the setting and exit to display the time of day.
NOTE: To disable the Sabbath Mode, repeat steps 1 through 3
to change the status from "SABBATH ON" to "SABBATH OFE"
To Activate Sabbath Mode:
1. Press BAKEfor the desired oven.
2. Press the number keypads to set the desired temperature. If
the temperature entered is not in the range of the temperatures
allowed, the minimum or maximum allowed temperature will be
displayed. Enter a temperature in the allowable range
3. Press START for the selected oven.
For timed cooking in Sabbath Mode, press COOK TIME, and
then press the number keypads to set the desired cook time.
Press START for the selected oven.
4. (Optional) If Sabbath Mode is to be used for both ovens, repeat
steps 1 through 3 for the second oven.
5. Press SE-n-INGS. Three tones will sound. Then press "7."
"SAb" will appear in the display.
To Adjust Temperature (when Sabbath Mode is running in only
one oven):
1. Press the number keypad as instructed by the scrolling text to
select the new temperature.
NOTE: The temperature adjustment will not appear on the
display, and no tones will sound. The scrolling text will be
shown on the display as it was before the keypad was pressed.
2. Press START for the selected oven.
To Adjust Temperature (when Sabbath Mode is running in both
ovens):
1. Press BAKE for the desired oven.
2.
Press the number keypad as instructed by the scrolling text to
select the new temperature.
NOTE: The temperature adjustment will not appear on the
display, and no tones will sound. The scrolling text will be
shown on the display as it was before the keypad was pressed.
3. Press START for the selected oven.
To Deactivate Sabbath Mode:
Press SETTINGS, and then press "7" to return to regular baking, or
press CANCEL!OFF UPPER or CANCEL!OFF LOWER to turn off
the oven(s).
IMPORTANT: To avoid permanent damage to the porcelain finish,
do not place food or bakeware directly on the oven door or bottom.
Racks
• Position racks before turning on the oven.
• Do not position racks with bakeware on them.
• Make sure racks are level.
• Place food so it will not rise into the broil element. Allow at least
_/2"(1.3 cm) between pans and the broil element.
To move a rack, pull it out to the stop position, raise the front edge,
and then lift it out. Use the following illustrations and charts as a
guide for positioning racks.
Rack Positions - Upper Oven
Baking and Broiling
Food Rack Position
All foods 1
Rack Positions - Lower Oven
Food Rack Position
Large roasts or poultry 1
Roasted meats 2
Most baked goods, casseroles 3
Broiled meats, poultry, fish 4
Broiling/searing meats, hamburgers, 5
steaks
For hamburger patties to have a well-seared exterior and a rare
interior in the lower oven, use a flat rack in rack position 5. Side 1
should cook for approximately 2_/2to 31/2minutes. Side 2 should
cook for approximately 4 to 5 minutes. Expect a moderate degree
of smoke when broiling.
IMPORTANT: To avoid permanent damage to the oven bottom
finish, do not line the oven bottom with any type of foil or liner.
For best cooking results, do not cover entire oven rack with foil
because air must be able to move freely.
10
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bgb.png)

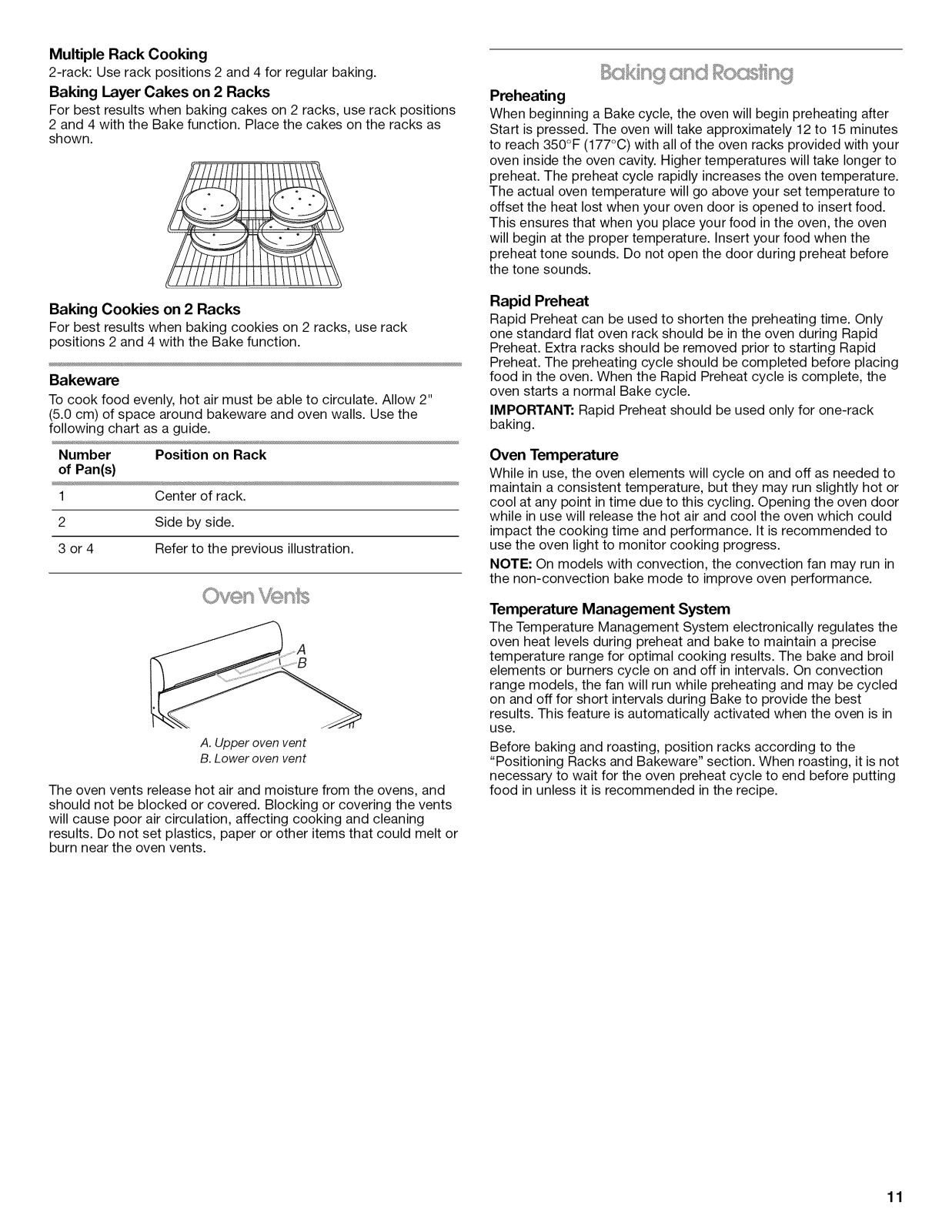

Multiple Rack Cooking
2-rack: Use rack positions 2 and 4 for regular baking.
Baking Layer Cakes on 2 Racks
For best results when baking cakes on 2 racks, use rack positions
2 and 4 with the Bake function. Place the cakes on the racks as
shown.
Preheating
When beginning a Bake cycle, the oven will begin preheating after
Start is pressed. The oven will take approximately 12 to 15 minutes
to reach 350°F (177°C) with all of the oven racks provided with your
oven inside the oven cavity. Higher temperatures will take longer to
preheat. The preheat cycle rapidly increases the oven temperature.
The actual oven temperature will go above your set temperature to
offset the heat lost when your oven door is opened to insert food.
This ensures that when you place your food in the oven, the oven
will begin at the proper temperature. Insert your food when the
preheat tone sounds. Do not open the door during preheat before
the tone sounds.
Baking Cookies on 2 Racks
For best results when baking cookies on 2 racks, use rack
positions 2 and 4 with the Bake function.
Bakeware
To cook food evenly, hot air must be able to circulate. Allow 2"
(5.0 cm) of space around bakeware and oven walls. Use the
following chart as a guide.
Number Position on Rack
of Pan(s)
1 Center of rack.
2 Side by side.
3 or 4 Refer to the previous illustration.
........A
A. Upper oven vent
B. Lower oven vent
The oven vents release hot air and moisture from the ovens, and
should not be blocked or covered. Blocking or covering the vents
will cause poor air circulation, affecting cooking and cleaning
results. Do not set plastics, paper or other items that could melt or
burn near the oven vents.
Rapid Preheat
Rapid Preheat can be used to shorten the preheating time. Only
one standard flat oven rack should be in the oven during Rapid
Preheat. Extra racks should be removed prior to starting Rapid
Preheat. The preheating cycle should be completed before placing
food in the oven. When the Rapid Preheat cycle is complete, the
oven starts a normal Bake cycle.
IMPORTANT: Rapid Preheat should be used only for one-rack
baking.
Oven Temperature
While in use, the oven elements will cycle on and off as needed to
maintain a consistent temperature, but they may run slightly hot or
cool at any point in time due to this cycling. Opening the oven door
while in use will release the hot air and cool the oven which could
impact the cooking time and performance. It is recommended to
use the oven light to monitor cooking progress.
NOTE: On models with convection, the convection fan may run in
the non-convection bake mode to improve oven performance.
Temperature Management System
The Temperature Management System electronically regulates the
oven heat levels during preheat and bake to maintain a precise
temperature range for optimal cooking results. The bake and broil
elements or burners cycle on and off in intervals. On convection
range models, the fan will run while preheating and may be cycled
on and off for short intervals during Bake to provide the best
results. This feature is automatically activated when the oven is in
use.
Before baking and roasting, position racks according to the
"Positioning Racks and Bakeware" section. When roasting, it is not
necessary to wait for the oven preheat cycle to end before putting
food in unless it is recommended in the recipe.
11
![](/html/98/9816/9816a32ceac727bd7e71b616a49a72d888c99ccb6f25518c698ec39162ea92d8/bgc.png)
When broiling, preheat the oven for 5 minutes before putting food
in unless recommended otherwise in the recipe. Leave the desired
oven door open 41/2'' (114 mm) at the broil stop position to ensure
proper broiling temperature. Position food on grid in a broiler pan,
and then place it in the center of the oven rack.
/
/
/
/
NOTE: Odors and smoke are normal the first few times the oven is
used or if the oven is heavily soiled.
Changing the temperature when broiling allows more precise
control when cooking. The lower the broil setting, the slower the
cooking. Thicker cuts and unevenly shaped pieces of meat, fish
and poultry may cook better at lower broil settings. Place the food
in the upper or lower oven. Refer to the "Positioning Racks and
Bakeware" section for more information.
On lower settings, the broil element will cycle on and off to maintain
the proper temperature.
• For best results, use a broiler pan and grid. It is designed to
drain juices and help avoid spatter and smoke.
Ifyou would like to purchase a broiler pan, one may be ordered.
Please refer to the "Accessories" section for more information.
For toasting bread and products that are toasted in a toaster or
toaster oven.
• Lower oven cannot be operated while upper oven is toasting. If
the lower oven is operating when Toast is pressed, a beep will
sound.
• Toasting is based on time, not temperature.
• Frozen foods should not be toasted in the oven.
• Toasting times will be shorter when the oven is hot or when
repeated toasting functions are done.
For optimal results when toasting up to 9 pieces of bread or other
similar items, see the following illustration.
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
To
Set a Timed Cook:
1.
Press the keypad for any cooking function except Self-Clean or
Keep Warm.
2.
Press the number keypads to set the desired temperature. If
the temperature entered is not in the range of the temperatures
allowed, the minimum or maximum allowed temperature will be
displayed. Enter a temperature in the allowable range.
3.
Press COOK TIME.
4.
Press the number keypads to enter the length of time to cook.
5.
Press START for the desired oven. The display will count down
the time. When the time ends, the oven will shut off
automatically.
The temperature and/or time setting can be changed at any
time by repeating steps 2 through 5.
6. Press CANCEL/OFF for the desired oven to clear the display.
To
Set a Delayed Timed Cook:
1.
Press STARTTIME.
2.
Press the number "1" or "2" keypad to select the desired oven.
3.
Press the number keypads to enter the number of hours and/or
minutes you want to delay the start time.
4.
Press the keypad for any cooking function except Keep Warm.
5.
Press the number keypads to choose the appropriate clean
level or set the desired temperature. If the temperature entered
is not in the range of the temperatures allowed, the minimum or
maximum allowed temperature will be displayed. Enter a
temperature in the allowable range.
6.
Press START for the desired oven or COOK TIME.
7.
Press the number keypads to enter the length of time to cook.
8.
Press START for the desired oven.
When the start time is reached, the oven will automatically turn on.
The temperature and/or time settings can be changed after the
delay countdown by repeating steps 1 through 7. When resetting
the time and temperature, it is necessary to press Start for the
desired oven between steps 4 and 5 to continue making changes.
When the set Cook Time ends, the oven will shut off automatically.
9. Press CANCEL!OFF for the desired oven to clear the display.
12
