IKEA W10303976A User Instructions
ELECTRIC RANGE
USER INSTRUCTIONS
THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.ikea.com or www.whirlpool.ca for additional information. If you still need assistance, call us at
1-866-664-2449.
You will need your model and serial number located on the oven frame behind the storage drawer panel.
Table of Contents
RANGE SAFETY.......................................................................................2
The Anti-Tip Bracket .............................................................................2
FEATURE GUIDE .....................................................................................4
COOKTOP USE........................................................................................5
OVEN USE ................................................................................................5
Electronic Oven Controls......................................................................5
Aluminum Foil........................................................................................6

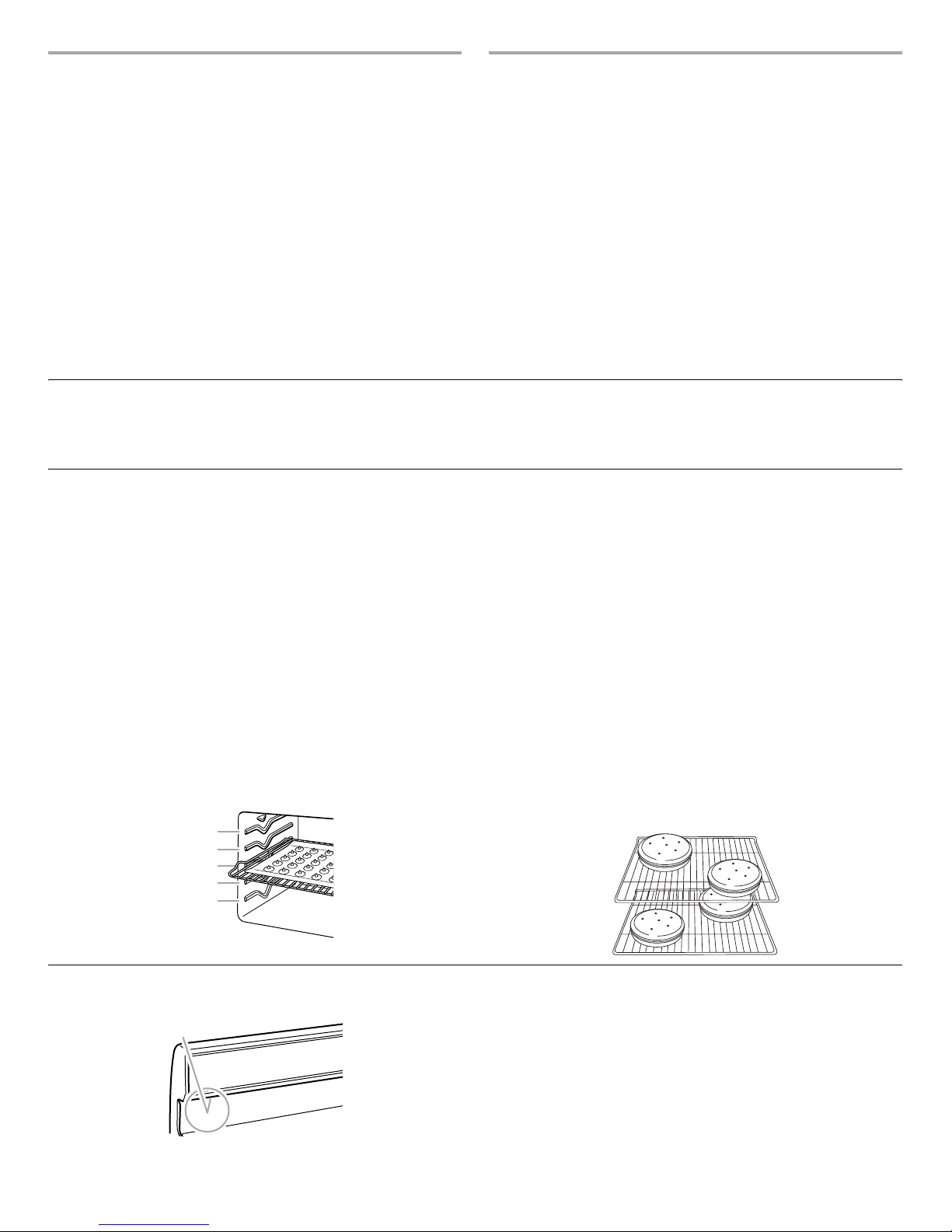

Positioning Racks and Bakeware.........................................................6
Oven Vent..............................................................................................6
Baking and Roasting.............................................................................6
Broiling ..................................................................................................6
RANGE CARE...........................................................................................7
General Cleaning...................................................................................7
Oven Light.............................................................................................7
TROUBLESHOOTING..............................................................................8
ACCESSORIES ........................................................................................8
WARRANTY..............................................................................................9
W10303976A
RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
The Anti-Tip Bracket
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the antitip bracket fastened down properly.
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
Anti-Tip Bracket
Range Foot
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children and adults.
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
• Slide range back so rear range foot is under anti-tip bracket.
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock,
injury to persons, or damage when using the range, follow
basic precautions, including the following:
■ WARNING: TO REDUCE THE RISK OF TIPPING OF
THE RANGE, THE RANGE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK
IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE
RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE
BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP
BRACKET.
■ CAUTION: Do not store items of interest to children in
cabinets above a range or on the backguard of a range –
children climbing on the range to reach items could be
seriously injured.
■ Proper Installation – Be sure the range is properly installed
and grounded by a qualified technician.
■ Never Use the Range for Warming or Heating the Room.
■ Do Not Leave Children Alone – Children should not be left
alone or unattended in area where the range is in use.
They should never be allowed to sit or stand on any part of
the range.
■ Wear Proper Apparel – Loose-fitting or hanging garments
should never be worn while using the range.
■ User Servicing – Do not repair or replace any part of the
range unless specifically recommended in the manual. All
other servicing should be referred to a qualified technician.
■ Storage in or on the Range – Flammable materials should
not be stored in an oven or near surface units.
■ Do Not Use Water on Grease Fires – Smother fire or flame
or use dry chemical or foam-type extinguisher.
■ Use Only Dry Potholders – Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
■ DO NOT TOUCH SURFACE UNITS OR AREAS NEAR
UNITS – Surface units may be hot even though they are
dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, do not touch,
or let clothing or other flammable materials contact surface
units or areas near units until they have had sufficient time
to cool. Among those areas are the cooktop and surfaces
facing the cooktop.
■ Use Proper Pan Size – The range is equipped with one or
more surface units of different size. Select utensils having
flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a
portion of the heating element to direct contact and may
result in ignition of clothing. Proper relationship of utensil to
burner will also improve efficiency.
■ Never Leave Surface Units Unattended at High Heat
Settings – Boilover causes smoking and greasy spillovers
that may ignite.
■ Make Sure Reflector Pans or Drip Bowls Are in Place –
Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
■ Protective Liners – Do not use aluminum foil to line surface
unit drip bowls or oven bottoms, except as suggested in
the manual. Improper installation of these liners may result
in a risk of electric shock, or fire.
■ Glazed Cooking Utensils – Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for range-top service without breaking
due to the sudden change in temperature.
■ Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units – To reduce the risk of burns,
ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of a
utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
■ Do Not Soak Removable Heating Elements – Heating
elements should never be immersed in water.
■ Do Not Cook on Broken Cooktop – If cooktop should
break, cleaning solutions and spillovers may penetrate the
broken cooktop and create a risk of electric shock. Contact
a qualified technician immediately.
■ Clean Cooktop With Caution – If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to
avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
■ Use Care When Opening Door – Let hot air or steam
escape before removing or replacing food.
■ Do Not Heat Unopened Food Containers – Build-up of
pressure may cause container to burst and result in injury.
■ Keep Oven Vent Ducts Unobstructed.
■ Placement of Oven Racks – Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot, do not let potholder contact hot heating
element in oven.
■ DO NOT TOUCH HEATING ELEMENTS OR INTERIOR
SURFACES OF OVEN – Heating elements may be hot even
though they are dark in color. Interior surfaces of an oven
become hot enough to cause burns. During and after use,
do not touch, or let clothing or other flammable materials
contact heating elements or interior surfaces of oven until
they have had sufficient time to cool. Other surfaces of the
appliance may become hot enough to cause burns – among
these surfaces are oven vent openings and surfaces near
these openings, oven doors, and windows of oven doors.
For self-cleaning ranges –
■ Do Not Clean Door Gasket – The door gasket is essential
for a good seal. Care should be taken not to rub, damage,
or move the gasket.
■ Do Not Use Oven Cleaners – No commercial oven cleaner
or oven liner protective coating of any kind should be used
in or around any part of the oven.
■ Clean Only Parts Listed in Manual.
■ Before Self-Cleaning the Oven – Remove broiler pan and
other utensils.
For units with ventilating hood –
■ Clean Ventilating Hoods Frequently – Grease should not
be allowed to accumulate on hood or filter.
■ When flambeing foods under the hood, turn the fan on.
SAVE THESE INSTRUCTIONS
3
FEATURE GUIDE
This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Frequently Asked
Questions (FAQs) section of our website at www.ikea.com or www.whirlpool.ca for more detailed instructions.

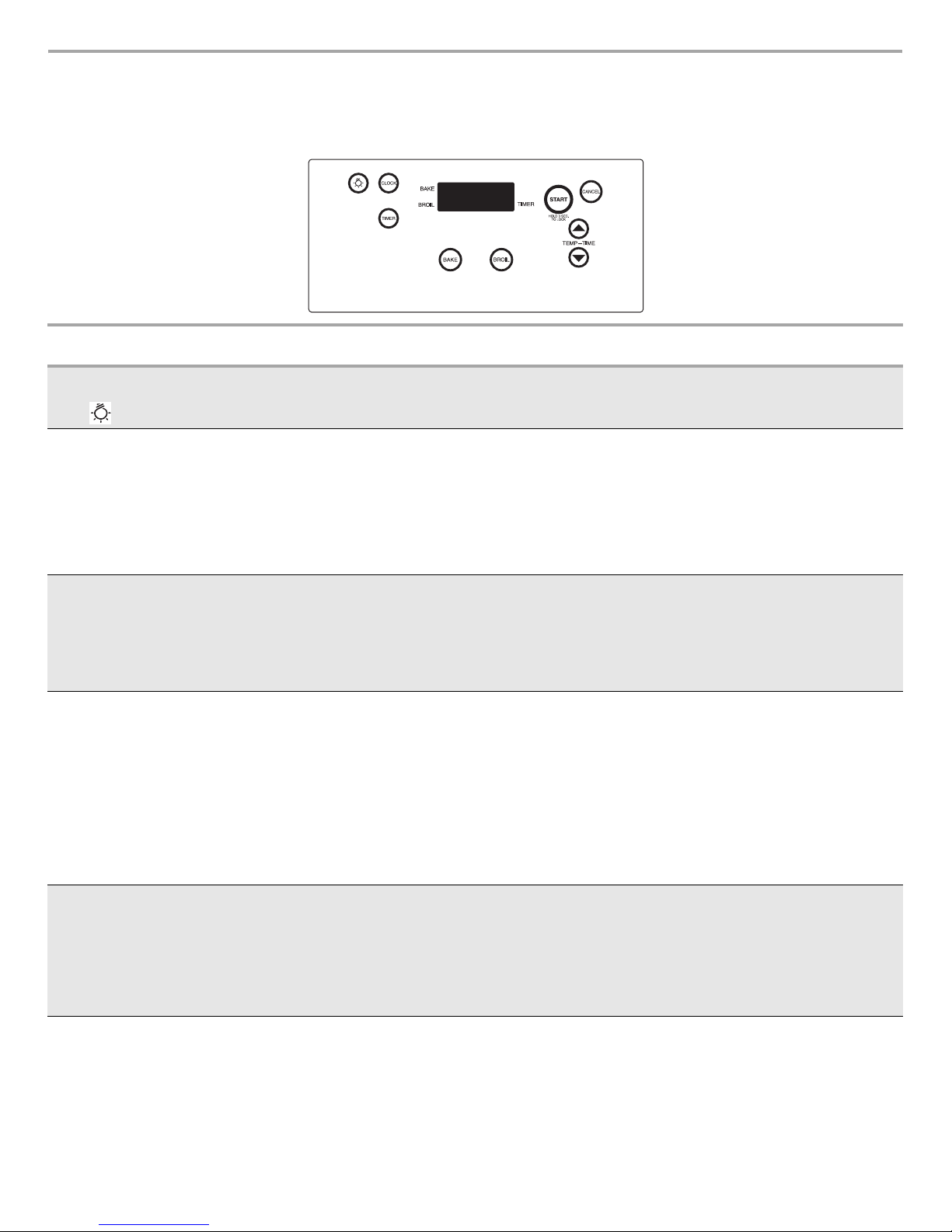

KEYPAD FEATURE INSTRUCTIONS
Oven Light Oven cavity light While the oven door is closed, press Oven Light to turn the light on and off. The oven light will
HOLD 3 SEC
TO LOCK
CLOCK Clock The Clock uses a 12-hour cycle.
TIMER Oven timer The Timer can be set in hours or minutes up to 12 hours and 59 minutes.
BAKE Baking and
Oven control
lockout
roasting
come on when the oven door is opened.
On models without the HOLD 3 SEC TO LOCK keypad, use the START keypad.
1. Check that the oven is off.
2. Press and hold HOLD 3 SEC TO LOCK keypad for 3 seconds (on some models, START keypad
for 3 seconds)
3. A tone will sound, and “Loc” will be displayed.
4. Repeat to unlock. Only the Clock, Oven Light, and Timer keypads will function with the controls
locked.
1. Check that the oven is off.
2. Press CLOCK.
3. Press TEMP/TIME “up” or “down” arrow pads to set the time of day.
4. Press CLOCK or START.
1. Press TIMER.
2. Press TEMP/TIME “up” or “down” arrow pads to set the length of time.
3. Press START to begin the countdown. If enabled, end-of-cycle tones will sound at end of
countdown.
4. Press TIMER twice to cancel the Timer. Do not press the CANCEL keypad because the oven
will turn off.
5. If the TIMER is running, but not in the display, press TIMER to display the countdown for
5 seconds.
1. Press BAKE.
2. Press TEMP/TIME “up” or “down” arrow pads to set a temperature other than 350°F (175°C) in
5° increments between 170°F and 525°F (75°C and 275°C).
3. Press START.
4. To change the temperature repeat Step 2. Press START or wait 5 seconds for the change to
take effect.
5. Press CANCEL when finished.
BROIL Broiling 1. Position cookware in oven and close door to broil stop position. The door should remain open
START Cooking start The Start pad begins any oven function. If Start is not pressed within 5 seconds, “PUSH?” or
CANCEL Range function The Cancel keypad stops any function except the Clock, Timer, and Oven Control Lockout.
TEMP/TIME Temperature and
time adjust
approximately 5" (12.7 cm).
2. Press BROIL.
3. Press TEMP/TIME “up” or “down” arrow pads to change the temperature in 5°F (5°C)
increments between 300°F and 525°F (150°C and 275°C).
4. Press START.
5. Press CANCEL when finished.
“PSH” appears in the display. If Start is not pressed within 1 minute after pressing a keypad, the
function is canceled and the time of day is displayed.
The “up” or “down” arrow pads are used to adjust time and temperature settings.
4
COOKTOP USE
WARNING
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
The control knobs can be set to anywhere between HI and LO.
Push in and turn to setting.
OVEN USE
Odors and smoke are normal when the oven is used the first few
times, or when it is heavily soiled.
Ceramic Glass (on some models)
The surface cooking area will glow red when an element is on. It
may cycle on and off to maintain the selected heat level.
Use cookware about the same size as the surface cooking area.
Cookware should not extend more than ½" (1.3 cm) outside the
area.
Cleaning off the cooktop before and after each use will help keep it
free from stains and provide the most even heating.
Cooktop On Indicator Light (on some models)
The Cooktop On indicator light is located on the console panel.
When any control knob on the console panel is turned on, the
Cooktop On indicator light will glow.
Hot Surface Indicator Light (on some models)
On ceramic glass models, the hot surface indicator light is located
on the console panel.
The hot surface indicator light will glow as long as any surface
cooking area is too hot to touch, even after the surface cooking
area is turned off.
IMPORTANT: The health of some birds is extremely sensitive to the
fumes given off. Exposure to the fumes may result in death to
certain birds. Always move birds to another closed and wellventilated room.
Electronic Oven Controls
Control Display
The display will flash when powered up or after a power loss. Press
CANCEL to clear. When oven is not in use, the time of day is
displayed. Indicator lights show functions that are in use.
To n e s
Tones are audible signals, indicating the following:
Basic Functions
One tone
■ Valid pad press
■ Oven is preheated (long tone)
■ Function has been entered
■ Reminder (on some models), repeating each minute after the
end-of-cycle tones
Three tones
■ Invalid pad press
Four tones
■ End of cycle
Fahrenheit and Celsius
The temperature is preset at Fahrenheit, but can be changed to
Celsius.
To change: Press and hold BROIL for 5 seconds. A tone will
sound, and “°C” or “°F” will appear on the display. Repeat to
change back.
To exit mode, press CANCEL.
Oven Temperature Control
IMPORTANT: Do not use a thermometer to measure oven
temperature because opening the oven door may cause element
cycling to give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit or
Celsius.
To Adjust Oven Temperature Calibration:
1. Press and hold BAKE for 5 seconds until the oven display
shows the current calibration, for example “0°F CAL” or “00.”
2. Press the TEMP/TIME “up” or “down” arrow pads to increase
or to decrease the temperature in 10°F (5°C) amounts. The
adjustment can be set between 30°F (15°C) and -30°F (-15°C).
3. Press START.
Options Mode
Press and hold TIMER for 5 seconds, and “Opt” will appear. Use
the TEMP/TIME keys to cycle through the following options. Press
CANCEL to exit the mode.
End of Cycle Tones
“b1” (beep once) or “b” (continue to beep) will be displayed. Press
TIMER to toggle through selection.
12-Hour Shutoff
If “12 Hr” is displayed, the oven will automatically shut off after
12 hours. Press TIMER to toggle to “- Hr” to disable the 12-hour
shutoff.
Oven Light with Door Open
“LOn” indicates that the oven light will turn on when the door is
open. If “LOFF” is displayed, the oven light will turn on only with the
oven light switch. Press TIMER to toggle through selection.
5
Aluminum Foil
IMPORTANT: To avoid permanent damage to the oven bottom
finish, do not line the oven bottom with any type of foil or liner.
Positioning Racks and Bakeware
IMPORTANT: To avoid permanent damage to the porcelain finish,
do not place food or bakeware directly on the oven door or bottom.
Bakeware
To cook food evenly, hot air must be able to circulate. Allow
2" (5 cm) of space around bakeware and oven walls. Make sure
that no bakeware piece is directly over another.
Racks
■ Position racks before turning on the oven.
■ Do not move racks with bakeware on them.
■ Make sure racks are level.
To move a rack, pull it out to the stop position, raise the front edge,
and then lift out. Use the following illustration and charts as a
guide.
5
4
3
2
1
For best cooking results, do not cover entire oven rack with foil
because air must be able to move freely.
Rack Positions
Rack 5: Toasting bread or broiling thin, non-fatty foods.
Rack 4: Use for 2-rack baking and broiling.
Rack 3: Most baked goods on a cookie sheet or jelly roll pan, layer
cakes, frozen convenience foods. Broiling chicken pieces.
Rack 2: Roasting small cuts of meat, pies, casseroles, bundt
cakes, and 2-rack baking.
Rack 1: Roasting large cuts of meat and poultry.
Multiple Rack Cooking
2-rack: Use rack positions 2 and 4.
Baking Layer Cakes on 2 Racks
For best results when baking cakes on 2 racks, use racks 2 and 4
for baking. Place the cakes on the racks as shown.
Oven Vent
A
A. Oven vent (ceramic glass model)
Baking and Roasting
The bake and broil burners cycle on and off in intervals. This
feature is automatically activated when the oven is in use.
Before baking and roasting, position racks according to
“Positioning Racks and Bakeware” section. When roasting, it is not
necessary to wait for the oven preheat cycle to end before putting
food in unless it is recommended in the recipe.
Broiling
Broiling uses direct radiant heat to cook food. Changing the
temperature when Custom Broiling allows more precise control
when cooking. The lower the temperature, the slower the cooking.
Thicker cuts and unevenly shaped pieces of meat, fish and poultry
may cook better at lower broiling temperatures.
■ For best results, use a broiler pan and grid. It is designed to
drain juices and help avoid spatter and smoke.
If you would like to purchase a broiler pan, one may be ordered.
Please refer to the cover for contact information. Ask for Part
Number 4396923.
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Blocking or covering the vent
will cause poor air circulation, affecting cooking and cleaning
results. Do not set plastics, paper or other items that could melt or
burn near the oven vent.
Preheating
After START is pressed, the oven will display “100ºF (38ºC)” until
the temperature is above 170ºF (75ºC). Once 170ºF (75ºC) is
reached, the display temperature will increase as the actual
temperature of the oven increases. When the preheat temperature
is reached, a tone will sound, and the selected temperature will
appear on the display.
It is not necessary to preheat the oven before putting food in unless
recommended in the recipe. Position food on grid in a broiler pan,
then place it in the center of the oven rack. Close the door to the
broil stop position to ensure proper broiling temperature.
6
RANGE CARE
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Always follow label instructions on
cleaning products. For additional information, you can visit the
Frequently Asked Questions (FAQs) section of our website at
www.ikea.com or www.whirlpool.ca.
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
EXTERIOR PORCELAIN ENAMEL SURFACES (on some
models)
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the entire range is cool. These spills may
affect the finish.
Cleaning Method:
■ Glass cleaner, mild liquid cleaner or nonabrasive scrubbing
pad:
Gently clean around the model and serial number plate
because scrubbing may remove numbers.
■ All-Purpose Appliance Cleaner Part Number 31682B (not
included):
See cover for contact information.
STAINLESS STEEL (on some models)
NOTE: To avoid damage to stainless steel surfaces, do not use
soap-filled scouring pads, abrasive cleaners, Cooktop Cleaner,
steel-wool pads, gritty washcloths or abrasive paper towels.
Damage may occur to stainless steel surfaces, even with one-time
or limited use.
Cleaning Method:
Rub in direction of grain to avoid damaging.
■ Stainless Steel Cleaner and Polish Part Number 31462B (not
included):
See cover for contact information.
Liquid detergent or all-purpose cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
METALLIC PAINT (on some models)
Do not use abrasive cleaners, cleaners with bleach, rust removers,
ammonia or sodium hydroxide (lye) because paint surface may
stain.
Sugary spills (jellies, candy, syrup)
■ Clean with cooktop scraper and cooktop cleaner. Scrape off
sugary spills while the cooktop is still warm. You may want to
wear oven mitts while cleaning the cooktop.
Heavy soil, dark streaks, specks and discoloration
■ Clean with Cooktop Cleaner or nonabrasive cleanser:
Burned-on soil
■ Clean with Cooktop Cleaner and Cooktop Scraper.
Metal marks from aluminum and copper
■ Clean with Cooktop Cleaner as soon as cooktop has cooled
down. The marks will not totally disappear, but after many
cleanings they will become less noticeable.
Tiny scratches and abrasions
■ Use Cooktop Cleaner for scratches. Scratches and abrasions
do not affect cooking performance, and after many cleanings
they will become less noticeable.
COOKTOP CONTROLS
To avoid damage to the cooktop controls, do not use steel wool,
abrasive cleansers or oven cleaner.
Do not soak knobs. When replacing knobs, make sure knobs are in
the OFF position.
On some models, do not remove seals under knobs.
Cleaning Method:
■ Soap and water:
Pull knobs straight away from control panel to remove.
CONTROL PANEL AND OVEN DOOR EXTERIOR
To avoid damage to the control panel, do not use abrasive
cleaners, steel-wool pads, gritty washcloths or abrasive paper
towels.
Cleaning Method:
■ Glass cleaner and soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
■ All-Purpose Appliance Cleaner Part Number 31682B (not
included):
See cover for contact information.
CERAMIC GLASS (on some models)
Cleaning Method:
Cooktop Cleaner Part Number 31464B is recommended regularly
to help avoid scratches, pitting and abrasions and to condition the
cooktop.
Cooktop Scraper Part Number WA906B is also recommended for
stubborn soils. These can be ordered as accessories. See cover for
contact information. The Cooktop Scraper uses razor blades. Store
razor blades out of the reach of children.
Do not use steel wool, abrasive powder cleansers, chlorine bleach,
rust remover or ammonia because damage may occur.
Light to moderate soil
■ Clean with paper towels or clean damp sponge
The oven light is a standard 40-watt appliance bulb. Before
replacing, make sure the oven and cooktop are cool and the
control knobs are in the off position.
To Replace:
1. Unplug range or disconnect power.
OVEN RACKS
Cleaning Method:
■ Steel-wool pad
■ For racks that have discolored and are harder to slide, a light
coating of vegetable oil applied to the rack guides will help
them slide.
STORAGE DRAWER
Check that storage drawer is cool and empty before cleaning.
Cleaning Method:
■ Mild detergent
Oven Light
2. Turn the glass bulb cover in the back of the oven
counterclockwise to remove.
3. Turn bulb counterclockwise to remove from socket.
4. Replace bulb, then bulb cover by turning clockwise.
5. Plug in range or reconnect power.
7
TROUBLESHOOTING
First try the solutions suggested here or visit our website and reference Frequently Asked Questions (FAQs)
to possibly avoid the cost of a service call.
www.ikea.com or www.whirlpool.ca
Nothing will operate
■ Is the power supply cord unplugged?
Plug into a grounded outlet.
■ Has a household fuse blown, or has a circuit breaker
tripped?
Replace the fuse or reset the circuit breaker. If the problem
continues, call an electrician.
Cooktop will not operate
■ Is the control knob set correctly?
Push in knob before turning to a setting.
■ On ceramic glass models, is the oven control lockout set?
See the control lock keypad feature in the “Feature Guide”
section.
Excessive heat around cookware on cooktop
■ Is the cookware the proper size?
Use cookware about the same size as the surface cooking
area, element or surface burner. Cookware should not extend
more than ½" (1.3 cm) outside the cooking area.
Cooktop cooking results not what expected
■ Is the control knob set to the proper heat level?
See “Cooktop Use” section.
■ Is the range level?
Level the range. See the Installation Instructions.
Oven will not operate
■ Is the electronic oven control set correctly?
See “Electronic Oven Controls” section.
Oven temperature too high or too low
■ Does the oven temperature calibration need adjustment?
See “Oven Temperature Control” section of the “Electronic
Oven Controls” section.
Oven indicator lights flash
■ Do the oven indicator lights flash?
See “Control Display” in the “Electronic Oven Controls”
section. If the indicator light(s) keeps flashing, call for service.
See cover for contact information.
Display shows messages
■ Is the display showing a flashing time?
There has been a power failure. Clear the display. On some
models, reset the clock, if needed. See “Clock” keypad feature
in the “Feature Guide” section.
■ Is the display showing a letter followed by a number?
Press the CANCEL keypad to clear the display. See “Control
Display” in the “Electronic Oven Controls” section. If it
reappears, call for service. See cover for contact information.
■ Is the display showing a flashing “PUSH?” or “PSH”?
See the “Start” keypad feature in the “Feature Guide” section.
Oven cooking results not what had been expected
■ Is the range level?
Level the range. See the Installation Instructions.
■ Is the proper temperature set?
Double-check the recipe in a reliable cookbook.
■ Is the proper oven temperature calibration set?
See “Oven Temperature Control” section of the “Electronic
Oven Controls” section.
■ Was the oven preheated?
See “Baking and Roasting” section.
■ Are the racks positioned properly?
See “Positioning Racks and Bakeware” section.
■ Is there proper air circulation around bakeware?
See “Positioning Racks and Bakeware” section.
■ Is the batter evenly distributed in the pan?
Check that batter is level in the pan.
■ Is the proper length of time being used?
Adjust cooking time.
■ Has the oven door been opened while cooking?
Oven peeking releases oven heat and can result in longer
cooking times.
■ Are baked items too brown on the bottom?
Move rack to higher position in the oven.
■ Are pie crust edges browning early?
Use aluminum foil to cover the edge of the crust and/or reduce
baking temperature.
Cooktop Care Kit
(includes cleaner, protectant, and
applicator pads)
Order Part Number 31605B
Cooktop Protectant
Order Part Number 31463B
8
ACCESSORIES
Cooktop Cleaner
(ceramic glass models)
Order Part Number 31464B
Cooktop Scraper
(ceramic glass models)
Order Part Number WA906B
Stainless Steel Cleaner and Polish
(stainless steel models)
Order Part Number 31462B
All-Purpose Appliance Cleaner
Order Part Number 31682B
Split-Rack with Removable Insert
Order Part Number 4396927B
Broiler Pan
Order Part Number 4396923B
Loading...
