MÖJLIG

ENGLISH 4 DEUTSCH 15 FRANÇAIS 27 ITALIANO 40

ENGLISH 4

Contents

Safety information 4 Product description 5 Daily use 6 Helpful hints and tips 8 Care and cleaning 8

Subject to change without notice.

What to do if… 9 Technical information 10 Installation 10 Environment concerns 12 IKEA GUARANTEE 12

Safety information

For your safety and correct operation

of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

Correct use

• Do not leave the appliance unattended

during operation.

• The appliance is designed exclusively for

domestic use.

• The appliance must not be used as a

work surface or as a storage surface.

• Do not place or store flammable liquids,

highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) in or near the appliance.

• Watch out when connecting electric ap-

pliances to sockets nearby. Do not allow connecting leads to come into contact with or to catch underneath the appliance or hot cookware.

• Do not do repairs yourself to prevent in-

jury and damage to the appliance. Always contact your local After Sales Service (refer to the Service chapter).

Child safety

• Only adults can use this appliance. Chil-

dren must get supervision to make sure that they do not play with the appliance.

• Keep all packaging away from children.

There is a risk of suffocation.

• Keep children away from the appliance

when it is on.

Warning! Activate the child safety device to avoid small children and pets

unintentionally switching the appliance on.

General safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Installation

• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the After Sales Service (refer to the Service chapter).

• Only an authorized service engineer can install, connect or repair this appliance. Use only original spare parts.

• Built-in appliances can only be used after they are built into suitable built-in units and work surfaces that meet standards.

• Do not change the specifications or modify this product. Risk of injury and damage to the appliance.

Warning! Carefully obey the instructions for electrical and gas

connections.

• Do not install the appliance if it is damaged during the transportation.

Safety during use

• Remove all packaging, stickers and film from the appliance before the first use.

ENGLISH 5

• Warning! Fire hazard! Overheated fats

and oils can ignite very quickly.

• Switch the cooking zones off after each use.

• Risk of burns! Do not place objects made of cuttlery or saucepan lids on the cooking surface, as they can get hot.

Warning! If the surface is cracked,

switch off the appliance to avoid possibility of an electric shock and call the After Sales Service (refer to the Service chapter).

Warning! Do not operate the

appliance with wet hands and keep control panel surface dry. Lot of water on control panel keys will make them no longer operable.

How to avoid damage to the appliance

• The glass ceramic can be damaged by

objects falling onto it, or knocked by the cookware.

Product description

Cooking surface layout

• Cookware made of cast iron, cast aluminum or with damaged bottoms can scratch the glass ceramic if slid on the surface.

• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.

• Do not use the cooking zones with empty cookware or without cookware.

• Never line any part of the appliance with aluminium foil. Never place plastic or any other material which may melt in or on the appliance.

Information on acrylamides Important! According to the latest scientific

knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore, we recommend cooking at the lowest possible temperatures and not browning foods too much.

120/180 mm

145 m m

Double ring cooking zone 700/1700 W

Single cooking zone 1200 W

Control panel

ENGLISH 6

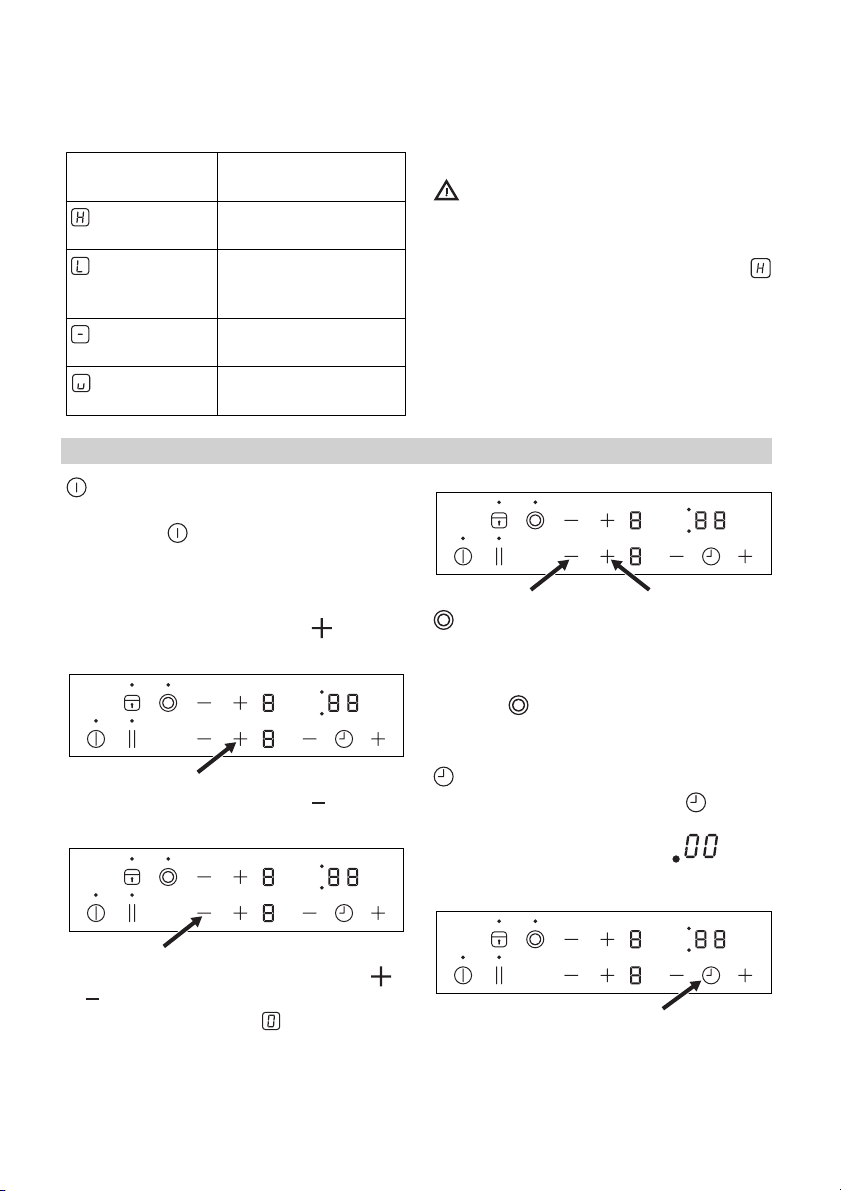

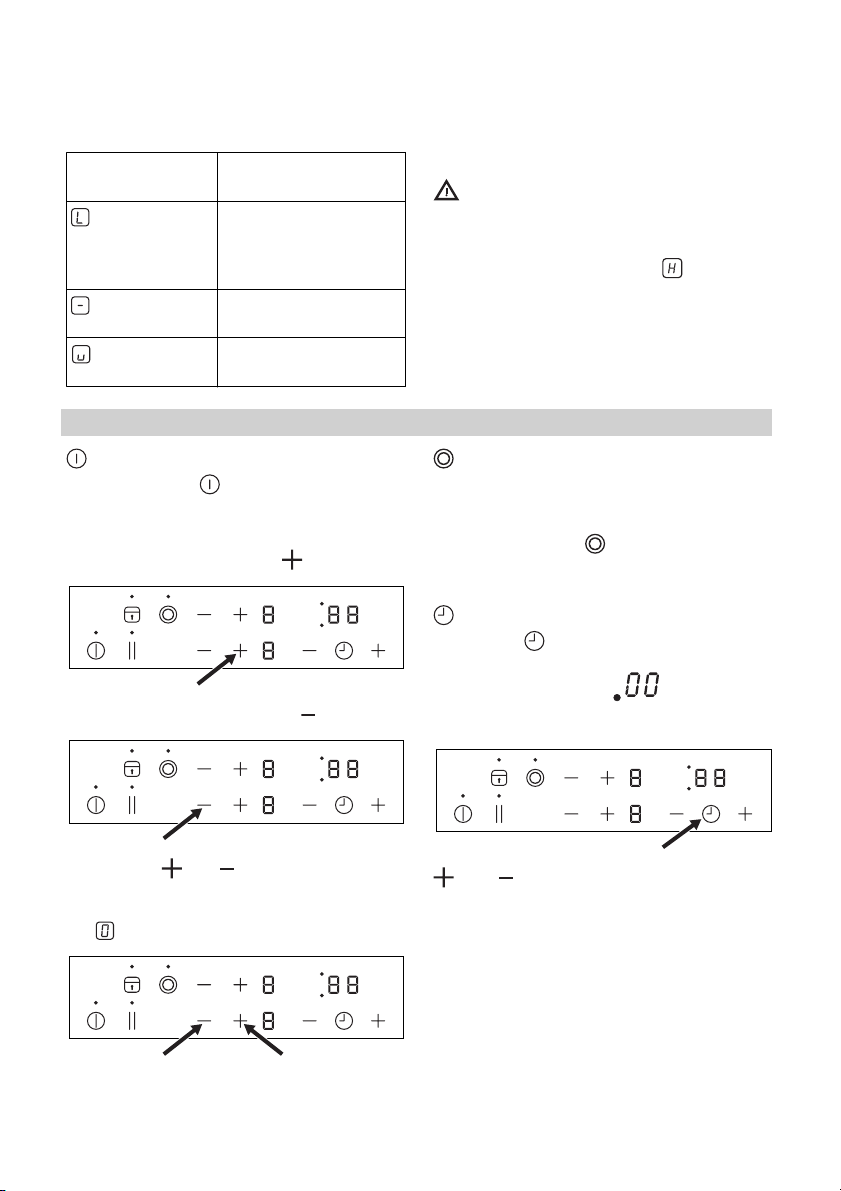

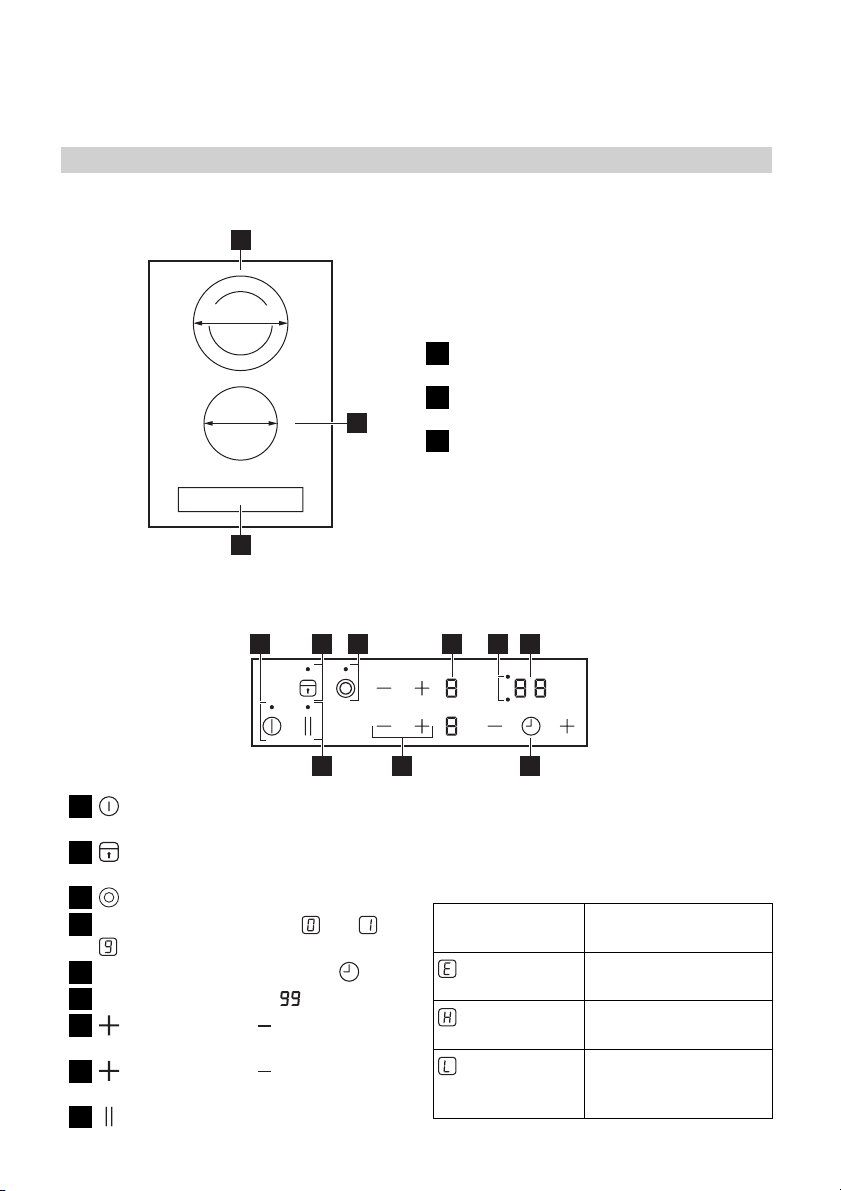

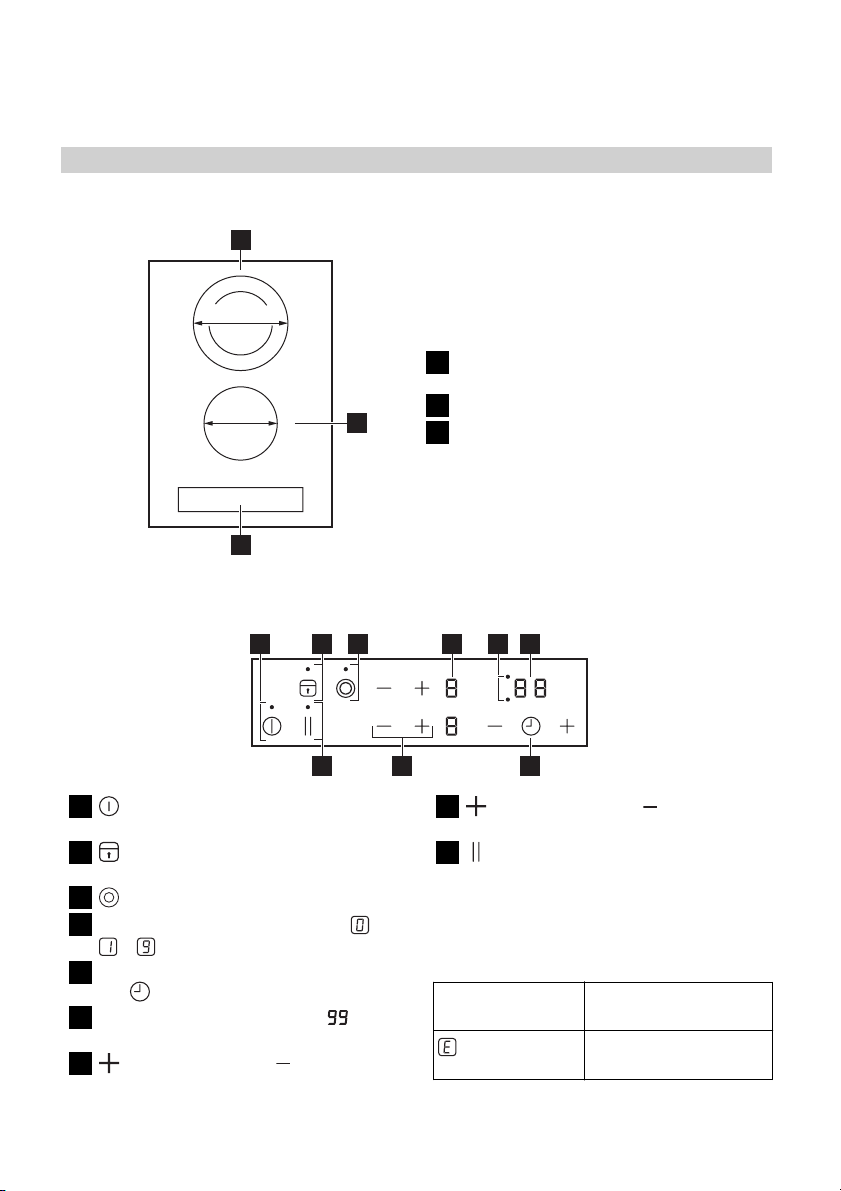

Control panel layout

1 2 4 6

to switch the hob on or off

to activate and deactivate the Lock

or the Child safety device

to activate the outer ring

A heat setting display:

Cooking zones' indicators of Timer

Timer display:

to increase , or to decrease the

Timer

to increase , or to decrease the

heat setting

To activate Stop+Go function

Touch Control sensor fields and displays

You operate the hob by touching sensor fields. Displays and acoustic signals (short beep) confirm the selection of a function.

Heat setting display

Description

A malfunction occurred

, from to

to minutes

Daily use

Heat setting display

Residual heat indicator

Warning! Risk of burns from residual

heat! After you switch the appliance off, the cooking zones need some time to cool down. Look at the residual heat indicator

Use residual heat for melting and keeping food warm.

Description

A cooking zone is still hot

The Child Safety Device or the Lock is on

The Automatic Switch off is on

The Stop+Go is on

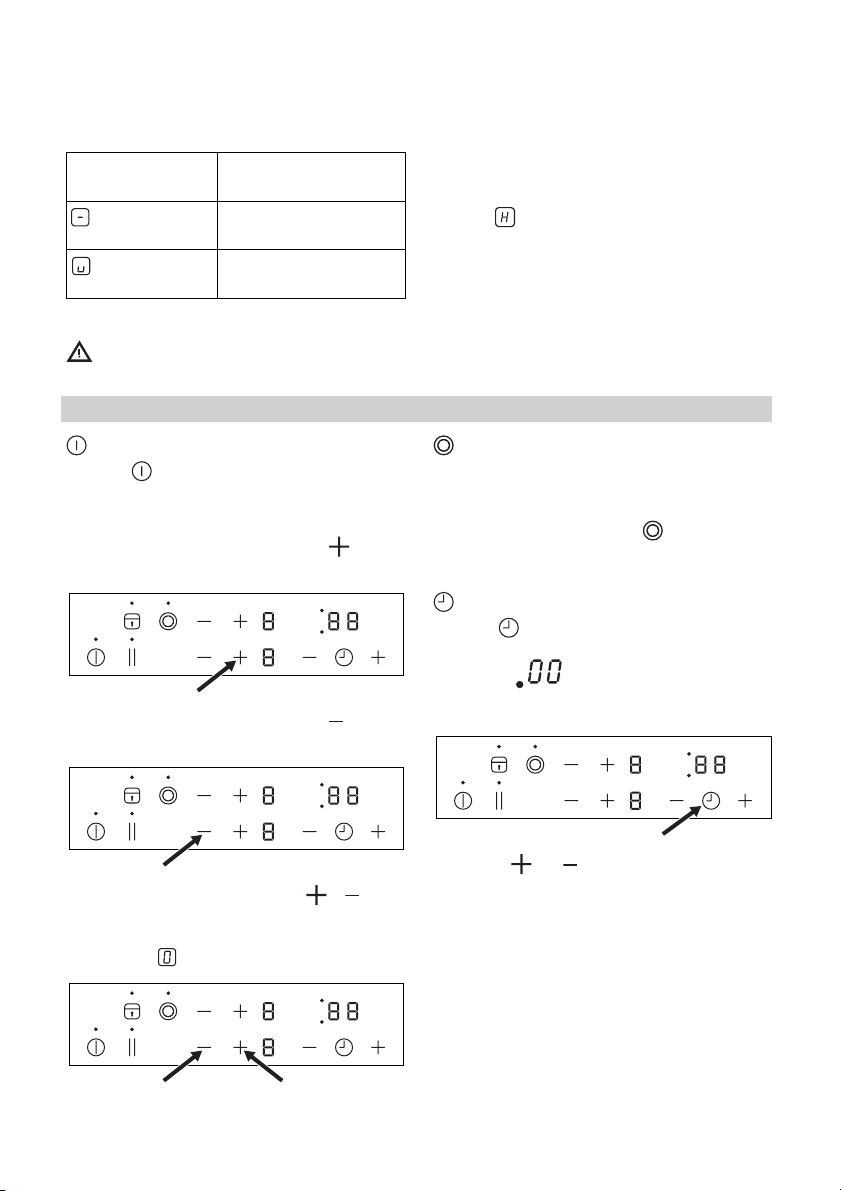

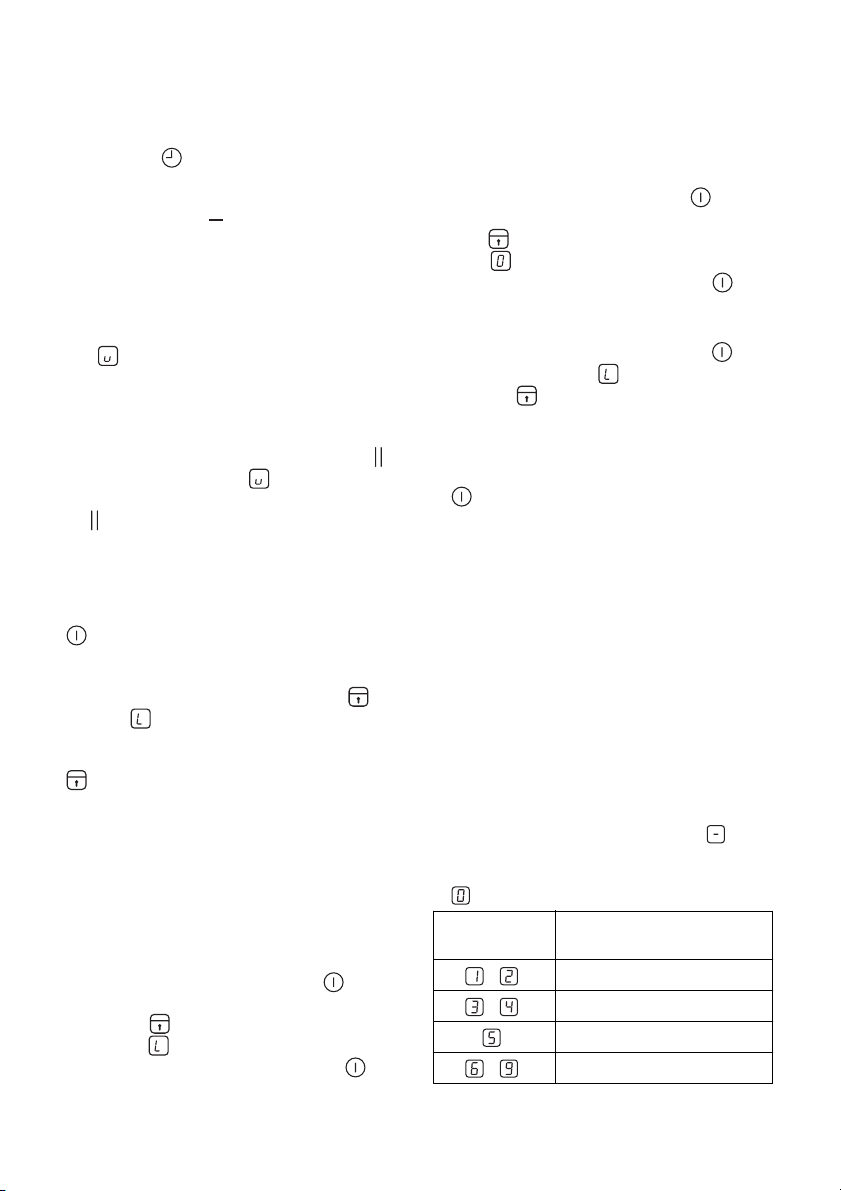

Switching on and off

Touch ance on or off.

Adjusting the heat setting

Set the heat setting with

for 2 seconds to switch the appli-

to increase.

Set the heat setting with to decrease.

ENGLISH 7

Touch and of a respective cooking zone simultaneously to switch off the cook-

flash-

ing zone. The settings will reverse to

Switching the outside ring on and off

Switch the inside ring before you switch on the outside ring by touching

onds. Repeat the procedure to switch off the outside ring.

Using the Timer

Touch desired cooking zone displays. For exam-

ple,

Touch or of the Timer to set the time between

lot light flashes more slowly, the time counts down. Set the heat settings. If the heat setting is set and the time set has

elapsed, acoustic signal appears, es, and cooking zone switches off. If cooking zone is not in use and the time set has elapsed acoustic signal appears and flashes.

repeatedly until the pilot light of a

for the front left zone.

and 99 minutes. When the pi-

for 1-2 sec-

Select the function, and the pilot light of the cook-

ing zone selected flashes faster. Touch and the remaining time counts backwards to

STOP+GO

The Stop+Go function sets all cooking zones that operate to the lowest heat setting (

). When Stop+Go operates, you cannot change the heat setting. The Stop+Go function does not stop the timer function.

•

Lock

When the cooking zones operate, you can lock the control panel, but not

vents an accidental change of the heat setting. First set the heat setting.

To start this function touch

The Timer stays on. To stop this function touch

ting that you set before comes on. When you stop the appliance, you also stop this function.

The child safety device

This function prevents an accidental operation of the appliance.

To activate the child safety device

•

To deactivate the child safety device

•

for a cooking zone to switch off

. The pilot light goes out.

To activate this function touch symbol To deactivate this function touch

heat setting that you set before comes on.

comes on for 4 seconds.

Activate the appliance with set the heat settings.

Touch comes on.

Deactivate the appliance with

Activate the appliance with set the heat settings. Touch onds. The symbol Deactivate the appliance with

comes on.

for 4 seconds. The symbol

comes on.

. The

. It pre-

. The symbol

. The heat set-

. Do not

for 4 sec-

ENGLISH 8

To override the child safety device for only one cooking time

•

Activate the appliance with bol

•

• When you deactivate the appliance with

Automatic Switch off The function switches the hob off

automatically if:

• all cooking zones are switched off.

• you do not set the heat setting after

• you cover any sensor field with objects (a

comes on.

Touch ting in 10 seconds. You can operate the appliance.

again.

switching on the hob.

pan, a cloth, etc.) for longer than approx. 10 seconds.

for 4 seconds. Set the heat set-

, the child safety device operates

. The sym-

Helpful hints and tips

When a cooking zone is switched on, it

may hum briefly. This is a characteristic of all ceramic glass cooking zones and does not impair either the function or the life of the appliance.

Energy saving

• If possible, always place lids on the pans.

• Place cookware on the cooking zone be-

fore you switch it on.

• you do not switch a cooking zone off after a certain time, or you do not modify the heat setting, or if the overheating occurs (e.g. when a pan boils dry). The sym-

lights up. Before using again, you

bol must set the cooking zone to

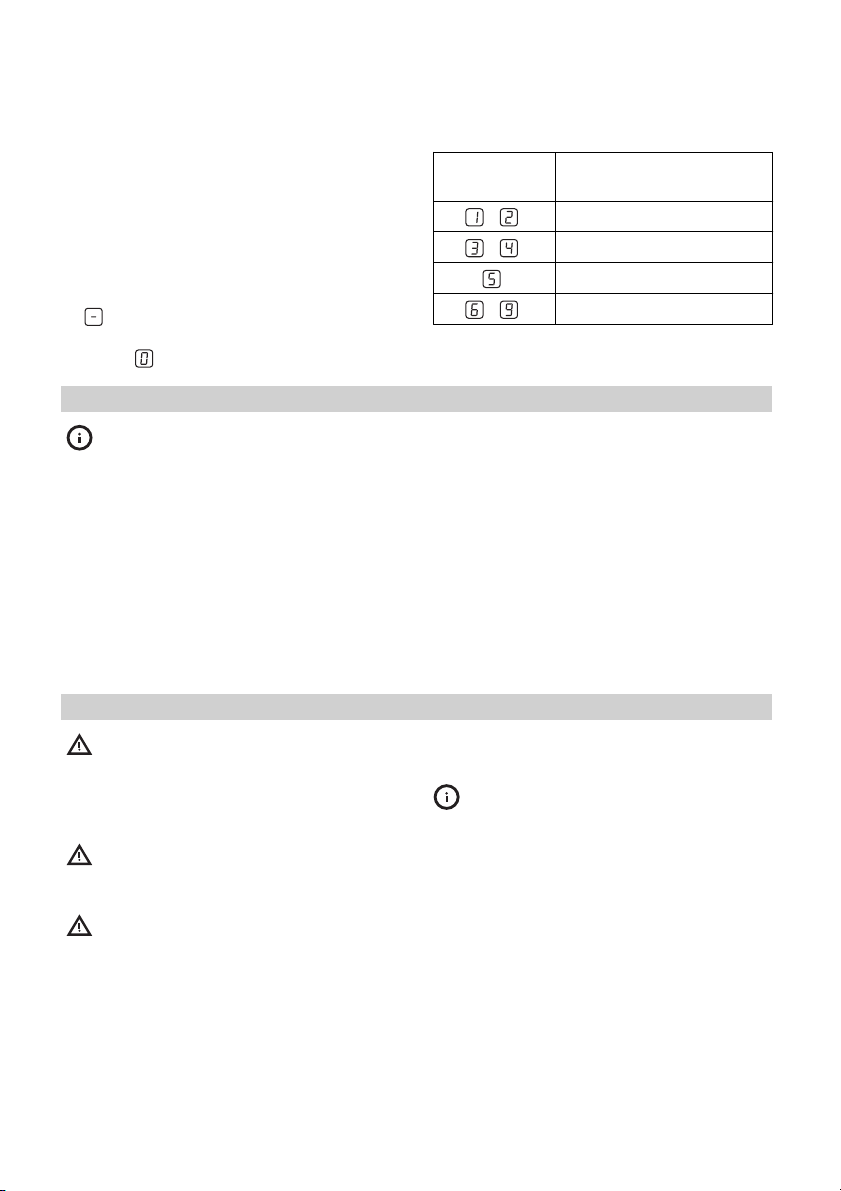

Heat setting Automatic switch off af-

• The bottom of the cookware should be as thick and flat as possible.

• Switch cooking zones off before the end of the cooking time, to take advantage of residual heat

• Bottom of pans and cooking zones should be the same size.

1.5 hours

ter

6 hours 5 hours 4 hours

Care and cleaning

Warning! Switch the appliance off and

let it cool down before you clean it. Warning! For safety reasons, do not

clean the appliance with steam

blasters or high-pressure cleaners.

Warning! Sharp objects and abrasive

cleaning agents will damage the appliance. Clean the appliance and remove the residues with water and washing up liquid after each use. Remove also the remnants of the cleaning agents!

Scratches or dark stains on the glass ceramic that cannot be removed do

not affect the functioning of the appliance.

ENGLISH 9

Removing the residues and stubborn residues:

1. Food containing sugar, plastics, tin foil

residues should be removed at once, best tool for cleaning glass surface is a scraper (not included with the appliance). Place a scraper on the glass ceramic surface at an angle and remove residues by sliding the blade over the

What to do if…

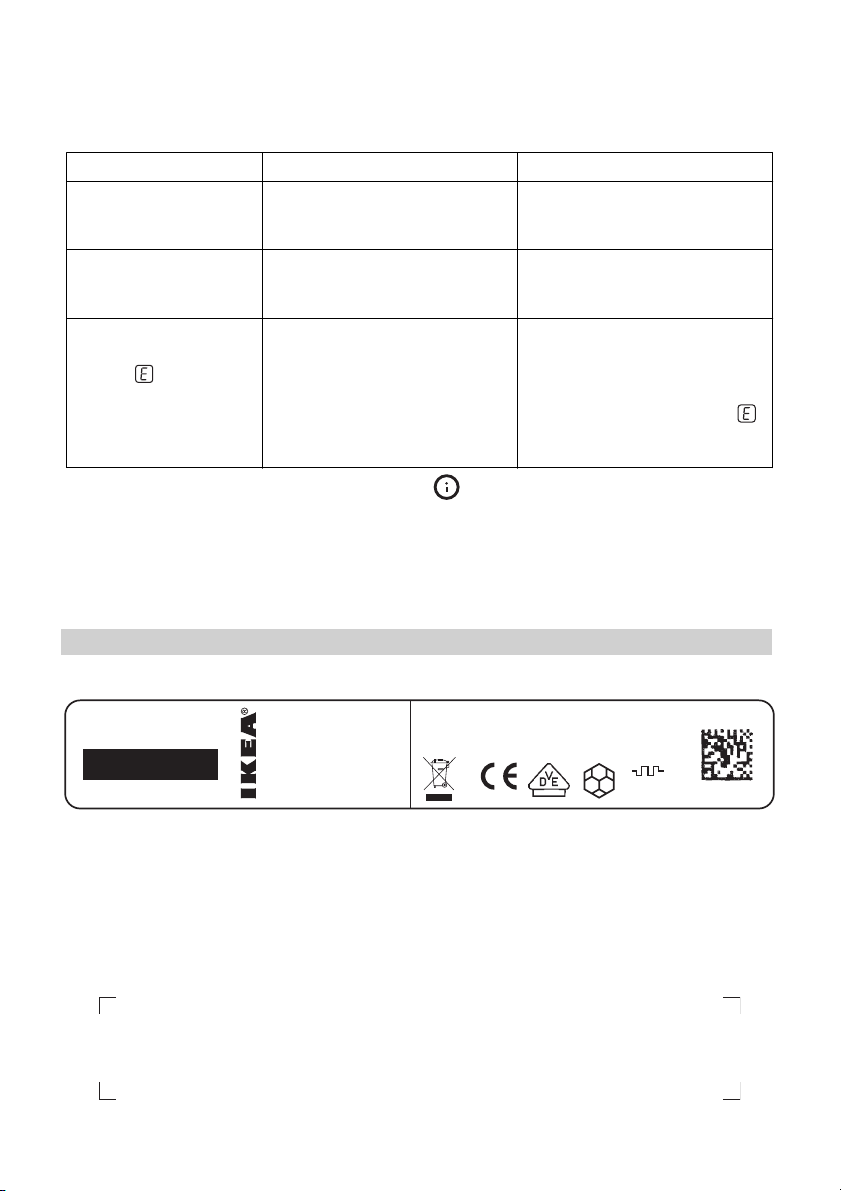

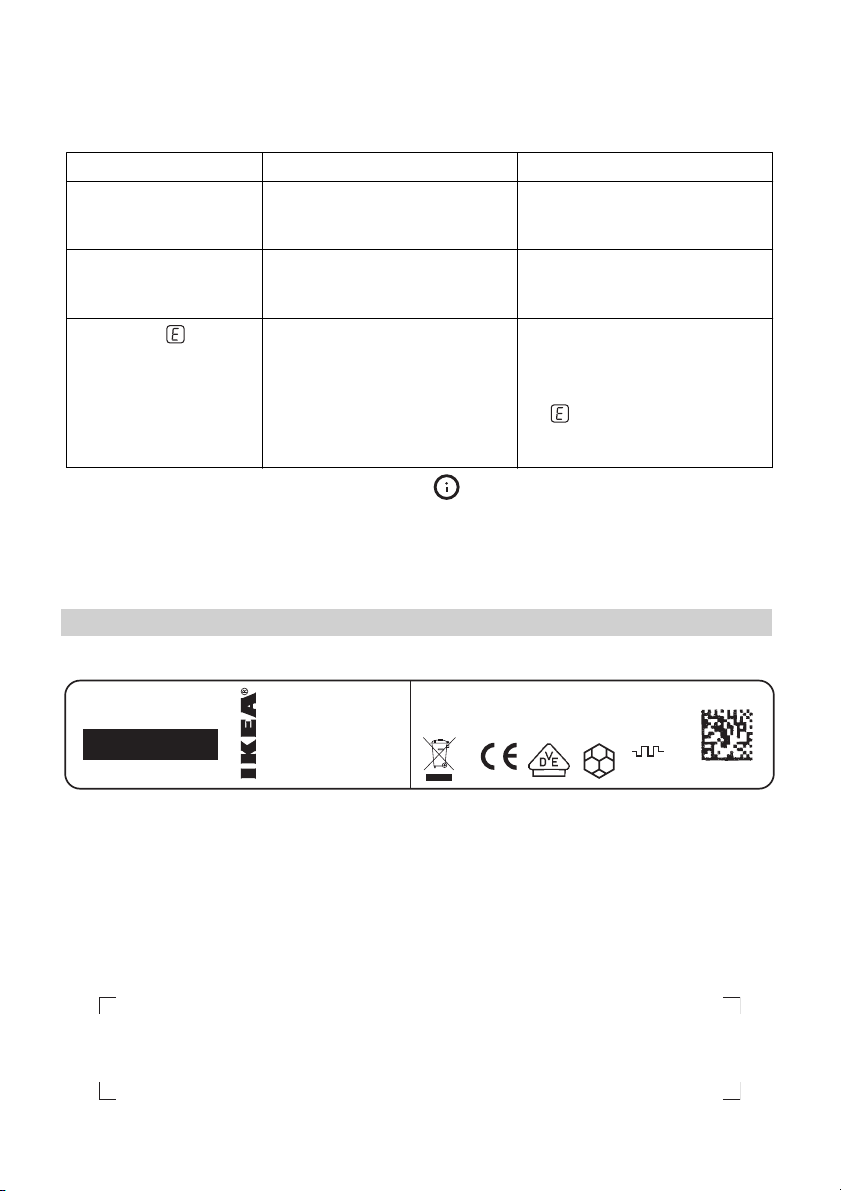

Problem Possible cause Remedy

The cooking zones will not switch on or are not functioning.

Acoustic signal sounds, appliance switches off.

The residual heat indicator is not displaying anything.

symbol plus a number appears on the heat setting display.

If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact your dealer or the After Sales Service.

More than 10 seconds passed since you switched on the hob.

The child safety device or the Lock is on

Several sensor fields were touched at the same time.

One or more sensor fields have been covered for longer than 10 seconds.

The cooking zone was only on for a short time and is therefore not hot.

Electronics fault. Disconnect the appliance from

surface. Wipe the appliance with a damp cloth and a little washing up liquid. Finally, rub the appliance dry using a clean cloth.

2. Limescale rings, water rings, fat splashes, shiny metallic discolorations should be removed after the appliance has cooled down using cleaner for glass ceramic or stainless steel.

Switch the appliance on again.

Deactivate the child safety device (See the sections “Child safety device ” or “Lock”).

Only touch one sensor field.

Uncover sensor field.

If the cooking zone is supposed to be hot, call the After Sales Service.

the electrical supply for a few minutes (Take the fuse out of the house’s electric system) If

after switching on again, displayed again, call the customer service department.

If you operated the appliance wrongly,

or the installation was not carried out by a registered engineer, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

ENGLISH 10

Technical information

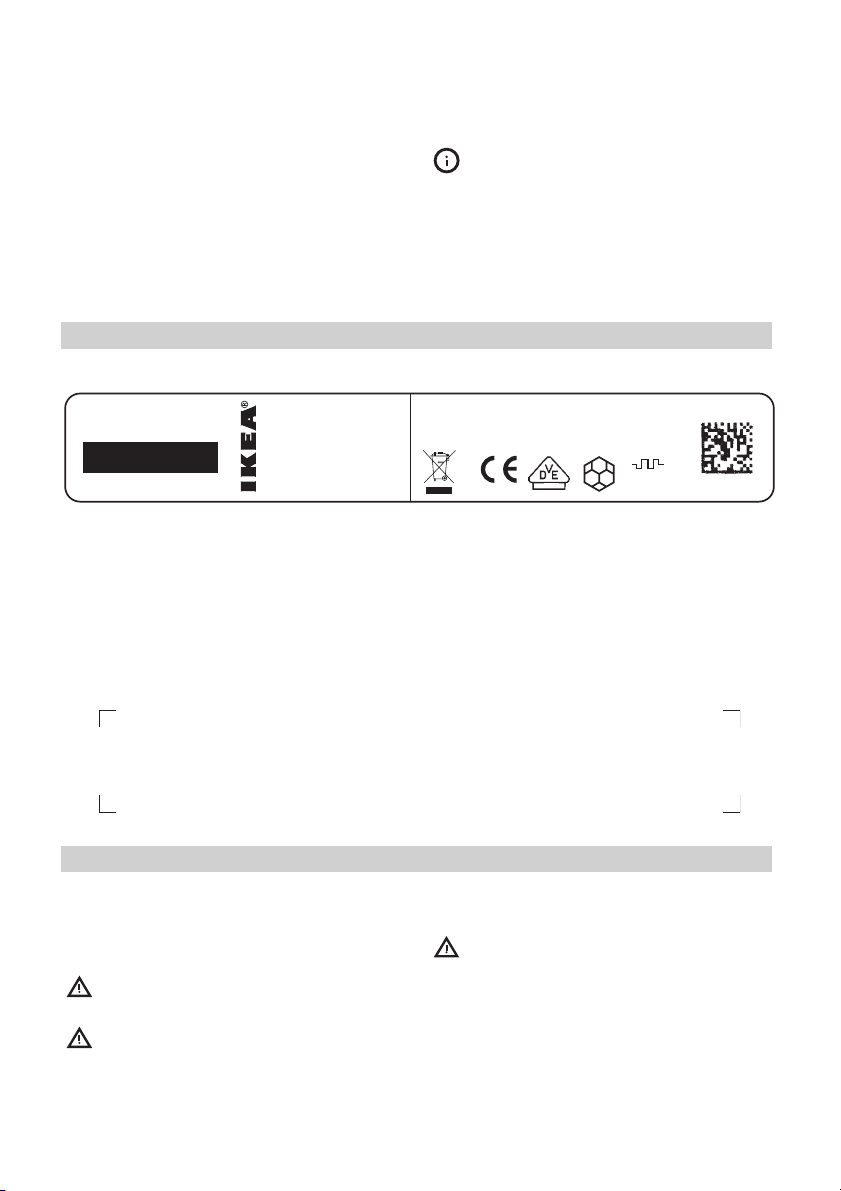

Rating Plate

Made in Italy

502.371.37

PQM

The graphic above represents the rating plate of the appliance (without serial number which is generated dynamically during the production process), which is located at its underneath surface of the casing.

Installation

Manufacturer is not responsible for any injury to persons and pets or damage to property caused by failure to comply following requirements.

Caution! To proceed with the installation refer to the assembly

instructions.

Warning! Installation process must

follow the laws, ordinances, directives and standards (electrical safety rules and regulations, proper recycling in accordance with the regulations, etc.) in force in the country of use!

Warning! The appliance must be

earthed!

Warning! Risk of injury from electrical

current.

• The electrical mains terminal is live.

• Make electrical mains terminal free of

voltage.

21552

Model MÖJLIG Typ 558 HED D2 KO 2,9kW

PNC 949 738 692 00 S NO ............... 220V-240V AC 50-60 Hz

230 V

Dear Customer, please apply here aside the sticker you can find in the dedicate plastic bag inserted inside the hob packaging. This will allow us to assist you better, by identifying precisely your hob, in case you will need in future our assistance. Thank you for your help!

• Loose and inappropriate plug and socket connections can make the terminal overheat.

• Have the clamping connections correctly installed.

• Use strain relief clamp on cable.

• Follow the connection diagram.

Important! You must observe the minimum distances to other appliances and furniture cabinets or other units according to Assembly Instruction. If there is no oven beneath the hob insert a dividing panel at a minimum distance of 20 mm from the bottom of the hob.

ENGLISH 11

Protect the cut surfaces of the worktop against moisture using a suitable sealant included in the product in fitting bag. The sealant seals the appliance to the work top with no gap. Do not use silicon sealant between the appliance and the worktop. Avoid installing the appliance next to doors and under windows as hot cookware may be knocked off the rings when doors and windows are opened. Only an authorized service engineer can install, connect or repair this appliance. Use only original spare parts.

Electrical connection

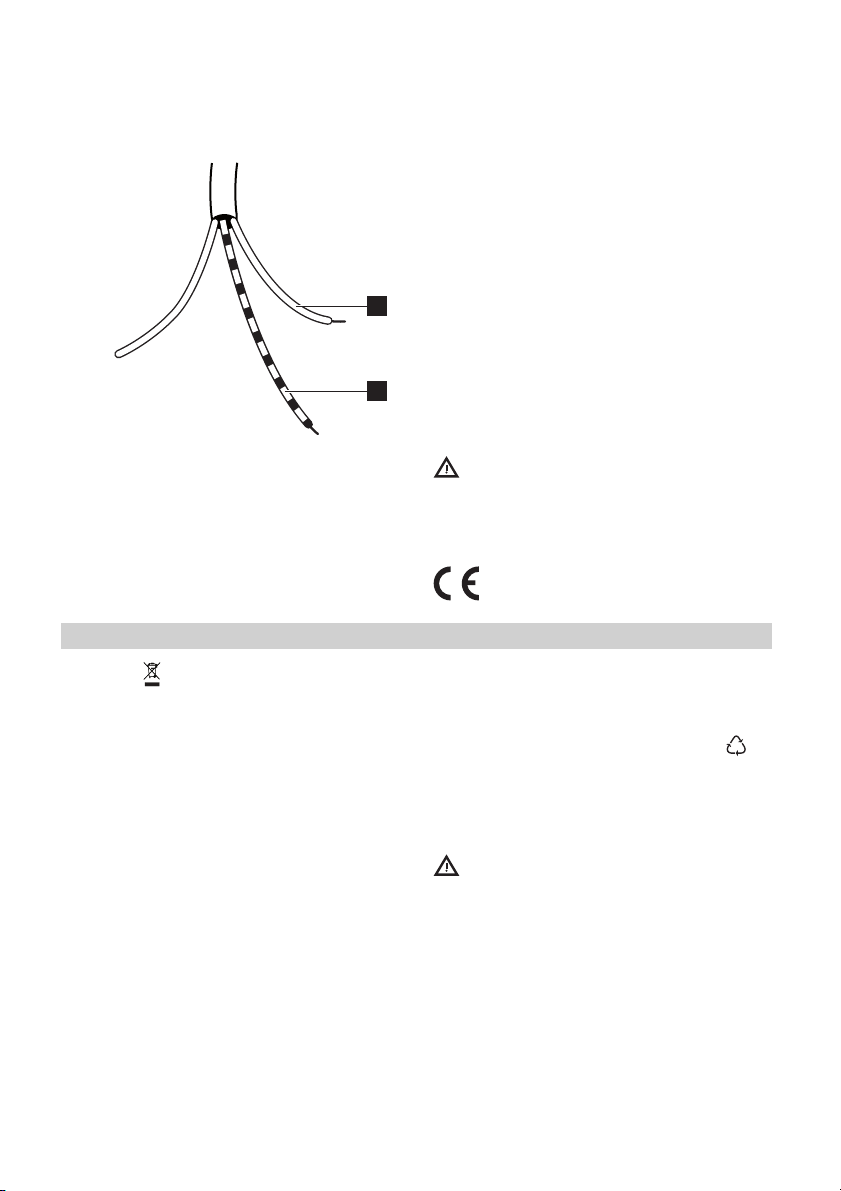

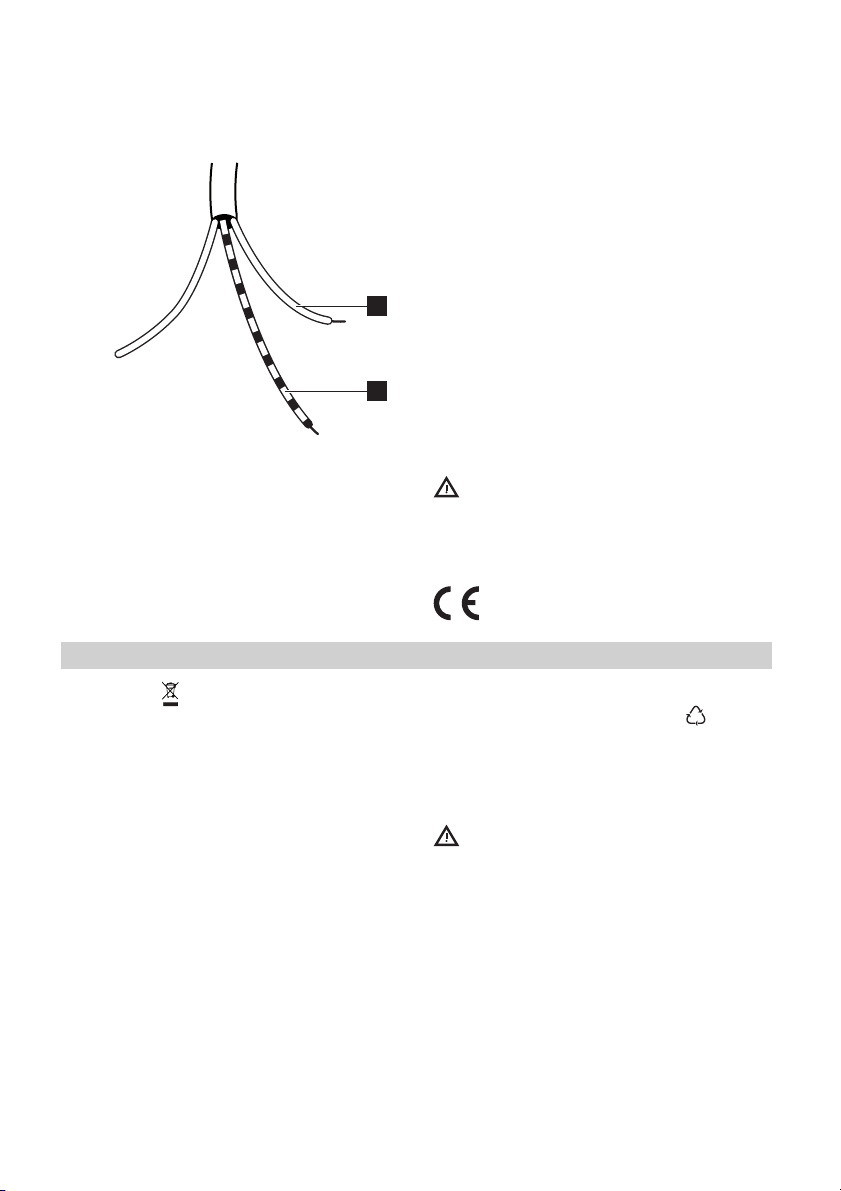

Before connecting, check that the nominal voltage of the appliance stated on the rating plate, corresponds to the available supply voltage. Also, check the power rating of the appliance and ensure that the wire is suitably sized to suit the appliance power rating (refer to the Technical data chapter). The rating plate is located on the lower casing of the hob. The appliance is supplied with a connection cable. This has to be provided with a proper plug, able to support the load marked on the identification plate. To connect the plug to the cable, follow the recommendation given in following figure.

Replacement of the connection cable

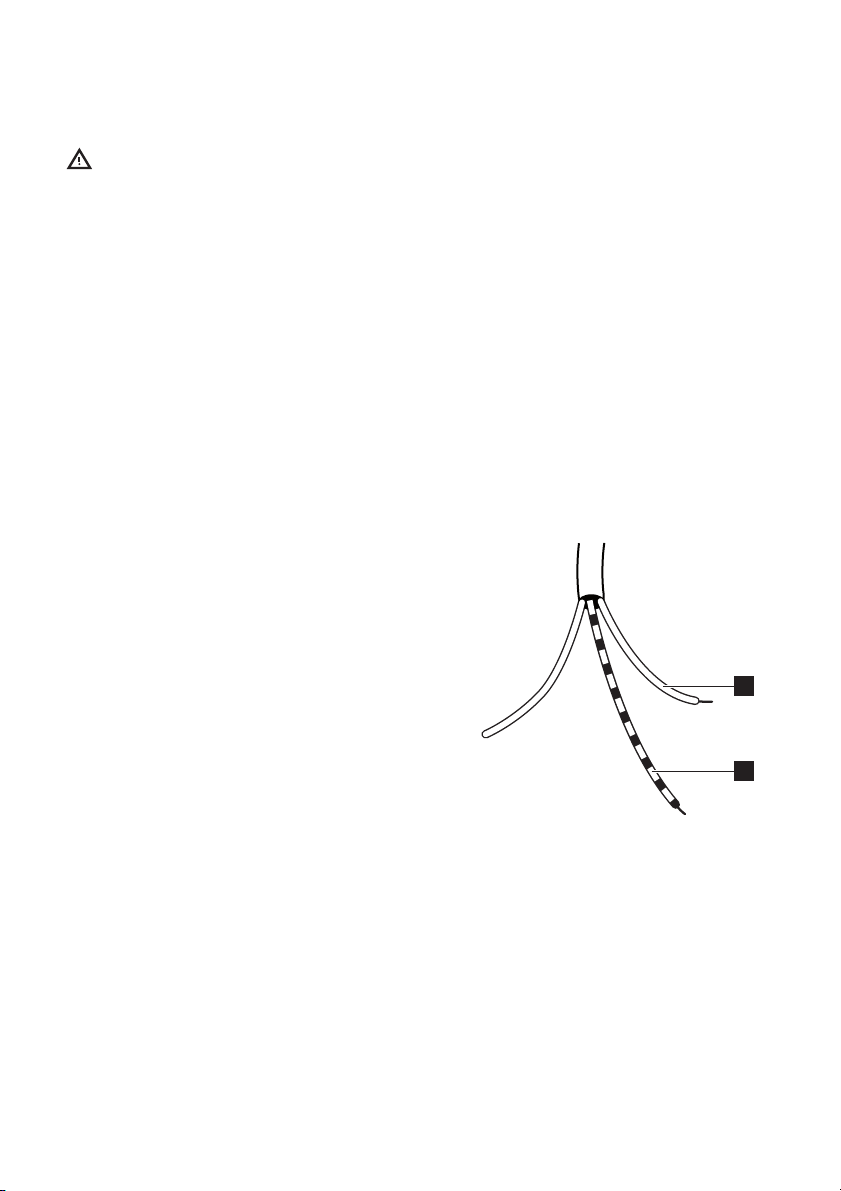

The replacement of the connection cable requires the specific equipment of a technician. Only an original spare part able must be used, provided by spare parts service. The plug has to be fitted in a proper socket. If connecting the appliance directly to the electric system, it is necessary that you install a double pole switch between the appliance and the electricity supply, with a minimum gap of 3 mm. between the switch contacts and of a type suitable for the required load in compliance with the current rules. The connection cable has to be placed in order that, in each part, it cannot reach a temperature 90 °C higher than the room temperature. The brown (or black) phase cable (fitted in the terminal block contact marked with "L") must always be connected to the network phase.

Warning! Once connected to the

mains supply check that all cooking zones are ready for use by briefly setting each to maximum power.

ENGLISH 12

Environment concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household

waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol clable. Dispose the packaging in a suitable collection containers to recycle it.

Before disposal of appliance

Warning! Do these steps to dispose

the appliance:

• Pull the mains plug out of the mains sock-

et.

• Cut off the mains cable and discard it.

are recy-

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance,

Which appliances are not covered by the IKEA five (5) years guarantee?

The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.

ENGLISH 13

• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

• Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

• Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

• Cases where no fault could be found during a technician’s visit.

• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where nonoriginal parts have been used.

• Repairs caused by installation which is faulty or not according to specification.

• The use of the appliance in a non-domestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.

• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will re-install the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;

• the Assembly Instructions and User Manual Safety Information;

The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this guar-

antee;

2. ask for clarification on installation of the

IKEA appliance in the dedicated IKEA kitchen furniture. The service won’t provide clarifications related to: – the overall IKEA kitchen installation;

ENGLISH 14

– connections to electricity (if machine

comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

3. ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

How to reach us if You need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

Important! In order to provide You with a quicker service, we recommend that You

use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance You need an assistance for. Before calling us, assure that You have to hand the IKEA article number (8 digit code) for the appliance of which you need our assistance.

Important! SAVE THE SALES RECEIPT! It is Your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do You need extra help?

For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

DEUTSCH 15

Inhalt

Sicherheitshinweise 15 Gerätebeschreibung 17 Täglicher Gebrauch 18 Praktische Tipps und Hinweise 20 Reinigung und Pflege 20

Änderungen vorbehalten.

Was tun, wenn … 20 Technische Daten 21 Montage 22 Umwelttipps 23 IKEA GARANTIE 24

Sicherheitshinweise

Zur Gewährleistung der Sicherheit und

der richtigen Bedienung des Geräts lesen Sie diese Anleitung vor der Installation und Verwendung sorgfältig durch. Bewahren Sie diese Bedienungsanleitung in der Nähe des Geräts auf, auch wenn Sie dieses anderswo aufstellen oder verkaufen. Alle Benutzer müssen mit der Bedienung und den Sicherheitseigenschaften des Geräts vertraut sein.

Bestimmungsgemäße Verwendung

• Lassen Sie das Gerät bei Betrieb nicht

unbeaufsichtigt.

• Das Gerät ist ausschließlich zur Verwen-

dung im Haushalt bestimmt.

• Das Gerät darf nicht als Arbeits- oder

Abstellfläche verwendet werden.

• Brennbare Flüssigkeiten, leicht entzündli-

che Materialien oder schmelzbare Materialien (z.B. Folien, Kunststoff, Aluminium) dürfen nicht auf dem Gerät oder in dessen Nähe abgestellt oder gelagert werden.

• Vorsicht bei Anschluss von Elektrogeräten

an Steckdosen in Gerätenähe. Die Anschlussleitungen dürfen nicht unter dem Gerät oder heißem Kochgeschirr eingeklemmt werden oder damit in Berührung kommen.

• Versuchen Sie nicht, selbst Reparaturen

auszuführen. Andernfalls besteht Unfallgefahr und das Gerät könnte beschädigt werden. Wenden Sie sich stets an Ihren lokalen Kundendienst (siehe hierzu den Abschnitt "Wartung").

Sicherheit von Kindern

• Nur Erwachsene dürfen dieses Gerät bedienen. Kinder müssen beaufsichtigt werden, so dass sie nicht mit dem Gerät spielen können.

• Halten Sie das Verpackungsmaterial von Kindern fern. Andernfalls besteht Erstickungsgefahr.

• Halten Sie Kinder von dem Gerät fern, wenn es in Betrieb ist.

Warnung! Aktivieren Sie die

Kindersicherung, um ein versehentliches Einschalten durch Kleinkinder und Haustiere zu verhindern.

Allgemeine Sicherheit

• Personen (einschließlich Kinder), die auf-

grund ihrer physischen, sensorischen oder geistigen Fähigkeiten oder ihrer Unerfahrenheit oder Unkenntnis nicht in der Lage sind, das Gerät sicher zu bedienen, sollten dieses Gerät nicht ohne Aufsicht oder Anweisung durch eine verantwortliche Person benutzen.

Aufstellung

• Vergewissern Sie sich, dass das Gerät

beim Transport nicht beschädigt wurde. Schließen Sie ein beschädigtes Gerät nicht an. Wenden Sie sich bei Bedarf an den Kundendienst (siehe hierzu den Abschnitt "Wartung").

•Dieses Gerät darf nur von einem autori-

sierten Servicetechniker installiert, angeschlossen oder repariert werden. Verwenden Sie nur Originalersatzteile.

DEUTSCH 16

• Einbaugeräte dürfen nur nach dem Einbau in normgerechte, passende Einbauschränke und Arbeitsplatten betrieben werden.

• Nehmen Sie weder technische noch anderweitige Modifikationen am Gerät vor. Andernfalls besteht Unfallgefahr und das Gerät könnte beschädigt werden.

Warnung! Beachten Sie genau die Anweisungen zu den elektrischen und

Gasanschlüssen.

• Das Gerät niemals installieren, wenn es während des Transports beschädigt wurde.

Sicherheit während der Benutzung

• Entfernen Sie das gesamte Verpackungsmaterial sowie alle Etiketten und Folien vom Gerät, bevor Sie es in Betrieb nehmen.

• Achtung! Brandgefahr! Überhitzte Fette und Öle entzünden sich sehr schnell.

• Schalten Sie nach jedem Gebrauch die Kochzonen aus.

• Verbrennungsgefahr! Gegenstände aus Metall, wie z.B. Messer, Gabeln und Löffel und Topddeckel nicht auf das Kochfeld legen, da sie heiß werden können.

Warnung! Schalten Sie das Gerät

sofort ab, wenn Sie Risse auf der Glaskeramikfläche feststellen, um die Gefahr eines Stromschlags zu vermeiden, und wenden Sie sich an den Kundendienst (siehe hierzu den Abschnitt "Wartung").

Warnung! Benutzen Sie das Gerät

nicht mit nassen Händen und achten

Sie darauf, dass die Oberfläche des Bedienfelds stets trocken ist. Die Bedienelemente am Bedienfeld verlieren ihre Funktionstüchtigkeit, wenn sie mit viel Wasser in Berührung kommen.

Vermeidung von Schäden am Gerät

• Die Glaskeramik kann durch herabfallende Gegenstände oder durch das Kochgeschirr beschädigt werden.

• Kochgeschirr aus Gusseisen, Aluguss oder mit beschädigten Böden können beim Verschieben die Glaskeramik verkratzen.

• Das Leerkochen von Töpfen und Pfannen vermeiden. Es kann Beschädigungen am Kochgeschirr oder der Glaskeramik verursachen.

• Benutzen Sie die Kochzonen nicht mit leerem oder ohne Kochgeschirr.

• Legen Sie nie einen Teil des Gerätes mit Alu-Folie aus. Legen Sie keine Gegenstände aus Kunststoff oder aus anderem Material, das schmelzen kann, in oder auf auf das Gerät.

Hinweis zu Acrylamid Wichtig! Nach neuesten wissenschaftlichen

Erkenntnissen kann eine intensive Bräunung von Lebensmitteln, speziell bei stärkehaltigen Produkten, eine gesundheitliche Gefährdung durch Acrylamid verursachen. Daher empfehlen wir, möglichst bei niedrigen Temperaturen zu garen und die Speisen nicht zu stark zu bräunen.

DEUTSCH 17

Gerätebeschreibung

Kochfeldanordnung

120/180 mm

Zweikreis-Kochzone 700/1700 W

Einkreis-Kochzone 1200 W

145 m m

Bedienfeldanordnung

1 2 4 6

Bedienfeld

zum Ein- und Ausschalten des Koch-

felds

zum Ein- und Ausschalten der Tas-

tenverriegelung oder Kindersicherung

zum Einschalten des äußeren Heiz-

kreises Kochstufenanzeige:

Kochzonen-Anzeigen des Timers

Timer-Anzeige:

zum Höherstellen oder zum Nied-

, von bis

bis Minuten

rigerstellen des Timers

zum Erhöhen oder Senken der

Kochstufen

Zum Einschalten der Funktion Stop

+Go

Touch Control-Sensorfelder und Anzeigen

Das Kochfeld wird durch Berühren der Sensorfelder bedient. Die Anzeigen und akustischen Signale (kurzer Signalton) bestätigen die Auswahl einer Funktion.

Kochstufenan-

Beschreibung

zeige

Es ist eine Störung aufgetreten

Eine der Kochzonen ist noch warm

+ 39 hidden pages
