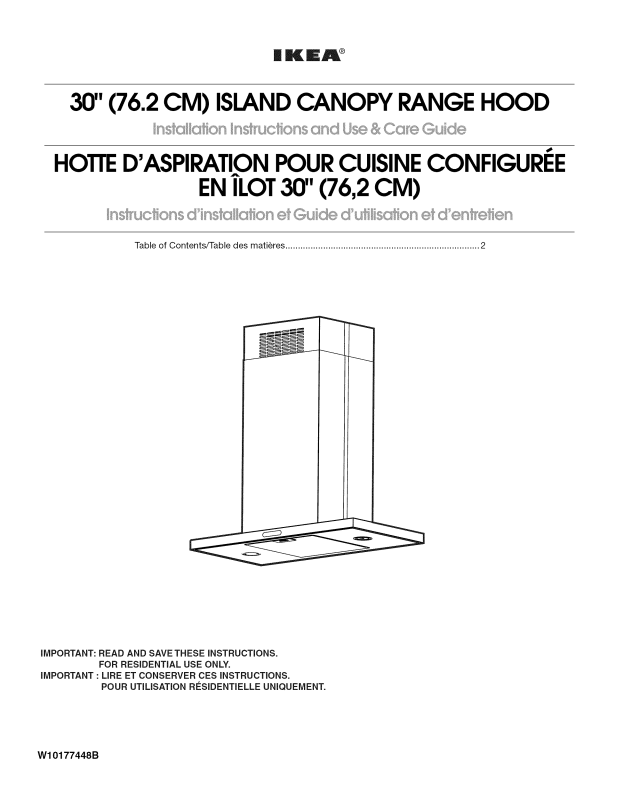

Ikea IHI8304WS0 Installation Guide
|KEA ®
30"(76.2 CM) ISLANDCANOPY RANGEHOOD
HOTTED'ASPIRATIONPOURCUISINECONFIGURI_E
EN ILOT30" (76,2 CM)
Table of Contents/Table des matieres ............................................................................. 2
iMPORTANT: READ AND SAVE THESE iNSTRUCTiONS.
FOR RESiDENTiAL USE ONLY.
iMPORTANT : URE ET CONSERVER CES iNSTRUCTiONS.
POUR UTIUSATION RESIDENTIELLE UNIQUEMENT.
W10177448B

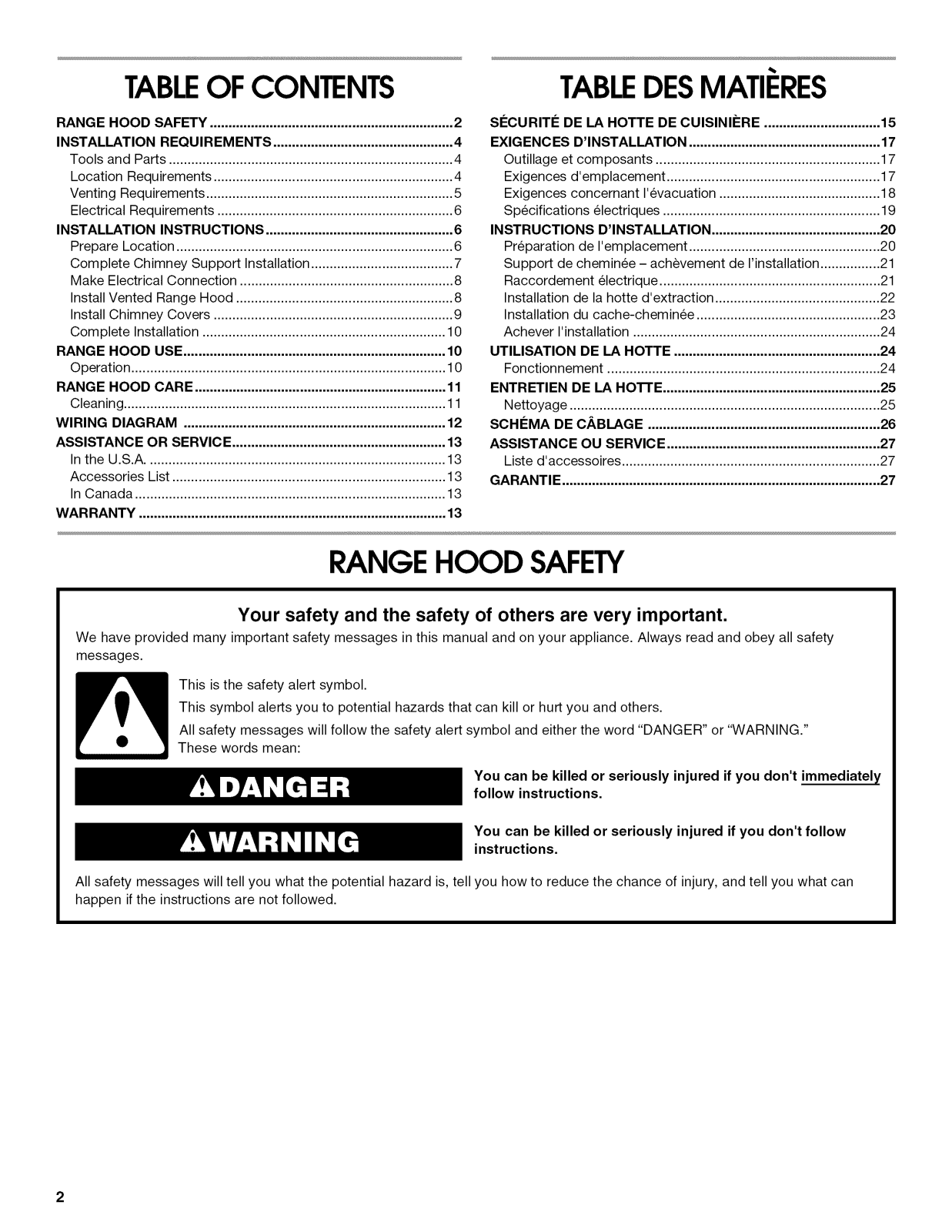

TABLEOF CONTENTS
TABLEDESMATIERES
RANGE HOOD SAFETY ................................................................. 2
INSTALLATION REQUIREMENTS ................................................ 4
Tools and Parts ............................................................................ 4
Location Requirements ................................................................ 4
Venting Requirements .................................................................. 5

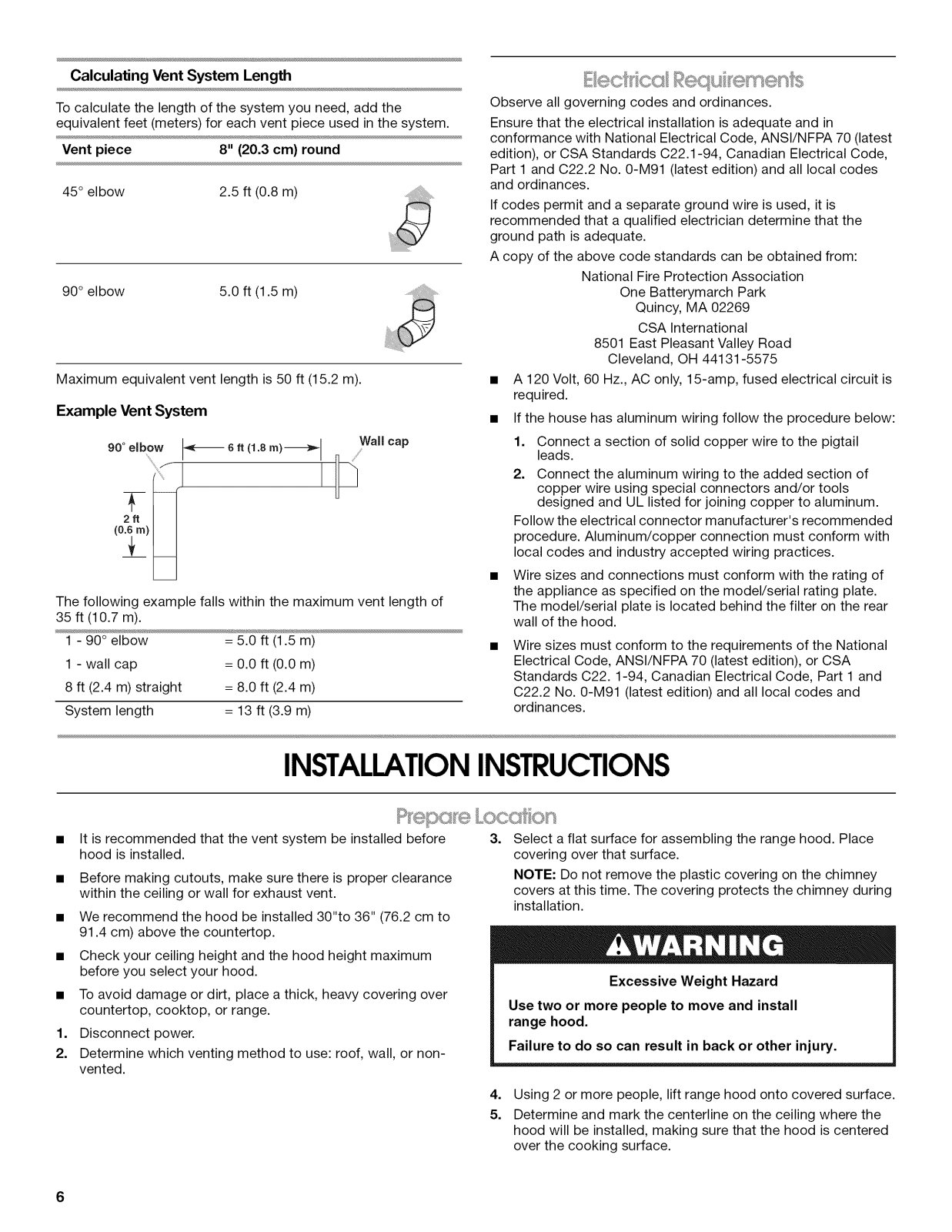

Electrical Requirements ............................................................... 6
INSTALLATION INSTRUCTIONS .................................................. 6
Prepare Location .......................................................................... 6
Complete Chimney Support Installation ...................................... 7

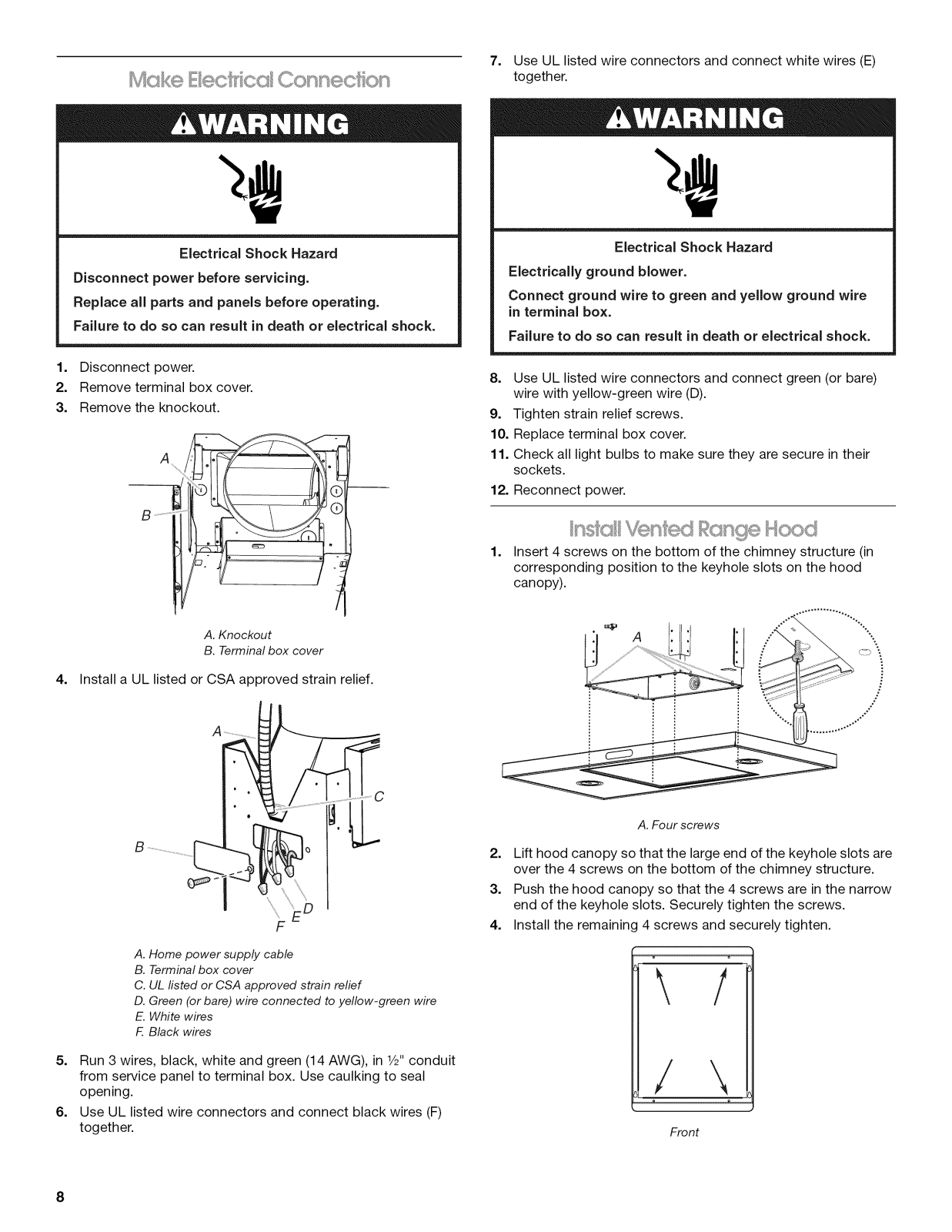

Make Electrical Connection ......................................................... 8
Install Vented Range Hood .......................................................... 8

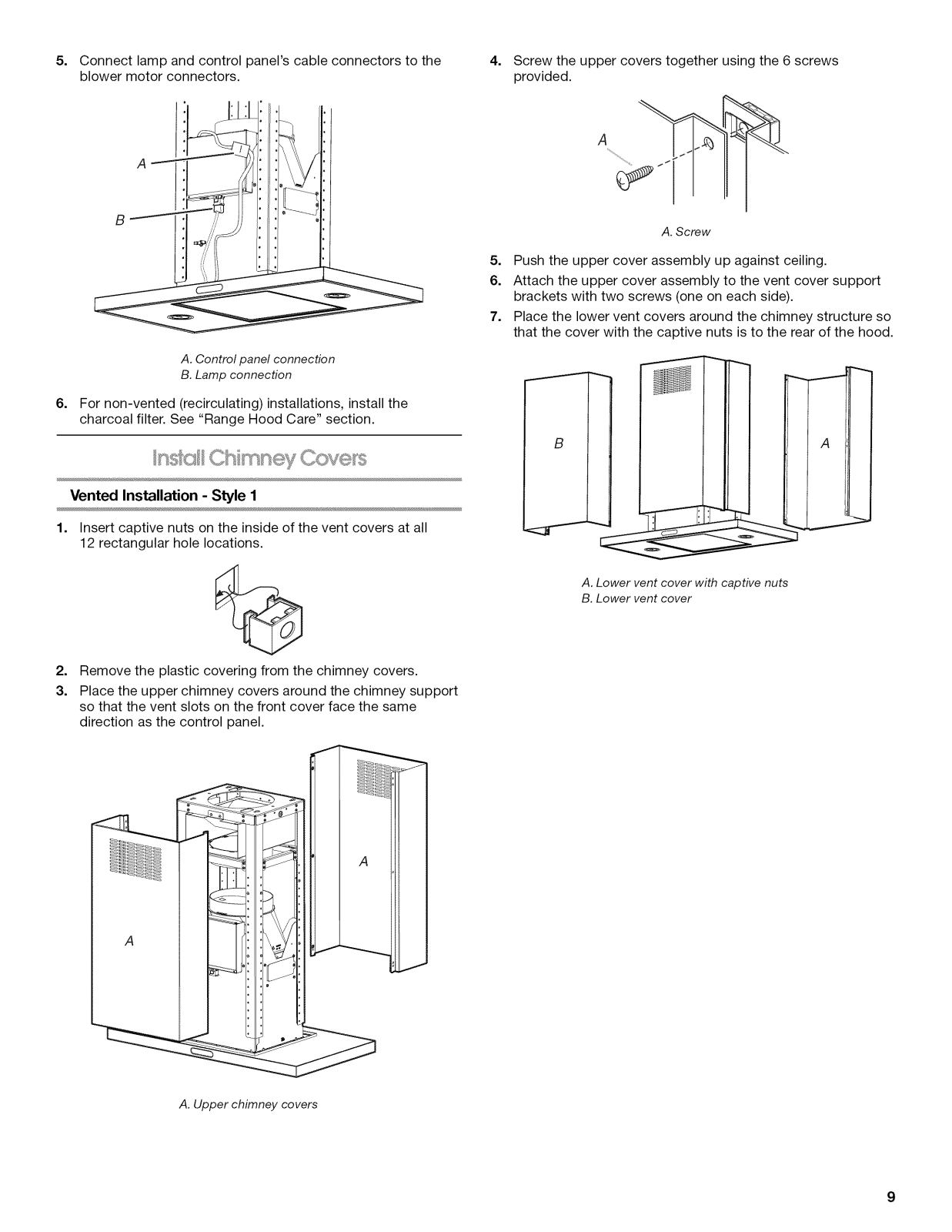

Install Chimney Covers ................................................................ 9
Complete Installation ................................................................. 10

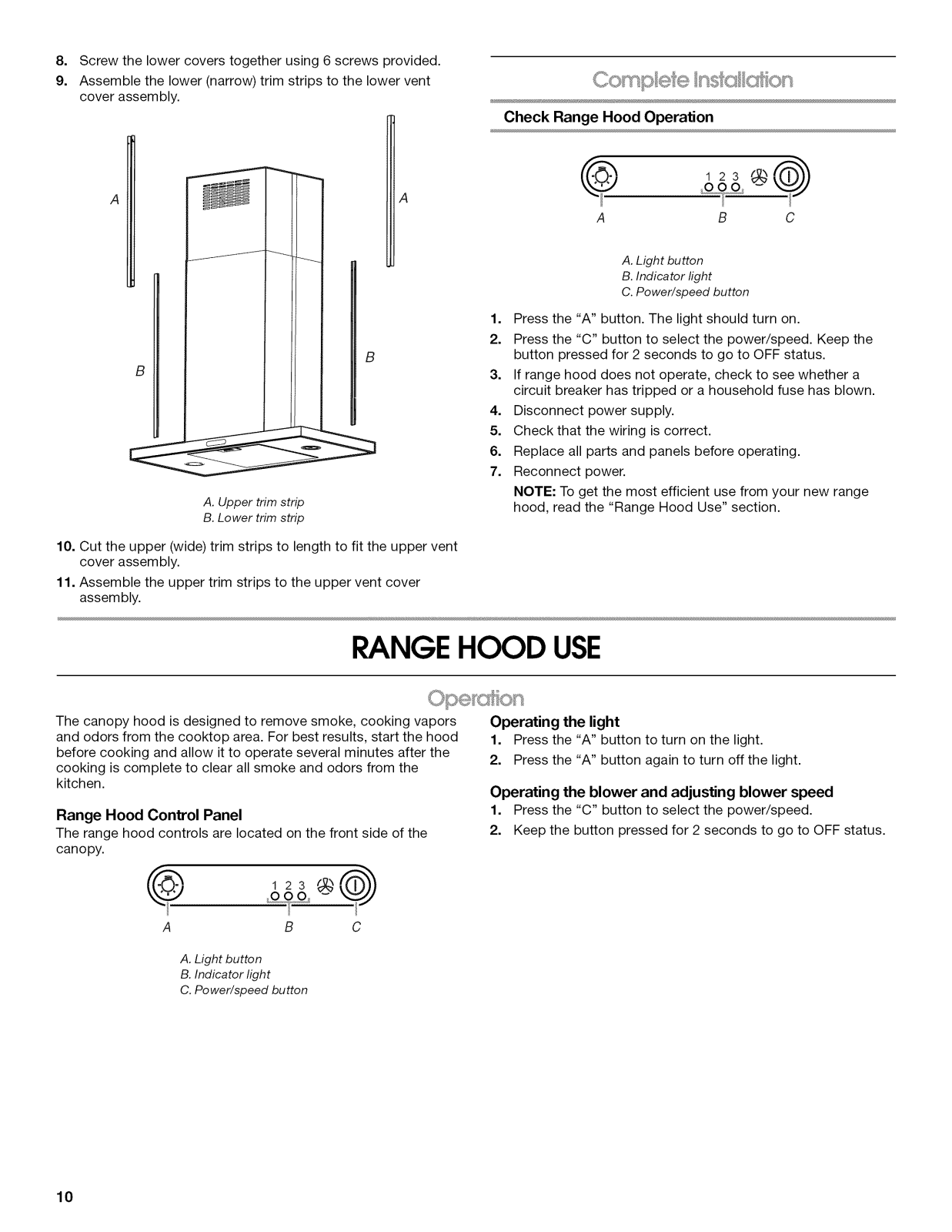

RANGE HOOD USE ...................................................................... 10
Operation .................................................................................... 10

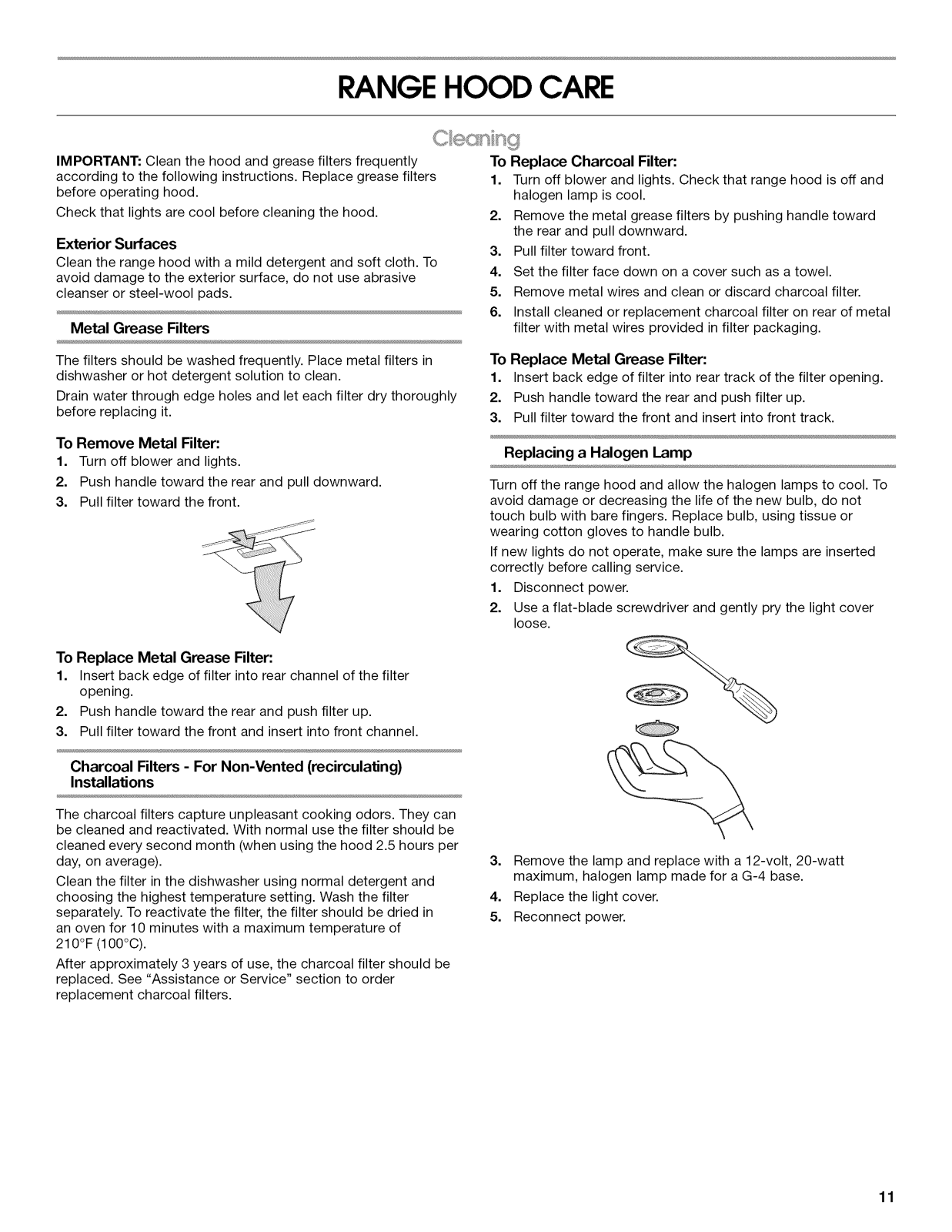

RANGE HOOD CARE ................................................................... 11
Cleaning ...................................................................................... 11

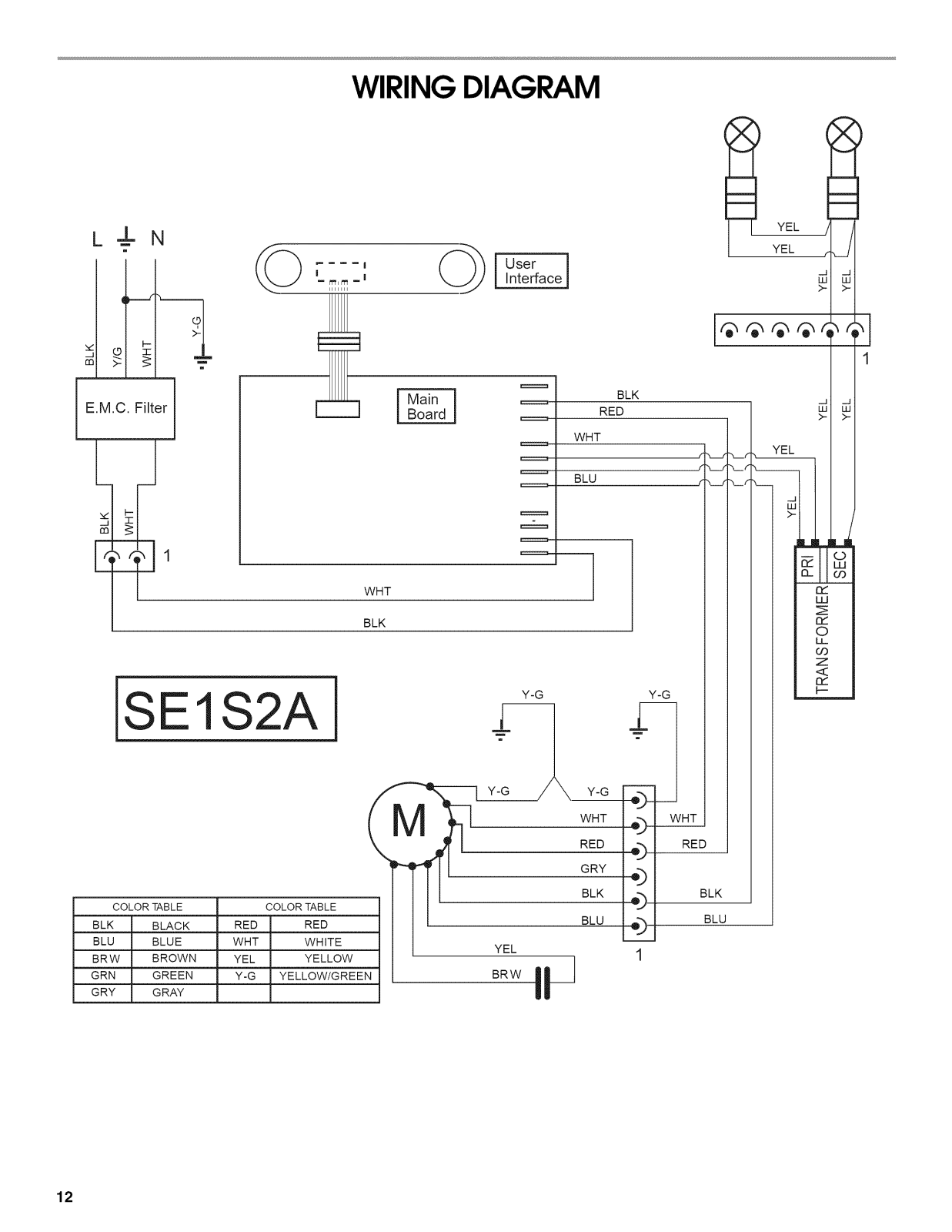

WIRING DIAGRAM ...................................................................... 12

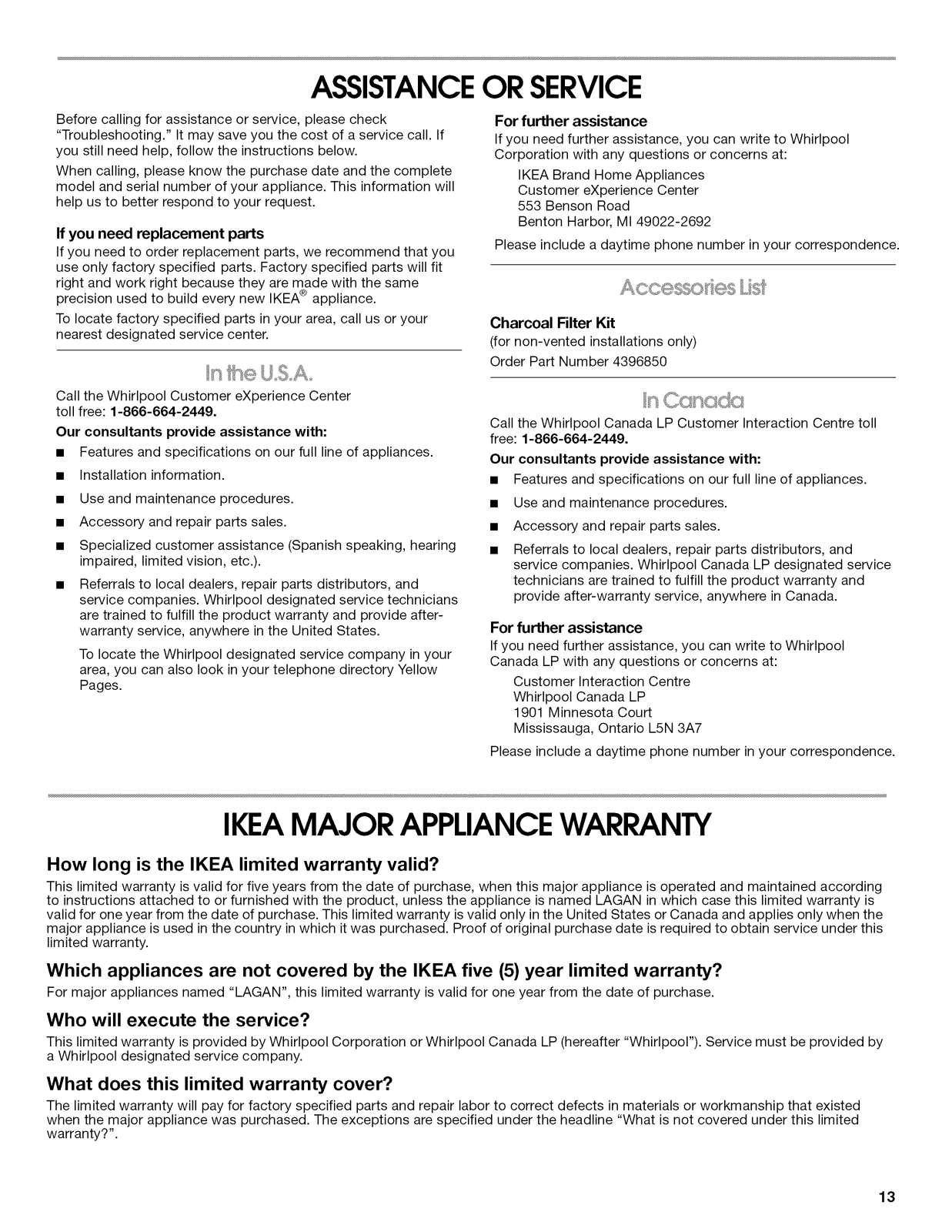

ASSISTANCE OR SERVICE ......................................................... 13
In the U.S.A................................................................................ 13
Accessories List ......................................................................... 13
In Canada ................................................................................... 13

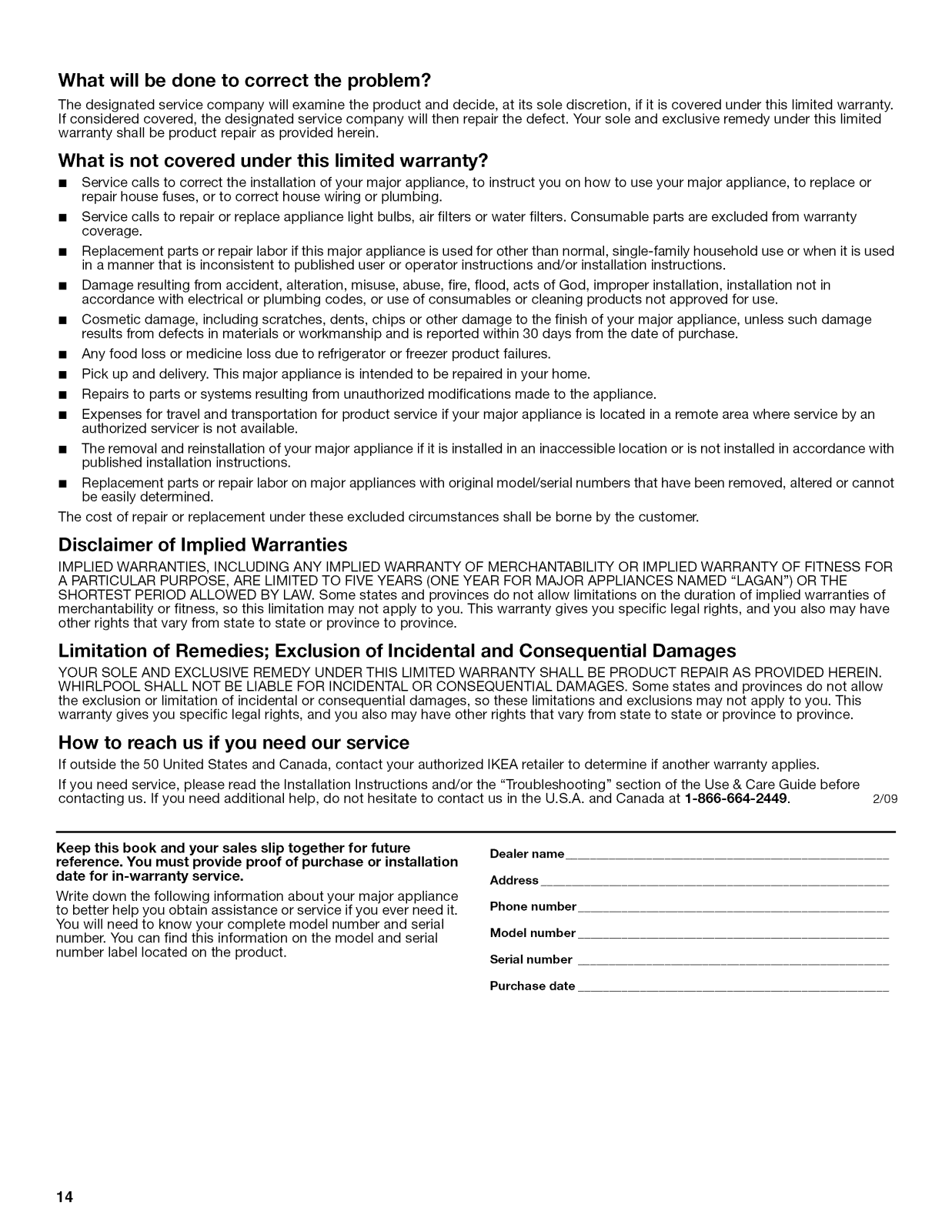

WAR RANTY .................................................................................. 13
RANGE HOOD SAFETY

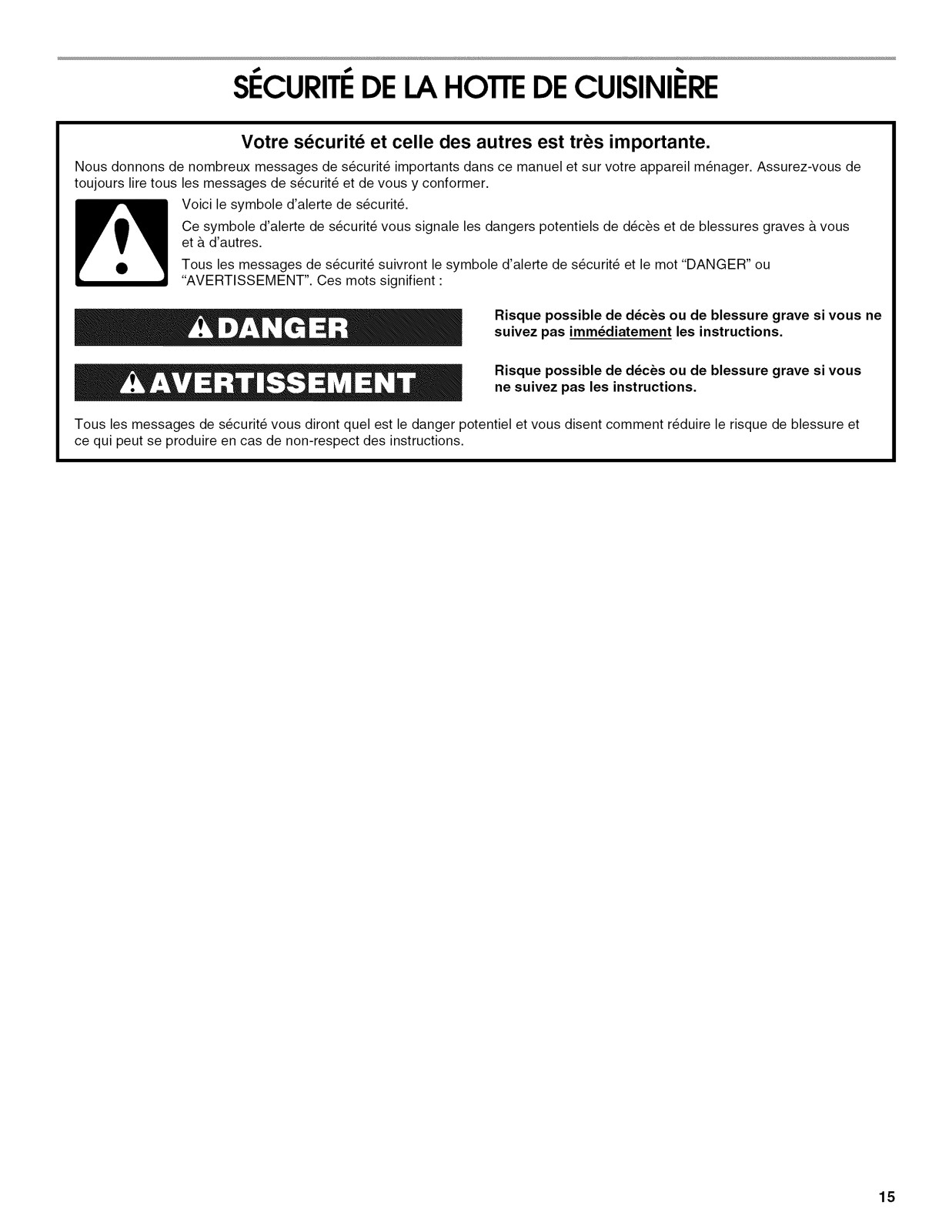

SECURITE DE LA HOTTE DE CUlSINIERE ............................... 15
EXIGENCES D'INSTALLATION ................................................... 17
Outillage et composants ............................................................ 17
Exigences d'emplacement ......................................................... 17
Exigences concernant I'evacuation ........................................... 18
Specifications electriques .......................................................... 19
INSTRUCTIONS D'INSTALLATION ............................................. 20
Preparation de I'emplacement ................................................... 20

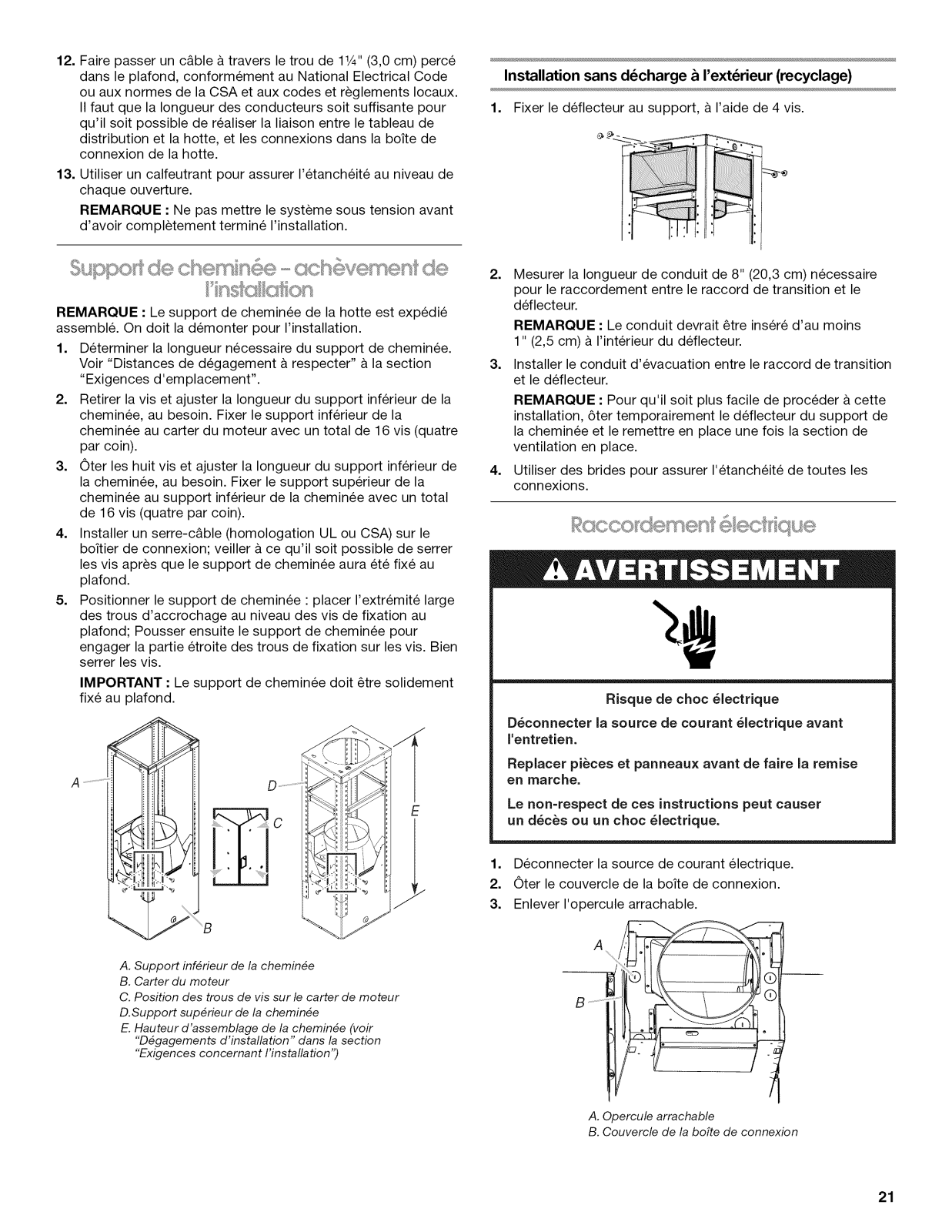

Support de cheminee - achevement de I'installation ................ 21
Raccordement electrique ........................................................... 21
Installation de la hotte d'extraction ............................................ 22
Installation du cache-cheminee ................................................. 23
Achever I'installation .................................................................. 24
UTILISATION DE LA HOTTE ....................................................... 24
Fonctionnement ......................................................................... 24
ENTRETIEN DE LA Ho'n'E .......................................................... 25
Nettoyage ................................................................................... 25
SCHEMA DE CABLAGE .............................................................. 26
ASSISTANCE OU SERVICE ......................................................... 27
Liste d'accessoires ..................................................................... 27
GARANTIE ..................................................................................... 27
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
2

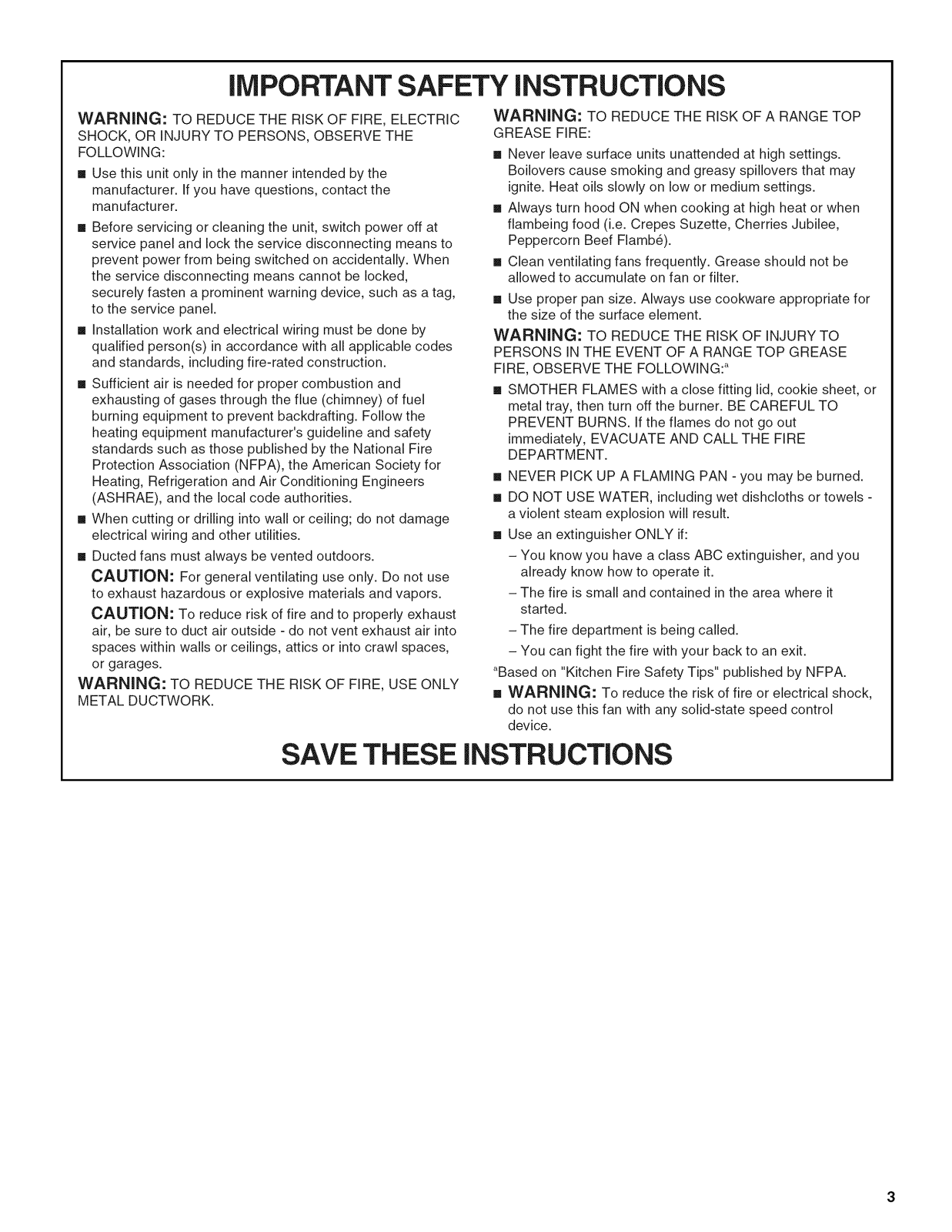

iMPORTANT SAFETY iNSTRUCTiONS
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
[] Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
[] Before servicing or cleaning the unit, switch power off at
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag,
to the service panel.
[] Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
[] Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire
Protection Association (NFPA), the American Society for
Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
[] When cutting or drilling into wall or ceiling; do not damage
electrical wiring and other utilities.
[] Ducted fans must always be vented outdoors.
CAUTION: For general ventilating use only. Do not use
to exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce risk of fire and to properly exhaust
air, be sure to duct air outside - do not vent exhaust air into
spaces within walls or ceilings, attics or into crawl spaces,
or garages.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY
METAL DUCTWORK.
WARNING: TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
[] Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
[] Always turn hood ON when cooking at high heat or when
flambeing food (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flamb6).
[] Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
[] Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING: a
[] SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT.
[] NEVER PICK UP A FLAMING PAN - you may be burned.
[] DO NOT USE WATER, including wet dishcloths or towels -
a violent steam explosion will result.
[] Use an extinguisher ONLY if:
- You know you have a class ABC extinguisher, and you
already know how to operate it.
- The fire is small and contained in the area where it
started.
- The fire department is being called.
- You can fight the fire with your back to an exit.
aBased on "Kitchen Fire Safety Tips" published by NFPA.
[] WARNING: To reduce the risk of fire or electrical shock,
do not use this fan with any solid-state speed control
device.
SAVE THESE iNSTRUCTiONS

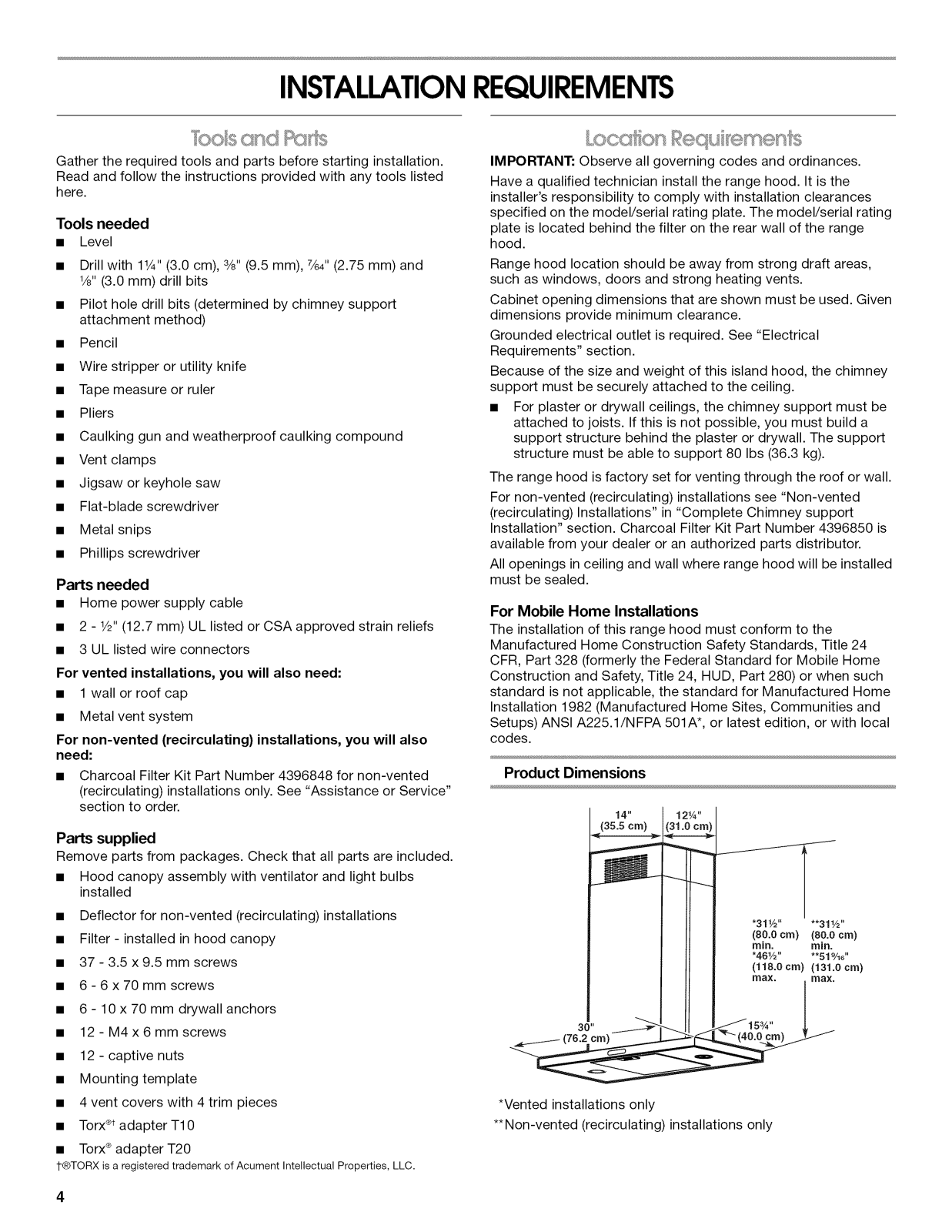

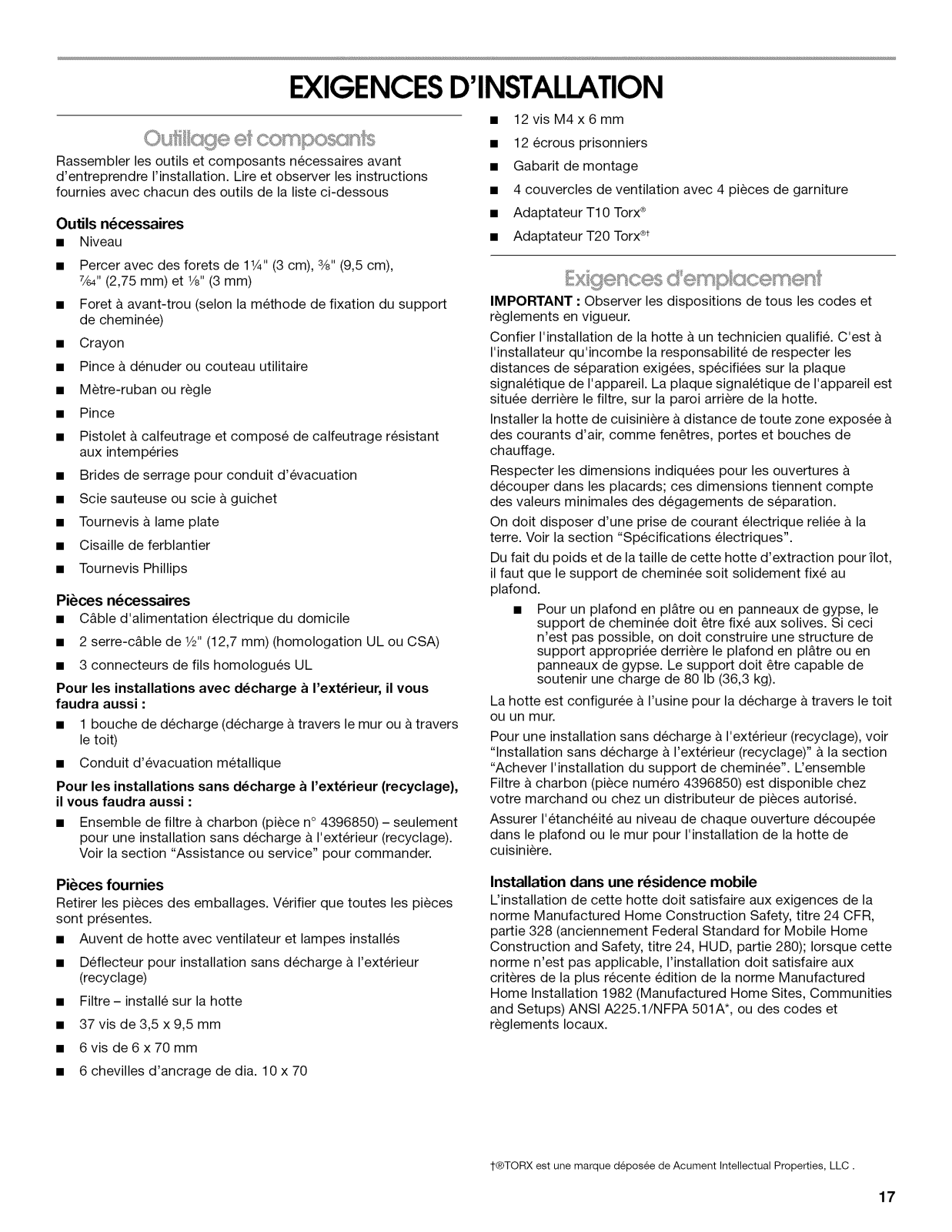

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
• Level
• Drill with 11¼"(3.0 cm), 3/8"(9.5 mm), %4" (2.75 mm) and
V8"(3.0 mm) drill bits
• Pilot hole drill bits (determined by chimney support
attachment method)
• Pencil
• Wire stripper or utility knife
• Tape measure or ruler
• Pliers
• Caulking gun and weatherproof caulking compound
• Vent clamps
• Jigsaw or keyhole saw
• Flat-blade screwdriver
• Metal snips
• Phillips screwdriver
Parts needed
• Home power supply cable
• 2 - 1/2"(12.7 mm) UL listed or CSA approved strain reliefs
• 3 UL listed wire connectors
For vented installations, you will also need:
• 1 wall or roof cap
• Metal vent system
For non-vented (recirculating) installations, you will also
need:
• Charcoal Filter Kit Part Number 4396848 for non-vented
(recirculating) installations only. See "Assistance or Service"
section to order.
Parts supplied
Remove parts from packages. Check that all parts are included.
• Hood canopy assembly with ventilator and light bulbs
installed
• Deflector for non-vented (recirculating) installations
• Filter- installed in hood canopy
• 37- 3.5 x 9.5 mm screws
• 6-6x70mmscrews
• 6- 10 x 70 mm drywall anchors
• 12-M4x6mmscrews
• 12- captive nuts
• Mounting template
• 4 vent covers with 4 trim pieces
• Torx®tadapter T10
• Torx®adapter T20
t®TORX is a registered trademark of Acument Intellectual Properties, LLC.
IMPORTANT." Observe all governing codes and ordinances.
Have a qualified technician install the range hood. It is the
installer's responsibility to comply with installation clearances
specified on the model/serial rating plate. The model/serial rating
plate is located behind the filter on the rear wall of the range
hood.
Range hood location should be away from strong draft areas,
such as windows, doors and strong heating vents.
Cabinet opening dimensions that are shown must be used. Given
dimensions provide minimum clearance.
Grounded electrical outlet is required. See "Electrical
Requirements" section.
Because of the size and weight of this island hood, the chimney
support must be securely attached to the ceiling.
• For plaster or drywall ceilings, the chimney support must be
attached to joists. If this is not possible, you must build a
support structure behind the plaster or drywall. The support
structure must be able to support 80 Ibs (36.3 kg).
The range hood is factory set for venting through the roof or wall.
For non-vented (recirculating) installations see "Non-vented
(recirculating) Installations" in "Complete Chimney support
Installation" section. Charcoal Filter Kit Part Number 4396850 is
available from your dealer or an authorized parts distributor.
All openings in ceiling and wall where range hood will be installed
must be sealed.
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title 24
CFR, Part 328 (formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24, HUD, Part 280) or when such
standard is not applicable, the standard for Manufactured Home
Installation 1982 (Manufactured Home Sites, Communities and
Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local
codes.

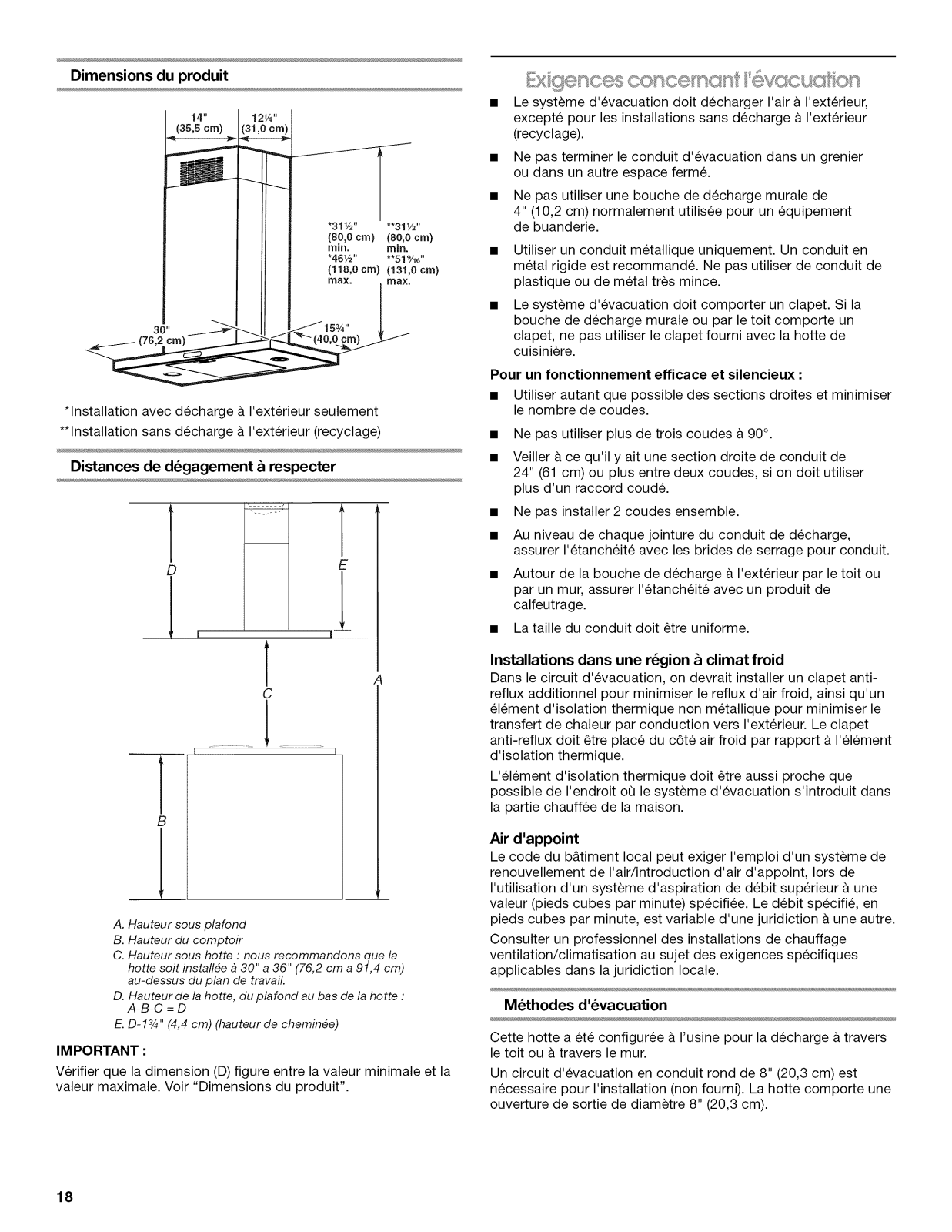

Product Dimensions
14"
(35.5cm)
"31V2.... 31_/2''
(80.0cm) (80.0cm)
rain. rain.
"46_/2.... 51%6"
(118.0 cm) (131.0 cm)
max. max.
0
*Vented installations only
**Non-vented (recirculating) installations only

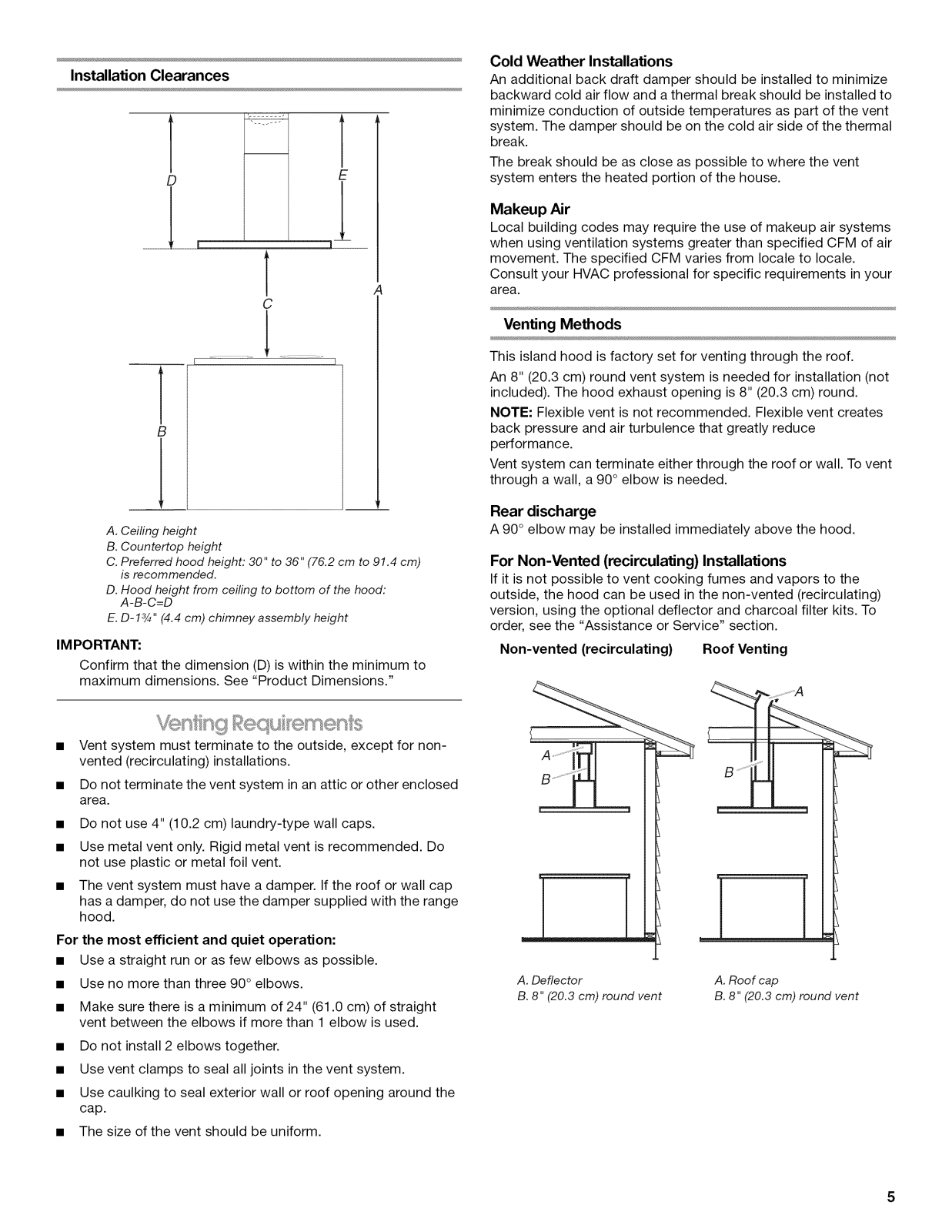

Installation Clearances
l
D
E
1
! m
i
C
i
B
A. Ceifing height
B. Countertop height
C. Preferred hood height: 30" to 36" (76.2 cm to 91.4 cm)
is recommended.
D. Hood height from ceiling to bottom of the hood:
A-B-C=D
E.D-13/4" (4.4 cm) chimney assembly height
IM PORTANT:
Confirm that the dimension (D) is within the minimum to
maximum dimensions. See "Product Dimensions."
Cold Weather Installations
An additional back draft damper should be installed to minimize
backward cold air flow and athermal break should be installed to
minimize conduction of outside temperatures as part of the vent
system. The damper should be on the cold air side of the thermal
break.
The break should be as close as possible to where the vent
system enters the heated portion of the house.
Makeup Air
Local building codes may require the use of makeup air systems
when using ventilation systems greater than specified CFM of air
movement. The specified CFM varies from locale to locale.
Consult your HVAC professional for specific requirements in your
area.
Venting Methods
This island hood is factory set for venting through the roof.
An 8" (20.3 cm) round vent system is needed for installation (not
included). The hood exhaust opening is 8" (20.3 cm) round.
NOTE: Flexible vent is not recommended. Flexible vent creates
back pressure and air turbulence that greatly reduce
performance.
Vent system can terminate either through the roof or wall. To vent
through a wall, a 90° elbow is needed.
Rear discharge
A 90° elbow may be installed immediately above the hood.
For Non-Vented (recirculating) Installations
If it is not possible to vent cooking fumes and vapors to the
outside, the hood can be used in the non-vented (recirculating)
version, using the optional deflector and charcoal filter kits. To
order, see the "Assistance or Service" section.
Non-vented (recirculating) Roof Venting
Vent system must terminate to the outside, except for non-
vented (recirculating) installations.
Do not terminate the vent system in an attic or other enclosed
area.
Do not use 4" (10.2 cm) laundry-type wall caps.
Use metal vent only. Rigid metal vent is recommended. Do
not use plastic or metal foil vent.
The vent system must have a damper. If the roof or wall cap
has a damper, do not use the damper supplied with the range
hood.
For the most efficient and quiet operation:
• Use a straight run or as few elbows as possible.
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24" (61.0 cm) of straight
vent between the elbows if more than 1 elbow is used.
• Do not install 2 elbows together.
• Use vent clamps to seal all joints in the vent system.
• Use caulking to seal exterior wall or roof opening around the
cap.
• The size of the vent should be uniform.
A. Deflector
B. 8" (20.3 cm) round vent
A. Roof cap
B. 8" (20.3 cm) round vent

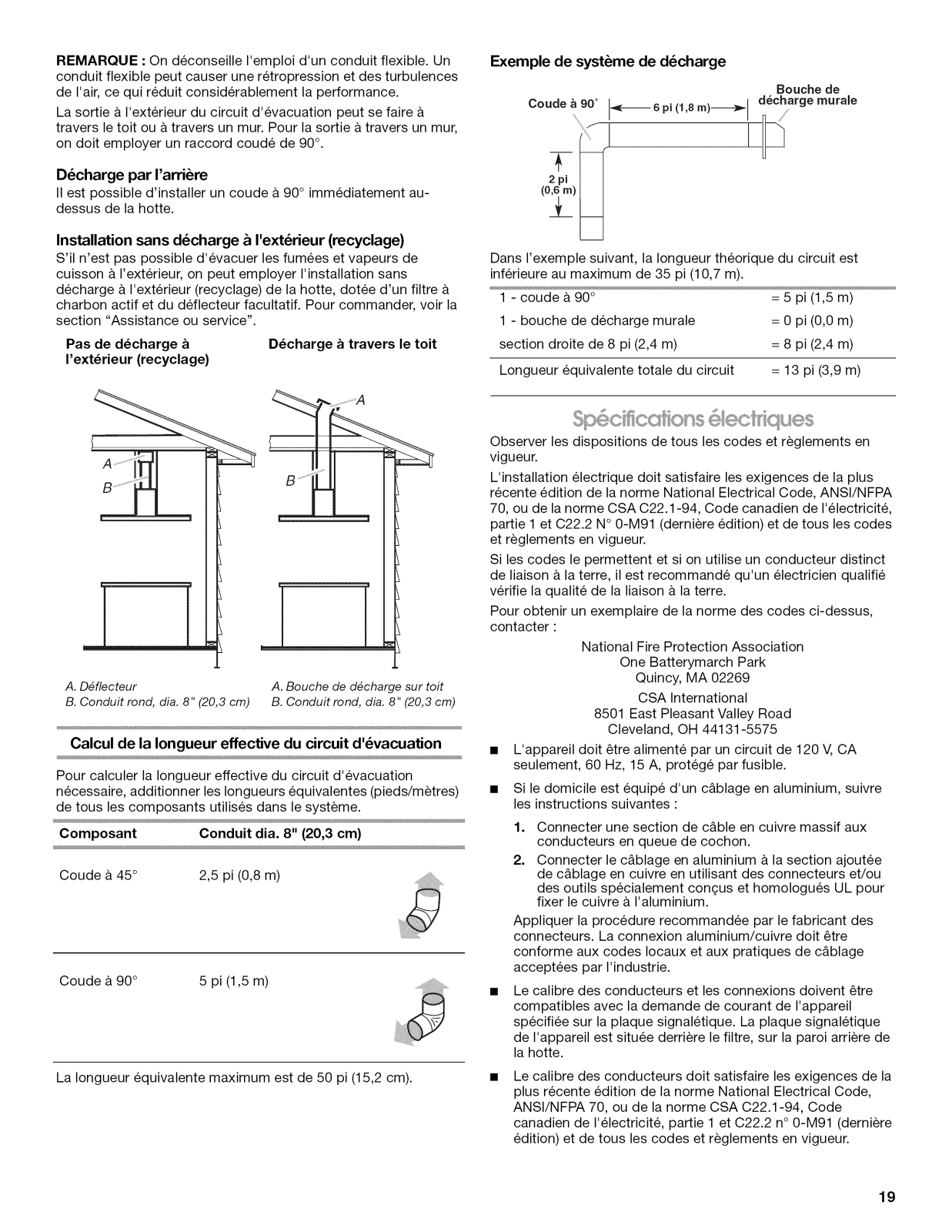

Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the system.
Vent piece 8" (20.3 cm) round
45° elbow 2.5 ft (0.8 m)
90° elbow 5.0 ft (1.5 m)
Maximum equivalent vent length is 50 ft (15.2 m).
Example Vent System
90°elbow I_ s. (1.8m)-_l Wallcap
The following example falls within the maximum vent length of
35 ft (10.7 m).
1 - 90 ° elbow
1 - wall cap = 0.0 ft (0.0 m)
8 ft (2.4 m) straight = 8.0 ft (2.4 m)
System length = 13 ft (3.9 m)
& equ t:e , s
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSl/NFPA 70 (latest
edition), or CSA Standards C22.1-94, Canadian Electrical Code,
Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes
and ordinances.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
• A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is
required.
• If the house has aluminum wiring follow the procedure below:
1. Connect a section of solid copper wire to the pigtail
leads.
2. Connect the aluminum wiring to the added section of
copper wire using special connectors and/or tools
designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer's recommended
procedure. Aluminum/copper connection must conform with
local codes and industry accepted wiring practices.
• Wire sizes and connections must conform with the rating of
the appliance as specified on the model/serial rating plate.
The model/serial plate is located behind the filter on the rear
wall of the hood.
Wire sizes must conform to the requirements of the National
Electrical Code, ANSl/NFPA 70 (latest edition), or CSA
Standards C22.1-94, Canadian Electrical Code, Part 1 and
C22.2 No. 0-M91 (latest edition) and all local codes and
ordinances.

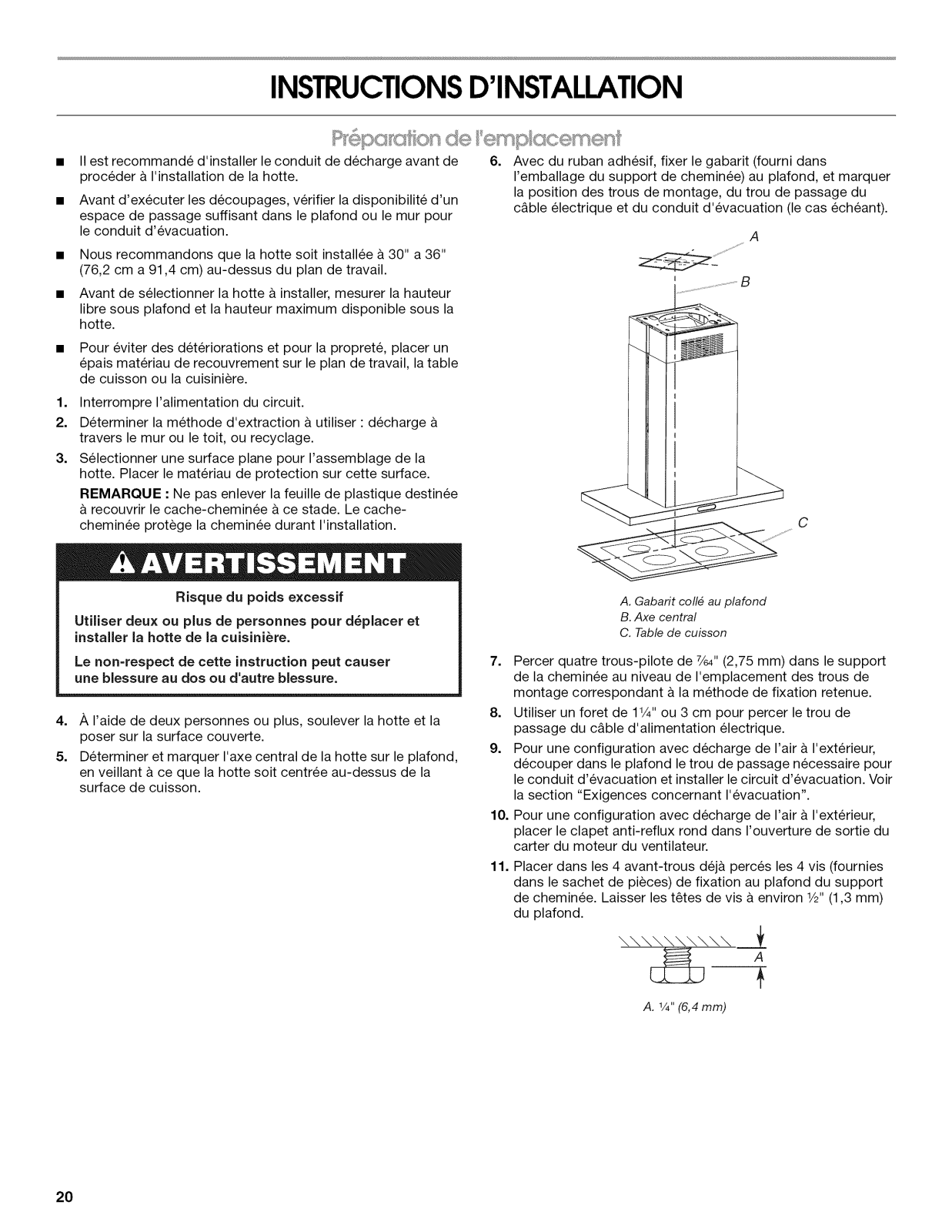

INSTALLATIONINSTRUCTIONS
It is recommended that the vent system be installed before
hood is installed.
• Before making cutouts, make sure there is proper clearance
within the ceiling or wall for exhaust vent.
• We recommend the hood be installed 30"to 36" (76.2 cm to
91.4 cm) above the countertop.
• Check your ceiling height and the hood height maximum
before you select your hood.
• To avoid damage or dirt, place a thick, heavy covering over
countertop, cooktop, or range.
1. Disconnect power.
2. Determine which venting method to use: roof, wall, or non-
vented.
6
3.
Select a flat surface for assembling the range hood. Place
covering over that surface.
NOTE: Do not remove the plastic covering on the chimney
covers at this time. The covering protects the chimney during
installation.
Excessive Weight Hazard
Use two or more people to move and install
range hood.
Failure to do so can result in back or other injury.
4.
Using 2 or more people, lift range hood onto covered surface.
5.
Determine and mark the centerline on the ceiling where the
hood will be installed, making sure that the hood is centered
over the cooking surface.
6=

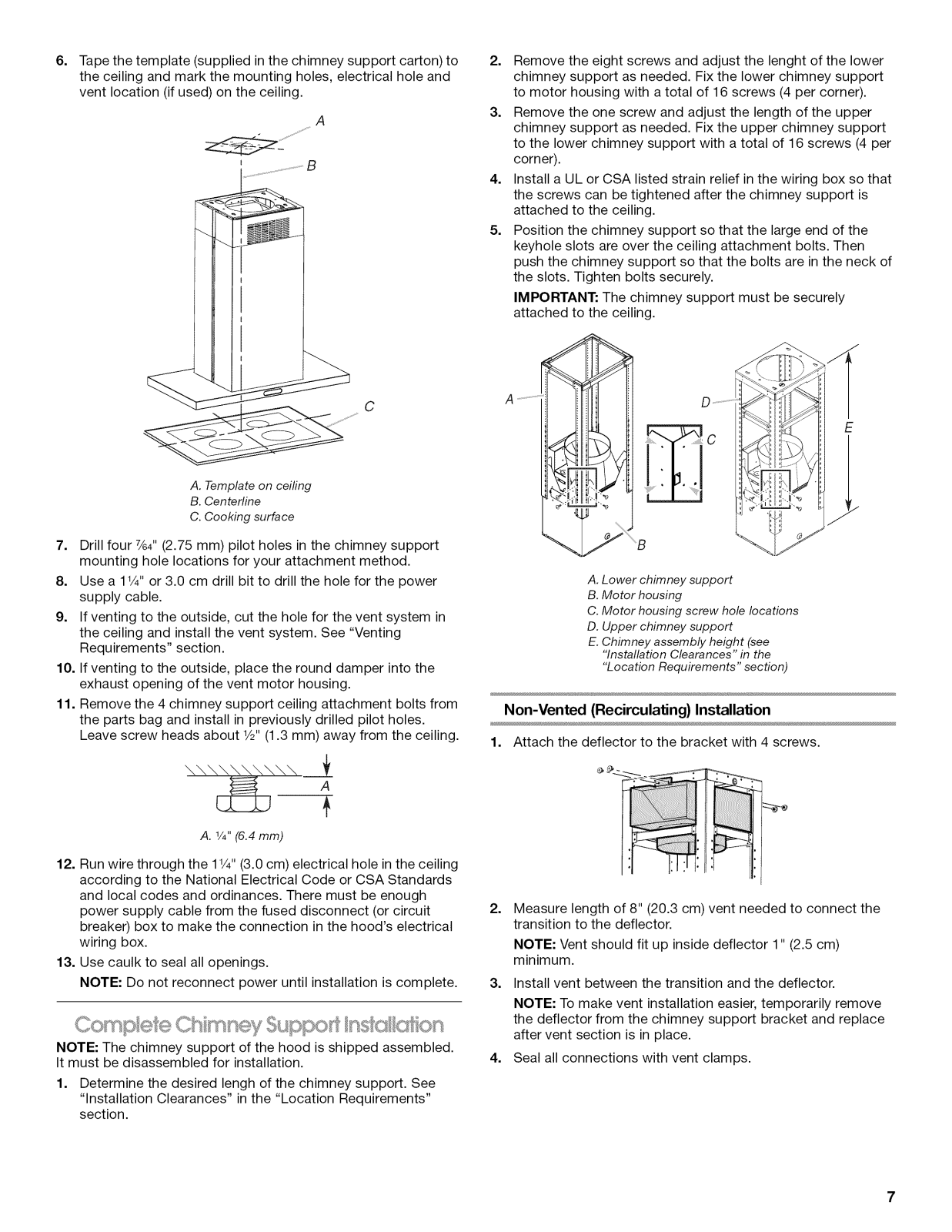

Tape the template (supplied in the chimney support carton) to
the ceiling and mark the mounting holes, electrical hole and
vent location (if used) on the ceiling.
A
C
A. Template on ceifing
B. Centerline
C. Cooking surface
2. Remove the eight screws and adjust the lenght of the lower
chimney support as needed. Fix the lower chimney support
to motor housing with a total of 16 screws (4 per corner).
3. Remove the one screw and adjust the length of the upper
chimney support as needed. Fix the upper chimney support
to the lower chimney support with a total of 16 screws (4 per
corner).
4. Install a UL or CSA listed strain relief in the wiring box so that
the screws can be tightened after the chimney support is
attached to the ceiling.
5. Position the chimney support so that the large end of the
keyhole slots are over the ceiling attachment bolts. Then
push the chimney support so that the bolts are in the neck of
the slots. Tighten bolts securely.
IMPORTANT: The chimney support must be securely
attached to the ceiling.
E
7. Drill four %4" (2.75 mm) pilot holes in the chimney support
mounting hole locations for your attachment method.
8. Use a 1V4" or 3.0 cm drill bit to drill the hole for the power
supply cable.
9. If venting to the outside, cut the hole for the vent system in
the ceiling and install the vent system. See "Venting
Requirements" section.
10. If venting to the outside, place the round damper into the
exhaust opening of the vent motor housing.
11. Remove the 4 chimney support ceiling attachment bolts from
the parts bag and install in previously drilled pilot holes.
Leave screw heads about 1/2"(1.3 mm) away from the ceiling.
\\\\\\\\\\
A. 1/4"(6.4 mm)
12. Run wire through the 1V4"(3.0 cm) electrical hole inthe ceiling
according to the National Electrical Code or CSA Standards
and local codes and ordinances. There must be enough
power supply cable from the fused disconnect (or circuit
breaker) box to make the connection in the hood's electrical
wiring box.
13. Use caulk to seal all openings.
NOTE: Do not reconnect power until installation is complete.
NOTE: The chimney support of the hood is shipped assembled.
It must be disassembled for installation.
1. Determine the desired lengh of the chimney support. See
"Installation Clearances" in the "Location Requirements"
section.
A. Lower chimney support
B. Motor housing
C. Motor housing screw hole locations
D. Upper chimney support
E. Chimney assembly height (see
"Installation Clearances" in the
"Location Requirements" section)
Non-Vented (Recirculating) Installation
1. Attach the deflector to the bracket with 4 screws.
2=
Measure length of 8" (20.3 cm) vent needed to connect the
transition to the deflector.
NOTE: Vent should fit up inside deflector 1" (2.5 cm)
minimum.
3. Install vent between the transition and the deflector.
NOTE: To make vent installation easier, temporarily remove
the deflector from the chimney support bracket and replace
after vent section is in place.
4. Seal all connections with vent clamps.
7. Use UL listed wire connectors and connect white wires (E)
together.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Disconnect power.
2. Remove terminal box cover.
3. Remove the knockout.
A
........................, °
-- ._"@ (
S ...............
A. Knockout
B. Terminal box cover

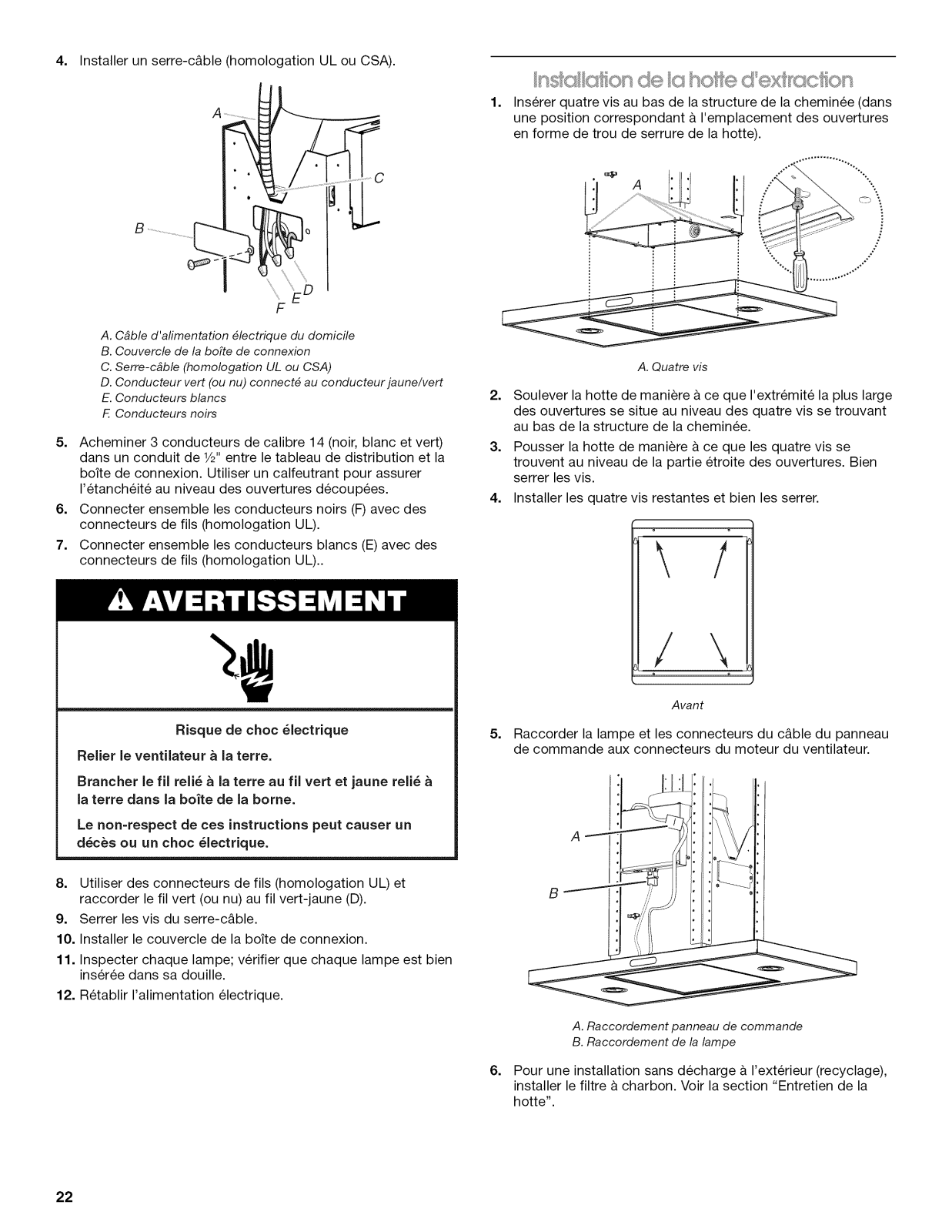

4. Install a UL listed or CSA approved strain relief.
Electrical Shock Hazard
Electrically ground blower.
Connect ground wire to green and yellow ground wire
in terminal box.
Failure to do so can result in death or electrical shock.
8. Use UL listed wire connectors and connect green (or bare)
wire with yellow-green wire (D).
9. Tighten strain relief screws.
10. Replace terminal box cover.
11. Check all light bulbs to make sure they are secure in their
sockets.
12. Reconnect power.
1=
Insert 4 screws on the bottom of the chimney structure (in
corresponding position to the keyhole slots on the hood
canopy).
c_
:\
I
F
A. Home power supply cable
B. Terminal box cover
C. UL fisted or CSA approved strain relief
D. Green (or bare) wire connected to yellow-green wire
E. White wires
F. Black wires
5. Run 3 wires, black, white and green (14 AWG), in 1/2"conduit
from service panel to terminal box. Use caulking to seal
opening.
6. Use UL listed wire connectors and connect black wires (F)
together.
8
A. Four screws
2. Lift hood canopy so that the large end of the keyhole slots are
over the 4 screws on the bottom of the chimney structure.
3. Push the hood canopy so that the 4 screws are in the narrow
end of the keyhole slots. Securely tighten the screws.
4. Install the remaining 4 screws and securely tighten.
\ /
Front
5. Connect lamp and control panel's cable connectors to the 4. Screw the upper covers together using the 6 screws
blower motor connectors, provided.
A
A
B
A. Control panel connection
B. Lamp connection
6.
For non-vented (recirculating) installations, install the
charcoal filter. See "Range Hood Care" section.
Vented Installation - Style 1

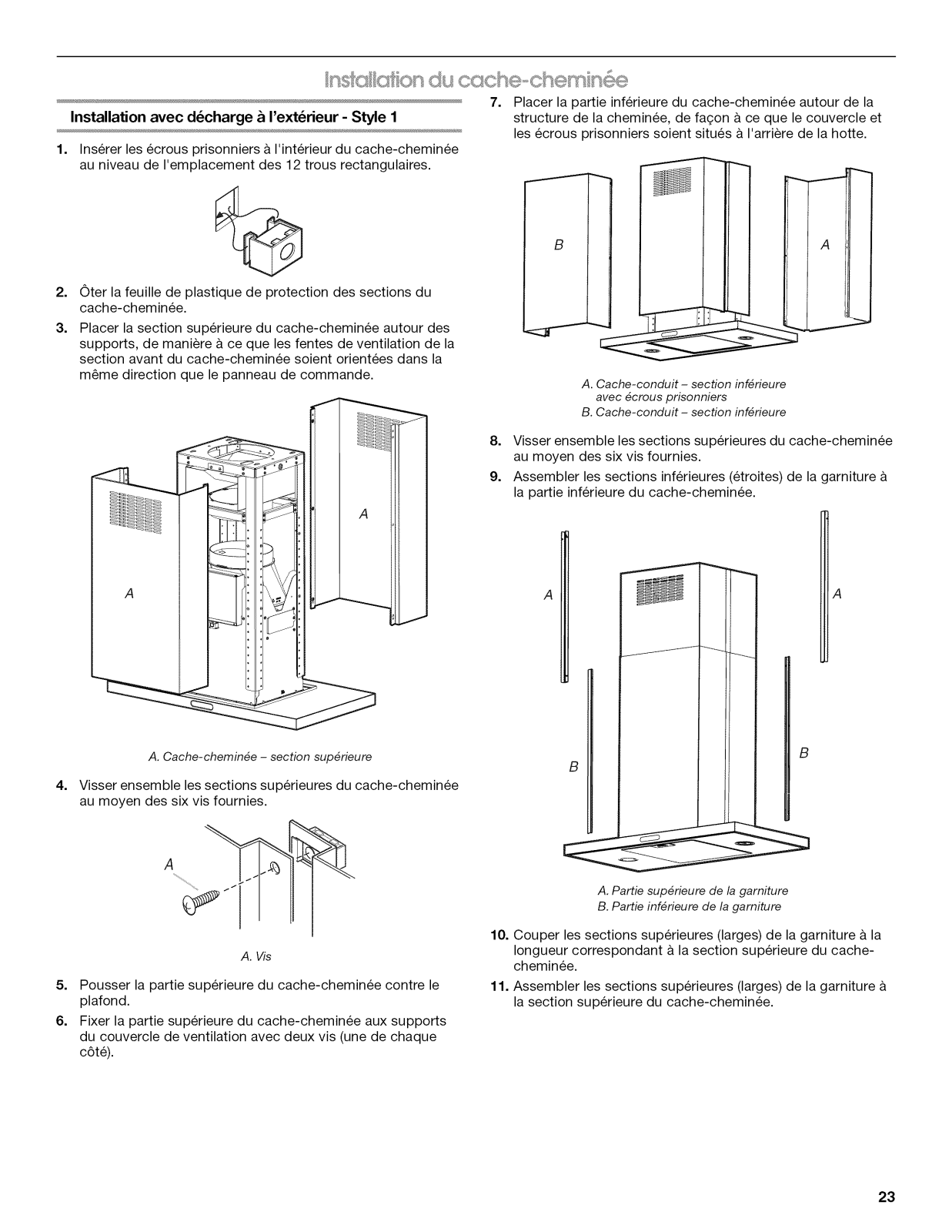

1. Insert captive nuts on the inside of the vent covers at all
12 rectangular hole locations.
2.
Remove the plastic covering from the chimney covers.
3.
Place the upper chimney covers around the chimney support
so that the vent slots on the front cover face the same
direction as the control panel.
A. Screw
5. Push the upper cover assembly up against ceiling.
6. Attach the upper cover assembly to the vent cover support
brackets with two screws (one on each side).
7. Place the lower vent covers around the chimney structure so
that the cover with the captive nuts is to the rear of the hood.
J
A. Lower vent cover with captive nuts
B. Lower vent cover
A
A.Upper chimney covers
Loading...
