Ikea IBS224PWM0, IBS324PVS0, IBS324PVW0, IBS324PWS0, IBS324PWW0 Installation Guide

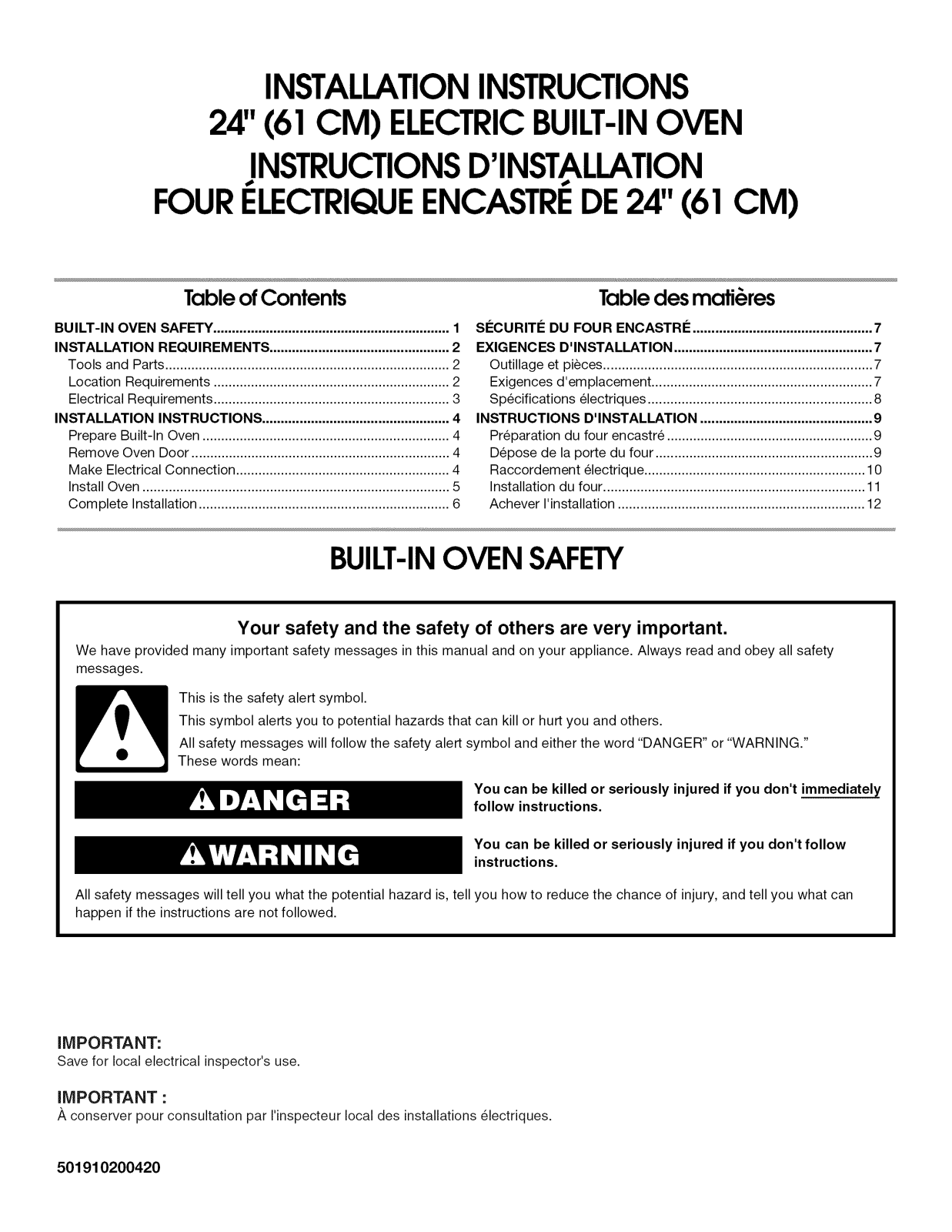

INSTALLATIONINSTRUCTIONS
24" (61 CM) ELECTRICBUILT-INOVEN
INSTRUCTIONSD'INSTALLATION
e= e=
FOURELECTRIQUEENCASTREDE24"(61 CM)
Table of Contents Table des mati_res
BUILT-IN OVEN SAFETY ............................................................... 1
INSTALLATION REQUIREMENTS ................................................ 2
Tools and Parts............................................................................ 2
INSTALLATION INSTRUCTIONS .................................................. 4
SI_CURITI_ DU FOUR ENCASTRI_ ................................................ 7
EXIGENCES D'INSTALLATION ..................................................... 7
INSTRUCTIONS D'INSTALLATION .............................................. 9
Raccordement electrique ........................................................... 10
Installation du four ...................................................................... 11
Achever I'installation.................................................................. 12
BUILT-INOVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
iMPORTANT:
Save for local electrical inspector's use.
iMPORTANT :
A conserver pour consultation par I'inspecteur local des installations 61ectriques.
501910200420

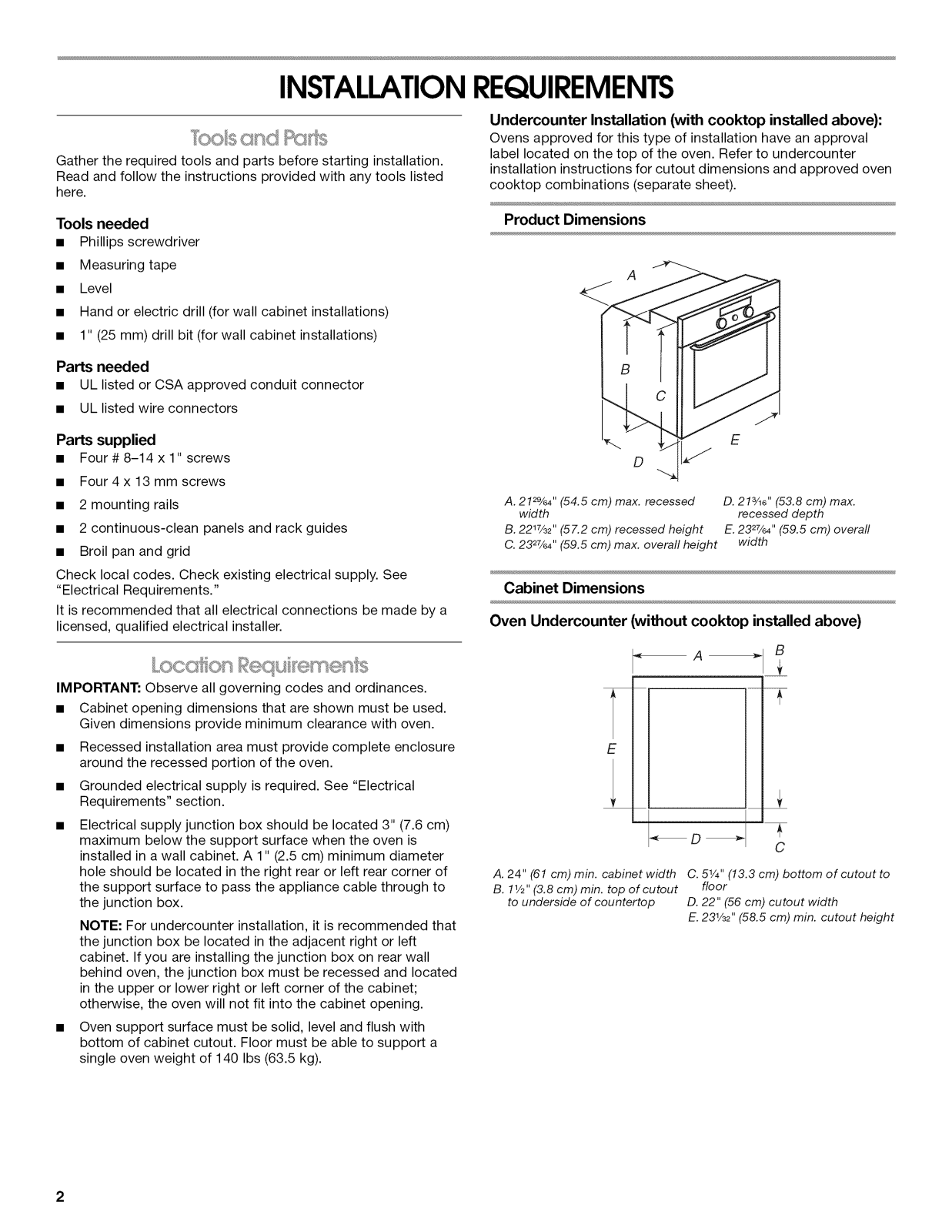

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed
here.
Undercounter Installation (with cooktop installed above): Ovens approved for this type of installation have an approval
label located on the top of the oven. Refer to undercounter installation instructions for cutout dimensions and approved oven cooktop combinations (separate sheet).
Tools needed
• Phillips screwdriver
• Measuring tape
• Level
• Hand or electric drill (for wall cabinet installations)
• 1" (25 mm) drill bit (for wall cabinet installations)
Parts needed
• UL listed or CSA approved conduit connector
• UL listed wire connectors
Parts supplied
• Four # 8-14 x 1" screws
• Four 4 x 13 mm screws
• 2 mounting rails
• 2 continuous-clean panels and rack guides
• Broil pan and grid Check local codes. Check existing electrical supply. See
"Electrical Requirements." It is recommended that all electrical connections be made by a
licensed, qualified electrical installer.
Product Dimensions
A
E
D
A.21_%4"(54.5cm) max. recessed
width
B.2217/32'' (57.2 cm)recessed height
C. 2327/64 '' (59.5 cm) max. overall height
D. 21s/_6''(53.8 cm) max.
recessed depth
E.2327/64'' (59.5 cm) overafl
width
Cabinet Dimensions
Oven Undercounter (without cooktop installed above)
A
B
IMPORTANT: Observe all governing codes and ordinances.
• Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance with oven.
• Recessed installation area must provide complete enclosure around the recessed portion of the oven.
• Grounded electrical supply is required. See "Electrical Requirements" section.
• Electrical supply junction box should be located 3" (7.6 cm) maximum below the support surface when the oven is
installed in a wall cabinet. A 1" (2.5 cm) minimum diameter hole should be located in the right rear or left rear corner of
the support surface to pass the appliance cable through to the junction box.
NOTE: For undercounter installation, it is recommended that the junction box be located in the adjacent right or left cabinet. If you are installing the junction box on rear wall behind oven, the junction box must be recessed and located in the upper or lower right or left corner of the cabinet; otherwise, the oven will not fit into the cabinet opening.
• Oven support surface must be solid, level and flush with bottom of cabinet cutout. Floor must be able to support a
single oven weight of 140 Ibs (63.5 kg).
E
_D_
A. 24" (61 cm) min. cabinet width B. 11/_'' (3.8 cm) min. top of cutout
to underside of countertop
C. 51/4"(13.3 cm) bottom of cutout to
floor
D. 22" (56 cm) cutout width E. 23½_" (58.5 cm) min. cutout height
2

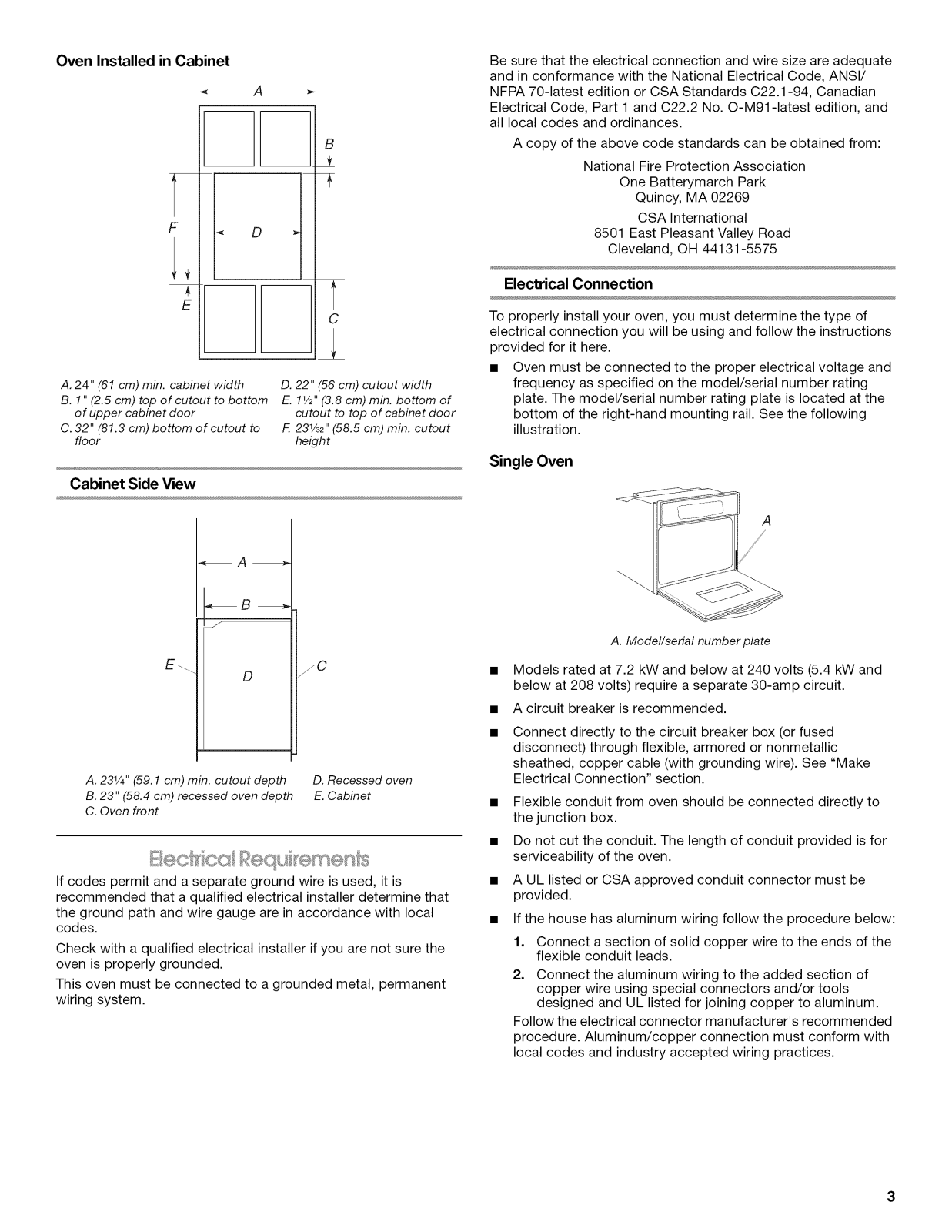

Oven Installed in Cabinet
_A
F
Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/ NFPA 70-latest edition or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-1atest edition, and
all local codes and ordinances.
B
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical Connection
C
A. 24" (61 cm) min. cabinet width B. 1" (2.5 cm) top of cutout to bottom
of upper cabinet door
C. 32" (81.3 cm) bottom of cutout to
floor
D. 22" (56 cm) cutout width
E. 11/2'' (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 23½2" (58.5 cm) min. cutout
height
Cabinet Side View
........f
D
A. 231/4''(59.1 cm) min. cutout depth D. Recessed oven B. 23" (58.4 cm) recessed oven depth E.Cabinet
C. Qven front
If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local
codes. Check with a qualified electrical installer if you are not sure the
oven is properly grounded. This oven must be connected to a grounded metal, permanent
wiring system.
fC
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions provided for it here.
• Oven must be connected to the proper electrical voltage and frequency as specified on the model/serial number rating plate. The model/serial number rating plate is located at the bottom of the right-hand mounting rail. See the following
illustration.
Single Oven
A. Model/serial number plate
Models rated at 7.2 kW and below at 240 volts (5.4 kW and below at 208 volts) require a separate 30-amp circuit.
A circuit breaker is recommended. Connect directly to the circuit breaker box (or fused
disconnect) through flexible, armored or nonmetallic sheathed, copper cable (with grounding wire). See "Make
Electrical Connection" section. Flexible conduit from oven should be connected directly to
the junction box. Do not cut the conduit. The length of conduit provided is for
serviceability of the oven. A UL listed or CSA approved conduit connector must be
provided. If the house has aluminum wiring follow the procedure below:
1. Connect a section of solid copper wire to the ends of the
flexible conduit leads.
2. Connect the aluminum wiring to the added section of
copper wire using special connectors and/or tools
designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with
local codes and industry accepted wiring practices.

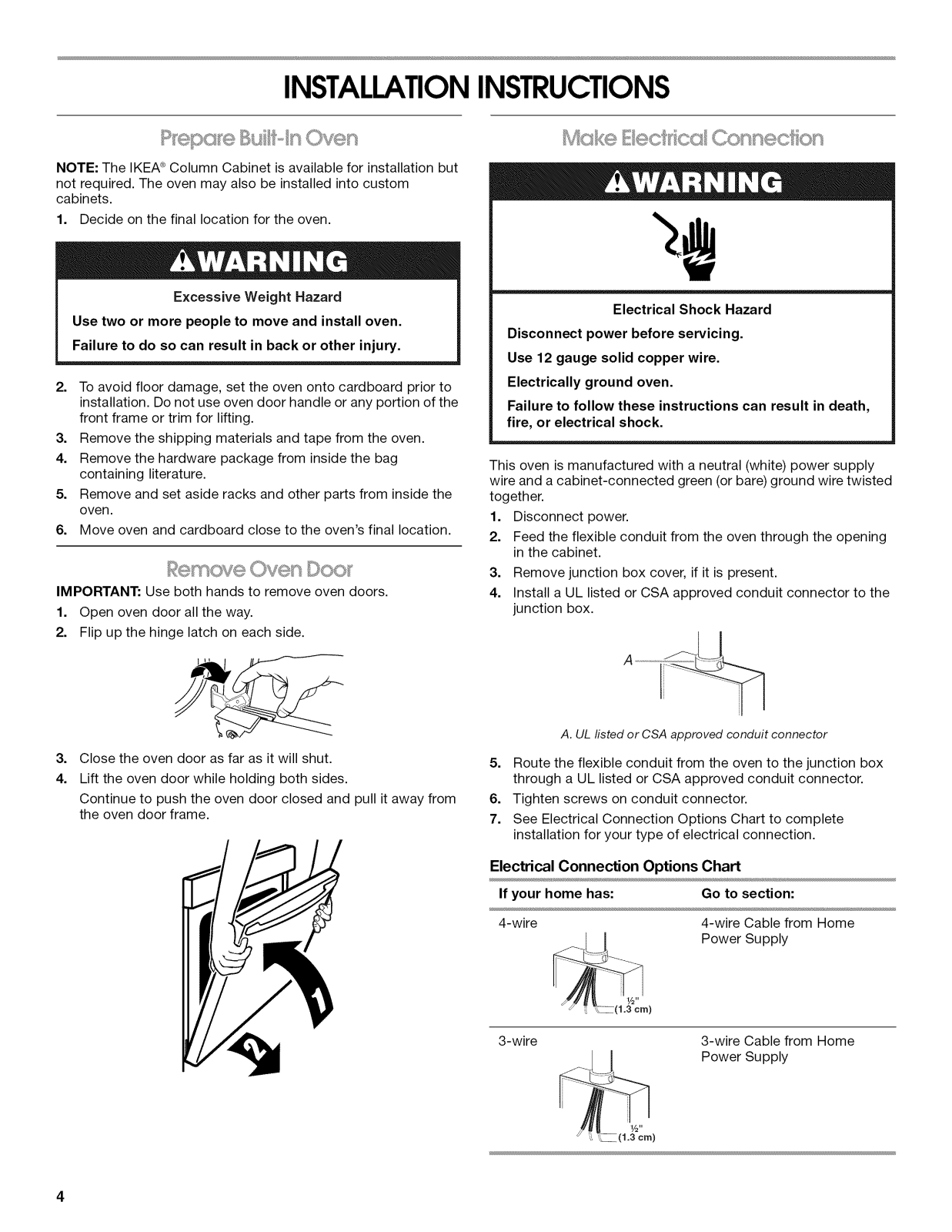

INSTALLATIONINSTRUCTIONS
NOTE: The IKEA®Column Cabinet is available for installation but not required. The oven may also be installed into custom
cabinets.
1. Decide on the final location for the oven.
Excessive Weight Hazard
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
2. To avoid floor damage, set the oven onto cardboard prior to installation. Do not use oven door handle or any portion of the front frame or trim for lifting.
3. Remove the shipping materials and tape from the oven.
4. Remove the hardware package from inside the bag containing literature.
5. Remove and set aside racks and other parts from inside the oven.
6. Move oven and cardboard close to the oven's final location.
D
IMPORTANT: Use both hands to remove oven doors.
1. Open oven door all the way.
2. Flip up the hinge latch on each side.
3. Close the oven door as far as it will shut.
4. Lift the oven door while holding both sides. Continue to push the oven door closed and pull it away from
the oven door frame.
Electrical Shock Hazard
Disconnect power before servicing. Use 12 gauge solid copper wire.
Electrically ground oven. Failure to follow these instructions can result in death,
fire, or electrical shock.
This oven is manufactured with a neutral (white) power supply
wire and a cabinet-connected green (or bare) ground wire twisted together.
1. Disconnect power.
2. Feed the flexible conduit from the oven through the opening in the cabinet.
3. Remove junction box cover, if it is present.
4. Install a UL listed or CSA approved conduit connector to the junction box.
A. UL listed or CSA approved conduit connector
5. Route the flexible conduit from the oven to the junction box through a UL listed or CSA approved conduit connector.
6. Tighten screws on conduit connector.
7. See Electrical Connection Options Chart to complete installation for your type of electrical connection.
Electrical Connection Options Chart
If your home has: Go to section:
4-wire 4-wire Cable from Home
Power Supply
I/2"
(1.3 cm)
3-wire 3-wire Cable from Home
Power Supply
