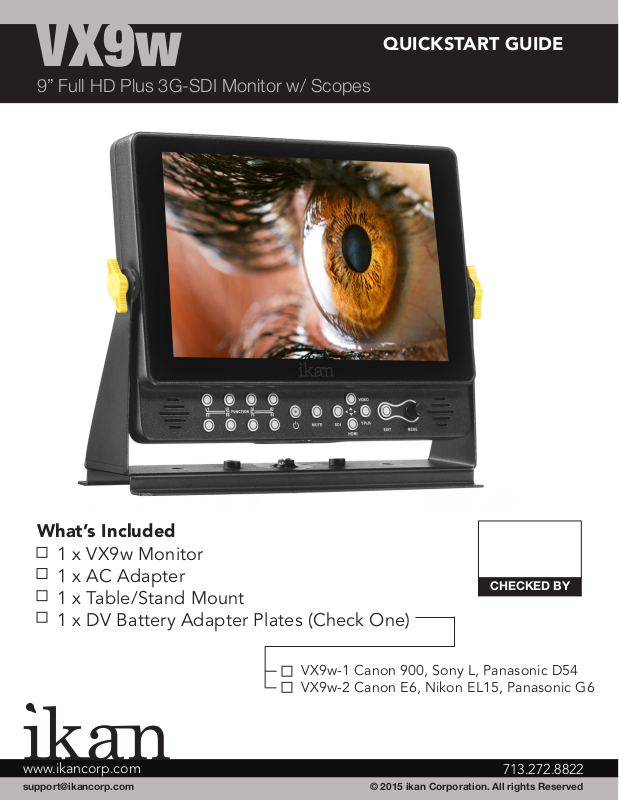

VX9w
9” Full HD Plus 3G-SDI Monitor w/ Scopes
QUICKSTART GUIDE
What’s Included
1 x VX9w Monitor
1 x AC Adapter
1 x Table/Stand Mount
1 x DV Battery Adapter Plates (Check One)
VX9w-1 Canon 900, Sony L, Panasonic D54
VX9w-2 Canon E6, Nikon EL15, Panasonic G6
www.ikancorp.com
support@ikancorp.com © 2015 ikan Corporation. All rights Reserved
CHECKED BY
713.272.8822
Getting Started
1
2
3 4
Ultra Durable Gorilla Glass
1
This will protect the screen from damage.
Full HD Plus IPS Panel
2
Resolution 1920 x 1200.
Table Stand
3
Doubles as Stand Mount.
Stereo Speaker
4
1-8 Fuction Buttons
5
Function Key actions are selected in the menu.
**User Programmable function buttons. For quick access, the user may program the F1 through F8 buttons to enable
frequently accessed monitor features.
5
7
6
8
Soft Power Switch
6
Mute Button
7
This will mute any audio coming through the
speakers.
Video Input Selector
8
Exit Button
9
This will exit while inside the menu system.
Menu button/Control Knob
10
When pressed it will take you into the menu. Turn
the knob to navigate the menu and push to select
menu options.
9 10
