ikan V8PBK-A User Manual

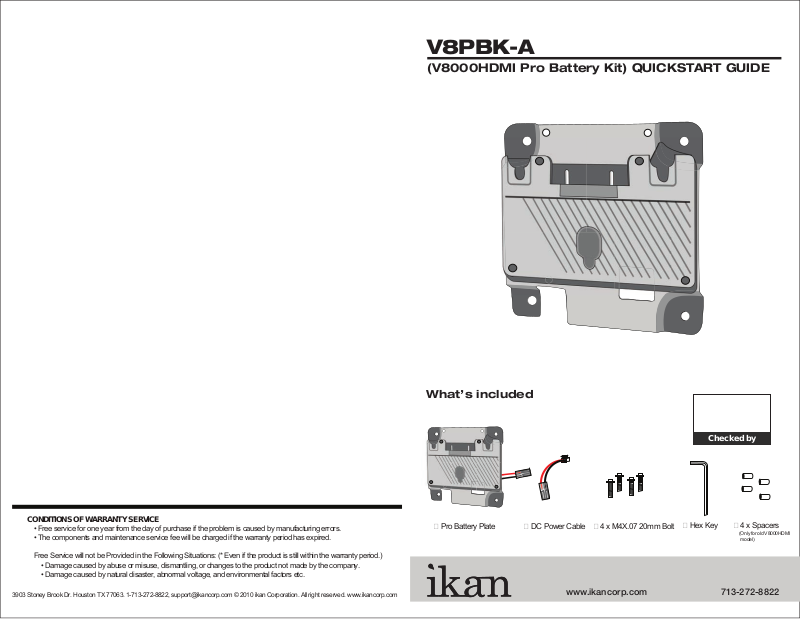

V8PBK-A
(V8000HDMI Pro Battery Kit) QUICKSTART GUIDE
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822, support@ikancorp.com © 2010 ikan Corporation. All right reserved. www.ikancorp.com
What’s included
� Pro Battery Plate
DC Power Cable
www.ikancorp.com 713-272-8822
4 x M4X.07 20mm Bolt
Hex Key
Checked by
4 x Spacers
(Only for old V8000HDMI model)
V8PBK-A
(V8000HDMI Pro Battery Kit) QUICKSTART GUIDE
Connect the DC Power Cable to the V8000HDMI monitor.
Insert the DC Cable in the connection slot.
Connect both Pro Battery DC cables. Attach the Pro Battery Plate and the monitor with M4X.07 20mm Bolts.
** Only for old V8000HDMI model with strap hooks** Connect both Pro Battery DC cables. Attach the Pro Battery Plate, the Spacers and the monitor with M4X.07 20mm Bolts.
www.ikancorp.com 713-272-8822
