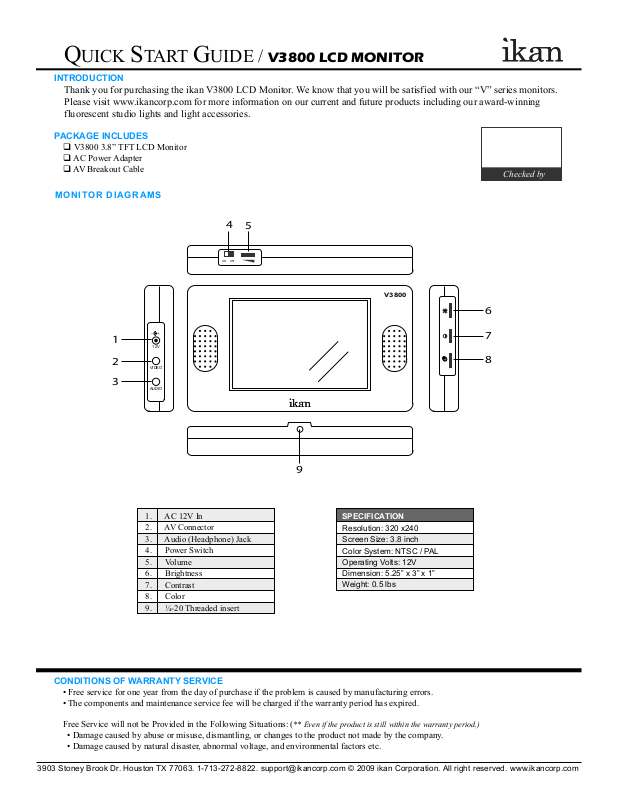

ikan V3800 User Manual
QUICK START GUIDE / V3800 LCD MONITOR
INTRODUCTION
Thank you for purchasing the ikan V3800 LCD Monitor. We know that you will be satisfied with our “V” series monitors.
Please visit www.ikancorp.com for more information on our current and future products including our award-winning
fluorescent studio lights and light accessories.
PACKAGE INCLUDES
V3800 3.8” TFT LCD Monitor
AC Power Adapter
AV Breakout Cable
MON I TOR D I A G R A M S
_
1
2
3
+
12V
VIDEO
AUDIO
4
ON OFF
5
V3800
Checked by
6
7
8
9
1. AC 12V In
2. AV Connector
3. Audio (Headphone) Jack
4. Power Switch
5. Volume
6. Brightness
7. Contrast
8. Color
9. ¼-20 Threaded insert
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (
** Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
SPECIFICATION
Resolution: 320 x240
Screen Size: 3.8 inch
Color System: NTSC / PAL
Operating Volts: 12V
Dimension: 5.25” x 3” x 1”
Weight: 0.5 lbs
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. support@ikancorp.com © 2009 ikan Corporation. All right reserved. www.ikancorp.com
V3800 Diagram
WALL OUTLET
AC ADAPTER
POWER
_
+
12V
VIDEO
AUDIO
AUDIO R
AUDIO L
VIDEO
Headphone Out
AUDIO L VIDEO 1AUDIO R
