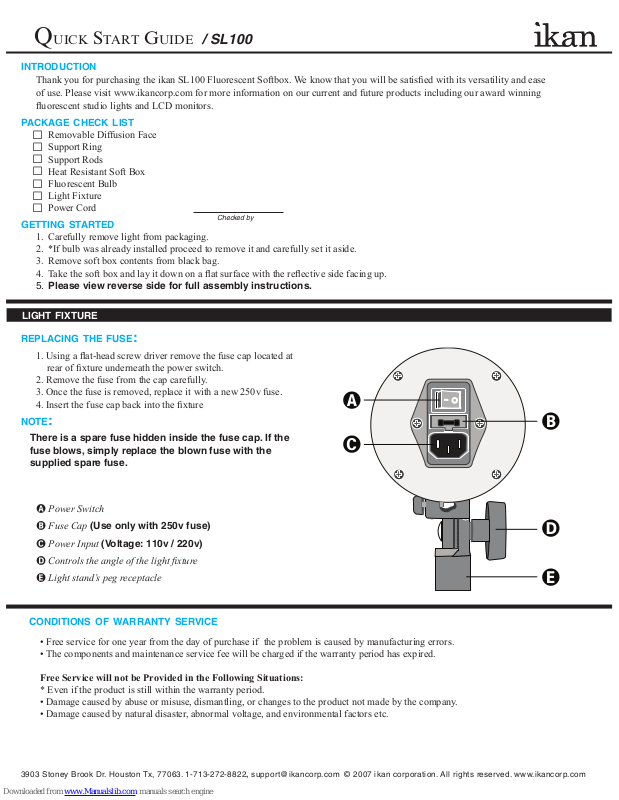

Ikan SL100 Quick Start Manual
Qu i c k St a r t Gu i d e / SL100
In t r o d u c t I o n
Thank you for purchasing the ikan SL100 Fluorescent Softbox. We know that you will be satised with its versatility and ease
of use. Please visit www.ikancorp.com for more information on our current and future products including our award winning
uorescent studio lights and LCD monitors.
Pa c k a g e c h e c k l I s t
Removable Diffusion Face
□
Support Ring
□
Support Rods
□
Heat Resistant Soft Box
□
Fluorescent Bulb
□
Light Fixture
□
Power Cord
□
ge t t I n g s t a r t e d
1. Carefully remove light from packaging.
2. *If bulb was already installed proceed to remove it and carefully set it aside.
3. Remove soft box contents from black bag.
4. Take the soft box and lay it down on a at surface with the reective side facing up.
5. Please view reverse side for full assembly instructions.
l I g h t f I x t u r e
Checked by
r e P l a c I n g t h e f u s e :
1. Using a at-head screw driver remove the fuse cap located at
rear of xture underneath the power switch.
2. Remove the fuse from the cap carefully.
3. Once the fuse is removed, replace it with a new 250v fuse.
4. Insert the fuse cap back into the xture
n o t e :
There is a spare fuse hidden inside the fuse cap. If the
fuse blows, simply replace the blown fuse with the
supplied spare fuse.
A Power Switch
B Fuse Cap (Use only with 250v fuse)
C Power Input (Voltage: 110v / 220v)
D Controls the angle of the light xture
E Light stand’s peg receptacle
co n d I t I o n s o f Wa r r a n t y se r v I c e
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations:
* Even if the product is still within the warranty period.
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston Tx, 77063. 1-713-272-8822, support@ikancorp.com © 2007 ikan corporation. All rights reserved. www.ikancorp.com
