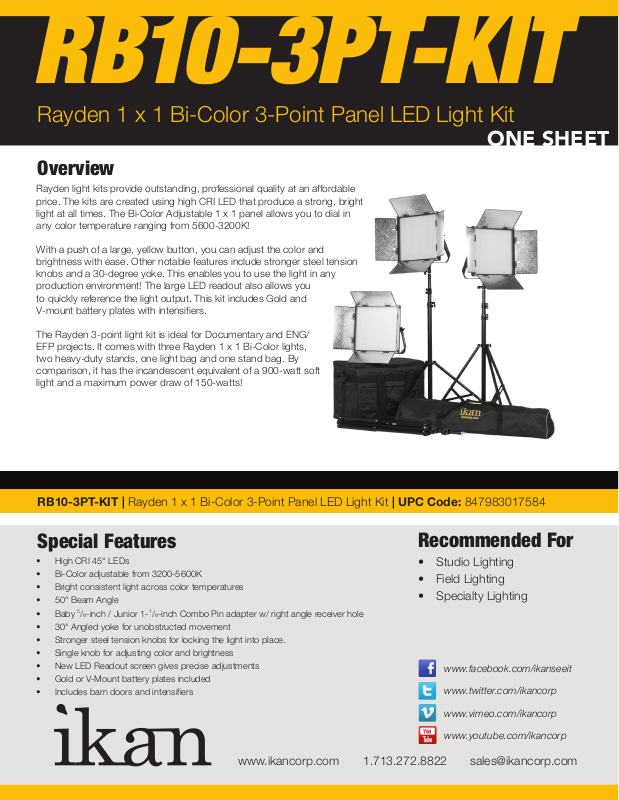

ikan RB10-3PT-KIT Quick Start Guide

RB10-3PT-KIT

Rayden 1 x 1 Bi-Color 3-Point Panel LED Light Kit

ONE SHEET

Overview

Rayden light kits provide outstanding, professional quality at an affordable
price. The kits are created using high CRI LED that produce a strong, bright
light at all times. The Bi-Color Adjustable 1 x 1 panel allows you to dial in
any color temperature ranging from 5600-3200K!

With a push of a large, yellow button, you can adjust the color and
brightness with ease. Other notable features include stronger steel tension
knobs and a 30-degree yoke. This enables you to use the light in any
production environment! The large LED readout also allows you
to quickly reference the light output. This kit includes Gold and
V-mount battery plates with intensifiers.

The Rayden 3-point light kit is ideal for Documentary and ENG/
EFP projects. It comes with three Rayden 1 x 1 Bi-Color lights,
two heavy-duty stands, one light bag and one stand bag. By
comparison, it has the incandescent equivalent of a 900-watt soft
light and a maximum power draw of 150-watts!

RB10-3PT-KIT | Rayden 1 x 1 Bi-Color 3-Point Panel LED Light Kit | UPC Code: 847983017584

Special Features

• High CRI 45° LEDs

• Bi-Color adjustable from 3200-5600K

• Bright consistent light across color temperatures

• 50° Beam Angle

• Baby 5/8-inch / Junior 1-1/8-inch Combo Pin adapter w/ right angle receiver hole

• 30° Angled yoke for unobstructed movement

• Stronger steel tension knobs for locking the light into place.

• Single knob for adjusting color and brightness

• New LED Readout screen gives precise adjustments

• Gold or V-Mount battery plates included

• Includes barn doors and intensifiers

www.ikancorp.com

1.713.272.8822

Recommended For

• Studio Lighting

• Field Lighting

• Specialty Lighting

www.facebook.com/ikanseeit

www.twitter.com/ikancorp

www.vimeo.com/ikancorp

www.youtube.com/ikancorp

[e-mail]

RB10-3PT-KIT

Features you need, Prices you want.

Strong, Bright Light

The high CRI LEDs within the Rayden lights output a bright,
consistent light.

Bi-Color Adjustability

With a 5600-3200K Bi-Color adjustable range, the Rayden soft
lights work well in any lighting production.

Consistently Bright

Rayden LED lights are able to driver a consistently bright light
across all color temperatures at all times.

Wide Beam Angle

The Rayden lights feature a 50° beam angle that provides a
large amount of light all on its own.

Combo Pin Adapter

The Baby 5/8" and Junior 1-1/8" combo pin adapter makes it
easy to attach to any grip stand.

Unobstructed Movement

The 30° angled yoke provides the Rayden lights with
unobstructed movement.

Steel Tension Knobs

The new steel tension knobs are designed to be more durable
and secure. This makes it simple for you to lock the light in
place at any angle.

Color & Brightness

A large, single button is all it takes to adjust the color and
brightness of the light.

Digital Readout

The new LED readout is much brighter and provides precise
adjustments of light output.

Battery Options

Gold and V-Mount Battery plates offer you the flexibility you
need to stay on-the-go.

Barn Door & Intensifiers

Ikan’s reliable barn doors with intensifiers allow you to easily
shape the light to suit your needs.

Specs

Beam Angle 50°

Build Material Heavy Duty Resin Plastic

Color Temperature Bi-Color 3200-5600K

Cooling System Passive Cooling

Dimming Knob Control

Fixture Size 14 x 14 x 3 In.

Fixture Weight 6 lbs

Light Source 1184 0.06 Watt LEDs

Power Supply Input: 110-220 VAC

Output: 15 VDC

Rating 71w , 14-18 VDC

Yoke Baby 5/8" and Junior 1-1/8" combo pin

Shipping Dimensions 24 x 20 x 20 In.

Shipping Weight 41 lbs

Accessories

KCP-703
SW-04
CV600
IDX-1204
IDX-096

Stage Clamp w/ 16mm Stud
Safety Wire
Chrome Exposure / Spectrometer from UPRTek
12 Channel DMX Console
96 Channel DMX Console

What’s Included

1 x Light Bag
1 x Stand Bag
3 x 1x1 Light Fixture
3 x Gold Mount Battery Plate
3 x HD Light Stands
3 x Power Supply with Cable
3 x Remote Control
3 x V-Mount Battery Plate
3 x Yoke Mount
3 x Safety Chain

Incandescent Equivalent

The Rayden LED light is equivalent to a 400-Watt
incandescent soft light.

RF Remote

Controlling multiple lights at a distance is possible with the
RF remote control. You can turn the light on and off without
any issues.

Included Accessories

The Rayden Bi-Color LED light kit includes a stand bag, kit
bag and two heavy-duty light stands.
