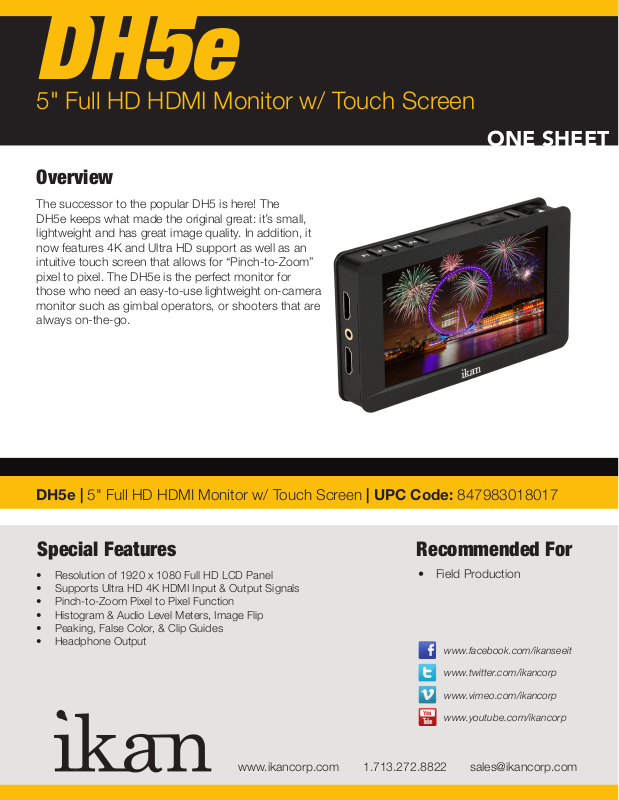

DH5e
5" Full HD HDMI Monitor w/ Touch Screen
Overview
The successor to the popular DH5 is here! The
DH5e keeps what made the original great: it’s small,
lightweight and has great image quality. In addition, it
now features 4K and Ultra HD support as well as an
intuitive touch screen that allows for “Pinch-to-Zoom”
pixel to pixel. The DH5e is the perfect monitor for
those who need an easy-to-use lightweight on-camera
monitor such as gimbal operators, or shooters that are
always on-the-go.
ONE SHEET
DH5e | 5" Full HD HDMI Monitor w/ Touch Screen | UPC Code: 847983018017
Special Features Recommended For
• Resolution of 1920 x 1080 Full HD LCD Panel
• Supports Ultra HD 4K HDMI Input & Output Signals
• Pinch-to-Zoom Pixel to Pixel Function
• Histogram & Audio Level Meters, Image Flip
• Peaking, False Color, & Clip Guides
• Headphone Output
www.ikancorp.com
1.713.272.8822
• Field Production
www.facebook.com/ikanseeit
www.twitter.com/ikancorp
www.vimeo.com/ikancorp
www.youtube.com/ikancorp
sales@ikancorp.com
DH5e
Features you need, Prices you want.
Full HD & Touch Capability
The Full HD 1920x1080 panel on the DH5e is amazingly clear, packing 440 pixels per inch. The touch capability is new for the DH5e.
Now you can easily and intuitively zoom in and out of your shot with
the pinch-to-zoom gesture. You can also get a quick glance at your
menu settings and features with an easy tap on the screen.
Tools You Need
The DH5e is equipped with all of the necessary software features
to create the perfect shot: false color, peaking, zooming, guides as
well as histogram and audio meters. It also features image flip so
you can adjust the 5” camera monitor according to your needs.
Inputs & Outputs
It’s incredibly easy to set your HDMI input and output signals on the
DH5e. A headphone jack and audio meter display helps you make
sure audio levels are optimally set.
In the Box
The DH5e comes with a sunvisor, sunhood, screen protector, screen
wipe, a USB drive for software updates as well as Canon E6 and
Sony L Battery plate. We pack a lot of value into a small package!
What’s Included
1 x AC Adapter
1 x Canon E6 Battery Plate
1 x DH5e Monitor
1 x Screen Cleaning Wipe
1 x Screen Protection Film
1 x Shoe Mount
1 x Sony L Series Battery Plate
1 x Sunhood
1 x USB Drive
Product Specs
Aspect Ratio
Backlight
Brightness
Build Material
Color Depth
Color System
Contrast Ratio
Dimensions
Input Voltage
Inputs
Operating Temperature
Outputs
Pixel Pitch
Power Consumption
Resolution
Response Time
Screen Size
Viewing Angle
Weight
Shipping Dimensions
Shipping Weight
PAL / NTSC / SECAM (Auto-Detected)
5.5 x 3.2 x 0.7 In. / 142 x 82 x 20 mm
3 x 14.75 x 7.75 In. / 76.2 x 375 x 197 mm
Supported Video Signals
720x480i & 720x480p @ 59.94, 60 Hz
HDMI
1280x720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30, 50.94, 60 Hz
16 x 9
LED
450 cd/m2
Heavy Duty Plastic
16.7 Million
1000:1
DC 7v-24v
HDMI
0ºC~50ºC (32ºF~122ºF)
HDMI
0.01925 x 0.05775 mm
6w
1920 x 1080
20 ms
5 In.
160º Horizontal / 160º Vertical
0.2 lbs / 0.1 kg
2 lbs / 0.91 kg
720x576i @ 50 Hz
Optional Accessories
MA207
MA211
MA211-R
BP5-C
BP5-E6
BP5-P
BP5-S
BP5-N
BP5-PG6
BP5-SU
www.ikancorp.comHouston, Texas
7 In. Articulating Arm
11 In. Articulating Arm
11 In. Articulating Arm w/ Single Rod Mount
Canon 900 Battery Plate
Canon LP-E6+ Battery Plate
Panasonic D54 Battery
Sony L Series Battery Plate
Nikon EN-EL15 Battery Plate
Panasonic G6 Battery Plate
Sony BP-U Series Battery Plate
