ikan D12-FK-V User Manual

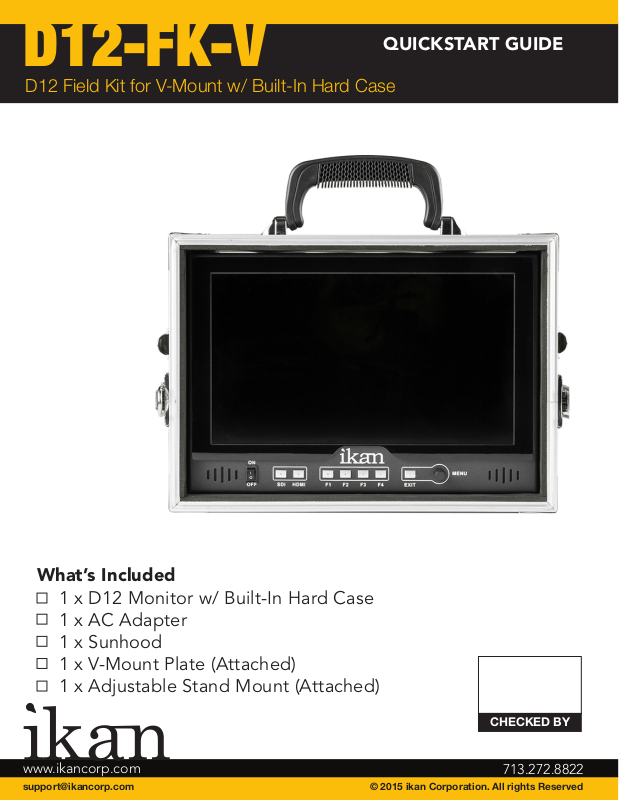

QUICKSTART GUIDE
D12-FK-V
D12 Field Kit for V-Mount w/ Built-In Hard Case
What’s Included
1 x D12 Monitor w/ Built-In Hard Case
1 x AC Adapter
1 x Sunhood
1 x V-Mount Plate (Attached)
1 x Adjustable Stand Mount (Attached)
CHECKED BY
www.ikancorp.com
support@ikancorp.com © 2015 ikan Corporation. All rights Reserved
713.272.8822
Getting Started
Front Side
To install sunhood slide top flap
inbetween top of the monitor
and hard case. For best results,
attach bottom flap to sunhood.
ON
SDI
HDMI
2
Power Switch
1
Power ON/OFF
Input Selection Buttons
2
OFF
1
Select from SDI and HDMI Inputs
Function Buttons
3
Function Key actions are selected in the menu
Exit Button
4
Used in the Menu to exit Menu
Menu Button
5
In Menu, push button to select menu setting
F2F1 F3 F4 EXIT
3
4
MENU
5
User programmable function buttons. For quick
access, the user may program the F1 and F4 Buttons
to enable frequently accessed monitor features.
Back Side
1
2
3
4
5
6
7
3G-SDI Terminal
1
SDI Signal Output Terminal
HDMI Terminal
2
IN: HDMI input Terminal
OUT: Input signal through-out terminal
3.5mm Headphone Output
6
Tally Input Connector
7
RJ45 Connection
V-Mount Pro Battery Plate
8
8
9
USB Terminal
3
For factory service use only
DC 7-24V Power Terminal
4
Standard DC Connection
DC 7-24V Power terminal
5
mini-XLR DC Connection
Note: Due to the small size of the monitor.
Pro batteries need to be no larger than 5.5 x 3.7 x 2.2 In.
9
Adjustable Stand Mount
