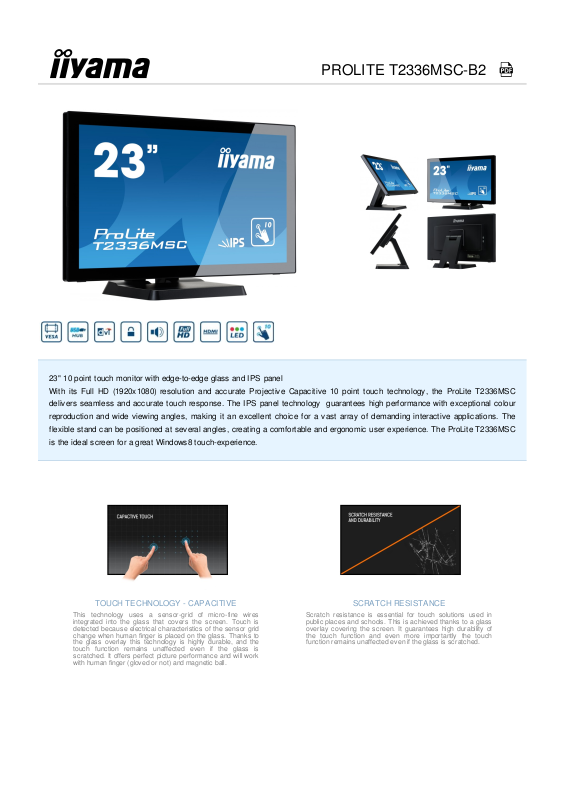

Iiyama T2336MSC-B2 Product Data Sheet

PROLITE T2336MSC-B2

TOUCH TECHNOLOGY - CAPACITIVE

This technology uses a sensor-grid of micro-fine wires
integrated into the glass that covers the screen. Touch is
detected because electrical characteristics of the sensor grid
change when human finger is placed on the glass. Thanks to
the glass overlay this technology is highly durable, and the
touch function remains unaffected even if the glass is
scratched. It offers perfect picture performance and will work
with human finger (gloved or not) and magnetic ball.

SCRATCH RESISTANCE

Scratch resistance is essential for touch solutions used in
public places and schools. This is achieved thanks to a glass
overlay covering the screen. It guarantees high durability of
the touch function and even more importantly the touch
function remains unaffected even if the glass is scratched.

23" 10 point touch monitor with edge-to-edge glass and IPS panel
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2336MSC
delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with exceptional colour
reproduction and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. The
flexible stand can be positioned at several angles, creating a comfortable and ergonomic user experience. The ProLite T2336MSC
is the ideal screen for a great Windows8 touch-experience.

1. DISPLAY CHARACTERISTICS

DIAGONAL 23"; 58.4cm

TOUCHTECHNOLOGY

projective capacitive, multitouch (10 compatible touch points - HID, only with supported OS), activated
by finger

PANEL IPS LED

GLASS HARDNESS 7H minimum

DISPLAY AREA H X W 286.41 x 509.18 mm; 11.3" x 20 "

RESPONSE TIME 5 ms

CONTRAST 5 000 000 : 1 ACR

CONTRAST 1 000 : 1 with touch panel

BRIGHTNESS 250 cd/m² typical

BRIGHTNESS 213 cd/m² with touch panel

VIEWING ZONE horizontal/vertical: 178°/ 178°; right/left: 89°/ 89°; up/down: 89°/ 89°

DISPLAY COLOUR 16.7 million

PIXEL PITCH H X V 0.2652 x 0.2652 mm

NATIVE RESOLUTION Full HD 1080p, 1920 x 1080 ( 2.1 megapixel)

HORIZONTAL SYNC 30 - 80 KHz

VERTICAL SYNC 56 - 75 Hz

SYNCHRONIZATION Separate Sync

ASPECT RATIO 16 : 9

LIGHT TRANSMITTANCE 85%

2. INTERFACES & CONNECTORS

ANALOG INPUT CONNECTOR VGA

DIGITAL INPUT CONNECTOR DVI-D, HDMI

INPUTS USB (for touch connectivity), USB 3.0

USB HUB UP 1 x USB 3.0 / DOWN 4 x USB 3.0

3. SPECIAL FEATURES

PLUG & PLAY VESA DDC2B™

CONTROLS

On-Screen-Display in 9 languages (EN, FR, DE, ES, IT, PT, RU, JP, Chinese simplified) and 5 front
controls (Scroll up / Audio Adjust / Blue Light Reducer, Scroll down / ECO, Auto, Menu, Power)

USER CONTROLS

luminance (contrast, brightness, ECO, i-Style colour, ACR), image setup (clock, phase, H.position,
V.position, aspect), colour temp., OSD setup (H.position, V. position, timeout, language), extra (reset,
signal select, HDMI audio, OD, information), volume, auto adjust

SPEAKERS 2 x 2 W (Stereo)

ANTI-THEFT-DEVICE Kensington-lock™ prepared

SAFETY CE, TÜV-Bauart, VCCI, PSE, CU

TILT ANGLE 90° up; 5° down
