Iiyama LH4281S, LH4981S, LH5581S User Manual

USER MANUAL

Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.

ENGLISH

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC Directive”, 2014/35/EU “Low Voltage Directive” and 2011/65/EU “RoHS Directive”.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands

Model No. : PL4281/PL4981/PL5581

ENGLISH

We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diﬀ erent countries from there.

We reserve the right to change speciﬁ cations without notice.



All trademarks used in this user manual are the property of their respective owners.



ENGLISH

TABLE OF CONTENTS

FOR YOUR SAFETY ............................................................................1

SAFETY PRECAUTIONS................................................................1

SPECIAL NOTES ON LCD MONITORS .........................................3

CUSTOMER SERVICE ...................................................................5

CLEANING ......................................................................................5

BEFORE YOU OPERATE THE MONITOR ..........................................6

FEATURES......................................................................................6

CHECKING THE CONTENTS OF THE PACKAGE ........................6

UNPACKING : ProLite LH4981S / ProLite LH5581S ......................7

CONTROLS AND CONNECTORS : MONITOR ..............................8

INSTALLATION ............................................................................. 11

CONTROLS AND CONNECTORS : REMOTE CONTROL ...........12

PREPARING THE REMOTE CONTROL.......................................13

ID REMOTE CONTROL ................................................................14

BASIC OPERATION ......................................................................15

CONNECTING YOUR THE MONITOR .........................................18

COMPUTER SETTING .................................................................23

OPERATING THE MONITOR .............................................................24

ADJUSTMENT MENU CONTENTS ..............................................26

POWER MANAGEMENT FEATURE .............................................41

TROUBLE SHOOTING ......................................................................42

RECYCLING INFORMATION .............................................................43

APPENDIX ........................................................................................44

SPECIFICATIONS : ProLite LH4281S ..........................................44

SPECIFICATIONS : ProLite LH4981S ..........................................45

SPECIFICATIONS : ProLite LH5581S ..........................................46

DIMENSIONS : ProLite LH4281S .................................................47

DIMENSIONS : ProLite LH4981S .................................................47

DIMENSIONS : ProLite LH5581S .................................................48

COMPLIANT TIMING ....................................................................49

FOR YOUR SAFETY

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause ﬁ re or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of ﬁ re or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause ﬁ re, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause ﬁ re or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the speciﬁ ed power supply. Use of an incorrect voltage will cause malfunction and may cause ﬁ re or electric shock.

ENGLISH

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause ﬁ re or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

FOR YOUR SAFETY 1

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause ﬁ re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause

ENGLISH

ﬁ re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause ﬁ re or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn oﬀ the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause ﬁ re or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause ﬁ re or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

2 FOR YOUR SAFETY

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem.



NOTE

This LCD cannot be used outdoors.



This LCD cannot be used with the screen facing upwards.



If you use a cable longer than the supplied one, the picture quality is not guaranteed.



- When you ﬁ rst turn on the LCD monitor, the picture may not ﬁ t in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.

- You may ﬁ nd slightly uneven brightness on the screen depending on the desktop pattern you use.

- Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning oﬀ the Power Switch for hours.

ENGLISH

FOR YOUR SAFETY 3

USAGE CONFIRMATION

This product is designed for optimum usage at 24hours per day. The display is compatible for usage in Landscape/Portrait applications.

IMAGE PERSISTENCE / IMAGE STICKING

Please be aware that all LCD screens can experience Image Persistence or Image Sticking. This occurs when a residual image remains visible on a screen when static images are displayed for long periods of time. LCD Image Persistence is not permanent but constant images being displayed for a long period of time should be avoided.

To counteract Image Persistence, turn off the monitor for as long as the previous image was displayed, so if an image was on the monitor for 1 hour and there is evidence of a residual or “ghost” image, you should turn oﬀ the monitor for 1 hour in order to clear the residual image.

For all LFD products, iiyama recommends displaying moving images and utilising a moving screen

ENGLISH

saver at regular intervals whenever the screen is idle. You could also turn oﬀ the monitor when not in use to assist the prevention.

Other ways to reduce the risk of Image Persistence will be to utilise the FAN-on function (if available), Low Backlight and Low Brightness settings.

FOR EXTENDED USE AS A PUBLIC DISPLAY

Image Sticking on LCD Panel



When a static image is displayed for hours, an electric charge trace remains near the electrode inside the LCD producing a “ghost” image. (Image Persistence).

Image Persistence is not a permanent feature.

Recommendations



To prevent Image Sticking and promote longer life expectancy of display, we recommend the following:

1. Avoid static images displayed for long periods – change static images on continuous loop.

2. Turn oﬀ monitor when not in use, either by remote control or use Power Management or Schedule functions.

3. When monitor is installed in high ambient temperature environment(s) or in an enclosed position, utilise the Cooling Fan, Screen Saver and Low Brightness functions.

4. Suitable ventilation for any monitor is an expectation of any installation – climate control systems may need to be employed.

5. We strongly recommend utilisation of active cooling with fans for long operation times or high ambient temperature environments.

4 FOR YOUR SAFETY

CUSTOMER SERVICE

NOTE

CLEANING

WARNING

CAUTION

NOTE

CABINET

LCD SCREEN

If you have to return your unit for service and the original packaging has been



discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

If you drop any materials or liquids such as water into the



unplug the power cable immediately and contact your dealer or iiyama service center.

For safety reasons, turn oﬀ the power switch and unplug the monitor before you



clean it.

To protect the LCD panel, do not scratch or rub the screen with a hard object.



Never use any of the following strong solvents. These will damage the cabinet and



the LCD screen.

Thinner Benzine Abrasive cleaner Spray-type cleaner Wax Acid or Alkaline solvent

Touching the cabinet with any product made from rubber or plastic for a long time



may cause degeneration or loss of paint on the cabinet.

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

Periodic cleaning with a soft dry cloth is recommended. Don't use tissue paper etc. because these will damage the LCD screen.

monitor

when cleaning,

ENGLISH

FOR YOUR SAFETY 5

BEFORE YOU OPERATE THE MONITOR

FEATURES

Supports Resolutions up to 1920 × 1080



High Contrast 1300:1 (Typical) / Brightness 500cd/m



Digital Character Smoothing



Automatic Set-up



Stereo Speakers



2 × 10W Stereo Speakers

Plug & Play VESA DDC2B Compliant



ENGLISH

Windows

Power Management (VESA DPMS Compliant)



VESA Mounting Standard (200mm×200mm) Compliant : ProLite LH4281S



VESA Mounting Standard (400mm×400mm) Compliant : ProLite LH4981S



XP/Vista/7/8/8.1/10 Compliant

ProLite LH5581S

Support 24hrs/day usage (by moving picture condition)



VESA Compatible arm mounting interface



Daisy Chain support



Fan-less & Slim Design



(Typical)

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama oﬃ ce.

Power Cable*



mDP-DP Cable



Remote Control



EU Energy Label



CAUTION

6 BEFORE YOU OPERATE THE MONITOR



* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using

a power supply higher than this rating, then a power cable with a rating of 10A/ 250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.

DVI-D Cable DisplayPort Cable



Battery (2pcs)



Safety Guide



HDMI Cable



RS-232C Cable



POP Label



Quick Start Guide



UNPACKING : ProLite LH4981S / ProLite LH5581S

Before unpacking your monitor, prepare a stable, level, and clean surface near a wall outlet.

Set the LCD monitor box in an upright position and open from the top of the box before removing

the top cushions. Remove the carton holders. Remove the top cushion and take

the accessories box and the monitor out.

Pinch and Pull the Knob.

CAUTION

• Moving the monitor requires at least two people. If not, it may drop and could result in a serious injury.

• Two individuals can lift the monitor out of the box by holding the bottom of the unit.

• Do not hold the monitor by the top bezel while lifting out.

• Do not touch the LCD panel surface while lifting out.

ENGLISH

BEFORE YOU OPERATE THE MONITOR 7

CONTROLS AND CONNECTORS : MONITOR

MUTE INPUT

ENGLISH

MUTE Mute Button

INPUT

Power Button

Enter / Input Select Button

+ + Button

- - Button Up Button Down Button

MENU Menu Button

1. Pull down the lens to improve remote control performance and ensure good visibility of the power status diode.

2. Push up the lens before mounting the monitor for video wall application.

3. Pull/Push the lens until hearing the click sound.

Push up to hide the lens

8 BEFORE YOU OPERATE THE MONITOR

Push down to extend the lens

ProLite LH4281S

●

<Back>

ENGLISH

Lighting : Normal Operation

Green

Power Indicator

Remote Sensor Remote Sensor AC IN AC-INLET AC Connector( : Alternating current) (AC-IN) AC SWITCH

(ON) / (OFF) IR IN IR IR Connector IR OUT IR IR Connector RS232C IN Mini Jack RS232C Connector RS232C OUT Mini Jack RS232C Connector LAN RJ45 RJ45 Connector HDMI1 IN HDMI HDMI Connector HDMI2 IN HDMI HDMI Connector DVI IN DVI-D DVI-D Connector

Orange

Red

Oﬀ Power Oﬀ

MAIN POWER

Flash : Power Management ( * If there is no input signal from the computer and passes

for 10 minutes.

If turn oﬀ the Power Button on the Remote Control and the Back Controller. Power Management (ECO Mode : Normal)

If turn oﬀ the Power Button on the Remote Control and the Back Controller. Power Management (ECO Mode : Low power standby)

Main Power Switch

ECO Mode : Normal

)

BEFORE YOU OPERATE THE MONITOR 9

ProLite LH4981S / ProLite LH5581S

●

ENGLISH

DVI OUT DVI-D DVI-D Connector DisplayPort IN DisplayPort DisplayPort Connector DisplayPort OUT DisplayPort DisplayPort Connector VGA IN VGA VGA Connector COMPONENT

VIDEO (VIDEO IN)

PC AUDIO IN Mini Jack Audio Connector SPEAKER

SWITCH Keyhole for

Security Lock AUDIO IN RCA L/R Audio Connector AUDIO OUT RCA L/R Headphone Connector USB USB USB Connector SPEAKERS

OUT SPEAKERS Speakers Handles Option Slot

(Card OPS)

RCA G/B/R Component Video Connector

Jack

<Back>

Internal speaker On/Oﬀ switch

Keyhole for Security Lock

External Speakers Connector

Handles

Option Slot

10 BEFORE YOU OPERATE THE MONITOR

INSTALLATION

CAUTION

Follow the manual instructions for the type of mount you have selected. Refer all servicing to



qualiﬁ ed service personnel.

Moving the



Before installing, please make sure the wall is strong enough to hold the necessary weight of the



monitor and the mount.

[WALL MOUNTING]

CAUTION

When using the wall mounting, consideration of thickness of the mounting stage needs to be taken. Tighten the M6 Screw with washer which “L” length is 10mm to fasten the monitor. Using a screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

monitor requires at least two people.

Mounting Stage

Screw

Chassis

ENGLISH

[ROTATING THE MONITOR]

It is designed to be compatible in both landscape and portrait modes.

NOTE

Monitor should be turned clockwise based on front view when used in portrait mode. (Set in the PC)

Available

Not Available

Landscape

Remote Sensor

Portrait

BEFORE YOU OPERATE THE MONITOR 11

CONTROLS AND CONNECTORS : REMOTE CONTROL

[PLAY]

SOURCE

ENGLISH

HOME

LIST Not available on this model.

ADJUST

MUTE

Turns the monitor ON and OFF.

Control playback of media ﬁ les.

: Play : Stop :

: Quick-Return : Fast-Forward

Selects the source. Press

or USB, Network, HDMI1, HDMI2, DisplayPort, Card OPS, DVI, YPbPr, AV or VGA. Press [OK] button to conﬁ rm and exit.

Opens the monitor’s on-screen menu systems.

Navigates through submenus and settings.

: Up Button : Down Button

: Left Button :

Conﬁ rms your selection or save changes.

Selects the direct menu. PC mode : Sound Mode, Audio out, Picture format, Picture shift Video mode : Picture Mode, Sound Mode, Audio out, Picture format, Picture shift

Turns on or oﬀ the mute function when the Menu is not displayed.

button to select from

Right Button

Pause

12 BEFORE YOU OPERATE THE MONITOR

COLOR NUMBER/

ID SET/ENTER

ID Mode

FORMAT Change picture format.

BACK

INFO

OPTIONS

VOLUME - / +

Select tasks or options.

Enter text for network setting.

ID: To enter ID Mode NORMAL: To leave ID Mode

Returns to a previous menu or closes the OSD Menu.

Provides source and resolution information.

Access currently available options, picture and sound menus.

VOLUME-: Decreases the sound volume. VOLUME+: Increases the sound volume.

PREPARING THE REMOTE CONTROL

To use the remote control, insert the two dry batteries.

CAUTION

Do not use any other batteries other than those speciﬁ ed in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+" and "-" indications in the battery compartment. Burst batteries or the electrolyte from these batteries may cause stains, ﬁ re or injury.

Press and then slide the battery cover to open it.

Align and insert two AAA batteries according to their plus and minus ports (as indicated in the

remote control).

Battery x 2

ENGLISH

Replace the battery cover.

NOTE

Replace with new batteries when the Remote Control does not work close to the



monitor. Use AAA dry batteries.

Operate the Remote Control by pointing it toward the Remote Sensor on the monitor.



Other manufacturers remote control will not work with this monitor. Use the provided



Remote Control ONLY.

Used batteries needed to follow the local rules to be discarded. (Suggestion: to dispose



of used batteries please follow correct policy as per your local regulations.)

BEFORE YOU OPERATE THE MONITOR 13

ID REMOTE CONTROL

You can set the remote control ID when you want to use the remote control on speciﬁ c monitors.

ID Mode (To enter ID Mode) : Press and hold the ID button until the red LED blinks twice. Normal Mode (To leave ID Mode) : Press and hold the Normal button until the green LED blinks twice.

Programming ID Mode



To assign an ID to a remote control.

1. Enter ID Mode.

2. Press and hold the ID SET button until the red LED turned on.

3. Using the number button, input the desired ID. (01 - 255)

4. Press the ENTER button to conﬁ rm ID.

ENGLISH

5. The red LED will blink twice when ID has been conﬁ rmed.

6. Press the ID SET button will exit the ID Mode. The LED lights oﬀ .

NOTE

• Not pressing any button within 10 seconds will exit the ID Mode.

• If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights oﬀ and then lights up again, then press the correct digits again.

• To cancel or stop programming an ID, press the ID SET button.

• It is necessary to set up the ID number for each monitor before selecting its ID number.

Use ID Mode



1. Enter ID Mode.

2. Input the ID of the monitor which would like to control by number button.

3. Press the ENTER button.

14 BEFORE YOU OPERATE THE MONITOR

BASIC OPERATION

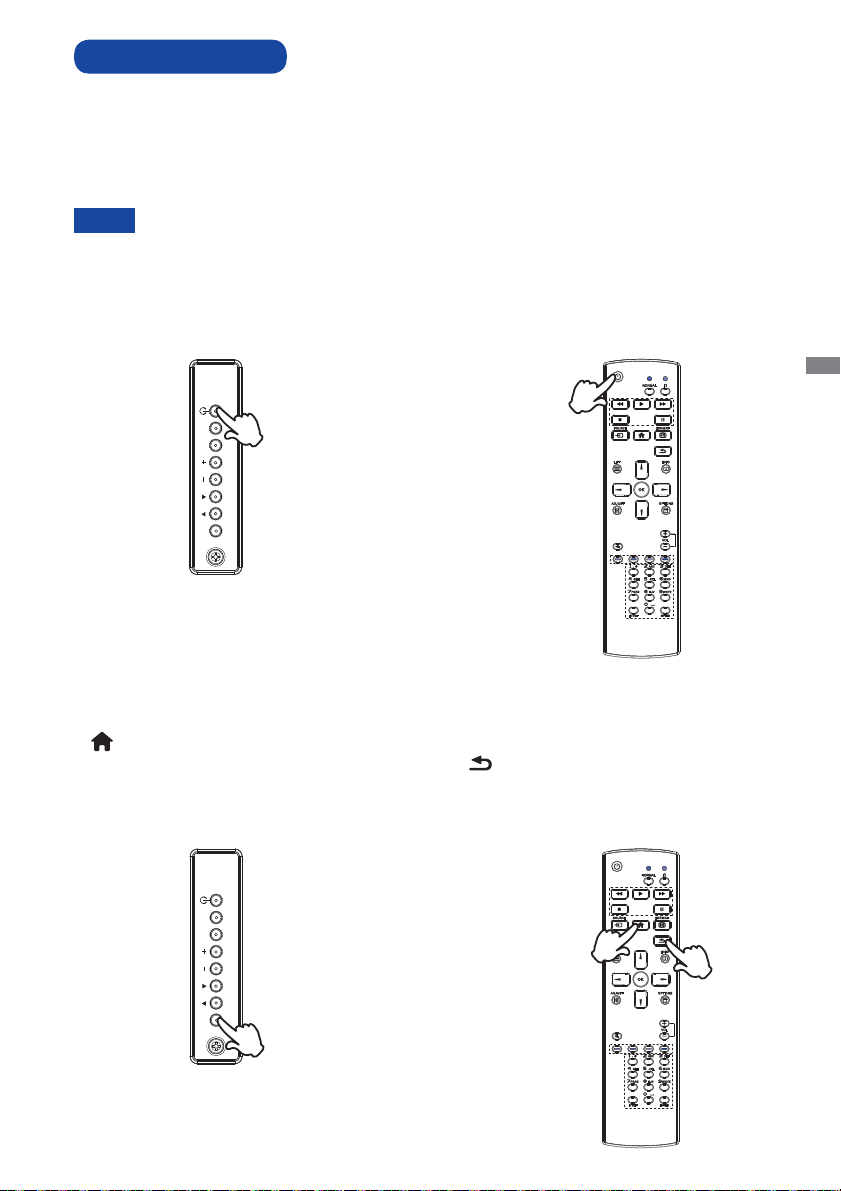

Turning the monitor ON



The monitor is turned On and the Power Indicator turns to Green when you press the POWER

button on the monitor or the Remote Control. The monitor is turned Oﬀ and the Power Indicator turns to Orange when you press the POWER button on the monitor or the Remote Control. Press again to turn On the monitor.

NOTE

Even when using the power management mode or turning OFF the Power Switch, the monitor will consume a small amount of electricity. Disconnect the Power Cable from the power supply whenever the monitor is not in use or during the night, to avoid unnecessary power consumption.

[Monitor]

MUTE INPUT

Display the adjustment menu page



[Remote Control]

The menu page appears on the screen when you press the MENU button on the monitor or the

HOME button on the Remote Control.

The menu page disappears when you press the

BACK

button on the Remote Control

again.

[Remote Control][Monitor]

MUTE INPUT

ENGLISH

BEFORE YOU OPERATE THE MONITOR 15

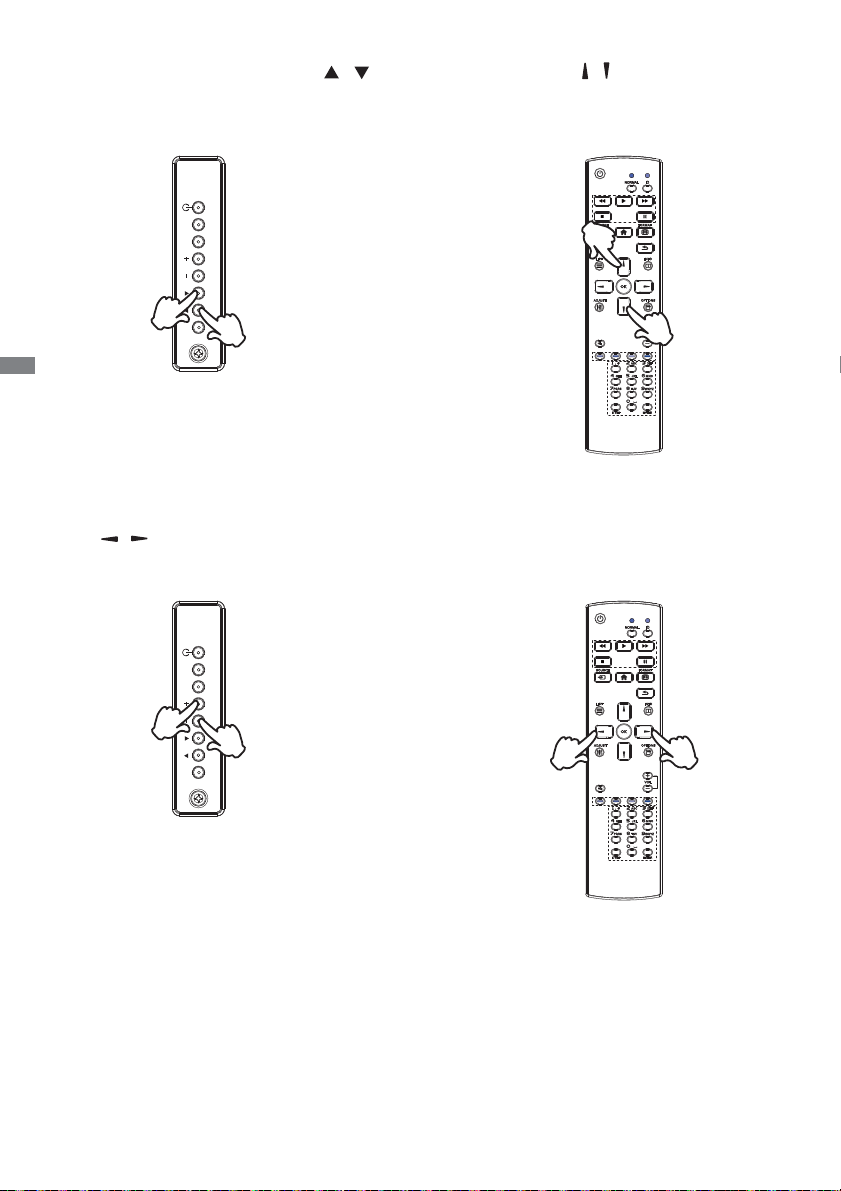

Move the cursor vertically



Select adjustment by pressing the / button on the monitor or the / button on the remote

control while the menu page is displayed on the screen.

[Remote Control][Monitor]

MUTE INPUT

ENGLISH

Move the cursor horizontally



Select menu or setting, or perform the adjustment by pressing the + / - button on the monitor or

/ button on the remote control while the menu page is displayed on the screen.

the

[Remote Control][Monitor]

MUTE INPUT

16 BEFORE YOU OPERATE THE MONITOR

Adjust the volume of sound



Press the + / - button on the monitor or the remote control to adjust the volume of sound when the

menu page is not displayed on the screen.

[Remote Control][Monitor]

MUTE INPUT

Switch the input signal



This is activated when you successively press the INPUT button on the monitor or the Remote

Control.

[Remote Control][Monitor]

ENGLISH

MUTE INPUT

BEFORE YOU OPERATE THE MONITOR 17

CONNECTING YOUR THE MONITOR

Ensure that both the computer and the monitor are switched oﬀ . Connect the computer to the monitor with the signal cable. Connect the computer to the monitor with the RS-232C Cable. Connect the Power Cable to the monitor ﬁ rst and then to the power supply. Turn on your monitor (Main Power Switch and Power Switch) and computer.

The signal cables used for connecting the computer and monitor may vary with the



NOTE

type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama oﬃ ce.

Make sure you tighten the ﬁ nger screws at each end of the Signal Cable.

ENGLISH



Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.



[Example of Connection]

<Back>

Power Cable (Accessory)

Audio Cable (Not Included)

VGA Cable (Not Included)*

DVI-D Cable (Accessory)

RS-232C Cable (Accessory)

DisplayPort Cable

(Accessory)

mDP-DP Cable (Accessory)

Computer

Notebook

AV Equipment

HDMI Cable (Not Included)

GAME Equipment etc.

HDMI Cable (Accessory)

* VGA cable is not supplied with the monitor. If you use low quality VGA cable, it may cause a result

of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the VGA input.

18 BEFORE YOU OPERATE THE MONITOR

[ Connection example with the peripheral device ]

CAUTION

Turn oﬀ the power switch and unplug the

shock or damage.

NOTE

Refer to the user manual of peripherals at the same time.



Ensure you have the necessary cables as required.



monitor and peripherals before connection to avoid electric

Red

Black

Red

Black

Red

White

Green

Red

Blue

ENGLISH

[ About the daisy chain ]

Monitor control connection



RS-232C

[RS-232C]

[RS-232C IN]

MONITOR1 MONITOR2

[RS-232C OUT] [RS-232C IN]

BEFORE YOU OPERATE THE MONITOR 19

Digital video connection

[HDMI]



DVI

MONITOR1 MONITOR2

ENGLISH

DisplayPort

[DVI]

[DVIIN]

]NIIVD[]TUOIVD[

DisplayPort v1.2 multiple stream support allows daisy-chain up to 4 monitors showing diﬀ erent

content on each screen.

MONITOR1 MONITOR2

[DP]

[DPIN]

]NIPD[]TUOPD[

HDMI

[HDMI]

20 BEFORE YOU OPERATE THE MONITOR

MONITOR1 MONITOR2

[DVIIN]

]NIIVD[]TUOIVD[

OPS

MONITOR1 MONITOR2

]NIIVD[]TUOIVD[

Analog video connection



VGA

[VGA]

[VGA IN]

MONITOR1 MONITOR2

[DVI/VGA OUT]

[DVI/VGA IN]

ENGLISH

BEFORE YOU OPERATE THE MONITOR 21

[ To setup the network ]

1. Switch on the router and switch on its DHCP setting.

2. Connect the router to this monitor and your computer with an Ethernet cable.

3. Press

4. Select "Connect to network", then press OK button.

5. Follow the on-screen instructions to install the network.

6. Wait for this monitor to ﬁ nd the network connection.

7. If you are prompted, agree to the “End User Licence Agreement”.

NOTE

Single monitor setup



ENGLISH

HOME button on the remote control, then select Setup.

Connecting with a shielded CAT-5 Ethernet cable to comply with the EMC directive.

INTERNET

[RJ-45]

Multiple monitor setup



[RJ-45]

ROUTER

INTERNET

ROUTER

[RJ-45]

Monitor1

Monitor2

[RJ-45]

22 BEFORE YOU OPERATE THE MONITOR

COMPUTER SETTING

Signal Timing



Change to the desired signal timing listed on page 49: COMPLIANT TIMING.

Windows XP/Vista/7/8/8.1/10 Plug & Play



The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs

on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.

For installation on Windows XP: The monitor Information File for iiyama monitors may be

necessary for your computer and obtained via the Internet, using the address:

http://www.iiyama.com

NOTE

Procedure for turning ON the Power Switch



Turn ON the monitor ﬁ rst, and then the computer.

Monitor Drivers are not required in most cases for Macintosh or Unix operating



systems. For further information, please contact your computer dealer ﬁ rst for advice.

ENGLISH

BEFORE YOU OPERATE THE MONITOR 23

OPERATING THE MONITOR

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 49. You are also able to adjust the picture by following the button operation shown below.

Press the HOME button on the remote control or the MENU button on the Monitor

to start the On Screen Monitor feature. There are additional Menu items which can be switched by using the the monitor.

ENGLISH

Select the Menu item of the adjustment you want to make. Press the OK button on the remote control or the INPUT button on the monitor and enter the menu page. Then, use the

/ buttons on the remote control or the / buttons on the monitor

to highlight the desired adjustment item.

Press the OK button on the remote control or the INPUT button on the monitor again. Use the

/ buttons on the remote control or the + / - buttons on the monitor

to make the appropriate adjustment or setting.

Press the

BACK button on the remote control or the MENU button on the monitor

to leave the menu, and the settings you just made would be automatically saved.

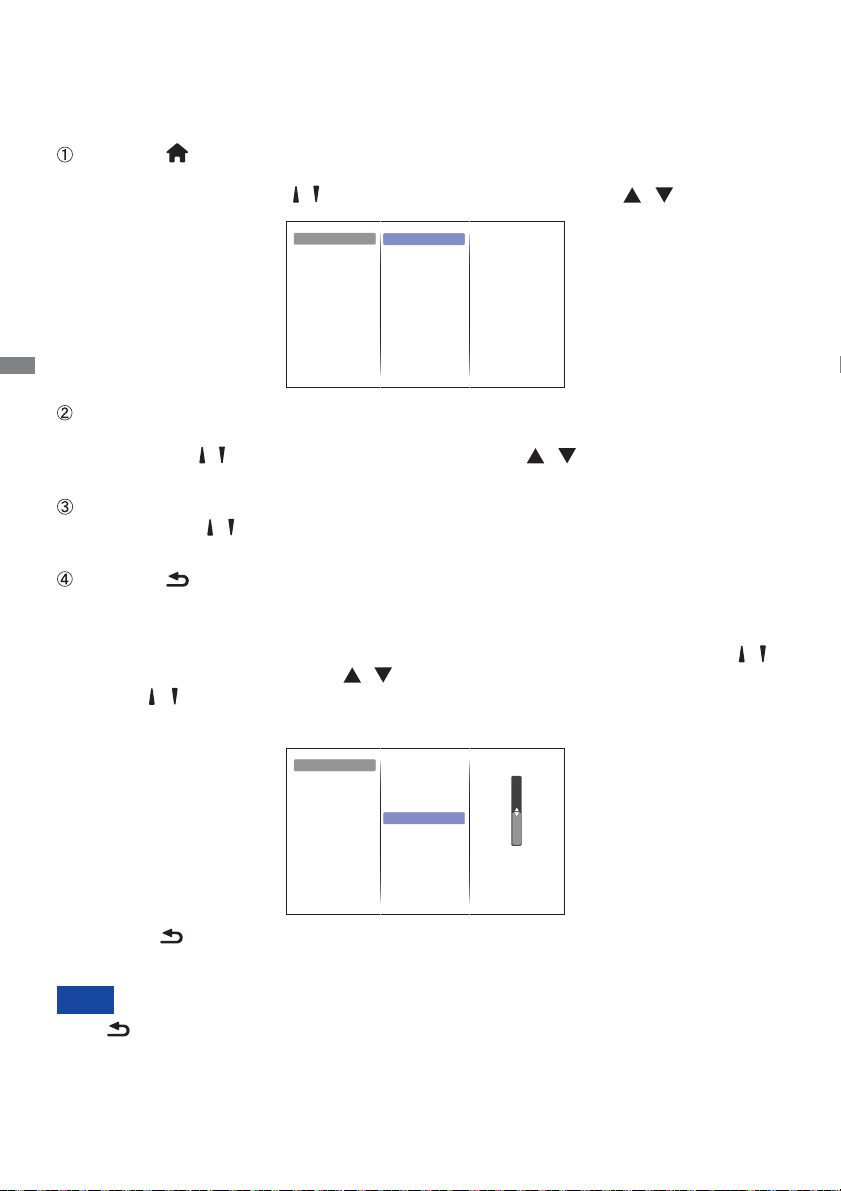

For example, to correct for sharpness, select Menu item of "Picture". Press the OK button on the remote control or the INPUT button on the monitor. Then, select "Sharpness" by using the buttons on the remote control or the Use the

/ buttons on the remote control or the + / - buttons on the monitor to change the sharpness settings. The sharpness of the overall display should be changing accordingly while you are doing this.

/ buttons on the remote control or the / buttons on


Sound

Tiling

General settings

Network settings

Picture style

Restore style

Backlight

Colour

Sharpness

Noise reduction

MPEG artifact reduction

Digital Crystal Clear

Advanced

Game or computer

Foramat and edges

Personal

Vivid

Natural

Standard

Movie


Energy saving

/ buttons on the monitor.


Sound

Tiling

General settings

Network settings

Picture style

Restore style

Backlight

Colour

Sharpness

Noise reduction

MPEG artifact reduction

Digital Crystal Clear

Advanced

Game or computer

Foramat and edges

Press the

BACK button on the remote control or the MENU button on the monitor lastly, it

ends, all changes are saved in the memory.

NOTE

The



BACK button on the remote control or the INPUT button on the monitor can be used to return previous menu item. Any changes are automatically saved in the memory when the On Screen Monitor



Turning oﬀ the power should be avoided while using the Menu.

24 OPERATING THE MONITOR

disappears.

Direct

Press the ADJUST button when Menu is not displayed. Direct menu below appears.

PC input and Video input (HDMI, DisplayPort, Card OPS, DVI, YPbPr, AV, VGA)





Access predeﬁ ned sound settings.



Adjust audio output volume.



Change the picture format.



Move the position of the picture.

Video input only (HDMI(Video), YPbPr, AV)





Select a predeﬁ ned picture settings.

* Available for Remote Control only.

Sound Style:

Audio out:

Picture format:

Picture shift:

Picture Style:

ENGLISH

OPERATING THE MONITOR 25

ADJUSTMENT MENU CONTENTS


Adjustment Item

ENGLISH


Sound

Tiling

General settings

Network settings

Problem / Option Button to Press

Personal

Vivid Natural

Standard

Picture style*

Direct

Movie

Photo Energy saving

Restore style

Backlight

Colour

Sharpness*

Yes No

Brightness of back light is reduced.

Too week Too strong

Too soft Too sharp

Oﬀ

Minimum

Noise reduction*

Medium

Maximum

MPEG artifact reduction

Digital Crystal Clear

Oﬀ On

Advanced sharpness*

*1 Only HDMI(Video), YPbPr and AV input.

Picture style

Restore style

Backlight

Colour

Sharpness

Noise reduction

MPEG artifact reduction

Digital Crystal Clear

Advanced

Game or computer

Foramat and edges

Personal

Vivid

Natural

Standard

Movie


Energy saving

Displays a picture on a screen set by Image Settings adjustments.

For displaying outdoor scenery images. For displaying natural images.

For general windows environment and the monitor default setting.

For movie and video environment. For photo environment. To display the image while reducing power. Picture setting will be restored to factory-preset data. Return to Menu.

Noise Reduction is turned oﬀ . Electronic image noise caused by diﬀ erent media players

is reduced. Electronic image noise caused by diﬀ erent media players

is reduced more than Minimum. Electronic image noise caused by diﬀ erent media players

is reduced more than Medium. MPEG artifact reduction is turned oﬀ .

Smoothen transitions and haziness in the digital picture. Oﬀ

Advanced sharpness is turned oﬀ . Enhance the picture edge and lines.

26 OPERATING THE MONITOR


Sound

Tiling

General settings

Network settings

Picture style

Restore style

Backlight

Colour

Sharpness

Noise reduction

MPEG artifact reduction

Digital Crystal Clear

Advanced

Game or computer

Foramat and edges

Personal

Vivid

Natural

Standard

Movie


Energy saving

Adjustment Item Problem / Option Button to Press

Dynamic contrast is turned oﬀ . Dynamically enhance the details areas of

the picture. Dynamically enhance the details areas of

the picture more than LOW. Dynamically enhance the details areas of

the picture more than MIDDLE. Colour enhancement is turned oﬀ .

Colour enhancement the vividness and details of colours.

Colour enhancement the vividness and details of colours more than LOW.

Colour enhancement the vividness and details of colours more than MIDDLE.

Bluish white

Greenish white Reddish white R-WP(Red)

G-W(Green) B-WP(Blue)

Too weak Too strong

Digital Crystal Clear

Advanced

Dynamic contrast*

Colour enhancement*

Gamma

Tint

Video contrast

Brightness*

Hue

Oﬀ

LOW

MIDDLE

HIGH

Oﬀ

LOW

MIDDLE

HIGH

You can set the Gamma.

-4 - +4 Cool

Normal Warm

Custom

Too dull Too intense

Too dark Too bright

Purplish Greenish

ENGLISH

*1 Only HDMI(Video), YPbPr and AV input.

Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.

OPERATING THE MONITOR 27


Sound

Tiling

General settings

Network settings

Picture style

Restore style

Backlight

Colour

Sharpness

Noise reduction

MPEG artifact reduction

Digital Crystal Clear

Advanced

Game or computer

Foramat and edges

Personal

Vivid

Natural

Standard

Movie


Energy saving

Adjustment Item Problem / Option Button to Press

Game or computer *

ENGLISH

Format and edges

Oﬀ Game

Computer

Picture format

Direct

Game or computer is turned oﬀ . Apply the game settings from the game console.

Apply the game settings when have a computer and HDMI connection.

Auto zoom

Movie expand 16:9

Enlarges the image on the screen to the original screen ratio.

Scale 4:3 format to 16:9. Not recommended for HD or PC.

Shows widescreen format content

Wide screen

stretched. Not recommended for HD or PC.

Unscaled

4:3

Display all pictures in the original resolution.

Display all pictures in 4:3 aspect ratio.

Picture shift Move the position of the picture.

This function is available when select the "Unscaled" of "Picture format".

28 OPERATING THE MONITOR

Sound


Sound

Tiling

General settings

Network settings

Sound style

Restore style

Bass

Treble

Balance

Surround mode

Audio out

Advanced

Personal

Original

Movie

Music

Game

News

Adjustment Item Problem / Option Button to Press

Sound style

Restore style

Bass

Treble

Balance

Surround mode

Direct

Personal Original Movie Music Game News Yes

No Too weak

Too strong Too weak

Too strong Too loud sound from the right speaker

Too loud sound from the left speaker Oﬀ

Recalls customized settings.

Set the original sound quality.

Sound quality suitable for the movie. Sound quality suitable for the music. Sound quality suitable for the game. Sound quality suitable for the news. Sound setting will be restored to factory-preset data.

Return to Menu.

Surround mode is turned oﬀ . Enhance surround experience.

Adjust audio output volume.

Audio out

Direct

Too soft Too loud

Auto volume leveling is turned oﬀ . Enable the reduction of sudden

volume changes. Turn Oﬀ the internal speaker. Turn On the internal speaker.

Clear sound is turned oﬀ . Enable the volume

Advanced

Auto volume leveling

Speaker settings

Clear sound

Oﬀ

Oﬀ On Oﬀ On

ENGLISH

OPERATING THE MONITOR 29

Tiling *

Enable

ENGLISH

H monitors


Sound

Tiling

General settings

Network settings

Enable

H monitors

V monitors

Position

Frame comp.

Off

Adjustment Item Problem / Option Button to Press

Oﬀ

Enable is turned oﬀ . The monitor will apply the settings in "H monitors",

"V monitors", "Position" and "Frame comp.".

Sets the number of monitors used in the horizontal position.

V monitors

Position

Frame comp.

Sets the number of monitors used in the vertical position.

Sets the position of the screen matrix.*

Oﬀ

Frame comp. is turned oﬀ .

The monitor will adjust the image to compensate for

the width of the monitor bezels in order to accurately display the image.

With this function you can create a single large-screen matrix (video wall) that consists of up to 100 sets of this monitor (up to 10-sets on the vertical and 10-sets on the horizontal sides).

Screen Matrix

Example: 2 x 2 screen matrix (4 monitors) H monitors = 2 monitors V monitors = 2 monitors

H monitors

Position

V monitors

Example: 5 x 5 screen matrix (25 monitors) H monitors = 5 monitors V monitors = 5 monitors

11 12 13 14 15

V monitors

16 17 18 19 20

30 OPERATING THE MONITOR

21 22 23 24 25

H monitors

89510

Position

General settings


Sound

Tiling

General settings

Network settings

Menu Language

Monitor ID

Auto Search

Clock

Scheduling

Sleep timer

EasyLink

Auto Adjust

Local KB lock

RC lock

Pixel shift

English

Deutsch

Français

Italiano

Español

Русский

Polski

Türkçe

Português

Adjustment Item Problem / Option Button to Press

Turkish Türkçe Simpliﬁ ed Chinese

PortuguesePortuguês Arabic Japanese Dutch Nederlands Czech

Menu Language

English Deutsch

English German

Traditional Chinese

Français French

Italian Italiano SpanishEspañol Russian



Česky

Polski Polish

monitor

Monitor ID

Auto Search

Set ID to the 1 - 255

Oﬀ

Status

On Failover

Auto Search is turned oﬀ . Automatically detects available input sources. Set the input source to detect with priority.

Adjust the current date and time for the internal clock.

Clock

Daylight saving(Daylight saving time/Standard time)/Date/Time

You must set this item when using "Scheduling".

NOTE

Schedule is turned oﬀ .

Status

Oﬀ On

Schedule is turned on.

Select default input source to use when the

Scheduling

Schedule1 Schedule2 Schedule3 Schedule4 Schedule5 Schedule6 Schedule7

Source

On Time Oﬀ Time

Repeat modes

monitor is automatically turned on next time. USB/HDMI/DVI/YPbPr/AV/VGA

Set the time for the monitor to turn on and turn oﬀ .

Sets a recurring schedule. No Repeat / Every Sunday / Every Monday / Every Tuesday / Every Wednesday / Every Thursday / Every Friday / Every Saturday

Set the ﬁ le to be started when the power is Playlist setting

turned on. Press the red button on the remote

control after choosing a ﬁ le and then select

and save the "Save list" 30 ﬁ les support.

Sleep timer

Switch oﬀ this monitor after a speciﬁ ed time. 0 - 180 mins

Oﬀ EasyLink is turned oﬀ .

EasyLink

Connect and control your HDMI-CEC compliant devices through HDMI port to this monitor with the same remoto control.

ENGLISH

OPERATING THE MONITOR 31

General settings


Sound

Tiling

General settings

Network settings

Auto Adjust

Local KB lock

RC lock

Pixel shift

Smart power

Wake on lan

Switch on State

LED

Switch on delay

Logo

APM

Start

Cancel

Adjustment Item Problem / Option Button to Press

Adjust H. / V. Position, Clock and Phase automatically.

Return to Menu.

Auto adjust *

ENGLISH

Start

Cancel Choose to enable or disable the back controller function of this display.

Enable the button function. Lock all the button function. Disable all the button function except the VOL+

and VOL- button. Disable all the button function except the Power

button. Disable all the button function except the VOL+,

VOL- and Power button.

Local KB lock *

Unlock Lock all

Lock but volume

Lock but power

Lock all expect volume and power

Choose to enable or disable the button function of the remote control.

RC lock *

Pixel shift *

Unlock Lock all

Lock but volume

Lock but power

Lock all expect volume and power

Oﬀ

Enable the button function. Lock all the button function. Disable all the button function except the VOL+

and VOL- button. Disable all the button function except the Power

button. Disable all the button function except the VOL+,

VOL- and Power button. Pixel shift is turned oﬀ .

Move the screen image automatically to protect the monitor from “burn-in” or “after-image” symptoms If not operating even 30 seconds.

Dynamic backlight is turned oﬀ . Optimize dynamic power consumption and picture

contrast. Optimize dynamic power consumption. Optimize dynamic picture contrast. Wake on lan is turned oﬀ . Turn the monitor on remotely over LAN network.

Smart power*

Wake on lan

Oﬀ

Standard

Best Power Best Picture Oﬀ On

*1 Only VGA input. *2 To disable the lock function from "Local KB lock" or "RC lock" item, press HOME button and

1998 on the remote control.

*3 Only HDMI(Video), YPbPr and AV input.

32 OPERATING THE MONITOR

General settings


Sound

Tiling

General settings

Network settings

Smart power

Wake on lan

Switch on State

LED

Switch on delay

Logo

APM

Information OSD

DisplayPort ver.:

Network control port

Factory settings

Adjustment Item Problem / Option Button to Press

The monitor will turn on when the power cable is connected to a wall outlet.

The monitor will remain standby when the power cable is connected to a wall outlet.

Switch on state

Standby

The monitor will return to the previous power status

Last status

(On/Oﬀ /Standby) when removing and replacing the power cable.

LED

Oﬀ On

The power indicator is turned oﬀ . The power indicator is turned on.

Adjust the power-on delaying time (in seconds) allows a sequential

Switch on delay

powering-on for each monitor by their ID number when multiple monitors are connected. 0 - 60 seconds

iiyama Logo does not display when the monitor is turned on.

Logo

Oﬀ

iiyama Logo displayed when the monitor is turned on. On

APM

Information OSD

Oﬀ

APM is turned oﬀ . When there is no signal, the monitor will automatically

turn oﬀ . Information OSD is turned oﬀ .

When you press the Power button turn on the monitor from standby mode or change the input signal. The information OSD is displayed on the upper left corner of the screen.

DisplayPort Ver.

Network control port

Factory settings

Set the version of the DisplayPort.

1.1a/1.2 RS232C

Card OPS RS232C OK Cancel

When the RS232C is being used. To use when inserting a computer to the OPS. Factory-preset data is restored. Return to Menu.

ENGLISH

OPERATING THE MONITOR 33

Press successively following buttons on the remote control when the Menu is not displayed.

OK MENU



Eco mode is then displayed under "General settings". Eco mode : Normal / Low power standby

APM and Eco mode setting



APM Eco mode Monitor status Power Indicator Remark

On Normal Standby mode Green blinking When re-plug the signal cable, the

monitor will wake up automatically.

Low power

standby

Power oﬀ Amber

(Green+Red)

When re-plug the signal cable, the monitor will not wake up automatically.

Need press the remote control or power button of the monitor to power on.

ENGLISH

Default setting for Eco mode is “Low power standby”, if settings where manually changed

NOTE

and an “Factory settings” is performed, settings will not change back to Default. However, settings can be still change manually to “Low power standby”.

34 OPERATING THE MONITOR

Network Settings


Sound

Tiling

General settings

Network settings

View network settings

Network Configuration

Static IP Configuration

Digital Media Render...

Network name

Adjustment Item Problem / Option Button to Press

View network settings

Network Conﬁ guration

Static IP Conﬁ guration

Digital Media Renderer

- DMR

Network name

View connected network status.

Select how this display should assign addresses to the network resources. DHCP & Auto IP / Static IP

Assign {IP address}, {Netmask}, {Gateway}, {DNS1}, and {DNS2} for this display.

Oﬀ Digital Media Renderer - DMR is turned oﬀ .

Receive multimedia ﬁ les from Smart phones or Tablets connected to your network.

Rename this monitor for easy identiﬁ cation.

ENGLISH

OPERATING THE MONITOR 35

[Play Multimedia Files]

You can play videos, photos, and music on your monitor from:

· Your computer connected through your network.

· A USB device connected to this monitor.

Play ﬁ les from computer via local Area Network



To play ﬁ les from computer via local Area Network, you will need:

· A wired network, connected with a Universal Plug and Play (uPnP) router.

· Optional: A LAN cable that connects your monitor to your network.

· A media server running on your computer.

· Appropriate settings on your computer ﬁ rewall to allow you to run the media server.

Set up media sharing



1. Install a media server on your computer to share media ﬁ les. These are some media servers:

ENGLISH

• For PC: Windows Media Player 11 (or higher) or TVersity

• For Mac: Twonky

2. Switch on media sharing on your computer using the media server. For more information on how to set up the media server, refer to the website of the media server.

How to use DNLA-DMP



1. Connect monitor and your computer to the same router via RJ45.

2. Run windows media player. Set stream handling as public sharing.

Play ﬁ les from monitor



1. Press

2. Now, you can see all the computer's connected to the same router on the screen. Select the right one.

3. Press

NOTE

How to use DNLA-DMR from computer



1. Press HOME button, select [Network settings] and press OK button.

2. Set DMR as [On].

3. Set the name of your monitor.

4. Press SOURCE button, select [Network] and press OK button.

5. On your computer, go to [Network and Sharing Center], and click [Choose homegroup and sharing options].

6. Check the media formats. Then, click [Choose media streaming options...].

7. Go to [Advanced sharing settings], and check [Turn on network discovery].

8. Now, go to the directory of your media ﬁ les. Select the media ﬁ le by right click. On the submenu from Play To, you can ﬁ nd all monitors connected to your network, select the monitor, and click the media ﬁ le to play.

SOURCE button, select [Network] and press OK button.

and to select the directory and ﬁ les to play.

We suggest to use DLNA-DMP function via wired network for the sake of higher security

and suﬃ cient network bandwidth.

36 OPERATING THE MONITOR

Play ﬁ les



1. Press

2. Select [Network], then press OK button.

3. Select a ﬁ le from the content browser, then press OK button to start playing.

4. Press the Play buttons on the remote control to control playing. * • Select the top bar to ﬁ lter our ﬁ les by type.

• Select [Sort] to arrange the ﬁ les by album name, artist, or other ﬁ elds.

• To clear the list of oﬄ ine media servers, press

servers] and press OK button.

Play multimedia ﬁ les from USB device



This monitor can play music, movie, or photo ﬁ les from your USB device.

1. Connect your USB device to the USB port on this monitor.

2. Press SOURCE button, select USB, then press OK button.

3. The connected USB device is detected automatically for all its playable ﬁ les which will be

automatically sorted into 3 types:

SOURCE button.

OPTIONS button. Then, select [Clear oﬄ ine

Music, Movie and Photo.

ENGLISH

4. Press the

select the ﬁ le type. Press OK button to enter its play list.

5. Select the ﬁ le you want. Press OK button to start playing.

6. Follow the on-screen instruction to control the play option.

7. Press the PLAY buttons (

USB Standard:



USB2.0

NOTE

Supported ﬁ le system:



FAT32

Supported ﬁ le format:



• Music: MP3, WMA, M4A, AAC, AC3

• Movie: AVI, MP4, MOV, MPG/MPEG

• Photo: JPEG, BMP, GIF

CAUTION

• The manufacturer is not responsible if the USB device is not supported, nor is it responsible for

damage to or loss of data in the device.

• Do not overload the USB port. If you connect a USB storage device that consumes more than

500mA power, make sure that it is connected to its own external power supply.

NOTE

When you are playing multimedia ﬁ les from USB device and turn the monitor oﬀ . It will set input source to the last real input source, such as HDMI, DVI, YPbPr, AV and VGA when you turn the monitor on next time.

BACK button to go up to the top layer in the screen. Press or button to

, , , , ) to control playing.

The USB 2.0 compatibility is always granted. The USB 3.0 high speed support cannot be guaranteed wth all devices.

OPERATING THE MONITOR 37

[Play options]

Playing music ﬁ les



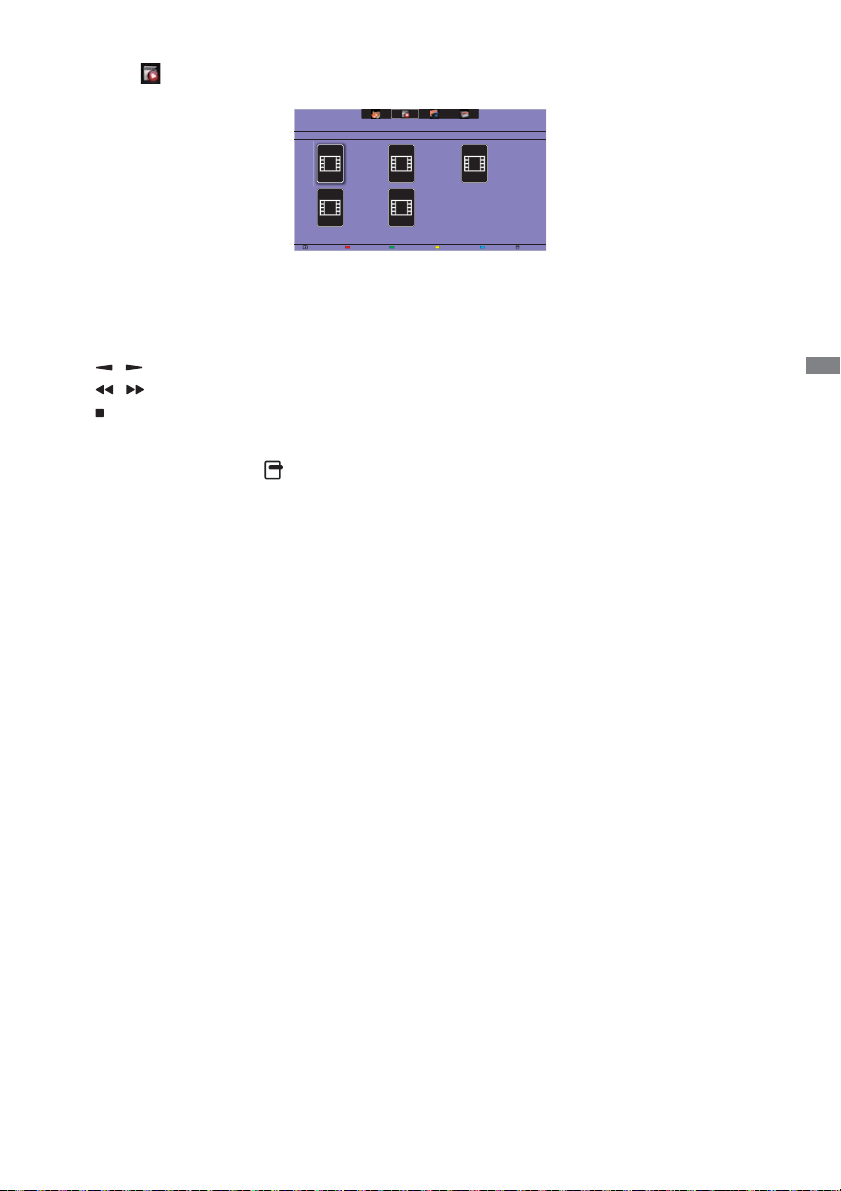

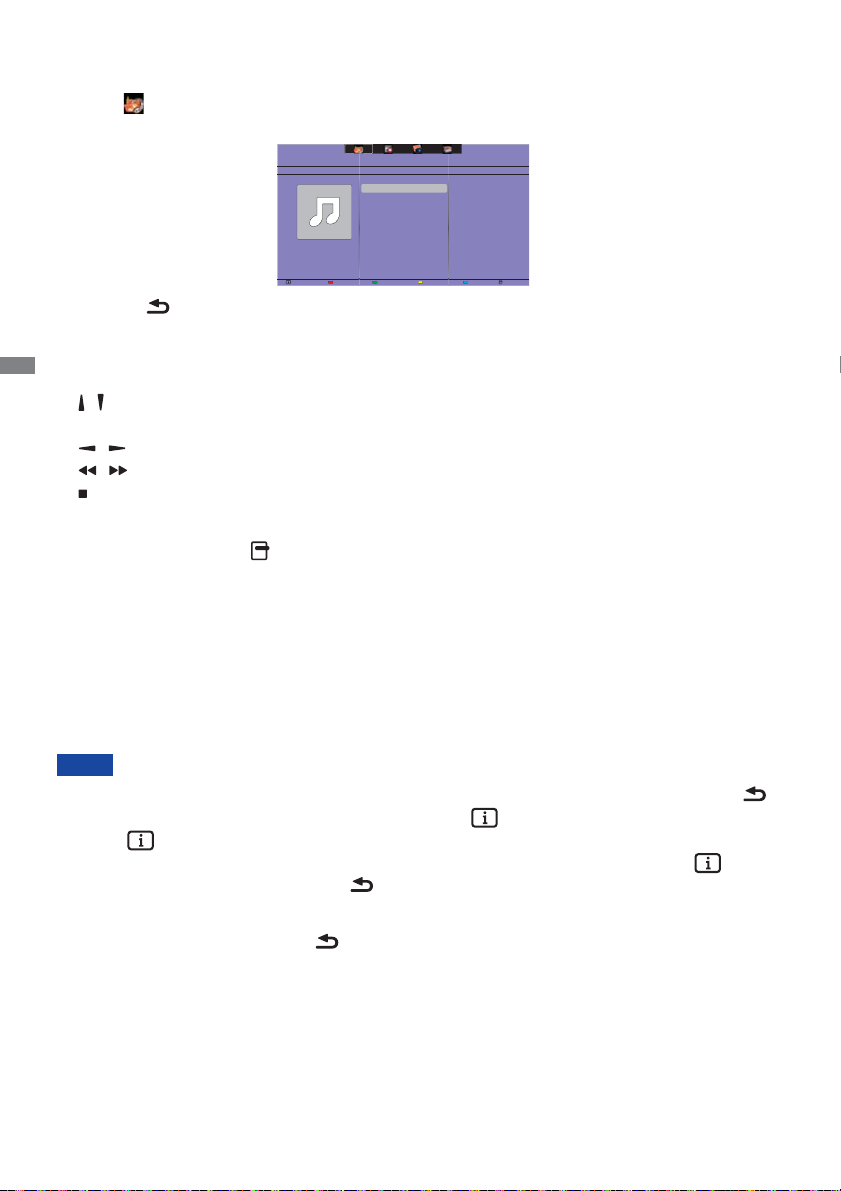

1. Select Music in the top bar.

2. Select one music track, then press OK button.

Album

05:051. Music

USB deviceSortPlay All OptionsInfo

3. Press the

• Play All : To play all the tracks in a folder.

ENGLISH

• Sort : It classiﬁ es the track.

• USB device : Music list of the USB device will be displayed.

/ : To skip to the next or previous track.

•

• OK : To pause the track or resume.

• / : To skip backward or forward 10 seconds.

/ : To search backward or forward. Press repeatedly to toggle between diﬀ erent speeds.

•

: To stop the music.

BACK button to display the play menu.

Music options



While playing music, press OPTIONS button.

• Repeat : To play a track or an album repeatedly.

• Play once : To play a track once.

• Shuﬄ e On / Shuﬄ e Oﬀ : Enable or disable random play of tracks.

<Eco>

Turn oﬀ the screen to save power consumption. To display again, press any button on the remote control.

NOTE

To view information about a song (for example, title, artist or duration), select the song, press the BACK button to display the play menu and then press the INFO button. To hide the information, press the After pressing the OK button to select a song, the menu screen dissapears when the

button is selected again. When press the

Play photo ﬁ les from music ﬁ le menu



INFO button again.

INFO

BACK button to display the menu screen.

While playing a music ﬁ le, press the BACK button, go to the top of the screen, select a picture and then select slide show.

38 OPERATING THE MONITOR

Playing movie ﬁ les



1. Select Movie in the top bar.

2. Select a video, then press OK button.

Track

USB devicePlay All OptionsInfo

• Play All : To play all the videos in a folder.

• Sort : It classiﬁ es the movie.

• USB device : Movie list of the USB device will be displayed.

• OK : To pause the video or resume.

/ : To skip backward or forward 10 seconds.

•

/ : To search backward or forward. Press repeatedly to toggle between diﬀ erent speeds.

•

: To stop the video.

ENGLISH

Movie options



While playing video, press

OPTIONS button.

• Subtitles : Select the available subtitle settings.

• Subtitles On / Oﬀ : Subtitle display on / oﬀ .

• On During Mute : Enable the subtitle display.

Subtitle can be switched on/oﬀ by pressing the Mute button.

• Subtitle Language : Select the language for subtitles if available.

• Shuﬄ e On / Shuﬄ e Oﬀ : Enable or disable random play of video ﬁ les.

• Repeat : To play the video ﬁ le repeatedly.

• Play once : To play the video ﬁ le once.

• Status : Displays video information.

• Picture Mode / Sound Mode / Audio out / Picture Format

<Eco>

Turn oﬀ the screen to save power consumption. To display again, press any button on the remote control.

<Clock>

• Sleep timer

OPERATING THE MONITOR 39

Playing photo ﬁ les



1. Select Photo in the top bar.

2. Select a photo thumbnail, then press OK button.

Date

USB deviceSortPlay All OptionsInfo

Start a slideshow



• Play All : To play all the photo in a folder. (multiple photo)

• Sort : It classiﬁ es the photo.

ENGLISH

• USB device : Photo list of the USB device will be displayed.

/ : To skip to the previous or next photo, then press OK button at the end.

•

: To stop the slideshow.

•

Slideshow options



While you play a slideshow, press

OPTIONS button.

• Shuﬄ e On / Shuﬄ e Oﬀ : Enable or disable random picture in the slideshow.

• Repeat : To watch a slideshow.

• Play once : To watch once.

• Slideshow Time : Select the displaying time for each photo in the slideshow.

• Slideshow Transitions : Select the transition from one photo to the next.

• Picture Mode / Sound Mode / Audio out / Picture Format

<Eco>

Turn oﬀ the screen to save power consumption. To display again, press any button on the remote control.

Folder



It lists the ﬁ les in the USB device. It is possible to play directly from the USB.

40 OPERATING THE MONITOR

POWER MANAGEMENT FEATURE

The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the when your computer is not in use. To use the feature, the There is a power management step the

monitor

needs to be connected to a VESA DPMS compliant computer.

monitor

takes as described below. The power management function, including any timer settings is conﬁ gured by the operating system. Check your operating system manual for information on how this can be conﬁ gured.

Power Management Mode



When the H-sync signal / V-sync signal / H and V sync signals from the computer are oﬀ , the monitor

enters into Power Management Mode which reduces the power consumption to less than 0.5W. The screen becomes dark. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.

Power Indicator

NORMAL MODE

Green

monitor

ENGLISH

NOTE

POWER MANAGEMENT MODE

Even when using the power management mode, the



oﬀ the Power Switch whenever the

Red

POWER CONSUMPTION

0 0.5 W 10 0%

monitor

is not in use, during the night and weekends,

monitor

consumes electricity. Turn

to avoid unnecessary power consumption. It is possible that the video signal from the computer may be on while the H or V sync



signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.

OPERATING THE MONITOR 41

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem monitor

you have. If the

2. Consult the following items if you cannot ﬁ nd an appropriate adjustment item in OPERATING THE

MONITOR or if the problem persists.

If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the

Problem Check

The picture does

not appear.

ENGLISH

does not get a picture, skip to 2.

monitor

and contact your dealer or iiyama service center for further assistance.

The Power Cable is ﬁ rmly seated in the socket.



The Power Switch is turned ON.



The AC socket is live. Please check with another piece of equipment.



If the blank screen saver is in active mode, touch the keyboard or the mouse.



Increase the Contrast and/or Brightness.



The computer is ON.



The Signal Cable is properly connected.



The signal timing of the computer is within the speciﬁ cation of the



If the

monitor



is in power management mode, touch the keyboard or the mouse.

monitor

The screen is not

synchronized.

The screen

position is not in the center.

The screen is too

bright or too dark.

The screen is

shaking.

No sound.

The sound is too

loud or too quiet.

A strange noise is

heard.

The Signal Cable is properly connected.



The signal timing of the computer is within the speciﬁ cation of the



The video output level of the computer is within the speciﬁ cation of the



The signal timing of the computer is within the speciﬁ cation of the



The video output level of the computer is within the speciﬁ cation of the



monitor

The power voltage is within the speciﬁ cation of the



The signal timing of the computer is within the speciﬁ cation of the



The audio equipment (computer etc.) is ON.



The Audio Cable is properly connected.



The Volume is turned up.



The Mute is OFF.



The audio output level of the audio equipment is within the speciﬁ cation of



the

monitor

The audio output level of the audio equipment is within the speciﬁ cation of



the

monitor

The Audio Cable is properly connected.



monitor

monitor monitor

monitor

. .

42 TROUBLE SHOOTING

RECYCLING INFORMATION

For better environment protection please don't dispose your Please visit our web site: www.iiyama.com/recycle for monitor recycling.

monitor

ENGLISH

RECYCLING INFORMATION 43

APPENDIX

Design and speciﬁ cations are subject to change without prior notice.

SPECIFICATIONS : ProLite LH4281S

Size Category 42"

Panel technology Size Diagonal: 41.9" (106.5cm)

LCD Panel

ENGLISH

Display Colors Approx.1.07B

Sync Frequency

Maximum Resolution 1920 × 1080, 2.1 MegaPixels Input Connector VGA, DVI-D, HDMIx2, DisplayPort Input Audio Connector mini jack, RCA (L/R) Input Component

Connector LAN RJ45 Serial Port RS-232C In/Out mini jack Plug & Play VESA DDC2B Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Input Audio Signal 0.5Vrms maximum IR Extender Connector USB Connector Output Connector DVI-D, DisplayPort Headphone Connector RCA(L/R) Speakers Internal: 10W×2 (Stereo speakers), External (speaker jack): 10W×2 Maximum Screen Size 927.94mm W × 521.96mm H / 36.5" W × 20.5" H Power Source 100-240VAC, 50/60Hz, 2.5A

Power Consumption*

Dimensions / Net Weight

Environmental Considerations

Approvals CB, CE, CU, TÜV-Bauart

Pixel pitch 0.4833mm H × 0.4833mm V Brightness 500cd/m2 (Typical) Contrast ratio 1300 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 8ms (Typical, Gray to Gray)

IPS

Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz

RCA (Video/L/R)

Analog: 0.7Vp-p (Standard), 75 Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance Digital: HDMI, DisplayPort

IR In/Out USB2.0 (USB Media Player)

110W typical, Power management mode: 0.5W maximum Energy Eﬃ ciency Class: C

947.0 × 541.0 × 71.0mm / 37.3× 21.3 × 2.8" (W×H×D)

15.3kg / 33.7lbs Operating:

Storage:

Temperature Humidity Temperature Humidity

Positive



0 to 40°C / 32 to 104°F 20 - 80% (No condensation)

-20 to 60°C / 4 to 140°F 5 - 95% (No condensation)

NOTE

44 APPENDIX

Audio equipment are not connected.

SPECIFICATIONS : ProLite LH4981S

Size Category 49"

Panel technology Size Diagonal: 48.5" (123.2cm)

Pixel pitch 0.55926mm H × 0.55926mm V LCD Panel

Brightness 500cd/m

Contrast ratio 1300 : 1 (Typical)

Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)

Response time 8ms (Typical, Gray to Gray) Display Colors Approx.1.07B

Sync Frequency

Maximum Resolution 1920 × 1080, 2.1 MegaPixels Input Connector VGA, DVI-D, HDMIx2, DisplayPort Input Audio Connector mini jack, RCA (L/R) Input Component

Connector LAN RJ45 Serial Port RS-232C In/Out mini jack Plug & Play VESA DDC2B Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Input Audio Signal 0.5Vrms maximum IR Extender Connector USB Connector Output Connector DVI-D, DisplayPort Headphone Connector RCA(L/R) Speakers Internal: 10W×2 (Stereo speakers), External (speaker jack): 10W×2 Maximum Screen Size 1073.8mm W × 604.0mm H / 42.3" W × 23.8" H Power Source 100-240VAC, 50/60Hz, 2.5A

Power Consumption*

Dimensions / Net Weight

Environmental Considerations

Approvals CB, CE, CU, TÜV-Bauart

IPS

(Typical)

Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz

RCA (Video/L/R)

Analog: 0.7Vp-p (Standard), 75



Positive Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance Digital: HDMI, DisplayPort

IR In/Out USB2.0 (USB Media Player)

135W typical, Power management mode: 0.5W maximum Energy Eﬃ ciency Class: C

1093.0 × 623.0 × 71.0mm / 43.0 × 24.5 × 2.8" (W×H×D)

19.0kg / 41.9lbs Operating:

Storage:

Temperature Humidity Temperature Humidity

0 to 40°C / 32 to 104°F 20 - 80% (No condensation)

-20 to 60°C / 4 to 140°F 5 - 95% (No condensation)

ENGLISH

NOTE

Audio equipment are not connected.

APPENDIX 45

SPECIFICATIONS : ProLite LH5581S

Size Category 55"

Panel technology Size Diagonal: 54.6" (138.8cm)

Pixel pitch 0.63mm H × 0.63mm V LCD Panel

Brightness 500cd/m

Contrast ratio 1300 : 1 (Typical)

Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)

Response time 8ms (Typical, Gray to Gray) Display Colors Approx.1.07B

Sync Frequency

ENGLISH

Maximum Resolution 1920 × 1080, 2.1 MegaPixels Input Connector VGA, DVI-D, HDMIx2, DisplayPort Input Audio Connector mini jack, RCA (L/R) Input Component

Connector LAN RJ45 Serial Port RS-232C In/Out mini jack Plug & Play VESA DDC2B Input Sync Signal Separate sync: TTL, Positive or Negative

Input Video Signal

Input Audio Signal 0.5Vrms maximum IR Extender Connector USB Connector Output Connector DVI-D , DisplayPort Headphone Connector RCA(L/R) Speakers Internal: 10W×2 (Stereo speakers), External (speaker jack): 10W×2 Maximum Screen Size 1209.6mm W × 680.4mm H / 47.6" W × 26.8" H Power Source 100-240VAC, 50/60Hz, 2.5A

Power Consumption*

Dimensions / Net Weight

Environmental Considerations

Approvals CB, CE, CU, TÜV-Bauart

IPS

(Typical)

Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz

RCA (Video/L/R)

Analog: 0.7Vp-p (Standard), 75



Positive Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance Digital: HDMI, DisplayPort

IR In/Out USB2.0 (USB Media Player)

145W typical, Power management mode: 0.5W maximum Energy Eﬃ ciency Class: B

1228.5 × 699.5 × 71.0mm / 48.4 × 27.5 × 2.8" (W×H×D)

24.7kg / 54.4lbs Operating:

Storage:

Temperature Humidity Temperature Humidity

0 to 40°C / 32 to 104°F 20 - 80% (No condensation)

-20 to 60°C / 4 to 140°F 5 - 95% (No condensation)

NOTE

46 APPENDIX

Audio equipment are not connected.

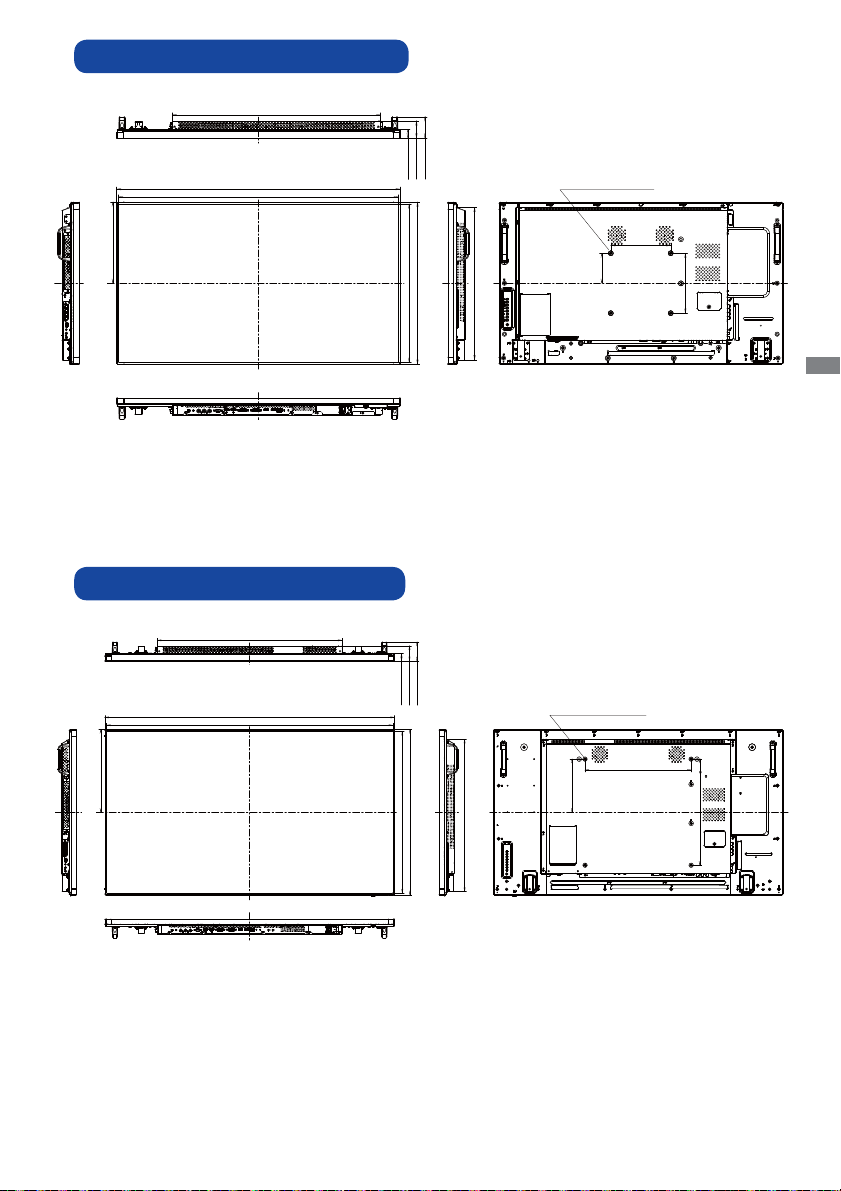

DIMENSIONS : ProLite LH4281S

695.5mm/27.4”

947.0mm/37.3”

934.0mm/36.8”

57.0mm/2.2”

71.0mm/2.8”

28.0mm/1.1”

4xM6 SCREW HOLE (VESA MOUNT)

270.5mm/10.6”

DIMENSIONS : ProLite LH4981S

696.0mm/27.4”

1093.0mm/43.0”

1080.0mm/42.5”

311.5mm/12.3”

528.0mm/20.8”

541.0mm/21.3”

28.0mm/1.1”

57.0mm/2.2”

71.0mm/2.8”

610.0mm/24.0”

623.0mm/24.5”

509.0mm/20.0”

574.0mm/22.6”

100.0mm/3.9”

4xM6 SCREW HOLE (VESA MOUNT)

400.0mm/15.7”

200.0mm/7.9”

ENGLISH

400.0mm/15.7”

APPENDIX 47

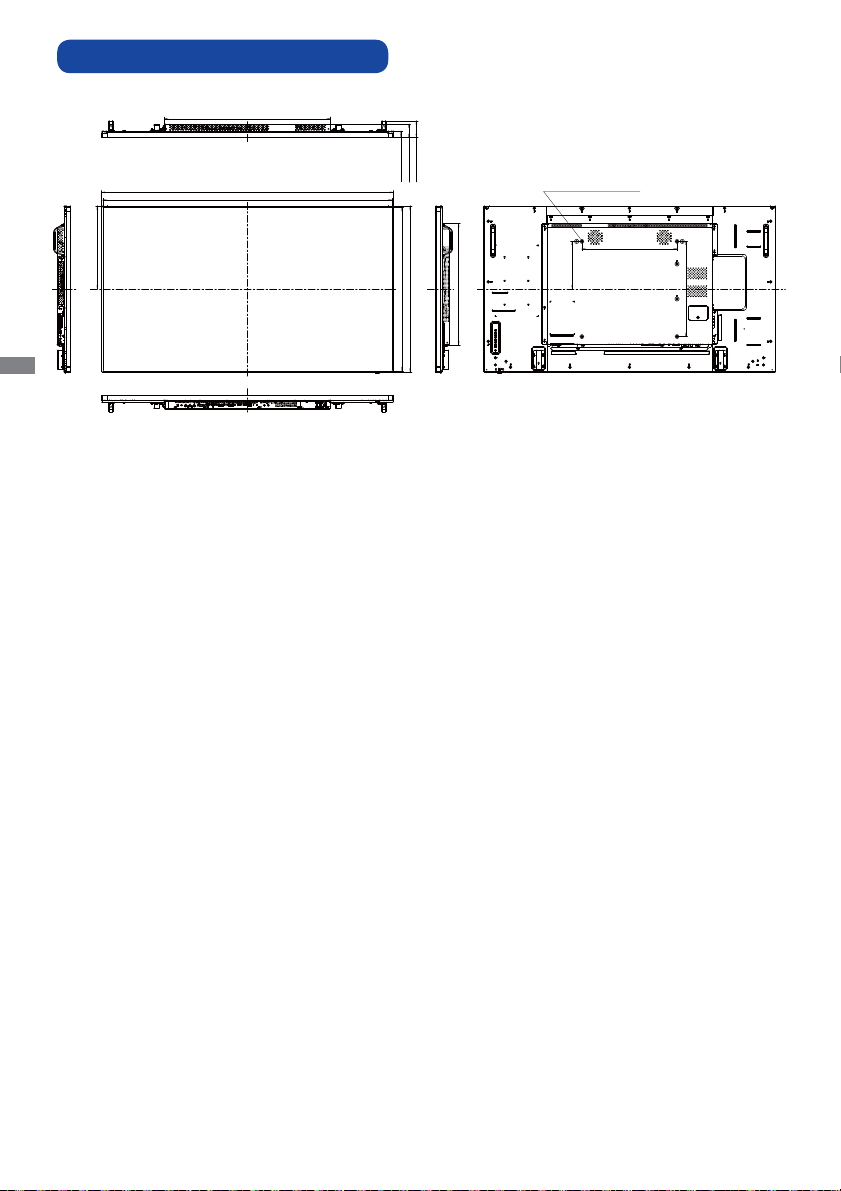

DIMENSIONS : ProLite LH5581S

696.0mm/27.4”

1228.5mm/48.4”

1215.5mm/47.9”

349.5mm/13.8”

ENGLISH

28.0mm/1.1”

71.0mm/2.8”

57.0mm/2.2”

686.5mm/27.0”

699.5mm/27.5”

510.5mm/20.1”

4xM6 SCREW HOLE (VESA MOUNT)

400.0mm/15.7”

200.0mm/7.9”

400.0mm/15.7”

48 APPENDIX

COMPLIANT TIMING

Timing

fV(Hz)

fH(kHz)

31.469 59.940 25.175

VGA 640x480

SVGA 800x600

XGA 1024x768

VESA

IBM 720x400 31.467 70.080 28.320

MAC

WXGA 1280x768 47.776 59.870 79.500 WXGA 1280x800 49.702 59.810 83.500 SXGA 1280x960 60.000 60.000 108.000 SXGA 1280x1024 63.981 60.020 108.000 WXGA1360x768 47.712 60.020 85.500 WXGA1366x768 47.712 59.700 85.500 UXGA 1600x1200 75.000 60.000 162.000 FHD 1920x1080 67.500 60.000 148.500

640x480 35.000 66.667 30.240 832x624 49.725 74.500 57.283 1152x870 68.681 75.062 100.000 NTSC(SD480i) 15.734 59.940 13.500 PAL(SD576i) 15.625 59.940 13.500 SECAM(SD576i) 15.625 59.940 13.500 480i 60Hz 15.734 59.940 27.000 576i 50Hz 15.625 50.000 13.500 480p 60Hz 31.469 59.940 27.000 576p 50Hz 31.250 50.000 27.000

720p

1080i

1080p

50Hz 37.500 50.000 27.000 60Hz 45.000 60.000 74.250 50Hz 28.125 50.000 74.250 60Hz 33.716 60.000 74.250 50Hz 56.250 50.000 148.500 60Hz 67.500 60.000 148.500

37.861 72.809 31.500

37.500 75.000 31.500

37.879 60.317 40.000

46.875 75.000 49.500

48.363 60.004 65.000

60.023 75.029 78.750

Dot clock

* means supported the timing.

(MHz)

VGA

DVI

HDMI

YPbPr

ENGLISH

APPENDIX 49

M166E21

Iiyama LH4281S, LH4981S, LH5581S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
