USER MANUAL

Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.

ENGLISH

ENGLISH

DEUTSCH

FRANCAIS

NEDERLANDS

Congratulations!

The display you have just purchased carries the TCO’03 Displays
label. This means that your display is designed, manufactured
and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a high
performance product, designed with the user in focus that also
minimizes the impact on our natural environment.

ENGLISH

Some of the features of the TCO’03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the
user and to reduce sight and strain problems. Important parameters are luminance, contrast,
resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment

• Electrical safety

Emissions

• Electromagnetic fields

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified
environmental management system such as EMAS or ISO 14 001

• Restrictions on
o chlorinated and brominated flame retardants and polymers
o heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation
with scientists, experts, users as well as manufacturers all over the world. Since the end of the
1980s TCO has been involved in influencing the development of IT equipment in a more user­friendly direction. Our labelling system started with displays in 1992 and is now requested by users
and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

FCC DECLARATION OF CONFORMITY

Model Number: PL2201W / PL2202W
Trade Name: iiyama
Responsible party: Ampronix Inc.
Address: 8697 Research Dr. Irvine, CA.92618 U.S.A.
Telephone number: 949-788-9930

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for Class B Personal Computers and
peripherals, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the device is operated in a residential environment. This device generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If you determine the device does cause harmful interference to radio
or television reception (this may be determined by monitoring the interference while turning the device off and
on), you are encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the device and receiver.
 Connect the device into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio or TV technician for help.

ENGLISH

To meet the FCC requirements, you should use a signal cable with ferrite core at both ends.

CAUTION Changes or modifications not expressly approved by iiyama could void the users authority

to operate the device under FCC compliance regulations.

CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE
STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the radio interference regulation of the Canadian department of communications.

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” and 73/23/
EEC “Low Voltage Directive” as amended by Directive 93/68/EEC.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas,
business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings.
All places of operation are characterised by their connection to the public low voltage power supply system.

 We reserve the right to change specifications without notice.
 All trademarks used in this user manual are the property of their respective owners.
 As an E

energy efficiency.

NERGY STAR

®

Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines for

ENGLISH

TABLE OF CONTENTS

FOR YOUR SAFETY ..................................................................................... 1

SAFETY PRECAUTIONS ........................................................................ 1

SPECIAL NOTES ON LCD MONITORS .................................................... 3

CUSTOMER SERVICE ............................................................................. 3

CLEANING .............................................................................................. 3

BEFORE YOU OPERATE THE MONITOR ....................................................... 4

FEATURES .............................................................................................. 4

CHECKING THE CONTENTS OF THE PACKAGE .................................... 5

FITTING AND REMOVAL OF BASE : ProLite E2201W ........................... 5

FITTING AND REMOVAL OF BASE : ProLite E2202WS / E2202WSV ... 6

CONTROLS AND CONNECTORS : ProLite E2201W .............................. 7

CONTROLS AND CONNECTORS : ProLite E2202WS / E2202WSV ...... 8

CONNECTING YOUR MONITOR : ProLite E2201W ................................. 9

CONNECTING YOUR MONITOR : ProLite E2202WS / E2202WSV ........ 10

COMPUTER SETTING .............................................................................. 11

ADJUSTING THE VIEWING ANGLE ........................................................ 11

OPERATING THE MONITOR .......................................................................... 12

ADJUSTMENT MENU CONTENTS ........................................................... 13

SCREEN ADJUSTMENTS ........................................................................ 21

POWER MANAGEMENT FEATURE ......................................................... 24

TROUBLE SHOOTING ................................................................................... 25

APPENDIX ..................................................................................................... 27

SPECIFICATIONS : ProLite E2201W ....................................................... 27

SPECIFICATIONS : ProLite E2202WS ..................................................... 28

SPECIFICATIONS : ProLite E2202WSV .................................................. 29

DIMENSIONS : ProLite E2201W .............................................................. 30

DIMENSIONS : ProLite E2202WS / E2202WSV ....................................... 30

COMPLIANT TIMING ................................................................................ 31

CONNECTOR PIN ASSIGNMENT ............................................................. 32

Regulatory information : The high efficiency LCD backlights used in this
product contains 5mg or less of Mercury, the disposal of which may be
regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or
the Electronic Industries Alliance (www.eiae.org).
This information is only for U.S.A..

We recommend recycling of used product. Please contact your dealer or iiyama service
center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of different countries from there.

FOR YOUR SAFETY

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor
and contact your dealer or iiyama service center immediately. Further use may be dangerous and
can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fire, electric shock or damage.

ENGLISH

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric
shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will
cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.

FOR YOUR SAFETY 1

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky
areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun
shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not pull
the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause

ENGLISH

fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet
will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage.
Operating the monitor on its back, side, upside down or on a carpet or any other soft material may
also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid
accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself
as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage
your computer.

DO NOT PUT FLOPPY DISKS NEAR THE SPEAKERS
(For ProLite E2202WS / E2202WSV)

Magnetically recorded data, such as on a floppy disk, may become corrupted by the magnetic field
produced by the speakers if the disks are placed on or near the speakers.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For
optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.

2 FOR YOUR SAFETY

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE

When you first turn on the LCD monitor, the picture may not fit in the display area



because of the type of computer that is used. In this case, adjust the picture
position to the correct position.
Due to the nature of the backlight, the screen may flicker during initial use. Turn off



the Power Switch and then turn it on again to make sure the flicker disappears.
You may find slightly uneven brightness on the screen depending on the desktop



pattern you use.
Due to the nature of the LCD screen, an afterimage of the previous screen may



remain after switching the image, when the same image is displayed for hours. In
this case, the screen is recovered slowly by changing the image or turning off the
Power Switch for hours.



Contact your dealer or iiyama service center for the backlight replacement when the
screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.

CUSTOMER SERVICE



NOTE

The fluorescent light used in the LCD monitor may have to be periodically replaced.
For the warranty coverage on this component, please check with local iiyama
service center.
If you have to return your unit for service and the original packaging has been



discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.

ENGLISH

CLEANING

WARNING

CAUTION

NOTE To protect the LCD panel, do not scratch or rub the screen with a hard object.

CABINET

If you drop any materials or liquids such as water into the monitor when cleaning,



unplug the power cable immediately and contact your dealer or iiyama service center.

For safety reasons, turn off the power switch and unplug the monitor before you



clean it.



Never use any of the following strong solvents. These will damage the cabinet and



the LCD screen.

Thinner
Benzine
Abrasive cleaner

Touching the cabinet with any product made from rubber or plastic for a long time



may cause degeneration or loss of paint on the cabinet.

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then
wipe the cabinet with a soft dry cloth.

Spray-type cleaner
Wax
Acid or Alkaline solvent

LCD
SCREEN

Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.

FOR YOUR SAFETY 3

BEFORE YOU OPERATE THE MONITOR

FEATURES



 ProLite E2201W : 56cm (22") TFT Color LCD Monitor





 ProLite E2202WS / E2202WSV : 55cm (21.6") TFT Color LCD Monitor





 Supports Resolutions up to 1680 × 1050





 High Contrast 1000:1 / High Brightness 300cd/m



(Gray to Gray): ProLite E2201W



 High Contrast 1000:1 / High Brightness 300cd/m





 Multi-Color Control



ENGLISH

Supports sRGB International Standard



 Gamma Control



Clear Display for Moving Pictures & Photographs



 Digital Character Smoothing





 Automatic Set-up



2

/ Quick Response Time 2ms

2

: ProLite E2202WS / E2202WSV



 Stereo Speakers: ProLite E2202WS / E2202WSV



2 × 2W Stereo Speakers



 Economy Mode



Reduced Power Consumption



 Plug & Play VESA DDC2B Compliant



Windows



 Power Management (E





 Ergonomic Design



®

95/98/2000/Me/XP/Vista Compliant

NERGY STAR

®

and VESA DPMS Compliant)

TCO ’03 and TÜV-Ergonomics Approved



 Digital Input (DVI-D, HDCP Compliant) for Clear Display : ProLite E2201W / E2202WS





 VESA Mounting Standard (100mm×100mm) Compliant



4 BEFORE YOU OPERATE THE MONITOR

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the
monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama
office.

 Power Cable*
 DVI-D Signal Cable*
 Stand  Cable Holder
 User Manual

1

2

 D-Sub Signal Cable
 Audio Cable*

3

CAUTION

1

The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using

*

a power supply higher than this rating, then a power cable with a rating of 10A/
250V must be used.
However, all guarantees and warranties are void for any problems or damage
caused by a power cable not supplied by iiyama.

2

Accessory for ProLite E2201W / ProLite E2202WS

*

3

Accessory for ProLite E2202WS / ProLite E2202WSV

*

FITTING AND REMOVAL OF BASE : ProLite E2201W

CAUTION

Install the stand on a stable surface. The monitor may cause injury or damage if it



falls or is dropped.

Do not give a strong impact to the monitor. It may cause damage.



Unplug the monitor before installation to avoid electric shock or damage.



ENGLISH

<Install>

Hold the monitor and push the post down
into the stand.

Stand

<Remove>

Press the stopper at the back of the stand
and remove the stand from the post.

Press the stopper

BEFORE YOU OPERATE THE MONITOR 5

FITTING AND REMOVAL OF BASE : ProLite E2202WS / E2202WSV

CAUTION

Install the stand on a stable surface. The monitor may cause injury or damage if it



falls or is dropped.

Do not give a strong impact to the monitor. It may cause damage.



Unplug the monitor before installation to avoid electric shock or damage.



<Install>

Hold the monitor and push the post down

ENGLISH

into the stand.

<Remove>

Press the stopper at the back of the stand
and remove the stand from the post.

Stand

Press the stopper

6 BEFORE YOU OPERATE THE MONITOR

CONTROLS AND CONNECTORS : ProLite E2201W

<Front> <Back>

Power Switch ( )

A

Menu Button (MENU)

B

+ Button ( + )

C

– Button ( – )

D

Auto Button (AUTO)

E

ENGLISH

Input Button (SOURCE)

F

Power Indicator

G

NOTE

D-sub mini 15pin Connector (D-SUB)

H

DVI-D 24pin Connector (DVI-D)

I

Keyhole for Security Lock

J

NOTE

Blue: Normal operation
Orange: Power Management

 Auto (Signal Select)

When no signal is received from the system, the display enters into its
Power Management Mode reducing power consumption to < than 2W.

 Analog / Digital (Signal Select)

The monitor enters into power management mode which reduces the power
consumption to less than 2W when receiving no horizontal and/or vertical
sync signal.

You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.

K AC Connector (AC IN)

BEFORE YOU OPERATE THE MONITOR 7

CONTROLS AND CONNECTORS : ProLite E2202WS / E2202WSV

Power Switch ( )

A

ENGLISH

Menu Button (MENU)

B

+ Button ( )

C

– Button ( )

D

Auto Button (AUTO)

E

<Front> <Back>

Input Button (SOURCE)*

F

Power Indicator

G

NOTE

Speakers

H

AC Connector (AC IN)

I

Audio Connector ( )

J
K DVI-D 24pin Connector (DVI-D)*

L D-sub mini 15pin Connector (D-SUB)

Blue: Normal operation
Orange: Power Management

 Auto (Signal Select)

When no signal is received from the system, the display enters into its
Power Management Mode reducing power consumption to < than 2W.

 Analog / Digital (Signal Select)

The monitor enters into power management mode which reduces the power
consumption to less than 2W when receiving no horizontal and/or vertical
sync signal.

M Keyhole for Security Lock

NOTE

Available for ProLite E2202WS only.

*

8 BEFORE YOU OPERATE THE MONITOR

You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.

CONNECTING YOUR MONITOR : ProLite E2201W

ГбвмеИпмдет

Stand

Ensure that both the computer and the monitor are switched off.

A

Connect the computer to the monitor with the signal cable. (See page 32 for CONNECTOR PIN

B

ASSIGNMENT.)

Connect the Power Cable to the monitor first and then to the power supply.

C

NOTE  The signal cables used for connecting the computer and monitor may vary with the type of

computer used. An incorrect connection may cause serious damage to both the monitor and
the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector.
If a special cable is required please contact your local iiyama dealer or regional iiyama office.

 For connection to Macintosh computers, contact your local iiyama dealer or regional

iiyama office for a suitable adaptor.

 Make sure you tighten the finger screws at each end of the signal cable.

[Example of Connection]

<Back>

ENGLISH

Power Cable
(Accessory)

[ Fitting of Cable Holder ]

Collect cables at the back of the stand.

A

Position the Cable Holder at the base of the

B

stand column by inserting the ‘tabs’ into the
guide holes. Apply gentle pressure downwards
to secure.

[ Removal of Cable Holder ]

Remove Cable Holder by sliding up the base

A

column.

D-Sub Signal Cable
(Accessory)

DVI-D Signal Cable
(Accessory)

Computer

BEFORE YOU OPERATE THE MONITOR 9

CONNECTING YOUR MONITOR : ProLite E2202WS / E2202WSV

Ensure that both the computer and the monitor are switched off.

A

Connect the computer to the monitor with the signal cable. (See page 32 for CONNECTOR PIN

B

ASSIGNMENT.)

Connect the monitor to the audio equipment with the Audio Cable when using the audio features.

C
D Connect the Power Cable to the monitor first and then to the power supply.

NOTE  The signal cables used for connecting the computer and monitor may vary with the type of

computer used. An incorrect connection may cause serious damage to both the monitor and
the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector.
If a special cable is required please contact your local iiyama dealer or regional iiyama office.

ENGLISH

 For connection to Macintosh computers, contact your local iiyama dealer or regional

iiyama office for a suitable adaptor.

 Make sure you tighten the finger screws at each end of the signal cable.

[Example of Connection]

<Back>

Power Cable
(Accessory)

Available for ProLite E2202WS only.

*

D-Sub Signal Cable
(Accessory)

DVI-D Signal Cable*

Audio Cable (Accessory)

Computer

[ Fitting of Cable Holder ]

Collect cables at the back of the stand.

A

Position the Cable Holder at the base of the

B

stand column by inserting the ‘tabs’ into the
guide holes. Apply gentle pressure downwards
to secure.

[ Removal of Cable Holder ]

Remove Cable Holder by sliding up the base

A

column.

10 BEFORE YOU OPERATE THE MONITOR

ГбвмеИпмдет

Stand

COMPUTER SETTING

 Signal Timing

Change to the desired signal timing listed on page 31: COMPLIANT TIMING.

 Windows 95/98/2000/Me/XP/Vista Plug & Play

The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on
Windows 95/98/2000/Me/XP/Vista by connecting the monitor to DDC2B compliant computer with
the Signal Cable supplied. Windows 95/98/2000/Me/XP/Vista Monitor Information File for iiyama
monitors may be necessary for your computer and obtained via the Internet, using the address:

http://www.iiyama.com

NOTE

 For additional information on how to download the driver for your monitor, please

access one of the internet sites noted above.

 Monitor Drivers are not required in most cases for Macintosh or Unix operating systems.

For further information, please contact your computer dealer first for advice.

ADJUSTING THE VIEWING ANGLE

 For optimal viewing it is recommended to look at the full face

of the monitor.

 Hold the stand so that the monitor does not topple when you

change the monitor’s angle.

 You are able to adjust the monitor’s angle up to 20 degrees

upward, 5 degrees downward.

 In order to ensure a healthy and relaxed body position when

using the monitor at visual display workstations, it is
recommended that the adjusted tilt angle should not exceed
10 degrees. Adjust the monitor’s angle to your own preference.

ENGLISH

20

5

NOTE  Do not touch the LCD screen when you change the

angle. It may cause damage or break the LCD screen.

 Careful attention is required not to catch your fingers

or hands when you change the angle.

BEFORE YOU OPERATE THE MONITOR 11

OPERATING THE MONITOR

To create the best picture, your iiyama LCD monitor has been preset at the factory
TIMING shown on page 31. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 21 for SCREEN ADJUSTMENTS.

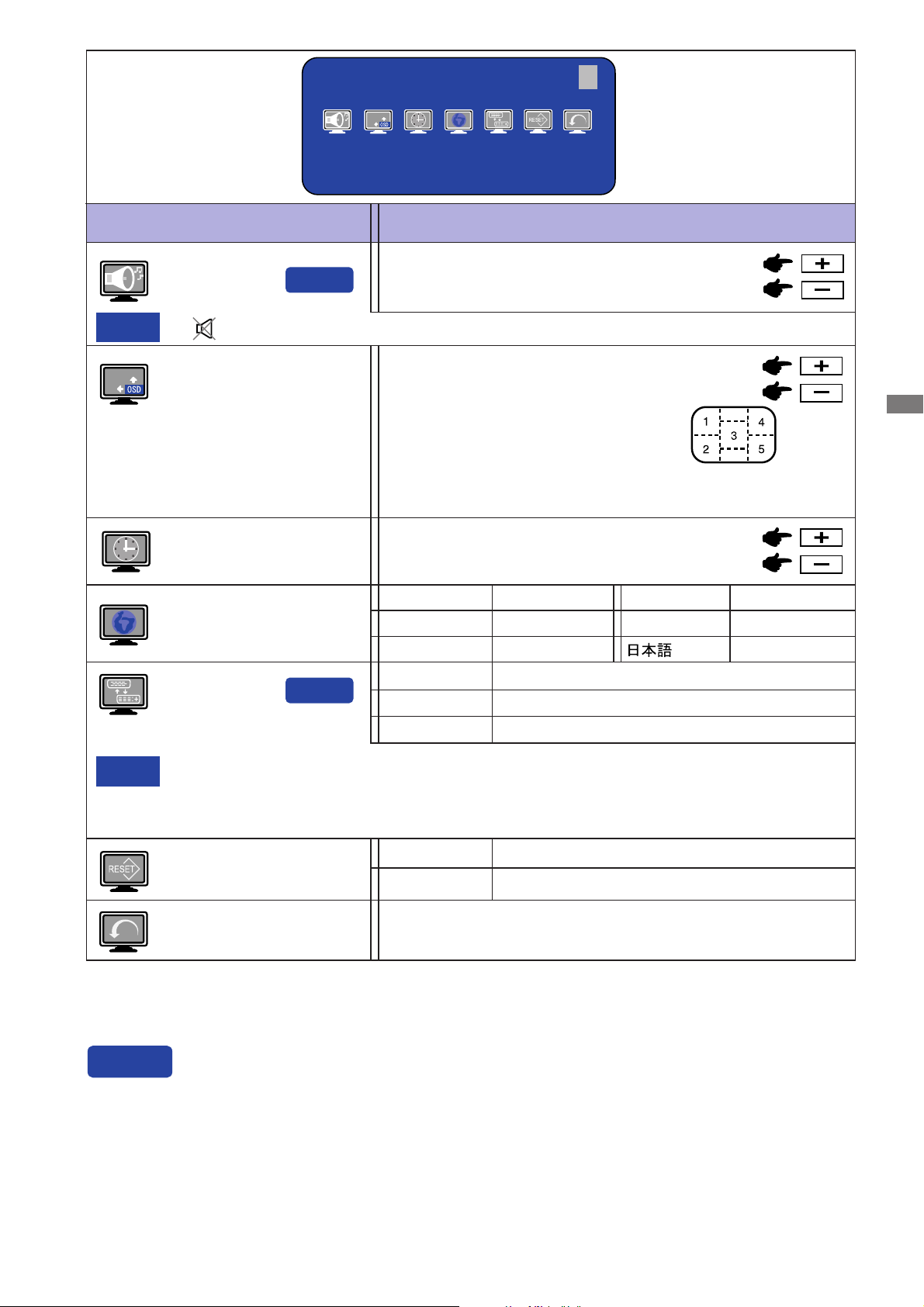

Press the Menu Button to start the On Screen Display feature. There are

((

(

((

with the COMPLIANT

additional Menu pages which can be switched by using the +/– Buttons.

Displayed while Economy Mode is active.

ENGLISH

Select the Menu page which contains the adjustment icon relating to the

BB

B

BB

Displayed while sRGB is active.

Adjustment icon

Current horizontal frequency,

vertical refresh rate

and resolution

sRGB

1

LOCK

1680 × 1050

H:65.4KHz V:60.1Hz

Displayed while Lock Out is active.

Displayed while Mute is active.

Menu:1

Page no.

adjustment you want to make. Press the Menu Button again. Then, use the
+/– Buttons to highlight the desired adjustment icon. Press the Menu Button
again.

Use the +/– Buttons to make the appropriate adjustment or setting.

CC

C

CC

For example, to correct for vertical position, select Menu page number 1 and then press the Menu
Button. Then, select (V-Position) by using the +/– Buttons.

Menu:1

1680 × 1050

H:65.4KHz V:60.1Hz

An adjustment scale appears after you press the Menu Button. Use the +/– Buttons to change the
vertical position settings. The vertical position of the overall display should be changing accordingly
while you are doing this.

V-Position

NOTE

The bar shows

the progress of the

adjustment being made.

–

+

50

When button operations are aborted during adjustment, On-Screen Display disappears when the



time set for the OSD Off Timer has passed. The Auto Button can be used to exit OSD window
immediately.

Any changes are automatically saved in the memory when the On Screen Display



Turning off the power should be avoided while using the Menu.



Adjustments for Clock, Phase and Position are saved for each signal timing. Except for these
adjustments, all other adjustments have only one setting which applies to all signal timings.

12 OPERATING THE MONITOR

disappears.

ADJUSTMENT MENU CONTENTS

Direct

You can skip the Menu pages and display an adjustment scale directly by using the
following button operations.

z Brightness / Contrast / Volume*

1

: To display direct menu press either of the +/- Buttons. Continue

to use the +/- Buttons to select the adjustments required.

z Auto Set-up: Press the Auto Button when the Menu is not displayed.

z Volume (Mute)*1: With the OSD menu off, the pressing and holding of the Menu Button for 1-2

seconds will enable/disable the Audio Mute facility.

2

z Signal Select*

: With the OSD menu off, pressing the Input Button will switch the input signal

from Analogue to Digital.

z Lock Out: With the OSD menu off, pressing and holding the Menu and ‘-‘ Buttons

simultaneously for a period of at least 7 seconds will enable and disable the OSD
Lock Out mode.
is displayed while Lock Out is active.

1

Available for ProLite E2202WS / E2202WSV only.

*

2

Available for ProLite E2201W / E2202WS only.

*

ENGLISH

OPERATING THE MONITOR 13

Analog Input

Menu : 1

(Analog)

Menu:1

1680 × 1050

H:65.4KHz V:60.1Hz

Adjustment Item Problem / Option Button to Press

ENGLISH

Brightness *

1

Direct

Too dark
Too bright

Contrast

Direct

Too dull
Too intense

Clock *

Phase *

V-Position

2

2

To correct flickering text or lines

To correct flickering text or lines

Too low
Too high

Too far to the left

H-Position

Too far to the right

Return to Menu Highlight “Menu : 1” again.

*1Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too

bright.

*2See page 21 for SCREEN ADJUSTMENTS.

Direct

14 OPERATING THE MONITOR

See page 13 for Direct adjustment.

Menu : 2

(Analog)

Menu:2

1680 × 1050

H:65.4KHz V:60.1Hz

Adjustment Item

Auto Set-up *

Direct

3

Problem / Option Button to Press

NO

YES

Return to Menu.

Adjust Clock, Phase, V-Position and H-Position
automatically.

Setting

Off

The Auto Set-up is not performed when the
signal input is changed.

Adjust Clock, Phase, V-Position and H-Position

On

automatically when the signal input is changed.

NOTE  The brightness of screen varies for several seconds during the adjustment.

 This function is not performed automatically when changing the signal input because

the factory-preset of “Setting” in Auto Set-up is set to Off.

Color 1: 9300K

Color 2: 7500K
Color 3: 6500K
sRGB

R

Too weak

Color Temp.

1
2

3
s

G

(User)

Too strong

B

ENGLISH

NOTE  sRGB is an international standard which defines and unifies the difference of color

appearance between equipment.

 You can not adjust the Gamma and Economy Mode during sRGB mode because those

settings are locked.

 is displayed while sRGB is active.

Sharpness

1 2 3 4 5

Adjust the picture quality at resolutions of less than 1680 ×

1050.
You can change the picture quality from 1 to 5 (sharp to soft).
Press the + Button to change the picture quality in numerical
order. Press the – Button to change the picture quality in reverse
numerical order.

*3For best results, use the Auto Set-up in conjunction with the adjustment pattern. See page 21 for

SCREEN ADJUSTMENTS.

Direct

See page 13 for Direct adjustment.

OPERATING THE MONITOR 15

Menu : 2

(Analog)

Problem / OptionAdjustment Item

NOTE  is displayed while Economy Mode is active.

ENGLISH

Off

Gamma

Economy Mode

Return to Menu Highlight “Menu : 2” again.

Mode1 High contrast
Mode2
Off
Mode1 Brightness of back-light is reduced.

Mode2 Brightness of back-light is reduced more than Mode1.

Normal

Dark
Normal

16 OPERATING THE MONITOR

Menu : 3

(Analog)

Menu:3

1680 × 1050

H:65.4KHz V:60.1Hz

Adjustment Item

Volume *

1

Direct

Problem / Option Button to Press

Too soft
Too loud

NOTE  is displayed while Mute is active.

1 2 3 4 5

OSD Position

You can move the OSD display area
to any one of the following 5 positions
within the overall display:

Press the + Button to move the OSD in numerical order. Press
the – Button to move the OSD in reverse numerical order.

OSD Off Timer

Set the OSD Off Timer for 3-60 seconds.

English

Language

Deutsch
Français

Signal Select *

2

Direct

Auto

Analog
Digital

English

German

French

Español
Italiano

Spanish
Italian

Japanese

Select the signal input automatically.
Select the Analog input (D-SUB).
Select the Digital input (DVI-D).

ENGLISH

NOTE

When both Analogue and Digital cables are connected, you can switch between them
using the direct access facility described earlier. If only one input is present, this will
automatically be selected. In Power Management Mode input switching is disabled.

NO

Reset

YES

Return to Menu

1

Available for ProLite E2202WS / E2202WSV only.

*

2

Available for ProLite E2201W / E2202WS only.

*

Direct

See page 13 for Direct adjustment.

Highlight “Menu : 3” again.

Return to Menu.

Factory-preset data is restored.

OPERATING THE MONITOR 17

Digital Input : Available for ProLite E2201W / ProLite E2202WS only.

Menu:1

1680 × 1050

H:65.4KHz V:60.1Hz

Adjustment Item Problem / Option Button to Press

ENGLISH

NOTE

Brightness *

Contrast

Color Temp.

1

Direct

Direct

Too dark
Too bright

Too dull
Too intense

1
2
3
s

Color 1: 9300K
Color 2: 7500K

Color 3: 6500K
sRGB

R

Too weak

G

User

Too strong

B

 sRGB is an international standard which defines and unifies the difference of color

appearance between equipment.

 You can not adjust the Gamma and Economy Mode during sRGB mode because those

settings are locked.

 is displayed while sRGB is active.

Sharpness

1 2 3 4 5

Adjust the picture quality at resolutions of less than 1680
× 1050.
You can change the picture quality from 1 to 5 (sharp to soft).
Press the + Button to change the picture quality in
numerical order. Press the – Button to change the picture
quality in reverse numerical order.

Gamma

Off
Mode1
Mode2

Normal
High contrast
Dark

*1Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too

bright.

Direct

See page 13 for Direct adjustment.

18 OPERATING THE MONITOR

Menu : 1

(Digital)

Adjustment Item

Economy Mode

NOTE  is displayed while Economy Mode is active.

Return to Menu Highlight “Menu : 1” again.

Off
Mode1 Brightness of back-light is reduced.

Mode2 Brightness of back-light is reduced more than Mode1.

Normal

Problem / Option

ENGLISH

OPERATING THE MONITOR 19

Menu : 2

(Digital)

Menu:2

1680 × 1050

H:65.4KHz V:60.1Hz

NOTE  is displayed while Mute is active.

ENGLISH

Adjustment Item

Volume *

1

OSD Position

OSD Off Timer

Language

Signal Select

Direct

Direct

Problem / Option Button to Press

Too soft
Too loud

1 2 3 4 5
You can move the OSD display area

to any one of the following 5 positions
within the overall display:

Press the + Button to move the OSD in numerical order. Press
the – Button to move the OSD in reverse numerical order.

Set the OSD Off Timer for 3-60 seconds.

English
Deutsch

Français

Auto

Analog
Digital

English
German

French

Español
Italiano

Italian
Japanese

Select the signal input automatically.
Select the Analog input (D-SUB).
Select the Digital input (DVI-D).

NOTE

When both Analogue and Digital cables are connected, you can switch between them
using the direct access facility described earlier. If only one input is present, this will
automatically be selected. In Power Management Mode input switching is disabled.

Reset

Return to Menu

*1Available for ProLite E2202WS only.

Direct

See page 13 for Direct adjustment.

NO

YES

Return to Menu.

Factory-preset data is restored.

Highlight “Menu : 2” again.

20 OPERATING THE MONITOR

SCREEN ADJUSTMENTS

Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

 The screen adjustments described in this manual are designed to set image position and minimize

flicker or blur for the particular computer in use.

 The monitor is designed to provide the best performance at resolution of 1680 × 1050, but can not

provide the best at resolutions of less than 1680 × 1050 because the picture is automatically stretched
to fit the full screen. It is recommended to operate at resolution of 1680 × 1050 in normal use.

 Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to

the screen enlargement process.

 It is preferable to adjust the image position and frequency with the monitor controls, rather than the

computer software or utilities.

 Perform adjustments after a warm-up period of at least thirty minutes.

 Additional adjustments may be required after the Auto Set-up depending on the resolution or signal

timing.

 The Auto Set-up may not work correctly when displaying the picture other than the screen

adjustment pattern. In this case, manual adjustments are required.

ENGLISH

There are two ways to adjust the screen. One way is automatic adjustment for Clock, Phase and
Position. The other way is performing each adjustment manually.
Perform the Auto Set-up first when the monitor is connected to a new computer, or resolution is
changed. If the screen has a flicker or blur, or the picture does not fit in the display area after
performing the Auto Set-up, manual adjustments are required. Both adjustments should be made by
using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://
www.iiyama.com).

Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows 95/98/2000/Me/XP/Vista.

Display the picture at the optimum resolution.

AA

A

AA

Enter the Test.bmp (screen adjustment pattern) to wallpaper.

BB

B

BB

NOTE

NOTE  Consult the appropriate documentation for doing this.

 Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the

wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the setting
of “Stretch desktop wallpaper to fit the screen”.

[Adjustment pattern]

Zebra pattern

Color bar

Picture frame

This is the image
displayed at 1280 × 1024.

OPERATING THE MONITOR 21

Press the Auto Button. (Auto Set-up)

CC

C

CC

Adjust the image manually by following procedure below when the screen has a

DD

D

DD

flicker or blur, or the picture does not fit in the display area after performing the Auto
Set-up.

Adjust the V-Position so that the top and bottom of the picture frame will fit to the

EE

E

EE

display area.

ENGLISH

1) Adjust the H-Position so that the left side of the picture frame will move to the left

FF

F

FF

+
–

edge of the display area.

+
–

2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the Clock.

+
–

NOTE  When the left side of the picture frame moves apart from the left edge of the display

NOTE

area during the Clock adjustment, adjust steps 1) and 2).

 Another way to make the Clock adjustment is to correct the vertical wavy lines in the

zebra pattern.

 The picture may flicker during the Clock, H-Position and V-Position adjustment.

 In case the picture frame is bigger or smaller than the data display area after the Clock

adjustment, repeat steps from C.

22 OPERATING THE MONITOR

Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern.

GG

G

GG

+
–

NOTE  In case the strong flicker or blurs remain on a part of the screen, repeat steps F and

NOTE

because the Clock may not be adjusted correctly. If the flicker or blurs still remain,

G

set the refresh rate of computer to low (60Hz) and repeat steps from C again.

 Adjust the H-Position after the Phase adjustment if the horizontal position moves

during the adjustment.

Adjust the Brightness and Color Temp. to get the desired picture after you complete

HH

H

HH

the Clock and Phase adjustments.
Put back your favorite wallpaper.

ENGLISH

OPERATING THE MONITOR 23

POWER MANAGEMENT FEATURE

The power management feature of this product complies with power saving requirement of E
STAR® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption
of the monitor when your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There
is a power management step the monitor takes as described below. The power management function,
including any timer settings is configured by the operating system. Check your operating system
manual for information on how this can be configured.

Power Management Mode



When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the
monitor enters into Power Management Mode which reduces the power consumption to less than

ENGLISH

2W. The screen becomes dark, and the power indicator turns to orange. From Power Management
Mode, the image reappears in several seconds when either the keyboard or the mouse are
touched again.

Power Indicator

NORMAL MODE

POWER MANAGEMENT MODE

Blue

Orange

NERGY

NOTE

POWER
CONSUMPTION

Even when using the power management mode, the monitor consumes electricity. Turn



0 2W 100%

off the Power Switch whenever the monitor is not in use, during the night and weekends,
to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync



signal is missing. In this instance, the POWER MANAGEMENT feature may not work
properly.

24 OPERATING THE MONITOR

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you

1.
have. If the monitor does not get a picture, skip to 2.

2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE
MONITOR or if the problem persists.

3.

If you are experiencing a problem which is not described below or you cannot correct the
problem, discontinue using the monitor and contact your dealer or iiyama service center for
further assistance.

Problem Check

The picture does

A

not appear.

ENGLISH

(Power indicator
does not light up.)

(Power indicator
is blue.)

(Power indicator
is orange.)

The screen is not

B

synchronized.

The Power Cable is firmly seated in the socket.



The Power Switch is turned ON.
The AC socket is live. Please check with another piece of equipment.



 If the blank screen saver is in active mode, touch the keyboard or the

mouse.



Increase the Contrast and/or Brightness.
The computer is ON.




The Signal Cable is properly connected.

 The signal timing of the computer is within the specification of the monitor.



If the monitor is in power management mode, touch the keyboard or the
mouse.
The computer is ON.




The Signal Cable is properly connected.



The signal timing of the computer is within the specification of the monitor.

The Signal Cable is properly connected.


 The signal timing of the computer is within the specification of the monitor.

The video output level of the computer is within the specification of the



monitor.

The screen

C

position is not in
the center.

The screen is

D

too bright or too
dark.

The screen is

E

shaking.

The signal timing of the computer is within the specification of the monitor.



The video output level of the computer is within the specification of the



monitor.

 The power voltage is within the specification of the monitor.


The signal timing of the computer is within the specification of the monitor.

TROUBLE SHOOTING 25

Problem Check

The audio equipment (computer etc.) is ON.

No sound.

F

*



The Audio Cable is properly connected.



The Volume is turned up.



The Mute is OFF.


 The audio output level of the audio equipment is within the specification of

the monitor.

The audio output level of the audio equipment is within the specification of

The sound is too*

G

loud or too quiet.

A strange noise is*

H



the monitor.

The Audio Cable is properly connected.



heard.

ENGLISH

* Available for ProLite E2202WS / E2202WSV only.

26 TROUBLE SHOOTING

APPENDIX

SPECIFICATIONS: ProLite E2201W

LCD Panel

Display Colors
Sync Frequency

Dot Clock
Maximum Resolution
Input Connector
Plug & Play VESA DDC2B
Input Sync Signal
Input Video Signal

Driving system
Size
Pixel pitch
Brightness
Contrast ratio
Viewable angle
Response time

a-Si TFT Active Matrix
Diagonal: 56cm / 22"

0.282mm H × 0.282mm V
300cd/m2 (Typical)
1000 : 1 (Typical)
Right / Left: 85 degrees each, Up / Down: 80 degrees each
5ms (Black, white, black), 2ms (Gray to Gray)
Approx. 16.7 million maximum
Analog: Horizontal 24.0-80.0kHz, Vertical 55-75Hz

Digital: Horizontal 31.0-80.0kHz, Vertical 55-75Hz
162MHz maximum

1680 × 1050, 1.8 MegaPixels
D-Sub mini 15pin, DVI-D 24pin

Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75Ω, Positive

Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance

ENGLISH

TM

Maximum Screen Size 473.8mm W × 296.1mm H / 18.7" W × 11.7" H
Power Source 100-240VAC, 50/60Hz, 1.5A

49W maximum, Power management mode: 2W maximum*Power Consumption

Dimensions / Net Weight 507.0 × 410.5 × 209.5mm / 20.0 × 16.2 × 8.3" (W×H×D), 5.8kg / 12.8lbs

Tilt Angle
Environmental
Considerations

Approvals

NOTE

* Condition: Audio equipment is not connected.

Up: 20 degrees, Down: 5 degrees
Operating: Temperature

Humidity

Storage: Temperature

Humidity

TCO ’03, CE, TÜV-GS, TÜV-Ergonomics, FCC-B, UL / C-UL, VCCI-B

5 to 35°C / 41 to 95°F

10 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
5 to 85% (No condensation)

APPENDIX 27

SPECIFICATIONS: ProLite E2202WS

LCD Panel

Display Colors
Sync Frequency

ENGLISH

Dot Clock
Maximum Resolution
Input Connector
Plug & Play
Input Sync Signal
Input Video Signal

Driving system
Size
Pixel pitch
Brightness
Contrast ratio
Viewable angle
Response time

a-Si TFT Active Matrix
Diagonal: 55cm / 21.6"

0.277mm H × 0.277mm V
300cd/m2 (Typical)
1000 : 1 (Typical)
Right / Left / Up / Down: 80 degrees each
5ms (Black, white, black)
Approx. 16.7 million maximum
Analog: Horizontal 24.0-80.0kHz, Vertical 55-75Hz

Digital: Horizontal 31.0-80.0kHz, Vertical 55-75Hz
162MHz maximum

1680 × 1050, 1.8 MegaPixels
D-Sub mini 15pin, DVI-D 24pin
VESA DDC2B

TM

Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75Ω, Positive

Digtal: DVI (Digital Visual Interface Standard Rev.1.0) compliance

Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 0.7Vrms maximum
Speakers 2.0W × 2 (Stereo speakers)
Maximum Screen Size 464.9mm W × 290.6mm H / 18.3" W × 11.4" H
Power Source 100-240VAC, 50/60Hz, 1.5A

56W maximum, Power management mode: 2W maximum*Power Consumption
Dimensions / Net Weight 506.0 × 404.0 × 210.0mm / 19.9 × 15.9 × 8.3" (W×H×D), 5.0kg / 11.0lbs
Tilt Angle
Environmental

Considerations

Approvals

NOTE

* Condition: Audio equipment is not connected.

Up: 20 degrees, Down: 5 degrees

Operating: Temperature

Humidity

Storage: Temperature

Humidity

5 to 35°C / 41 to 95°F

10 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
5 to 85% (No condensation)

TCO ’03, CE, TÜV-GS, TÜV-Ergonomics, FCC-B, UL / C-UL, VCCI-B

28 APPENDIX

SPECIFICATIONS: ProLite E2202WSV

LCD Panel

Driving system
Size
Pixel pitch
Brightness
Contrast ratio
Viewable angle

Response time
Display Colors
Sync Frequency
Dot Clock
Maximum Resolution
Input Connector
Plug & Play VESA DDC2B
Input Sync Signal
Input Video Signal

a-Si TFT Active Matrix
Diagonal: 55cm / 21.6"

0.277mm H × 0.277mm V
300cd/m2 (Typical)
1000 : 1 (Typical)
Right / Left / Up / Down: 80 degrees each
5ms (Black, white, black)
Approx. 16.7 million maximum
Analog: Horizontal 24.0-80.0kHz, Vertical 55-75Hz
162MHz maximum
1680 × 1050, 1.8 MegaPixels
D-Sub mini 15pin

TM

Separate sync: TTL, Positive or Negative

Analog: 0.7Vp-p (Standard), 75Ω, Positive
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 0.7Vrms maximum

ENGLISH

Speakers 2.0W × 2 (Stereo speakers)
Maximum Screen Size 464.9mm W × 290.6mm H / 18.3" W × 11.4" H
Power Source 100-240VAC, 50/60Hz, 1.5A

56W maximum, Power management mode: 2W maximum*Power Consumption

Dimensions / Net Weight 506.0 × 404.0 × 210.0mm / 19.9 × 15.9 × 8.3" (W×H×D), 5.0kg / 11.0lbs

Tilt Angle
Environmental
Considerations

Approvals

NOTE

* Condition: Audio equipment is not connected.

Up: 20 degrees, Down: 5 degrees

Operating: Temperature

Humidity

Storage: Temperature

Humidity

5 to 35°C / 41 to 95°F

10 to 80% (No condensation)

-20 to 60°C / -4 to 140°F
5 to 85% (No condensation)

TCO ’03, CE, TÜV-GS, TÜV-Ergonomics, FCC-B, UL / C-UL, VCCI-B

APPENDIX 29

DIMENSIONS : ProLite E2201W

297.5mm/11.7"

339.5mm/13.4"

ENGLISH

DIMENSIONS : ProLite E2202WS / E2202WSV

507.0mm/20.0"

475.5mm/18.7"

260.0mm/10.2"

506.0mm/19.9"

467.0mm/18.4"

74.0mm/2.9"

61.0mm/2.4"

410.5mm/16.2"

209.5mm/8.3"

292.5mm/11.5"

357.5mm/14.1"

204.0mm/8.0"

404.0mm/15.9"

210.0mm/8.3"

30 APPENDIX

COMPLIANT TIMING

VESA

VGA TEXT

Macintosh

PC9801

Video Mode

VGA

SVGA

XGA 1024 × 768

WXGA 1280 × 768

SXGA

WXGA+ 1440 × 900

WSXGA+ 1680 × 1050

640 × 480

800 × 600

1152 × 864

1280 × 1024

720 × 400
640 × 480
832 × 624

1024 × 768

640 × 400

Horizontal

Frequency

31.469kHz

37.500kHz

37.861kHz

35.156kHz

37.879kHz

46.875kHz

48.077kHz

48.363kHz

56.476kHz

60.023kHz

47.776kHz

60.289kHz

67.500kHz

63.981kHz

79.976kHz

55.935kHz

70.635kHz

65.290kHz

31.469kHz

35.000kHz

49.725kHz

60.150kHz

24.827kHz

Vertical

Frequency

59.940Hz

75.000Hz

72.809Hz

56.250Hz

60.317Hz

75.000Hz

72.188Hz

60.004Hz

70.069Hz

75.029Hz

59.870Hz

74.893Hz

75.000Hz

60.020Hz

75.025Hz

59.887Hz

74.984Hz

60.000Hz

70.087Hz

66.667Hz

74.500Hz

74.720Hz

56.424Hz

Dot Clock

25.175MHz

31.500MHz

31.500MHz

36.000MHz

40.000MHz

49.500MHz

50.000MHz

65.000MHz

75.000MHz

78.750MHz

79.500MHz

102.250MHz

108.000MHz

108.000MHz

135.000MHz

106.500MHz

136.750MHz

146.250MHz

28.322MHz

30.240MHz

57.283MHz

80.000MHz

21.053MHz

ENGLISH

*
*
*
*
*

NOTE

* DVI input is not compliant.

APPENDIX 31

CONNECTOR PIN ASSIGNMENT

 D-Sub mini 15pin

Connector

ENGLISH



DVI-D 24pin
Connector

1

9

17

DVI-D

Pin

1

Red video

2

Green video
Blue video

3

Reserved port

4
5

Ground

Ground

6

Red video ground

7

Green video ground
Blue video ground

8

Pin

1

T.M.D.S Data 2–

2

T.M.D.S Data 2+

8

16
24

3

T.M.D.S Data 2 Ground

4

Input Signal

Input Signal

5

Pin

9

10

Ground

11

Reserved port
Data line (SDA)*

12

13

H-Sync
V-Sync

14

15

Clock line (SCL)*

* Compliant to VESA DDC.

Pin

13
14

Ground

15
16

Hot Plug Detect
T.M.D.S Data 0–

17

Input Signal

Input Signal

6

Clock line (SCL) *
Data line (SDA) *

7
8

T.M.D.S Data 1–

9

10

T.M.D.S Data 1+
T.M.D.S Data 1 Ground

11

12

T.M.D.S Data 0+

18

T.M.D.S Data 0 Ground

19
20
21

T.M.D.S Clock Ground

22

T.M.D.S Clock +

23

T.M.D.S Clock –

24

* Compliant to VESA DDC.

32 APPENDIX
M029A01
