Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through this
brief but comprehensive manual before
installing and switching on the monitor.
Please keep this manual in a safe
place for your future reference.
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/11, 10:121
ITALIANO
POLSKI
Congratulations!
The display you have just purchased carries the TCO’03 Displays
label. This means that your display is designed, manufactured
and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a high
performance product, designed with the user in focus that also
minimizes the impact on our natural environment.
ENGLISH
Some of the features of the TCO’03 Display requirements:
Ergonomics
• Good visual ergonomics and image quality in order to improve the working environment for the
user and to reduce sight and strain problems. Important parameters are luminance, contrast,
resolution, reflectance, colour rendition and image stability.
Energy
• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety
Emissions
• Electromagnetic fields
• Noise emissions
Ecology
• The product must be prepared for recycling and the manufacturer must have a certified
environmental management system such as EMAS or ISO 14 001
• Restrictions on
o chlorinated and brominated flame retardants and polymers
o heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been developed by TCO Development in cooperation
with scientists, experts, users as well as manufacturers all over the world. Since the end of the
1980s TCO has been involved in influencing the development of IT equipment in a more userfriendly direction. Our labelling system started with displays in 1992 and is now requested by users
and IT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:192
FCC DECLARATION OF CONFORMITY
Model Number:
Trade Name: iiyama
Responsible party: Ampronix Inc.
Address: 8697 Research Dr. Irvine, CA.92618 U.S.A.
Telephone number: 949-788-9930
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for Class B Personal Computers and
peripherals, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the device is operated in a residential environment. This device generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If you determine the device does cause harmful interference to radio
or television reception (this may be determined by monitoring the interference while turning the device off and
on), you are encouraged to try to correct the interference by one of the following measures:
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends.
PL2000
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio or TV technician for help.
CAUTION Changes or modifications not expressly approved by IIYAMA could void the users authority
to operate the device under FCC compliance regulations.
ENGLISH
CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE
STATEMENT
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the radio interference regulation of the Canadian department of communications.
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” and 73/23/
EEC “Low Voltage Directive” as amended by Directive 93/68/EEC.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas,
business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings.
All places of operation are characterised by their connection to the public low voltage power supply system.
We reserve the right to change specifications without notice.
All trademarks used in this user manual are the property of their respective owners.
As an E
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:193
NERGY STAR
energy efficiency.
®
Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines for
ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY .............................................................................. 1
SAFETY PRECAUTIONS ................................................................. 1
SPECIAL NOTES ON LCD MONITORS ............................................. 3
CUSTOMER SERVICE ...................................................................... 3
CLEANING ....................................................................................... 3
BEFORE YOU OPERATE THE MONITOR ................................................ 4
FEATURES ....................................................................................... 4
CHECKING THE CONTENTS OF THE PACKAGE ............................. 4
HOW TO USE THE STAND .............................................................. 5
CONTROLS AND CONNECTORS .................................................... 6
CONNECTING YOUR MONITOR ...................................................... 7
COMPUTER SETTING ....................................................................... 8
ADJUSTING THE VIEWING ANGLE ................................................. 8
OPERATING THE MONITOR ................................................................... 9
ADJUSTMENT MENU CONTENTS .................................................... 10
SCREEN ADJUSTMENTS ................................................................. 14
POWER MANAGEMENT FEATURE .................................................. 17
TROUBLE SHOOTING ............................................................................ 18
RECYCLING INFORMATION ................................................................... 19
APPENDIX .............................................................................................. 20
SPECIFICATIONS ............................................................................. 20
DIMENSIONS .................................................................................... 24
COMPLIANT TIMING ......................................................................... 24
CONNECTOR PIN ASSIGNMENT ...................................................... 25
Regulatory information : The high efficiency LCD backlights used in this
product contains 5mg or less of Mercury, the disposal of which may be
regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or
the Electronic Industries Alliance (www.eiae.org).
This information is only for U.S.A..
We recommend recycling of used product. Please contact your dealer or iiyama service
center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of different countries from there.
PLE2001_3WS_WSV-e-M034B01.P65 2007/10/02, 13:054
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor
and contact your dealer or iiyama service center immediately. Further use may be dangerous and
can cause fire or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fire or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fire, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric
shock.
ENGLISH
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will
cause malfunction and may cause fire or electric shock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fire or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
FOR YOUR SAFETY 1
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:195
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky
areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun
shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not pull
the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
ENGLISH
fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet
will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage.
Operating the monitor on its back, side, upside down or on a carpet or any other soft material may
also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid
accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself
as this may cause fire or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage
your computer.
DO NOT PUT FLOPPY DISKS NEAR THE SPEAKERS
Magnetically recorded data, such as on a floppy disk, may become corrupted by the magnetic field
produced by the speakers if the disks are placed on or near the speakers.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For
optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
2 FOR YOUR SAFETY
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:196
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE
When you first turn on the LCD monitor, the picture may not fit in the display area
because of the type of computer that is used. In this case, adjust the picture
position to the correct position.
Due to the nature of the backlight, the screen may flicker during initial use. Turn off
the Power Switch and then turn it on again to make sure the flicker disappears.
You may find slightly uneven brightness on the screen depending on the desktop
pattern you use.
Due to the nature of the LCD screen, an afterimage of the previous screen may
remain after switching the image, when the same image is displayed for hours. In
this case, the screen is recovered slowly by changing the image or turning off the
Power Switch for hours.
Contact your dealer or iiyama service center for the backlight replacement when the
screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.
CUSTOMER SERVICE
NOTE
The fluorescent light used in the LCD monitor may have to be periodically replaced.
For the warranty coverage on this component, please check with local iiyama
service center.
If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.
ENGLISH
CLEANING
WARNING
CAUTION
NOTE To protect the LCD panel, do not scratch or rub the screen with a hard object.
CABINET
LCD
SCREEN
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:197
If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.
For safety reasons, turn off the power switch and unplug the monitor before you
clean it.
Never use any of the following strong solvents. These will damage the cabinet and
the LCD screen.
Thinner
Benzine
Abrasive cleaner
Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then
wipe the cabinet with a soft dry cloth.
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
Spray-type cleaner
Wax
Acid or Alkaline solvent
FOR YOUR SAFETY 3
BEFORE YOU OPERATE THE MONITOR
FEATURES
51.1cm (20.1") TFT Color LCD Monitor
Supports Resolutions up to 1680 × 1050
High Contrast 1000:1 / Quick Response Time 5ms : ProLite E2001
High Contrast 2000:1 (DCR) / Quick Response Time 2ms (Gray to Gray) :
ProLite E2003
Digital Character Smoothing
Automatic Set-up
ENGLISH
Stereo Speakers
2 × 1W Stereo Speakers
Plug & Play VESA DDC2B Compliant
Windows
Power Management (E
Ergonomic Design: TCO ’03 and MPR
Digital Input (DVI-D, HDCP Compliant) for Clear Display :
ProLite E2001WS / E2003WS
VESA Mounting Standard (100mm×100mm) Compliant
®
95/98/2000/Me/XP/Vista Compliant
NERGY STA R
®
VESA DPMS Compliant)
33
3 Approved
33
CHEKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the
monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama
office.
Power Cable*
Audio Cable Stand User Manual
CAUTION
CAUTION
4 BEFORE YOU OPERATE THE MONITOR
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:198
1
1
The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
*
a power supply higher than this rating, then a power cable with a rating of 10A/
250V must be used.However, all guarantees and warranties are void for any
problems or damage caused by a power cable not supplied by iiyama.
2
*
Accessory for ProLite E2001WS / E2003WS
D-Sub Signal Cable DVI -D Signal Cable*
2
HOW TO USE THE STAND
HOW TO USE THE STAND
The monitor is shipped with the stand detached. Be sure to attach the stand before operating the
display and remove if it is necessary to re-box.
CAUTION
<Installation>
1. Put a piece of soft cloth on the table
beforehand to prevent the monitor from being
scratched. Lay the monitor flat on a table with
front face down.
2. The Stand-Bottom is pulled up as shown in
the figure.
3. Install the Stand-Base to the Stand-Bottom.
<Remove>
1. Put a piece of soft cloth on the table
beforehand to prevent the monitor from being
scratched. Lay the monitor flat on a table with
front face down.
2. Hold down the hooks outside and pull the
Stand-Base away from the Stand-Bottom.
Install the Stand on a stable surface. The monitor may cause injury or damage if
it falls or is dropped.
Do not give a strong impact to the monitor. It may cause damage.
Unplug the monitor before installation to avoid electric shock or damage.
ENGLISH
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:199
BEFORE YOU OPERATE THE MONITOR 5

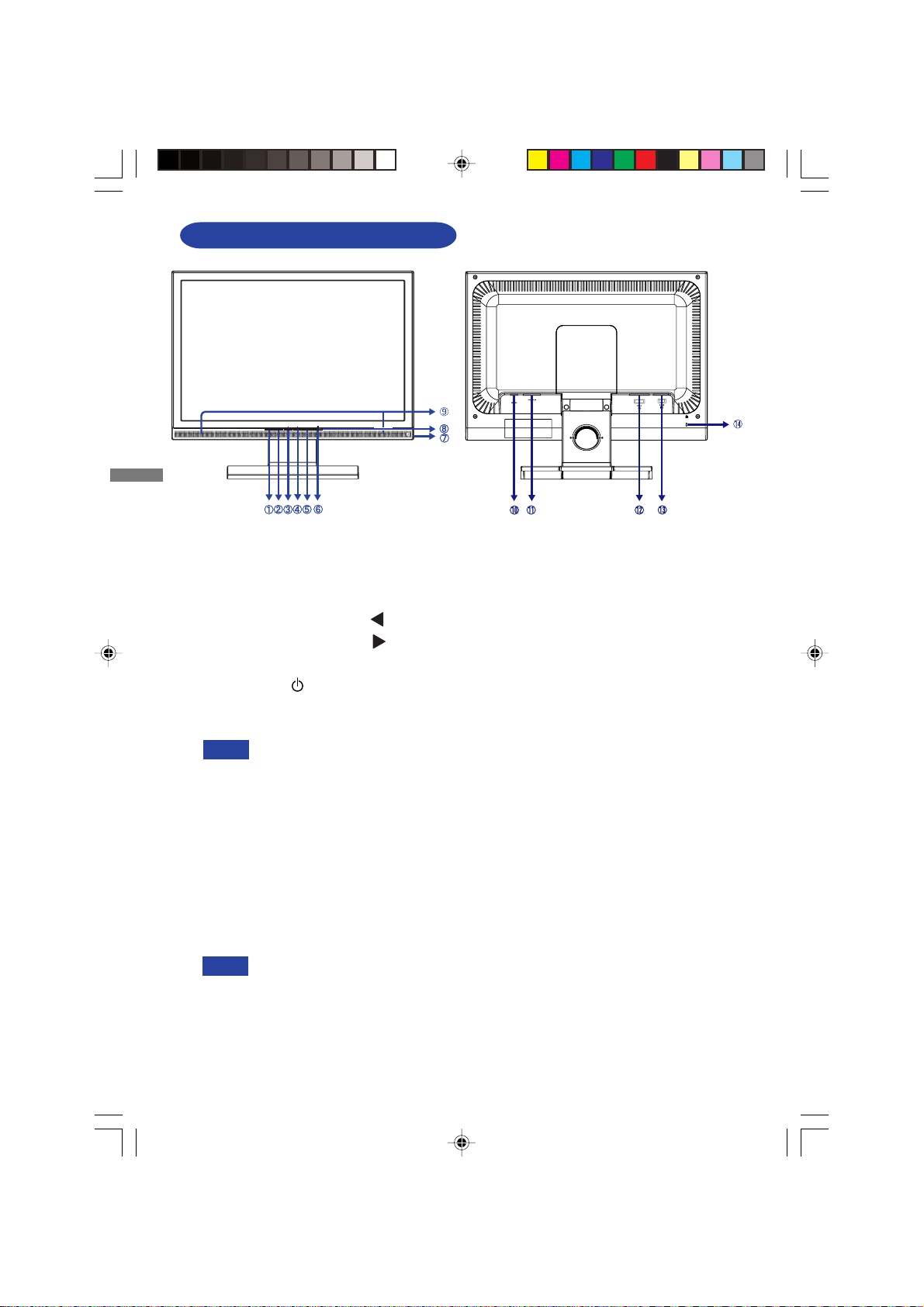

CONTROLS AND CONNECTORS
FRONT PANEL CONTROL
ENTER
EXIT
AUTO
ENGLISH
<Front>
A Auto Button (AUTO)
B Exit / Volume Button (EXIT)
C Scroll Down / Contrast Button ( )
D Scroll Up / Brightness Button ( )
E Menu / Select Button (ENTER)
F Power Switch ( )
G Headphone Connector
Power Indicator
H
Green: Normal operation
NOTE
Orange: Power Management
The monitor enters into power management mode which reduces the power
consumption to less than 2W when receiving no horizontal and/or vertical
sync signal.
Speakers
I
Audio Connector (LINE IN)
J
K AC Connector (POWER IN)
L DVI-D 24pin Connector (DVI) *
M D-SUB mini 15pin Connector (D-SUB)
N Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
NOTE
without your permission.
<Back>
* Available for ProLite E2001WS / E2003WS only.
6 BEFORE YOU OPERATE THE MONITOR
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1910
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off.
A
Connect the computer to the monitor with the signal cable.(See page 25 for CONNECTOR PIN
B
ASSIGNMENT.)
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
C
audio features.
Connect the Power Cable to the monitor first and then to the power supply.
D
NOTE The signal cables used for connecting the computer and monitor may vary with the type of
computer used. An incorrect connection may cause serious damage to both the monitor and
the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector.
If a special cable is required please contact your local iiyama dealer or regional iiyama office.
For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama office for a suitable adaptor.
Make sure you tighten the finger screws at each end of the signal cable.
[Example of Connection]
<Back>
ENGLISH
Power Cable
(Accessory)
* Available for ProLite E2001WS / E2003WS only.
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1911
D-Sub Signal Cable
(Accessory)
DVI-D Signal Cable
(Accessory) *
Audio Cable (Accessory)
BEFORE YOU OPERATE THE MONITOR 7
Computer
COMPUTER SETTING
Signal Timing
Change to the desired signal timing listed on page 24: COMPLIANT TIMING.
Windows 95/98/2000/Me/XP/Vista Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on
Windows 95/98/2000/Me/XP/Vista by connecting the monitor to DDC2B compliant computer with
the Signal Cable supplied.
For installation on Windows 95/98/2000/Me/XP: The monitor Information File for iiyama monitors
may be necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com
ENGLISH
NOTE
For additional information on how to download the driver for your touch screen monitor,
please access the internet site noted above.
Monitor Drivers are not required in most cases for Windows Vista, Macintosh or Unix
operating systems. For further information, please contact your computer dealer first
for advice.
ADJUSTING THE VIEWING ANGLE
For optimal viewing it is recommended to look at the full face
of the monitor.
Hold the stand so that the monitor does not topple when you
change the monitor’s angle.
You are able to adjust the monitor’s angle up to 22 degrees
upward, 2 degrees downward.
In order to ensure a healthy and relaxed body position when
using the monitor at visual display workstations, it is
recommended that the adjusted tilt angle should not exceed
10 degrees. Adjust the monitor’s angle to your own preference.
NOTE
NOTE
Do not touch the LCD screen when you change the
NOTE
angle. It may cause damage or break the LCD screen.
Careful attention is required not to catch your fingers
or hands when you change the angle.
Do not tilt the post beyond 20 degrees except when
repacking the monitor in its box.
To do so may cause the monitor to fall over and break.
8 BEFORE YOU OPERATE THE MONITOR
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1912
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory
TIMING shown on page 24. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 14 for SCREEN ADJUSTMENTS.

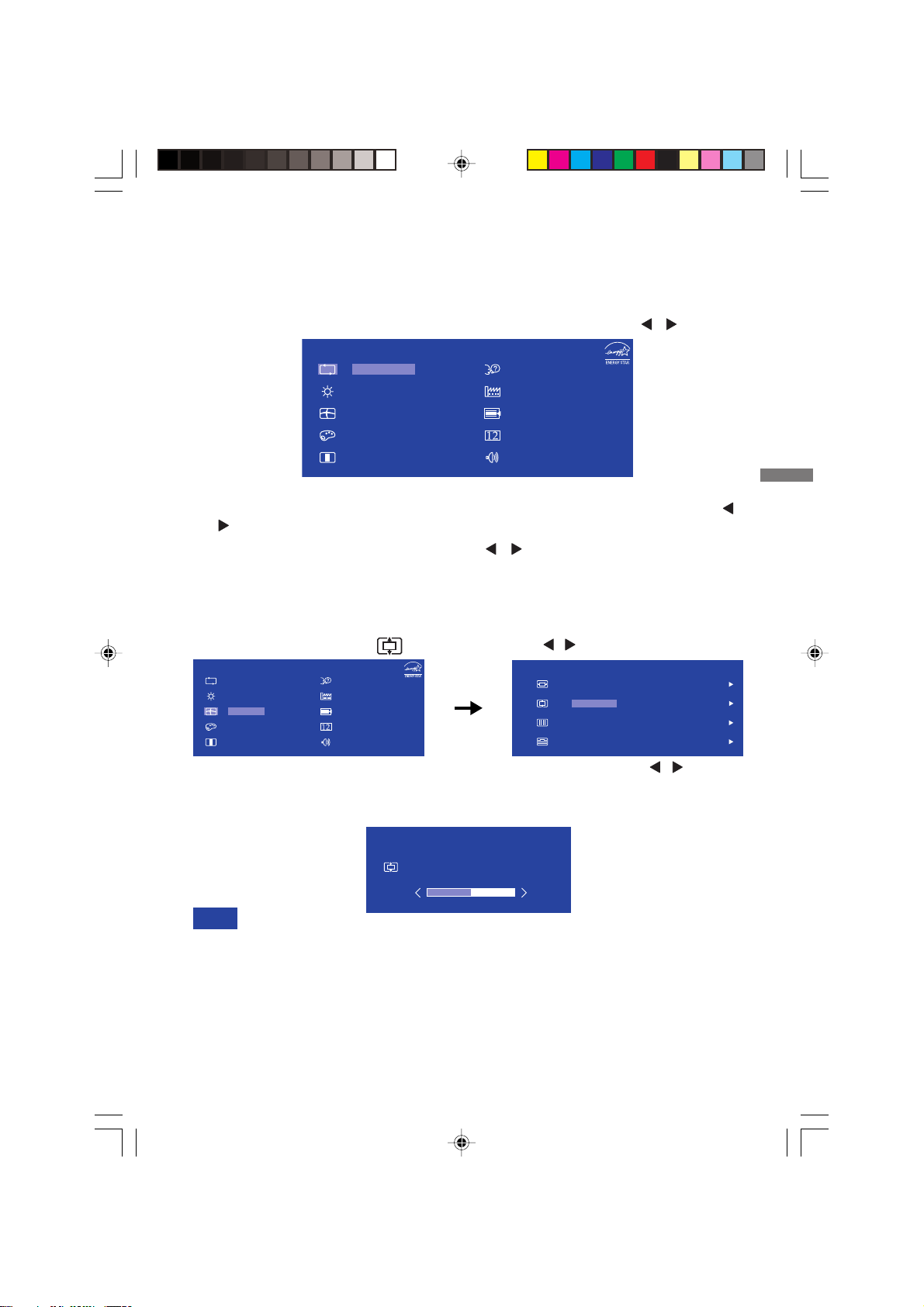

Press the ENTER Button to start the On Screen Display feature. There are
((
(
((
additional Menu items which can be switched by using the / Buttons.
Main Menu
Auto Adjust
Luminance
Geometry
Color
OSD
Select the Menu item which contains the adjustment icon relating to the
BB
B
BB
Language
Recall
Miscellaneous
Input Select
Audio
adjustment you want to make. Press the ENTER Button. Then, use the /
Buttons to highlight the desired adjustment icon.
Press the ENTER Button again. Use the / Buttons to make the appropriate
CC
C
CC
adjustment or setting.
DD
D Press the EXIT Button to leave the menu, and the settings you just made would
DD
be automatically saved.
For example, to correct for vertical position, select Menu item of Geometry and then press the
ENTER Button. Then, select (V.Position) by using the / Buttons.
Main Menu
Auto Adjust
Luminance
Geometry
Color
OSD
Language
Recall
Miscellaneous
Input Select
Audio
H. Position
V. Position
Pixel Clock
Phase
with the COMPLIANT
Geometry
50
50
50
50
ENGLISH
An adjustment page appears after you press the ENTER Button. Then, use the / Buttons to
change the vertical position settings. The vertical position of the overall display should be
changing accordingly while you are doing this.
Press the EXIT Button lastly, it ends, any changes are saved in the memory.
NOTE
When button operations are aborted during adjustment, On-Screen Display disappears when the
time set for the OSD Time has passed. Also, press the EXIT button to quickly turn off the OnScreen Display.
Any changes are automatically saved in the memory when the On Screen Display
Turning off the power should be avoided while using the Menu.
ADJUSTING
Adjustments for H. / V. Position, Pixel Clock and Phase are saved for each signal timing. Except for
these adjustments, all other adjustments have only one setting which applies to all signal timings.
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1913
Geometry
V. Position
50
disappears.
OPERATING THE MONITOR 9
ADJUSTMENT MENU CONTENTS
Auto Adjust
Only Analog Input
Adjustment Item Problem / Option Button to Press
Auto Adjust *
Direct
Adjust H. / V. Position, Pixel Clock and Phase automatically.
* For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 14 for
SCREEN ADJUSTMENTS.
Direct
ENGLISH
You can skip the Menu items and display an adjustment scale directly by using the following
button operations.
z Auto Adjust: Press the Auto Button when the Menu is not displayed.
Luminance *
1
Adjustment Item Problem / Option Button to Press
Brightness *
Contrast
2
Direct
Direct
Too dark
Too bright
Too dull
Too intense
*1Luminance adjustment disabled when DCR mode is active.
*2Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
bright.
Direct
You can skip the Menu items and display an adjustment scale directly by using the following
button operations.
z Contrast: Press the Button when the Menu is not displayed.
z Brightness: Press the Button when the Menu is not displayed.
10 OPERATING THE MONITOR
PLE2001_3WS_WSV-e-M034B01.P65 2007/10/01, 18:1214
Geometry
Only Analog Input
Adjustment Item Problem / Option Button to Press
H. Position
V. Position
Pixel Clock
Phase
Too left
Too right
Too low
Too high
Too narrow
Too wide
To correct flickering text or lines
Color
Adjustment Item Problem / Option Button to Press
9300K
7500K Yellowish white
6500K Reddish white
User Preset
Bluish white
Red
Green
Blue
ENGLISH
Too weak
Too strong
OSD
Adjustment Item Problem / Option Button to Press
H.Position
V.Position
OSD Time
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1915
OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration time
between 5 and 30 seconds.
OPERATING THE MONITOR 11
Language
ENGLISH
Language
Adjustment Item Problem / Option Button to Press
English
English
Français French
Deutsch
German
Italiano Italian
Polski Polish
Español Spanish
Nederlands Dutch
Japanese
Simplified Chinese
Russian
Recall
Adjustment Item Problem / Option Button to Press
Factory-preset data is restored.
Yes
Recall All
No
Return to Menu.
Miscellaneous
Adjustment Item Problem / Option Button to Press
Sharpness
DDC/CI
NOTE
DDC/CI On and Off are switched as follows by pressing the Button successively.
On Off
Display Information
12 OPERATING THE MONITOR
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1916
1 2 3 4 5
You can change the picture quality from 1 to 5 (sharp to soft).
Press the Button to change the picture quality in numerical
order. Press the Button to change the picture quality in reverse
numerical order.
On
DDC/CI is turned ON.
Off
DDC/CI is turned OFF.
Displays information regarding the current input signal coming
from the graphic card in your computer.
Miscellaneous
Display Information
1680x1050 @ 60 Hz
See your graphic card user guide for more information
NOTE
about changing the resolution and refresh.
Miscellaneous
Adjustment Item Problem / Option Button to Press
DCR
OD
Input Select
Adjustment Item Problem / Option Button to Press
Input Select
When only one of the two signal inputs is connected to the signal source, the one
NOTE
connected is automatically selected. Input Select function is not available if there is no
signal input from the selected connector or during the power management mode.
Available for ProLite E2001WS / E2003WS only.
On
Off
0 1 2 3 4 5
You can set the OverDrive level between 0 and 5. It will
improve the gray level response time of the LCD panel. A
higher level results in a faster response time.
D-sub
DVI
Increased Contrast Ratio
Typical Contrast Ratio
Select the Analog input.
Select the Digital input.
Audio
ENGLISH
Adjustment Item Problem / Option Button to Press
Too soft
Too loud
On
Off
Turn off the sound temporarily.
Return the sound volume to the previous level.
NOTE
Volume
Mute
Mute On and Off are switched as follows by pressing the Button successively.
Direct
On Off
Direct
You can skip the Menu items and display an adjustment scale directly by using the following
button operations.
z Volume: Press the Exit Button when the Menu is not displayed.
OPERATING THE MONITOR 13
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1917
SCREEN ADJUSTMENTS
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.
The screen adjustments described in this manual are designed to set image position and minimize
flicker or blur for the particular computer in use.
The monitor is designed to provide the best performance at resolution of 1680 × 1050, but can not
provide the best at resolutions of less than 1680 × 1050 because the picture is automatically stretched
to fit the full screen. It is recommended to operate at resolution of 1680 × 1050 in normal use.
Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than the
computer software or utilities.
ENGLISH
Perform adjustments after a warm-up period of at least thirty minutes.
Additional adjustments may be required after the Auto Adjust depending on the resolution or signal
timing.
The Auto Adjust may not work correctly when displaying the picture other than the screen
adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for Position, Pixel Clock
and Phase. The other way is performing each adjustment manually.
Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is
changed. If the screen has a flicker or blur, or the picture does not fit in the display area after
performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by
using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://
www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows 95/98/2000/Me/XP.
Display the picture at the optimum resolution.
AA
A
AA
Enter the Test.bmp (screen adjustment pattern) to wallpaper.
BB
B
BB
NOTE
NOTE Consult the appropriate documentation for doing this.
Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the
wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the setting
of “Stretch desktop wallpaper to fit the screen”.
[Adjustment pattern]
Zebra pattern
14 OPERATING THE MONITOR
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1918
Color bar
Picture frame
Press the Auto Button. (Auto Adjust)
CC
C
CC
Adjust the image manually by following procedure below when the screen has a
DD
D
DD
flicker or blur, or the picture does not fit in the display area after performing the Auto
Adjust.
Adjust the V.Position so that the top and bottom of the picture frame will fit to the
EE
E
EE
display area.
1) Adjust the H.Position so that the left side of the picture frame will move to the left
FF
F
FF
edge of the display area.
2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the Pixel Clock.
ENGLISH
NOTE When the left side of the picture frame moves apart from the left edge of the display
NOTE
area during the Pixel Clock adjustment, adjust steps 1) and 2).
Another way to make the Pixel Clock adjustment is to correct the vertical wavy lines
in the zebra pattern.
The picture may flicker during the Pixel Clock, H.Position and V.Position adjustment.
In case the picture frame is bigger or smaller than the data display area after the Pixel
Clock adjustment, repeat steps from C.
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1919
1
OPERATING THE MONITOR 15
Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern.
GG
G
GG
NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps F and
NOTE
because the Pixel Clock may not be adjusted correctly. If the flicker or blurs still
G
ENGLISH
remain, set the refresh rate of computer to low (60Hz) and repeat steps from
again.
Adjust the H.Position after the Phase adjustment if the horizontal position moves
during the adjustment.
Adjust the Brightness and Color to get the desired picture after you complete the
HH
H
HH
Pixel Clock and Phase adjustments.
Put back your favorite wallpaper.
C
16 OPERATING THE MONITOR
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1920
POWER MANAGEMENT FEATURE
The power management feature of this product complies with power saving requirement of ENERGY
STAR® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption
of the monitor when your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There
is a power management step the monitor takes as described below. The power management function,
including any timer settings is configured by the operating system. Check your operating system
manual for information on how this can be configured.
Power Management Mode
When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the
monitor enters into Power Management Mode which reduces the power consumption to less than
2W. The screen becomes dark, and the power indicator turns to orange. From Power Management
Mode, the image reappears in several seconds when either the keyboard or the mouse are
touched again.
Power Indicator
NORMAL MODE
Green
ENGLISH
POWER MANAGEMENT MODE
NOTE
Even when using the power management mode, the monitor consumes electricity. Turn
off the Power Switch whenever the monitor is not in use, during the night and weekends,
to avoid unnecessary power consumption.
It is possible that the video signal from the computer may be on while the H or V sync
signal is missing. In this instance, the POWER MANAGEMENT feature may not work
properly.
Orange
POWER
CONSUMPTION
0 2 W 100%
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1921
OPERATING THE MONITOR 17
TROUBLE SHOOTING
If the monitor fails to operate correctly, please follow the steps below for a possible solution.
Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you
1.
have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE
MONITOR or if the problem persists.
3.
If you are experiencing a problem which is not described below or you cannot correct the
problem, discontinue using the monitor and contact your dealer or iiyama service center for
further assistance.
Problem Check
The picture does
A
ENGLISH
not appear.
(Power indicator
does not light up.)
The Power Cable is firmly seated in the socket.
The Power Switch is turned ON.
The AC socket is live. Please check with another piece of equipment.
(Power indicator
is green.)
(Power indicator
is orange.)
The screen is not
B
synchronized.
The screen
C
position is not in
the center.
The screen is
D
too bright or too
dark.
The screen is
E
shaking.
If the blank screen saver is in active mode, touch the keyboard or the
mouse.
Increase the Contrast and/or Brightness.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specification of the monitor.
If the monitor is in power management mode, touch the keyboard or the
mouse.
The computer is ON.
The Signal Cable is properly connected.
The signal timing of the computer is within the specification of the monitor.
The Signal Cable is properly connected.
The signal timing of the computer is within the specification of the monitor.
The video output level of the computer is within the specification of the
monitor.
The signal timing of the computer is within the specification of the monitor.
The video output level of the computer is within the specification of the
monitor.
The power voltage is within the specification of the monitor.
The signal timing of the computer is within the specification of the monitor.
18 TROUBLE SHOOTING
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1922
Problem Check
No sound.
F
The sound is too
G
loud or too quiet.
A strange noise is
H
heard.
The audio equipment (computer etc.) is ON.
The Audio Cable is properly connected.
The Volume is turned up.
The Mute is OFF.
The audio output level of the audio equipment is within the specification of
the monitor.
The audio output level of the audio equipment is within the specification of
the monitor.
The Audio Cable is properly connected.
ENGLISH
RECYCLING INFORMATION
For better environment protection please don't dispose your monitor.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1923
TROUBLESHOOTING 19
APPENDIX
SPECIFICATIONS
ProLite E2001WS
LCD Panel
ENGLISH
Display Colors Approx.16.2M (6bit+FRC dithering)
Sync Frequency
Dot Clock 165MHz maximum
Maximum Resolution 1680 × 1050, 1.8 MegaPixels

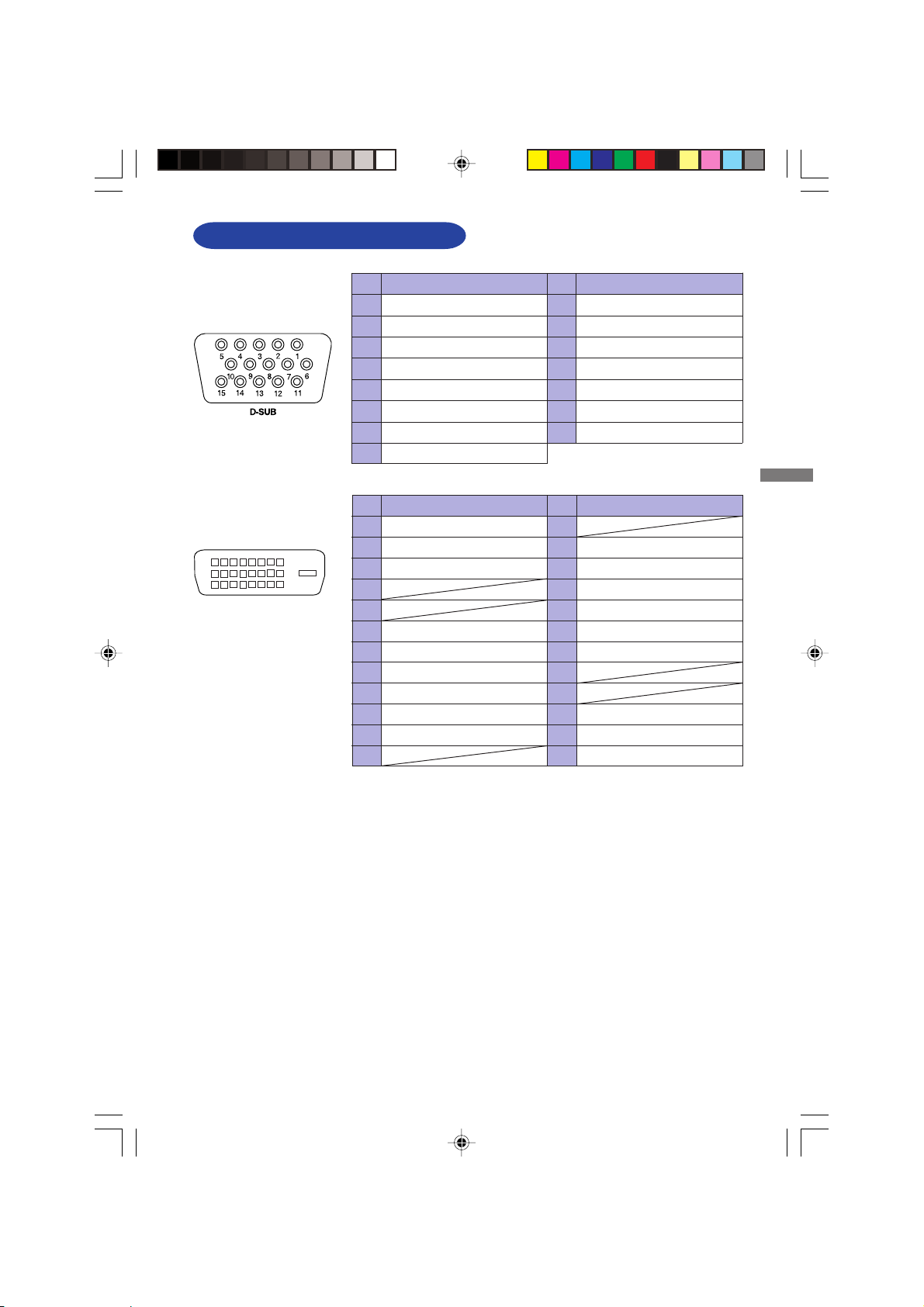

Input Connector
Plug & Play VESA DDC2B
Input Sync Signal
Input Video Signal
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 0.5Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 433.4mm W × 270.9mm H / 17.1" W × 10.7" H
Power Source 100-240VAC, 50/60Hz, 1.3A
Dimensions / Net Weight 480.0× 399.0 × 188.0mm / 18.9 ×15.7 × 7.4" (W×H×D), 4.4kg / 9.7lbs
Tilt Angle
Environmental
Considerations
Approvals
Driving system
Size
Pixel pitch
Brightness
Contrast ratio
a-Si TFT Active Matrix
Diagonal: 51.1cm / 20.1"
0.258mm H × 0.258mm V
250cd/m2 (Typical)
1000 : 1 (Typical)
Viewable angle Right / Left / Up / Down: 80 degrees each (Typical)
Response time
5ms (Black, white, black)
Horizontal: 31.0-83.0kHz, Vertical: 56-75Hz
D-Sub mini 15 pin, DVI-D 24 pin
TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75Ω, Positive
Digital: DVI(Digital Visual Interface standard Rev.1.0)compliance
49W maximum, Power management mode: 2W maximum*Power Consumption
Up: 22 degrees, Down: 2 degrees
Operating: Temperature
Humidity
Storage:
Temperature
Humidity
5 to 35°C / 41 to 95°F
10 to 80% (No condensation)
-20 to 60°C / -4 to 140°F
10 to 70% (No condensation)
TCO ’03, CE, TÜV-GS / MPR3 (prEN50279) / ISO 13406-2,
FCC-B, UL / C-UL, VCCI-B, GOST-R
* Condition: Audio equipment is not connected.NOTE
20 APPENDIX
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1924
ProLite E2001WSV
LCD Panel
Driving system
Size
Pixel pitch
Brightness
Contrast ratio
a-Si TFT Active Matrix
Diagonal: 51.1cm / 20.1"
0.258mm H × 0.258mm V
250cd/m2 (Typical)
1000 : 1 (Typical)
Viewable angle Right / Left / Up / Down: 80 degrees each (Typical)
Response time
5ms (Black, white, black)
Display Colors Approx.16.2M (6bit+FRC dithering)
Sync Frequency
Horizontal: 31.0-83.0kHz, Vertical: 56-75Hz
Dot Clock 165MHz maximum
Maximum Resolution 1680 × 1050, 1.8 MegaPixels
Input Connector
Plug & Play VESA DDC2B
Input Sync Signal
Input Video Signal
D-Sub mini 15 pin
TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75Ω, Positive
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 0.5Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 433.4mm W × 270.9mm H / 17.1" W × 10.7" H
Power Source 100-240VAC, 50/60Hz, 1.3A
49W maximum, Power management mode: 2W maximum*Power Consumption
Dimensions / Net Weight 480.0× 399.0 × 188.0mm / 18.9 ×15.7 × 7.4" (W×H×D), 4.4kg / 9.7lbs
Tilt Angle
Environmental
Considerations
Approvals
Up: 22 degrees, Down: 2 degrees
Operating: Temperature
Humidity
Storage: -20 to 60°C / -4 to 140°F
Temperature
Humidity
5 to 35°C / 41 to 95°F
10 to 80% (No condensation)
10 to 70% (No condensation)
TCO ’03, CE, TÜV-GS / MPR3 (prEN50279) / ISO 13406-2,
FCC-B, UL / C-UL, VCCI-B, GOST-R
ENGLISH
* Condition: Audio equipment is not connected.NOTE
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1925
APPENDIX 21
ProLite E2003WS
LCD Panel
Driving system
Size
Pixel pitch
Brightness
Contrast ratio
a-Si TFT Active Matrix
Diagonal: 51.1cm / 20.1"
0.258mm H × 0.258mm V
300cd/m2 (Typical)
1000 : 1 (Typical), 2000 : 1 (DCR)
Viewable angle Right / Left / Up / Down: 85 degrees each (Typical)
ENGLISH
Display Colors Approx.16.7M
Response time
Sync Frequency
5ms (Typical), 2ms (Gray to Gray)
Horizontal: 31.0-83.0kHz, Vertical: 56-75Hz
Dot Clock 165MHz maximum
Maximum Resolution 1680 × 1050, 1.8 MegaPixels
Input Connector
Plug & Play VESA DDC2B
Input Sync Signal
Input Video Signal
D-Sub mini 15 pin, DVI-D 24 pin
TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75Ω, Positive
Digital: DVI(Digital Visual Interface standard Rev.1.0)compliance
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 0.5Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 433.4mm W × 270.9mm H / 17.1" W × 10.7" H
Power Source 100-240VAC, 50/60Hz, 1.3A
49W maximum, Power management mode: 2W maximum*Power Consumption
Dimensions / Net Weight 480.0× 399.0 × 188.0mm / 18.9 ×15.7 × 7.4" (W×H×D), 4.4kg / 9.7lbs
Tilt Angle
Environmental
Considerations
Approvals
Up: 22 degrees, Down: 2 degrees
Operating: Temperature
Humidity
Storage:
Temperature
Humidity
5 to 35°C / 41 to 95°F
10 to 80% (No condensation)
-20 to 60°C / -4 to 140°F
10 to 70% (No condensation)
TCO ’03, CE, TÜV-GS / MPR3 (prEN50279) / ISO 13406-2,
FCC-B, UL / C-UL, VCCI-B, GOST-R
* Condition: Audio equipment is not connected.NOTE
22 APPENDIX
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1926
ProLite E2003WSV
LCD Panel
Driving system
Size
Pixel pitch
Brightness
Contrast ratio
a-Si TFT Active Matrix
Diagonal: 51.1cm / 20.1"
0.258mm H × 0.258mm V
300cd/m2 (Typical)
1000 : 1 (Typical), 2000 : 1 (DCR)
Viewable angle Right / Left / Up / Down: 85 degrees each (Typical)
Response time
5ms (Typical), 2ms (Gray to Gray)
Display Colors Approx.16.7M
Sync Frequency
Horizontal: 31.0-83.0kHz, Vertical: 56-75Hz
Dot Clock 165MHz maximum
Maximum Resolution 1680 × 1050, 1.8 MegaPixels
Input Connector
Plug & Play VESA DDC2B
Input Sync Signal
Input Video Signal
D-Sub mini 15 pin
TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75Ω, Positive
Input Audio Connector ø 3.5mm mini jack (Stereo)
Input Audio Signal 0.5Vrms maximum
Speakers 1W × 2 (Stereo speakers)
Maximum Screen Size 433.4mm W × 270.9mm H / 17.1" W × 10.7" H
Power Source 100-240VAC, 50/60Hz, 1.3A
49W maximum, Power management mode: 2W maximum*Power Consumption
Dimensions / Net Weight 480.0× 399.0 × 188.0mm / 18.9 ×15.7 × 7.4" (W×H×D), 4.4kg / 9.7lbs
Tilt Angle
Environmental
Considerations
Approvals
Up: 22 degrees, Down: 2 degrees
Operating: Temperature
Humidity
Storage: -20 to 60°C / -4 to 140°F
Temperature
Humidity
5 to 35°C / 41 to 95°F
10 to 80% (No condensation)
10 to 70% (No condensation)
TCO ’03, CE, TÜV-GS / MPR3 (prEN50279) / ISO 13406-2,
FCC-B, UL / C-UL, VCCI-B, GOST-R
ENGLISH
* Condition: Audio equipment is not connected.NOTE
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1927
APPENDIX 23
DIMENSIONS
DIMENSIONS
480.0mm/18.9"
436.0mm/17.2"
273.0mm/10.7"
338.0mm/13.3"
58.0mm/2.3"
ENGLISH
COMPLIANT TIMING
Video Mode
VGA
SVGA
XGA 1024 × 768
WXGA
VESA
VGA TEXT
Macintosh
Quad-VGA
SXGA 1280 × 1024
WXGA+ 1440 × 900
640 × 480
800 × 600
1280 × 768
1280 × 960
1680 × 1050WSXGA+
720 × 400
832 × 624
1152 × 870
Horizontal
Frequency
31.468kHz
37.500kHz
37.878kHz
46.875kHz
48.362kHz
60.024kHz
47.396kHz
60.000kHz
63.979kHz
79.974kHz
55.935kHz
65.290kHz
31.468kHz
49.724kHz
68.680kHz
399.0mm/15.7"
Vertical
Frequency
59.941Hz
74.997Hz
60.317Hz
75.001Hz
60.002Hz
75.039Hz
60.000Hz
60.000Hz
60.029Hz
75.024Hz
59.887Hz
60.000Hz
70.086Hz
74.532Hz
75.060Hz
226.0mm/8.9"
Dot Clock
25.175MHz
31.500MHz
40.000MHz
49.500MHz
65.000MHz
78.750MHz
68.250MHz
108.000MHz
108.000MHz
135.000MHz
106.500MHz
146.250MHz
28.322MHz
57.280MHz
100.000MHz
188.0mm/7.4"
*
*
*
NOTE
24 APPENDIX
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1928
* DVI input is not compliant.
CONNECTOR PIN ASSIGNMENT
D-Sub mini 15pin
Connector
DVI-D 24pin
Connector *
1
9
17
DVI-D
Pin
1
2
3
4
5
6
7
8
1
Pin
1
2
8
16
24
3
4
5
6
7
8
9
10
11
12
Input Signal
Red video
Green video
Blue video
NC
Ground
Green video ground
Blue video ground
T.M.D.S Data 2–
T.M.D.S Data 2+
T.M.D.S Data 2 Ground
Clock line (SCL) *
Data line (SDA) *
V-Sync
T.M.D.S Data 1–
T.M.D.S Data 1+
T.M.D.S Data 1 Ground
Input Signal
2
2
Pin
9
10
11
12
13
14
15
Input Signal
+5V
Ground
NC
Data line (SDA)*
H-Sync
V-SyncRed video ground
Clock line (SCL)*
* Compliant to VESA DDC.
Pin
Input Signal
13
+5V
14
15
Ground
Hot Plug Detect
16
17
T.M.D.S Data 0–
18
T.M.D.S Data 0+
19
T.M.D.S Data 0 Ground
20
21
22
T.M.D.S Clock Ground
23
T.M.D.S Clock +
T.M.D.S Clock –
24
*2 Compliant to VESA DDC.
ENGLISH
*1 Available for ProLite E2001WS / E2003WS only.
PLE2001_3WS_WSV-e-M034B01.P65 2007/09/10, 18:1929
APPENDIX 25
