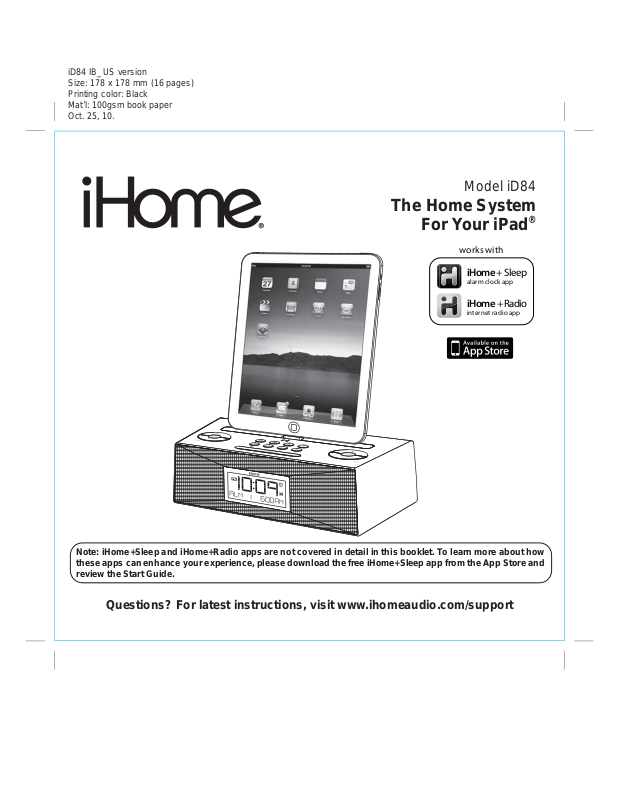

iHome ID84 User Manual

Model iD84

The Home System

For Your iPad®

works with

iHome + Sleep

alarm clock app

iHome + Radio

internet radio app

Note: iHome+Sleep and iHome+Radio apps are not covered in detail in this booklet. To learn more about how these apps can enhance your experience, please download the free iHome+Sleep app from the App Store and review the Start Guide.

Questions? For latest instructions, visit www.ihomeaudio.com/support

Table of Contents

Quick Start........................................................................................................................................................................1

Controls and Indicators / iD84 Display..........................................................................................................................3

Setting Up the iD84 ..........................................................................................................................................................4

Using the iD84 ..................................................................................................................................................................5

Installing/Replacing Clock Back-up Batteries / Battery Warning ................................................................................8

A Consumer Guide to Product Safety...........................................................................................................................9

Troubleshooting.............................................................................................................................................................10

Warranty Information.....................................................................................................................................................12

A Consumer Guide to Product Safety

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable protection against radio and TV interference in a residential area.

However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference you can try one or more of the following corrective measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the radio or TV.

• Use outlets on different electrical circuits for the equipment and the radio or TV.

• Consult your dealer or an experienced radio/television technician if the problem still exists. Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s

warranty and void your FCC authorization to operate it. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner or similar materials can damage the surface of the unit.

quick start

RESET

TEST

DC 7.5V

line-in

am antenna

time zone

time set

DST

-1 +1

time sync

set +/-

wakeup

snooze/dimmer

DC 7.5V

line-in

am antenna

time zone

time set

DST

-1 +1

time sync

set +/-

dtime

wakeup

snooze/dimmer

1: power

Attach AC adaptor cable to DC jack on back of the iD84 and plug the other end into a wall socket.

3: docking your iPad/iPhone/iPod

remove the rubber dock pad

2: antennas

Snap AM antenna into provided stand, then plug antenna cable into socket on back of iD84. Move antenna 12” away. Extend FM antenna.

iPad with cover

Gently dock your iPad, iPhone or iPod into the 30 pin dock. If using an iPad with a cover or “skin”, first remove the rubber dock pad on the iD84. The iPad, iPhone or iPod will charge while docked. Press the Button on the iD84 to play your iPad, iPhone or iPod.

quick start

set +/-

wakeup

mode presets

nap

snooze/dimmer

4: time sync

Dock your iPad, iPhone or iPod (see step 3). Press and release the Time Sync Button located on back of the iD84. “TIME SYNC” will appear on the display, followed by “TIME UPDATED” upon successful syncing.

5: radio

Press the Mode Button as needed to select AM/FM band. Press the + or - Button to tune in a station. See page 7 for programming presets.

Top Panel

Controls and Indicators

Flexible 30 pin connector for iPad/iPhone/iPod

Rubberized device rest

Alarm 2 Button

Alarm 1 Button

Volume + Button Bedtime Button

Volume - Button

volume

Alarm Reset/Power/App Settings Button

Rear Panel

AC Adaptor Jack

bedtime

DC 7.5V 3.5A

DST switch

DST

-1 +1

mode presets

snooze/dimmer

Snooze/Dimmer Button

Time Sync ButtonTime Set Button

Time Zone Button

time sync

time set

time zone

AM Loop Antenna socket

iD84 Display

Time Display

nap

am antenna

line-in

Alarm 1 Indicator

Play/Pause Button Nap Button

wakeup

set +/-

EQ Button

Presets Button

Mode Button

Line-in Jack

Set + Button

Wakeup Button

Set - Button

FM Antenna

PM Indicator AM Indicator

NOTE: AM/PM indicators will not appear when clock is set to 24 hour display mode

Alarm 2 Indicator iHome App Indicator Battery Low Indicator

Radio / Alarm Time / iPod Display
