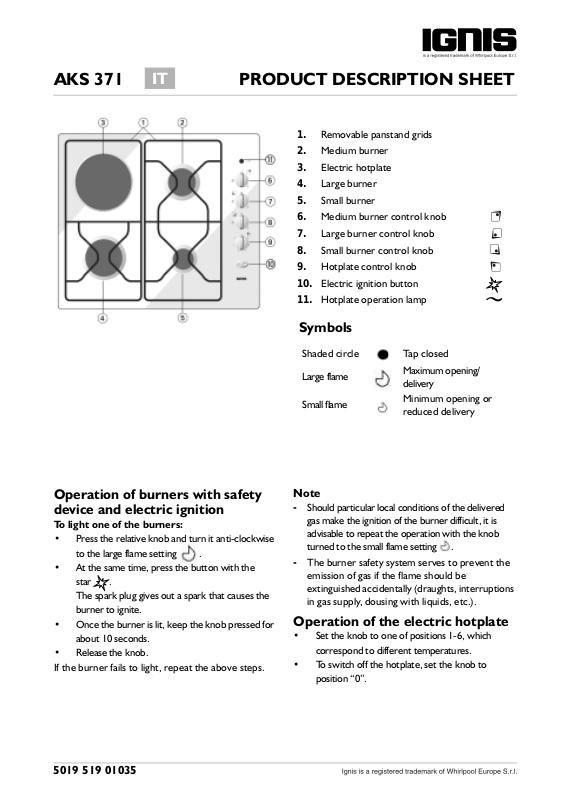

IGNIS AKS 371 PRODUCT DESCRIPTION SHEET
AKS 371 PRODUCT DESCRIPTION SHEET
IT
1.
Removable panstand grids
2.
Medium burner
3.
Electric hotplate
4.
Large burner
5.
Small burner
6.
Medium burner control knob
7.
Large burner control knob
8.
Small burner control knob
9.
Hotplate control knob
10.
Electric ignition button
11.
Hotplate operation lamp
Symbols
Shaded circle Tap closed
Large flame
Small flame
Maximum opening/
delivery
Minimum opening or
reduced delivery
Operation of burners with safety
device and electric ignition
To light one of the burners:
• Press the relative knob and turn it anti-clockwise
to the large flame setting .
• At the same time, press the button with the
star .
The spark plug gives out a spark that causes the
burner to ignite.
• Once the burner is lit, keep the knob pressed for
about 10 seconds.
• Release the knob.
If the burner fails to light, repeat the above steps.
5019 519 01035
Note
-
Should particular local conditions of the delivered
gas make the ignition of the burner difficult, it is
advisable to repeat the operation with the knob
turned to the small flame setting .
-
The burner safety system serves to prevent the
emission of gas if the flame should be
extinguished accidentally (draughts, interruptions
in gas supply, dousing with liquids, etc.).
Operation of the electric hotplate
• Set the knob to one of positions 1-6, which
correspond to different temperatures.
• To switch off the hotplate, set the knob to
position “0”.
DIMENSIONS OF COOKTOP AND WORKTOP (mm)
NOTES: In case of installation of a hood above the cooktop, please refer to the hood
instructions for the correct distance.
INJECTORS TABLE CATEGORY II2H3+
Type of gas
used
NATURAL GAS
(Methane) G 20
LIQUID
PETROLEUM GAS
(Cylinder) G 30
LIQUID
PETROLEUM GAS
(Cylinder) G 31
Type of gas
used
G 20 20 mbar 3 gas + 1E 5.65 538 l/h 11.3
G 30 28-30 mbar 3 gas + 1E 5.65 411 g/h 11.3
G 31 37 mbar 3 gas + 1E 5.65 403 g/h 11.3
Type of
burner
large
medium
small
large
medium
small
large
medium
small
Appliance
model
Injector
marking
H3 130
H2 98
X72
87
65
50
87
65
50
Rated heat
capacity
Pcs-kW
3.00
1.65
1.00
3.00
1.65
1.00
3.00
1.65
1.00
Total rated
heat capacity
Pcs-kW
Rated consumption
286 l/h
157 l/h
95 l/h
218 g/h
120 g/h
73 g/h
214 g/h
118 g/h
71 g/h
Total rated
consumption
Reduced
heat
capacity
Pcs-kW
0.60
0.35
0.30
0.60
0.35
0.30
0.60
0.35
0.30
ELECTRIC SUPPLY: 230V - 50Hz
Gas pressure
min. rat. max.
17 20 25
20 28-30 35
25 37 45
Air required
for burning
3
m
/h
