Quick guide
EN
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on www . whirlpool . eu/ register

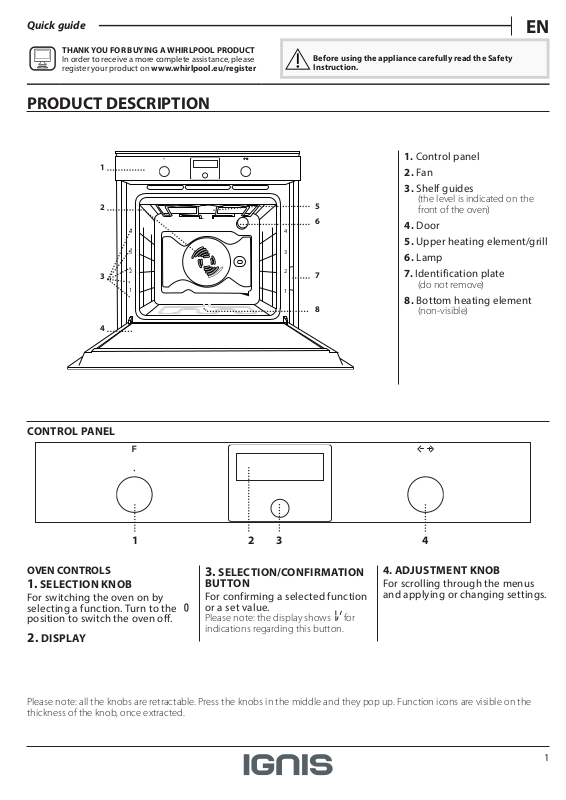

PRODUCT DESCRIPTION
1
2
4
3
3
2
1
Before using the appliance carefully read the Safety
Instruction.
1. Control panel
2. Fan
3. Shelf guides
5
6
4
(the level is indicated on the
front of the oven)
4. Door
5. Upper heating element/grill
3
2
1
7
6. Lamp
7. Identification plate
(do not remove)
8. Bottom heating element
8
(non-visible)
4
CONTROL PANEL
OVEN CONTROLS
1. SELECTION KNOB
For switching the oven on by
selecting a function. Turn to the
position to switch the oven off.
2. DIS PLAY
2 3 41
3. SELECTION/CONFIRMATION
BUTTON
For confirming a selected function
or a set value.
Please note: the display shows for
indications regarding this button.
4. ADJUSTMENT KNOB
For scrolling through the menus
and applying or changing settings.
Please note: all the knobs are retractable. Press the knobs in the middle and they pop up. Function icons are visible on the
thickness of the knob, once extracted.
1
Page 2
ACCESSORIES
WIRE SHELF DRIP TR AY BAKING TRAY SLIDING RUNNERS
(IF PRESENT)
The number and the type of accessories may vary depending on which model is purchased.
Other accessories that are not supplied can be purchased separately from the After-sales Service.
INSERTING THE WIRE SHELF AND OTHER
ACCESSORIES
Insert the wire shelf horizontally by sliding it across
the shelf guides, making sure that the side with the
raised edge is facing upwards.
Other accessories, such as the drip tray and the
baking tray, are inserted horizontally in the same way
as the wire shelf.
FITTING THE SLIDING RUNNERS
(ONLY IN SOME MODELS)
Please note: The sliding runners can be already mounted on
the shelf guides: to remove them, pull outward, releasing rst
the lower clip.
Remove the shelf guides from the oven and remove
the protective plastic from the sliding runners.
Fasten the upper clip of the
runner to the shelf guide
and slide it along as far as it
will go. Lower the other clip
into position.
REMOVING AND REFITTING THE SHELF GUIDES
. To remove the shelf guides, remove the fixing
screws (if present) on both sides with the aid of a
coin or a tool. Lift the guides up and pull the lower
parts out of their seatings: The shelf guides can now
be removed.
. To refit the shelf guides, first fit them back into
their upper seating. Keeping them held up, slide them
into the cooking compartment, then lower them into
position in the lower seating. Refit the fixing screws.
To secure the guide, press
the lower portion of the
clip firmly against the
shelf guide. Make sure
that the runners can move
freely.
Repeat these steps on the
other shelf guide on the
same level.
Please note: The sliding runners can be tted on any level.
2
Page 3
Quick guide
FUNCTIONS
EN
OFF
For switching off the oven.
LIGHT
To switch the oven light on/off.
SPECIAL FUNCTIONS
DEFRO
WARM
RISIN
savoury dough. To maintain the quality of proving,
do not activate the function if the oven is still hot
following a cooking cycle.
CONVENTIONAL
For cooking meat or baking cakes with liquid
centre on a single shelf.
CONVECTION BAKE
For cooking meat or baking cakes with liquid
centre on a single shelf.
GRILL
For grilling steaks, kebabs and sausages,
cooking vegetables au gratin or toasting bread.
When grilling meat, we recommend using a drip tray
to collect the cooking juices: Position the pan on any
of the levels below the wire shelf and add 500 ml of
drinking water.
DEFROST
To speed up defrosting of food.
WARM KEEPING
For keeping just-cooked food hot and
crisp.
RISING
For optimal proving of sweet or
MAXI COOKING
To cook large joints of meat (above 2.5 kg).
Use the 1st or 3rd shelves, depending on the size of
the joint. The oven does not have to be preheated.
It is advisable to turn the meat over during cooking
for more even browning. It is best to baste the meat
every now and again to prevent it from drying out.
SETTINGS
For changing the oven settings (time,
language, audible signal volume, brightness, ECO
mode).
Please note: When Eco mode is active, the brightness of the
display will be reduced and the light switches o to save
energy. They are reactivated temporarily whenever any of
the buttons are pressed.
BREAD / PIZZA
To bake different types and sizes of pizza and
bread. This function contains two programmes with
predefined settings. Simply indicate the values
required (temperature and time) and the oven will
manage the cooking cycle automatically. Place the
dough on the 2nd shelf after preheating the oven.
AUTOMATIC CLEANING PYRO
For eliminating cooking residues with an
extra-high temperature cycle (approx. 500°). Two
self-cleaning cycles are available: a complete cycle
and a quick cycle (ECO). It is advisable to use the
complete cycle only in case of a very dirty oven, and
the shorter cycle if the function is used at regular
intervals.
FAST PREHEATING
For preheating the oven quickly.
3
Page 4
FIRST TIME USE
1. SELECT THE LANGUAGE
You will need to set the language and the time
when you switch on the appliance for the first
time. ENGLISH will scroll along the display. Turn the
adjustment knob to scroll through the list of available
languages and select the one you require.
Turn the adjustment knob to set the minutes and press
the selection/confirmation button to confirm
Please note: You may need to set the time again following
lengthy power outages.
Press the selection/confirmation button to confirm
your selection.
Please note: The language can subsequently be changed
from the “Settings” menu.
2. SET THE TIME
After selecting the language, you will need to set the
current time: The two digits for the hour will flash on
the display
Turn the adjustment knob to set the correct hour and
press the selection/confirmation button: the minutes
will flash on the display.
3. HEAT THE OVEN
A new oven may release odours that have been left
behind during manufacturing: This is completely
normal. Before starting to cook food, we therefore
recommend heating the oven with it empty in order
to remove any possible odours.
Remove any protective cardboard or transparent
film from the oven and remove any accessories from
inside it.
Heat the oven to 200 °C for around one hour, ideally
using a function with air circulation (e.g. “Forced Air”
or “Convection Bake”).
Follow the instructions for setting the function
correctly.
Please note: It is advisable to air the room after using the
appliance for the rst time.
4
Page 5
Quick guide

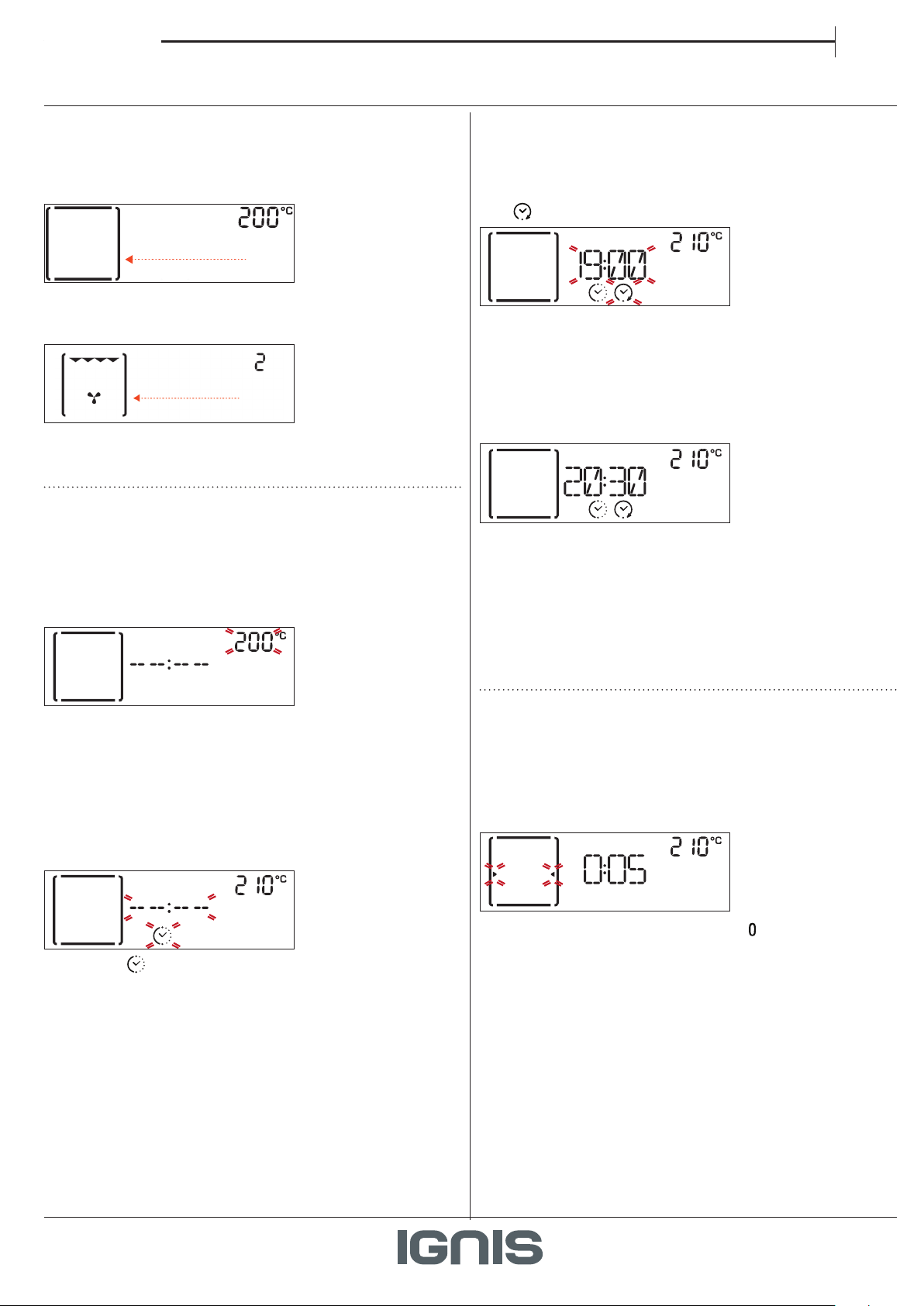

DAI LY USE
EN
1. SELECT A FUNCTION
Turn the selection knob to switch on the oven and
show the function you require on the display: The
display will show the icon for the function and its
basic settings.
CONVE
To select an item from the menu (the display will
show the first available item), turn the adjustment
knob until the item you require is shown.
TURBO
Press the selection/confirmation button to confirm
selection: the display will show the basic settings.
2. SET THE FUNCTION
After having selected the function you require, you
can change its settings.
The display will show the settings that can be
changed in sequence.
TEMPERATURE/GRILL LEVEL
SETTING THE END COOKING TIME DELAYED START
In many functions, once you have set a cooking time
you can delay starting the function by programming
its end time.
The display shows the current end time that is set and
the
Turn the adjustment knob to set the time you want
cooking to end, then press the selection/confirmation
button to confirm and start the function.
Place the food in the oven and close the door: The
function will start automatically after the period of
time that has been calculated in order for cooking to
finish at the time you have set.
Notes: Programming a delayed cooking start time will
disable the oven preheating phase: The oven will reach the
temperature your require gradually, meaning that cooking
times will be slightly longer than those listed in the cooking
table.
icon flashes.
When the value flashes on the display, turn the
adjustment knob to change it, then press the selection/
confirmation button to confirm and continue to alter
the settings that follow (if possible).
Please note: Once the function has been activated, the
temperature can be changed using the adjustment knob.
DURATION
When the icon flashes on the display, use the
adjustment knob to set the cooking time you require
and then press the selection/confirmation button to
confirm.
You do not have TO set the cooking time if you want
to manage cooking manually: Press the selection/
confirmation button to confirm and start the function.
In this case, you cannot set the end cooking time by
programming a delayed start.
During the waiting time, you can use the adjustment knob to
amend the programmed end time.
3. ACTIVATE THE FUNCTION
Once you have applied the settings you require, press
the selection/confirmation button to confirm the time
that cooking will end and activate the function.
Please note: Once cooking has started, the display will
recommend the most suitable level for each function.
You can turn the selection knob to to pause the
function that has been activated at any time.
5
Page 6

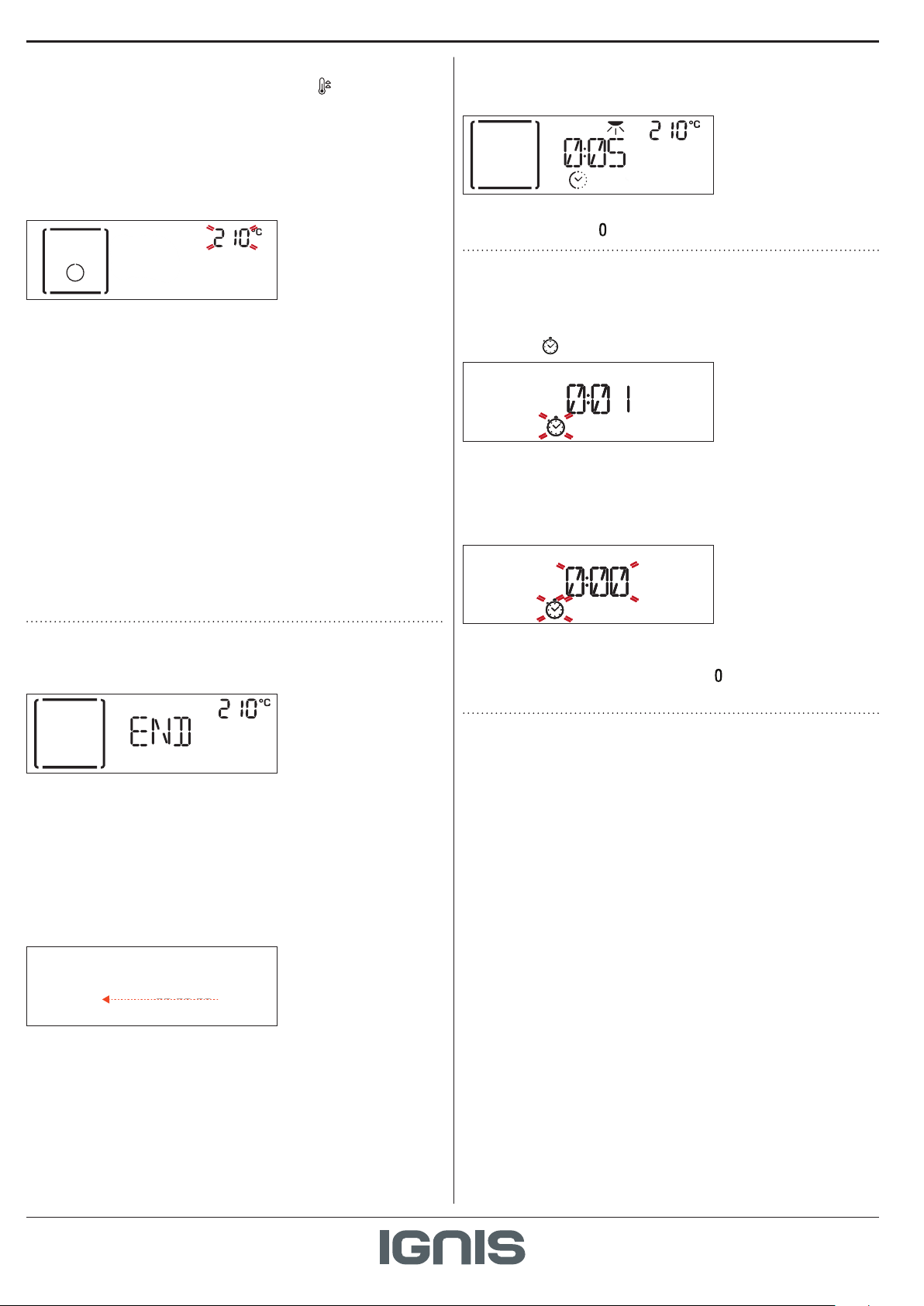

.FAST PREHEATI NG
Turn the selection knob to the symbol to select the
fast preheating function and confirm by pressing the
selection/confirmation button: the settings are shown
on the display.
If the proposed temperature is that desired, press
the selection/confirmation button. To change the
temperature, proceed as described in previous
paragraphs.
When the display shows the relevant message, if
required press the selection/confirmation button to
start a five-minute browning cycle.
You can stop the function at any time by turning the
selection knob to
to switch the oven off.
PRE
Once this phase has finished, an audible signal will
sound and the display will indicate that the oven has
reached the set temperature.
At this point, open the door, place the food in the
oven, close the door and start cooking.
At the end of preheating, the oven automatically
selects the conventional function: If you wish to set
a different cooking function, turn the selection knob
and select the desired function.
Please note: Placing the food in the oven before preheating
has nished may have an adverse eect on the nal cooking
result. Opening the door during the preheating phase will
stop pause it.
The cooking time does not include a preheating phase.
You can always change the temperature you want the oven
to reach using the adjustment knob.
5. END OF COOKING
An audible signal will sound and the display will
indicate that cooking is complete.
. TIMER
When the oven is switched off, the display can be
used as a timer. To activate this function, make sure
that the oven is switched off and turn the adjustment
knob: The
Turn the adjustment knob to set the length of time
you require and then press the selection/confirmation
button to activate the timer. An audible signal will
sound and the display will indicate once the timer has
finished counting down the selected time.
Please note: The timer does not activate any of the cooking
cycles. Use the adjustment knob to change the time set on
the timer; turn the selection knob to to switch the timer
o at any time.
icon will flash on the display.
Press the selection/confirmation button to continue
cooking in manual mode (without a programmed
cooking time) or turn the adjustment knob to extend
the cooking time by setting a new duration.
BROWNING
Some functions of the oven enable you to brown
the surface of the food by activating the grill once
cooking is complete.
PRESS
6
Page 7
Quick guide
COOKING TABLE
EN
RECIPE FUNCTION
Leavened cakes
Filled cakes
(cheesecake, strudel, apple pie)
Biscuits / Tartlets
Choux buns
Meringues
Bread / Pizza / Focaccia
PREHEAT.
Yes 160 - 180 30 - 90
Yes 160 - 180 30 - 90
Yes 160 - 200 30 - 85
Yes 160 - 200 35 - 90
Yes 170 - 180 15 - 45
Yes 160 - 170 20 - 45
Yes 180 - 200 30 - 40
Yes 180 - 190 35 - 45
Yes 90 110 - 150
Yes 90 130 - 150
Yes 190 - 250 15 - 50
Yes 190 - 250 25 - 50
TEMPERATURE
(°C)
COOK TIME
(Min.)
LEVEL
AND
ACCESSORIES
2
3
2
3
3
3
2
3
2
3
2
3
1
1
1
1
1
1
Bread Yes 180 - 220 30 - 50
Pizza Yes 220 - 250 15 - 30
Yes 250 10 - 15
Frozen pizza
Yes 250 10 - 20
Savoury pies
(vegetable pie, quiche)
Vols-au-vent / Pu pastry
crackers
Lasagne / Baked pasta /
Cannelloni / Flans
Lamb / Veal / Beef / Pork 1 kg Yes 190 - 200 70 - 100
Chicken / Rabbit / Duck 1 kg Yes 200 - 230 50 - 100
Turkey / Goose 3 kg Yes 190 - 200 80 - 130
Baked sh / en papillote
(llets, whole)
Yes 180 - 190 35 - 45
Yes 180 - 190 45 - 60
Yes 190 - 200 20 - 30
Yes 180 - 190 20 - 40
Yes 190 - 200 45 - 65
Yes 180 - 200 40 - 60
2
2
2
3
2
3
2
4
2
2
2
1 / 2
2
1
1
1
Stued vegetables
(tomatoes, courgettes, aubergines)
Toast - 3 (high) 2 - 5
Fish llets / Steaks - 2 (medium) 20 - 35
Yes 180 - 200 50 - 60
2
4
4
3
7
Page 8

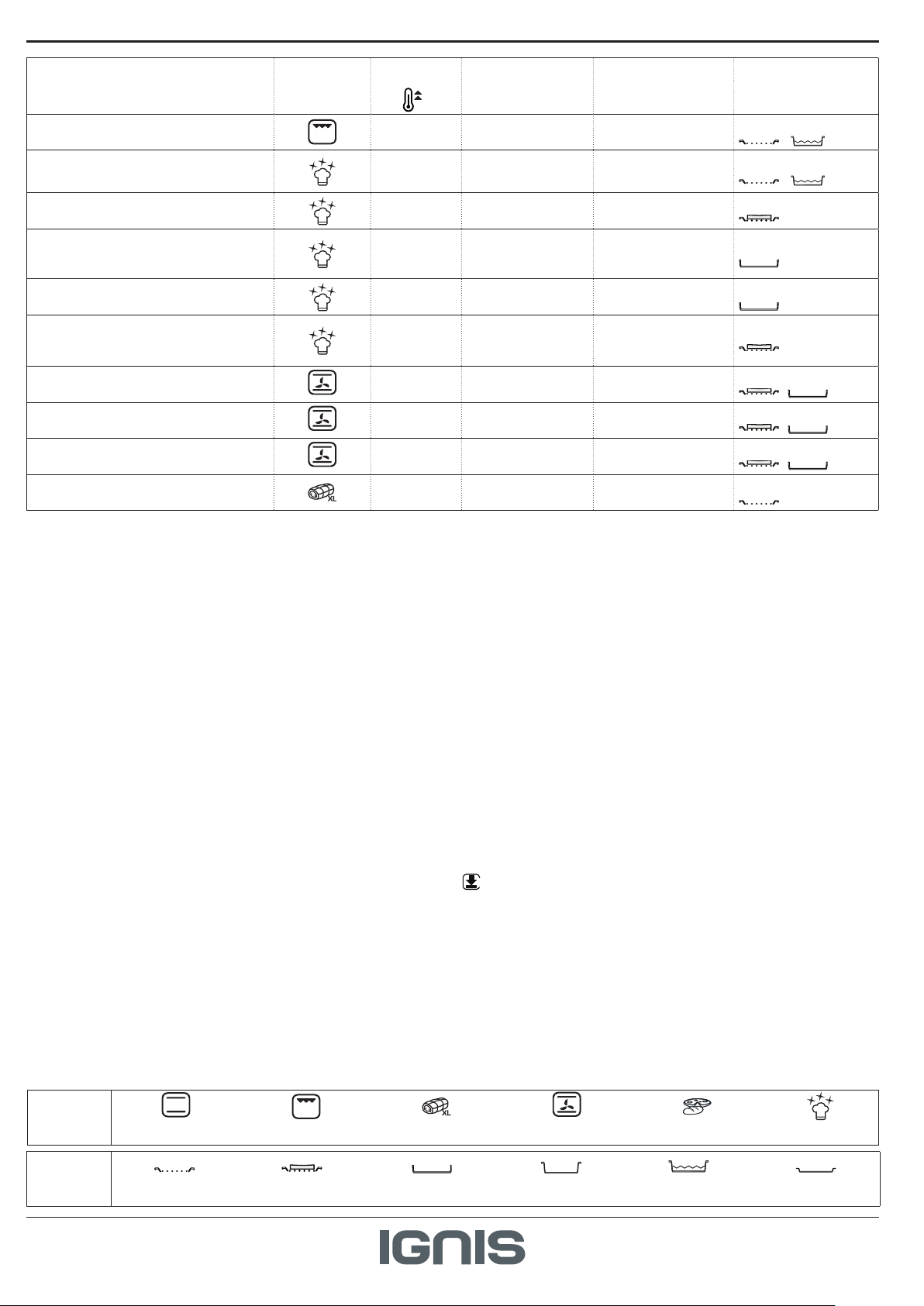

RECIPE FUNCTION
Sausages / Kebabs / Spare ribs /
Hamburgers
PREHEAT.
-
TEMPERATURE
(°C)
2-3 (medium-
high)
COOK TIME
(Min.)
15 - 40
Roast chicken 1-1,3 kg - 2 (medium) 50 - 65 *
LEVEL
AND
ACCESSORIES
4
2
3
1
Roast beef rare 1 kg - 2 (medium) 35 - 45 *
Leg of lamb / Shanks - 2 (medium) 60 - 90 **
Roast potatoes - 2 (medium) 45 - 55**
Vegetable gratin - 3 (high) 10 - 15
Lasagna & Meat Yes 200 50 - 100 ***
Meat & Potatoes Yes 200 45 - 100 ***
Fish & vegetables Yes 180 30 - 50 ***
Roast pork - 170 110 - 150 ***
2
2
2
2
3
3
3
1
1
1
2
* Turn food halfway through cooking.
**Turn food two thirds of the way through cooking
(if necessary).
*** Estimated length of time: dishes can be removed
from the oven at different times depending on
personal preference.
FUNCTIONS
Conventional Grill Maxi Cooking Convection Bake Bread / Pizza Special functions
ACCESSORIES
Wire shelf Cake tin on wire shelf
Drip tray / baking tray
or cake tin on wire shelf
8
WWW
Download the Use and Care Guide by visiting
the website docs . whirlpool . eu to consult the table of
tested recipes filled out for the assessment institutes
in accordance with the IEC 60350 - 1 standard.
Drip tray
Drip tray with
500 ml of water
Baking tray
Page 9
Quick guide
CLEANING
AND MAINTENANCE
EN
Make sure that the oven has
cooled down before carrying
out any maintenance or
cleaning.
Do not use steam cleaners.
EXTERIOR SURFACES
• Clean the surfaces with a damp microfibre cloth.
• If they are very dirty, add a few drops of pH-neutral
detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of
these products inadvertently comes into contact with
the surfaces of the appliance, clean immediately with
a damp microfibre cloth.
INTERIOR SURFACES
• After every use, leave the oven to cool and then
clean it, preferably while it is still warm, to remove
any deposits or stains caused by food residues. To
Do not use wire wool, abrasive
scourers or abrasive/corrosive
cleaning agents, as these could
damage the surfaces of the
appliance.
dry any condensation that has formed as a result of
cooking foods with a high water content, leave the
oven to cool completely and then wipe it with a cloth
or sponge.
• Clean the glass in the door with a suitable liquid
detergent.
• The oven door can be removed to facilitate cleaning.
ACCESSORIES
Soak the accessories in a washing-up liquid solution
after use, handling them with oven gloves if they
are still hot. Food residues can be removed using a
washing-up brush or a sponge.
CLEANING THE COOKING COMPARTMENT WITH THE PYRO CYCLE
Wear protective gloves.
The oven must be disconnected
from the mains before carrying
out any kind of maintenance
work.
Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven
during and after (until the room has nished
airing) running the Pyro cycle.
This function enables you to eliminate cooking
spatters using a temperature of approx. 500 °C. At this
temperature, food residues turn into deposits that can
be easily wiped away with a damp sponge once the
oven has cooled down.
If the oven is installed below a hob, make sure that
all the burners or electric hotplates are switched off
while running the self-cleaning cycle.
Remove all accessories from the oven before running
the Pyro function (including the shelf guides).
For optimum cleaning results, remove the worst
soiling with a damp sponge before using the Pyro
function.
Then oven has two different pyrolytic cleaning
functions: the complete cycle provides for a thorough
cleaning if the oven is extremely dirty, while the quick
cycle (ECO) is shorter and consumes less energy, thus
making it suitable for use at regular intervals.
Only run the Pyro function if the appliance contains
heavy soiling or gives off bad odours during cooking.
Please note: The oven door cannot be opened while
pyrolytic cleaning is in progress. It will remain locked
until the temperature has returned to an acceptable
level.
Ventilate the room during and after the pyrolytic
cleaning cycle (until the room has been completely
aerated).
9
Page 10
b
a
a
b
~15°
b
a
REPLACING THE LAMP
1. Disconnect the oven from the power supply.
2. Unscrew the cover from the light, replace the bulb
and screw the cover back on the light.
3. Reconnect the oven to the power supply.

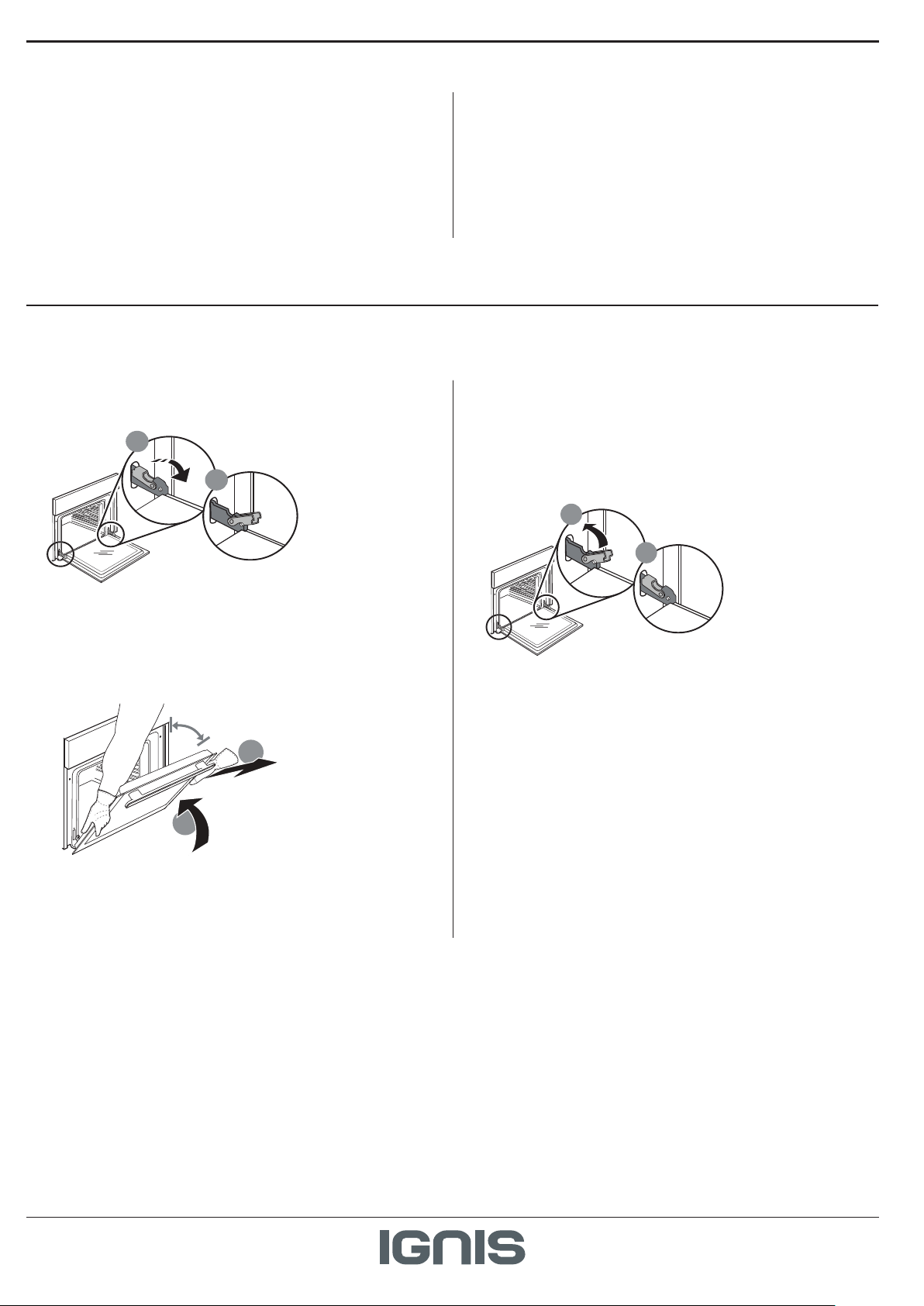

REMOVING AND REFITTING THE DOOR
1. To remove the door, open it fully and lower the
catches until they are in the unlock position.
Please note: Only use 20-40W/230 V type G9, T300°C halogen
lamps. The bulb used in the product is specically designed
for domestic appliances and is not suitable for general room
lighting within the home (EC Regulation 244/2009). Light
bulbs are available from our After-sales Service.
- If using halogen bulbs, do not handle them with your bare
hands as your ngerprints could cause damage. Do not use
the oven until the light cover has been retted.
3. Refit the door by moving it towards the oven,
aligning the hooks of the hinges with their seating
and securing the upper part onto its seating.
4. Lower the door and then open it fully.
Lower the catches into their original position: Make
sure that you lower them down completely.
2. Take a firm hold of the door with both hands – do
not hold it by the handle.
Simply remove the door by continuing to close it
while pulling it upwards at the same time until it is
released from its seating. Put the door to one side,
resting it on a soft surface.
Apply gentle pressure to check that the catches are in
the correct position.
5. Try closing the door and check to make sure
that it lines up with the control panel. If it does not,
repeat the steps above: The door could become
damaged if it does not work properly.
10
Page 11
Quick guide
TROUBLESHOOTING
Problem Possible cause Solution
EN
The oven is not working. Power cut.
Disconnection from the
mains.
The door will not open. Cleaning cycle in
progress. Fault with the
door lock.
The display shows the letter “F”
followed by a number.
Software problem. Contact you nearest Client After-sales
Check for the presence of mains electrical
power and whether the oven is connected
to the electricity supply.
Turn off the oven and restart it to see if the
fault persists.
Wait for the function cycle to end and the
oven to cool down.
Turn off the oven and restart it to see if the
fault persists.
Service Centre and state the number
following the letter “F”.
11
Page 12
USEFUL TIPS
HOW TO READ THE COOKING TABLE
The table lists the best function, accessories and level
to use to cook various different types of food.
Cooking times start from the moment food is placed
in the oven, excluding preheating (where required).
Cooking temperatures and times are approximate
and depend on the amount of food and the type
of accessory used. Use the lowest recommended
settings to begin with and, if the food is not cooked
enough, then switch to higher settings. Use the
accessories supplied and preferably dark-coloured
metal cake tins and baking plates. You can also use
Pyrex or stoneware pans and accessories, but bear in
mind that cooking times will be slightly longer.
COOKING DIFFERENT FOODS AT THE SAME TIME
Using the “Convection Bake” function, you can cook
different foods which require the same cooking
temperature at the same time (for example: fish and
vegetables), using different shelves. Remove the food
which requires a shorter cooking time and leave the
food which requires a longer cooking time in the
oven.
12
You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:
• Visiting our website docs . whirlpool . eu
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When
contacting our After-sales Service, please state the codes provided on your product's identication
plate.
400011369373
Model: xxxXXXXxx
XXXXXXXXXXXXXX
Loading...
