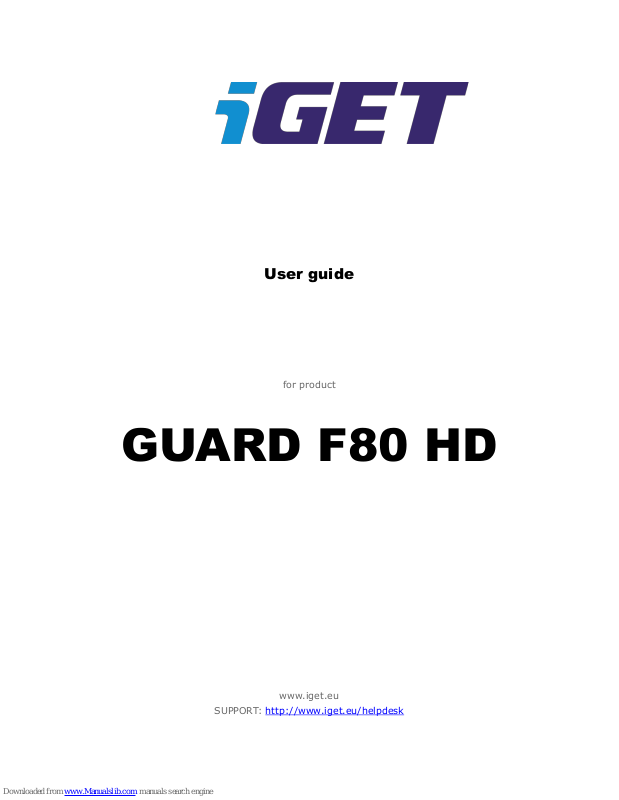

Iget Guard F80 HD User Manual

User guide

for product

GUARD F80 HD

www.iget.eu

SUPPORT: http://www.iget.eu/helpdesk

Dear Users:

Thank you for buying this high-resolution car DVR. This product is characterized by advanced
technology, unique appearance and strong function.
This manual provides the detailed instructions regarding how to use this device and other detailed
information, including use, operation, technical specifications, etc.. Before use, please read this
manual carefully and be sure to understand it completely. Please keep this manual properly. We
hope that this product can meet your demand and we would like to serve you for long time!

Install and remove memory card

1. As per the direction indicated, insert the memory card into the card slot until it is fixed firmly in
the slot.

2. When taking the memory card, slightly press the memory card; after it is ejected out, you may
take it out.

3. If no card is inserted, the screen will display the information “No TF card!”

Note:

1. Please make sure the direction in which you insert the card is right. Otherwise, the device and
the memory card may be damaged.

2. After the memory card is inserted into the device, the device will set the memory card.

3. The documents and data occurring in the use of this device should be backed up. Should any
loss, we will not assume any legal responsibilities arising thereform.

4. For the first use of TF, please use the “Format” tool in the “System Setup” in the device to

format the TF card.

Product Characteristics

 Super small portable mini car DVR facilitates the easy photo and video taking, audio

recording and free high-definition image capture in various situations.

 2.7″ LTPS TFT LCD;
 4pcs prime lens with focus range of 12cm~infinite;
 High-definition wide angle camera;
 4X digital zoom;
 Video specs: MJPEG (AVI)
 Inbuilt with microphone (speaker);
 Supports the function of video while charging;
 Supports high-capacity T-flash card;
 Supports moving detection photograph function.

The number of shots & time of video recording (only for reference)

TF
Card

(HD)

(D1)

(640P)

1280*1024

(1M)

1600*1200
(2M)

2048*1536

(3M)

2592*1944

(5M)

16G

240 min

298 min

530 min

12160(pcs)

11500(pcs)

10960(pcs)

9440(pcs)

8G

120 min

149 min

265 min

6080(pcs)

5890(pcs)

5530(pcs)

4720(pcs)

4G

60 min

74 min

132 min

3040(pcs)

2900(pcs)

2760(pcs)

2360(pcs)

2G

30 min

37 min

66 min

1520(pcs)

1450(pcs)

1380(pcs)

1180(pcs)

1G

15 min

18 min

33 min

760(pcs)

725(pcs)

690(pcs)

590(pcs)

Note: The number of shots that can be taken will vary depending on device settings, the subject
and the memory card used.

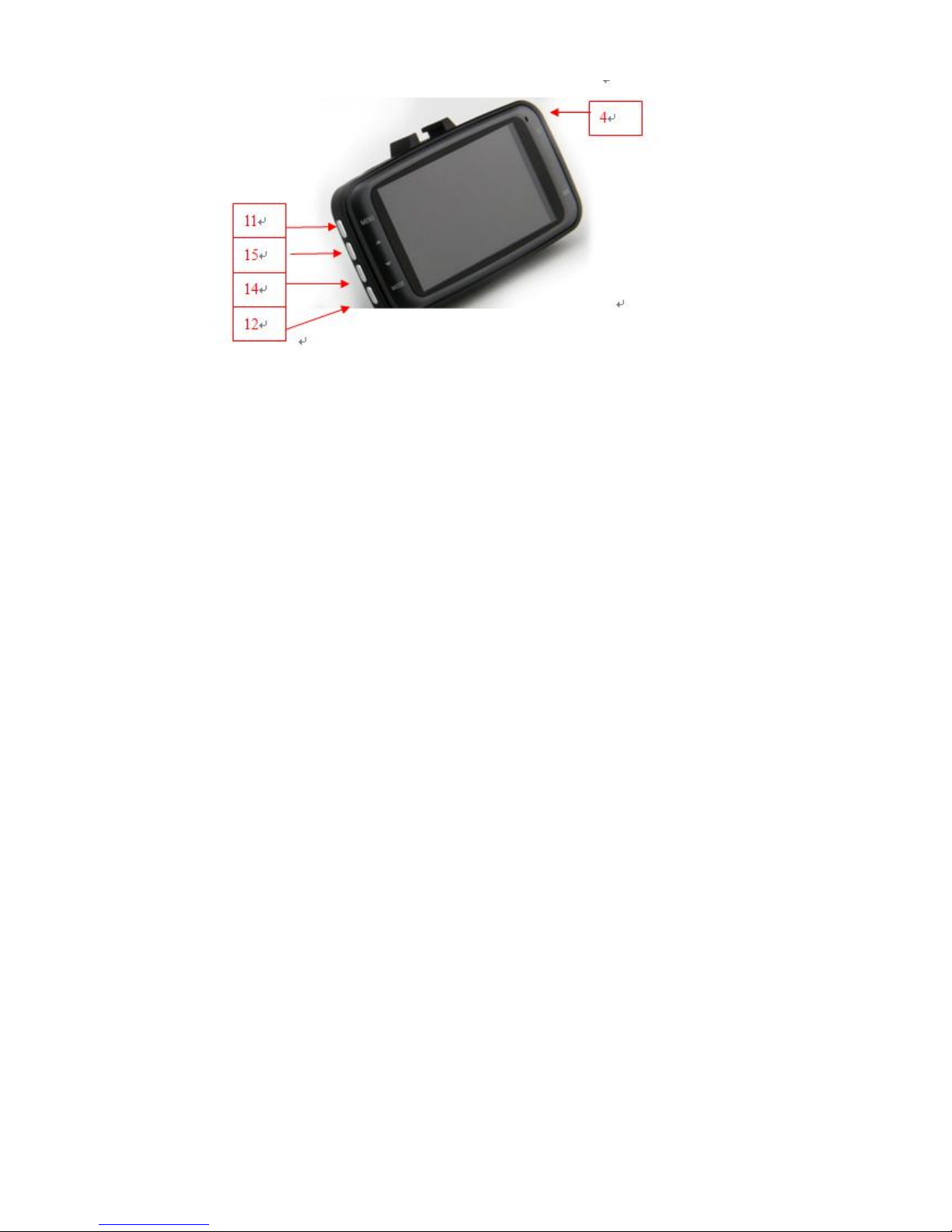

Product Structure

1. Infrared lamp 2. Lens 3. TF card slot

4. Lithium battery charging indicator (red) 5. Microphone 6. LCD Screen

7. Speaker 8. Onboard bracket 9. RESET key

10. POWER key 11. MENU key 12. MODE key

13. OK key 14. Down key 15. Up key

16. USB port
